Recent Advances in Randomized Caches

Systematic Analysis of Randomization-based Protected Cache Architectures

IEEE S&P, 2020

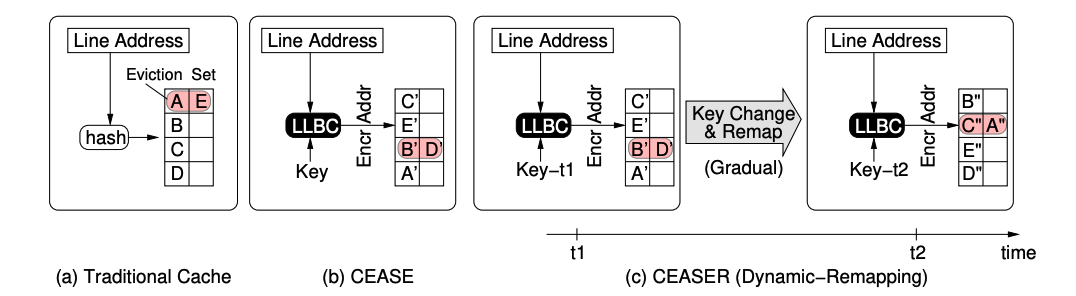

Randomized Caches

  1. Interference is a fundamental property in caches due to its finite size
  2. This interference can be exploited strategically to extract secret data - premise of cache side channels
  3. Randomized caches is a promising solution to mitigate it

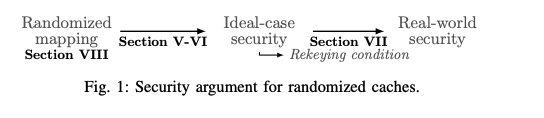

  1. Can we accurately compare security levels for randomized caches?
  2. How realistic are security levels reported for secure randomized caches?
  3. Do secure randomized caches provide substantially higher security levels than regular caches?

Key Questions posed by the paper

Key Contributions of the paper

  1. Systematically cover the attack surface of randomized caches
  2. Propose and critically analyze generic randomized cache model that subsumes all proposed solutions in the literature
  3. PRIME+PRUNE+PROBE attack for randomized caches

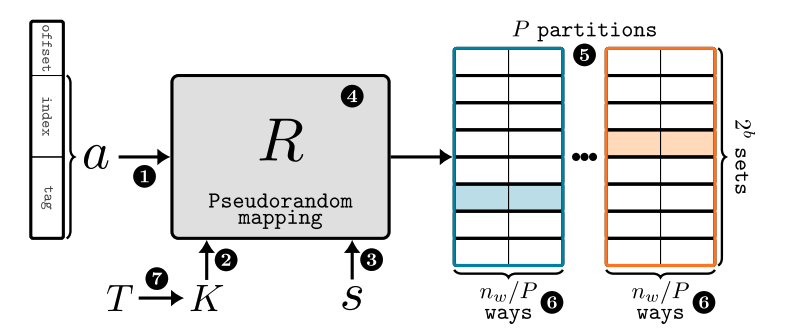

Generic Randomized Cache Model

Memory Address: Physical or Virtual

Key to the mapper: Captures entropy!

Security domain separator: differentiating randomization for processes in different threat domains

Randomized Mapping \( R_K(a,s) \) following Kerchkoff's principle

Different partitions for the cache. Address a has different sets for each partition

Randomly selected partition based on R for storing and replacement

Rekeying Period

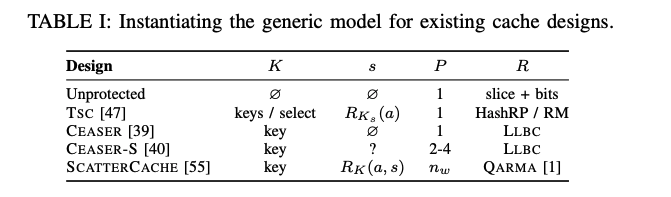

Classifying existing proposals on generic model

Attacker Model - Assumptions

  1. Attacker has full control over the address a
  2. The Key K is considered full-entropy i.e. TRNG
  3. If security domains are considered (s), the attacker can't get the same domain as victim
  4. The absolute output of R is non-observable. Only observable part is the cache contention
  5. Attacker cannot alter the rekeying condition

Attacker Models considered

  • Ideal Black box attack:  The mapping R behaves ideally; noise free system
  • Non-ideal black box attack:  Noise and multiple victim accesses
  • Shortcut attacks: Internals of R are known to mount an attack

Exploiting Contention on Randomized Caches

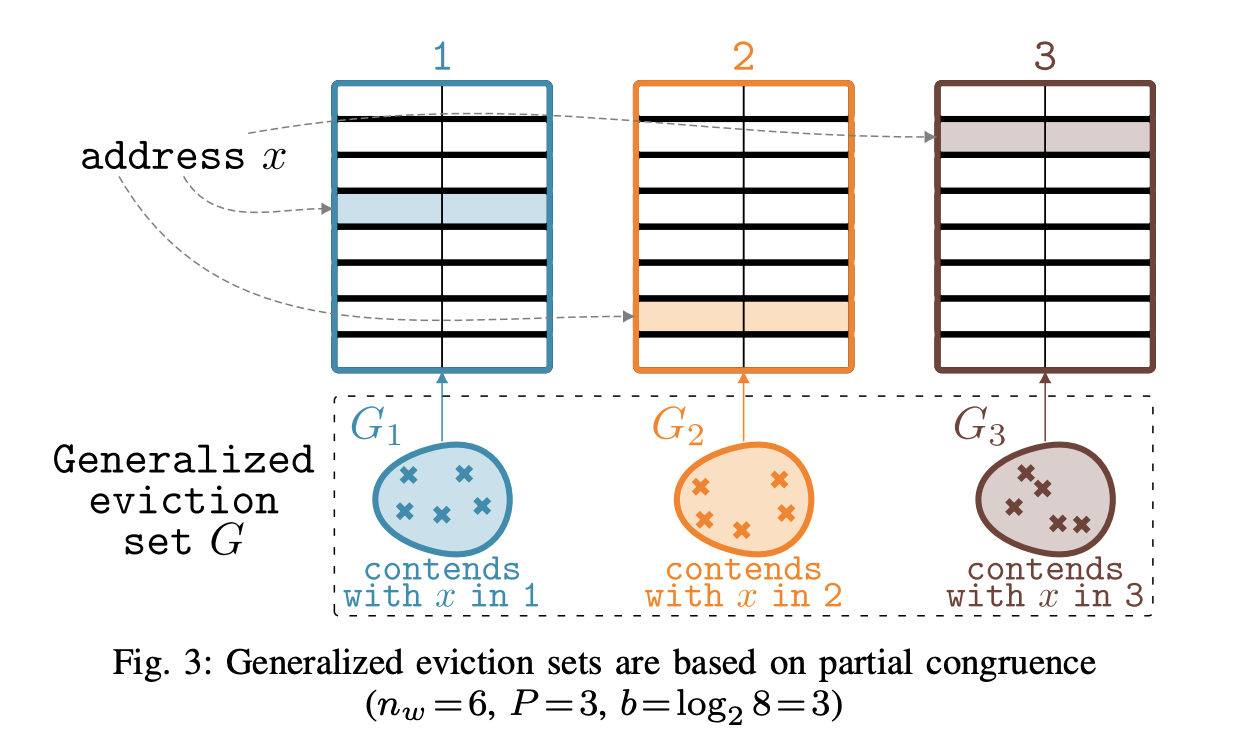

Generalized Eviction Set

\( G = \cup_{i=1}^P G_i \)



Eviction Probability

For Random Replacement

For \( G_i = \frac{|G|}{P}, 1\leq i \leq P \)

\( p_{rand}(|G|) = 1- (1 - \frac{1}{n_w})^{\frac{|G|}{P}} \)

For LRU

Binominal with \( \frac{|G|}{P} \) trials with \( \frac{n_w}{P} - 1 \) successes, and success probability \( \frac{1}{P} \)

\( p_{LRU}(|G|) \ = 1 - \sum_{i=0}^{\frac{n_w}{P}-1} {\frac{|G|}{P} \choose i} (\frac{1}{P})^i (1-\frac{1}{P})^{\frac{|G|}{P} - i} \)

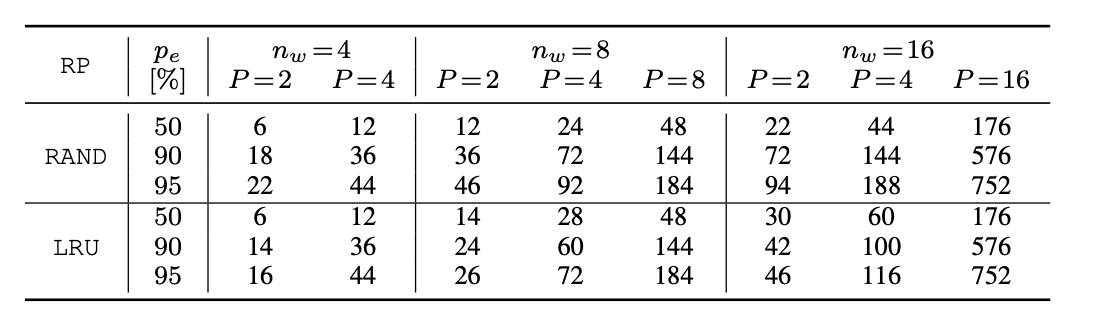

Generalized Eviction Set Size

Takeaway: Always rely on partial congruence!

Constructing Eviction Sets

  • Once G is constructed, attacking is simple. But how to construct G?
  • Conventionally, G is constructed by reducing a large set of addresses to a smaller set
  • The authors suggest that a bottom-up approach will yield superior results for randomized caches

Prime + Prune + Probe

  • In Prime step, the attacker accesses a set of k addresses
  • In Prune step, the attacker re-accesses the set iteratively until there are no self-evictions
    • Initially, if there are self-evictions the set is accessed again hoping that the eviction will go off
    • If there is still a self-eviction that is detected - the corresponding accessed address is aggressively pruned from the eviction set
  • Probe is the conventional method.

Check paper for more optimizations!

Lifting Idealizing Assumptions

  • Victim accesses more addresses than just the target address x
    • ​Static accesses -> accessing code and data section
    • dynamic accesses -> data-dependent accesses
    • The attacker cannot distinguish between the two
  • Follow a two-phase approach
    • Collect a super-set of addresses that collide with all static and dynamic addresses of the victim
    • Form disjoint set of addresses for each target address
    • static addresses are statistically accessed more often
      • This can be exploited and can be used to distinguish both by controlling the input
      • Generate a histogram for all target addresses and eliminate the ones that are accessed more often!

Lifting Idealizing Assumptions

  • System Noise is another major concern
    • This can add uncertainties to the PRIME+PRUNE+PROBE
  • Prune step might take out valuable candidates due to system noise
  • Solution: Early-abort pruning. Don't go till all collisions are removed

Shortcut Attacks

Refer to our work on BRUTUS!

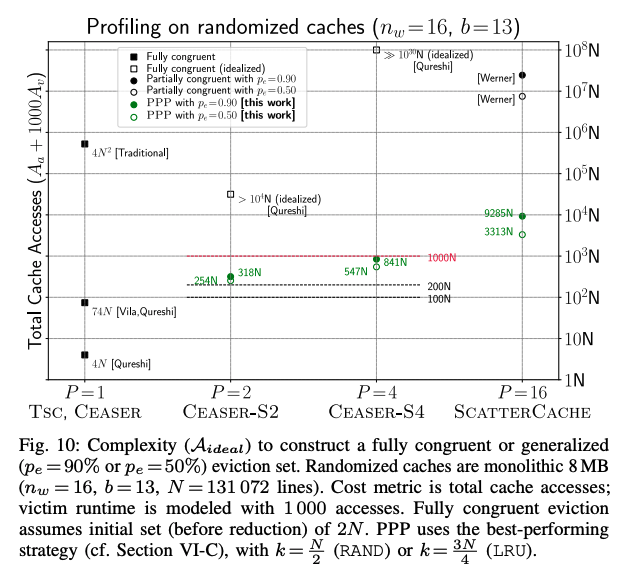

Number of Cache Accsses with PPP

Future Work Suggestions

  • Stringent latency restrictions could inspire new and novel designs in low-latency cryptography
  • The rekeying period may be varied for different security levels
  • Cache attacks have two phases profiling (Eviction set building) and execution (P+P, P+P+P, E+R, F+R). The profiling space has a lot of opportunities for improvement

CaSA: End-to-end Quantitative Security Analysis of Randomly Mapped Caches

MICRO 2020
