web组件化

过去

<link href="a.css" rel="stylesheet" type="text/css" />
<link href="b.css" rel="stylesheet" type="text/css" />

<?php include 'a.php';?>
<?php include 'b.php';?>

<script src="a.js"></script>
<script src="b.js"></script>

现在

• html预处理
• css预处理
• js模块化

html预处理

• jade
• slim
• haml

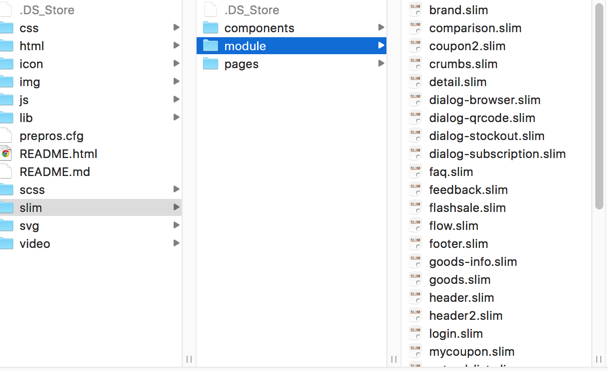

结构

<link href="index.css" rel="stylesheet" type="text/css" />

== Slim::Template.new('../../module/a.slim').render
== Slim::Template.new('../../module/b.slim').render

<script data-main="index" src="../../vender/require.js"></script>

css预处理/后处理

• less
• sass(scss)
• stylus
• postcss

scss

@import '../modules/a';
@import '../modules/b';

js模块化

• AMD(require.js)
• CMD(sea.js)
• commonjs
• ES2015(babel.js)

require.js

require.config({
  paths:{
    jquery:"../../vender/jquery-1.7.1.min" ,
    elevator:"../../modules/elevator/index"
  }
});

require(['jquery', 'elevator'],function($, elevator){

});

解决了问题

• 请求过多
• 依赖后端服务器

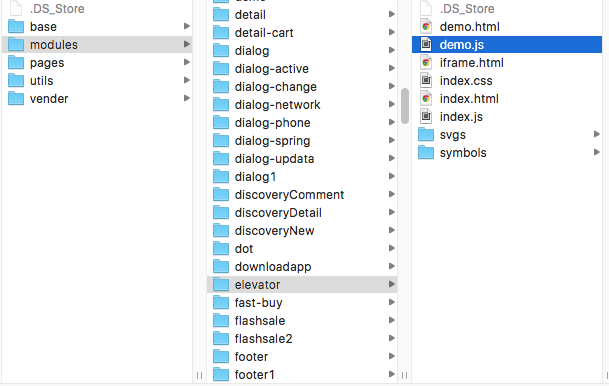

改进

gulp-html-tag-include

<link href="index.css" rel="stylesheet" type="text/css" />

<include src="../../modules/a/index.html"></include>
<include src="../../modules/b/index.html"></include>

<script data-main="index" src="../../vender/require.js"></script>

postcss

@import '../../modules/a/index.css';
@import '../../modules/b/index.css';

gulp-svg-sprites

gulp.task("svg", function () {
  for(var i in modules){
    if(modules[i] !== '.DS_Store'){
      gulp.src("src/modules/"+modules[i]+"/svgs/*.svg")
          .pipe(svgSprite({
            mode: "symbols",
            common: "svg",
            selector: "icon-%f"
          }))
          .pipe(gulp.dest("src/modules/"+modules[i]+"/symbols"))
    }
  }
});

解决了以前的问题

• 组件太分散，模块多了找起来费劲
• 组件无预览效果，不知道长啥样，得去页面看
• 不知道图片对应哪个模块，改版下来，很多东西冗余了

未来

web component

web component

• custom elements
• html import
• templates
• shadow dom

custom elements

<hangout-module>
  <hangout-chat from="Paul, Addy">
    <hangout-discussion>
      <hangout-message from="Paul" profile="profile.png"
          profile="118075919496626375791" datetime="2013-07-17T12:02">
        <p>Feelin' this Web Components thing.</p>
        <p>Heard of it?</p>
      </hangout-message>
    </hangout-discussion>
  </hangout-chat>
  <hangout-chat>...</hangout-chat>
</hangout-module>

Templates

<div id="nameTag">Bob</div>
<template id="nameTagTemplate">
<style>
.outer {
  border: 2px solid brown;

</style>
<div class="outer">
  <div class="boilerplate">
    Hi! My name is
  </div>
  <div class="name">
    Bob
  </div>
</div>
</template>

Shadow DOM

<script>
var shadow = document.querySelector('#nameTag').createShadowRoot();
var template = document.querySelector('#nameTagTemplate');
var clone = document.importNode(template.content, true);
shadow.appendChild(clone);
</script>

HTML Imports

<link rel="import" href="/path/to/imports/stuff.html">

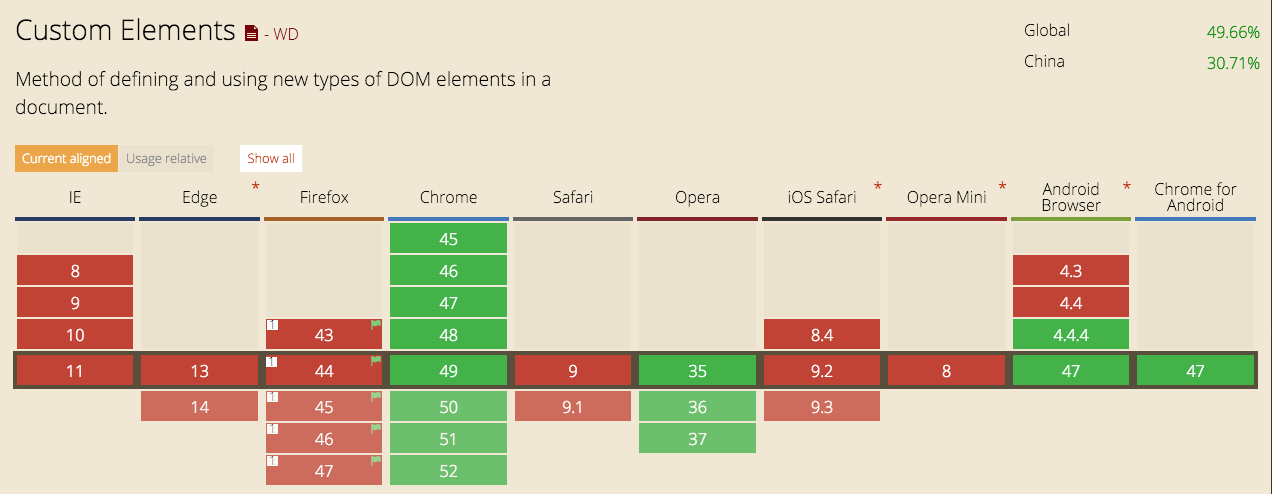

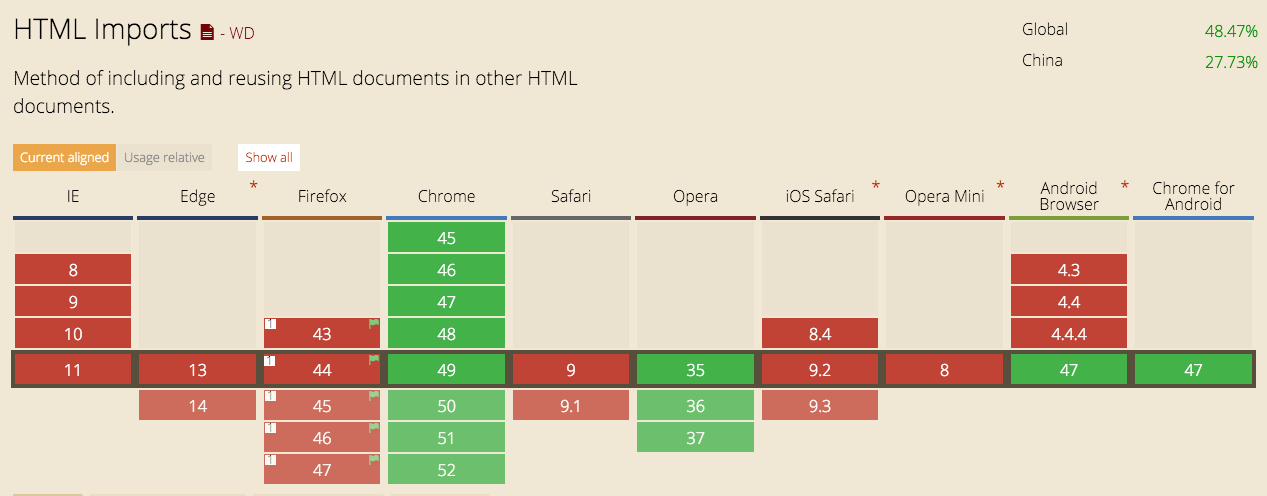

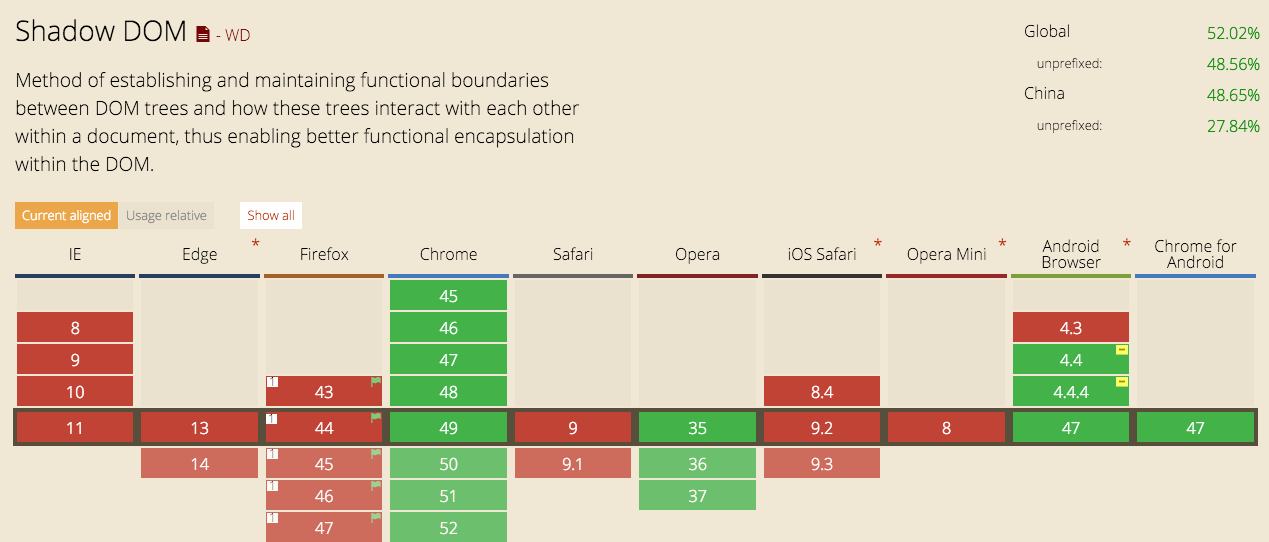

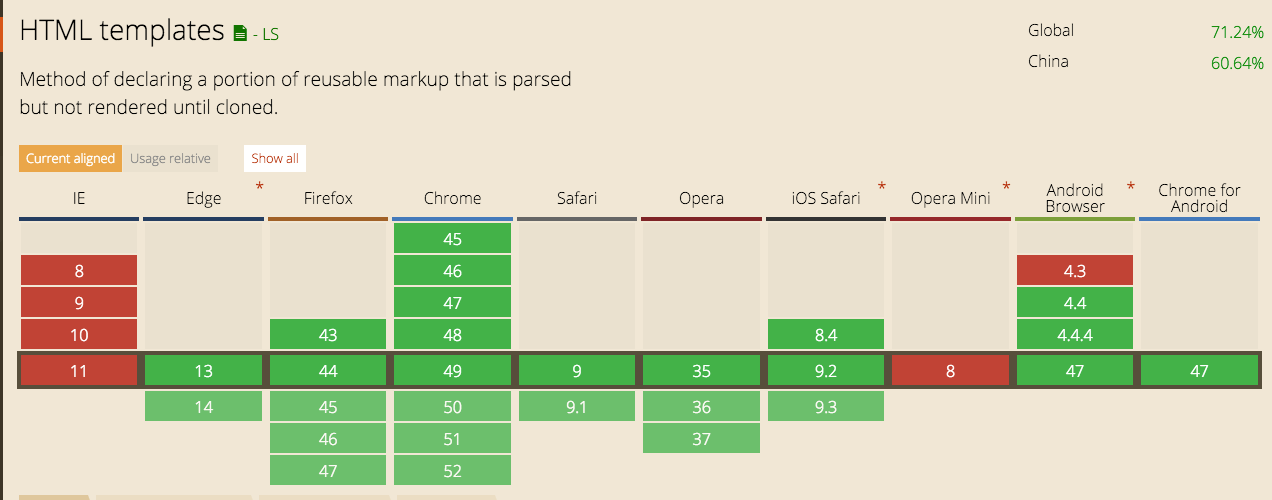

兼容

兼容

兼容

兼容

polifills

webcomponentjs

webcompont框架

• polymer
• e-tag
• bosonic

MVVN/MVC框架

• react
• angular
• vue

css模块化

• css modules(css loader)
• scoped css(vue)
• shady dom(polymer)

css modules(before)

import styles from './ScopedSelectors.css';
import React, { Component } from 'react';
export default class ScopedSelectors extends Component {
  render() {
    return (
      <div className={ styles.root }>
        <p className={ styles.text }>Scoped Selectors</p>
      </div>
    );
  }
};

.root {
  border-width: 2px;
  border-style: solid;
  border-color: #777;
  padding: 0 20px;
  margin: 0 6px;
  max-width: 400px;
}

.text {
  color: #777;
  font-size: 24px;
  font-family: helvetica, arial, sans-serif;
  font-weight: 600;
}

css modules(after)

.ScopedSelectors__root___16yOh {
  border-width: 2px;
  border-style: solid;
  border-color: #777;
  padding: 0 20px;
  margin: 0 6px;
  max-width: 400px;
}

.ScopedSelectors__text___1hOhe {
  color: #777;
  font-size: 24px;
  font-family: helvetica, arial, sans-serif;
  font-weight: 600;
}

<div class="ScopedSelectors__root___16yOh">
    <p class="ScopedSelectors__text___1hOhe">Scoped Selectors</p>
</div>

scoped css(before)

<style scoped>
.example {
  color: red;
}
</style>

<template>
  <div class="example">hi</div>
</template>

scoped css(after)

<style>
.example[_v-f3f3eg9] {
  color: red;
}
</style>

<template>
  <div class="example" _v-f3f3eg9>hi</div>
</template>

shady dom(before)

<link rel="import" href="../../bower_components/polymer/polymer.html">

<dom-module id="my-greeting">
  <template>
    <style include="shared-styles"></style>
    <style>
      :host {
        display: block;
        color: red;
      }
      input{
        color: red;
      }
    </style>
    <h2 class="page-title">{{greeting}}</h2>
    <span class="paper-font-body2">Update text to change the greeting.</span>
    <!-- Listens for "input" event and sets greeting to <input>.value -->
    <input class="paper-font-body2" value="{{greeting::input}}">
  </template>

  <script>
    (function() {
      'use strict';

      Polymer({
        is: 'my-greeting',

        properties: {
          greeting: {
            type: String,
            value: 'Welcome!',
            notify: true
          }
        }
      });
    })();
  </script>

</dom-module>

shady dom(after)

<my-greeting class="x-scope my-greeting-0">
    <h1 class="page-title style-scope my-greeting">Welcome!</h1>
    <label for="greeting-input" class="style-scope my-greeting">Update text to change the greeting.</label>
    <input id="greeting-input" class="style-scope my-greeting">
  </my-greeting>

.page-title:not([style-scope]):not(.style-scope) {
  font-family: 'Roboto', 'Noto', sans-serif;
      -webkit-font-smoothing: antialiased;

      font-size: 45px;
      font-weight: 400;
      letter-spacing: -.018em;
      line-height: 48px;
}

paper-menu a > *:not([style-scope]):not(.style-scope),paper-menu paper-item > *:not([style-scope]):not(.style-scope),paper-menu paper-icon-item > *:not([style-scope]):not(.style-scope) {
  pointer-events: none;
}

@media (max-width: 600px) {
.page-title:not([style-scope]):not(.style-scope) {
  font-size: 24px!important;
}

}

解决了以前的问题

• 全局命名空间，无法跨项目公用
• 命名人工约定，可能会出现样式冲突

参考资料

• http://www.html5rocks.com/zh/tutorials/webcomponents/shadowdom/
• http://www.html5rocks.com/zh/tutorials/webcomponents/shadowdom-201/
• http://www.html5rocks.com/zh/tutorials/webcomponents/shadowdom-301/
• http://www.html5rocks.com/zh/tutorials/webcomponents/customelements/

未来很美好
