Allegro 2022
Organizational stuff
# docker pull
docker pull gutek/dumpster:v1folder: exercises/XX-
~time
"name"
description
ask, if you do not understand
If you can’t feed a team with two pizzas, it’s too large. That limits a task force to five to seven people, depending on their appetites
Jeff Bezos
?
Docker is popular container platform allowing to run linux* containers on variety of platforms including Windows and Mac.
Docker Inc. provides kubernetes cluster for local development - this cluster is hosted in... containers ;)
It's a good tool to be used on daily basis if we are working with docker too. If not, why bother.
* to serve the greater good of humanity and the World, let's not talk about windows containers...
Docker is popular container platform allowing to run linux* containers on variety of platforms including Windows and Mac.

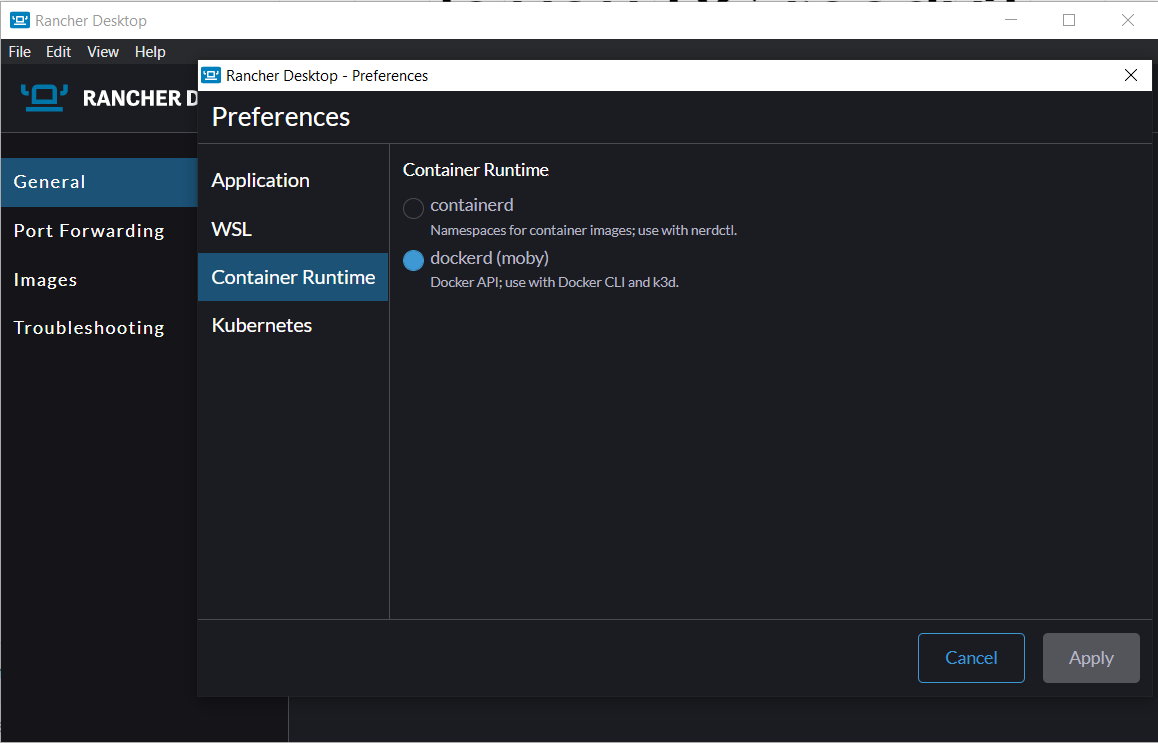

Docker Inc. Rancher provides kubernetes cluster for local development - this cluster is hosted in... containers ;)
It's a good tool to be used on daily basis if we are working with docker too. If not, why bother.
* to serve the greater good of humanity and the World, let's not talk about windows containers...
Minikube is a tool that makes it easy to run Kubernetes locally.
Minikube runs a single-node Kubernetes cluster inside a VM on your laptop for users looking to try out Kubernetes or develop on day-to-day basis.
# linux
sudo apt minikube
# mac
brew install minikube
# win chocolaty
choco install minikube
# other options
https://github.com/kubernetes/minikube/installation

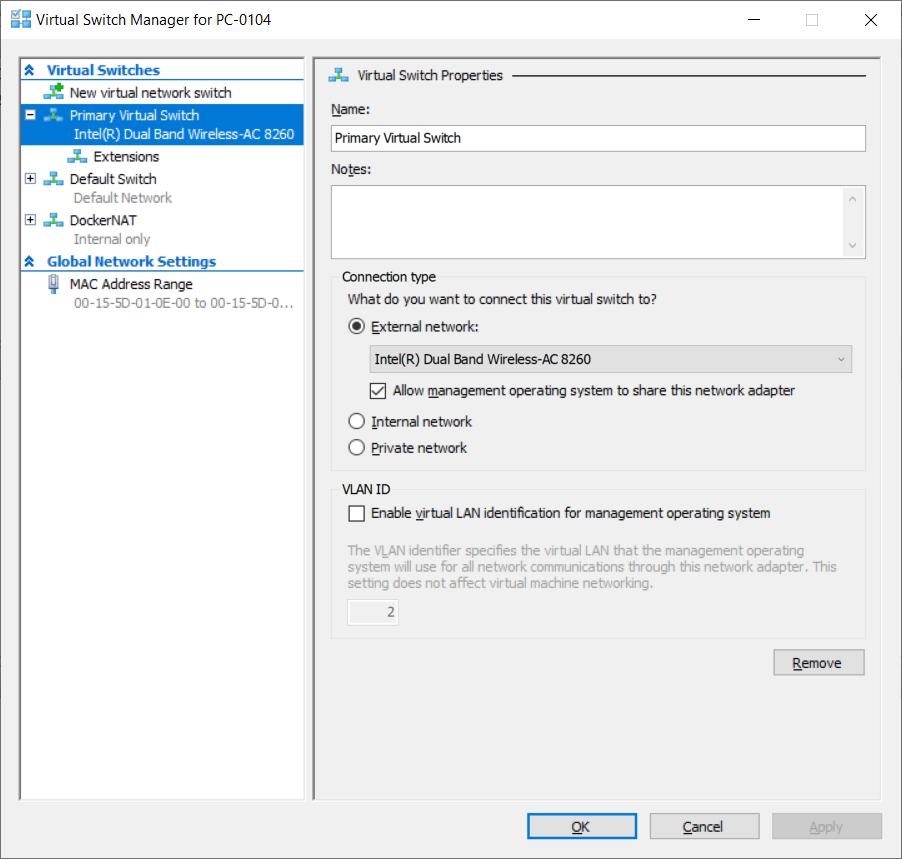

Windows - Hyper-V virtual switch
# start
minikube start
# start full
minikube start --memory 8192 --vm-provider virtualbox
minikube start --vm-driver hyperv --hyperv-virtual-switch "Primary Virtual Switch" --memory 8192
minikube start --memory 8192 --vm-provider none
# destroy
minikube deletebasic commands

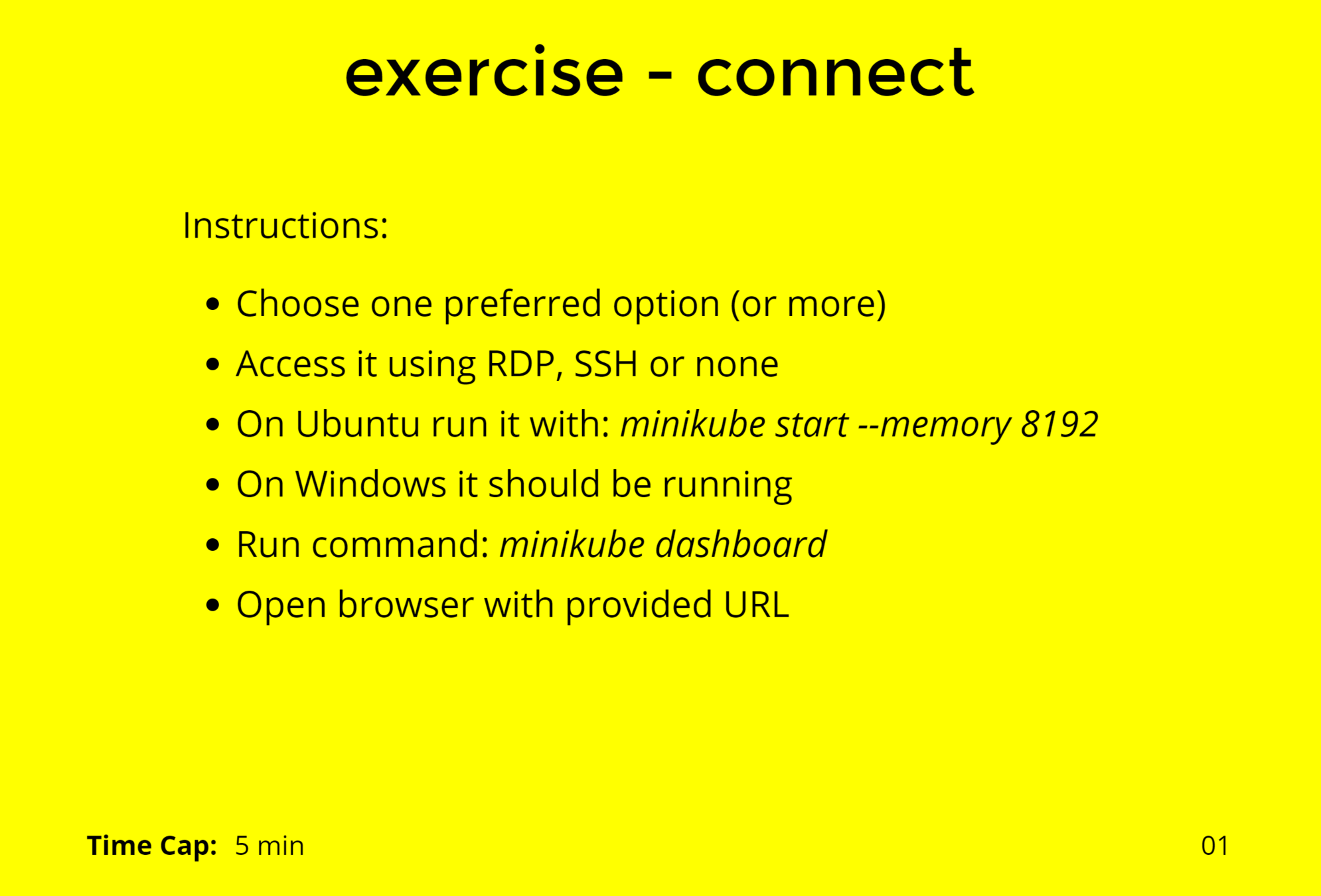

Instructions:
Time Cap:
5 min
01
* plane
Things we should understand to understand basics :)
installation
# linux
sudo snap install kubectl --classic
# mac
brew install kubernetes-cli
# win chocolaty
choco install kubernetes-cli
# win powershell
Install-Script -Name install-kubectl -Scope CurrentUser -Force
install-kubectl.ps1 [-DownloadLocation <path>]
# docker desktop (mac, win)
# already contains it
# other options
# with info how to add autocomplete to shell
https://kubernetes.io/docs/tasks/tools/install-kubectl/verification
$ kubectl version -o json
{
"clientVersion": {
"major": "1",
"minor": "10",
"gitVersion": "v1.10.3",
"gitCommit": "2bba0127d85d5a46ab4b778548be28623b32d0b0",
"gitTreeState": "clean",
"buildDate": "2018-05-21T09:17:39Z",
"goVersion": "go1.9.3",
"compiler": "gc",
"platform": "windows/amd64"
},
"serverVersion": {
"major": "1",
"minor": "11",
"gitVersion": "v1.11.3",
"gitCommit": "a4529464e4629c21224b3d52edfe0ea91b072862",
"gitTreeState": "clean",
"buildDate": "2018-09-09T17:53:03Z",
"goVersion": "go1.10.3",
"compiler": "gc",
"platform": "linux/amd64"
}
}We need kubectl working so make sure that version check did worked for you
tools
01

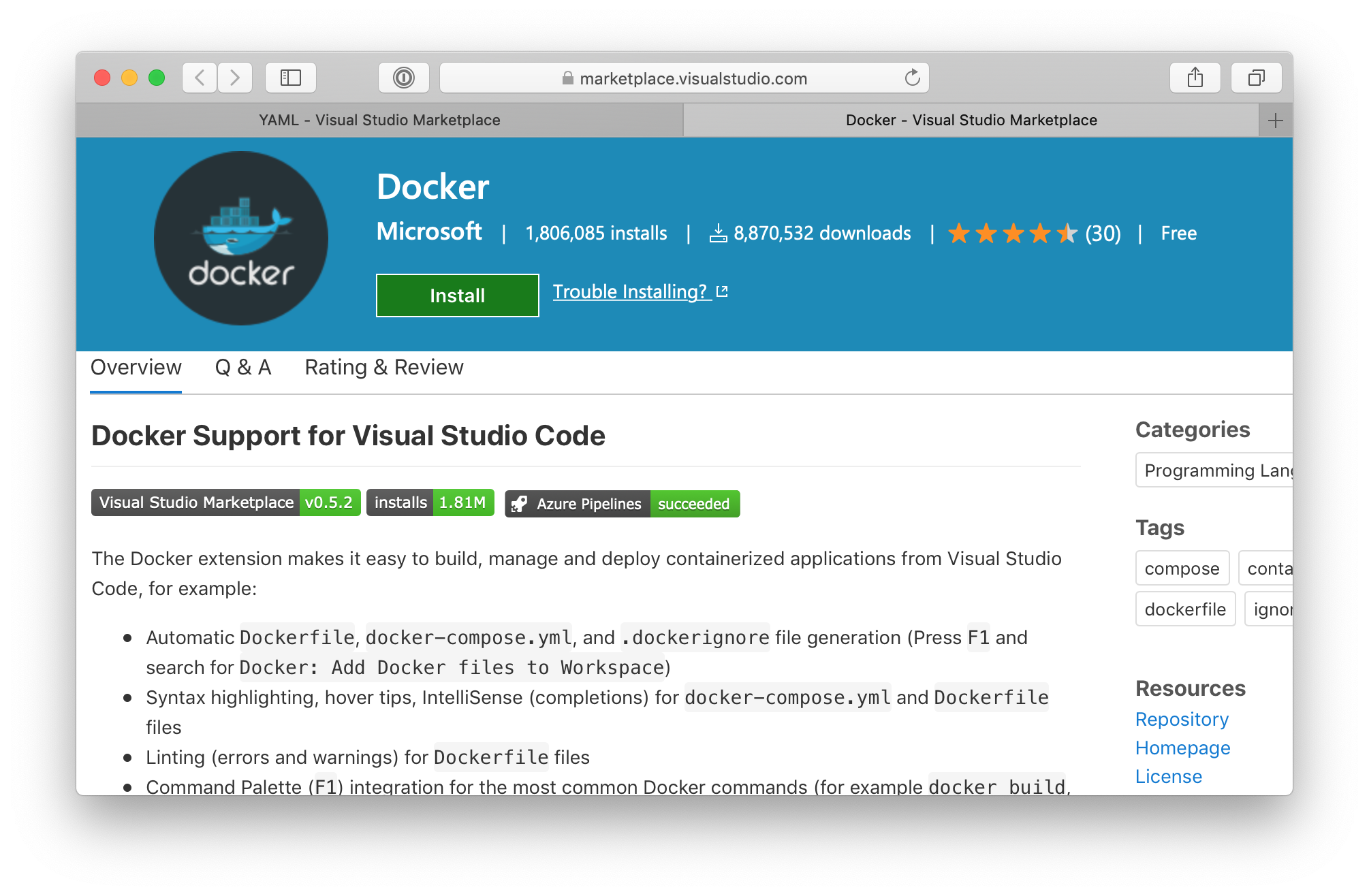

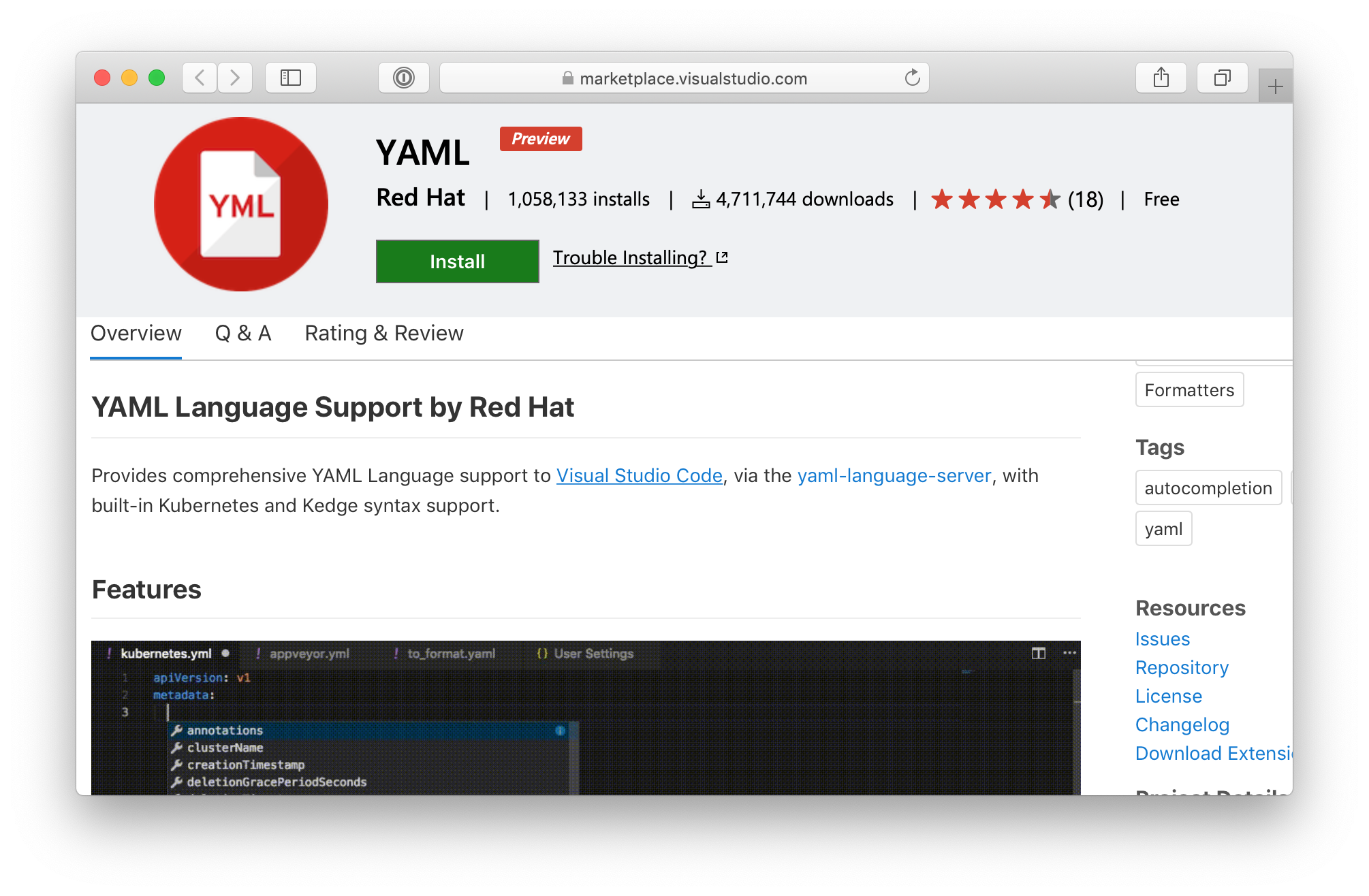

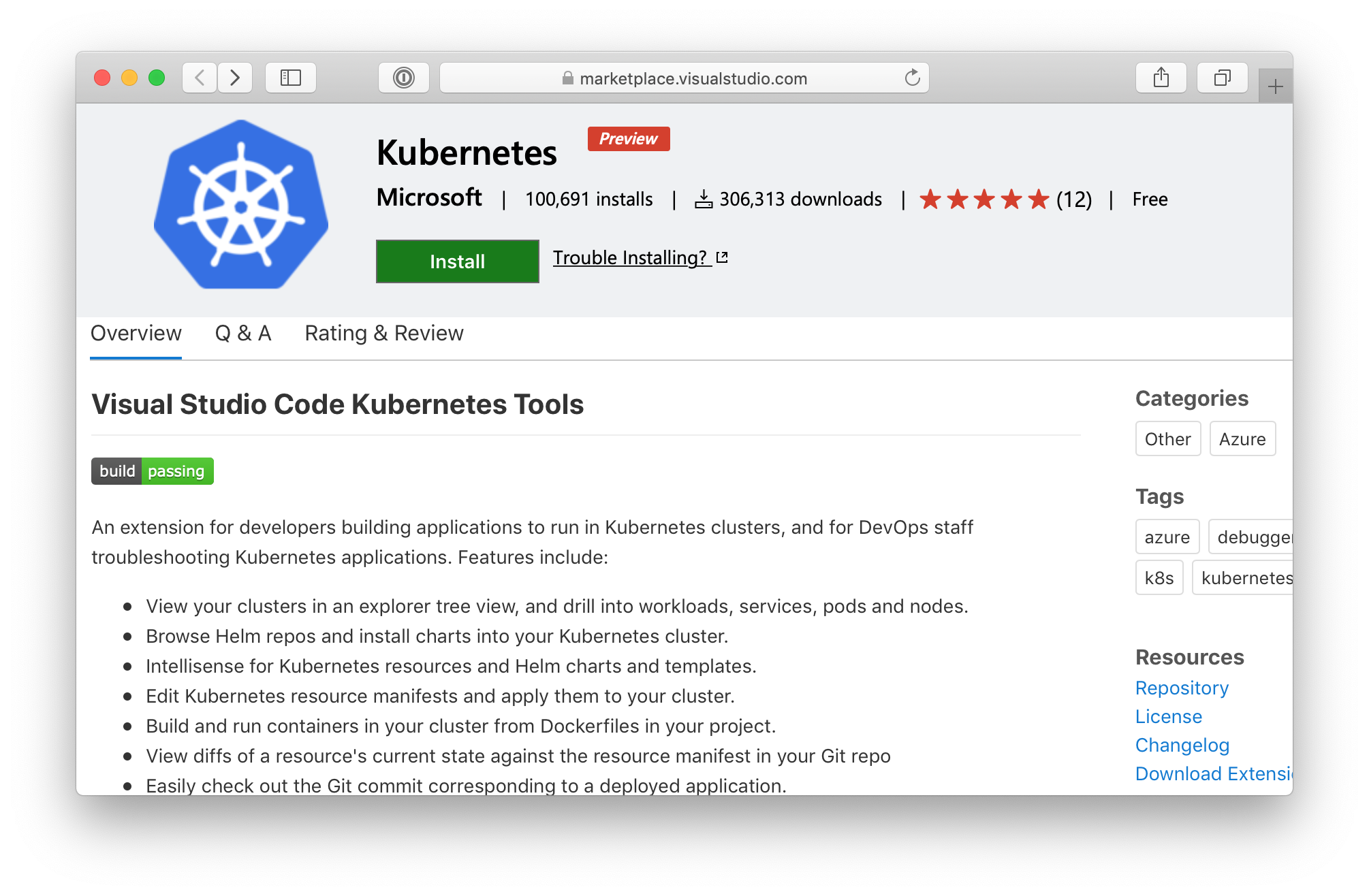

Make sure you have a way to write YAML files - w/ or w/o intellisense
our amazing application
endpoints
code
const http = require('http');
const os = require('os');
const fs = require('fs');
const port = 8080;
const path = '/var/data'
console.log('dumpster server starting...');
const dataHandler = (request, response) => {}
const envHandler = (request, response) => {}
const generalHandler = (request, response) => {}
const requestHandler = (request, response) => {
console.log(`received request from ...`);
response.writeHead(200);
if(request.url === '/data') {}
if(request.url === '/env') { }
console.log('handling general request');
generalHandler(request, response);
};
const server = http.createServer(requestHandler);
server.listen(port, err => {});docker
FROM node:11
ADD app.js /app.js
ENTRYPOINT ["node", "app.js"]alternativly
API walkthrough with definitions
minikube

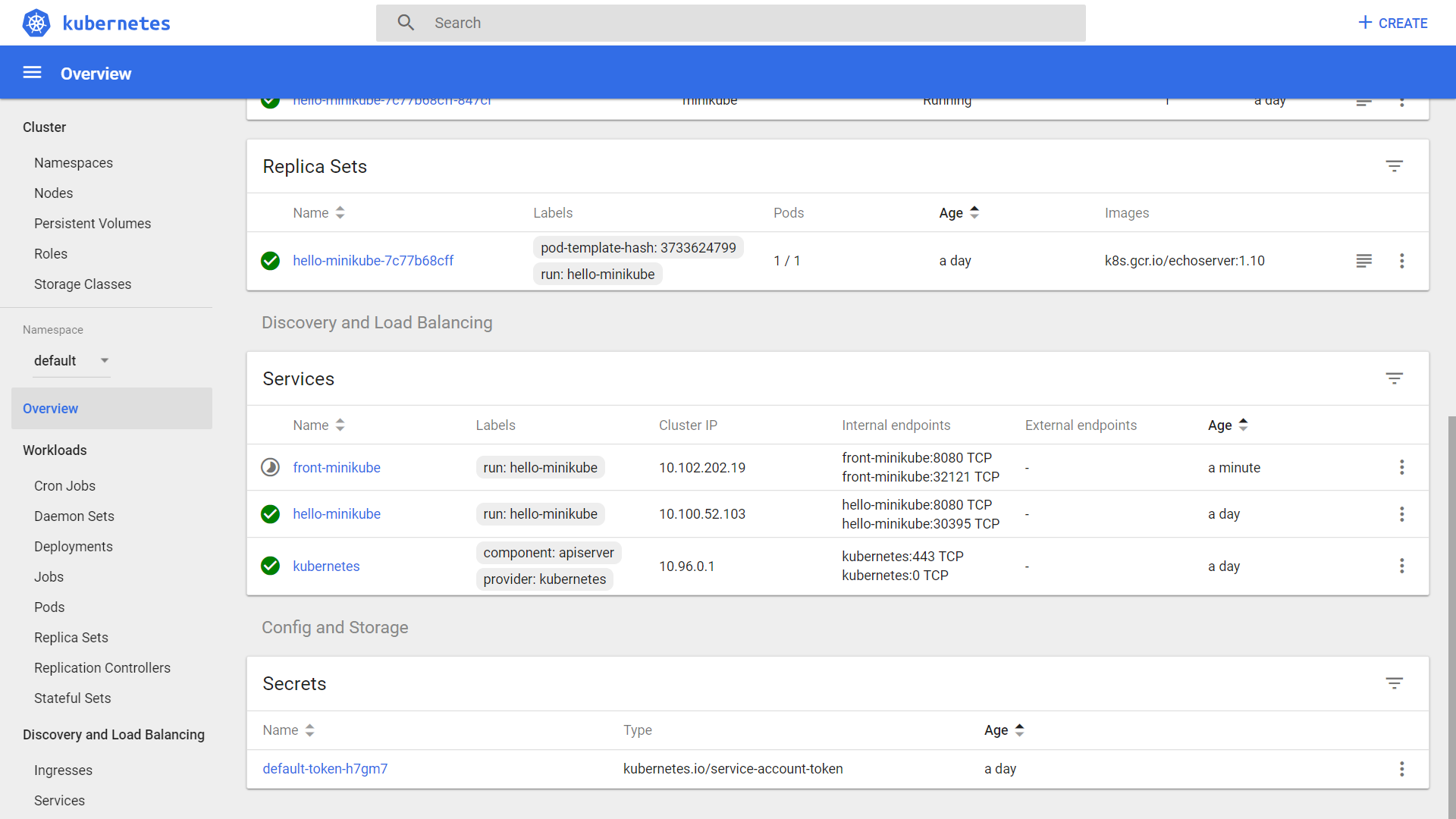

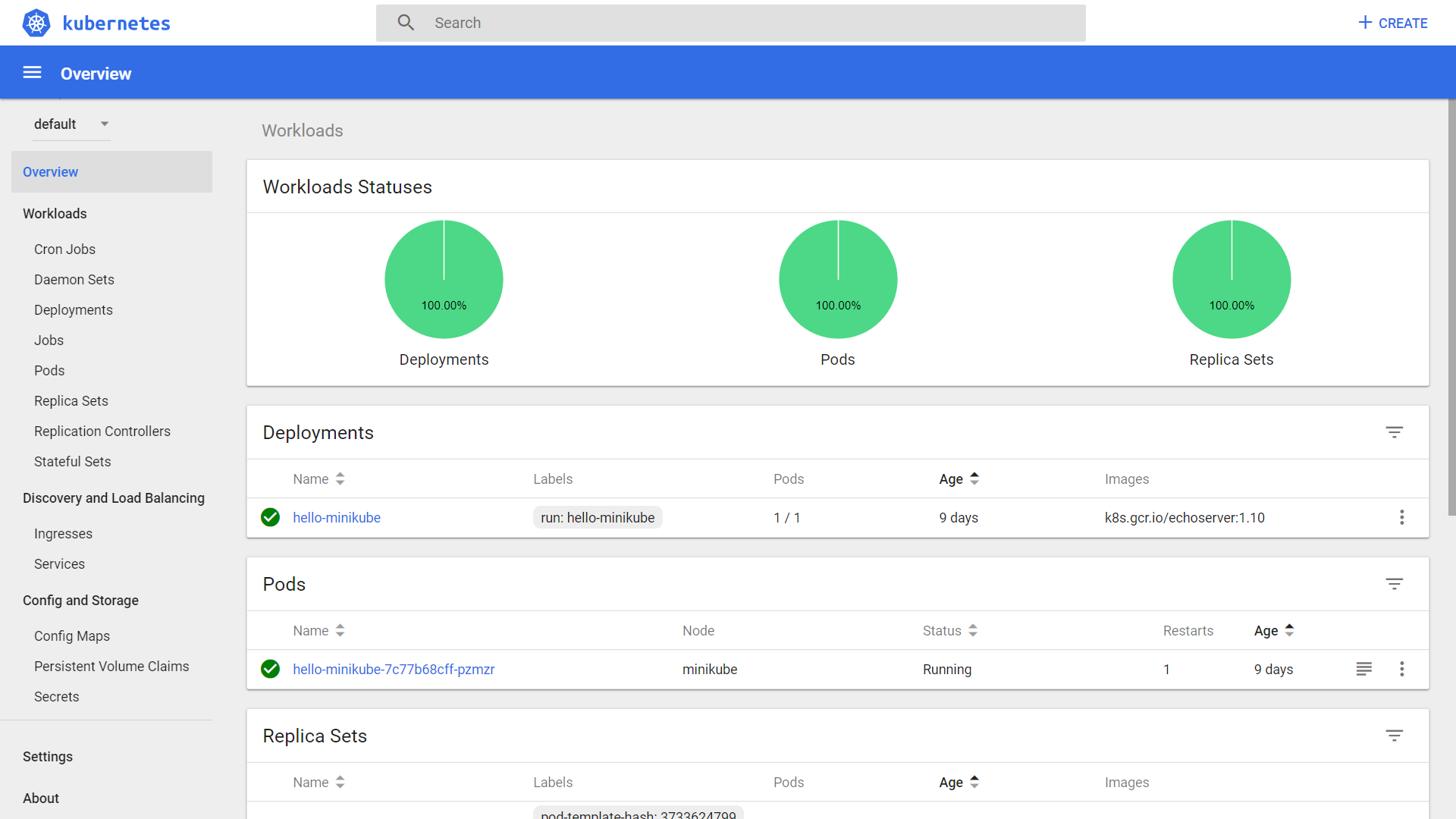

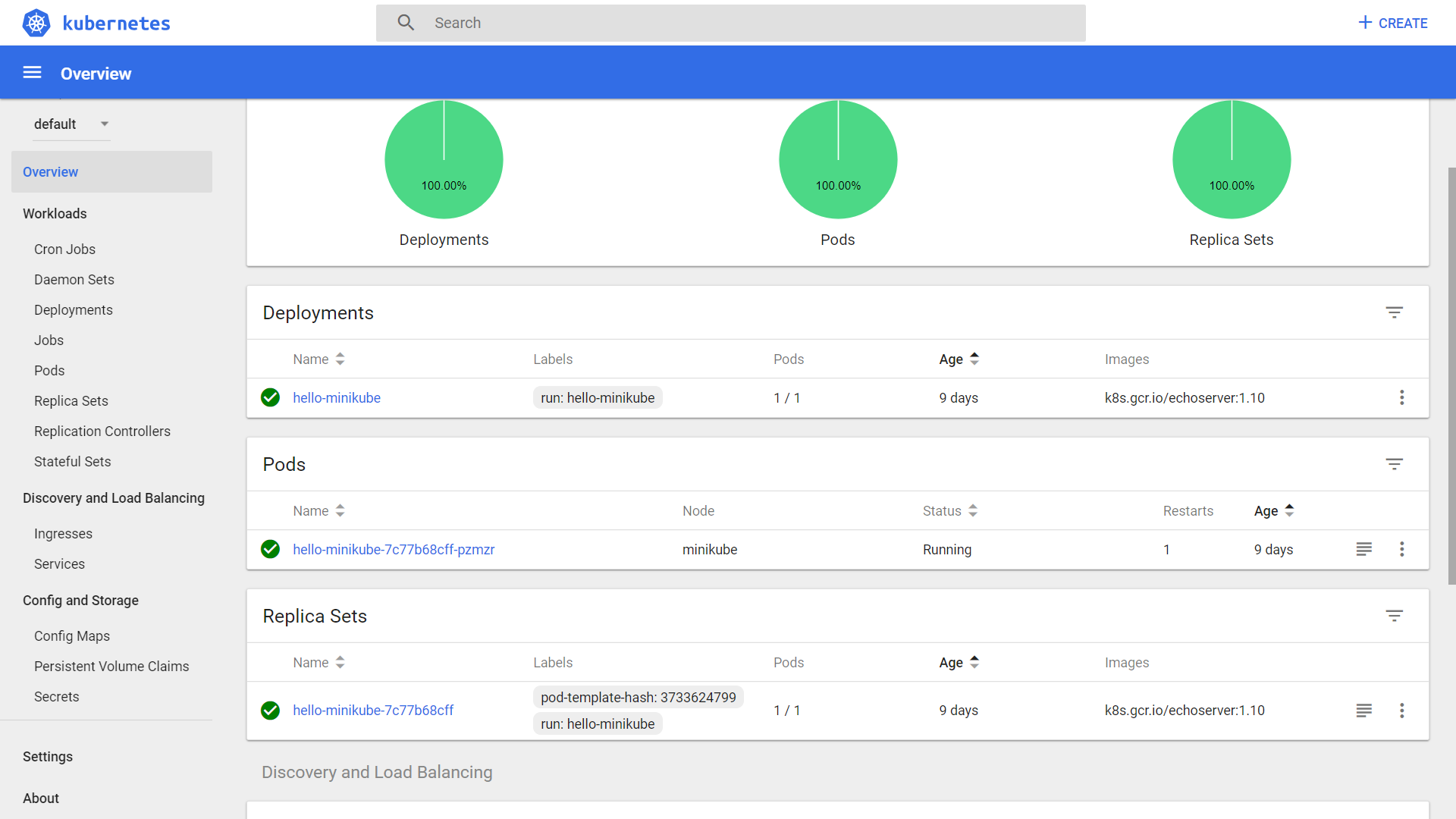

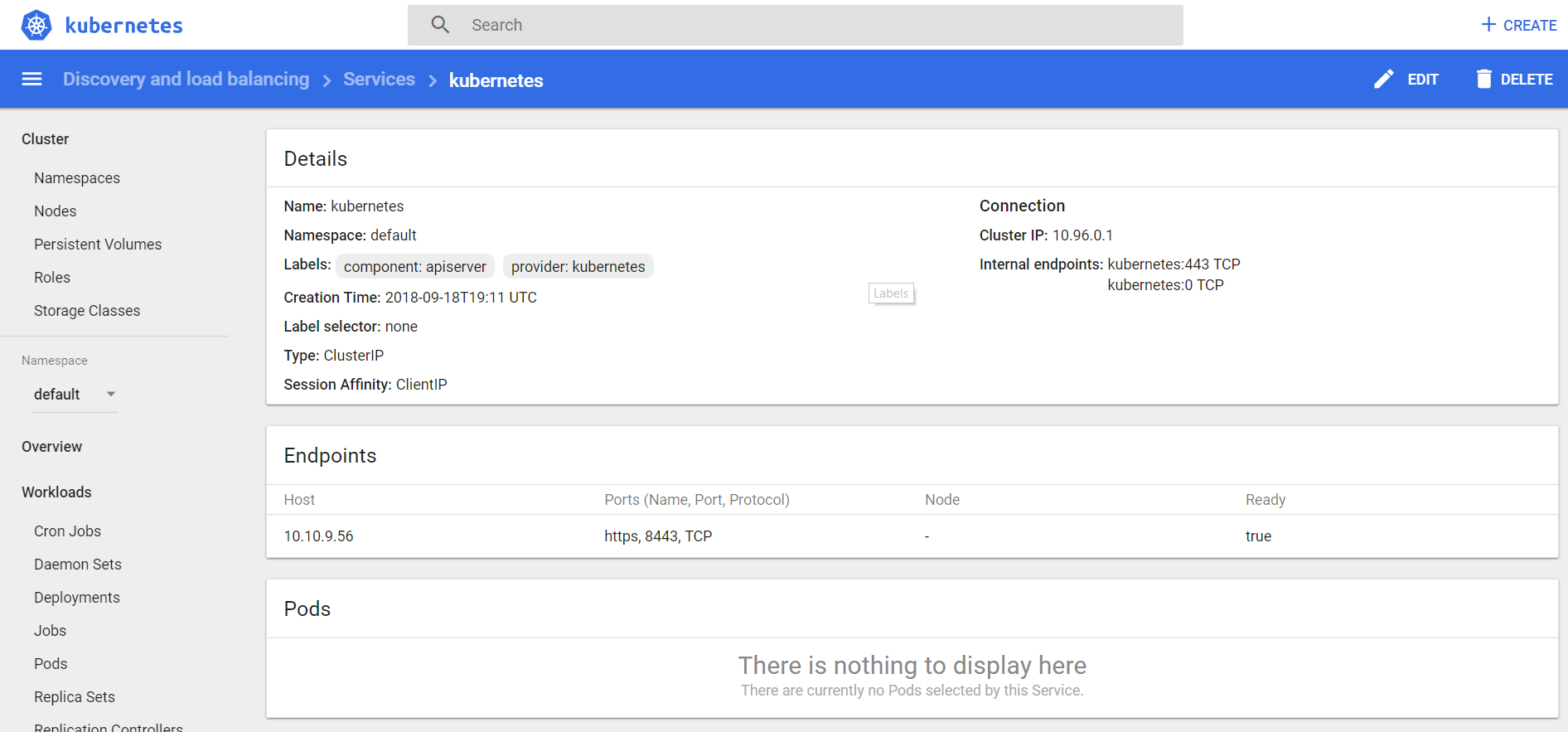

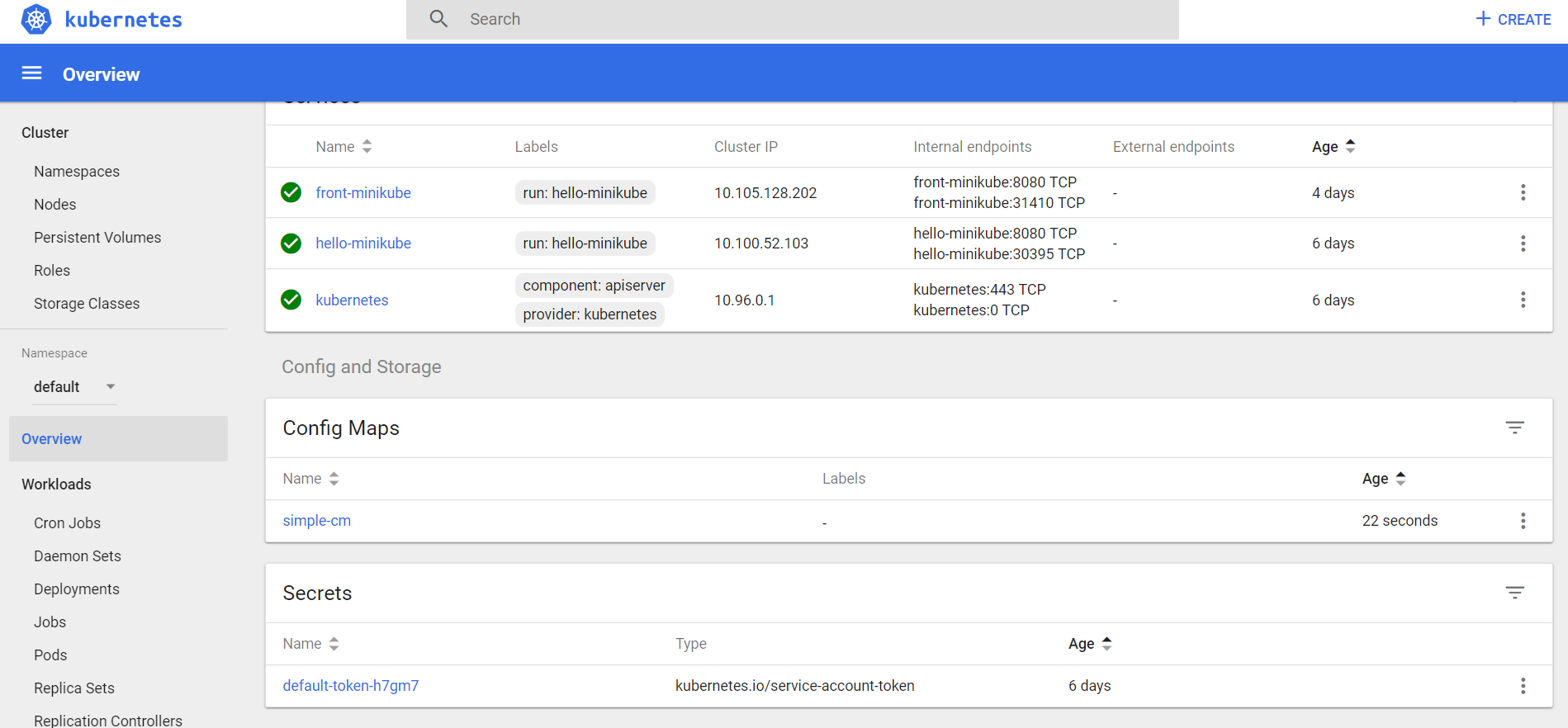

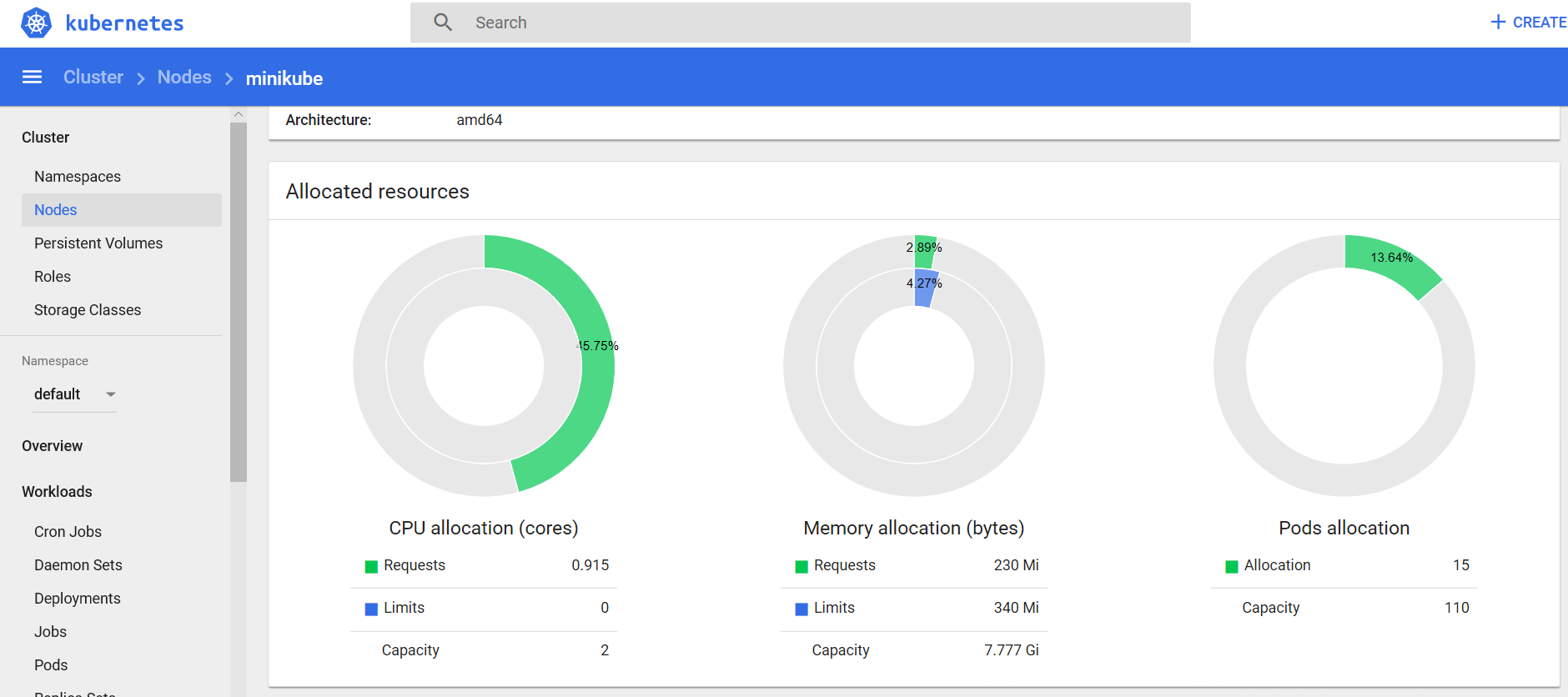

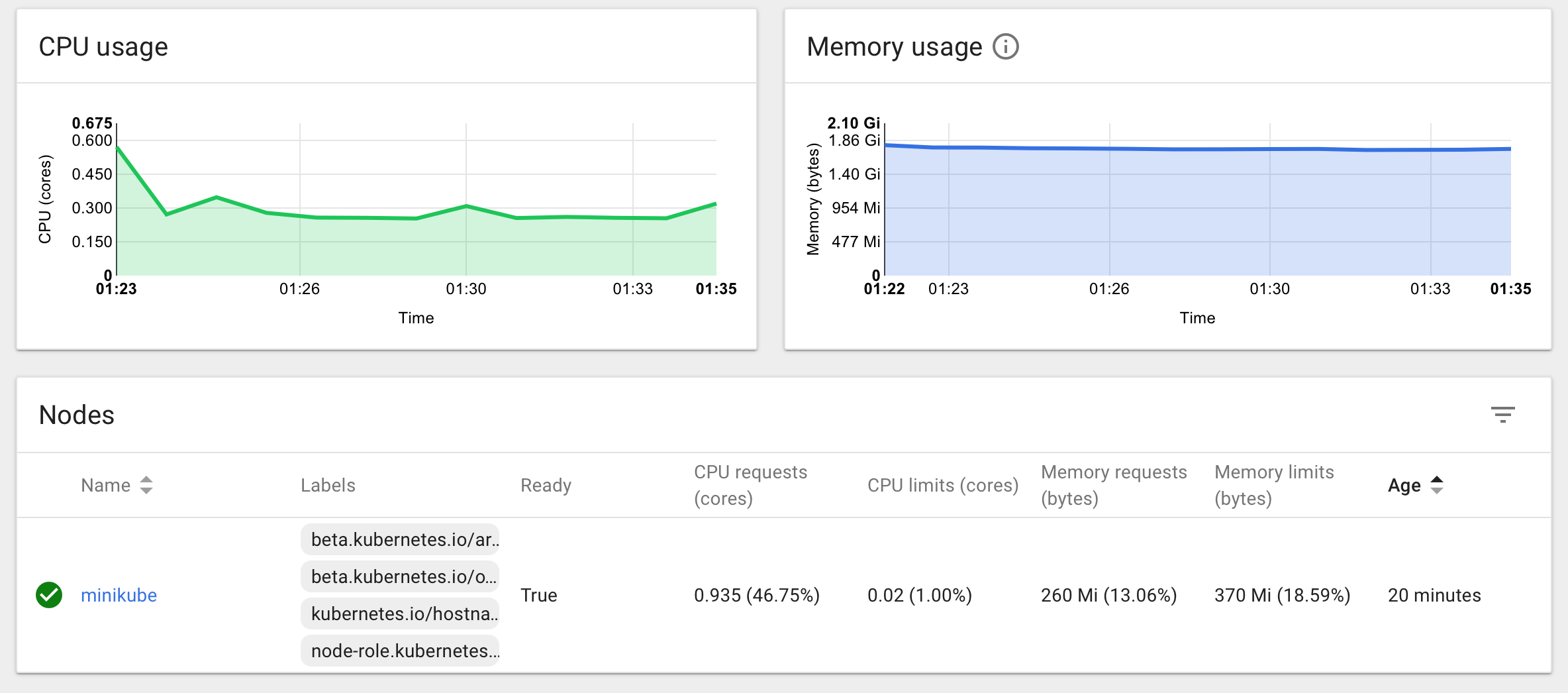

# we can open dashboard by
minikube dashboard
🔌 Enabling dashboard ...
🤔 Verifying dashboard health ...
🚀 Launching proxy ...
🤔 Verifying proxy health ...
🎉 Opening http://127.0.0.1:51160/api/v1/namespaces/
kube-system/services/http:kubernetes-dashboard:/
proxy/ in your default browser...
# or
kubectl proxy
# and then opening url manually:
http://127.0.0.1:8001/api/v1/namespaces/
kube-system/services/http:kubernetes-dashboard:/
proxy/docker
# execute
kubectl create -f https://gist.githubusercontent.com/Gutek/748b5b489532b243e31ce9c069b2a3b6/raw/2c122dd208fcd605c203ce898b6491c53099dd99/dashboard.yaml
# then
kubectl proxy
# wait a moment :)
# and finally open browser (beware of spaces):
http://localhost:8001/api/v1/namespaces/
kubernetes-dashboard/services/
https:kubernetes-dashboard:/proxy/
# whole steps:
https://gist.github.com/Gutek/748b5b489532b243e31ce9c069b2a3b6Instructions:
02

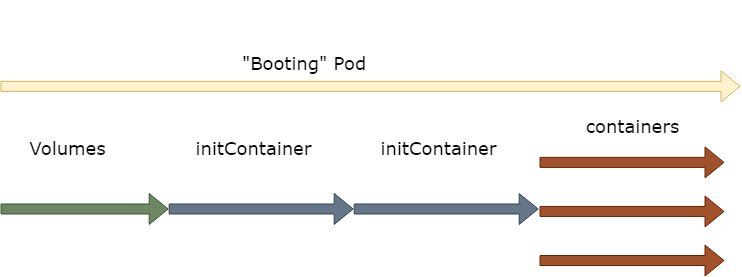

A Pod:
Instructions:
03
Instructions:
Time Cap:
5 min
02
02
let's do it together
04
A ReplicaSet:
Instructions:
Time Cap:
5 min
03

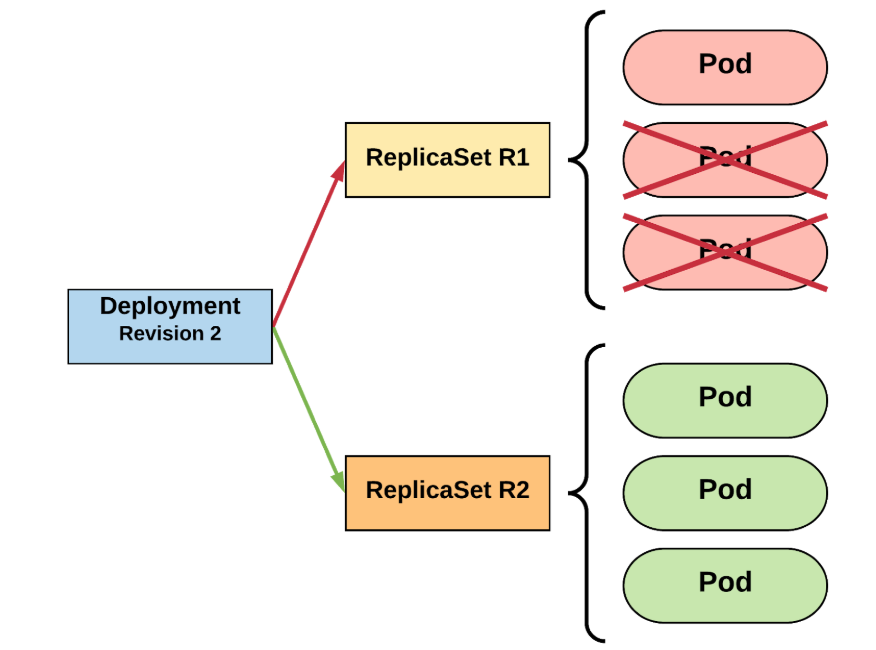

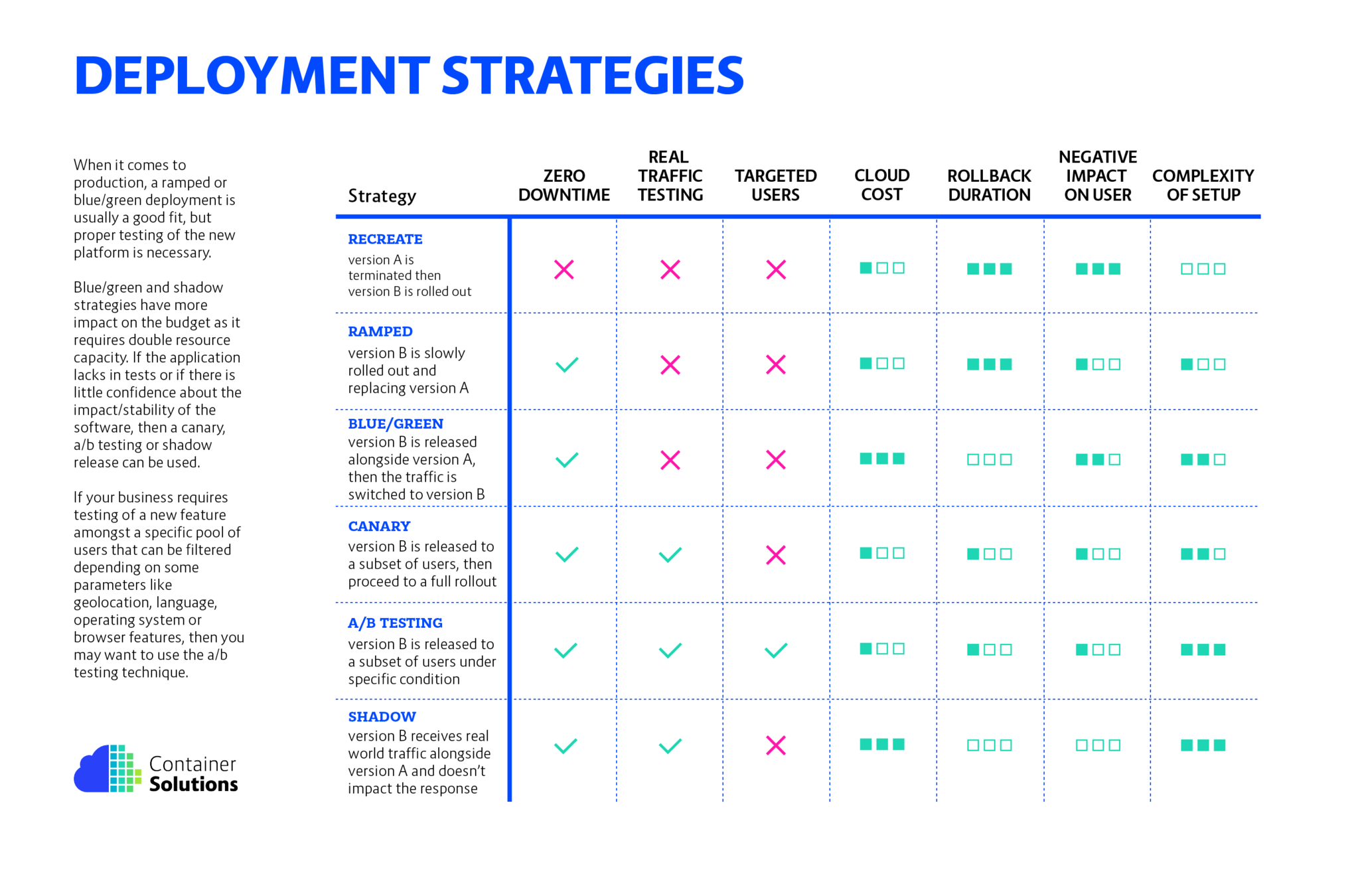

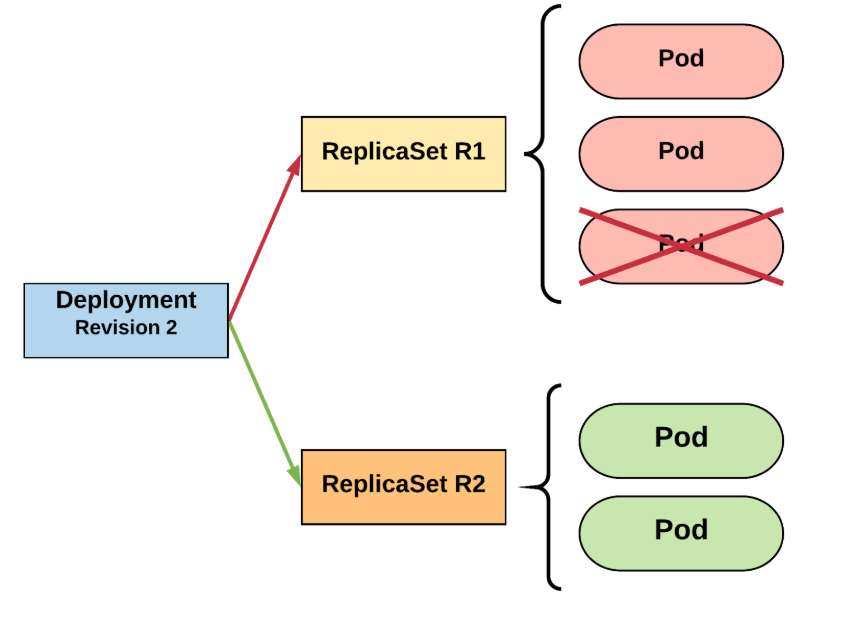

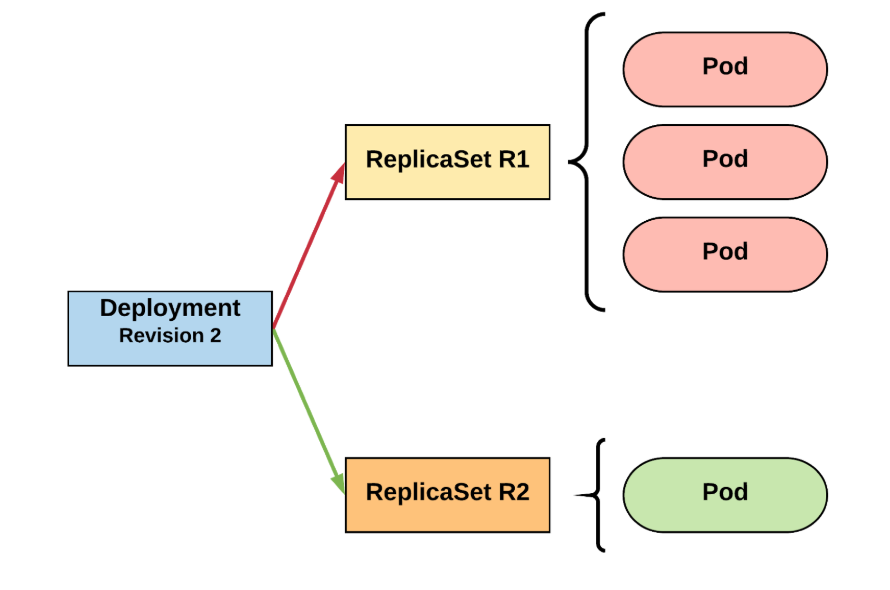

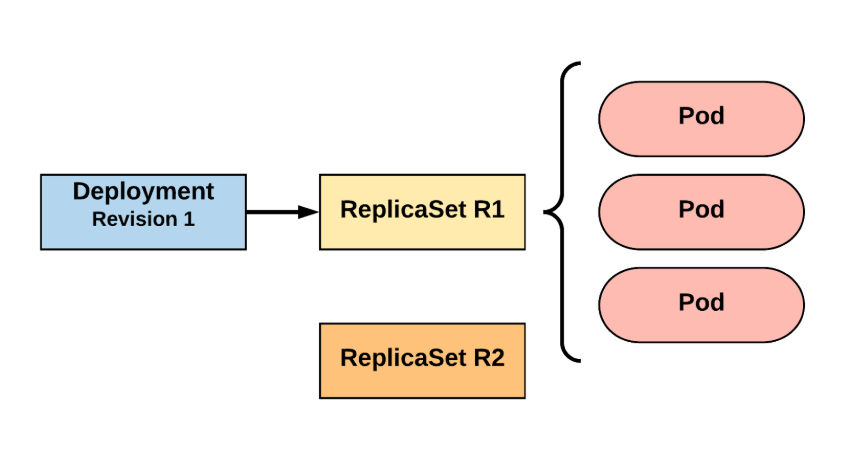

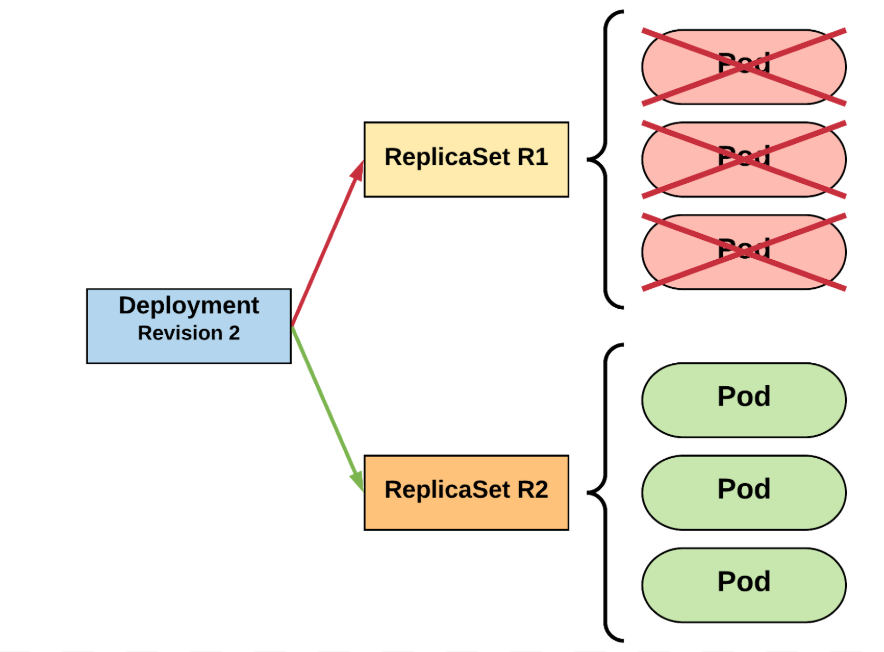

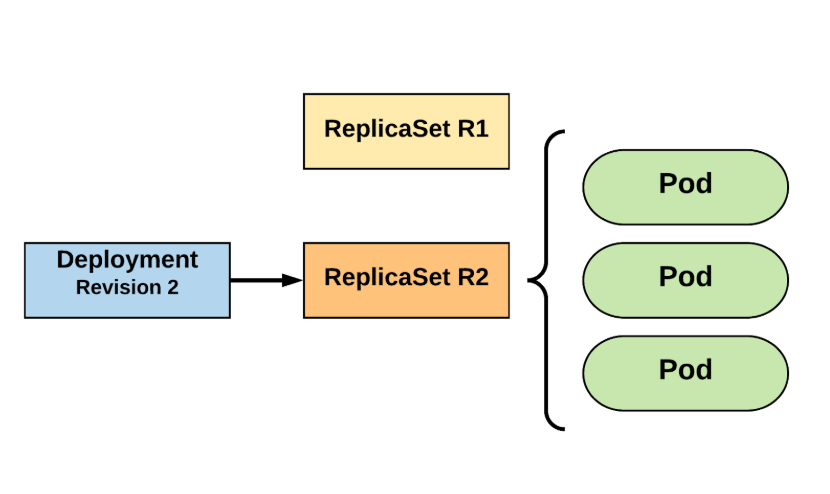

A Deployment:
You describe a desired state in a Deployment object, and the Deployment controller changes the actual state to the desired state at a controlled rate.

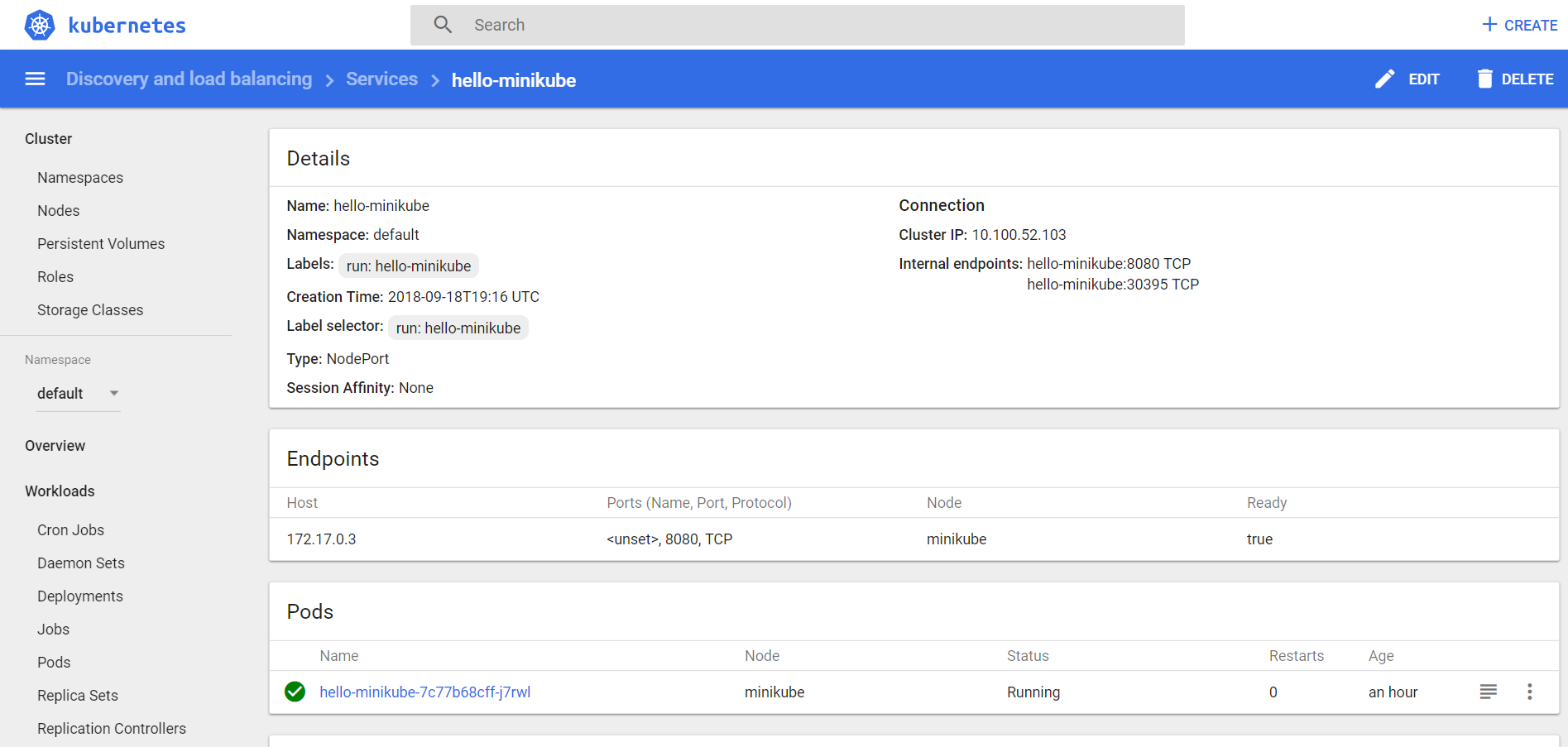

A Service:
the set of Pods targeted by a Service is (usually) determined by a Label Selector
makes pod available externally (adds external access)
Instructions:
Time Cap:
5 min
04
while true; do curl http://...; done
#powershell
while ($true) {curl http://... -UseBasicParsing}
#powershell 6+
while ($true) {curl http://... }04

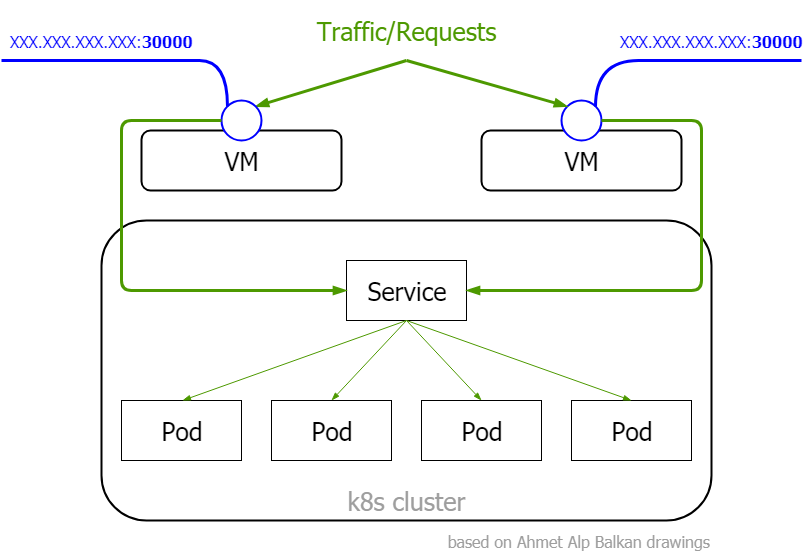

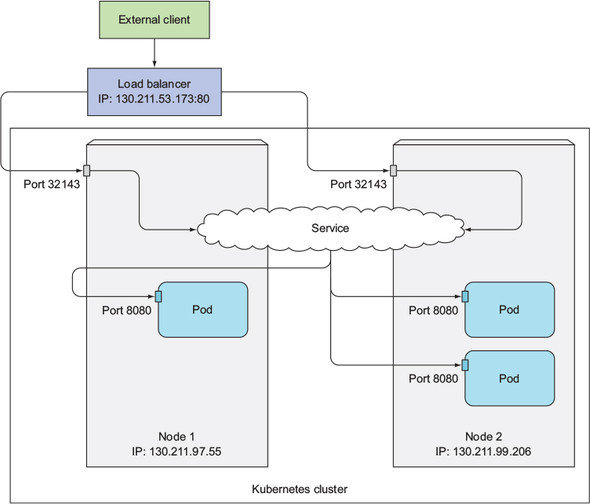

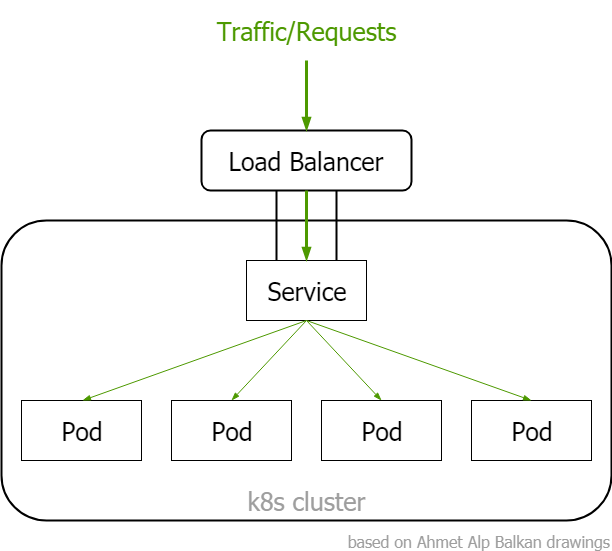

A Service Type can be:
A Service Type can be:
A ConfigMap:
A Secret:
is safer and more flexible than putting it verbatim in a pod definition or in a docker image
is stored as base64
Instructions:
Time Cap:
-
05
A Label:

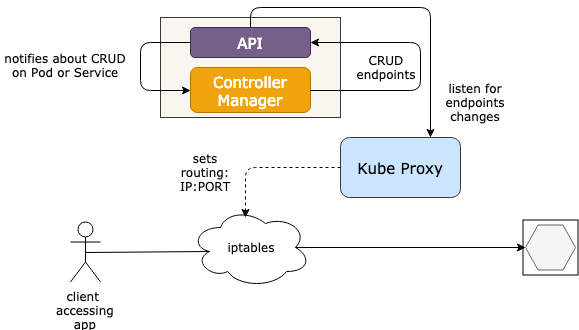

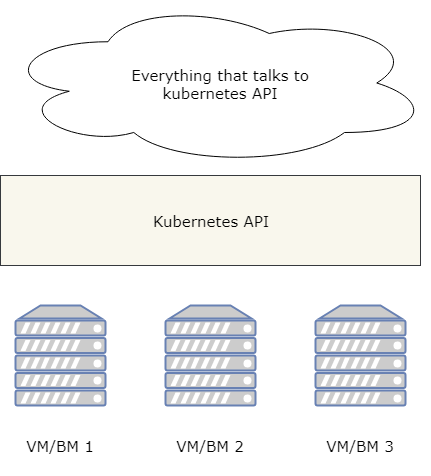

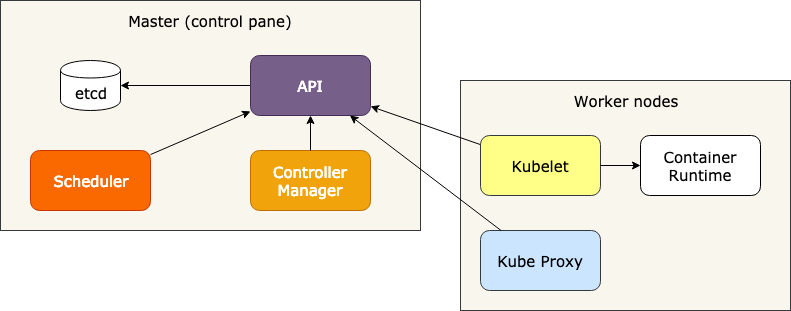

Bare metal underhood :
# execute in shell
kubectl edit svc kubernetes-dashboard -n kubernetes-dashboard
# !!"type: " is important in below replace!!
# replace -> type: ClusterIP
# with -> type: NodePort
# execute
kubectl get svc kubernetes-dashboard -n kubernetes-dashboard
NAME TYPE ... PORT(S)
kubernetes-dashboard NodePort ... 80:31611/TCP
# remember port 31611 (your's might be different)
# if you have docker, open http://127.0.0.1:31611
# if you have minikube
minikube ip
# then open http://IP_FROM_ABOVE:31611 kubectl
Open shell/cmd and play along :)

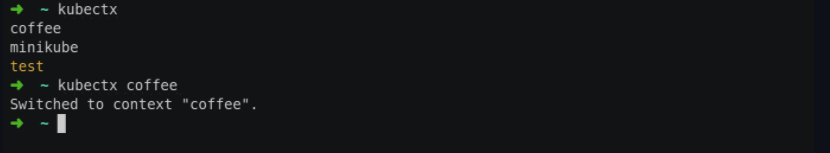

# get list of clusters
$ kubectl config get-contexts
CURRENT NAME CLUSTER AUTHINFO
lab lab kube-admin-local
* aaa-aks aaav-aks clusterUser_aaa-aks-rg_aaa-aks
u4k8scluster u4k8scluster clusterUser_unity4_u4k8scluster
# set cluster as current
$ kubectl config use-context lab
Switched to context "lab".
# get ~/.kube/config file with some "redacted" values
$ kubectl config view$ kubectl cluster-info
Kubernetes master is running at https://wwww
Heapster is running at https://www/api/v1/namespaces/kube-system/services/heapster/proxy
KubeDNS is running at https://www/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
kubernetes-dashboard is running at https://www/api/v1/namespaces/kube-system/services/kubernetes-dashboard/proxy
Metrics-server is running at https://www/api/v1/namespaces/kube-system/services/https:metrics-server:/proxy
To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.# what is node
kubectl explain node
# what is pod
kubectl explain pod
kubectl explain pod.spec
kubectl explain pod.spec.containers
kubectl explain pod.spec.containers.command
# what is service
kubectl explain service
# what is RESOURCE_NAME
kubectl explain RESOURCE_NAME
# get status information about all nodes
$ kubectl get node
NAME STATUS ROLES AGE VERSION
NODE_NAME-0 Ready agent 25d v1.11.3
NODE_NAME-1 Ready agent 25d v1.11.3
NODE_NAME-3 Ready agent 25d v1.11.3
# get status information about single node
$ kubectl get node NODE_NAME
NAME STATUS ROLES AGE VERSION
NODE_NAME Ready agent 25d v1.11.3
# get status information about single RESOURCE (pod, service...)
$ kubectl get RESOURCE RESOURCE_NAME
# get details about node
$ kubectl describe node NAME
# get node yaml representation
$ kubectl get node NAME -o yamlInstructions:
??
Things we should know
how to clean up our mess
# list all resources in cluster
kubectl get all
# remove everything that deployment had created including:
# replica set and pods
kubectl delete deployments NAME
# remove pod of specific name
kubectl delete pod NAME
# remove service
kubectl delete service NAME
# remove all pods
kubectl delete pod --all
# remove all deployments
kubectl delete deployments --all
# hint: aliases
alias kdel='kubectl delete po,svc,deploy,pvc,pv,cm,secret,rs --all'
kdel
# powershell
function kube-delete-all {kubectl delete pod,service,cm,deployments --all}Instructions:
Time Cap:
5 min
06
06
# /seed/dumpster-pod-extract.yaml
kind: Pod
apiVersion: v1
metadata:
name: dumpster-6d6f7864d9-tzr8j
generateName: dumpster-6d6f7864d9-
namespace: default
selfLink: /api/v1/namespaces/default/pods/dumpster-6d6f7864d9-tzr8j
uid: 028fee83-140b-4c95-80ca-9e04990d6d52
resourceVersion: '86671'
creationTimestamp: '2021-02-23T20:25:10Z'
labels:
k8s-app: dumpster
pod-template-hash: 6d6f7864d9
ownerReferences:
- apiVersion: apps/v1
kind: ReplicaSet
name: dumpster-6d6f7864d9
uid: 8e0a3762-e4f8-477d-865a-121d6fac6cde
controller: true
blockOwnerDeletion: true
managedFields:
- manager: kube-controller-manager
operation: Update
apiVersion: v1
time: '2021-02-23T20:25:10Z'
fieldsType: FieldsV1
fieldsV1:
'f:metadata':
'f:generateName': {}
'f:labels':
.: {}
'f:k8s-app': {}
'f:pod-template-hash': {}
'f:ownerReferences':
.: {}
'k:{"uid":"8e0a3762-e4f8-477d-865a-121d6fac6cde"}':
.: {}
'f:apiVersion': {}
'f:blockOwnerDeletion': {}
'f:controller': {}
'f:kind': {}
'f:name': {}
'f:uid': {}
'f:spec':
'f:containers':
'k:{"name":"dumpster"}':
.: {}
'f:image': {}
'f:imagePullPolicy': {}
'f:name': {}
'f:resources': {}
'f:securityContext':
.: {}
'f:privileged': {}
'f:terminationMessagePath': {}
'f:terminationMessagePolicy': {}
'f:dnsPolicy': {}
'f:enableServiceLinks': {}
'f:restartPolicy': {}
'f:schedulerName': {}
'f:securityContext': {}
'f:terminationGracePeriodSeconds': {}
- manager: kubelet
operation: Update
apiVersion: v1
time: '2021-02-23T20:25:12Z'
fieldsType: FieldsV1
fieldsV1:
'f:status':
'f:conditions':
'k:{"type":"ContainersReady"}':
.: {}
'f:lastProbeTime': {}
'f:lastTransitionTime': {}
'f:status': {}
'f:type': {}
'k:{"type":"Initialized"}':
.: {}
'f:lastProbeTime': {}
'f:lastTransitionTime': {}
'f:status': {}
'f:type': {}
'k:{"type":"Ready"}':
.: {}
'f:lastProbeTime': {}
'f:lastTransitionTime': {}
'f:status': {}
'f:type': {}
'f:containerStatuses': {}
'f:hostIP': {}
'f:phase': {}
'f:podIP': {}
'f:podIPs':
.: {}
'k:{"ip":"10.1.0.101"}':
.: {}
'f:ip': {}
'f:startTime': {}
spec:
volumes:
- name: default-token-v2pqp
secret:
secretName: default-token-v2pqp
defaultMode: 420
containers:
- name: dumpster
image: 'gutek/dumpster:v1'
resources: {}
volumeMounts:
- name: default-token-v2pqp
readOnly: true
mountPath: /var/run/secrets/kubernetes.io/serviceaccount
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
imagePullPolicy: IfNotPresent
securityContext:
privileged: false
restartPolicy: Always

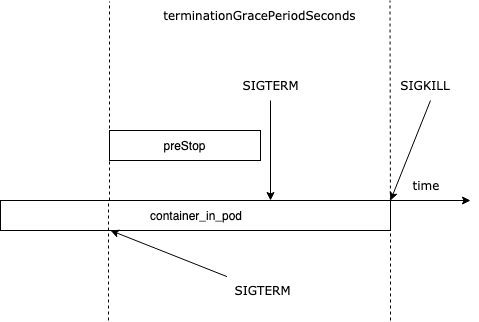

terminationGracePeriodSeconds: 30
dnsPolicy: ClusterFirst
serviceAccountName: default
serviceAccount: default
nodeName: docker-desktop
securityContext: {}
schedulerName: default-scheduler
tolerations:
- key: node.kubernetes.io/not-ready
operator: Exists
effect: NoExecute
tolerationSeconds: 300
- key: node.kubernetes.io/unreachable
operator: Exists
effect: NoExecute
tolerationSeconds: 300
priority: 0
enableServiceLinks: true
preemptionPolicy: PreemptLowerPriority
status:
phase: Running
conditions:
- type: Initialized
status: 'True'
lastProbeTime: null
lastTransitionTime: '2021-02-23T20:25:10Z'
- type: Ready
status: 'True'
lastProbeTime: null
lastTransitionTime: '2021-02-23T20:25:12Z'
- type: ContainersReady
status: 'True'
lastProbeTime: null
lastTransitionTime: '2021-02-23T20:25:12Z'
- type: PodScheduled
status: 'True'
lastProbeTime: null
lastTransitionTime: '2021-02-23T20:25:10Z'
hostIP: 192.168.65.3
podIP: 10.1.0.101
podIPs:
- ip: 10.1.0.101
startTime: '2021-02-23T20:25:10Z'
containerStatuses:
- name: dumpster
state:
running:
startedAt: '2021-02-23T20:25:11Z'
lastState: {}
ready: true
restartCount: 0
image: 'gutek/dumpster:v1'
imageID: >-
docker-pullable://gutek/dumpster@sha256:76ddbed27cf8395b88dcf1027e0a8507d6638724f9b2827098e85489c4c4d050
containerID: >-
docker://efa7f5c0da92fd07a732d9cfad4fb3f891b72cc062644a73e9656b77699857c5
started: true
qosClass: BestEffort
let's look at a structure from the dashboard
apiVersion: v1
kind: Pod
metadata:
name: POD_NAME
labels:
key: value
spec:
containers:
- name: CONTAINER_NAME
image: CONTAINER_IMAGE
ports:
- containerPort: 80yaml structure
deployment
# create pod from file
kubectl create -f pod.yaml
# create pod and save base configuration so it can be used later by apply
kubectl create -f pod.yaml --save-config=true
# create pod or update if exists
kubectl apply -f pod.yaml
# replace pod
kubectl replace -f pod.yaml
# get the current pod definition
kubectl get pod NAME -o yaml|json
Instructions:
Time Cap:
10 min
07
07
what exactly happens when create is executed?
Instructions:
Time Cap:
5 min
08
08
delete
# deletes pod described in file
$ kubectl delete -f pod.yaml
# delete pod of name
$ kubectl delete pod POD_NAMEInstructions:
clear environment using delete cmd
Time Cap:
10 min
09
09
how to access pod from the command line
# allowing access to the pod by url http://127.0.0.1:8888
kubectl port-forward pod/NAME 8888:pod_container_port
# accessing container in pod/running app in container
kubectl exec -it POD_NAME bash
kubectl exec -it POD_NAME -c container_name bash
kubectl exec POD_NAME -- cmd -p1 -p2
kubectl exec POD_NAME cmd
# and
kubectl proxyInstructions:
Time Cap:
5 min
10
10
best practices
a way to describe resource
example
apiVersion: v1
kind: RESOURCE_TYPE
metadata:
name: MY_RESOURCE_NAME
labels:
version: 1.0.0.0
app: new-facebook
tier: backend
---
apiVersion: v1
kind: RESOURCE_TYPE
metadata:
name: MY_RESOURCE_NAME
labels:
version: 1.0.0.0
app: new-facebook
tier: frontendkubectl
# get all pods with label tier of value backend
kubectl get pods -l tier=backend
# get all resources with label tier of value frontend
kubectl get all -l tier=frontend
# delete all pods with label app of value api
kubectl delete pods -l app=api
# delete all pods and services with label app of value api
kubectl delete pods,services -l app=api
# get all pods and services with label app
kubectl get pods,services -l app
# get all pods and services with label app and display its value in column
kubectl get pods,services -L app
# display labels while listing resources
kubectl get pods --show-labelsInstructions:
Time Cap:
10 min
11
11
# adding
kubectl label pod NAME key1=value1 key2=value2
# changing
kubectl label pod NAME key1=newValue --overwritefrom now on you can clean your k8s by deleting everything under
workshop=true
label
exposing pods
template
apiVersion: v1
kind: Service
metadata:
name: name-svc
labels:
tier: backend
app: api
spec:
type: TYPE
selector:
pod-label-key: pod-label-value
ports:
- name: http
port: 8080
targetPort: 80
ports
ports:
- name: http
protocol: TCP
port: 8080
targetPort: 80|api
kubectl
# get services
kubectl get service
kubectl get services
kubectl get svc
NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
default kubernetes ClusterIP 10.0.0.1 <none> 443/TCP 97d
default my-svc NodePort 10.0.18.147 <none> 8080:31238/TCP 97d
default my-second-svc NodePort 10.0.45.201 <none> 8080:32245/TCP 97d
# removes service
kubectl delete svc NAME
# create/update service
kubectl apply -f service.yamlInstructions:
Time Cap:
10 min
12
12
We have three options to access ClusterIP service
??
ClusterIP
Instructions:
Time Cap:
5 min
13
13
Instructions:
Time Cap:
10 min
14
14
Instructions:
Time Cap:
10 min
15
15
Pros
Cons
ClusterIP
When to use it:
ClusterIP
Instructions:
Time Cap:
10 min
16
16
??
# get services
kubectl get services
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
dumpster NodePort 10.101.205.44 <none> 80:30111/TCP 5h51m
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 4d20h
# on minikube
minikube ip
192.168.99.101
# open http://192.168.99.101:30111
# on docker open http://localhost:30111NodePort
Pros
Cons
NodePort
When to use it:
NodePort
LoadBalancer
Instructions:
17
Time Cap:
10 min
17
Most important: LoadBalancer -> NodePort -> ClusterIP, so NodePort is ClusterIP, and LoadBalancer is NodePort and ClusterIP
??
# get servcies
kubectl get services
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
dumpster LoadBalancer 10.98.49.32 <pending> 80:30803/TCP 4s
# 30803 its NodePort so we have access service same
# was as we did with NodePort
# to make it work in minikube, in new shell tab execute:
minikube tunnel
kubectl get services dumpster
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
dumpster LoadBalancer 10.98.49.32 10.98.49.32 80:30803/TCP 108s
# now you can access your's service: http://10.98.49.32LoadBalancer
LoadBalancer
k8s in action, manning
Load Balancer
Pros
Cons
Load Balancer
when to use it:
Load Balancer
how it's normally done?
when in doubt, remember you can always clean everything:
workshop=true
a way to create MANY pods ;)
template
apiVersion: apps/v1
kind: Deployment
metadata:
name: DEP_NAME
spec:
replicas: 3
selector:
matchLabels:
app: app_name
template:
metadata:
labels:
app: app_name
spec:
containers:
- name: pod_name
image: gutek/dumpster:v1
ports:
- containerPort: 8080
...kubectl
# create/update deployment
kubectl apply -f deployment.yaml
# create/update deployment and keep track of operations
kubectl apply -f deployment.yaml --record=true
# get all deployments
kubectl get deployments
kubectl get deployment
kubectl get deploy
# get replica sets
kubectl get rsapiVersion: apps/v1
kind: Deployment
metadata:
spec:
strategy:
type: RollingUpdate
rollingUpdate:
maxSurge : 1
maxUnavailable: 1 replicas: 3
selector:
matchLabels:
app: app_name
template:
metadata:
labels:
app: app_name
spec:
containers:
- name: pod_name
image: gutek/dumpster:0.1
ports:
- containerPort: 80
...Deployment
ReplicaSet
naming
apiVersion: apps/v1
kind: Deployment
metadata:
name: dumpster-deploy
spec:
replicas: 3
selector:
matchLabels:
app: dumpster-naming-01
template:
metadata:
labels:
app: dumpster-naming-01
spec:
containers:
- name: dumpster-naming-container
image: gutek/dumpster:v1kubectl get all
NAME
pod/dumpster-deploy-585cdbd6cf-7zm27
pod/dumpster-deploy-585cdbd6cf-nkbhv
pod/dumpster-deploy-585cdbd6cf-w6cg8
NAME
deployment.apps/dumpster-deploy
NAME
replicaset.apps/dumpster-deploy-585cdbd6cfInstructions:
Time Cap:
10 min
18
18
available strategies - RollingUpdate (default)
apiVersion: apps/v1
kind: Deployment
...
spec:
replicas: 3
strategy:
type: RollingUpdate
rollingUpdate:
maxSurge : 1
maxUnavailable: 1
selector:
matchLabels:
app: app_name
template:
...available strategies - Recreate
apiVersion: apps/v1
kind: Deployment
...
spec:
replicas: 3
strategy:
type: Recreate
selector:
matchLabels:
app: app_name
template:
...Instructions:
Time Cap:
20 min
19
19
while true; do curl http://...; done
#powershell
while ($true) {curl http://... -UseBasicParsing}
#powershell 6+
while ($true) {sleep 1; curl http://... }19
managing deployments from kubectl
# return status of current deployment
# this waits if the status is not finished
$ kubectl rollout status deployment/NAME
# get a history of rollout's
$ kubectl rollout history deployment/NAME
# get history details of rollout N
$ kubectl rollout history deployment/NAME --revision=N
# undo rollout
$ kubectl rollout undo deployment/NAME
# restart
$ kubectl rollout restart deployment/NAMEInstructions (use kubectl only):
Time Cap:
10 min
20
20
when do we know that our pod is alive?
...
spec:
containers:
- name: NAME
image: gutek/dumpster:0.1
livenessProbe:
httpGet:
path: /path
port: 80
initialDelaySeconds: 5
periodSeconds: 5
timeoutSeconds: 1
failureThreshold: 3 Instructions:
Time Cap:
10 min
ATTENTION: 29
29
when do we know that our pod is ready/deployed?
...
spec:
containers:
- name: NAME
image: gutek/dumpster:0.1
readinessProbe:
httpGet:
path: /healthz
port: 80
initialDelaySeconds: 5
periodSeconds: 5
timeoutSeconds: 1
failureThreshold: 3 clean up reminder :)
workshop=true
label
Instructions:
Time Cap:
10 min
30
30
liveliness & readiness best practies
help with zero-downtime
...
spec:
containers:
- name: NAME
image: gutek/dumpster:0.1
...
lifecycle:
preStop:
exec:
command:
- sh
- -c
- "sleep 10"our app might need extra time to shutdown gracefully
best practices
fire and forget
template
apiVersion: batch/v1
kind: Job
metadata:
name: some-name
spec:
template:
...kubectl
# get cron jobs
$ kubectl get cronjob
# on cron schedule new job is created
$ kubectl get jobs --watch
# get pods created by jobs
$ kubectl get pods
# get job result
$ kubectl logs pod-name00-jobs
template
apiVersion: batch/v1beta1
kind: CronJob
metadata:
name: hello
spec:
schedule: "*/1 * * * *"
jobTemplate:
spec:
template:
metadata:
labels:
app: hello-cronpod
spec:
containers:
- name: hello
image: busybox
args:
- /bin/sh
- -c
- date; echo Hello World!
restartPolicy: OnFailuregroup application
kubectl
# get all namespaces
$ kubectl get namespace
# get pods from namespace A
$ kubectl get pods --namespace=A
$ kubectl get pods -n=A
$ get all pods from all namespaces
$ kubectl get pods --all-namespaces
$ get all from all namespaces
$ kubectl get all --all-namespacestemplate
apiVersion: v1
kind: Namespace
metadata:
name: our-name
---
apiVersion: v1
kind: Pod
metadata:
name: my-pod
namespace: our-name
...Instructions:
Time Cap:
10 min
21
21
common configuration
kubectl
# get all config maps
$ kubectl get cm
$ kubectl get configmap
# create/update config map from file
$ kubectl apply -f cm.yaml
# create config map from arguments
$ kubectl create cm CM_NAME --from-literal=key_01=val_01 --from-literal=key_02=val_02
# get config map info
$ kubectl describe configmaps CM_NAMEtemplate
apiVersion: v1
kind: ConfigMap
metadata:
name: my-name
data:
KEY_01: VAL1
KEY_02: VAL2passing parameters
...
spec:
containers:
- name: NAME
image: gutek/dumpster:v1
env:
- name: app_version
value: v1
- name: app_hostname
value: NAME Instructions:
Time Cap:
5 min
22
22
passing parameters from config map
...
spec:
containers:
- name: NAME
image: gutek/dumpster:0.1
envFrom:
- configMapRef:
name: CM_NAME
env:
- name: app_version
valueFrom:
configMapKeyRef:
name: CM_NAME
key: key01Instructions:
Time Cap:
10 min
23
23
best practices
common configuration in base64
kubectl
# get all secrets
$ kubectl get secrets
# create/update sercret from file
$ kubectl apply -f secret.yaml
# create secret from arguments
$ kubectl create secret generic SECRET_NAME --from-literal=key_01=val_01 --from-literal=key_02=val_02
# get config map info
$ kubectl describe sercret SECRET_NAME
Name: SECRET_NAME
Namespace: default
Labels: <none>
Annotations: <none>
Type: Opaque
Data
====
key_02: 6 bytes
key_01: 6 bytestemplate
apiVersion: v1
kind: Secret
metadata:
name: env-secrets
data:
DB_PASSWORD: cDZbUGVXeU5e0ZW
REDIS_PASSWORD: AAZbUGVXeU5e0ZBin pods
...
spec:
containers:
- name: dumpster-container
image: gutek/dumpster:0.5
ports:
- containerPort: 80
envFrom:
- secretRef:
name: local-secret
env:
- name: app_version
valueFrom:
secretKeyRef:
name: local-secret
key: key01
volumeMounts:
- name: config-volume
mountPath: /etc/configbest practices
types
...
spec:
containers:
- name: dumpster-container
image: gutek/dumpster:v1
ports:
- containerPort: 8080
volumeMounts:
- name: empty-volume
mountPath: /var/data
volumes:
- name: empty-volume
emptyDir: {}...
spec:
initContainers:
- name: git-container
image: ...
args:
- /bin/sh
- -c
- git clone https://github.com/kubernetes/kubernets /local/path
volumeMounts:
- name: empty-volume
mountPath: /local/path
containers:
- name: dumpster-container
image: gutek/dumpster:v1
ports:
- containerPort: 8080
volumeMounts:
- name: empty-volume
mountPath: /var/data
volumes:
- name: empty-volume
emptyDir: {}
...
spec:
containers:
- name: dumpster-container
image: gutek/dumpster:0.5
ports:
- containerPort: 80
volumeMounts:
- name: config-volume
mountPath: /etc/config
volumes:
- name: config-volume
configMap:
name: local-cm00-volume-cm
...
spec:
containers:
- name: dumpster-container
image: gutek/dumpster:0.5
ports:
- containerPort: 80
volumeMounts:
- name: config-volume
mountPath: /etc/config
- name: config-volume
secret:
secretName: local-secret00-volume-secret
emptyDir, configMap, secret, hostPath contains data as long as Pod/Node works. They do not sync data back!

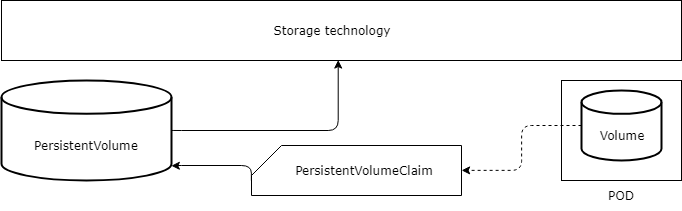

decoupling storage technology
template
apiVersion: v1
kind: PersistentVolume
metadata:
name: my-pv
spec:
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
- ReadOnlyMany
persistentVolumeReclaimPolicy: Retain
hostPath:
path: /tmp/mypathtemplate
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: my-pvc
spec:
volumeMode: Filesystem|raw
resource:
requests:
storage: 1Gi
accessModes:
- ReadWriteOnce
- ReadOnlyMany
storageClassName: slow
selector:
...in Pod
apiVersion: v1
kind: Pod
metadata:
name: pod-with-volume
spec:
containers:
- name: fc-container
image: gutek/dumpster:v1
volumeMounts:
- name: data
mountPath: /var/data
volumes:
- name: data
persistentVolumeClaim:
claimName: my-pvc00-volume-azure

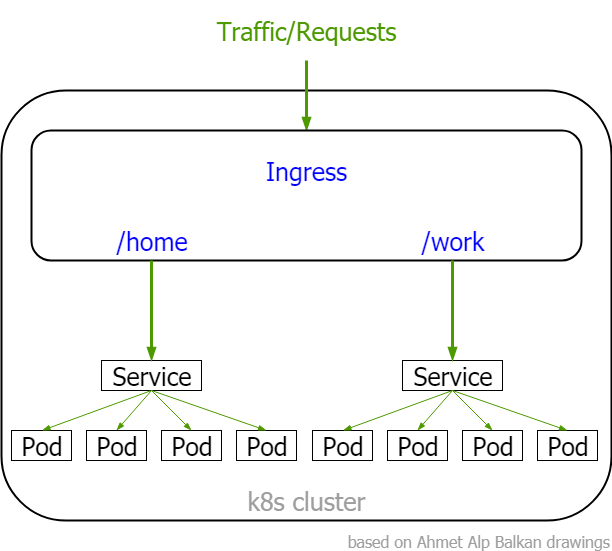

The action or fact of going in or entering; the capacity or right of
installation
# for minikube
minikube addons enable ingress
# for docker for desktop
kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.0.4/deploy/static/provider/cloud/deploy.yaml
# verify
kubectl get po -n ingress-nginx -w
# popular - the rest of the world :)
# add repo chart
helm repo add nginx-stable https://helm.nginx.com/stable
helm repo update
# install simple but ....
helm install my-release nginx-stable/nginx-ingress
# install complicated
kubectl create ns ingress-nginx
helm install my-release nginx-stable/nginx-ingress --namespace ingress-nginx --set rbac.create=false
apiVersion: networking.k8s.io/v1apiVersion: extensions/v1beta1Changed into:
default configuration
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: dumpster-ing
annotations:
kubernetes.io/ingress.class: nginx
nginx.ingress.kubernetes.io/rewrite-target: /
nginx.ingress.kubernetes.io/enable-cors: "true"
nginx.ingress.kubernetes.io/ssl-redirect: "false"
spec:
rules:
- http:
paths:
- path: /01
backend:
serviceName: dumpster-01-svc
servicePort: 8080
- path: /02
backend:
serviceName: dumpster-02-svc
servicePort: 8080
- path: /
backend:
serviceName: dumpster-03-svc
servicePort: 8080using external load balancer
$ helm install stable/nginx-ingress --set controller.service.loadBalancerIP="8.8.2.2"
,controller.service.externalTrafficPolicy="Local"Default backend
default backend
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: all-paths
annotations:
kubernetes.io/ingress.class: "nginx"
spec:
rules:
- http:
paths:
- pathType: Prefix
path: "/"
backend:
service:
name: servicename
port:
number: 8080Fanout routing

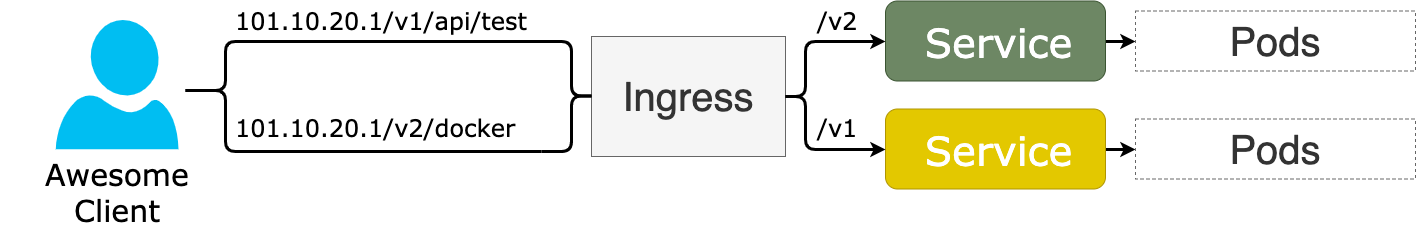

Fanout routing
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: fanout
annotations:
kubernetes.io/ingress.class: "nginx"
spec:
rules:
- http:
paths:
- pathType: Prefix
path: "/api/v1"
backend:
service:
name: svc-v1
port:
number: 8080
- pathType: Prefix
path: "/api/v2"
backend:
service:
name: svc-v2
port:
number: 8080Name based virtual hosting

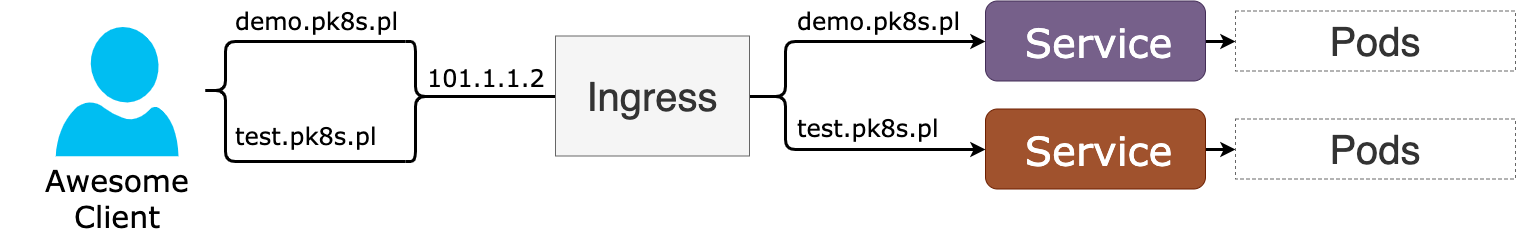

Name based virtual hosting
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: virtual-hosting
annotations:
kubernetes.io/ingress.class: "nginx"
spec:
rules:
- host: v1.k8s.buzz
http:
paths:
- pathType: Prefix
path: "/"
backend:
service:
name: echo-v2
port:
number: 8080
- host: v2.k8s.buzz
http:
paths:
- pathType: Prefix
path: "/"
backend:
service:
name: echo-v2
port:
number: 8080Rewrite target
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: rewrite-target
annotations:
nginx.ingress.kubernetes.io/rewrite-target: /
kubernetes.io/ingress.class: "nginx"
spec:
rules:
- host: v1.k8s.buzz
http:
paths:
- pathType: Prefix
path: "/app"
backend:
service:
name: app
port:
number: 8080Instructions:
Time Cap:
10 min
31
31
few operations that might be useful
# create deployment with pod and one replicaset
kubectl run NAME --image gutek/dumpster:v1
# create 5 replicas
kubectl run NAME --image gutek/dumpster:v2 --replicas=5
# run pod that will be removed once done
kubectl run -it NAME --image=some/img --rm --restart=Never -- curl http://onet
# we can use different generators
# only pod
kubectl run NAME --image=some/img --generator=run-pod/v1
# deployment
kubectl run NAME --image=some/img --generator=extensions/v1beta1# List the environment variables defined on all pods
kubectl set env pods --all --list
# Update all containers in all replication controllers in the project to have ENV=prod
kubectl set env deploy --all ENV_VAR=VALUE_1
# Set a deployment's container image to 'nginx:1.9.1'
kubectl set image deployment/DEPLOYMENT_NAME CONTAINER_NAME=nginx:1.9.1Instructions:
Time Cap:
15 min
24
24
# scale to 3 replicas deployment of name DEPLOYMENT_NAME
$ kubectl scale --replicas=3 deployment/DEPLOYMENT_NAME
# scale to 3 replicas ReplicaSet of name RS_NAME
$ kubectl scale --replicas=3 rs/RS_NAME# create service of type NodePort
# for deployment hello-minikube
# and name it front-minikube
kubectl expose deployment hello-minikube --type=NodePort --name=front-minikube
# create service of type NodePort
# for pod POD_NAME
# and name it POD_NAME_svc
kubectl expose pod POD_NAME --type=NodePort --name=POD_NAME_svc
Instructions:
Time Cap:
15 min
25
25
Good to know things
few things...
# install metric server on Docker for Desktop
cd demos\00-hpa
k apply -f .\components.yaml
# verify it with:
kubectl get po -n kube-system -l k8s-app=metrics-server
# and open dashboard# check avaliable addons
$ minikube addons list
# adding heapster addon on to minikube so we have matrics
# old one -> $ minikube addons eneble heapster
minikube addons enable metrics-server
resource limit
resources.requests - we
resources.limits - we maximum will take this memory and
apiVersion: v1
kind: Pod
...
spec:
containers:
- name: dumpster-containers
image: gutek/dumpster:0.1
resources:
requests:
memory: "64Mi"
cpu: "250m"
limits:
memory: "128Mi"
cpu: "500m"
Instructions:
Time Cap:
15 min
27
27
Allows specify desire limits
It can be applied globally or locally
It needs to be turned on --enable-admission-plugins
spec.hard defines list of quotas for current namespace
apiVersion: v1
kind: ResourceQuota
metadata:
name: sample
spec:
hard:
requests.cpu: "1"
requests.memory: 1Gi
limits.cpu: "2"
limits.memory: 2Gi
configmaps: "10"
persistentvolumeclaims: "4"
pods: "4"
replicationcontrollers: "20"
secrets: "10"
services: "10"
services.loadbalancers: "2"
Allows specify desire limits of possible resources usage per pod
Also allows specify ratio aspect of the resources used in Pod
It needs to be turned on --enable-admission-plugins
limits defines limits of resources for pod or container
apiVersion: v1
kind: LimitRange
metadata:
name: test-limit
spec:
limits:
- maxLimitRequestRatio:
memory: 10
type: Pod
- max:
cpu: "800m"
memory: "1Gi"
min:
cpu: "100m"
memory: "99Mi"
default:
cpu: "700m"
memory: "900Mi"
defaultRequest:
cpu: "110m"
memory: "111Mi"
type: Container
- type: PersistentVolumeClaim
max:
storage: 2Gi
min:
storage: 1Gihow to scale based on resources?
kubectl - imperatively
# auto scal to max 10 replicas when cpu utilization is at around 10%
# this is autoscaling/v1
$ kubectl autoscale deploy deployment-name --min=3 --max=10 --cpu-percent=10
# get all autoscalers
$ kubectl get hpa
# describe autoscaler
$ kubectl describe hpa hpa-nametemplate
apiVersion - autoscaling/v1 allows only scale on
targetCPUUtilizationPercentage, beta allows scaling on multiple metrics
to make it WORK pods needs to define resources
apiVersion: autoscaling/v1
kind: HorizontalPodAutoscaler
metadata:
name: php-apache
namespace: default
spec:
scaleTargetRef:
apiVersion: apps/v1
kind: Deployment
name: php-apache
minReplicas: 1
maxReplicas: 10
targetCPUUtilizationPercentage: 50template
MAIN THING TO TAKE FROM THIS TEMPLATE
autoscaling/v1 allows only scale on cpu utilization %
autoscaling/v2beta1 allows to scale on multiple metrics
to make it WORK pods needs to define resources
apiVersion: autoscaling/v2beta1
kind: HorizontalPodAutoscaler
metadata:
name: dumpster-hpa
spec:
scaleTargetRef:
apiVersion: apps/v1
kind: Deployment
name: dumpster-dep
minReplicas: 1
maxReplicas: 10
metrics:
- type: Resource
resource:
name: memory
targetAverageUtilization: 10
- type: Resource
resource:
name: cpu
targetAverageUtilization: 10
- type: Pods
pods:
metricName: packects-per-second
targetAverageValue: 1kInstructions:
$ kubectl run -it load-generator --image=busybox /bin/sh
Hit enter for command prompt
$ while true; do wget -q -O- http://dumpster-svc.default.svc.cluster.local; done00-hpa
28
az feature register \
--namespace Microsoft.ContainerService \
--name AKS-VPAPreview

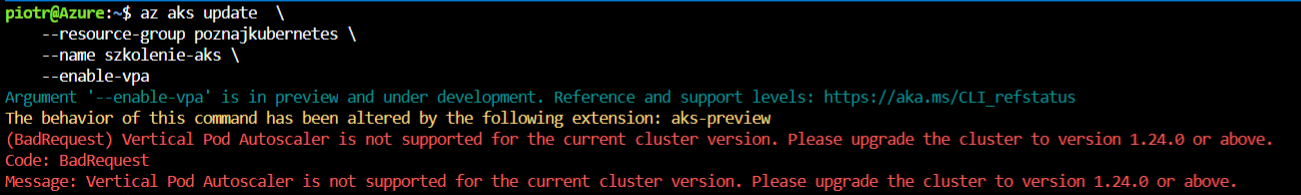

az aks update \
--resource-group poznajkubernetes \
--name szkolenie-aks \
--enable-vpa
Instructions:
# create namespace and switch to it
k create ns vpa-demo

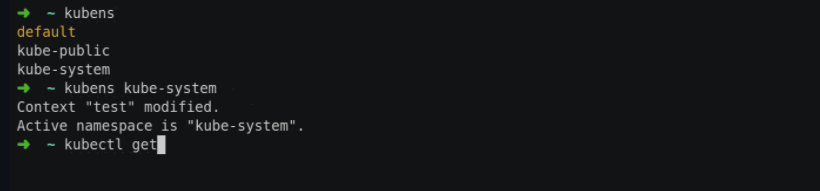

kubens vpa-demo
# deploy hamster app with VPA
k apply -f \
https://raw.githubusercontent.com/kubernetes\
/autoscaler/master/vertical-pod-autoscaler/examples/hamster.yaml
# run describe
k describe pod hamster-<TAB><TAB>
# check pods with
k get --watch pods -l app=hamster
# wait a few minutes and run describe again on different pod
k describe pod hamster-<TAB><TAB>00-vpa
how things are resolved
my-svc.my-namespace.svc.cluster.local dumpster-svc.default.svc.cluster.local
pod-ip.my-namespace.pod.cluster.local 10-10-10-10.default.pod.cluster.local
template
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: dumpster-ds
namespace: kube-system
labels:
workshop: "true"
app: dumpser
spec:
selector:
matchLabels:
app: dumpster-ds-pos
template:
metadata:
labels:
app: dumpster-ds-pos
workshop: "true"
spec:
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
containers:
- name: dumpster-ds-pod-container
image: gutek/dumpster:0.1
terminationGracePeriodSeconds: 30kubectl
# get deamon sets
kubectl get ds
# delete deamon set
kubectl delete ds ds-name
Instructions:
00-ds-create
headless service
apiVersion: v1
kind: Service
metadata:
name: dumpster-ss-svc
labels:
app: dumpster
workshop: "true"
spec:
ports:
- port: 80
name: web
clusterIP: None
selector:
app: dumpster-ss-podtemplate
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: dumpster-ss
# no lables!!!!!!
spec:
selector:
matchLabels:
app: dumpster-ss-pod
serviceName: "dumpster-ss-svc"
replicas: 3
template:
metadata:
labels:
app: dumpster-ss-pod
spec:
terminationGracePeriodSeconds: 10
containers:
- name: dumpster-ss-pod-container
image: gutek/dumpster:0.1
ports:
- containerPort: 80kubectl
# get stateful sets
$ kubectl get statefulset
# delete stateful set
$ kubectl delete statefulset ss-name
Instructions:
00-ss-create
dns
pod-NUMBER.service-name.namespace.svc.cluster.local dumpster-ss-2.dumpster-ss-svc.default.svc.cluster.local
apiVersion: v1
kind: Pod
metadata:
name: testpod
labels:
env: test
spec:
containers:
- name: pkad
image: poznajkubernetes/pkad
imagePullPolicy: IfNotPresent
nodeSelector:
disktype: ssd
apiVersion: v1
kind: Pod
metadata:
name: testpod
labels:
env: test
spec:
containers:
- name: pkad
image: poznajkubernetes/pkad
imagePullPolicy: IfNotPresent
nodeName: node-01
apiVersion: v1
kind: Pod
metadata:
name: pkad-node-affinity
spec:
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: storage
operator: In
values:
- ssd
preferredDuringSchedulingIgnoredDuringExecution:
- weight: 10
preference:
matchExpressions:
- key: env
operator: In
values:
- test
containers:
- name: pkad
image: poznajkubernetes/pkadapiVersion: apps/v1
kind: Pod
metadata:
name: app
labels:
app: web-store
spec:
affinity:
podAntiAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchExpressions:
- key: app
operator: In
values:
- web-store
topologyKey: "kubernetes.io/hostname"
podAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchExpressions:
- key: app
operator: In
values:
- store
topologyKey: "kubernetes.io/hostname"
containers:
- name: web-app

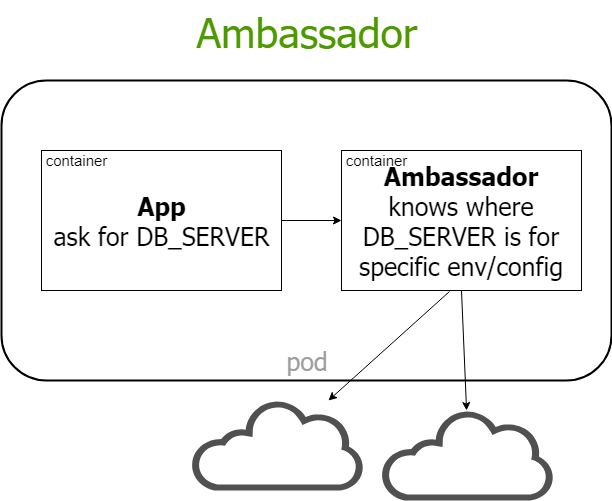

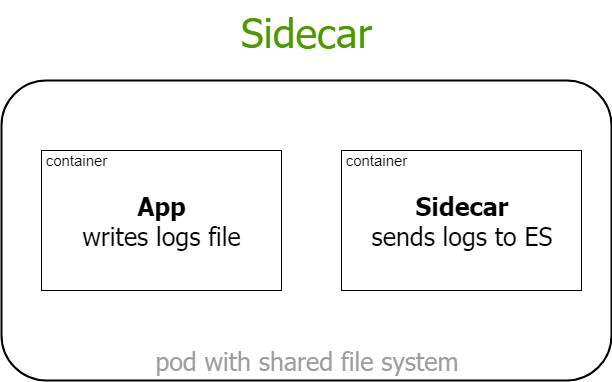

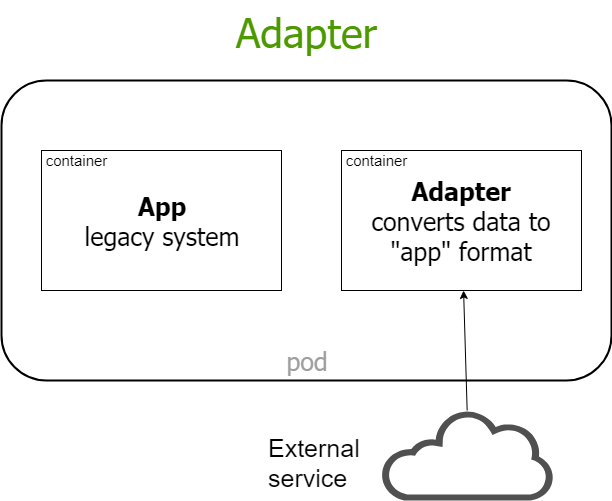

image: poznajkubernetes/pkadmulti container systems
# check
$ helm version
# linux
$ sudo snap install helm --classic
# mac
brew install kubernetes-helm
# win
choco install kubernetes-helm

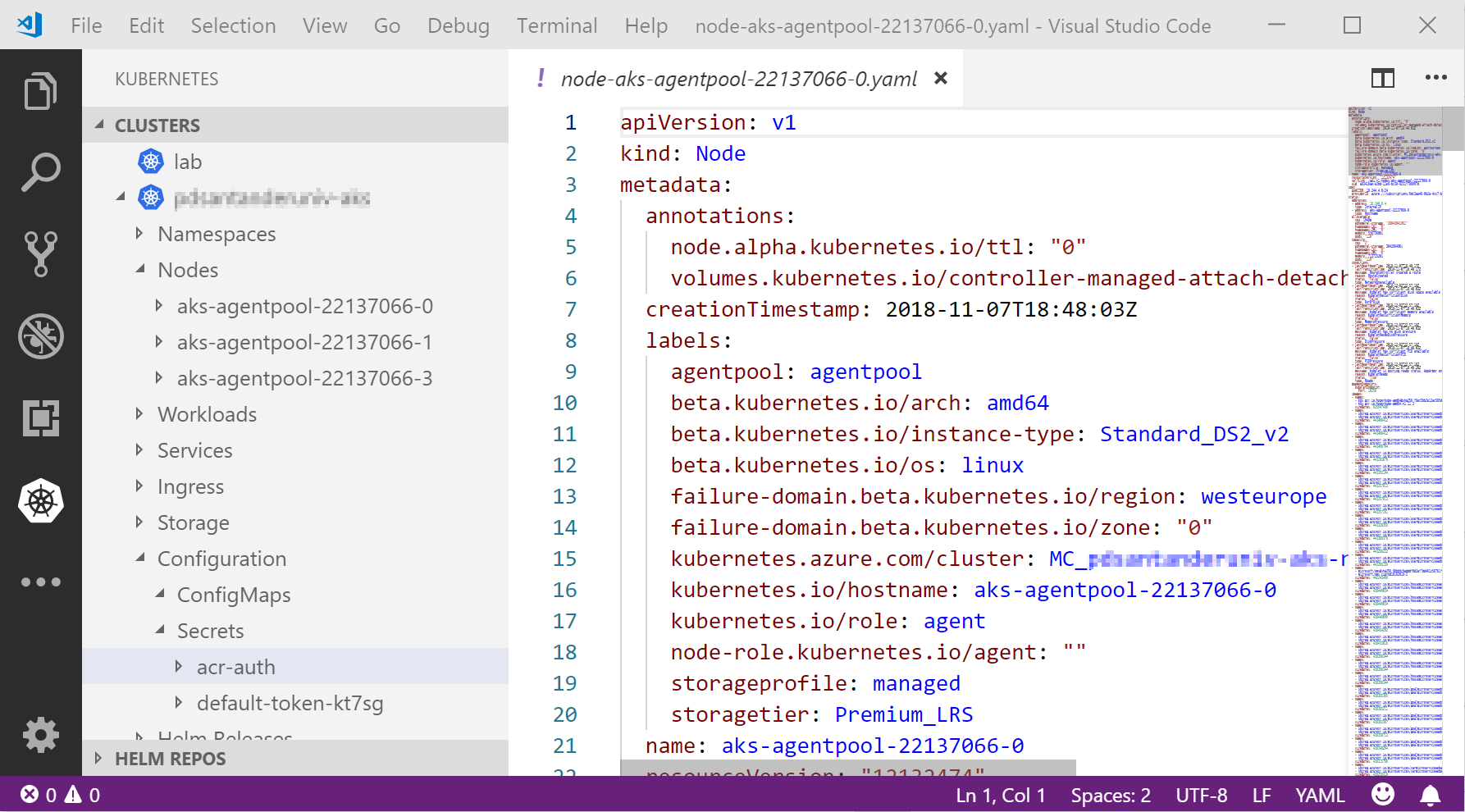

# or by visual studio code kubernetes plugin./Chart.yaml
./values.yaml
./templates/NOTES.txt
./templates/_helpers.tpl
./templates/deployment.yaml
./templates/hpa.yaml
./templates/ingress.yaml
./templates/service.yaml
./templates/serviceaccount.yaml
./templates/tests
./templates/tests/test-connection.yamlapiVersion: v1
kind: Service
metadata:
name: {{ include "poznajkubernetes-helm-example.fullname" . }}
labels:
{{- include "poznajkubernetes-helm-example.labels" . | nindent 4 }}
spec:
type: {{ .Values.service.type }}
ports:
- port: {{ .Values.service.port }}
targetPort: http
protocol: TCP
name: http
selector:
{{- include "poznajkubernetes-helm-example.selectorLabels" . | nindent 4 }}basic commands
# initialize helm usage
helm repo add stable https://kubernetes-charts.storage.googleapis.com/
# refresh repo
helm repo update
# search for a package ingress
helm search repo ingress
# list all installed packages
$ helm list
# list all even deleted pacakges
$ helm list --all
# uninstall package but keep it locally
$ help uninstall NAME
# install package
$ help install channel/package-namePros
Cons
00-kustomization
Pros
Cons
kubectl
# return information about current state of object
# including latest events
$ kubectl describe resource name
# wide return all resources - status of resources
$ kubectl get all -o wide
# get latest logs from pod
$ kubectl logs pod-name
# get all logs from all pods in deployment
$ kubectl logs deployment/deployment-name
# events happening in the system
$ kubectl get events --sort-by=.metadata.creationTimestamp
# checking pods/modes most used
$ kubectl top nod
$ kubectl top pod
# rollout deployment
$ kubectl rollout ...
# exec command on pod
$ kubectl exec pod-name -i -t /bin/sh
# attach to running container
$ kubectl attach pod-namedashboard
Instructions:
Time Cap:
10 min
32
32

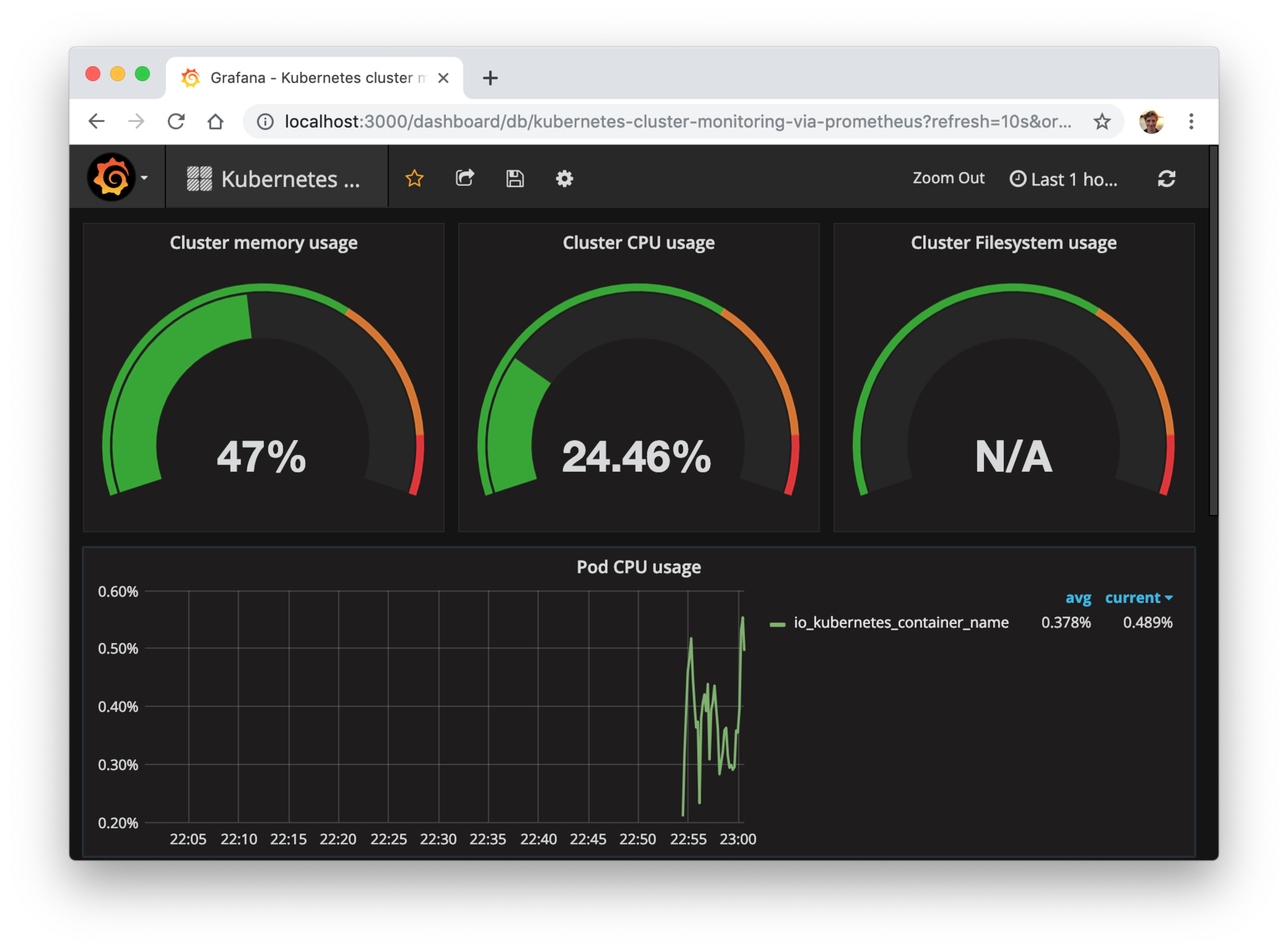

# used to be so simple...
minikube addons open heapster
# now:
kubectl apply -f https://raw.githubusercontent.com/giantswarm/kubernetes-prometheus/master/manifests-all.yaml
kubectl get pods -n monitoring -l app=grafana,component=core
kubectl port-forward -n monitoring POD_FROM_PREV 3000:3000
# localhost:3000/login admin:admin

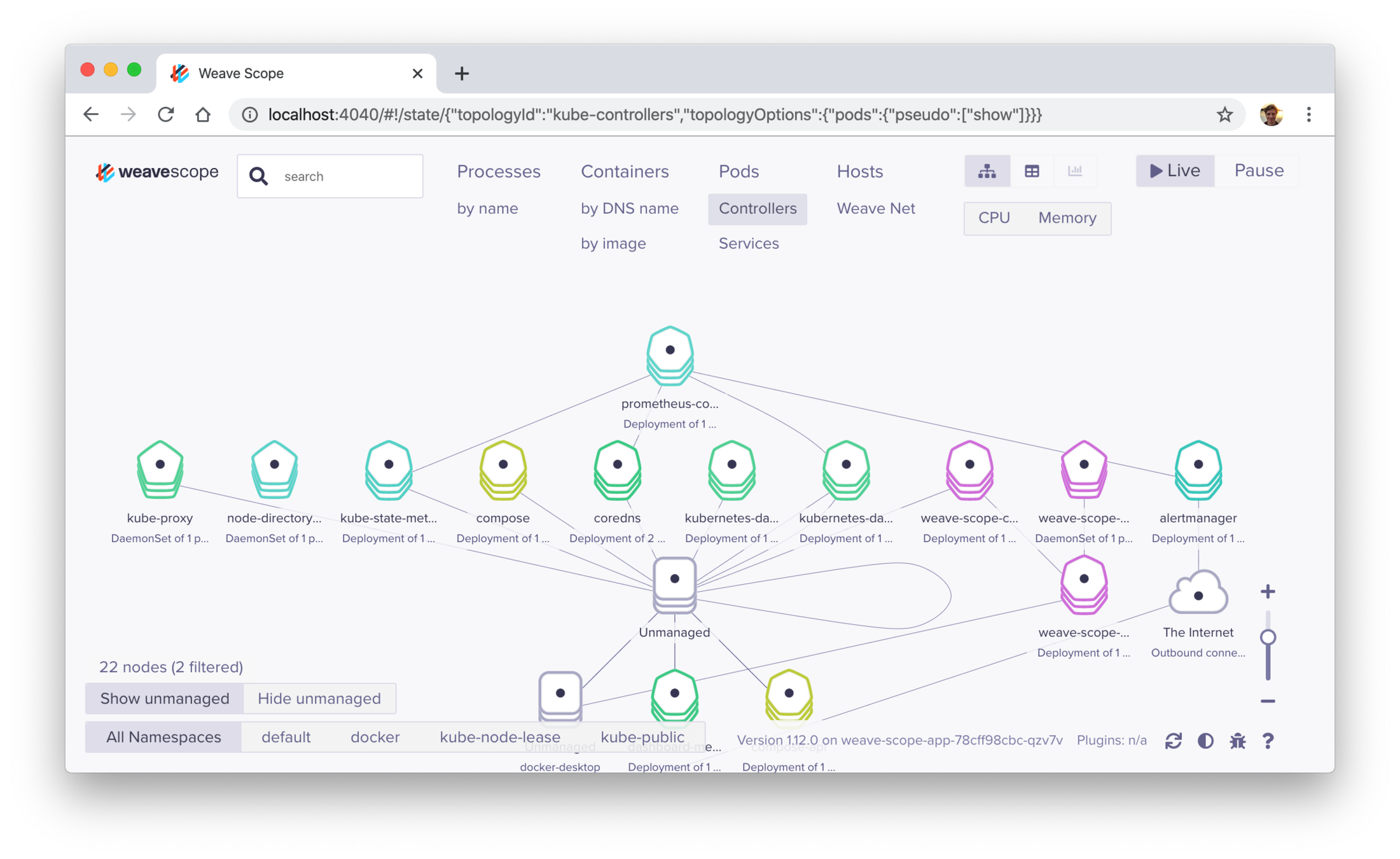

wave
kubectl apply \
-f "https://cloud.weave.works/k8s/scope.yaml?k8s-version=$(kubectl version | base64 | tr -d '\n')"
kubectl port-forward -n weave \
"$(kubectl get -n weave pod --selector=weave-scope-component=app -o jsonpath='{.items..metadata.name}')" 4040
# localhost:4040
wave
debugging

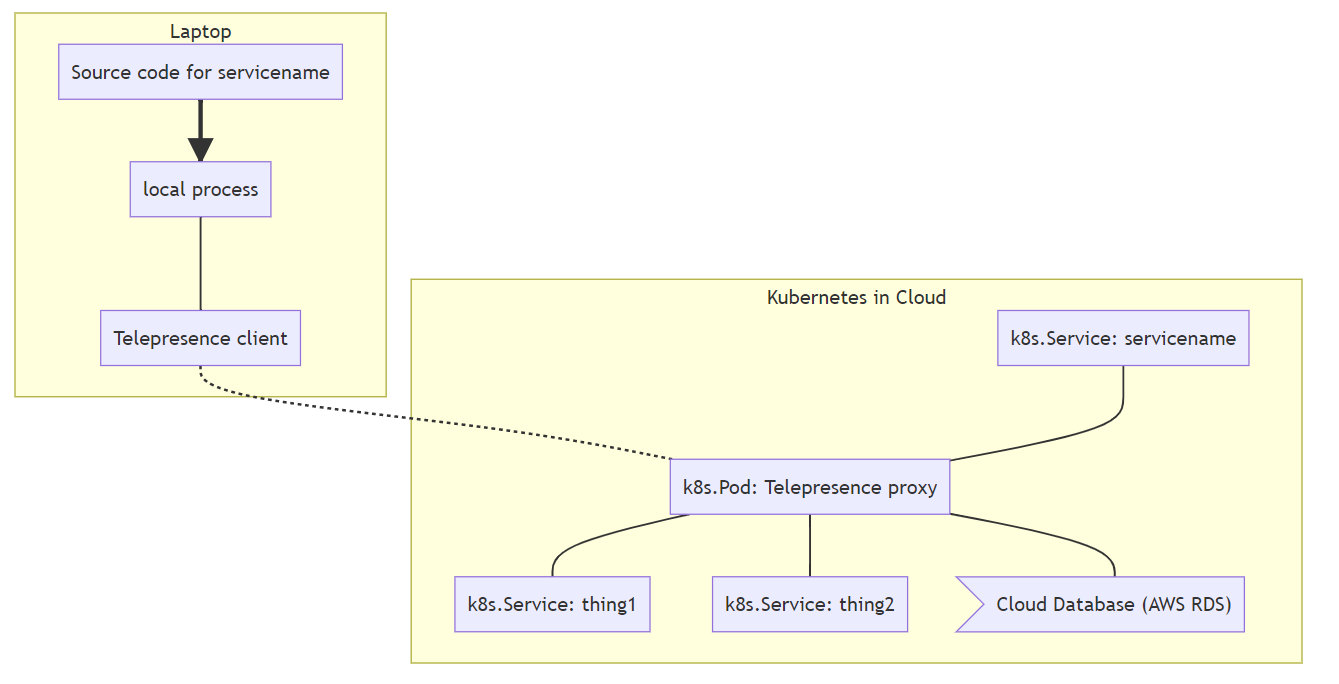

Popular tools:
- Telepresence
- Bridge to Kubernetes
debugging
# Poweshell
Import-Module PSKubectlCompletion
Set-Alias k -Value kubectl
Register-KubectlCompletion
# Bash
source <(kubectl completion bash)
upload image to private registry
docker login devszkolak8s.azurecr.io -u USER -p PASS
docker tag gutek/dumpster:v1 devszkolak8s.azurecr.io/YOUR_NAME/dumpster:v1
docker push devszkolak8s.azurecr.io/YOUR_NAME/dumpster:v1
00-private-registry
register private registry in K8S
Command
kubectl create secret docker-registry regcred
--docker-server=devszkolak8s.azurecr.io
--docker-username=USER
--docker-password=PASS
--docker-email=email@email.com
00-private-registry
deploy pod
containers:
- name: private-reg-container
image: <your-private-image>
imagePullSecrets:
- name: regcred
00-private-registry
making a pipeline
kubectl apply -f deployment.yml
kubectl rollout status deployment NAME_FROM_YML
kubectl rollout undo deployment NAME_FROM_YML

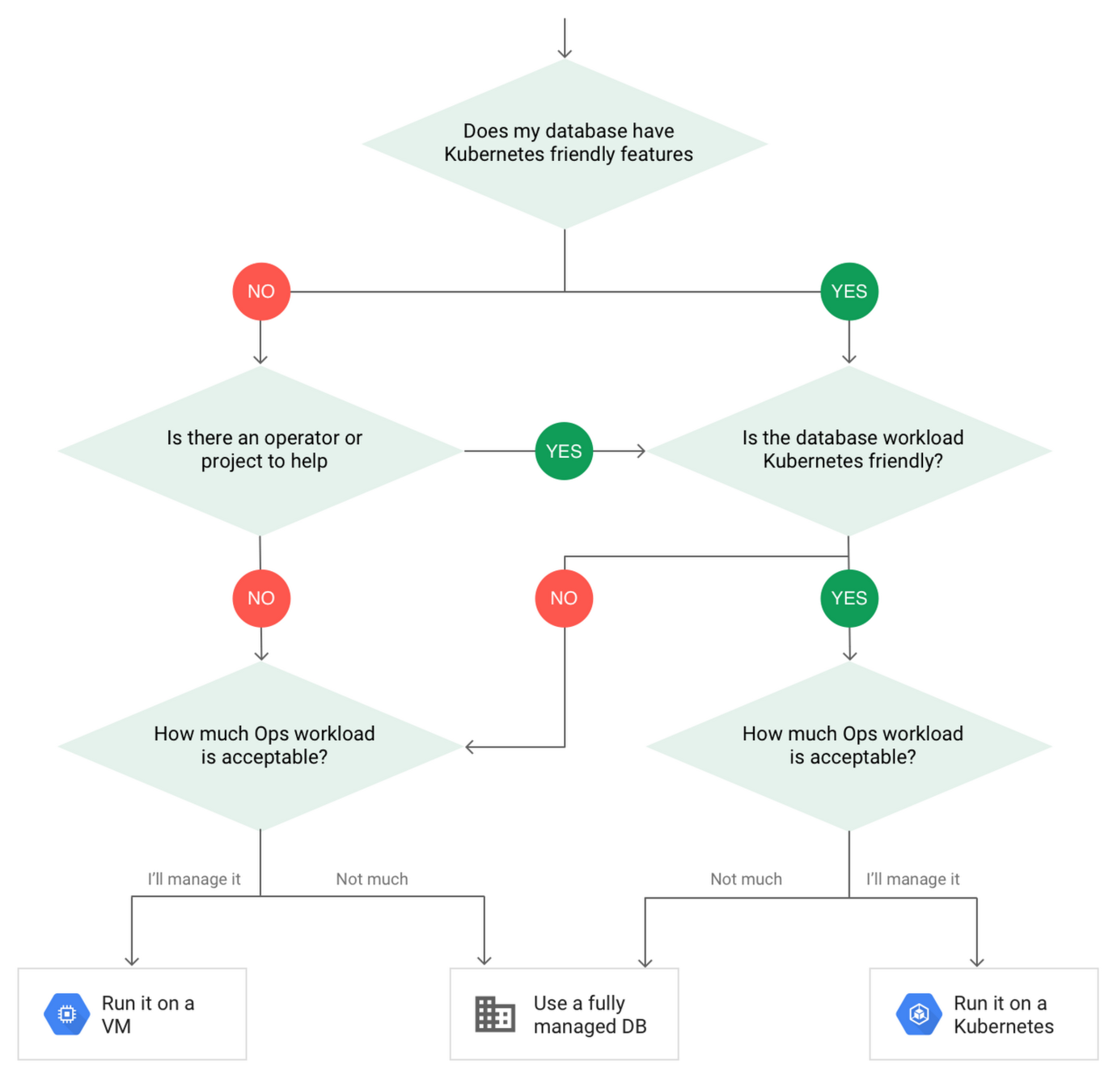

To run or not to run
what is needed
