Self-improving software

Dr. Gleb Bahmutov PhD

KENSHO

KENSHO

Technology that brings transparency to complex systems

Harvard Sq, WTC NYC

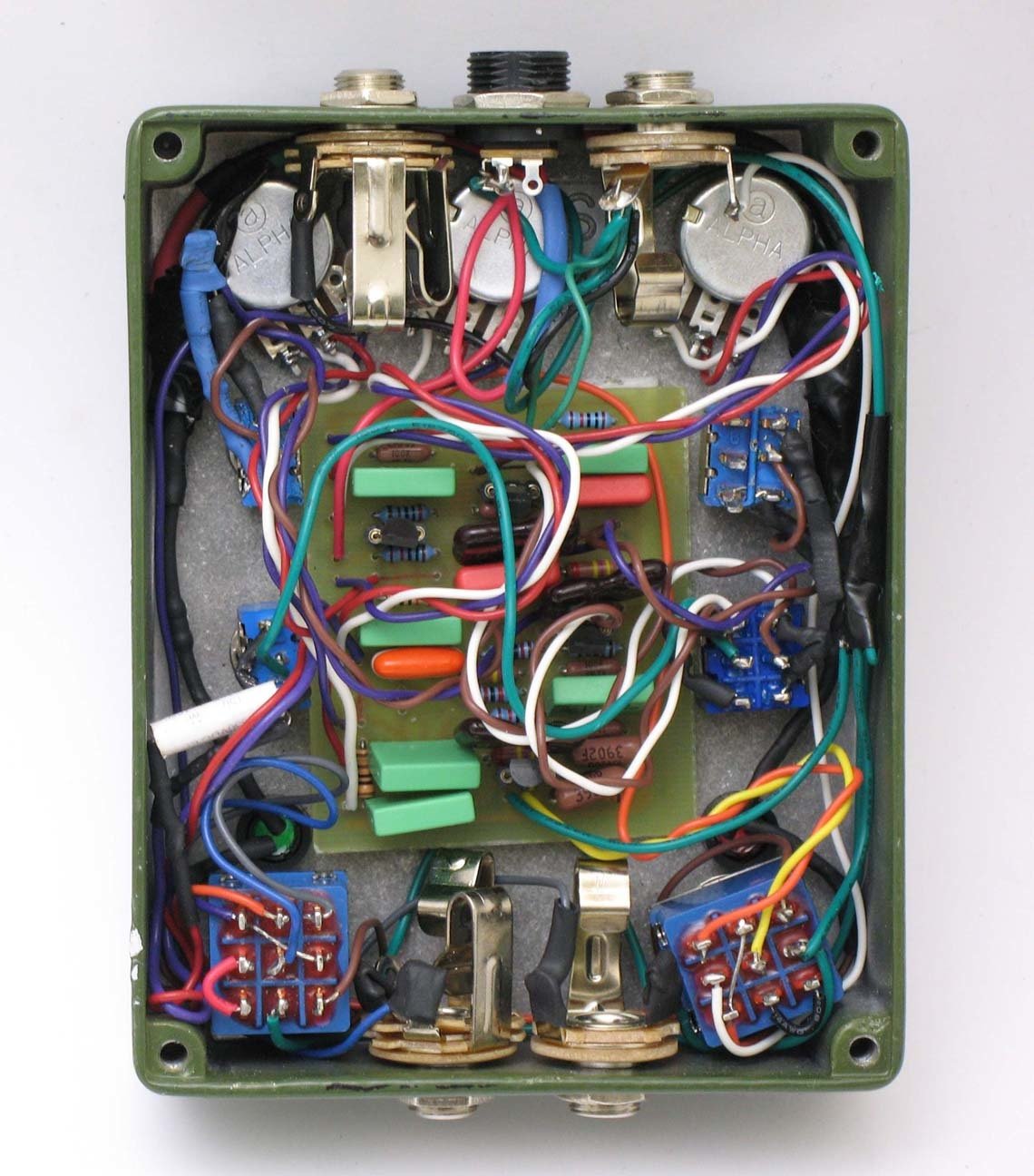

Does your code look like this?

There is a better way

  1. codebase red flags

  2. divide and conquer

  3. semantic versioning

  4. safe dependency updates

  5. safe new version release

Outline

Source out of control - the red flags

Build time > 15 seconds

Multiple tools, environments

Impossible to unit test a feature

You have to use AND to describe the project and its goals

Source control to built and tested > 10 minutes

No code reuse

Giving up

Repo size

single

function

several

files

Google

size

mono

repo

my limit

backend

(API + www)

_ is simpler in a small project

  • Scope

  • Code and module reuse

  • Documentation

  • Testing

  • API design

  • Code reviews and standards

  • Installation / deployment

  • Onboarding

Monorepo Exception*

Babel

PouchDB

...

single product + plugins

 Q: Why are the giant code bases so difficult to deal with?

Software complexity

= number of interactions

var sum = add(a, b)

4 variables (a, b, add and sum)

4 * (4 - 1) / 2 = 6 interactions

Cognitive research

3 - 7 things at once

"Thinking, Fast and Slow" by Daniel Kahneman

Physical separation

A function isolates internal code

function add(a, b) { ... }
var sum = add(2, 3)
console.log('2 + 3 =', sum)

A module separates code from its dependencies

  • functions separate variables via scopes

  • source files separate code

  • dependencies separate files

  • teams separate people

  • slides separate bullet points

App Assembly

Each auto part is

  1. built separately

  2. tested separately

  3. has SKU number

  4. shipped to the auto plant

  5. placed into the car

Assembling apps

same way as cars are built

Heroku's 12 Factor App

https://12factor.net/

Single repo per app

Do not build cars AND boats at the same plant

Share code via dependencies, not code

Do not build cars and tires at the same plant

Every library has its own version

Old OEM parts are still made and installed

NPM - the largest library of JavaScript modules

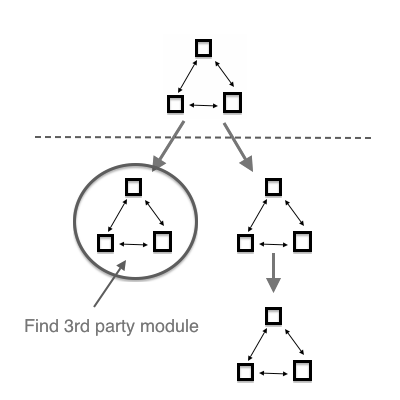

You can build anything by using off the shelf parts ... if you have a huge warehouse

Node module: package.json

{
  "name": "my-module",
  "version": "0.1.0",
  "main": "index.js",
  "dependencies": {
    "foo": "0.1.*",
    "bar": "~1.2.0",
    "baz": "^2.0.1"
  },
  "devDependencies": {
    "grunt-concat": "0.1.1"
  }
}

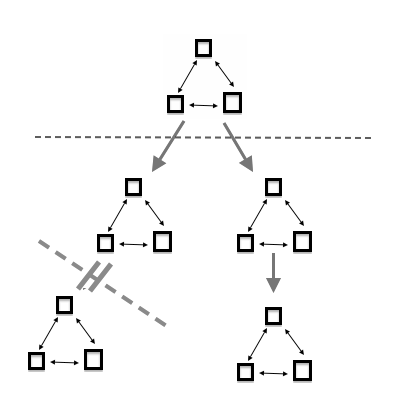

Worry about the top level only

1.5.0

4.0.1

  1. codebase red flags

  2. divide and conquer

  3. semantic versioning

  4. safe dependency updates

  5. safe new version release

Outline

Semantic versioning

major . minor . patch

break . feature . fix

  • major: I changed how it works  🔥😡

  • minor: I added a new feature     👏👍

  • patch: I fixed something              ✅❤️

really

Semantic versioning

Upstream vs downstream

upstream

downstream

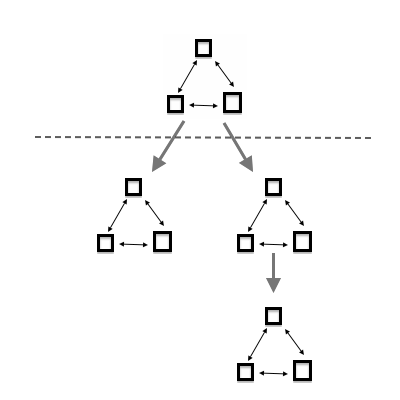

Dependency tree: day 0

0.1.0

2.2.0

2.2.0

0.1.0

Dependency tree: day 1

0.1.0

2.2.0

2.2.0

0.1.0

0.1.1

0.1.2

Dependency tree: day 3 (really)

0.1.0

2.2.0

2.2.0

0.1.0

0.1.1

0.1.2

2.2.1

2.2.2

2.5.0

3.0.0

3.0.1

Can we update? In theory

0.1.0

2.2.0

2.2.0

0.1.0

0.1.1

0.1.2

2.2.1

2.2.2

2.5.0

3.0.0

3.0.1

patches

patches

0.1.0

2.2.0

2.2.0

0.1.0

0.1.1

0.1.2

2.2.1

2.2.2

2.5.0

3.0.0

3.0.1

patches

patches

new feature

Can we update? In theory

0.1.0

2.2.0

2.2.0

0.1.0

0.1.1

0.1.2

2.2.1

2.2.2

2.5.0

3.0.0

3.0.1

patches

patches

new feature

api change

Can we update? In theory

0.1.0

2.2.0

2.2.0

0.1.0

0.1.1

0.1.2

2.2.1

2.2.2

2.5.0

3.0.0

patches

patches

new feature

api change

Can we update?

3.0.1

No one knows!

Relying on human-supplied semver is like relying on code comments to be 100% accurate

Q: Is this a mess?

A: Yes.

  • the mess is manageable.
  • the mess maps nicely to the software development:
    • different parts are developed at different speeds.

Versioned dependencies isolate the true mess: constant merging of commits

source: https://static.pexels.com/photos/119661/pexels-photo-119661.jpeg

source: https://static.pexels.com/photos/53930/pexels-photo-53930.jpeg

Before I change my light bulb I must test Niagara Falls station to make sure it still works

Develop + integrate

function add(a, b) { ... }
...
... add(2, 3);
    ....
add(-1, 100);
...
...
console.log(add(0, 0));
...

Develop + integrate

function add(a, b) { XXX }
...
... add(2, 3);
    ....
add(-1, 100);
...
...
console.log(add(0, 0));
...

change

Develop + integrate

function add(a, b) { XXX }
...
... add(2, 3);
    ....
add(-1, 100);
...
...
console.log(add(0, 0));
...

Develop + integrate

function add(a, b) { XXX }
...
... add(2, 3);
    ....
add(-1, 100);
...
...
console.log(add(0, 0));
...

Hard to improve "add" AND keep everything working

Alternative: Develop THEN integrate

// package.json "add": "1.0.0"
var add = require('add');
...
... add(2, 3);
    ....
add(-1, 100);
...
...
console.log(add(0, 0));
// module ADD@1.0.0
function add(a, b) { ... }

Develop THEN integrate

// package.json "add": "1.0.0"
var add = require('add');
...
... add(2, 3);
    ....
add(-1, 100);
...
...
console.log(add(0, 0));
// module ADD@1.1.0
function add(a, b) { XXX }

change

Develop THEN integrate

// package.json "add": "1.1.0"
var add = require('add');
...
... add(2, 3);
    ....
add(-1, 100);
...
...
console.log(add(0, 0));
// module ADD@1.1.0
function add(a, b) { XXX }

new

version

Revert, no harm done

// package.json "add": "1.0.0"
var add = require('add');
...
... add(2, 3);
    ....
add(-1, 100);
...
...
console.log(add(0, 0));
// module ADD@1.1.0
function add(a, b) { XXX }

revert

version

Q: Can we automate dependency upgrades?

  1. Run unit tests

  2. Install each new dependency

  3. Run unit tests again

    1. Keep or revert

(safe upstream)

A: next-update

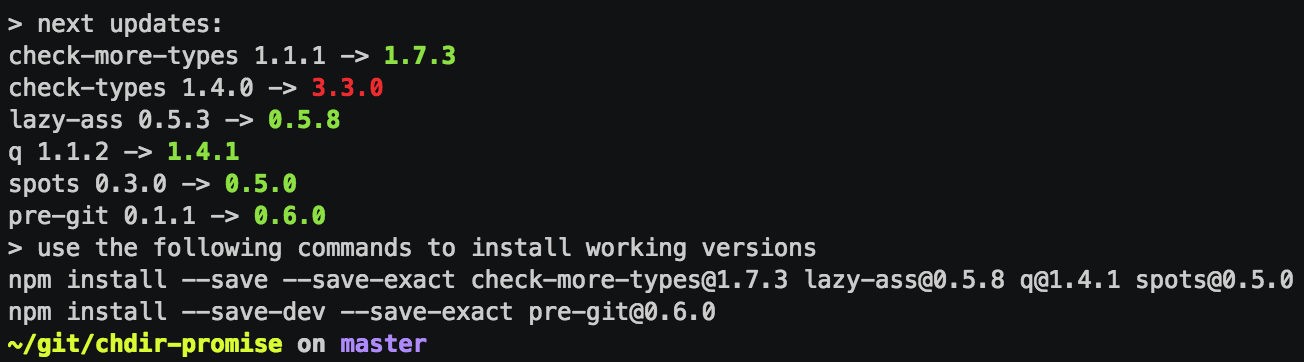

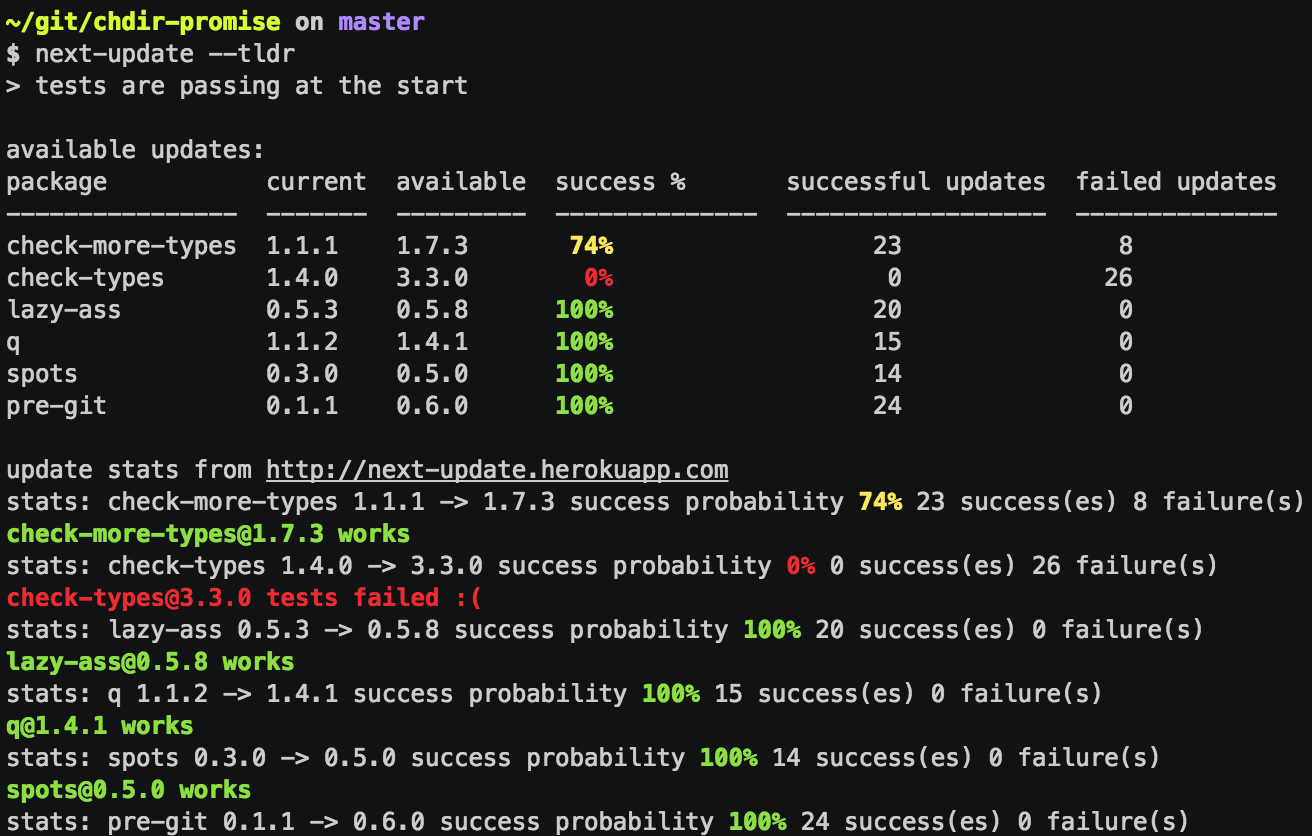

next-update

next-update

If you test your software - you will get 3rd party upgrades with zero effort

next-updater

When you have lots of projects to upgrade

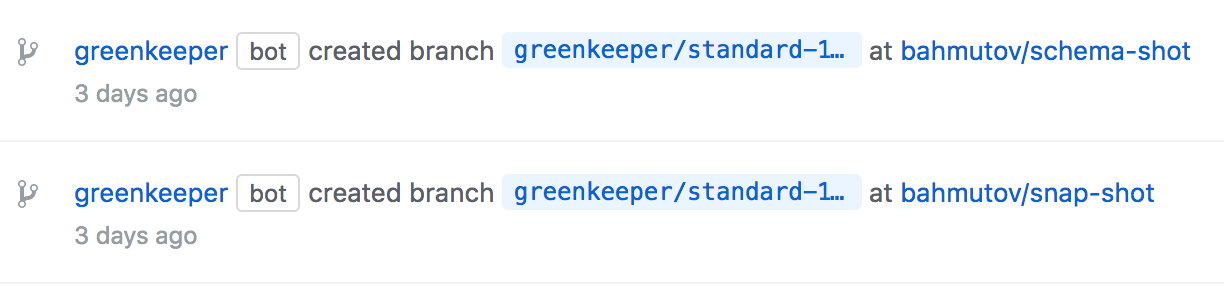

GreenKeeper.io - dependency update as a service

Q: Is the update

foo@x.y.z => foo@x.y + 1.z

likely to succeed?

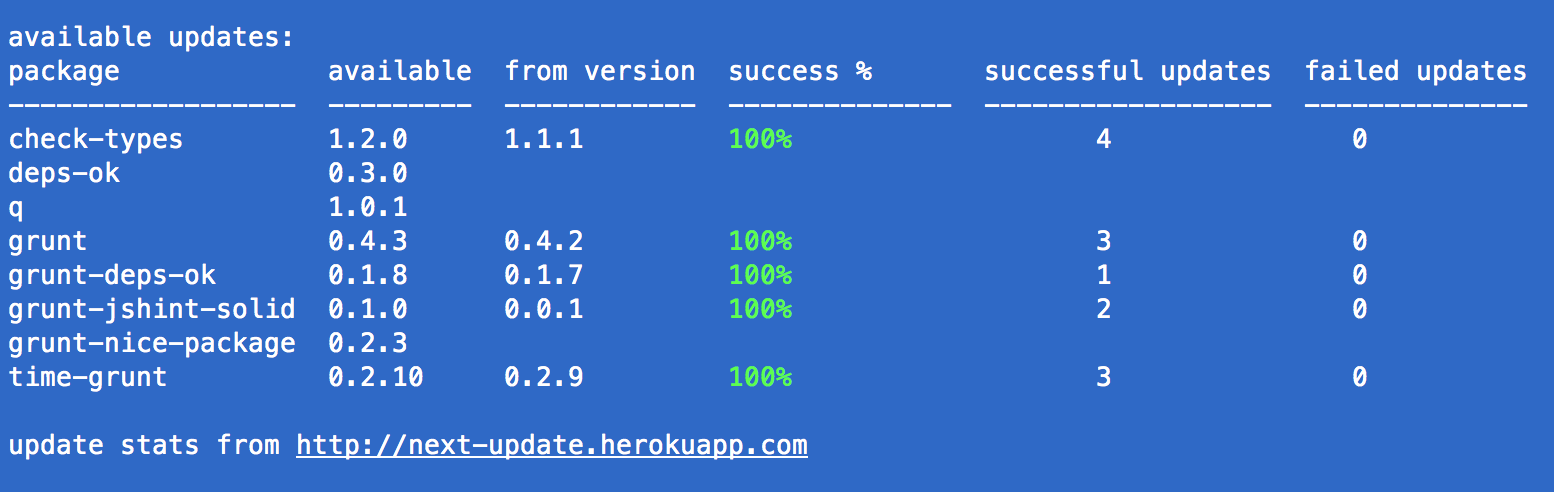

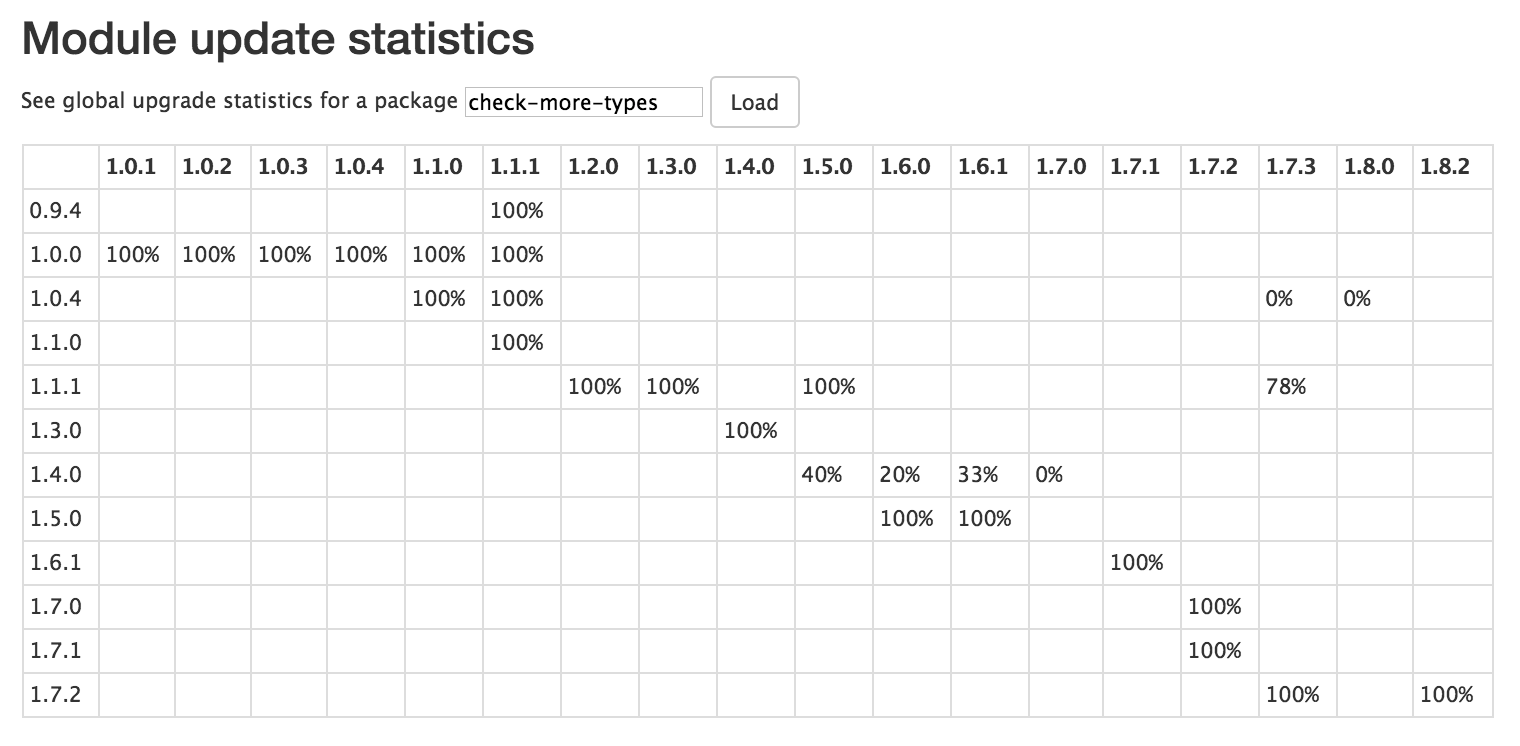

next-update-stats

next-update-stats

Q: Are automated upgrades scary?

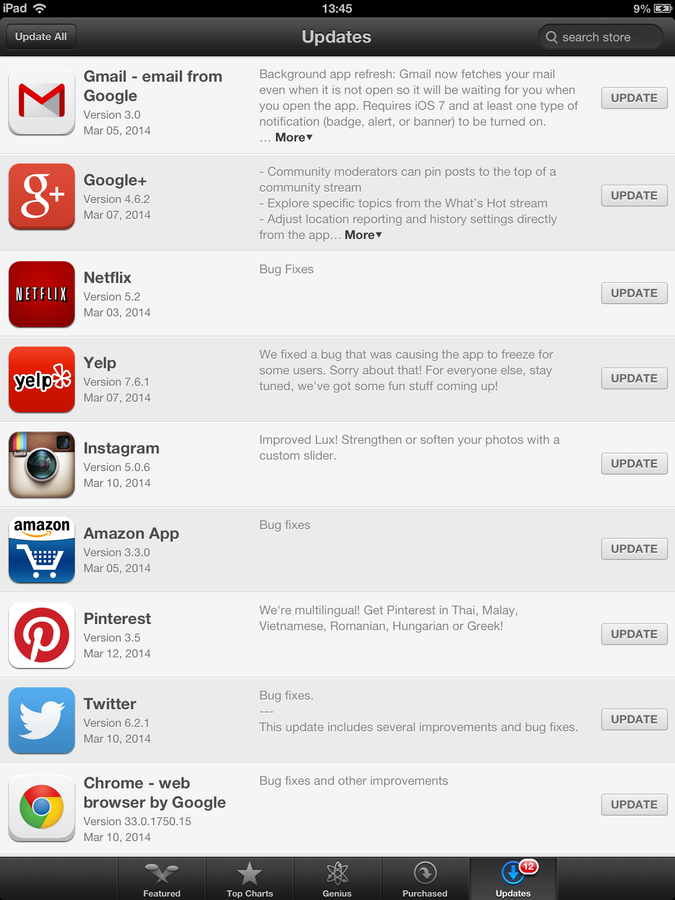

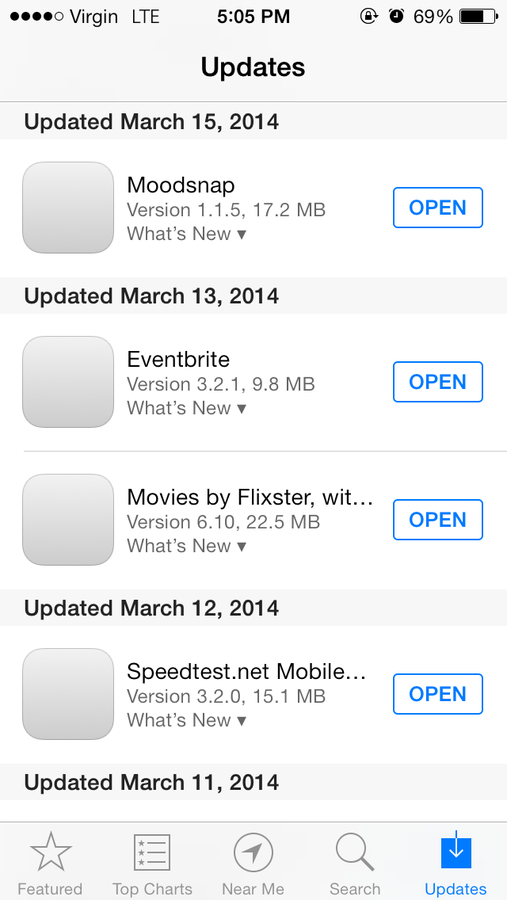

iOS6 vs iOS7 app updates

Automatic upgrades should not be scary

  • Your project is well tested

  • A particular dependency update has a high probability of being successful

  1. codebase red flags

  2. divide and conquer

  3. semantic versioning

  4. safe dependency updates

  5. safe new version release

Outline

Automate NPM publish

$ npm install -g semantic-release-cli
$ semantic-release-cli setup
$ git commit -m "minor(app): add new feature"
$ git push

New minor version is published by your CI if tests pass

Commit message convention

$ git commit -m "minor(app): add new feature"
$ git push
$ git commit -m "patch(log): fix log rotation"
$ git commit -m "major(api): change output format"
$ git push

new minor version published

new major version published

Q: Are you going to break everyone?

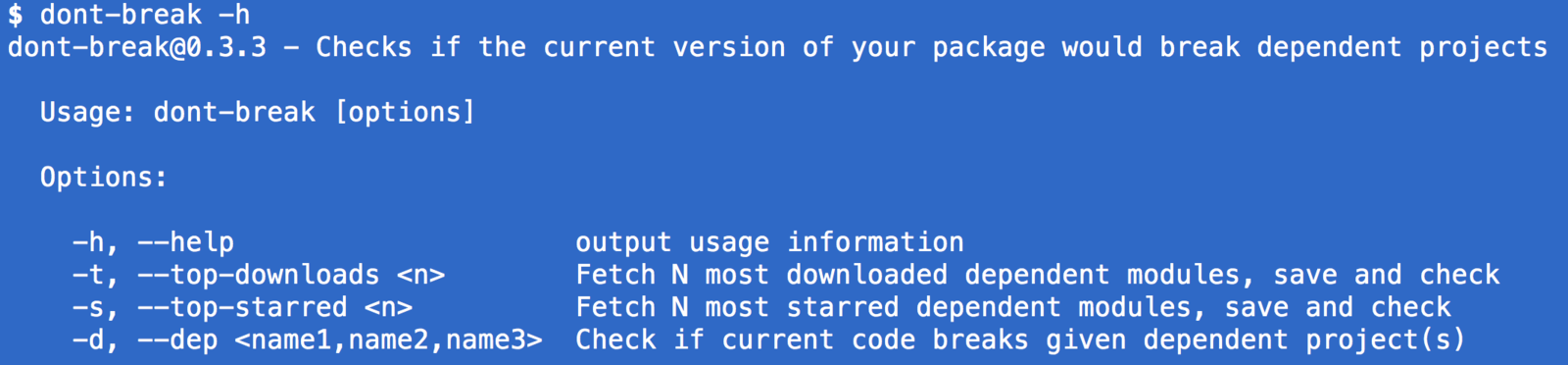

dont-break from module X

  1. Install each dependent project

  2. Replace X@x.y.z with X@current

  3. Run unit tests

If we are breaking dependent projects - maybe we should increment MAJOR

dont-break from module X

plugin for semantic-release

Automate all the things!

http://www.chicagotribune.com/bluesky/hub/chi-inc-robots-doing-more-office-work-bsi-hub-20150617-story.html

Example: snap-shot

snap-shot

snap-shot-core

schema-shot

snap-shot-jest-test

snap-shot-ava-test

snap-shot-vue-test

...

snap-shot

snap-shot-core

schema-shot

snap-shot-jest-test

snap-shot-ava-test

snap-shot-vue-test

semantic release

with dont-crack

...

Example: snap-shot

snap-shot

snap-shot-core

schema-shot

snap-shot-jest-test

snap-shot-ava-test

snap-shot-vue-test

semantic release

with dont-crack

...

Example: snap-shot

snap-shot

snap-shot-core

schema-shot

snap-shot-jest-test

snap-shot-ava-test

snap-shot-vue-test

semantic release

with dont-crack

semantic release

with dont-crack

...

Example: snap-shot

snap-shot

snap-shot-core

schema-shot

snap-shot-jest-test

snap-shot-ava-test

snap-shot-vue-test

semantic release

with dont-crack

semantic release

with dont-crack

...

Example: snap-shot

Conclusions

  1. Single huge project => lots of small projects

  2. Automate new version release: semantic-release, dont-break

  3. Automate dependencies next-update / greenkeeper.io

Self-improving software

Thank you 👏
