Real world

trigger/tracker

Digital world

overlay

Augmented Reality

Device

Triggers / Trackers

Marker



Classifier



SLAM



Geolocation

Marker

Specific image as point of reference for detection and tracking to attach your overlay

Classifier

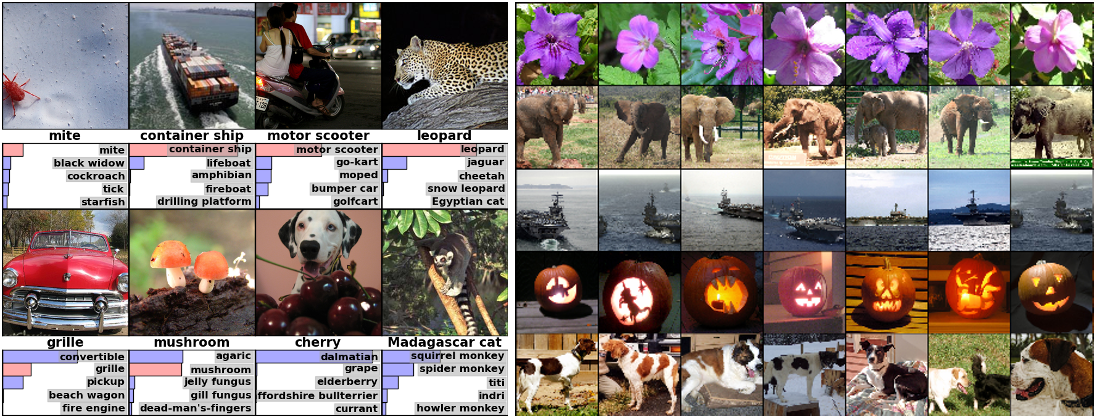

Using image recognition to determine general categories

TensorFlow

Open source library for general machine learning



Inception-V3 - deep convolutional neural network (CNN)



ImageNet - Currently 14,197,122 images

SLAM

Simultaneous Localization and Mapping



Map the environment while tracking your device location inside of it



NO marker needed - just attach your digital overlay to a wall, floor, table, etc



Use changes in Inertial Measurement Unit (IMU) data to keep your overlay in place

Geolocation

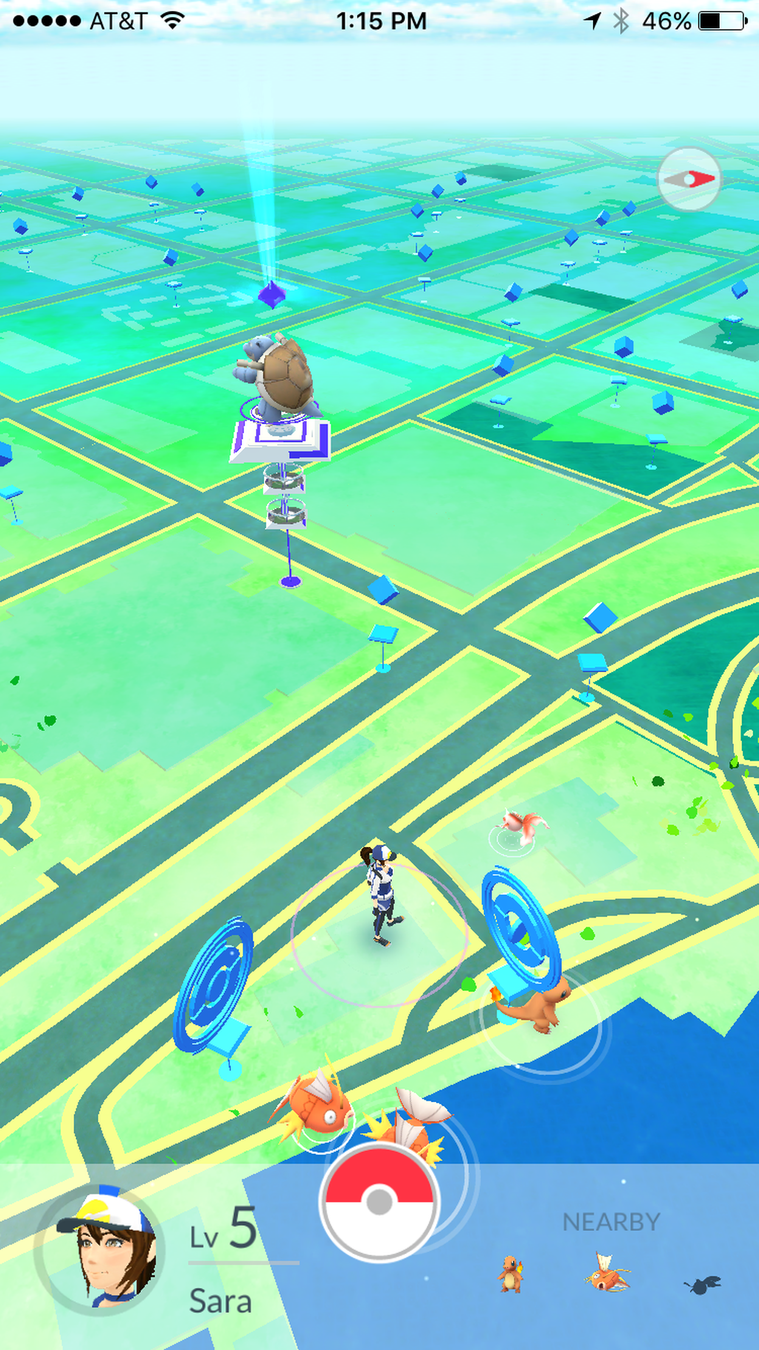

Launch overlay based on real world physical location

Devices

Standard Camera Handheld Devices (iPhone, Galaxy, Pixel)



3D Camera Handheld Devices (Tango, Structure Sensor)



Head Mounted Displays (Meta, Hololens, Magic Leap, ODG, Daqri, Epson, Contact lens)



Inputs (Camera, Leap Motion, OpenBCI, game controllers, UltraHaptics)

Digital Overlay

Code



Powerful Desktop/Web Based Editors



Simple Mobile Creation

Code the AR Digital Overlay

Graphics APIs: OpenGL, WebGL, Vulkan, DirectX (Microsoft), Metal (Apple)



Tool APIs - UnityScript, Blippbuilder Script, Blender Python API



3D file formats: MD2, Draco, COLLADA, OBJ, FBX, GLTF

Edit the AR Digital Overlay

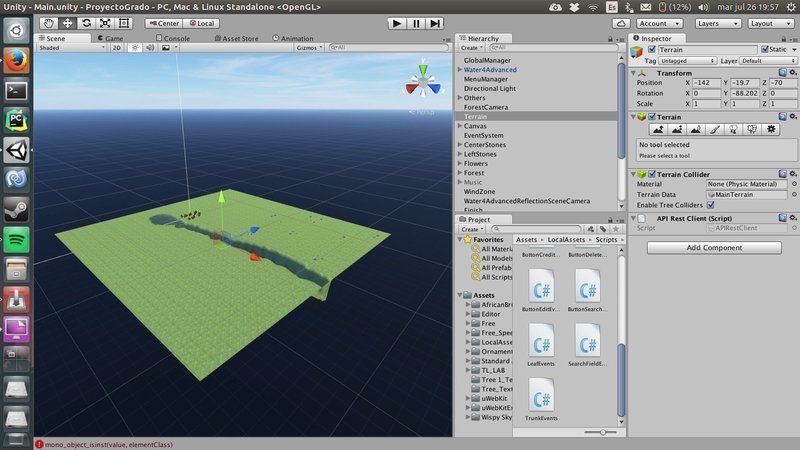

Unity



Blippbuilder



ZapWorks



Aurasma



Wikitude Studio

AR vs VR vs MR?

Important thing is that we are building and delivering 3D content that exists in a 3D environment



Virtual Reality is a closed simulation



Augmented Reality places virtual objects in the physical world



Mixed Reality brings physical objects into the virtual world (and includes AR)



Content created should work in both environments!

Challenges to Solve to Bring AR Mainstream

Not enough content



Real world object recognition technology needs to get better



Real world object interaction (SLAM) needs to get better on current devices



Ubiquity of 3D cameras and head mounted displays



Real time content delivery



Social acceptance
