An evolution of Flux

  • Microcosm organizes itself around a history of user actions.



  • As those actions move through a set lifecycle, Microcosm reconciles them in the order they were created.



  • Invoking push() appends to that history, and returns an Action object to represent it

How it works

Text

Text

History visualization with the microcosm debugger tool

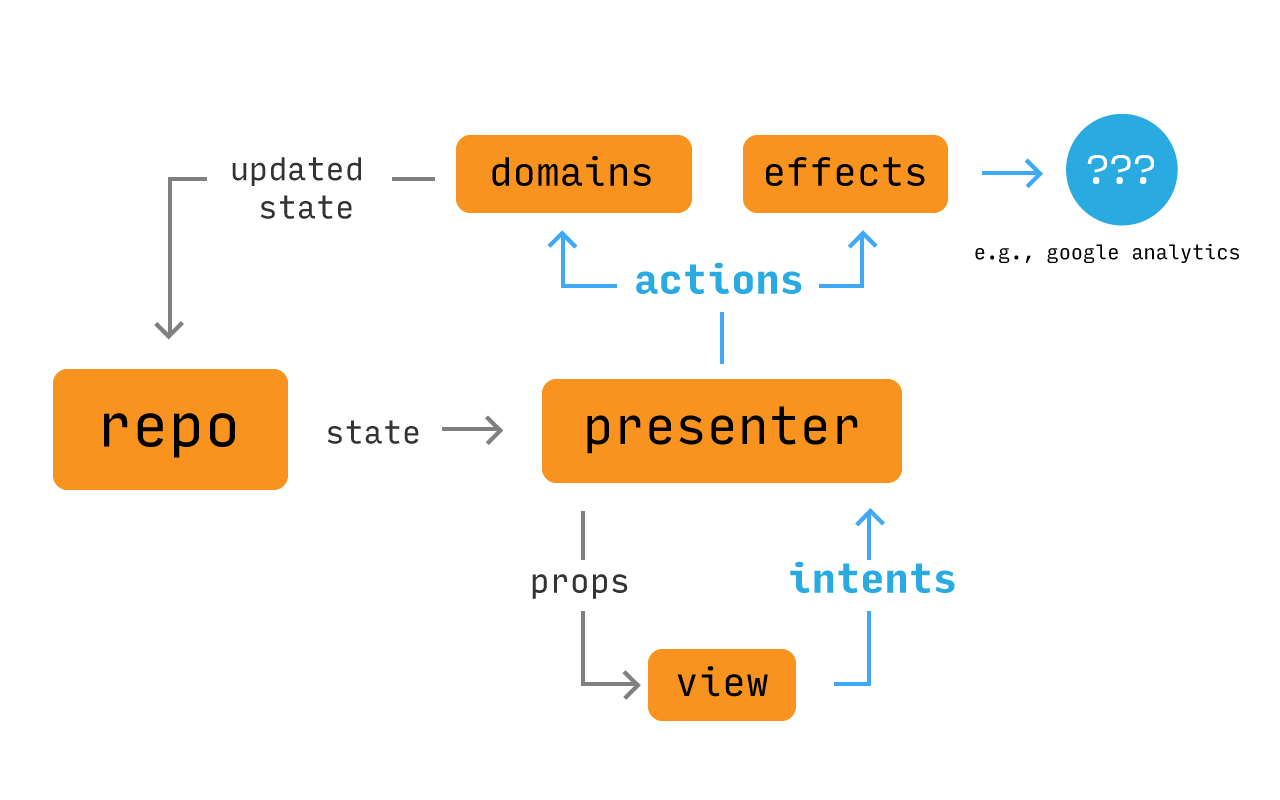

Data Flow

actions

  • Repo Microcosm instance, source of truth
  • Domains Register actions send updated state to the repo
  • Effects Register actions with arbitrary callbacks
  • Actions Stateful representations of user actions in app history
  • Presenters Special top-level components
  • Views Mostly logicless React components. Can send actions via withSend addon

The Bits & Pieces

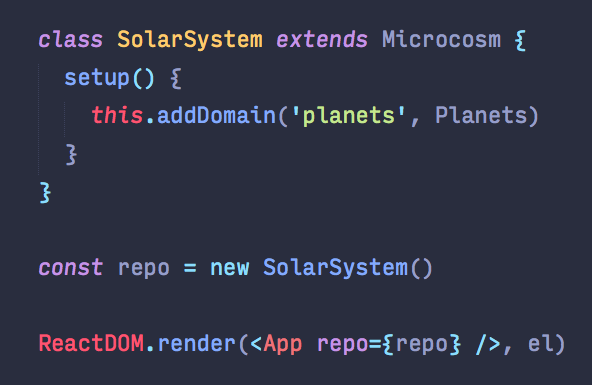

Repo

repo.state.planets now exists

A Microcosm instance. The source of truth.

  • Where you add domains and effects
  • Where state lives
  • What actions get pushed to
  • Where history is recorded

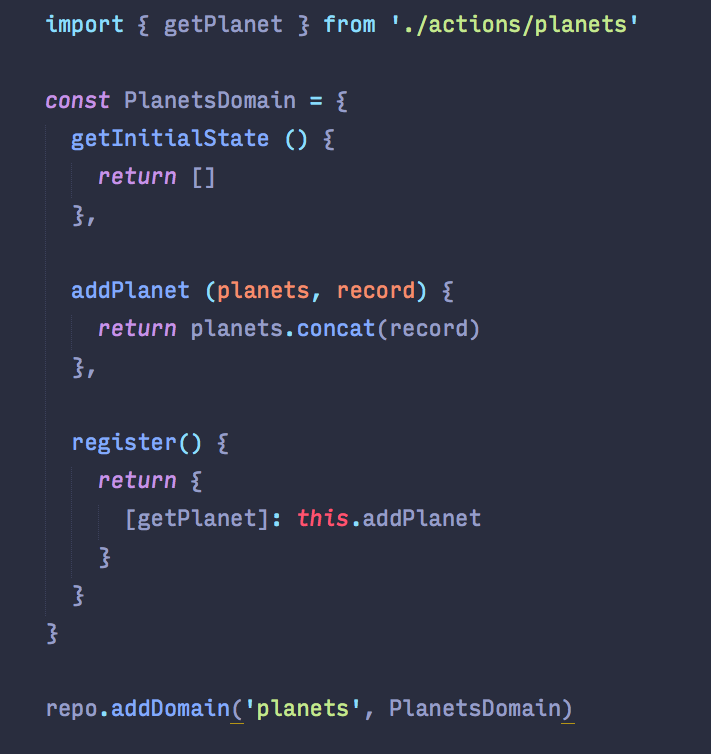

Domain

State manipulators

  • Register Actions with callbacks that return updated state
  • Old state in
  • New state out

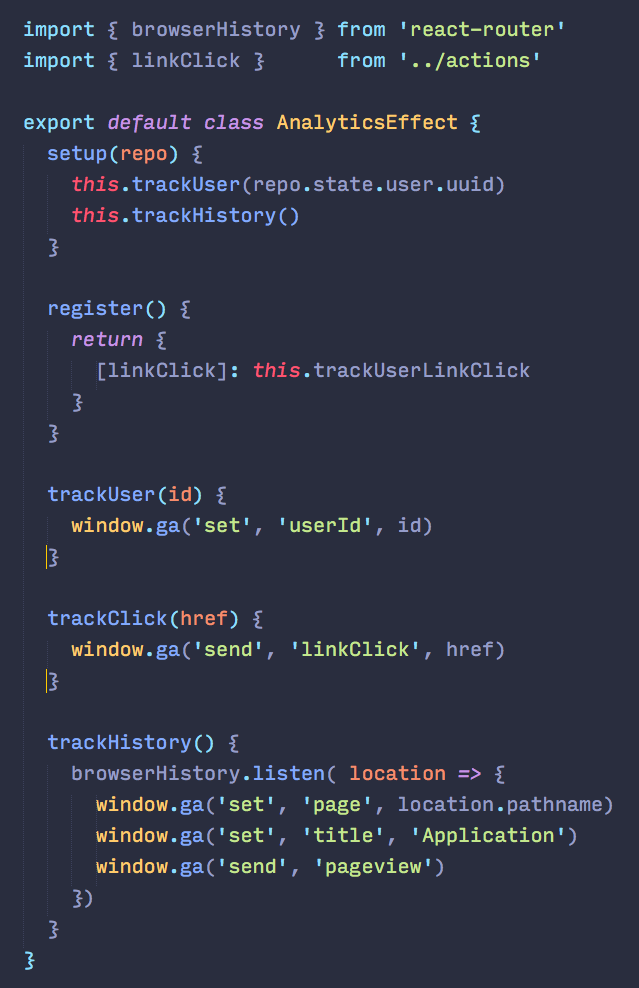

Effect

Action side effects

  • Register actions to do some non-state related task
  • Examples
    • Send data to google anlalytics
    • Send a websocket message
    • Update a canvas

Actions

Actions are represented as plain functions or strings.

A stateful operation to be added to history

Actions

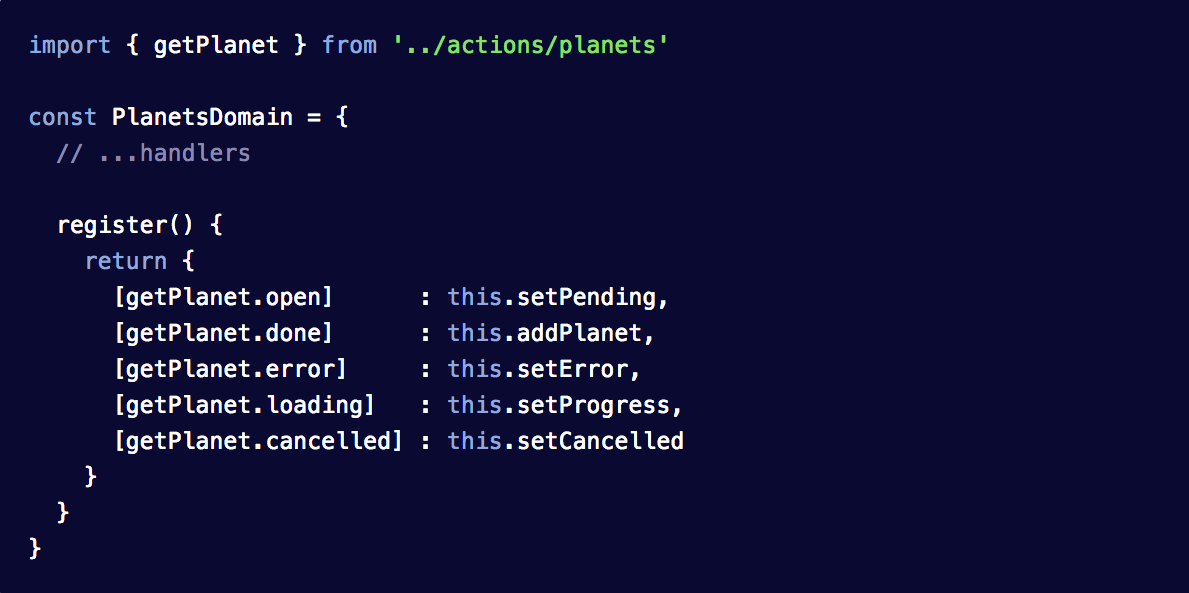

Actions have State!

Actions

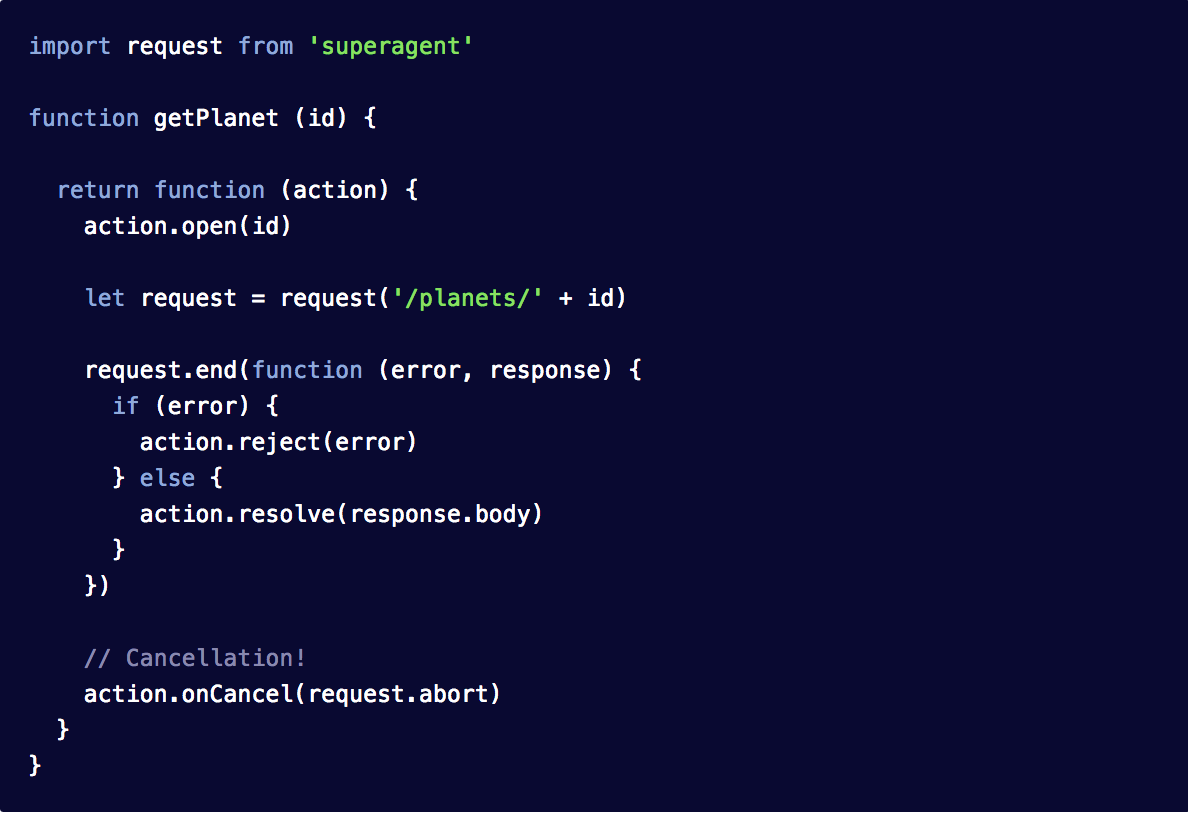

Unlock a deeper level of control by returning a function

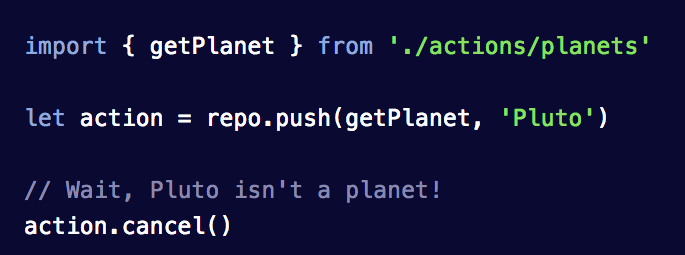

Cancel an action:

Actions

Time Travel with

repo.checkout(action)

Presenter (add-on)

Top-level Components that respond to state change and intents

Presenter

Objective: Keep your app logic at the top, and child components as dumb as possible

  • Fetch data for a route
  • Derive props from state
  • Define functionality and register with intents
  • Send props to a passive view

What it's for:

Presenter

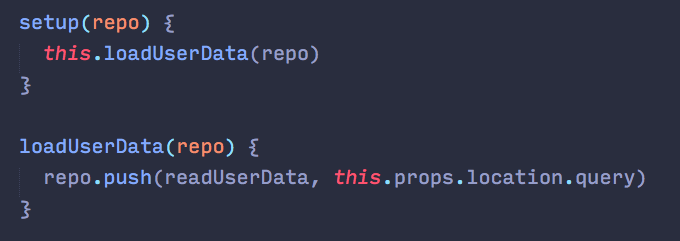

Push an action that fetches data from the setup or update method

Fetch data for a route

Presenter

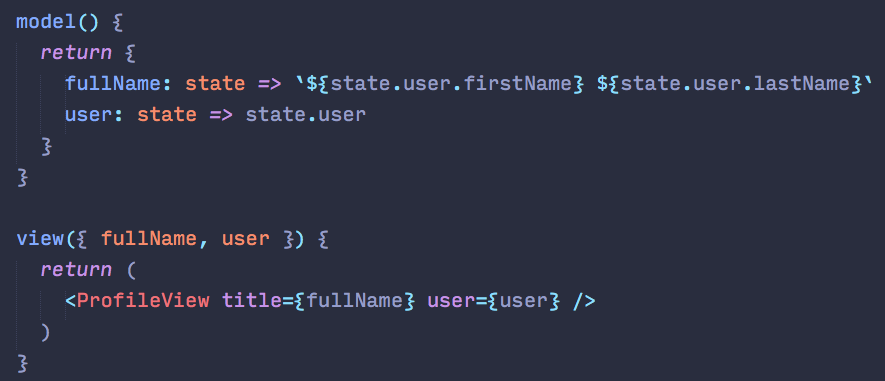

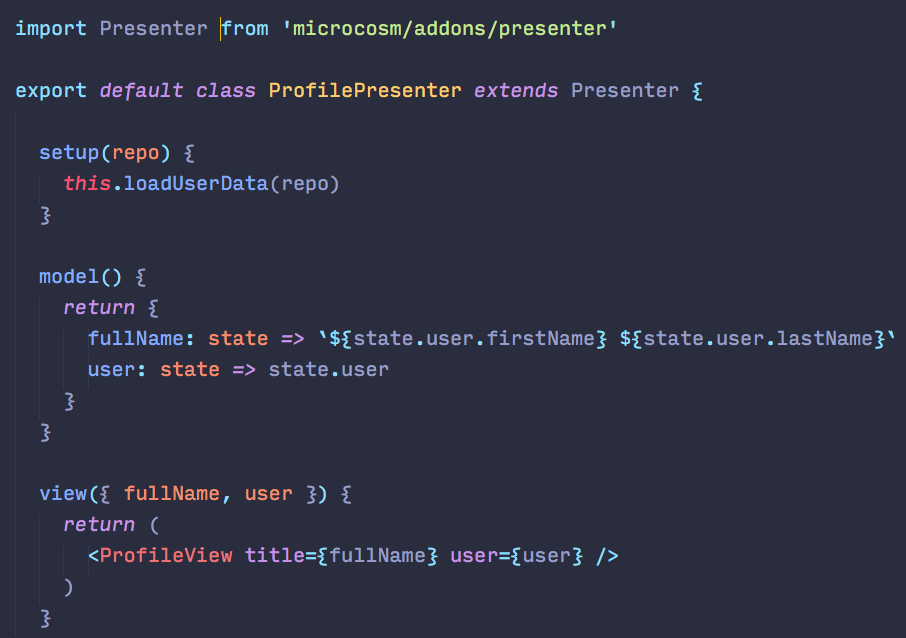

Use model() to create props from state to be passed to the view

Pulling data out of state

Presenter

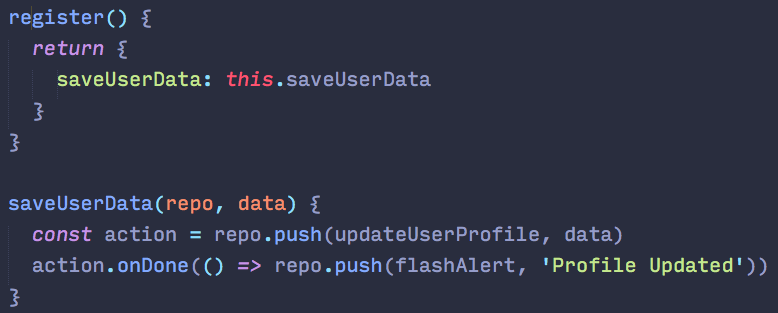

Use register() to catch and handle intents bubbling up from child views

What it's for: Responding to Intents with app logic

Intent (withIntent and Form add-ons)

Bubbling string messages with optional payloads

Intent (withIntent and Form add-ons)

Using withIntent adds a send prop

Intent (withIntent and Form add-ons)


In this case:

  • push and alertAction to the repo to update state
  • display a browser alert

A Presenter registered with the intent will catch it and run your app logic.

CLICK!

Intent (withIntent and Form add-ons)

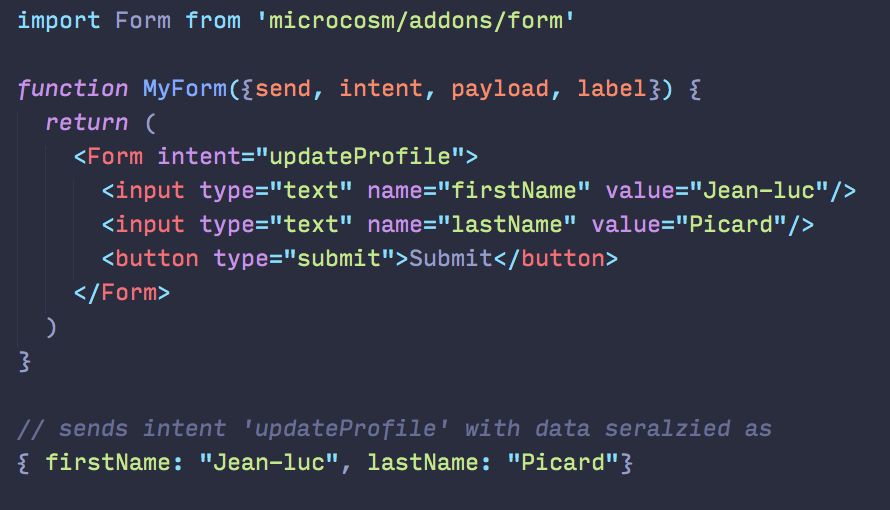

the <Form /> addon

  • Repo Microcosm instance, source of truth
  • Domains Register actions send updated state to the repo
  • Effects Register actions with arbitrary callbacks
  • Actions Stateful representations of user actions in app history
  • Presenters Special top-level components
  • Views Mostly logicless React components. Send intents
  • Intents A string or action that bubbles up through the app, and can be responded to by a registered presenter, domain, or effect

Recap: The Bits

Recap: Data Flow

Check out the docs and examples!

@nhunzaker (creator of Microcosm.js)

@dantello5 (me)

@viget (provider of current pizza, beer, and shelter)

Stalk us!
