Android L

Animations

Dmytro Danylyk

Lemberg Solutions Limited

Animation -

is a dialog between user and system.

#dfua

Considerations

Motion provides meaning

Order and timing

Choreography

Avoid linear velocity

Avoid conflicting movements

The depth story

Point of input

A clear picture

Respond to touch events in your views with touch feedback animations.

#dfua

Ripple Effect

<Button
     android:layout_width="wrap_content"
     android:layout_height="wrap_content"
     android:text="New Button"
     android:paddingLeft="16dp"
     android:paddingRight="16dp"/>

Code

Result

Android L Developer Preview new touch feedback mechanism.

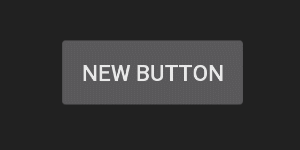

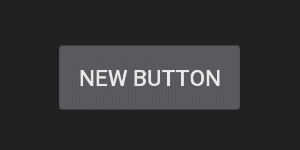

Raised button, a typically rectangular button made of paper that lifts and emits ink reactions on press.

Ripple Effect

<Button
     ...
     android:background="?android:attr/selectableItemBackground"/>

Code

Result

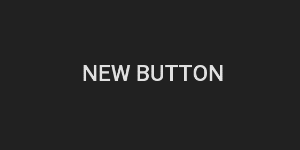

Flat button, a button made of ink that emits ink reactions on press but does not lift.

Ripple Effect

<style name="AppTheme" parent="android:style/Theme.Material">
    <item name="android:colorControlHighlight">@android:color/holo_purple</item>
</style>

Code

Result

To change the default touch feedback color, use the theme's attribute.

Ripple Effect

<ripple android:color="@android:color/holo_purple">
    <!--mask defines the bounds for the ripple animation-->
    <item android:id="@android:id/mask">
        <shape android:shape="rectangle" />
    </item>
</ripple>

Code

Result

To change the default touch feedback color, of single view use ripple drawable.

<Button android:background="@drawable/ripple"/>
drawable/ripple.xml​​

Ripple Effect

<Button
     ...
     android:background="?android:attr/selectableItemBackgroundBorderless"/>

Code

Result

To make ripple extends beyond the view bounds.

Hide and show views with reveal effect animations.

#dfua

Reveal Effect

ValueAnimator anim =
    ViewAnimationUtils.createCircularReveal(
        view,
        centerX,
        centerY,
        startRadius,
        endRadius
    );

Code

Result

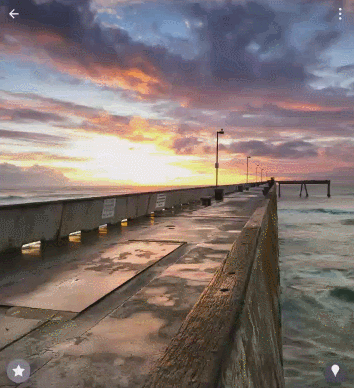

The createCircularReveal method enables you to animate a clipping circle to reveal or hide a view.

Create more natural animations with curved motion.

#dfua

Curved Motion

Path path = new Path();
path.addCircle(x, y, radius, Path.Direction.CW);

ObjectAnimator animator =
    ObjectAnimator.ofFloat(view, View.X, View.Y, path);

animator.setDuration(1000);
animator.start();

Code

Result

The Object Animator class has new constructors that enable you to animate coordinates along a path.

Animate changes in one or more view properties with view state change animations.

#dfua

Lift on touch

<selector>
    <item android:state_pressed="true">
        <set>
            <objectAnimator
                    android:propertyName="translationZ"
                    android:duration="100"
                    android:valueTo="4"
                    android:valueFrom="0"
                    android:valueType="floatType"/>
        </set>
    </item>
    ...
</selector>

Code

Result

The new State List Animator class lets you define animators that run when the state of a view changes.

anim/selector.xml​​
<android.support.v7.widget.CardView
        android:stateListAnimator="@anim/selector"/>

Show animations in state list drawables between view state changes.

#dfua

Icon morphing

Code

<animated-selector>
    <item android:state_checked="true" android:id="@+id/state_on">
        <bitmap android:src="@drawable/ic_done_anim_030" />
    </item>
    <item android:state_checked="false" android:id="@+id/state_off">
        <bitmap android:src="@drawable/ic_plus_anim_030" />
    </item>
    <transition android:fromId="@+id/state_on"
                android:toId="@+id/state_off">
        <animation-list>
            <item android:duration="16">
                <bitmap android:src="@drawable/ic_plus_anim_000" />
            </item>
            ...
            </item>
            <item android:duration="16">
                <bitmap android:src="@drawable/ic_plus_anim_030" />
            </item>
        </animation-list>
    </transition>
</animated-selector>
drawable-v21/icon_anim.xml​​

Result

The new Animated State List Drawable class lets you create drawables that show animations between state changes of the associated view.

A better solution?

Icon morphing library

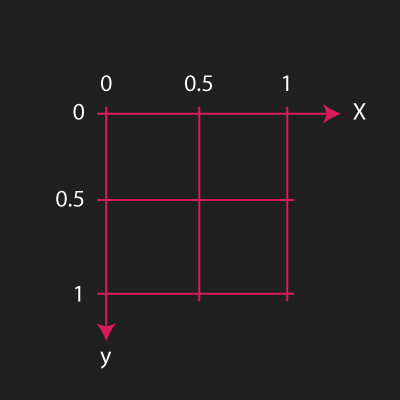

<animation>

</animation>

Code

Result

<animation>
	<frame>

	</frame>
</animation>
<animation>
	<frame>

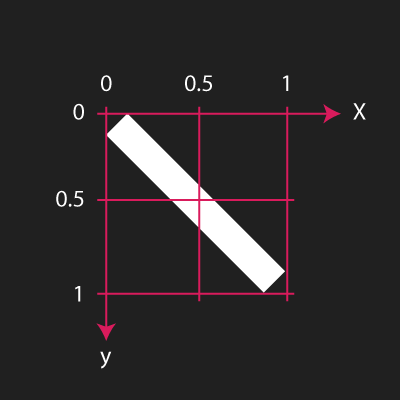

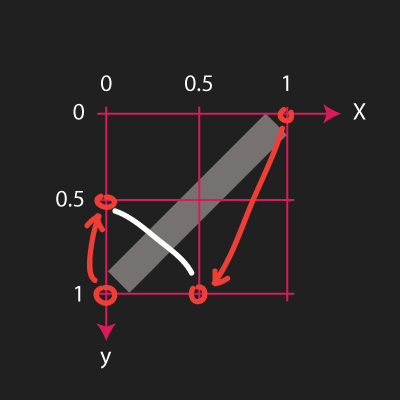

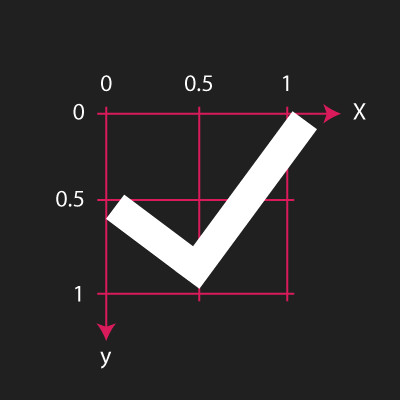

		<line x1="0" y1="0" x2="1" y2="1"/>
	</frame>
</animation>
<animation>
	<frame>
		<line x1="0" y1="0" x2="1" y2="1"/>

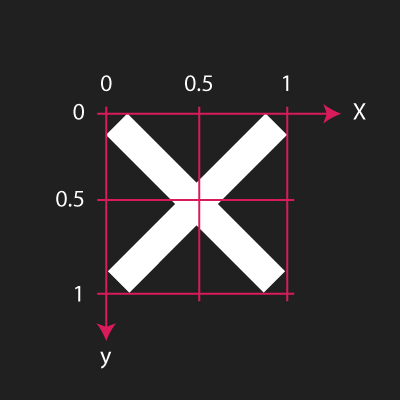

		<line x1="1" y1="0" x2="0" y2="1"/>
	</frame>
</animation>
<animation>
	<frame>
		<line x1="0" y1="0" x2="1" y2="1"/>
		<line x1="1" y1="0" x2="0" y2="1"/>
	</frame>

	<frame>

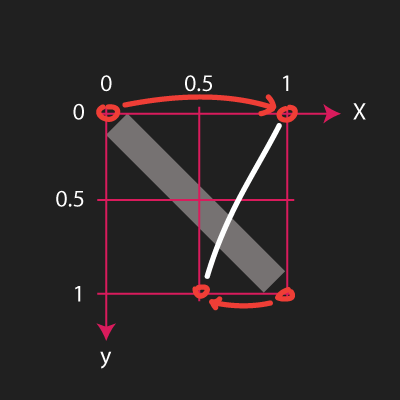

		<line x1="1" y1="0" x2="0.5" y2="1"/>
	</frame>
</animation>
<animation>
	<frame>
		<line x1="0" y1="0" x2="1" y2="1"/>
		<line x1="1" y1="0" x2="0" y2="1"/>
	</frame>

	<frame>
		<line x1="1" y1="0" x2="0.5" y2="1"/>
		<line x1="0.5" y1="1" x2="0" y2="0.5"/>
	</frame>
</animation>
*Nightly build

Icon morphing library

  • Open Source
  • Ice Cream Sandwitch
  • Scalable graphic
  • Declaration via XML
  • Web app

Plans & Opportunities

Imagination is your only limitation

Switch between activities with custom activity transition animations.

#dfua

Activity Transitions

Code

<style name="BaseAppTheme" parent="android:Theme.Material.Light">
    <item name="android:windowContentTransitions">true</item>
    <item name="android:windowEnterTransition">@transition/fade</item>
    <item name="android:windowExitTransition">@transition/fade</item>
</style>
values-v21/styles.xml​​

Fade - moves views in or out of the scene.

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    getWindow().requestFeature(Window.FEATURE_CONTENT_TRANSITIONS);
    getWindow().setEnterTransition(new Explode());
    getWindow().setExitTransition(new Explode());
}
xml
programmatically

Slide - moves views in or out from one of the edges of the scene.

Explode - moves views in or out from the center of the scene.

Activity Transitions - Fade

Activity Transitions - Slide

Activity Transitions - Explode

Shared elements transition

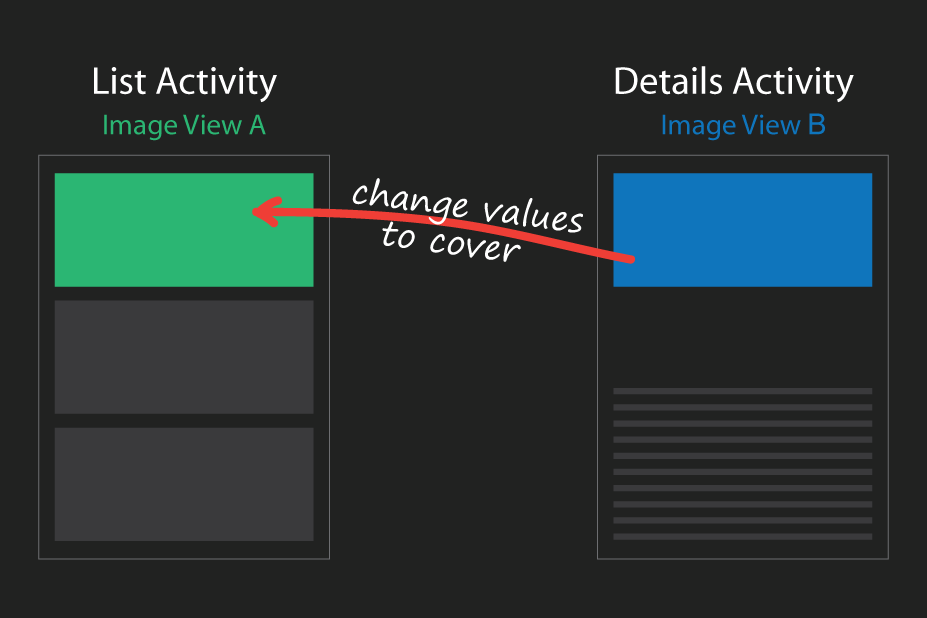

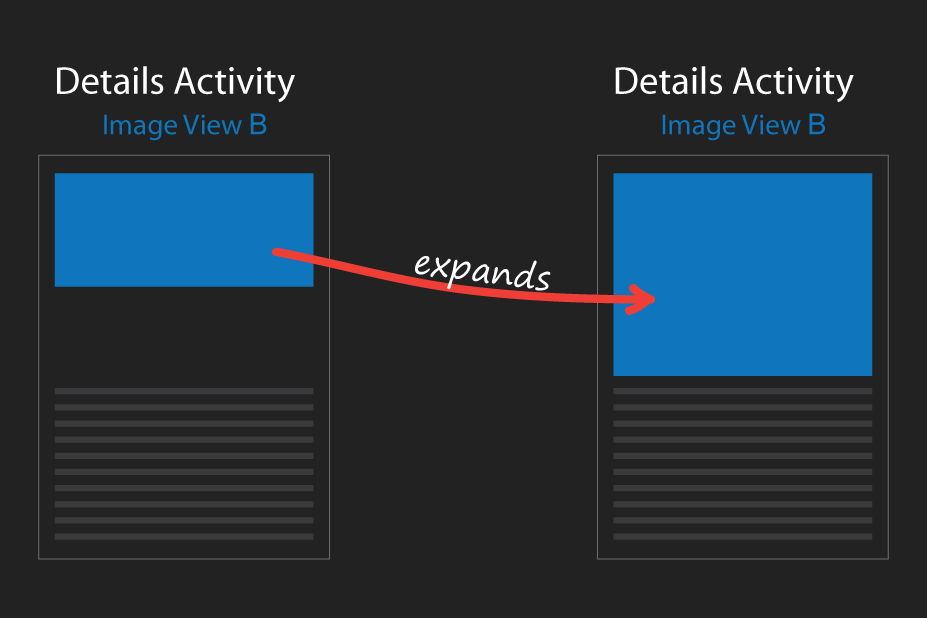

A shared elements transition determines how views that are shared between two activities transition between these activities.

changeClipBounds - animates the changes in clip bounds of target views.

changeBounds - animates the changes in layout bounds of target views.

changeTransform - animates the changes in scale and rotation of target views.

moveImage - animates changes in size and scale type for an image view.

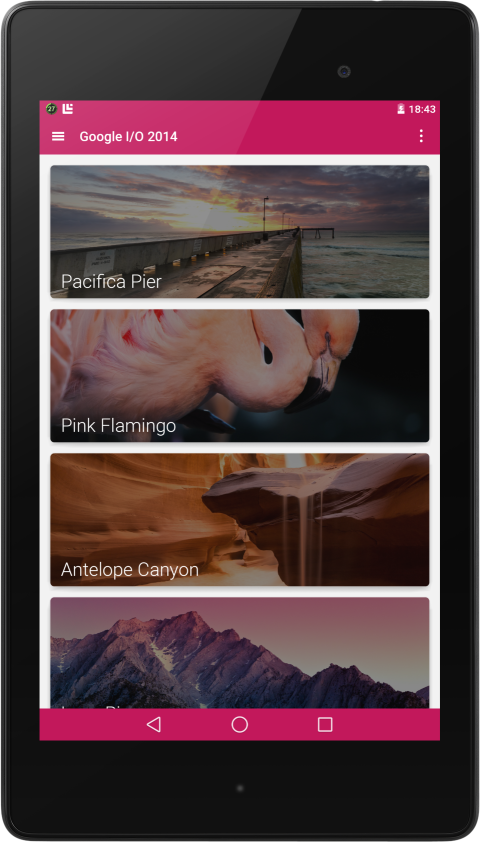

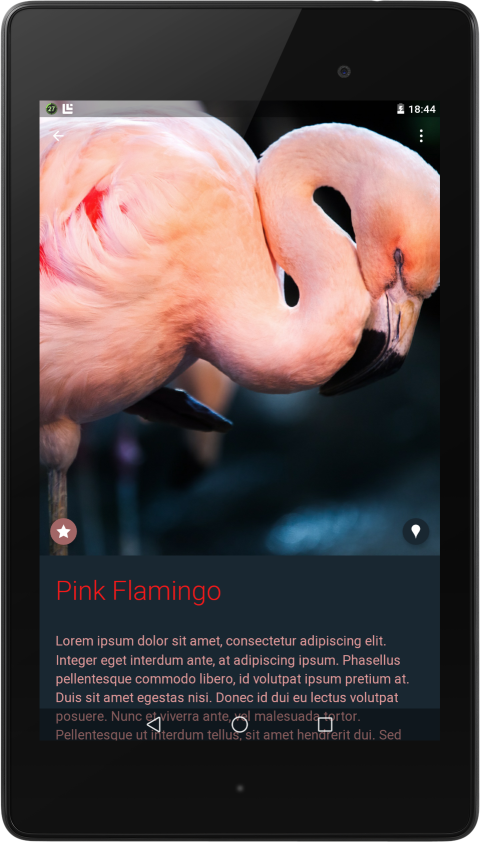

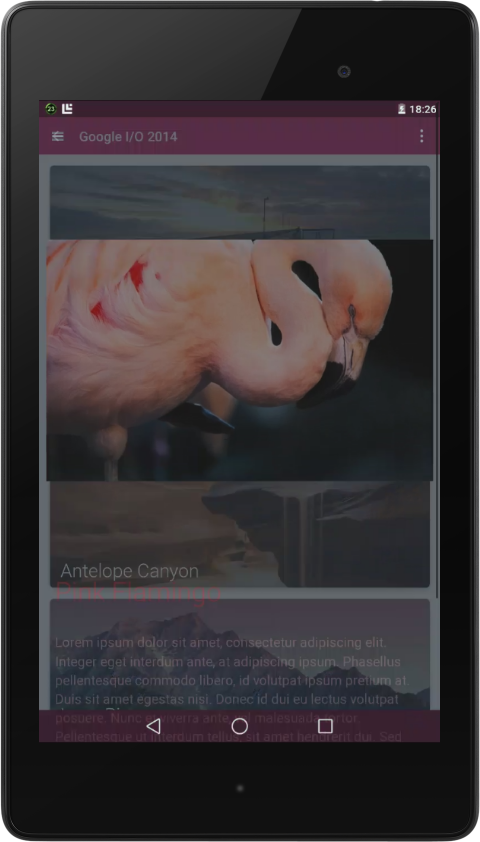

Move Image Sample

Move Image Sample

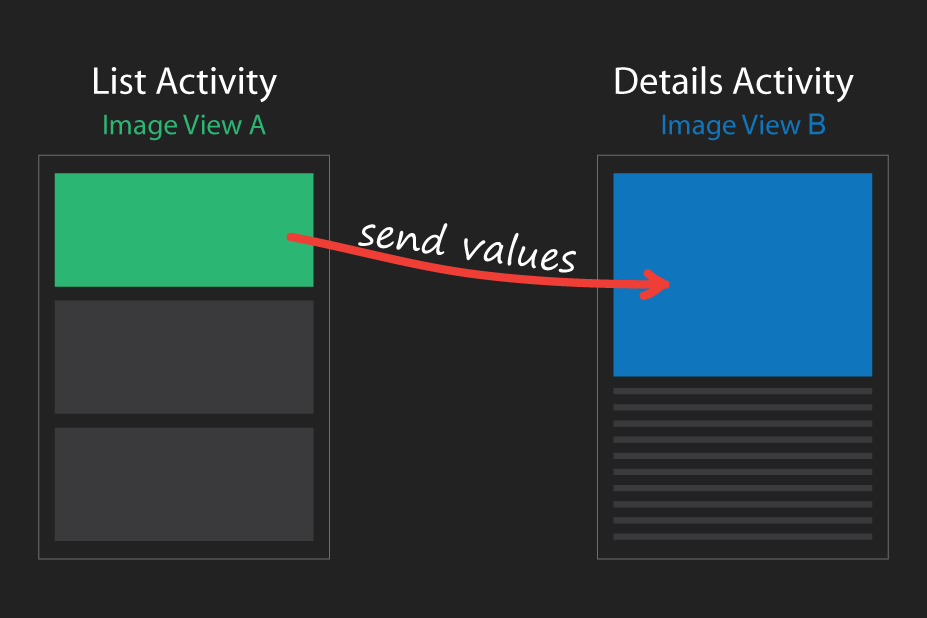

To make a screen transition animation between two activities that have a shared element:

1.  Enable window content transitions in your style.

<item name="android:windowContentTransitions">true</item>
<item name="android:windowSharedElementEnterTransition">@transition/move_image</item>
<item name="android:windowSharedElementExitTransition">@transition/move_image</item>

2.  Specify a shared elements transition in your style.

<moveImage/>
transition/move_image.xml

Move Image Sample

<ImageView
    android:id="@+id/photo"
    android:viewName="photo_hero" />

3.  Assign a common name to the shared elements in     both layouts with the android:viewName attribute.

Hero elements - views that are central to the content and are present on both screens.
ImageView hero = (ImageView) findViewById(R.id.photo);
ActivityOptions options =
	    ActivityOptions.makeSceneTransitionAnimation(this, hero, "photo_hero");
startActivity(intent, options.toBundle());

5. Set image view source inside Details Activity onCreate method.

Move Image Sample

How it works

Compatibility

#dfua

Check the System Version

// Check if we're running on Android 5.0 or higher
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
    // Call some material design APIs here
} else {
    // Implement this feature without material design
}

Code

  • Activity transitions
  • Touch feedback
  • Reveal animations
  • Path-based animations
  • Animated selectors
  • Vector drawables

Samples from

all around the world.

#dfua

Shoppr Loading Animation

Shoppr Checkout Runthrough

Alarm

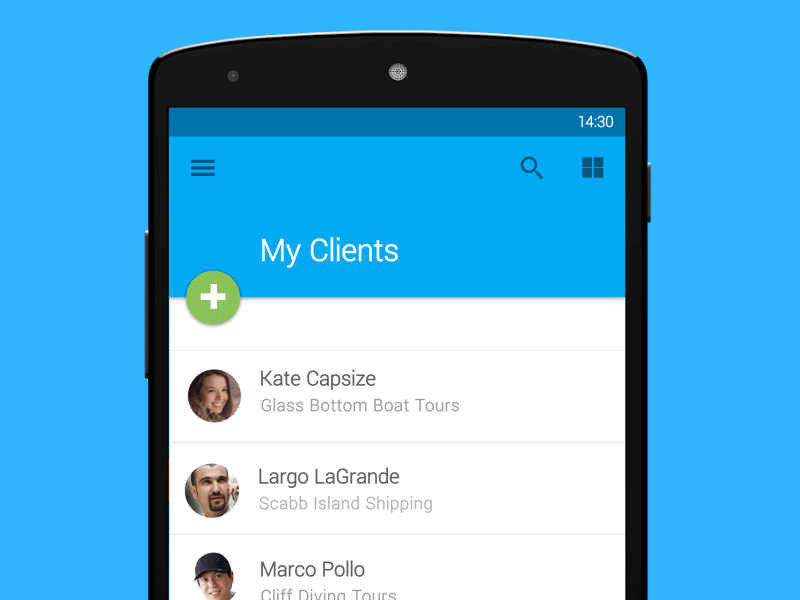

Contact Detail

Music Store

@dmytrodanylyk

dmytrodanylyk.com

slides.com/dmytrodanylyk
