Sistema de monitoreo Centro de Datos
"Centinela"
SNMP
Simple Network Management Protocol, o SNMP, es el protocolo estandar utilizado para manipular dispositivos de red, o dispositivos embebidos.
Con SNMP un dispositivo expone datos (Agente) en forma de variables que describen la configuración de su sistema. Estas variables pueden ser leídas o modificadas por un servidor de SNMP (Manager).
MIBS
Un MIB es un archivo de texto formateado, que lista todos las variables (data objects) utilizadas por un dispositivo en particular.
- El fabricante del dispositivo suministra el archivo MIB.
- Se carga el MIB al servidor de SNMP (manager)
- El servidor SNMP usara el MIB para interpretar los mensajes y variables del nuevo dispositivo
GAMATRONIC-POWER-PLUS-MIB DEFINITIONS ::= BEGIN
IMPORTS
MODULE-IDENTITY, OBJECT-TYPE, NOTIFICATION-TYPE,
OBJECT-IDENTITY,
Counter32, Gauge32, Integer32,
enterprises,IpAddress
FROM SNMPv2-SMI
TEXTUAL-CONVENTION, DisplayString
FROM SNMPv2-TC
gamatronicLTD
FROM GAMATRONIC-MIB;
powerplusMIB OBJECT IDENTIFIER ::= { gamatronicLTD 5 }
--
-- The Device Identification group.
-- All objects in this group except for ppIdentSite
-- are set at device initialization
-- and remain static.
--
ppIdent OBJECT IDENTIFIER ::= { powerplusMIB 1 }
ppIdentModelID OBJECT-TYPE
SYNTAX INTEGER
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"UPS model identifier"
::= { ppIdent 1 }
ppIdentControllerSoftwareVersion OBJECT-TYPE
SYNTAX DisplayString (SIZE (8))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"System controller software version"
::= { ppIdent 2 }
ppIdentAgentSoftwareVersion OBJECT-TYPE
SYNTAX DisplayString (SIZE (5))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"System controller software version"
::= { ppIdent 3 }
ppIdentControllerID OBJECT-TYPE
SYNTAX DisplayString (SIZE (4))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"System controller identifier"
::= { ppIdent 4 }
ppIdentSite OBJECT-TYPE
SYNTAX DisplayString (SIZE (6))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Power Plus site"
::= { ppIdent 5 }
Ejemplo MIB UPS's Gamatronic
UPS 1
UPS 2

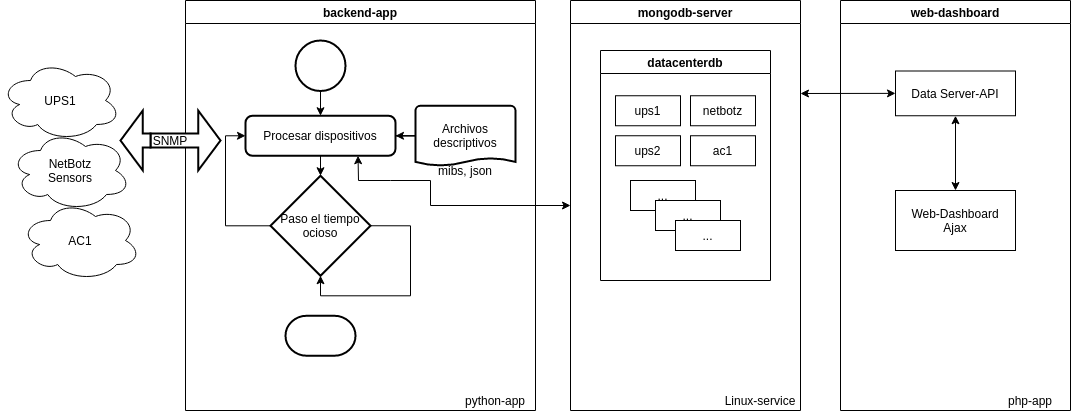

Aplicación backend
- Aplicación en python con bibliotecas pymongo y pysnmp para conexión a los servicios
- "Dockerizada" pero instalada de forma nativa en el servidor centinela, por problemas con el sistema de archivos interno de docker con el S.O. Centos.
- Archivos json para describir cada uno de los dispositivos, con información snmp, ruta de almacenamiento en mongo, descripción del equipo, variables a consultar y un evaluador de operaciones matemáticas sencillo.
Base de datos Mongo
Mongo es un sistema de bases de datos, de código abierto orientado a documentos, clasificada como NOSQL, Su esquema para colecciones son archivos de tipo JSON.
Entre sus características mas importantes: Sistema de querys, Indexado, Alta disponibilidad, Balanceo cargas, Agregación (Flujos de datos, Operaciones MapReduce)
Ejemplo archivo json dispositivos
{
"device-descriptor" :
{
"serverpath" : "ST-1A-enf1.cicese.mx",
"serverport" : "XXXX",
"mibfile" : "PCOWEB-MIB",
"community" : "XXXXXXXXX",
"servername" : "Sistema aire acondicionado de precision 3",
"description" : "",
"collection_name" : "precision_ac_3",
"queryform" : {
"SystemStatus" : {
"status" : "SysStatus.0",
"mode" : "sysmode.0",
"roomtemperature" : "roomtemperature.0 * 0.1",
"roomhumidity" : "roomhumidity.0 * 0.1",
"fanstatus" : "BlowerStatus.0",
"humidifierstatus" : "HumOut.0",
"compressor1status" : "Comp1Status.0",
"compressor2status" : "Comp2Status.0",
"heater1status" : "Heat1Status.0",
"heater2status" : "Heat2Status.0",
"heater3status" : "Heat3Status.0",
"heater4status" : "Heat4Status.0",
"tempsetpoint" : "tempsetpoint.0 * 0.1",
"temphighalarmset" : "temphighalarmset.0 * 0.1",
"templowalarmset" : "templowalarmset.0 * 0.1",
"humiditysetpoint" : "humiditysetpoint.0 * 0.1",
"humidityhighalarmset" : "humidityhighalarmset.0 * 0.1",
"humiditylowalarmset" : "humiditylowalarmset.0 * 0.1"
},
"Operation" : {
"tempcontroltime" : "temptime.0",
"humcontroltime" : "humtime.0",
"coolingoutput" : "aouty1.0",
"heatingoutput" : "aouty2.0",
"humidifieroutput" : "aouty3.0",
"economizeroutput" : "aouty4.0",
"humdemand" : "humdemand.0",
"coolingdemand" : "( Comp1Status.0 + Comp2Status.0 ) * 50",
"heatingdemand" : "( Heat1Status.0 + Heat2Status.0 ) * 50"
},
"Alarms" : {
"NoAirFlowAlarm" : "NoAirFlowAlarm.0",
"HighHeatAlarm" : "HighHeatAlarm.0",
"SmokeAlarm" : "SmokeAlarm.0",
"Comp1LPAlarm" : "Comp1LPAlarm.0",
"Comp1HPAlarm" : "Comp1HPAlarm.0",
"Comp2LPAlarm" : "Comp2LPAlarm.0",
"Comp2HPAlarm" : "Comp2HPAlarm.0",
"Comp1SCAlarm" : "Comp1SCAlarm.0",
"Comp2SCAlarm" : "Comp2SCAlarm.0",
"DrainAlarm" : "DrainAlarm.0",
"HighTempAlarm" : "HighTempAlarm.0",
"LowTempAlarm" : "LowTempAlarm.0",
"HighHumAlarm" : "HighHumAlarm.0",
"LowHumAlarm" : "LowHumAlarm.0",
"WaterFlowAlarm" : "WaterFlowAlarm.0",
"FireAlarm" : "FireAlarm.0",
"HumAlarm" : "HumAlarm.0",
"SenFailure1" : "SenFailure1.0",
"SenFailure2" : "SenFailure2.0",
"FilterAlarm" : "FilterAlarm.0",
"DSHeatAlarm" : "DSHeatAlarm.0",
"DSCoolAlarm" : "DSCoolAlarm.0",
"FanOLAlarm" : "FanOLAlarm.0",
"Comp3LPAlarm" : "Comp3LPAlarm.0",
"Comp3HPAlarm" : "Comp3HPAlarm.0",
"Comp4LPAlarm" : "Comp4LPAlarm.0",
"Comp4HPAlarm" : "Comp4HPAlarm.0",
"PLanAlarm" : "PLanAlarm.0",
"GlobalAlarm" : "GlobalAlarm.0"
}
},
"units" : {
"SystemStatus" : {
"status" : "On/Off 0=off, 1=On",
"mode" : "System mode 0=Off, 1=On, 2=Active, 3=Standby, 4=Override, 5=Off by digital input, 6=Manual",
"roomtemperature" : "C",
"roomhumidity" : "%",
"fanstatus" : "",
"humidifierstatus" : "",
"compressor1status" : "",
"compressor2status" : "",
"heater1status" : "",
"heater2status" : "",
"heater3status" : "",
"heater4status" : "",
"tempsetpoint" : "C",
"temphighalarmset" : "C",
"templowalarmset" : "C",
"humiditysetpoint" : "%",
"humidityhighalarmset" : "%",
"humiditylowalarmset" : "%"
},
"Operation" : {
"tempcontroltime" : "",
"humcontroltime" : "",
"coolingoutput" : "",
"heatingoutput" : "",
"humidifieroutput" : "",
"economizeroutput" : "",
"humdemand" : "%",
"coolingdemand" : "%",
"heatingdemand" : "%"
},
"Alarms" : {
"NoAirFlowAlarm" : "",
"HighHeatAlarm" : "",
"SmokeAlarm" : "",
"Comp1LPAlarm" : "",
"Comp1HPAlarm" : "",
"Comp2LPAlarm" : "",
"Comp2HPAlarm" : "",
"Comp1SCAlarm" : "",
"Comp2SCAlarm" : "",
"DrainAlarm" : "",
"HighTempAlarm" : "",
"LowTempAlarm" : "",
"HighHumAlarm" : "",
"LowHumAlarm" : "",
"WaterFlowAlarm" : "",
"FireAlarm" : "",
"HumAlarm" : "",
"SenFailure1" : "",
"SenFailure2" : "",
"FilterAlarm" : "",
"DSHeatAlarm" : "",
"DSCoolAlarm" : "",
"FanOLAlarm" : "",
"Comp3LPAlarm" : "",
"Comp3HPAlarm" : "",
"Comp4LPAlarm" : "",
"Comp4HPAlarm" : "",
"PLanAlarm" : "",
"GlobalAlarm" : ""
}
}
}
}Aplicación backend - Alertas
{
"device-descriptor" :
{
"serverpath" : "telematica-ups.cicese.mx",
"serverport" : "XXXX",
"mibfile" : "GAMATRONIC-POWER-PLUS-MIB",
"community" : "XXXXXX",
"servername" : "Sistema de alimentacion ininterrumpida 1",
"description" : "",
"collection_name" : "ups1",
"queryform" : {
"SystemGenerals" : {
"temperature" : "ppSystemTemperature.0"
},
"ActiveAlarms" : {
"communication-lost" : "ppAlarmPresent.1",
"startup-time-stamp" : "ppAlarmPresent.2",
"ups-or-more-not-responding" : "ppAlarmPresent.3",
"load-current-high" : "ppAlarmPresent.4",
"ups-shut-down" : "ppAlarmPresent.5",
"suspect-a-fault-output-stage" : "ppAlarmPresent.6",
"suspect-fault-current-sharing" : "ppAlarmPresent.7",
"battery-circuit-breaker-is-open" : "ppAlarmPresent.8",
"last-self-test-fail" : "ppAlarmPresent.9",
"stsw-not-responding" : "ppAlarmPresent.10",
"ac-input-failure" : "ppAlarmPresent.11",
"ac-input-high" : "ppAlarmPresent.12",
"input-brownout" : "ppAlarmPresent.13",
"user-3-input-open" : "ppAlarmPresent.14",
"user-2-input-open" : "ppAlarmPresent.15",
"user-1-input-open" : "ppAlarmPresent.16",
"last-battery-test" : "ppAlarmPresent.17",
"equalizing-mode" : "ppAlarmPresent.18",
"emergency-power-off-activated" : "ppAlarmPresent.19",
"static-switch-warning" : "ppAlarmPresent.20",
"low-battery-voltage" : "ppAlarmPresent.21",
"end-of-backup" : "ppAlarmPresent.22",
"n-a-1" : "ppAlarmPresent.23",
"high-battery-voltage" : "ppAlarmPresent.24",
"no-ac-output-to-load" : "ppAlarmPresent.25",
"over-temperature" : "ppAlarmPresent.26",
"an-alarms-is-vibrating" : "ppAlarmPresent.27",
"load-on-bypass" : "ppAlarmPresent.28",
"n-a-2" : "ppAlarmPresent.29",
"n-a-3" : "ppAlarmPresent.30",
"one-ups-module-warning" : "ppAlarmPresent.31",
"ups-modules-warning" : ""
}
},
"alarm_criteria" : {
"SystemGenerals" : {
"temperature" : { "alarm_type" : "range", "range_min" : "12", "range_max" : "55" }
},
"ActiveAlarms" : {
"communication-lost" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"startup-time-stamp" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"ups-or-more-not-responding" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"load-current-high" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"ups-shut-down" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"suspect-a-fault-output-stage" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"suspect-fault-current-sharing" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"battery-circuit-breaker-is-open" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"last-self-test-fail" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"stsw-not-responding" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"ac-input-failure" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"ac-input-high" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"input-brownout" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"user-3-input-open" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"user-2-input-open" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"user-1-input-open" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"last-battery-test" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"equalizing-mode" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"emergency-power-off-activated" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"static-switch-warning" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"low-battery-voltage" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"end-of-backup" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"n-a-1" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"high-battery-voltage" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"no-ac-output-to-load" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"over-temperature" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"an-alarms-is-vibrating" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"load-on-bypass" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"n-a-2" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"n-a-3" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"one-ups-module-warning" : { "alarm_type" : "alarm_notification", "active_value" : "1" },
"ups-modules-warning" : { "alarm_type" : "alarm_notification", "active_value" : "1" }
}
},
"units" : {
"SystemGenerals" : {
"temperature" : "C",
},
"ActiveAlarms" : {
"communication-lost" : "",
"startup-time-stamp" : "",
"ups-or-more-not-responding" : "",
"load-current-high" : "",
"ups-shut-down" : "",
"suspect-a-fault-output-stage" : "",
"suspect-fault-current-sharing" : "",
"battery-circuit-breaker-is-open" : "",
"last-self-test-fail" : "",
"stsw-not-responding" : "",
"ac-input-failure" : "",
"ac-input-high" : "",
"input-brownout" : "",
"user-3-input-open" : "",
"user-2-input-open" : "",
"user-1-input-open" : "",
"last-battery-test" : "",
"equalizing-mode" : "",
"emergency-power-off-activated" : "",
"static-switch-warning" : "",
"low-battery-voltage" : "",
"end-of-backup" : "",
"n-a-1" : "",
"high-battery-voltage" : "",
"no-ac-output-to-load" : "",
"over-temperature" : "",
"an-alarms-is-vibrating" : "",
"load-on-bypass" : "",
"n-a-2" : "",
"n-a-3" : "",
"one-ups-module-warning" : "",
"ups-modules-warning" : ""
}
}
}
}
- Tipos de criterios de alertas, "range", "alarm_on_active"
- Envío correo con notificación de alertas activas.
Por hacer:
- Notificar cuando alerta este activa, y tambien cuando una alerta se desactive.
- Definir nuevos criterios para alertas.
- Describir a que se refieren las alertas.
- Definir prioridades a las alertas
Aplicación frontend
- Aplicación PHP con bibliotecas MongoClient para acceso a datos.
- Gráficas usando google-charts framework
Por hacer:
- Construir la interface html5 con XHR Ajax para consultar datos en tiempo real.
- Analítica en dashboard
monitoreo-centinela
By Favio Medrano
monitoreo-centinela
Sobre el diseño del sistema de monitoreo del centro de datos "Centinela"
