Continuous Delivery of embedded
firmware using Docker and Jenkins


#TorinoTech Night, 2016-04-01


Gianpaolo Macario

https://gmacario.github.io/


(C) 2016 Gianpaolo Macario - License: CC BY-SA 4.0

The context

Firmware images of recent embedded devices are produced through a complex and time-consuming process


A few examples:

  • In-Vehicle Infotainment
  • Mobile Phone
  • Home Gateway
  • Wireless Router/Access Point
  • etc


Example: GENIVI Demo Platform

$ sloccount gdp_ivi9_beta/workspace

Totals grouped by language (dominant language first):

ansic:     46260693 (69.83%)
cpp:        9910207 (14.96%)
asm:        2006557 (3.03%)
sh:         1575972 (2.38%)
perl:       1276566 (1.93%)
python:     1163866 (1.76%)
xml:        1054193 (1.59%)

...

Total Physical Source Lines of Code (SLOC) = 66,247,653


Example: Android 5.1.1

$ sloccount build_android_udooneo/workspace

Totals grouped by language (dominant language first):
ansic:     28909496 (48.66%)
cpp:       14820059 (24.95%)
xml:        6894345 (11.61%)
java:       5651249 (9.51%)
asm:        1105027 (1.86%)
python:     1061272 (1.79%)
sh:          434135 (0.73%)
perl:        197439 (0.33%)

...

Total Physical Source Lines of Code (SLOC) = 59,405,160

Build Host Configuration

Varies greatly between projects

Some examples:

  • Android 1.5-2.2.x: Ubuntu 10.04, Oracle JDK 5
  • Android 2.3.x-4.4.x: Ubuntu 12.04, Oracle JDK 6
  • Android 5.x: Ubuntu 12.04, Oracle JDK 7
  • Android 6.0: Ubuntu 14.04, Oracle JDK 7
  • Android N: Ubuntu 14.04, OpenJDK 8
  • Commercial IVI product: Ubuntu 10.04, CodeSourcery GCC 2014.05
  • CommonAPI C: Fedora 23, systemd, libsystem-devel
  • GENIVI Demo Platform: Ubuntu 14.04, gcc 4.8, make 4.22, python 2.7

Build host configuration (cont.)

  • Depends upon each embedded project
    • Each developer may need to work on several projects
      with incompatible host requirements
    • The configuration of the host may affect
      the generated firmware image (host cross contamination)
    • Developers do not always follow instructions...

  • Should be maintained along the project lifetime
    • We cannot assume that developers will not change
      the software configuration on their machines for years!

How can we ensure that each build is reproducible?

One solution: Virtual Machines

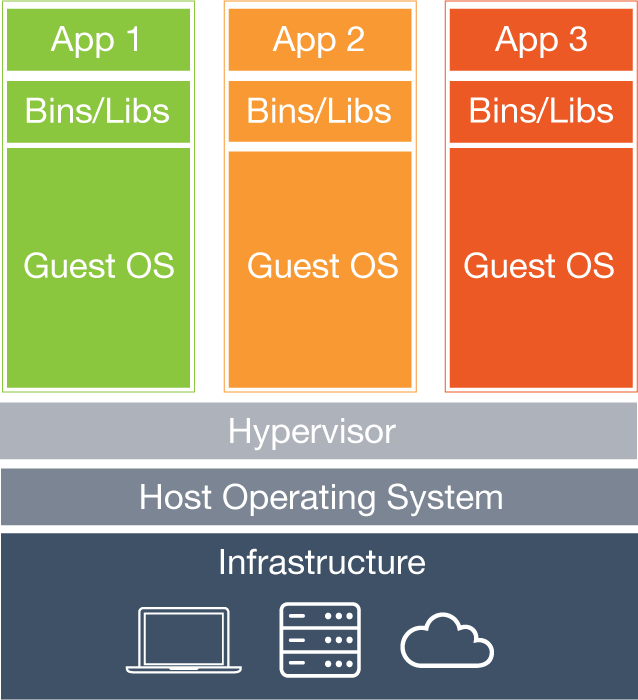

Image credit:  https://www.docker.com

A better solution: Linux Containers

Image credit:  https://insights.sei.cmu.edu/devops/2015/01/devops-and-docker.html

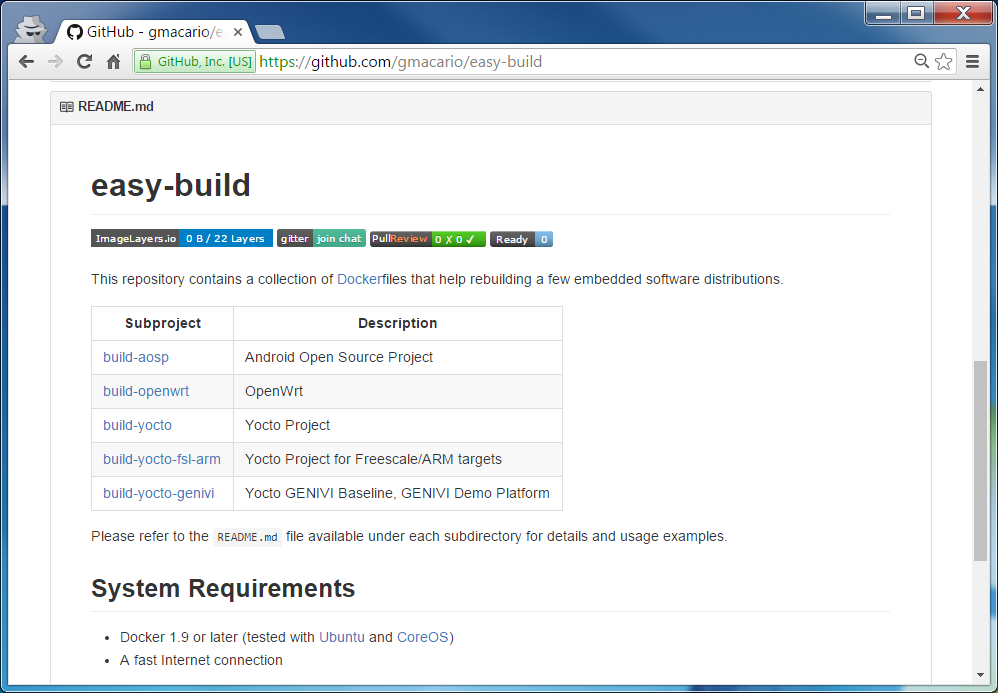

easy-build


The build is just one step

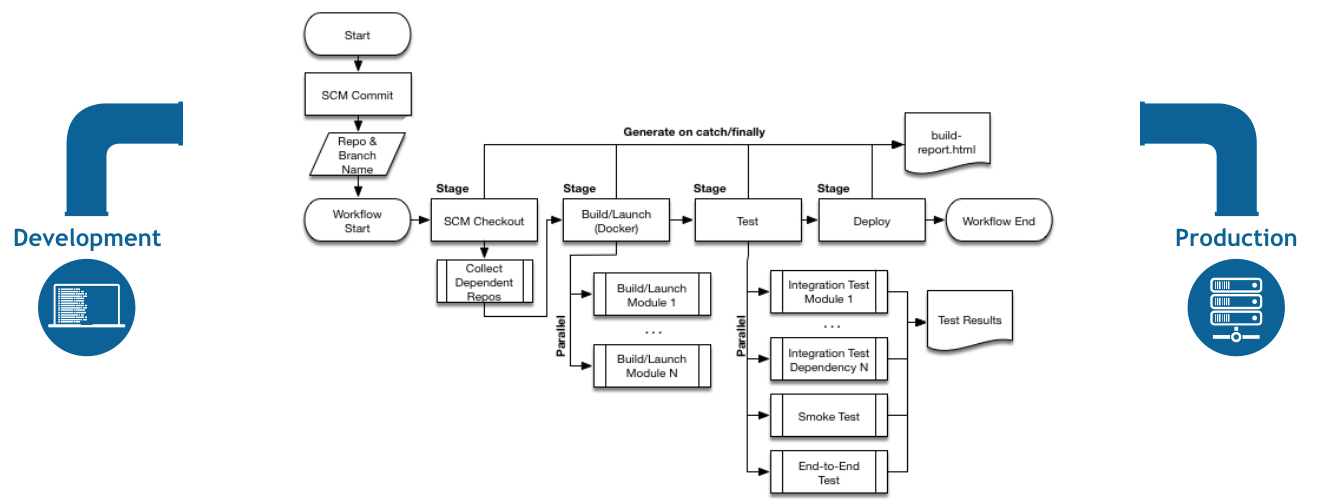

Image credit: https://jenkins.io/doc/pipeline/

Introducing Jenkins

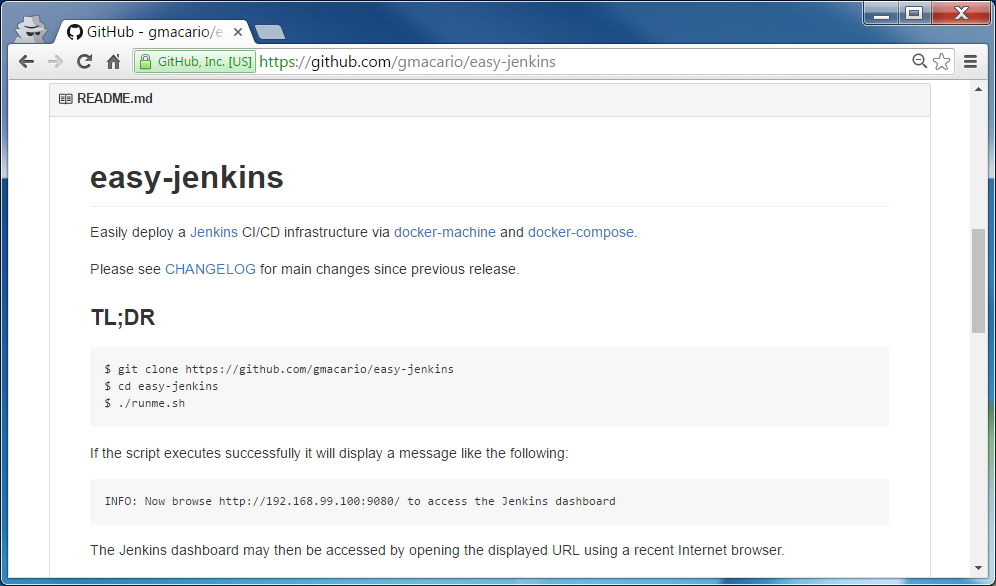

easy-jenkins


Running easy-jenkins

easy-jenkins in action


Summary

  • Working on an embedded project requires
    • Setting up a customized build environment
    • Maintaining it during the whole project lifetime

  • Create a reproducible build environment using Docker
    • Develop your own image, or start from  easy-build

  • Jenkins can automate the complete delivery pipeline

  • Use  easy-jenkins together with  easy-build
    • Setup your CD infrastructure in minutes, not days
    • Upgrade your infrastructure config with a git commit

Thanks!
