Configuring iRODS for

High Availability

October 11, 2016


Chapel Hill, NC

Justin James

Applications Engineer

iRODS Consortium

High Availability iRODS - Goal

Our goal is to create a fault tolerant iRODS Zone to achieve high availability.


This design is based on High Availability iRODS System (HAIRS) by Yutaka Kawai at KEK and Adil Hasan at the University of Liverpool.



High Availability iRODS - Overview

To achieve full redundancy within an iRODS Zone, the following iRODS components should be replicated:


  • iCAT Database - Implementing redundancy for RDBMS databases is outside the scope for this demonstration


  • Catalog Provider (iCAT Server) - Redundancy is achieved by having two iCAT servers behind a load balancer


  • Catalog Consumer (Resource Server) - The built-in replication resource hierarchy will provide data redundancy.


High Availability iRODS - Basic Setup

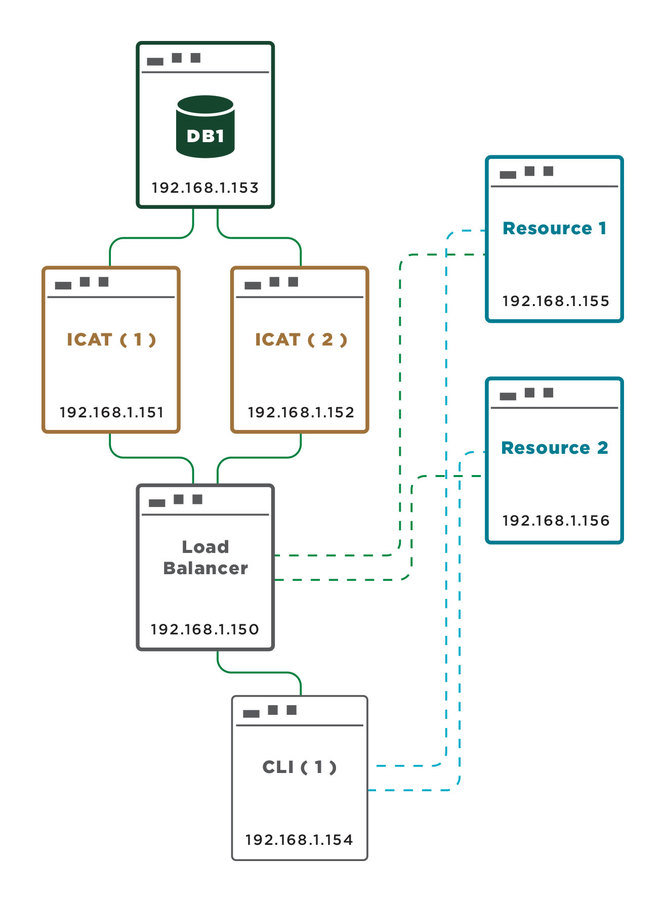

For this demonstration... 7 virtual servers.

  • –
  • –
  • –
  • –
  • –
  • –
  • –

High Availability iRODS - Initial Conditions

We need to have each server set up with the appropriate hostname and IP address.



The LoadBalancer will refer to the two iCAT servers as

  • and


Internally, the two iCAT servers will each refer to themselves as

  • Their own /etc/hostname should be
  • This is how other servers will refer to them



Once this is configured, make sure that each server can ping the other servers by IP.

High Availability iRODS - Configuring /etc/hosts

The next step is to make sure each server can map its peers' fully qualified domain names to their IP address.


All components when acting as a client, will access the iCAT servers via the load balancer.

The following table lists the hosts that need to be known for each server.

Server Needs to Resolve Both iCAT Servers
ICAT(n) The database server and each resource server
Resource(n) The other resource server and the load balancer Each iCAT server Needs access to at least one iRODS server for the primary connection

High Availability iRODS - /etc/hosts setup

For this example, just update the /etc/hosts files to perform host to IP mapping. localhost localhost localhost

High Availability iRODS - /etc/hosts setup localhost localhost

High Availability iRODS - /etc/hosts setup

  localhost localhost

High Availability iRODS - Configuring the Load Balancer

In our test setup we use HAProxy to perform software level HTTP and TCP load balancing.  HAProxy can be downloaded on Ubuntu 14.04 systems using the following commands:




echo deb trusty-backports main \
universe |  sudo tee /etc/apt/sources.list.d/backports.list
sudo apt-get update
sudo apt-get install haproxy -t trusty-backports

High Availability iRODS - Configuring the Load Balancer

Next we will configure the load balancer to use TCP routing.  Incoming requests on port 1247 will be redirected in a round-robin fashion to one of the two iCAT servers.


Save the following contents into /etc/haproxy/haproxy.cfg

        maxconn 256

        mode tcp
        timeout connect 5000ms
        timeout client 50000ms
        timeout server 50000ms

    frontend irods-in
        bind *:1247
        default_backend servers

    backend servers
        option tcp-check
        tcp-check connect
        tcp-check send PING\n
        tcp-check expect string <MsgHeader_PI>\n<type>RODS_VERSION</type>

        server check port 1247
        server check port 1247

High Availability iRODS - Configuring the Load Balancer

To determine if a particular iCAT server is up, any string can be sent (in the above case we send "PING") to port 1247 and iRODS will respond with text beginning with "<MsgHeader_PI>".  This is used as a health check on the iRODS server.


This is sufficient to determine if an iCAT instance is up or down.



Restart haproxy:

sudo service haproxy restart

High Availability iRODS - Installing and Configuring DB

Install PostgreSQL on




Configure the PostgreSQL database for iRODS:






myuser@DB1:~$ sudo apt-get install postgresql
myuser@DB1:~$ sudo su - postgres
postgres@DB1:~$ psql
psql (9.3.13)
Type "help" for help.

postgres=# CREATE USER irods WITH PASSWORD 'testpassword';
postgres=# \q

High Availability iRODS - Installing and Configuring DB

Update /etc/postgresql/9.3/main/postgresql.conf to allow remote connections from any host.



Update /etc/postgresql/9.3/main/pg_hba.conf to allow users from 192.168.1.X addresses to connect to the ICAT database with the irods user.


Restart PostgreSQL:

listen_addresses = '*'          # what IP address(es) to listen on;
host    ICAT            irods           md5
myuser@DB1:~$ sudo service postgresql restart

High Availability iRODS - Install iRODS on the ICAT Servers

First, test that the iCAT server can connect remotely to the database server.







Install iRODS on each iCAT server.







Enter as the DB server when prompted.

myuser@ICAT1:~$ wget\
myuser@ICAT1:~$ wget\
myuser@ICAT1:~$ sudo dpkg -i irods-icat-4.1.9-ubuntu14-x86_64.deb \
myuser@ICAT1:~$ sudo apt-get -f install
myuser@ICAT1:~$ sudo /var/lib/irods/packaging/
myuser@ICAT1:~$ sudo apt-get install postgresql-client-9.3
myuser@ICAT1:~$ psql -d ICAT -h -U irods -W
Password for user irods:
psql (9.3.13)
SSL connection (cipher: DHE-RSA-AES256-GCM-SHA384, bits: 256)
Type "help" for help.


Note:  Ignore the error about being unable to put a file into iRODS on the second iCAT installation.  Go ahead and start the server with ~irods/irodsctl start.  The root cause of the error will be addressed when we delete the resource on the iCAT servers.

High Availability iRODS - iRODS on Resource Servers

myuser@Resource1:~$ sudo wget\
myuser@Resource1:~$ sudo dpkg -i irods-resource-4.1.9-ubuntu14-x86_64.deb
myuser@Resource1:~$ sudo apt-get -f install
myuser@Resource1:~$ sudo /var/lib/irods/packaging/

Install iRODS on each resource server.







When prompted for the address of the iCAT server, enter which will resolve to the load balancer.

High Availability iRODS - Create Resources

Now we will create a resource tree using a replication resource.


Login to iRODS under the administrator account (default is irods).  You can do this on either iCAT or resource servers.


Run the following commands to create a replication hierarchy and delete the default resource.









Verify the resource hierarchy:





iadmin mkresc BaseResource replication
iadmin mkresc Resource1 'unixfilesystem'
iadmin mkresc Resource2 'unixfilesystem'
iadmin addchildtoresc BaseResource Resource1
iadmin addchildtoresc BaseResource Resource2
iadmin rmresc demoResc
iadmin rmresc Resource1Resource
iadmin rmresc Resource2Resource
$ ilsresc --tree

High Availability iRODS - Create Resources

We have removed demoResc which was on the iCAT server.


Let's update the default resources in all of the /etc/irods/ files.

acSetRescSchemeForCreate {msiSetDefaultResc("BaseResource","null"); }
acSetRescSchemeForRepl {msiSetDefaultResc("BaseResource","null"); }

High Availability iRODS - Setup a Client

Install iRODS CLI on





Create ~/.irods/irods_environment.json and have it connect to the and use BaseResource as the default resource.







Run iinit to confirm the connection succeeds.

myuser@CLI1:~$ wget\
myuser@CLI1:~$ sudo dpkg -i irods-icommands-4.1.9-ubuntu14-x86_64.deb
    "irods_default_resource": "BaseResource",
    "irods_host": "",
    "irods_port": 1247,
    "irods_user_name": "rods",
    "irods_zone_name": "tempZone"

High Availability iRODS - Testing

  • Put a file into iRODS
    • Verify that it has been stored on both resource servers.
  • Bring one Resource server down
    • Run iget to retrieve the data object just uploaded.
      • You may have to select the replica number (iget -n) when retrieving the data object.
      • If a resource server is not yet marked 'down' in the catalog, your request may still be routed to the server that cannot answer.
  • Bring one iCAT server down
    • Verify that the iCommands still work.
