Kory Draughn
Software Developer
iRODS Consortium
June 8-11, 2021
iRODS User Group Meeting 2021
Virtual Event
NFSRODS 2.0
NFSRODS 2.0
Overview
- Brief description of NFSRODS
- What's changed since the last release
- The list operation (i.e. /bin/ls)
- Future Work
What is NFSRODS?

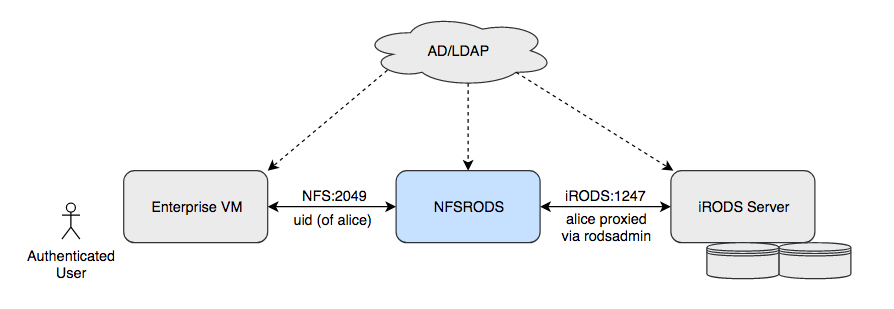

A standalone NFSv4.1 server that enables presenting iRODS as a mountable filesystem.
- Configurable
- Users do not have to learn iCommands
- Users do not have to install any additional packages
- Supports many common *nix commands and software
What's changed since 1.0.0?
13 issues have been resolved.
- NFSRODS now uses Jargon Connection Caching
- The mtime rule engine plugin requirement has been relaxed
- The rename operation (i.e. mv) now supports overwriting data objects
- The portmap service message warning has been resolved
All resolved issues can be found at the following URL:
The list operation
Prior implementations had issues.
- Didn't handle large collections
- Results were truncated
- The implementation was incorrect
- Poor performance against Oracle databases
- Slow
- Extra work
- No caching
The list operation (cont.)
These issues have been resolved.
- NFSRODS now caches many, if not all, results obtained through Jargon
- Added options to Jargon that enable support of Oracle. See the troubleshooting section of the NFSRODS README for details
- We learned that using a log level that results in a lot of messages degrades performance
- We learned that applying color to the output triggers more stat operations (which means more network traffic)
The list operation (cont.)
Performance comparison between 1.0.0 and 2.0.0.
Test setup:
- iRODS provider (backed by Postgres) running on Ubuntu 16.04 (32 cores)
- NFSRODS container running on the same machine hosting the provider
- Set NFSRODS log level to INFO
- Mount command: sudo mount -o port=2050 localhost:/ /mnt/nfsrods
- Timing command: time /bin/ls <collection> | wc -l
Collection Size | 1.0.0 | 2.0.0 (no cache) | 2.0.0 (cached) |
---|---|---|---|
500 | 1m7.211s | 0m0.857s | 0m0.046s |
1,000 | 3m49.246s | 0m0.708s | 0m0.041s |
3,000 | 31m45.147s | 0m2.345s | 0m0.045s |
6,000 | 86m56.771s (results truncated) | 0m5.274s | 0m0.052s |
10,000 | 87m18.675s (results truncated) | 0m9.302s | 0m0.058s |
Future Work
- Add parallel I/O support for large file transfers
- Investigate support of metadata via extended file attributes
- Improve test coverage
- Return better error messages
- SMBRODS
Thank you!
Questions?
