About XML

Why use markup?

Markup is used in many different fields, for many different purposes: storing data, relating information, encoding understanding, preserving metadata

• Markup is a way of making our knowledge or understanding about a text explicit
• Markup makes strives to make explicit (to a machine) what is implicit (to a person)
• Markup assists us in facilitating re-use of the same material:
  • in different formats
  • in different contexts
  • by different sorts of users

Types of Markup

Procedural Markup:
     RED INK ON; print "-£1000"; RED INK OFF

Presentational Markup:
     \textcolor{red}{-£1000}

Descriptive Markup:
 <measure unit="pounds" value="-1000">
   One thousand pounds in debt
  </measure>

About XML

XML is structured data represented as strings of text
XML looks like HTML, except that:

• XML is extensible
• XML must be well-formed
• XML can be validated
• XML is application-, platform-, and vendor- independent
• XML empowers the content provider and facilitates data integration and migration
• It is one of the best plain text long-term preservation formats for textual data that we have

About XML

<element> Text </element>

<element attribute="value">
Text or child elements here
</element>

<element attribute="value"/>

About XML

<?xml version="1.0" ?>
<root xmlns="http://namespace/">
 <element attribute="value">
  content
   <childElement type="empty"/>
  content
 </element>
<!-- comment -->
</root>

More About XML

• An XML document is encoded as a linear string of characters
• It begins with a special processing instruction
• Element occurrences are marked by start and end-tags
•  The characters < and & are Magic and must always be "escaped" using &lt; or &amp; if you want to use them as themselves
• Comments are delimited by <!-- and -->
• Attribute name/value pairs are supplied on the start-tag and may be given in any order
• Attribute values are always quoted
• Everything is case-sensitive

Being Well-Formed

• There is a single root node containing the whole of an XML document
•  Each subtree is properly nested within the root node
•  Element/attribute names and values are always case sensitive
•  Start-tags and end-tags are always mandatory (except there are combined start-and-end tags called 'empty elements' <pb/> <gap/>)
• Attribute values are always quoted

XML Test

•  <seg>some text</seg>


•  <seg> <w>some</w> <hi>text</hi> </seg>


•  <seg> <w>some <hi></w> text</hi> </seg>

•  <seg type="text">some text</seg>

•  <seg type=text>some text</seg>

•  <seg type="text"> some text <seg/>

•  <seg type="text"> some text<gap/> </seg>

•  <seg type="text">some text</Seg>

About The TEI

The TEI (The Text Encoding Initiative) is:

• An international consortium of institutions, projects and individual members
• A community of users and volunteers
• A freely available manual of set of regularly maintained and updated recommendations: 'The Guidelines' with definitions, examples, and discussion of over 560 markup distinctions
• A mechanism for producing customized schemas for validating your project's digital texts
• A set of free and openly licensed, customizable tools and stylesheets for transformations to many formats (e.g. HTML, Word, PDF, Databases, RDF/LinkedData, Slides, ePub, etc.)
• A simple consensus-based way of organizing and structuring textual (and other) resources
• An archival, well-understood, format for long-term preservation of digital data and metadata
• Whatever you make it! It is a community-driven standard

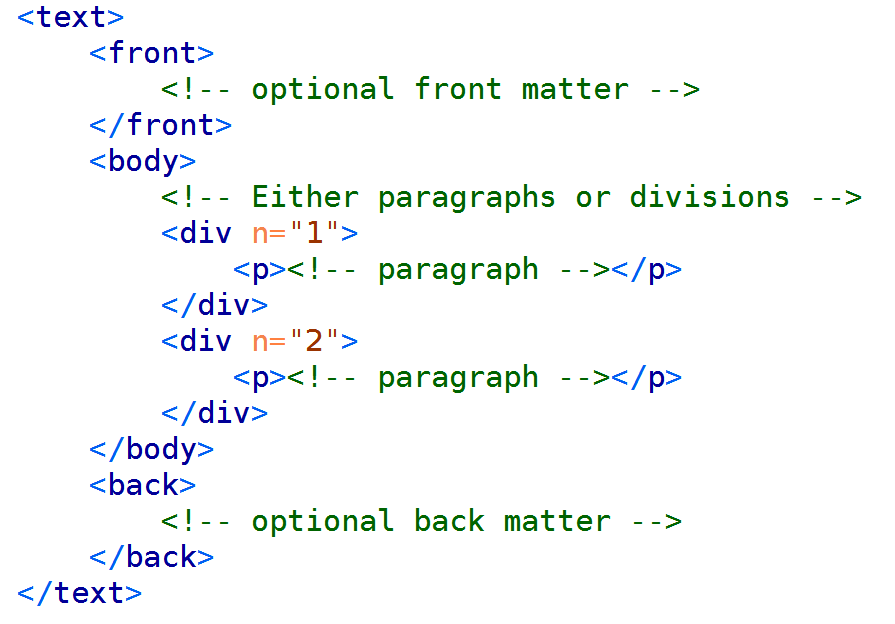

TEI Structure

Global Attributes

Some features (potentially) apply to everything, therefore members of the attribute class att.global can appear in every TEI element:

• @xml:id provides a unique identifier for any element
• @n provides a number or name for an element (not unique)
• @xml:lang specifies the language of any element, using an ISO standard code (e.g. ISO 639-1)
• @rend provides a way of specifying the visual appearance (rendition) of any element
• @resp points to the agency responsible; @cert for certainty
• @n gives a way to give a name or number for that element

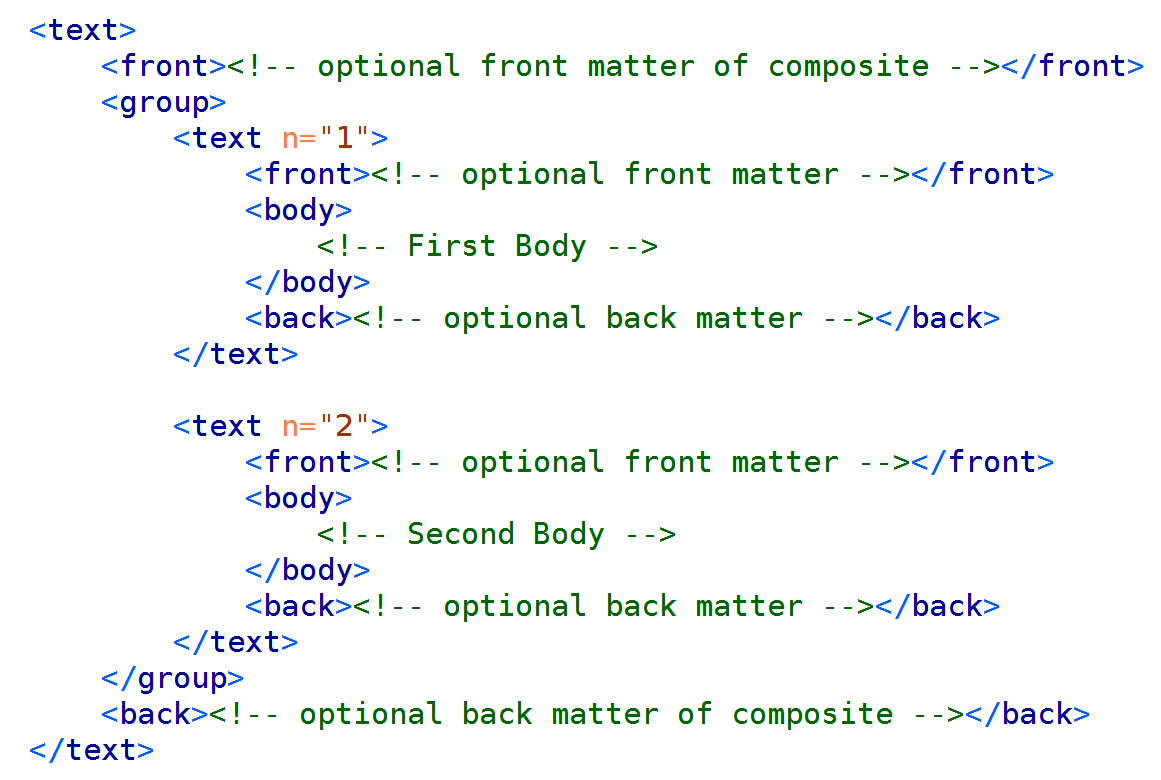

Inside the <body>

Hierarchical grouping of text sequences into textual divisions and subdivisions by means of nested <div> elements.

• Use of the @type attribute to distinguish different kinds of divisions
  • Epic, Bible → book
  • Report → part, section
  • Novel → chapter
  • Drama → acts, scenes
  • Reference book → sections
  • Diary → entries
  • Newspaper → sections, issues
• and possibly @n to provide a name or number of any kind:

Components of a <div>

What do devisions contain (apart from other divisions)?

• Headings, tagged with <head>

• Prose, which may be organized as a sequence of
  paragraphs <p>

• Poetry, divided into metrical lines <l>, optionally grouped into stanzas <lg>

• Drama, divided into speeches <sp>, containing an
  optional speaker label <speaker>, followed by a mix of <p> or <l> elements, optionally mixed up with stage directions <stage>

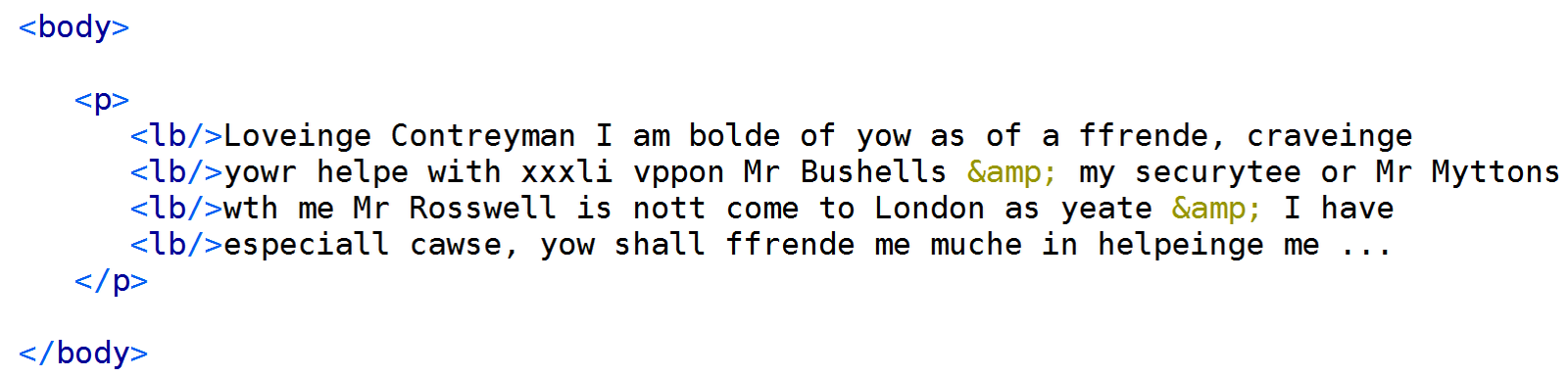

Original Layout Information

Within the <text> element the logical view is privileged, but the physical view can be encoded as well through 'empty' elements:

• <pb /> marks the start of a new page

• <cb /> marks the start of a new column

• <lb /> marks the start of a new line

• <gb/> marks the start of a new gathering

and for other forms of milestone:

• <milestone/> marks to the beginning of a boundary point.

Basic Core Components

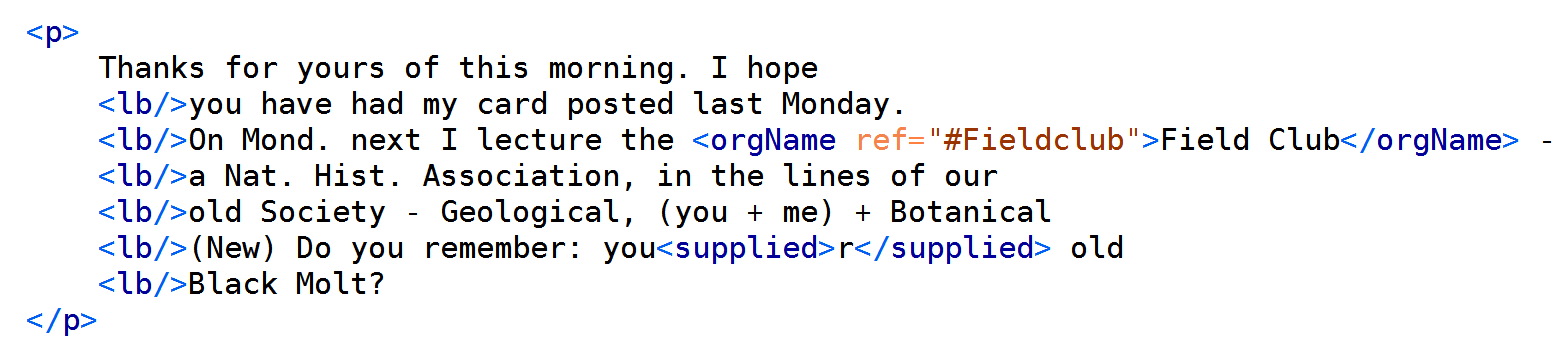

Paragraphs

A paragraph is a significant organizational unit for all prose texts

• <p> marks paragraphs in prose
• <p> can contain all the phrase-level elements in the core module
  • Phrase-level elements must be entirely contained within a paragraph
  • Inter-level elements can appear either within a paragraph or between
  • paragraphs (e.g. list, bibiographic citations, etc.)
  • Chunks (eg. paragraphs, anonymous block)

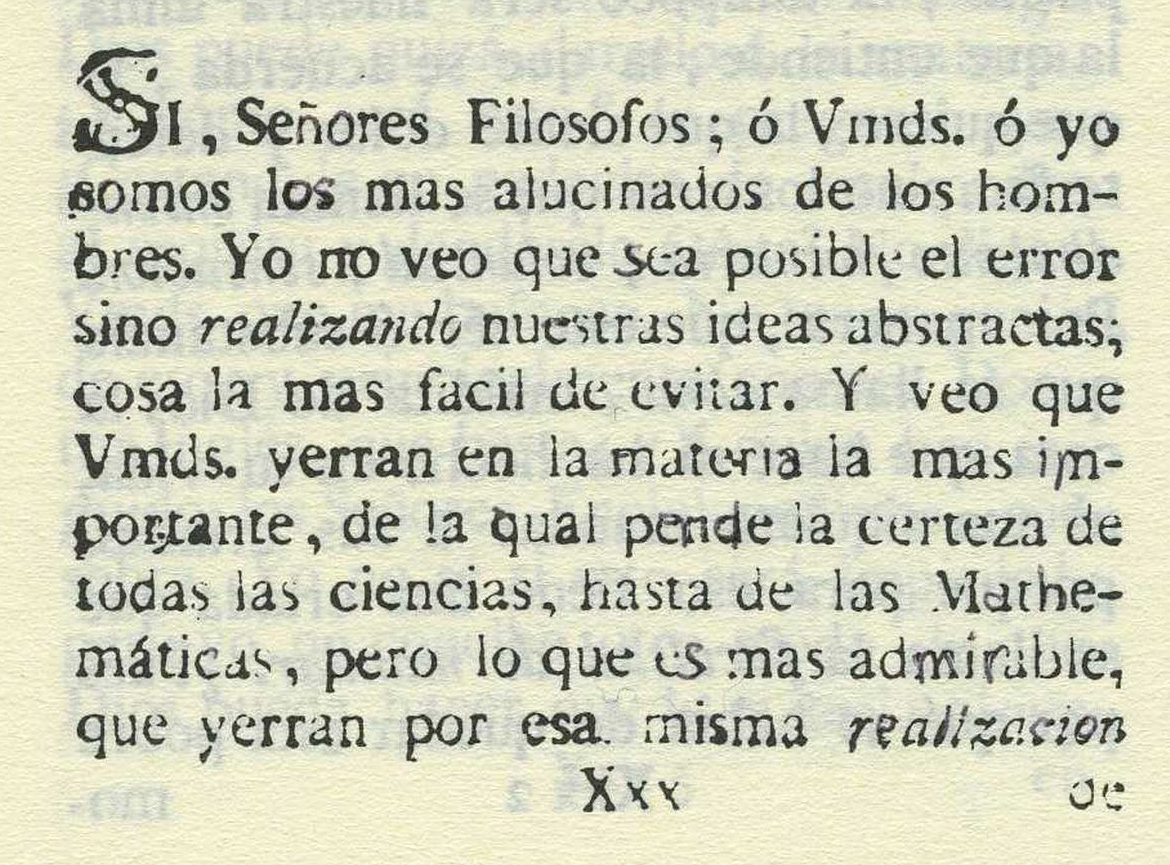

Highlighting

Typographic features in order to distinguish passages from its surroundings:

• distinct in some way (e.g. foreign, dialectal, technical, etc.)
• emphatic or stressed when spoken
• not part of the body of the text (e.g. title, head, label, etc.)
• distinct narrative stream (e.g. monologue, commentary, etc.)
• attributed by the narrator to some other agency (e.g. direct speech, quotation, etc.)
• set apart from the text in some other way (e.g. individual names in older texts, editorial corrections or additions, etc.)

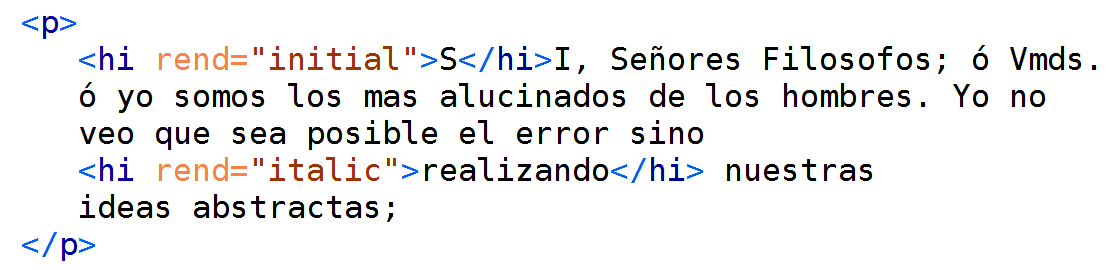

Highlighting

<hi> word or phrase which is graphically distinct from the surrounding text

• @rend specifies the visual appearance; the values are defined by each project

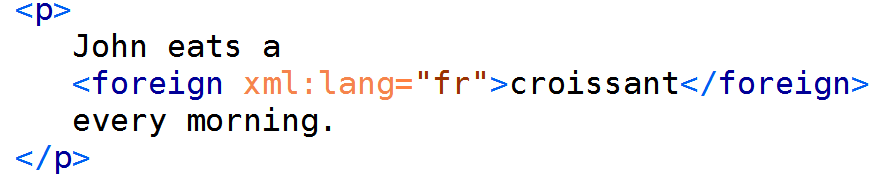

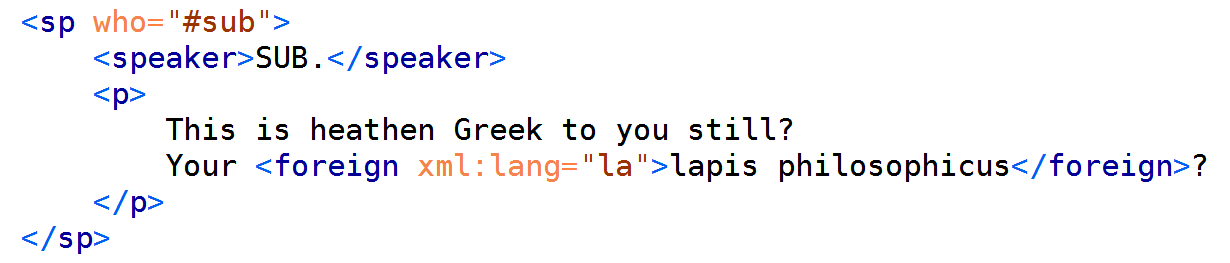

Foreign Phrases

• <foreign> word or phrase not written in the same
  language than the surrounding text

  • @xml:lang global attribute to specify the language, using an ISO standard code (e.g. ISO 639-1)

Simple Editorial Changes

• The core module provides some phrase-level elements which may be used to record simple editorial interventions.
• <choice> groups alternative encodings for the same point in a text
  • Abbreviations:
    • ​<abbr> abbreviated form
    • ​<expan> expanded form
  • ​Errors:
    • <sic> apparent error
    • ​<corr> corrected error
  • ​Regularization:
    • <orig> original form
    • <reg> regularized form

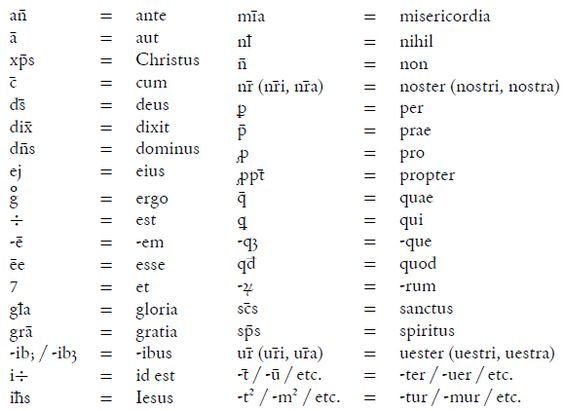

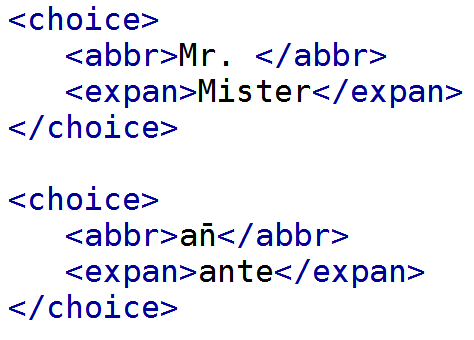

Abbreviation and Expansion

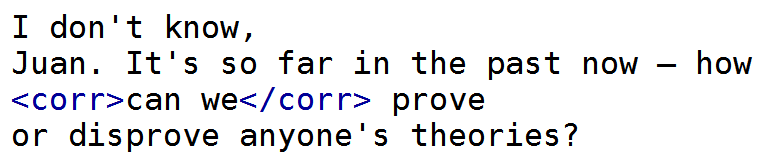

Emendation and Correction

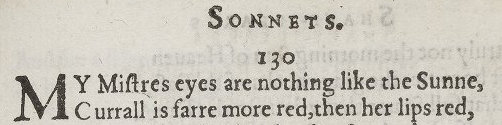

Regularisation

Addition, Deletion, and Ommisions

• <add> addition to the text

• <del> letter, word or phrase marked as deleted in the text

• <supplied> marks editorially supplied text

• <gap> indicates a point where material is omitted

• <unclear> marks where text is illegible, containing best guess

Names

•  <persName> a personal name sometimes containing:
  • <forename> a forename
  • <surname> a surname
• <placeName> a place name
• <orgName> an organisational name

<persName role="stationer">
       <forename>Thomas</forename>
       <surname>marshe</surname>
</persName>

Numbers

• <num> a number of any sort, written in any form
  • @type and @value

<seg type="fee" rend="roman-numerals aligned-right">
<!--processing: iiijd-->
   <num type="totalPence" value="4">
    <!--orig: iiijd-->
     <num type="pence" value="4">
       iiij<hi rend="superscript">d</hi>
     </num>
  </num>
</seg>

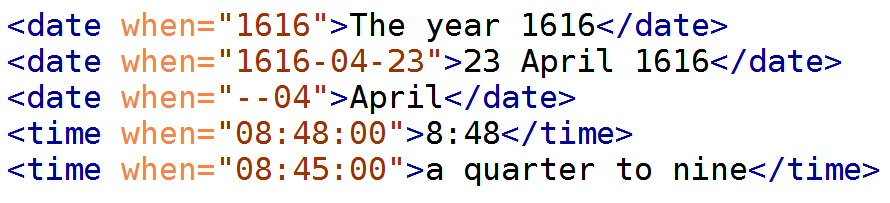

Dates and Times

• <date> contains a date in any format @when contains the regularized form; YYYY-MM-DD
  • ​@notBefore / @notAfter: for circa dates
  • @from / @to: for date ranges

<date from="1557-07-19" to="1558-07-09">19 July 1557–9 July 1558.</date>

<date notBefore="1559-07-14" notAfter="1560-07-05">14 July 1559–5 July 1560.</date>

<date when="1560-03-04">
iiij<hi rend="superscript">th</hi> Daye of marche
<note resp="#arber">1560</note>
</date>

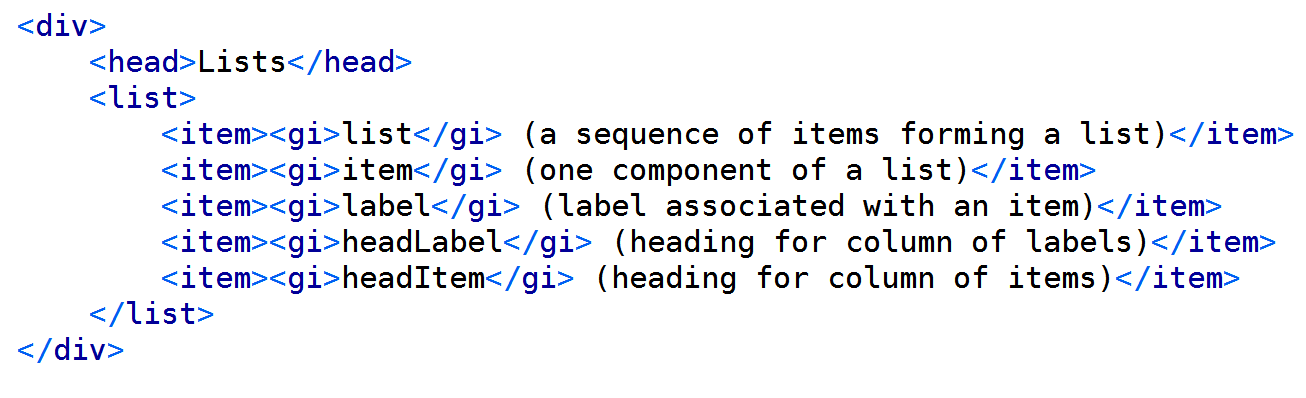

Lists

• <list>  (a sequence of items forming a list)
• <item>  (one component of a list)
• <label>  (label associated with an item)
• <headLabel>  (heading for a column of labels)
• <headItem>  (heading for a column of items)

Metadata Block

SRO is being slightly unusual in embedding a metadata block (using the 'anonymous block' element <ab>) inside every entry.

 <ab type="metadata">
    <date notBefore="1565-07-22" notAfter="1566-07-22">
     22 July 1565–22 July 1566.
    </date>
    <idno type="RegisterRef">Register A, f.132v</idno>
    <idno type="ArberRef">I. 296</idno>
    <idno type="RegisterID">?</idno>
    <num type="works" value="0"/>
    <note type="status" subtype="unknown"/>
 </ab>

Revision Description

In the header <revisionDesc> is used to store the major stages of modification/creation/revision of the electronic file:

<revisionDesc>
  <change when="2017-01-29">
     Metadata block created by JC; Arber's corrections made by IG
  </change>
   <change when="2017-01-22">
       Material other than copy entries removed by Ian Gadd
   </change>
   <change from="2013-06" to="2013-10">Semi-automated changes based
       on bodleian proofreading made to the SRO data after the initial
       conversion (and up-conversion of roman numerals, fees, dates,
       names, etc.) from abbreviated tei-corset schema by James Cummings
   </change>
   <change from="2012-12" to="2013-05"> Encoding reviewed, with
       suggestions made for improvements, a random sample of names
       checked, and spot-proofed by Pip Willcox. December 2012 - May 2013.
   </change>
</revisionDesc>

All SRO Elements

• core: p foreign hi desc gap unclear num date list item head note pb lb respStmt resp title choice abbr expan corr sic orig reg add
• header: teiHeader fileDesc titleStmt funder principal publicationStmt distributor availability licence sourceDesc encodingDesc projectDesc revisionDesc change idno
• linking: ab anchor seg
• namesdates: orgName persName surname forename placeName
• textstructure: TEI text body div
• transcr: fw space am ex supplied
