D3js Worshop

by @jecaestevez

Agenda

Do you know HTML
D3JS Basic usage
D3JS Working with Data
D3JS Advance
Resources

Do you know HTML?

Css
- Selectors

SVG
- Line
- Rectagle
- Circle

Let's play in a online editor CodePen

<svg><svg/>

Line (stroke,x1,x2,y1,y2)
Rect(fill,x,y,width,height)
Circle (fill,cx,cy,r)

Absolute positioning; the origin ⟨0,0⟩ is the top-left corner!

bit.ly/htmlSvgBasic

HTML Basics

let's try apply simple colors

bit.ly/htmlSvgBasicRefactorTodo

Css

Cascade Style Sheet is a declarative language for assigning styles to elements.

CSS assigns style rules via selectors.

Simple selectors identify elements by one facet

	            // element with ID myId
#myId               // <any id="myId">

                    // all DIV tags
div                 // <div>
foo                 // <foo>

                    //  all elements with CLASS “box”
.myClass            // <any class="myClass">

[name=customName]   // <any name="customName">
[foo=bar]           // <any foo="bar">

		    // all SPAN tags inside DIVs
div span     	    // <div><span/></div>
foo bar             // <foo><bar/></foo>

		    //all DIV tags and all SPAN tags
div, span           // <div/><span/><div><span/><div>
foo, bar            //  <foo/><bar/><foo><bar/><foo>

		    //all div tags with CLASS "myClass"
div.myClass         // <div class="myClass">
foo.bar             // <foo class="bar">

		    //idiv tag with ID myId
div#myId            // <div id="myId">
foo#bar             // <foo id="bar">


		    //<span> with parent <div>
div > span 	    //<div><span/><div>

Css refactor

Remove inline stroke.
Add the following properties
1. svg id="myId"
2. line name="customName"
3. rect class="myClass"

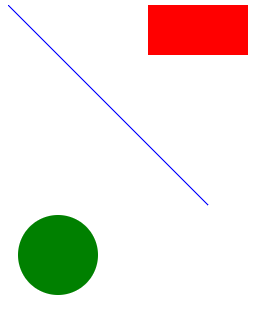

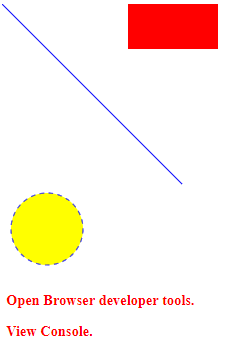

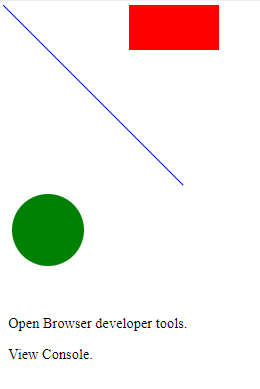

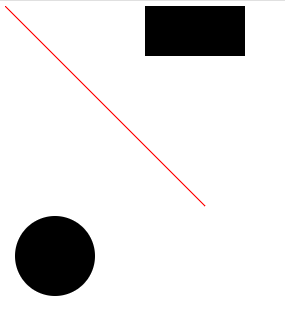

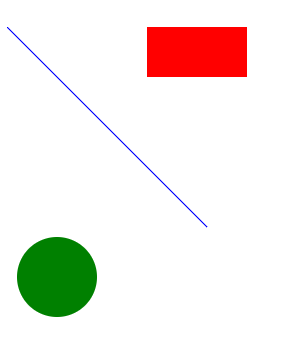

Apply css styles to have the same than in the image

bit.ly/htmlSvgBasicCssRefactored

bit.ly/htmlSvgBasicCssRefactorTodo

old style query selector

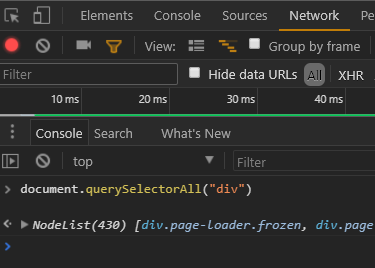

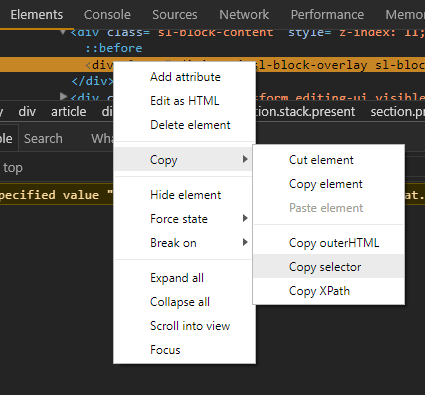

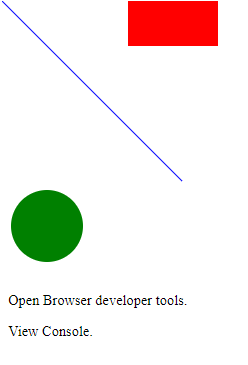

Open browser console run:

document.querySelectorAll("#myId")

	            // element with ID myId
#myId               // <any id="myId">

                    // all DIV tags
div                 // <div>
foo                 // <foo>

                    //  all elements with CLASS “box”
.myClass            // <any class="myClass">

[name=customName]   // <any name="customName">
[foo=bar]           // <any foo="bar">

		    // all SPAN tags inside DIVs
div span     	    // <div><span/></div>
foo bar             // <foo><bar/></foo>

		    //all DIV tags and all SPAN tags
div, span           // <div/><span/><div><span/><div>
foo, bar            //  <foo/><bar/><foo><bar/><foo>

		    //all div tags with CLASS "myClass"
div.myClass         // <div class="myClass">
foo.bar             // <foo class="bar">

		    //idiv tag with ID myId
div#myId            // <div id="myId">
foo#bar             // <foo id="bar">


		    //<span> with parent <div>
div > span 	    //<div><span/><div>

Not familiar with cs and selector?

D3JS basic usage

Style
Attr
Classed

Selectors
Add/Remove
Text

Let's play in a online editor CodePen

https://cdnjs.cloudflare.com/ajax/libs/d3/4.13.0/d3.js

Selectors

Returns the element found

d3.select('#myId')

Returns all found elements

d3.selectAll('.myClass')

	            // element with ID myId
#myId               // <any id="myId">

                    // all DIV tags
div                 // <div>
foo                 // <foo>

                    //  all elements with CLASS “box”
.myClass            // <any class="myClass">

[name='customName']   // <any name="customName">
[foo=bar]           // <any foo="bar">

		    // all SPAN tags inside DIVs
div span     	    // <div><span/></div>
foo bar             // <foo><bar/></foo>

		    //all DIV tags and all SPAN tags
div, span           // <div/><span/><div><span/><div>
foo, bar            //  <foo/><bar/><foo><bar/><foo>

		    //all div tags with CLASS "myClass"
div.myClass         // <div class="myClass">
foo.bar             // <foo class="bar">

		    //idiv tag with ID myId
div#myId            // <div id="myId">
foo#bar             // <foo id="bar">


		    //<span> with parent <div>
div > span 	    //<div><span/><div>

bit.ly/d3jsSelectors

Let's practice Selecting and show in console:

body
svg
line
circle
rect

bit.ly/d3jsSelectorsTodo

Add

// select the <body> element
var body = d3.select("body");

// add an <h1> element
var h1 = myBody.append("h1");
h1.text("H1 append to the body!");

// select all <section> elements
var allDivs= d3.selectAll("div");

// add an <h1> element to each
var h1 = allDivs.append("h1");
h1.text("Hello!");

many elements selected, adds one element to each.

one element selected, adds one element

Remove

// select the <body> element
var body = d3.select("h1");

// remove an <h1> element
var h1 = body.remove("h1");

// select all <section> elements
var allDivs= d3.selectAll("div");

// Remove All <div> element to each
var h1 = section.remove("h1");

many elements selected, remove one element to each.

one element selected, remove one element

From this

add/remove

bit.ly/d3jsAddRemove

bit.ly/d3jsAddRemoveTodo

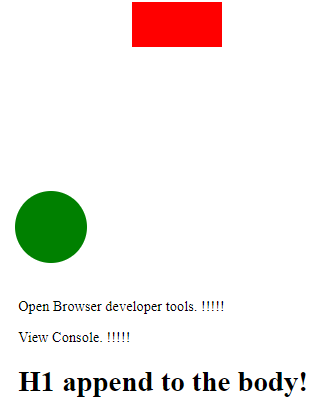

To do this

D3Js

Style
Attr
Classed

d3.select("p")
  .style("color","red");

d3.select("div")
  .classed("myClass",true);

d3.select("h1")
  .attr("title","my description");

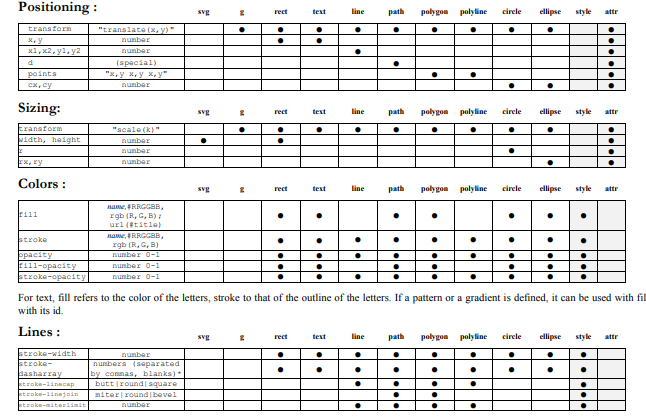

cheatsheet 1

cheatsheet 2

D3Js

Style
Attr
Classed

bit.ly/d3jsStyleAttrTodo

bit.ly/d3jsStyleAttr

From this using

To do this

D3Js working with Data

Dynamic Data
- Enter/Update/Exit
Scale Domain Range

D3JS: data

How to add many elements
- Data are arrays
  - Data are number
  - Data are objects
Use data to create multiple elements
Data is Asyncronus

D3js ENTER event

Data Array

.Enter( )

Elements Rendered

D3JS: data.enter() div

Appending to the enter selection creates the missing elements.The append method on enter selecti
The append method on enter selections is special; it still creates one new element per selected element, but it adds them to the parent node (here the SVG element).

var dataset=  [5,15,40,20];

d3.select("body")
  .selectAll('div')
	.data(dataset)
	.enter()
	.append("div")
	  .text(function(data,i){return data});

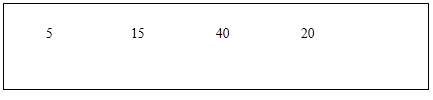

bit.ly/d3jsDataEnterText

<body>




</body>

var dataset=  [5,15,40,20];

d3.select("body");

<body>
<!--
    <div></div>
    <div></div>
    <div></div>
    <div></div>
-->
</body>

<body>

<!--
     empty
     selection
 -->

</body>

var dataset=  [5,15,40,20];

d3.select("body")
  .selectAll('div');

var dataset=  [5,15,40,20];

d3.select("body")
  .selectAll('div')
	.data(dataset);

var dataset=  [5,15,40,20];

d3.select("body")
  .selectAll('div')
	.data(dataset)
	.enter();

var dataset=  [5,15,40,20];

d3.select("body")
  .selectAll('div')
	.data(dataset)
	.enter()
	.append("div");

<body>
    <div>5</div>
    <div>15</div>
    <div>40</div>
    <div>20</div>
</body>

<body>
    <div></div>
    <div></div>
    <div></div>
    <div></div>
</body>

D3JS: data.enter() svg

mySvg.selectAll("text")
      .data(dataset)
      .enter()
      .append("text")
      .text((d) => d);

Solution:

bit.ly/d3jsDataEnterTextSvg

var dataset=  [5,15,40,20];

var mySvg = d3.select("svg");

mySvg.selectAll("text")
      .data(dataset)
      .enter()
      .append("text")
      .text((d) => d)

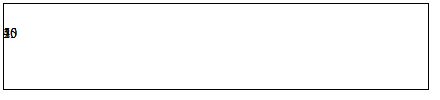

      .attr("y", 40)
    ;

mySvg.selectAll("text")
      .data(dataset)
      .enter()
      .append("text")
      .text((d) => d)
      .attr("x",(d,i) =>i*100)
      .attr("y", 40)
    ;

<html>
<body>
<svg></svg>
</body>
</html>

svg{
  width:500px;
  height:100px;
   border: 1px solid black;
}

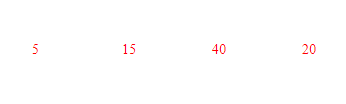

TO DO THIS Started point : bit.ly/d3jsBlankSvg

D3JS: data.enter() svg

mySvg.selectAll("text")
      .data(dataset)
      .enter()
      .append("text")
      .text((d) => d)
      .attr("fill", "red")
      .attr("x",(d,i) =>i*100 +50)
      .attr("y", 40)
    ;

bit.ly/d3jsDataEnterTextSvg


  mySvg.selectAll('circle')
	.data(dataset)
	.enter()
	.append("circle")
    .attr("cx",(d,i) =>i*100 +50)
    .attr("cy", 40)
    .attr("r", (d) =>d)
;

var dataset=  [5,15,40,20];

var mySvg = d3.select("svg");

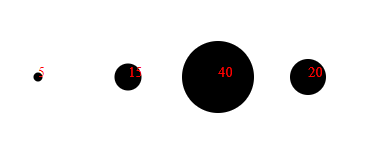

bit.ly/d3jsDataEnterCircleText

started point to do this

D3js UPDATE event

Data Array

Update

Elements Rendered

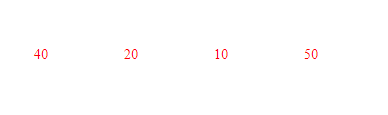

D3JS: data.update()

Solution with circles:
bit.ly/d3jsDataUpdateTextCircleSvg

Solution:

bit.ly/d3jsDataUpdateTextSvg

mySvg.selectAll("text")
      .data(dataset)
      .enter()
      .append("text")
      .text((d) => d)
      .attr("x",(d,i) =>i*100)
      .attr("y", 40)
    ;

var dataset=  [5,15,40,20];

var mySvg = d3.select("svg");

function update(){
 dataset = [40,20,10,50];

  //Update Data - NOT using Enter()
  mySvg.selectAll("text")
      .data(dataset)
      .text((d) => d)
      .attr("x",(d,i) =>i*100)
      .attr("y", 40)
    ;
}

  <button onclick="update();">Update</button>

Trigger

Update

Data

Started point:
bit.ly/d3jsStartedPoint

D3js EXIT event

Data Array

.EXIT( )

Elements Rendered

D3JS: data.exit()

Solution with Circle:

bit.ly/d3jsDataExitTextCircleSvg

Solution:
bit.ly/d3jsExitTextSvg

mySvg.selectAll("text")
      .data(dataset)
      .enter()
      .append("text")
      .text((d) => d)
      .attr("fill", "red")
      .attr("x",(d,i) =>i*100 +50)
      .attr("y", 40)
    ;

var dataset=  [5,15,40,20];

var mySvg = d3.select("svg");

function exit(){
     dataset =[];
 dataset = [5,15,40];

  //Update Data
  mySvg.selectAll("text")
      .data(dataset)
      .exit()
      .remove()
    ;
}

  <button onclick="exit();">Delete</button>

Started Point:
bit.ly/d3jsStartedPoint

Remove

value

"20"

D3js Enter - Update - Exit

Data Array

Update

Elements Rendered

.EXIT( )

.ENTER( )

Thinking with joins article

D3JS: data objects!

Solution:

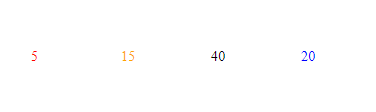

bit.ly/d3jsDataObjectEnterTextSvg

var dataset=   [
  {name: "Daniel", score: 5, colour:"red"},
  {name:   "Fer", score:  15, colour:"orange"},
  {name: "Marc", score: 40, colour:"black"},
  {name: "Enric", score: 20, colour:"blue"}
];

var mySvg = d3.select("svg");

mySvg.selectAll("text")
      .data(dataset)
      .enter()
      .append("text")
      .text((d) =>d.score)
      .attr("fill", (d)=>d.colour)
      .attr("x",(d,i) =>i*100)
      .attr("y", 40)
    ;

mySvg.selectAll("text")
      .data(dataset)
      .enter()
      .append("text")
      .text((d) => d)
      .attr("fill", "red")
      .attr("x",(d,i) =>i*100)
      .attr("y", 40)
    ;

Started point to do this
bit.ly/d3jsStartedPoint2

D3JS: be functional

Solution: bit.ly/d3jsDataObjectEnterTextSvgFunctional

var dataset=   [
  {name: "Daniel", score: 5, colour:"red"},
  {name:   "Fer", score:  15, colour:"orange"},
  {name: "Marc", score: 40, colour:"balck"},
  {name: "Enric", score: 20, colour:"blue"}
];

var mySvg = d3.select("svg");

function getScore(d,i) { return i * 100; }
function getColour(d) {  return d.colour; }

mySvg.selectAll("text")
      .data(dataset)
      .enter()
      .append("text")
      .text((d) => getScore(d))
      .attr("fill", (d)=>getColour(d))
      .attr("x",(d,i) =>getScore(d,i) )
      .attr("y", 40)
    ;

Instead to bind to values use functions

mySvg.selectAll("text")
      .data(dataset)
      .enter()
      .append("text")
      .text((d) =>d.score)
      .attr("fill", (d)=>d.colour)
      .attr("x",(d,i) =>i*100)
      .attr("y", 40)
    ;

Use functions instead to use directly the values
started point

bit.ly/d3jsDataObjectEnterTextSvg

D3JS demos not for beginners

Data GeoJson
Maps
Custom Charts
Force Visualzation

In other session will see this in details

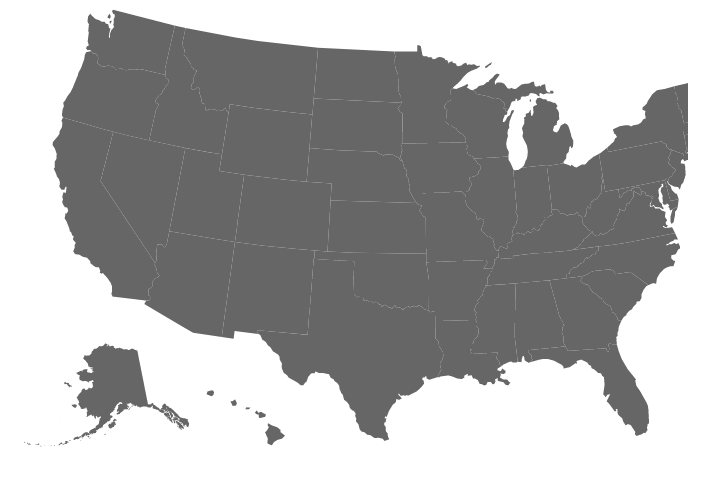

Data GeoJson


//Load in GeoJSON data
d3.json("https://codepen.io/jecaestevez/pen/eyNwME.js", function(json) {

  //Bind data and create one path per GeoJSON feature
  svg.selectAll("path")
    .data(json.features)
    .enter()
    .append("path")
    .attr("d", path)
    .attr("fill","#666666");

});

var svgWidth = 800;
var svgHeight = 800;


//Create SVG element
var svg = d3.select("body").append("svg")
.attr({width:svgWidth, height: svgHeight});


//Define path generator
var path = d3.geo.path();


//Load in GeoJSON data
d3.json("https://codepen.io/jecaestevez/pen/eyNwME.js", function(json) {


});

D3js Worshop

Agenda

Do you know HTML?

<svg><svg/>

HTML Basics

Css

Css refactor

old style query selector

Not familiar with cs and selector?

D3JS basic usage

Selectors

Add

Remove

From this

add/remove

To do this

D3Js

D3Js

D3Js working with Data

D3JS: data

D3js ENTER event

D3JS: data.enter() div

D3JS: data.enter() svg

D3JS: data.enter() svg

D3js UPDATE event

D3JS: data.update()

D3js EXIT event

D3JS: data.exit()

D3js Enter - Update - Exit

D3JS: data objects!

D3JS: be functional

D3JS demos not for beginners

Data GeoJson

D3JS and Google Maps

Custom Charts

D3JS Force

D3JS Force

Resources

d3jsWorkshop_21022018

More from Jesús Estévez
