"Can you make it pretty?"

Layout options for content types in CWS D7

Someone: Hey! We need to post all of our recipes on our website!

You: Great! I'll make a content type with tons of fields!

Someone: Sure, whatever that means. Just make sure it looks nice.

You: Um, (gulp) Yeah sure, no problem...

(lots of clicking sounds...)

The situation

Content modeling is done
Some content is added

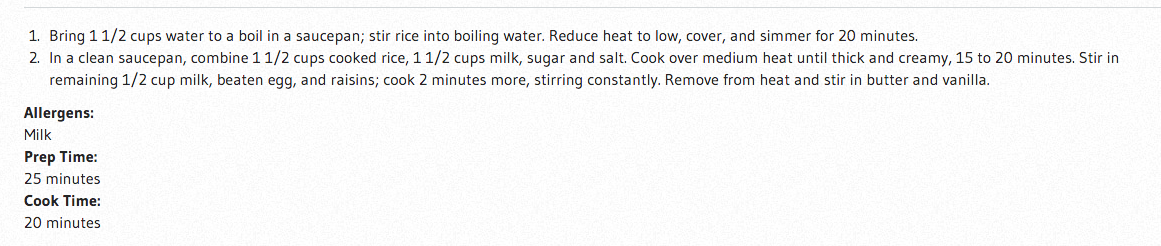

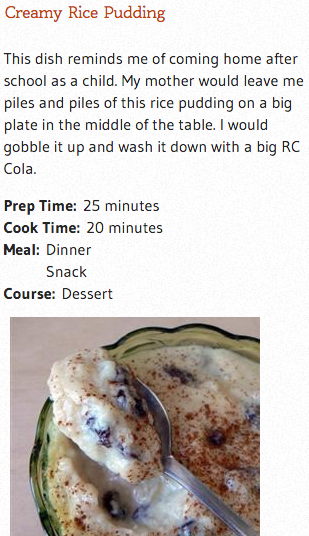

The default layout of the fields is less than inspiring
You don't want to create all you own custom CSS
What tools do we have in CWS Drupal?

http://dev.drupal.training.oregonstate.edu/recipe/creamy-rice-pudding

What are the options?

Drupal default controls
Display Suite basic
DS + Bootstrap built in templates
DS custom fields

<aside>

View modes

</aside>

DS expert field templates + Bootstrap classes
Views through DS custom fields
Expert: DS custom layouts (requires custom module)
Expert: Custom theme template files (requires access to theme directory in Drupal

We marking up templates.

Better than marking up content since we aren't adding layout in our content.

https://css-tricks.com/class-up-templates-not-content/

More discussion at:

Paragraphs module?

First off, congratulate yourself for not just dumping a ton of content in a body field.

Contrib Modules used

Display Suite (7.x-2.11)
Display Suite Bootstrap Layouts (7.x-1.1)
Display Suite Extras
Stylesheet Overlay

Let's get set up

Activate DS on our content type

and

Out of the box

Drag and drop reorder of fields, nesting possible with field groups (accordions too), move fields to "Hidden"
Hide/show label, above or inline (take care for mobile)
Format - depends on field type, important for images/files
Gear icon - where the magic happens once expert field templates are enabled in DS

View modes*

*Provides different displays in different situations, e.g. teaser, RSS, full content.

Can be used in Views (oh yeah! more on this later)

Let's add a new view mode to work with

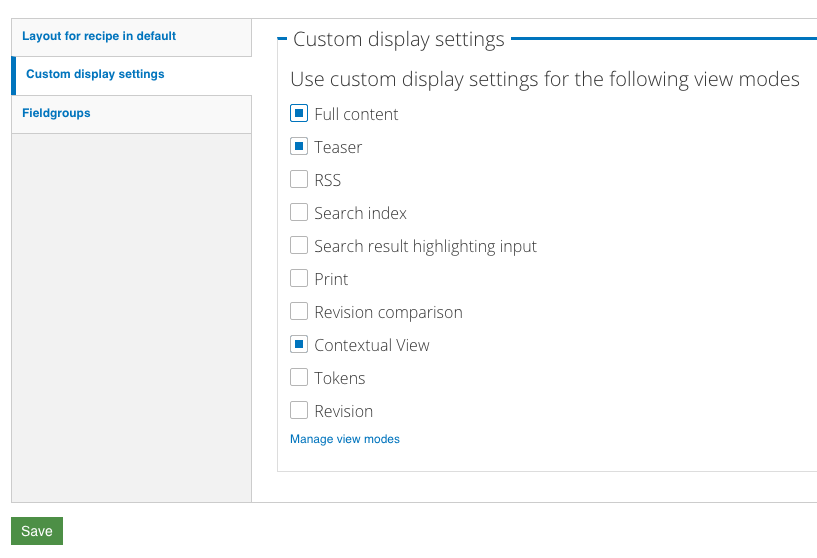

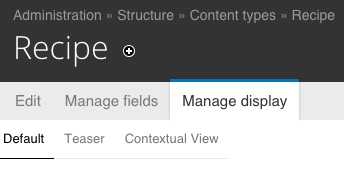

Visit the bottom of the manage display page for the content type
Under custom display settings, click box for Full content and save

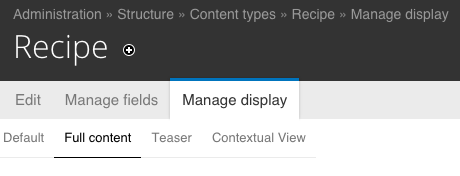

The "Full content" view mode will now show up. Click that tab.

Visit bottom of page and choose a layout to activate DS goodies

Now we're ready!

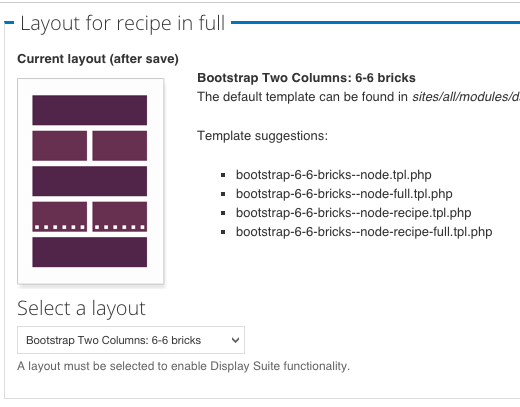

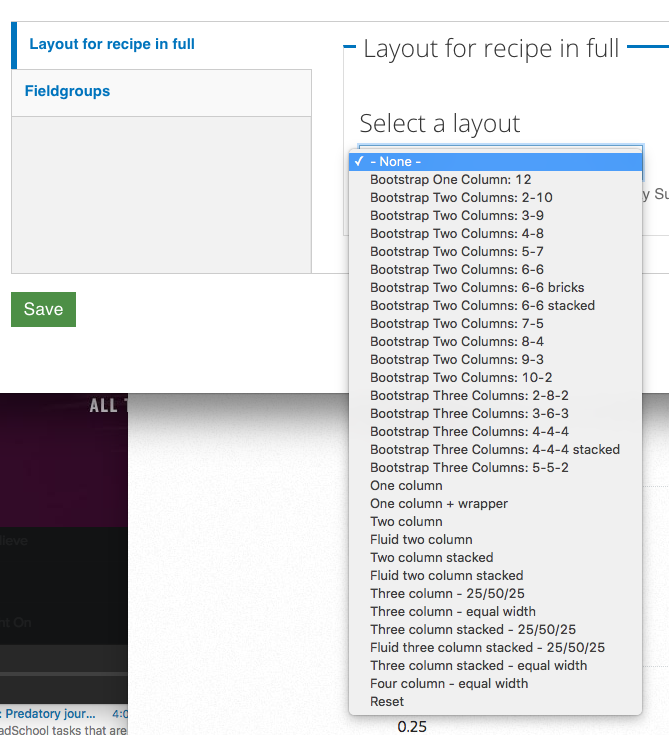

Let's pick a layout

and

Update a field collection field using

Display Suite Custom Field
Display Suite Expert Field Template

Title

Description


Directions

ingred-

ents

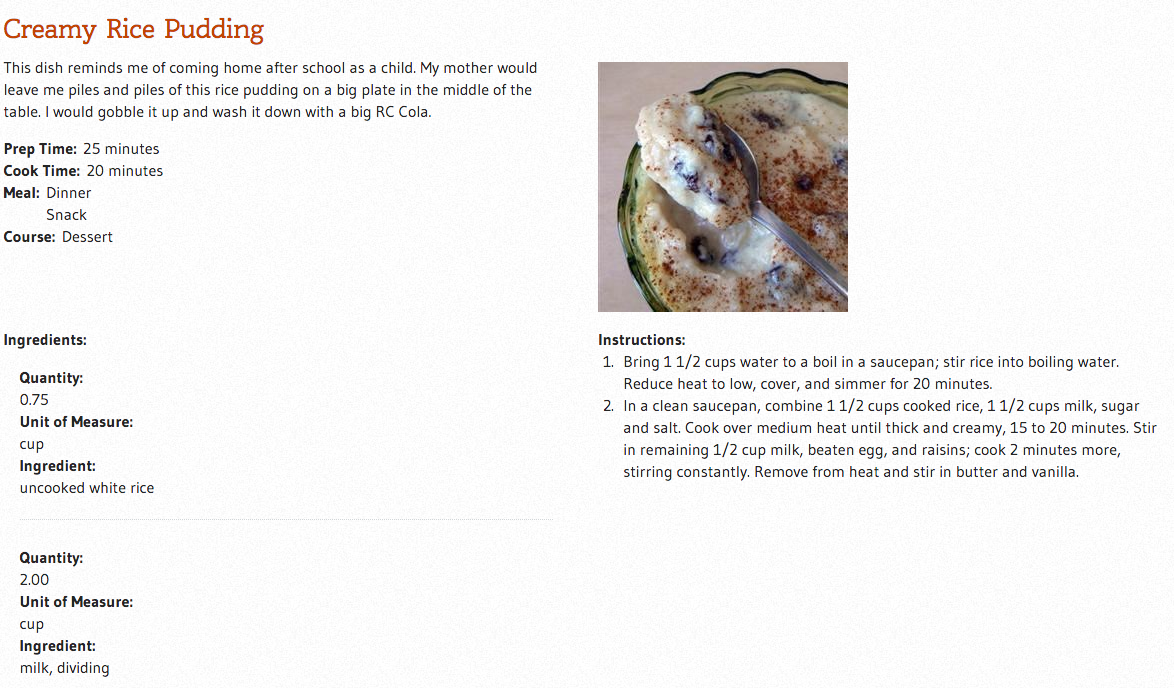

Pretty close

Needs work!!!

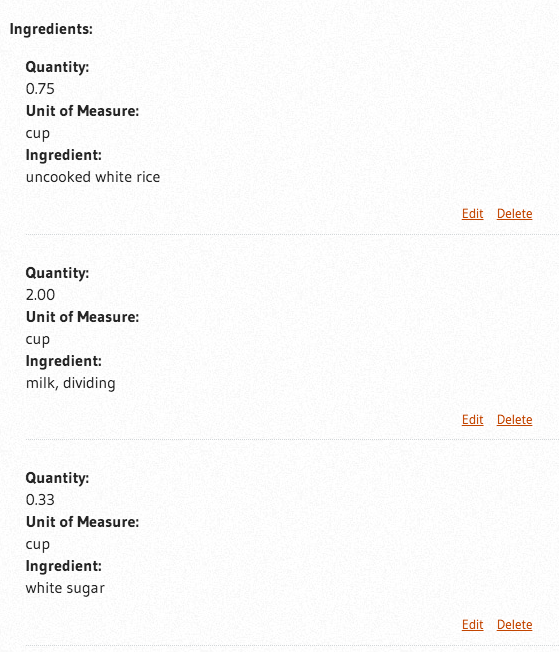

Fixing the ingredients field

Format of ingredients field (on recipe content type manage display) to "fields only" this gets rid of the edit links when viewing the node
Now let's work in the field collection's manage display

Need to get these all on the same line. But how?

Display suite custom field
Views (possible, but only as a backup)

Field collection display

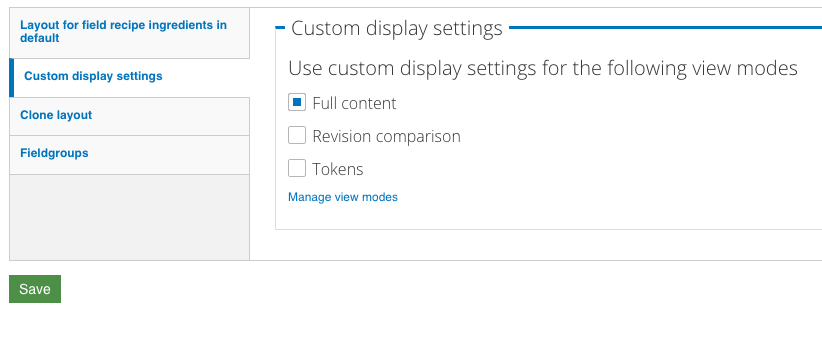

Again, add a custom display option for "full content" and save
Visit the Full content view mode and pick one column for the layout, save, and the other DS options will appear as vertical tabs

Custom fields FTW!

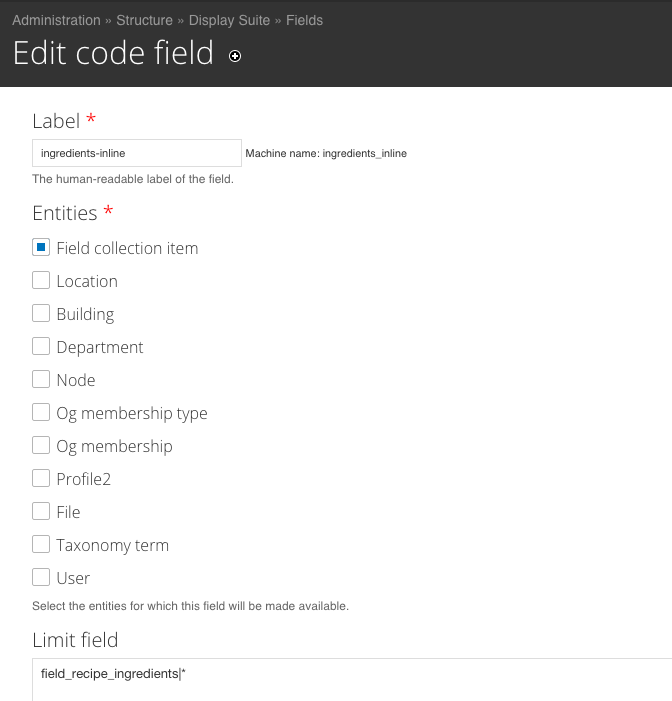

Go to admin/structure/ds/fields and add a "Code field" there.
Name it and choose "field collection item"

In the Limit field add field_recipe_ingredients|*

So this will only show on the one field collection

Create the custom field

In the code field at the bottom, check the Token box and add the fields you want to combine. Similar to rewriting a views output in Views
In a single line, I added these tokens:

[field_collection_item:field-ingredient-quantity] [field_collection_item:field-ingredient-uom] [field_collection_item:field-ingredient]

Create the custom field

On the manage display page for the "Full content" view mode for the field collection, your new custom field shows up under disabled.
Move it to enabled and move the rest to disabled.

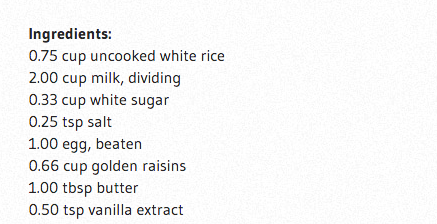

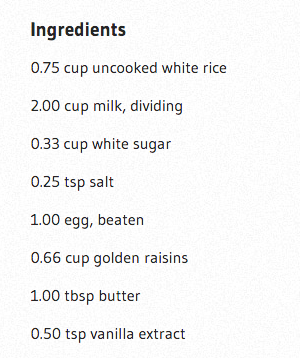

Party time!

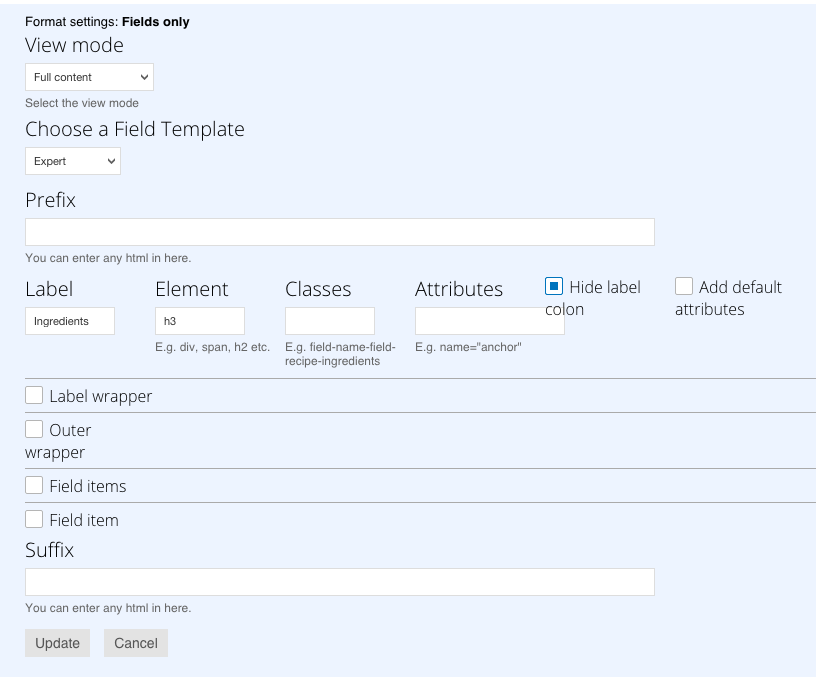

Update the label to use an h3

We go back to the Recipe content type
Change the field template to "Expert"*
Change the label to "Ingredients"
Make the element "h3"
Check the Hide label colon box
Update and Save

Let's improve the hierarchy of our HTML and...

*Enable field templates at /admin/structure/ds/list/extras

Update the label to use an h3

expands!

oh the options!

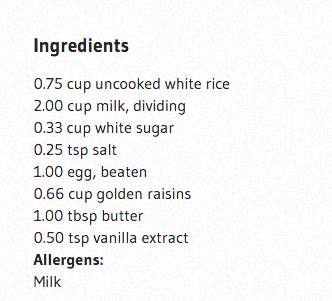

Spacing?

Now an H3!

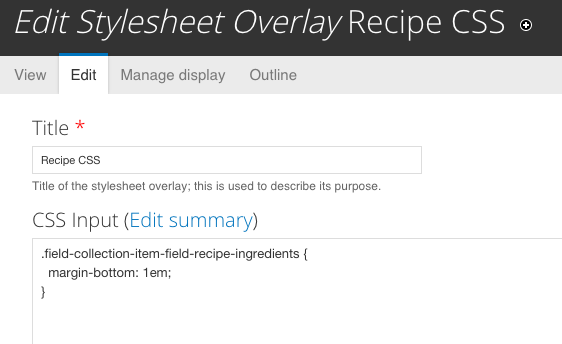

Stylesheet Overlay module

Enable and configure the text formats for CSS and full CSS
Add your CSS

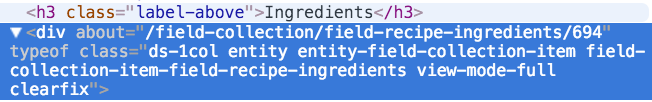

Use web inspector to find the class we want to use

I choose .field-collection-item-field-recipe-ingredients

View modes case study

Situation

Lots of fields on a content type
Only want some of those fields in a view
I could use Views to pick those fields
Instead I preconfigure the fields I want to show on the content type in a new view mode

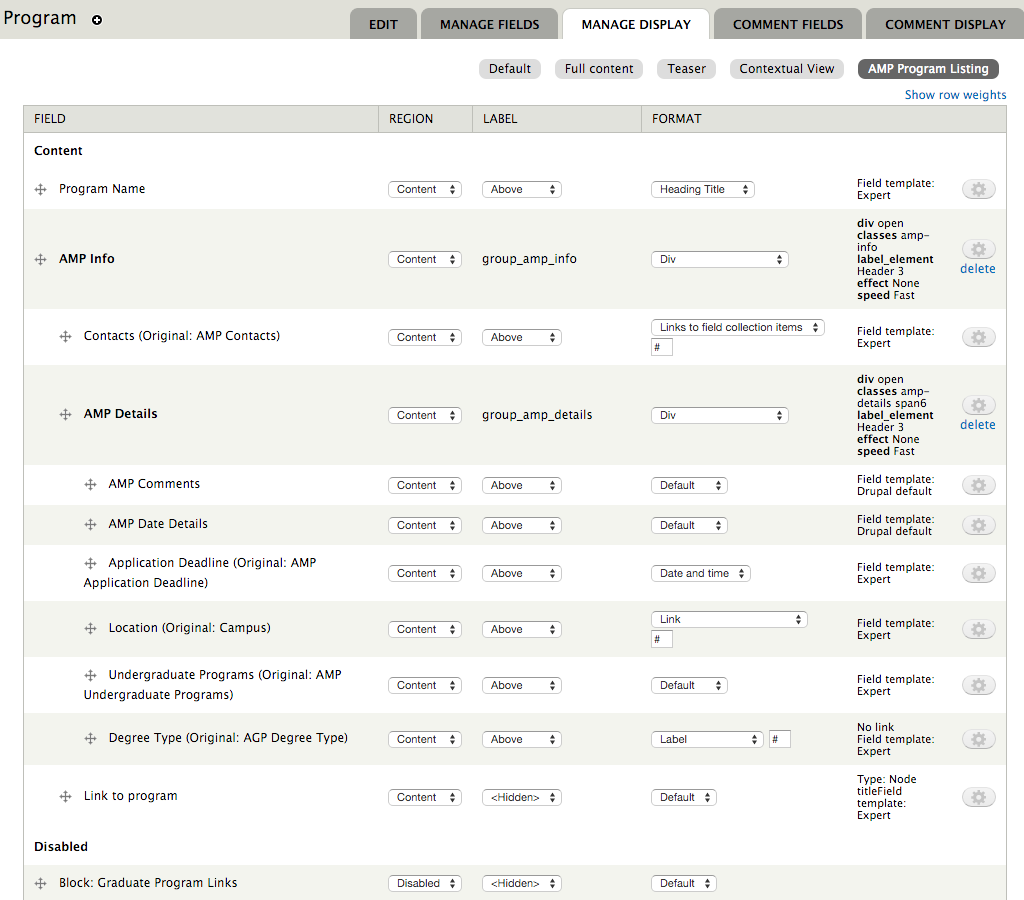

New view mode for Program content type

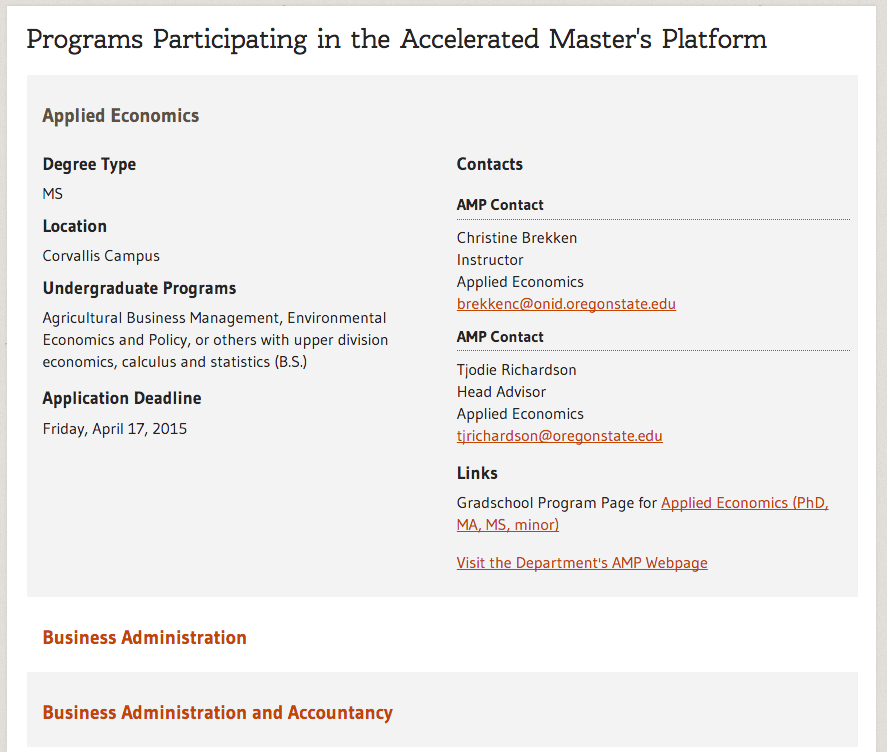

Programs are now able to participate in the "Accelerated Masters Platform"
Added new fields to the program content type, I wanted to keep that data all together on those nodes

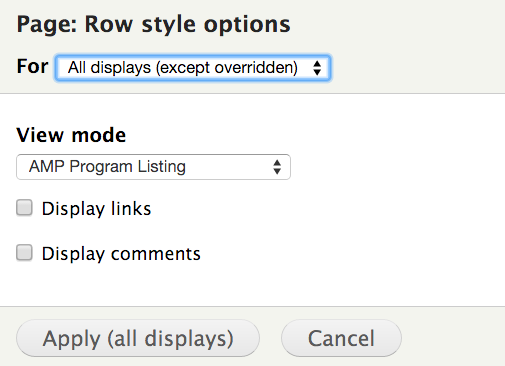

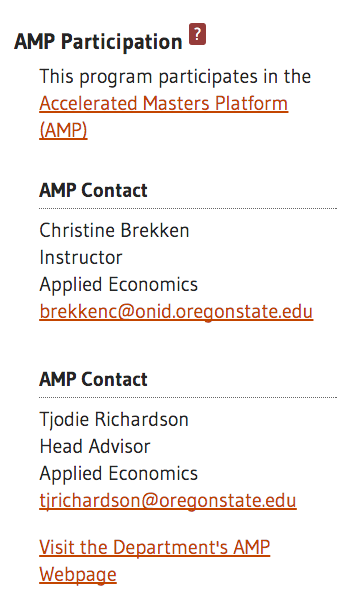

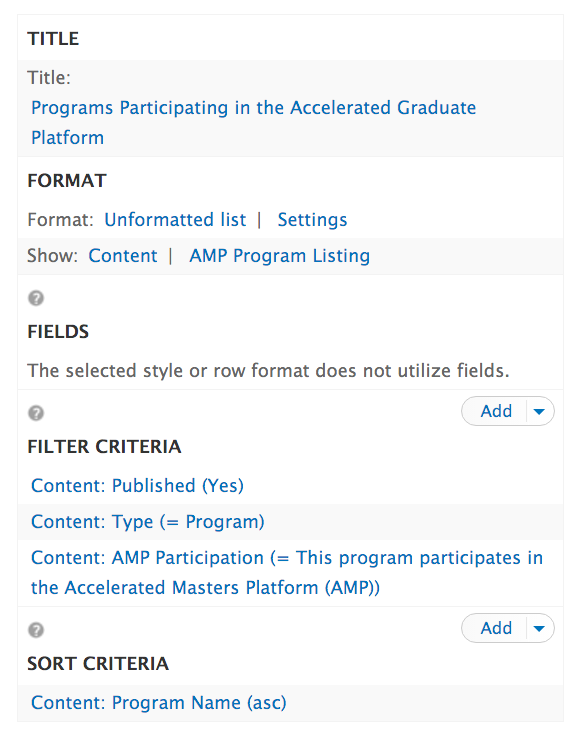

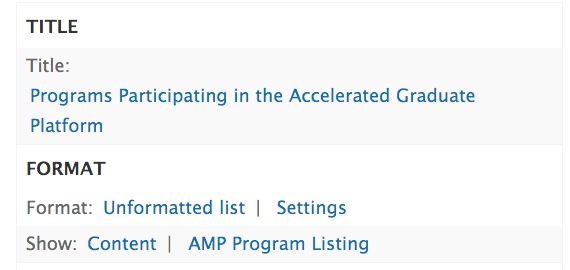

Want to show only some of the data for AMP on the node itself and want to show all the AMP data in a view

Add a new view mode at admin/structure/ds/view_modes
