Taking React's Virtual Dom to the Virtual World
Joe Hsu (@jhsu)
Topics
- webvr
- frameworks and tools
- getting started
Virtual reality in portland
https://www.meetup.com/Portland-Virtual-Reality-Meetup/
friction
creating and distributing VR content
- Gatekeepers
- Installs
- Segmentation

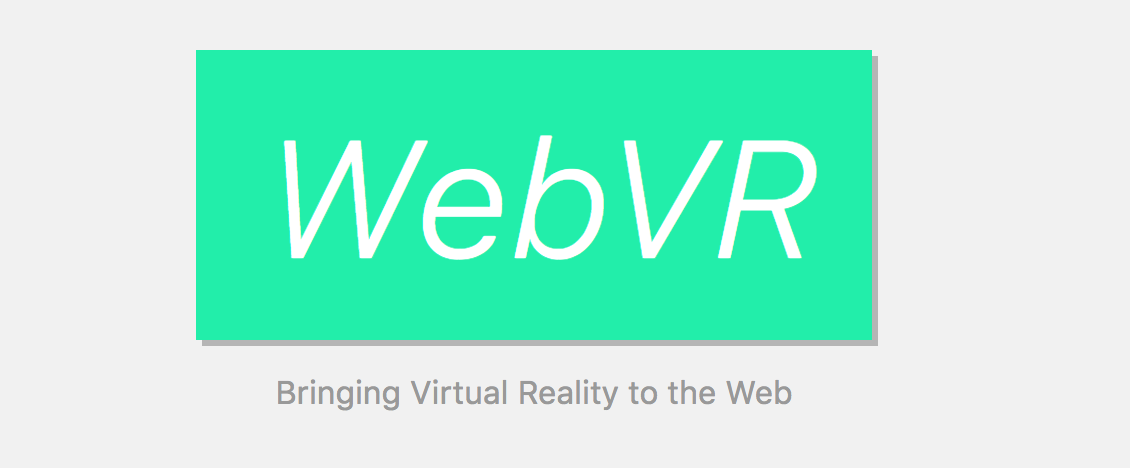

Webvr
VRDisplay

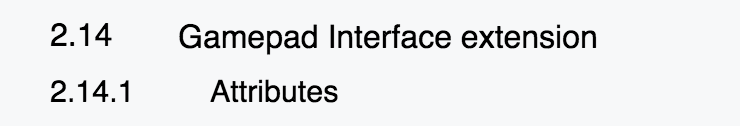

Gamepad
Oculus Medium built in WebVR
Frameworks
why a framework
Import WebVR polyfill
Set up camera
Set up lights
Initialize scene
Declare and pass canvas
Listen to window resize
Install VREffect
Instantiate renderer
Create render loop
A-Frame
A web framework for building virtual reality experiences
Make WebVR with HTML and Entity-Component
Works on Vive, Rift, desktop, mobile platforms
react-vr
React VR is a framework for the creation of VR applications that run in your web browser. It pairs modern APIs like WebGL and WebVR with the declarative power of React, producing experiences that can be consumed through a variety of devices.
A-Frame
Built on
three.js
<a-scene>
<a-sphere position="0 1.25 -5" radius="1.25">
</a-sphere>
<a-box position="-1 0.5 -3" rotation="0 45 0">
</a-box>
<a-cylinder position="1 0.75 -3" radius="0.5" height="1.5">
</a-cylinder>
<a-plane position="0 0 -4" rotation="-90 0 0" width="4" height="4">
</a-plane>
<a-sky color="#ECECEC">
</a-sky>
</a-scene>
AFRAME.registerComponent('hello-world', {
schema: {
target: {type: 'selector'},
speed: {type: 'number'}
},
init: function () {
console.log('Hello, World!');
},
tick() {...},
update() {...},
});
Entity
Component
System
aframe-react
import {Entity, Scene} from 'aframe-react';
class VRScene extends React.Component {
render () {
return (
<Scene>
<Entity geometry={{primitive: 'box'}}
material="color: red"
position={[0, 0, -5]} />
<Entity text={{text: 'HELLO WORLD'}}
position="{[0, 1, -5]}" />
</Scene>
);
}
}
Tools
- locally in a static html file
- codepen + aframe from cdn (doesn't support viewing in a headset)
- create-react-app for aframe-react
- aframe-inspector
React VR
Built on
three.js
Built on React
- react-native
- react-vr
- react-vr-web
class WelcomeToVR extends React.Component {
render() {
return (
<View>
<Pano source={asset('chess-world.jpg')}/>
<Text
style={{
fontSize: 0.8,
layoutOrigin: [0.5, 0.5],
transform: [{translate: [0, 0, -3]}],
}}>
hello
</Text>
</View>
);
}
};
TOols
- React dev tools
- react-vr-cli
three-legged potato sack race
github.com/jhsu/potato-hop
Thanks
Resources & Community
r/webvr
aframe blog
https://aframe.io/blog/
slack groups
https://aframevr-slack.herokuapp.com/
https://webvr-slack.herokuapp.com/
