"Elements" Application
Implementation Path
Prepared By: Kianosh Pourian, UI Consultant Cielo Concepts Inc.
IMplementation considerations
- The JavaScript infrastructure needs a complete revamping, considering the current state of JavaScriptMVC framework (or CanJS).
- Complete separation of presentation layer from the business logic layer.
- Responsive design and support of mobile devices
- UI and UX design improvements
- Deployment strategy
- Additional functional and unit testing
- Resource management
Implementation End Goal

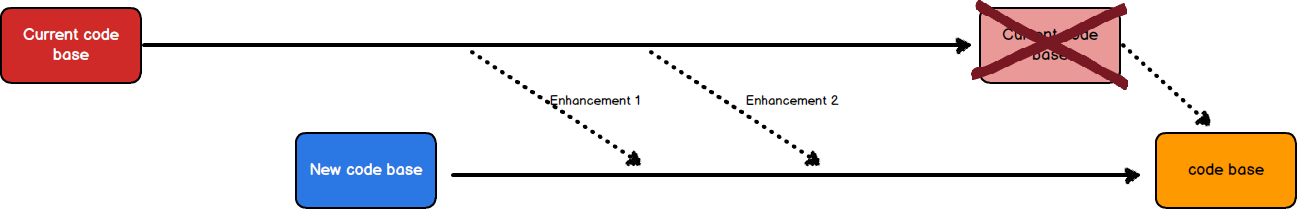

Implementation path 1
Independently developing the new framework for the front end code will create a new CSS, HTML, and JavaScript framework for the presentation layer.
Implementation path 1
Pros
- Ease of implementation
- Time to market will be faster
- A solid infrastructure can be built without interference or collisions from the old code base
- A fresh start
Cons
- Resources will be split between two code base
- Limited feature enhancements to the application
Implementation path 2
Abandon the SPA (single page application) concept and build each major interaction i.e. adding a new element, editing an element, or removing an element on a separately viewed new page.
Implementation path 2
Pros
- Incremental addition to the application
- A solid infrastructure can be built without interference or collision with the old code base
- No SPA
Implementation path 2
Cons
- No SPA
- Some aspects of the site may not be abstracted easily adding additional time and resources to the project
- Some areas of the requirements , including responsive and mobile friendliness, will be delayed. Making the site responsive will have to be done separately
- Maintenance and knowledge of two separate code base is necessary
- Increased time to mark
Implementation path 3
Attack the problem areas from the technology point of view. The order of attack points will be:
- JavaScript framework
- UI/UX Design through HTML & CSS
Implementation path 3
Pros
- Incremental migration to the new infrastructure
- The user will not feel any affect of the change and will most likely benefit from it through better user experience and performance
Cons
- A responsive application will not be available until the HTML and CSS is properly set
- More time and expenses because the project is shifting into two separate projects
Implementation path 4
Keep the same JavaScript framework and evaluate each individual framework and library and create a migration path to update it to the latest version of the framework/library.
The migration path for going from JavaScriptMVC framework to CanJS (the latest version and evolution of JavaScripMVC framework) will be very hard and time consuming.
There is still an opportunity to separate the presentation layer from the business layer and it should be part of the process.
Implementation path 4
Pros
- Keeps essentially the same technology stack, but with update to the latest version
- Least amount of distribution to the user
Implementation path 4
Cons
- No significant improvement to the application in regards to performance, UX or UI enhancements
- Responsive design must be implemented at a different stage
- Depending the migration path of some libraries or the framework, additional time or effort will be needed
- The API of the framework has drastically changed from JavaScriptMVC to CanJS resulting to a big effort to update the framework
Recommendation
Technology Recommendation
- CSS:
- SassCSS
- Atomic Design and Pattern Lab
- Grid Layout
- HTML:
-
Take advantage of latest HTML5 elements i.e. section, article, aside, nav, header, footer
-
Take advantage of latest HTML5 APIs i.e. notification API, Websocket API
-
Create custom elements when necessary
-
Recommendation
Technology Recommendation
- JavaScript:
- ReactJS + Flux architecture. ReactJS’s emphasis on component centric implementation is a strong fit for the need of the “Elements” application. Flux architecture is also a great compliment to this library which will also be a great fit for the application.
Recommendation
Technology Recommendation
- JavaScript:
-
Toolkits:
- Yeoman for scaffolding
- Gulp for task management
- Bower for package management
- NodeJS
- Jasmine and Mocha for testing
- JSDoc and SassDoc for documentation
- Git for source control and code review
-
Toolkits:
Recommendation

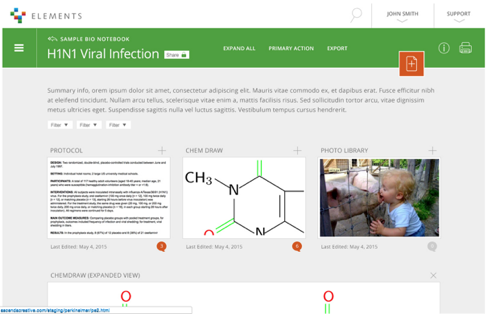

Design Recommendation
Recommendation
implementation Recommendation
Maintain the following goals:
- Separation of presentation layer from business layer
- Ease of development and quick time-to-market
- Componentize the application
- Responsive application
- Improve performance
- Improve build process
Recommendation
implementation Recommendation
Option 1 implementation path will be the best fit for the set goals. This approach will allow for a smooth transition from old code to new code with least amount of disruption. The minimal disruption will also allow for quicker time to market of this project, allowing the code base to reach a stable point where addition of feature will become simpler
Other considerations
resource management
Since there will be a branching of the code and two code bases will be maintained, the task resource management will become very important. The goals will be:
- Ensure that the team will have proper mentorship and guidance
- Ensure proper documentation
- Ensure that all team members are familiar with the infrastructure by participation in development
Other considerations
deployment and testing
With the separation of the front end from the back end, there will be an introduction of a new environment that will require testing and deployment. Although this will create an additional effort, nevertheless this can also be advantageous in handling small development or enhancements followed by a targeted testing and deployment.
Questions and Thank you
Elements Application - Implementation Path
By Kianosh Pourian
