Apache Spark

Scala vs Python

Taras Lehinevych

Agenda

  • Apache Spark
  • Resilient Distributed Datasets
  • DataFrame
  • Datasets
  • Summary

Apache Spark

  • Open source cluster computing framework
  • Originally developed at the UC Berkley
  • Provides interface for programming entire clusters with implicit data parallelism and fault-tolerance
  • Hadoop ecosystem

Apache Spark

Apache Spark

Text

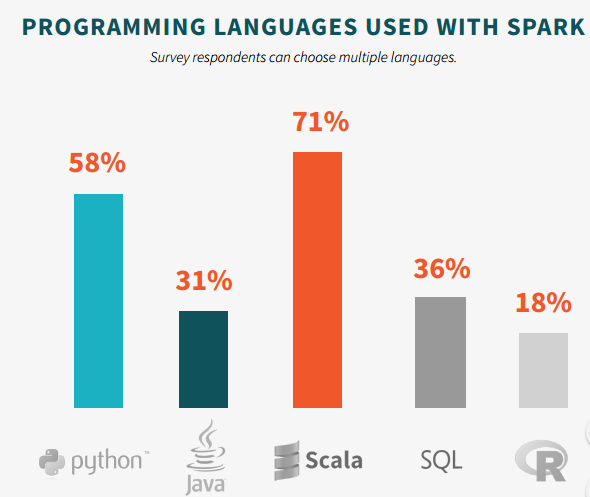

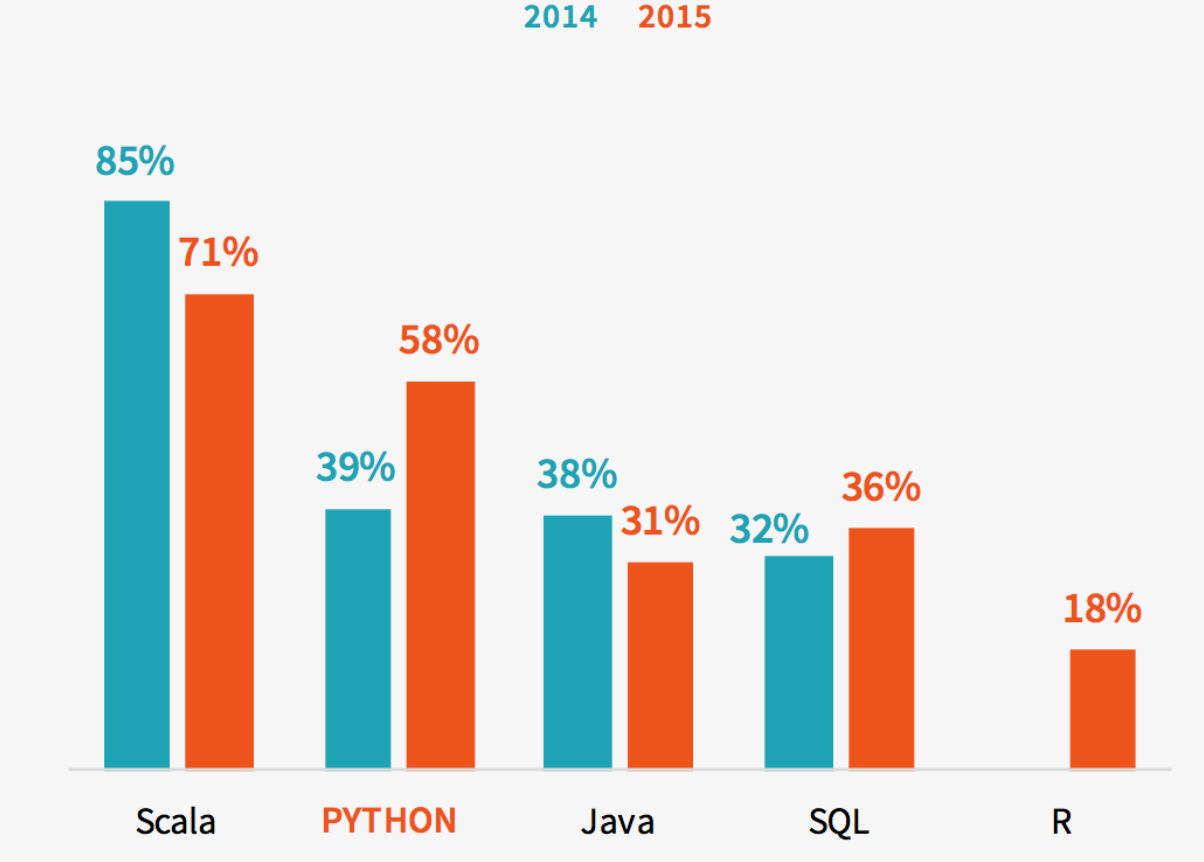

Spark Survey 2015

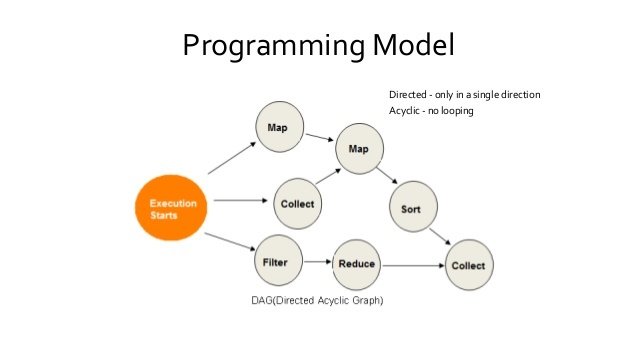

Resilient Distributed Datasets (RDD)

Dataset – variable or object:

  • HDFS, S3, Hbase, JSON, text, local
  • Transformed RDD
  • RDD – immutable

Distributed:

  • Distributed in cluster, one variable
  • Partitions (atomic)

Resilient:

  • Restoring after error
  • Save operation over data

RDD

text_file = sc.textFile("hdfs://...")
counts = text_file.flatMap(lambda line: line.split(" ")) \
             .map(lambda word: (word, 1)) \
             .reduceByKey(lambda a, b: a + b)
counts.saveAsTextFile("hdfs://...")
val textFile = sc.textFile("hdfs://...")
val counts = textFile.flatMap(line => line.split(" "))
                 .map(word => (word, 1))
                 .reduceByKey(_ + _)
counts.saveAsTextFile("hdfs://...")

Python

Scala

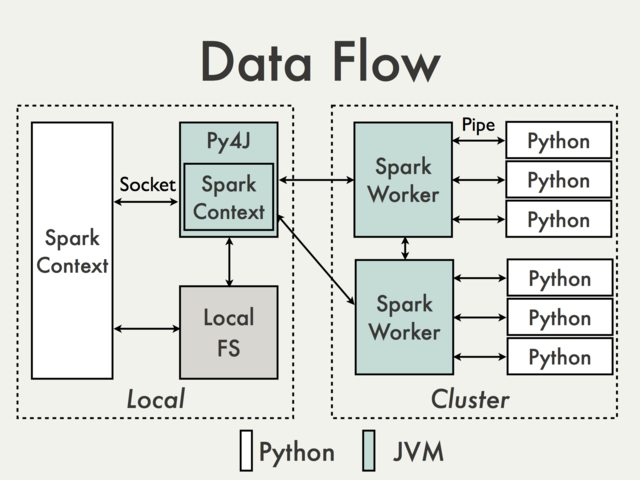

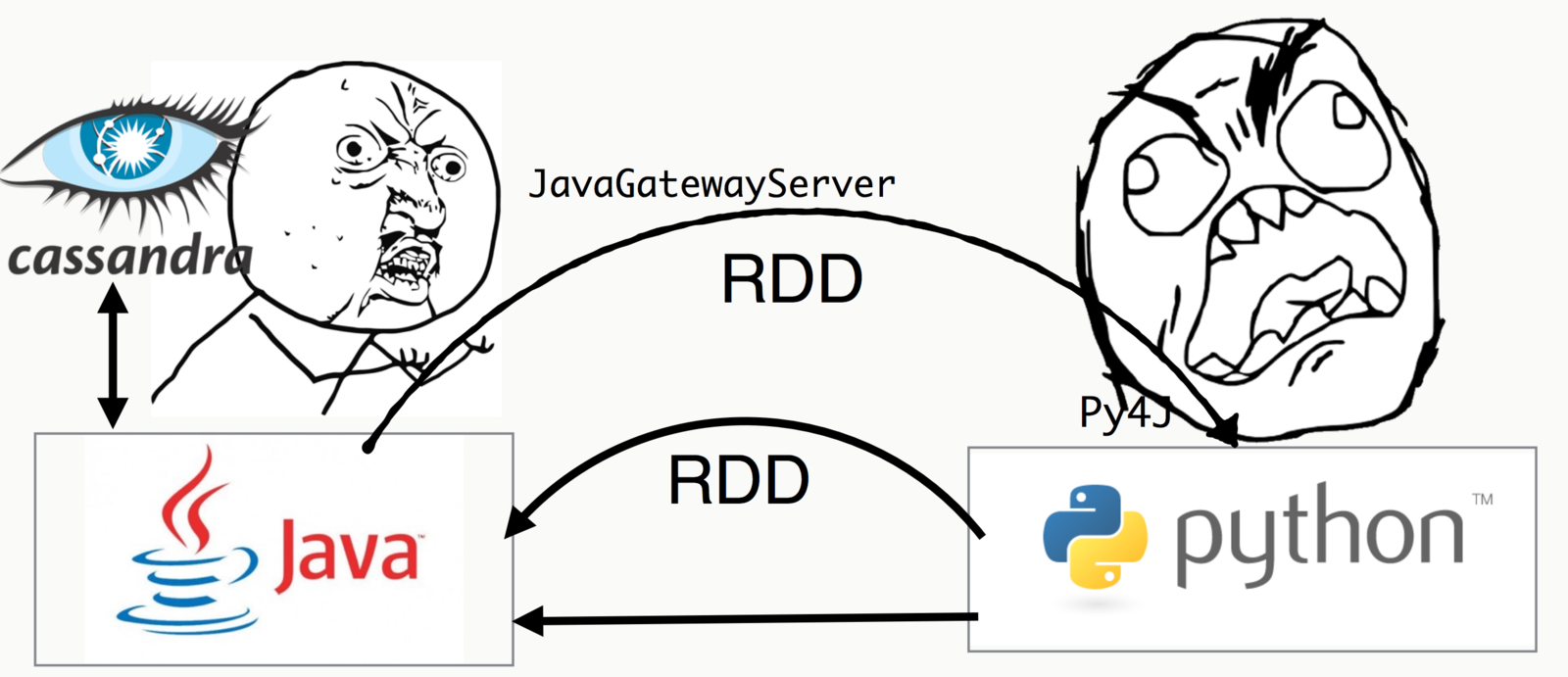

Why Not Python + RDD?

Why Not Python + RDD?

RDD

Advantage:

  • familiar object-oriented programming style
  • compile-time type-safety



Disadvantage:

  • Java serialization
  • Overhead of garbage collection
  • Process based executors versus thread based

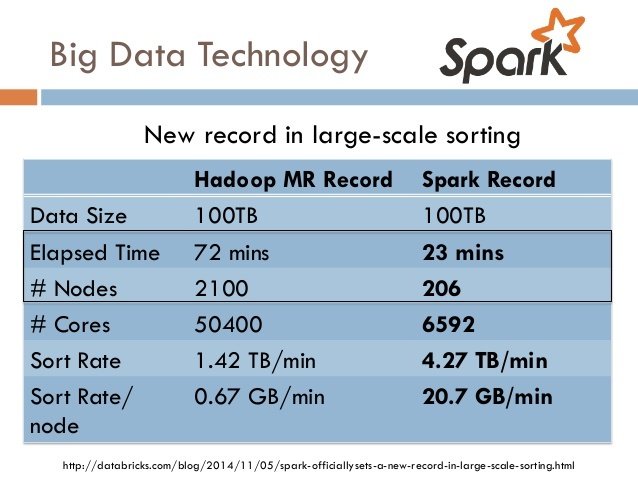

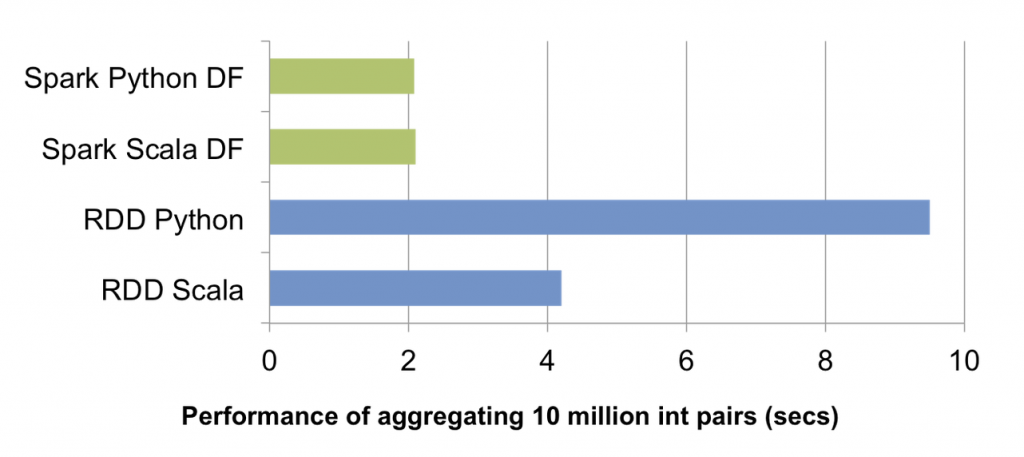

Performance

DataFrame

  • Spark 1.3

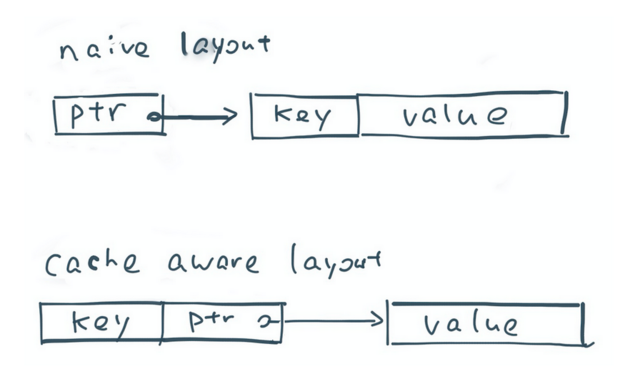

  • Part of Tungsten initiative
  • Schema
  • Pass only data over nodes

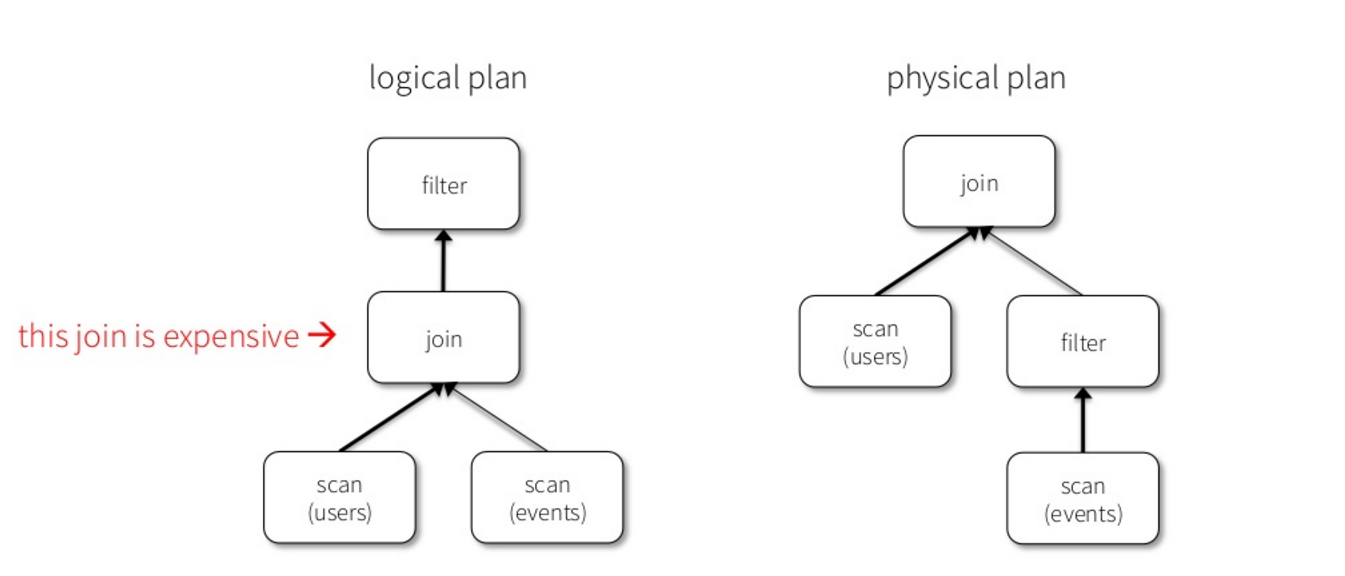

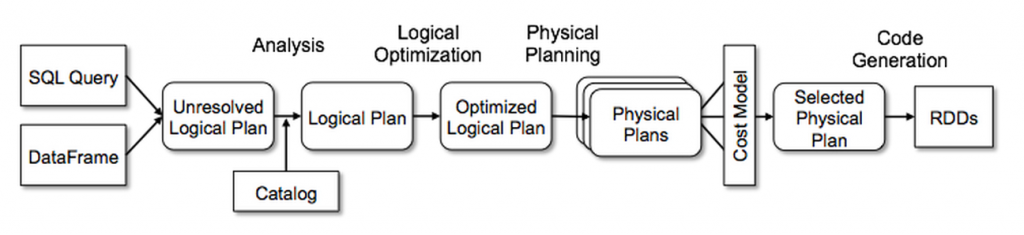

  • API for building a relational query plan that Spark’s Catalyst optimizer can then execute

DataFrame

DataFrame

DataFrame

joined = users.join(events, users.id == events.uid)
filtered = joined.filter(events.date >= "2016-04-23")

DataFrame

val textFile = sc.textFile("hdfs://...")

// Creates a DataFrame having a single column named "line"
val df = textFile.toDF("line")
val errors = df.filter(col("line").like("%ERROR%"))
// Counts all the errors
errors.count()
// Counts errors mentioning MySQL
errors.filter(col("line").like("%MySQL%")).count()
// Fetches the MySQL errors as an array of strings
errors.filter(col("line").like("%MySQL%")).collect()
textFile = sc.textFile("hdfs://...")

# Creates a DataFrame having a single column named "line"
df = textFile.map(lambda r: Row(r)).toDF(["line"])
errors = df.filter(col("line").like("%ERROR%"))
# Counts all the errors
errors.count()
# Counts errors mentioning MySQL
errors.filter(col("line").like("%MySQL%")).count()
# Fetches the MySQL errors as an array of strings
errors.filter(col("line").like("%MySQL%")).collect()

DataFrame

Advantage:

  • Performance (schema, off-heap storage)
  • Spark’s Catalyst optimizer

Disadvantage:

  • Compile-time type-safety
  • Query-oriented

Dataset

Preview in Spark 1.6

Best of both worlds:

  • object-oriented programming style
  • compile-time type-safety
  • Catalyst query optimizer
  • off-heap storage mechanism

Dataset

  • Encoders which translate JVM representations (objects) into Tungsten binary format.
  • Spark has built-in encoders which are very advanced in that they generate byte code to interact with off-heap data and provide on-demand access to individual attributes without having to de-serialize an entire object.
  • Spark does not yet provide an API for implementing custom encoders, but that is planned for a future release.

Dataset

NO PYTHON SUPPORT

Dataset

val lines = sc.textFile("/wikipedia")
val words = lines
  .flatMap(_.split(" "))
  .filter(_ != "")

val counts = words
    .groupBy(_.toLowerCase)
    .map(w => (w._1, w._2.size))

RDDs

Datasets

val lines = sqlContext.read.text("/wikipedia").as[String]
val words = lines
  .flatMap(_.split(" "))
  .filter(_ != "")

val counts = words
    .groupBy(_.toLowerCase)
    .count()

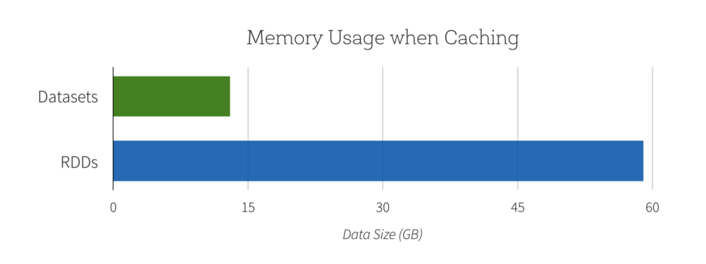

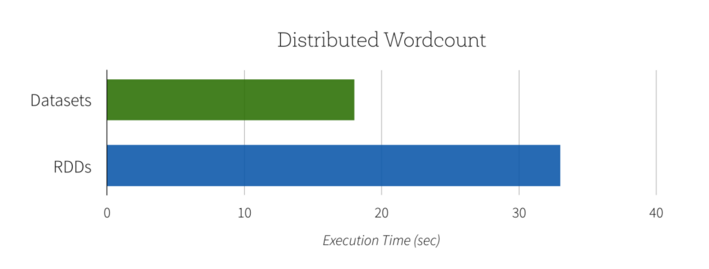

Dataset

Dataset

Performance optimization

Custom encoders

Python Support

Unification of DataFrames with Datasets

Summary

DataFrame is the best option for Python and production



Waiting for Dataset + Python

Sources

Databricks Blog - databricks.com/blog
Cloudera Engineerig Blog-  blog.cloudera.com

Spark Community (mailing list)

Contacts

Website - https://taraslehinevych.me
Email - info@taraslehinevych.me

Twitter - @lehinevych

Thank you

Questions?
