Lisa Gringl

Francesco Novy

UI Design

@kringal



JS Development

@_fnovy

Agenda



  • Collaboration
  • Why ...
    • ... should designers code?
    • ... should developers design?
  • Documentation: Why & How?
  • Code Documentation
  • Living Styleguide
  • Component Guide

Collaboration

Between Developers & Designers

1

Common Workflow

Better Workflow

Designers

Why you need to be able to code

2

When you try to code for the first time

Source: http://thecodinglove-unofficial.soup.io/post/669690240/When-a-graphic-designer-tries-to-code

<div class="message {{if isError "message--error"}}">
  Info Message!
</div>

Handlebars Code Example


<ul>
  {{#each items as |item|}}
    <li class="my-item {{if item.hasError "my-item--error"}}">
      {{item.name}}
    </li>
  {{/each}}
</ul>

"The button should have a transition between all states"

Good:

$transition-time: 0.3s;
transition: background-color box-shadow $transition-time ease-in-out;

Better:

Design Specifications

Developers

Why you need to be able to understand design

Developers should care about Design

  • Does it make sense?
  • Is it consistent to other pages/components?
  • Talk to the Designer!
  • Give constructive feedback

CSS Quality is Important

!

CSS Structure

BEM = Block, Element, Modifier

 <ul class="nav">
     <li class="nav__item">Index</li>
     <li class="nav__item nav__item--active">Products</li>
     <li class="nav__item">Contact</li>
</ul>
  • Naming Convention
  • Block (nav)
  • Element (nav__item)
  • Modifier (nav__item--active)

Data Model != UI

!

Documentation

Why and How

2

Why?

  • Consistency
  • Easier Cross-Browser Testing
  • Faster Workflow

But How?

Always be 100% in sync with your codebase!

!

Code Documentation

/**
 * A simple component to display a loading spinner.
 *
 * ```hbs
 * {{loading-spinner}}
 * ```
 *
 * @namespace Component
 * @class LoadingSpinner
 * @extends Ember.Component
 */
/**
 * The lot to display in this component.
 *
 * @attribute lot
 * @type {Model.Lot}
 */
lot: null,
/**
 * This action is called whenever the lot is clicked.
 *
 * @event action
 * @param {Model.Lot} lot The lot that was clicked on
 * @public
 */
action: null
/**
 * A specific function that does something.
 *
 * @method doSomething
 * @param {Model.Lot} lot The lot to do something with
 * @return {Boolean}
 */
doSomething(lot) {
  // do something in here
  return !!lot;
}),

Living Styleguide

UI Inventory

of existing application

Designsheet

outlines design direction

Living Style Guide

Workflow Summary

CSS Partial

button,
.button {
  padding: 13px 20px;
  width: 100%;
  border: none;
  font-family: $main-font;
  border-radius: $border-radius;
  box-shadow: 0 2px 3px rgba($color-darkgrey, 0.4);

  @include base-button($white, $color-primary);
}

Stylesheet: _button.scss

.button--secondary {
  @include base-button($color-darkgrey, $color-lightgrey);
}

Markdown Partial

Buttons
=======

```
<button class="button">Button</button>
```

```
<button class="button button--secondary">Button</button>
```

Markdown: _button.md

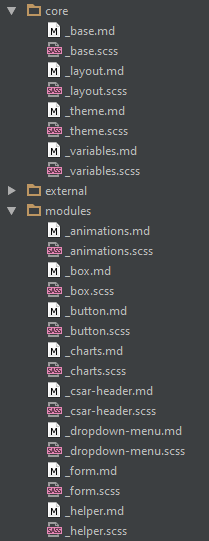

Style Guide file structure

Shared Add-on

  • Addon contains general styling information
  • Multiple apps use this addon
// index.js
// ...
isDevelopingAddon: function() {
  return true;
}
# in app folder
npm link ../my-addon

Component Guide

{{#component-guide-item name="c-button" description="A custom button."}}

  {{#component-guide-attributes}}
    {{#component-guide-attributes-item name="isLoading" type="Boolean"}}
      If true, the button will become disabled and show a loading spinner.
    {{/component-guide-attributes-item}}
    {{! ... }}
  {{/component-guide-attributes}}

  {{#component-guide-demo}}
    {{#c-button action=(action "clickButton") isLoading=isLoading}}
      Save
    {{/c-button}}
  {{/component-guide-demo}}

  {{#component-guide-code}}
\{{#c-button action=(action "clickButton") isLoading=isLoading}}
  Save
\{{/c-button}}
  {{/component-guide-code}}

{{/component-guide-item}}

Small Projects

  • Collection of routes in app
  • Might need authorization checks

Big Projects

  • Separated into multiple addons
  • Separate docs-app
  • Automatic building whenever an addon changes

Summary

  1. Try to understand you teammates
  2. Work out a workflow together
  3. Keep documentation 100% in sync with your codebase
  4. Reiterate and improve your workflow

Lisa, @kringal

Francesco, @fnovy
