UIKit, Performance and Beyond...
About...
Luiz Alberto
-
iOS dev just for 8 months.
-
Selected in Ci&T Think Transform
-
Fullstack .net dev for 13 years
-
In love with E-Music
Schedule
- iOS Graphics Architecture
- Graphics performance problems research
- Great performance motivation
- Tools
- Solving problems techniques
iOS Graphics Architecture
iOS Graphics Architecture

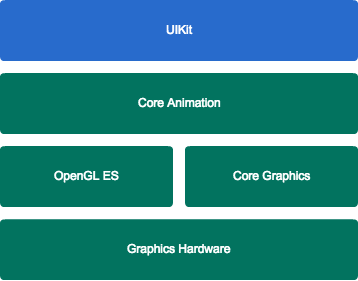

Framework
iOS Graphics Architecture

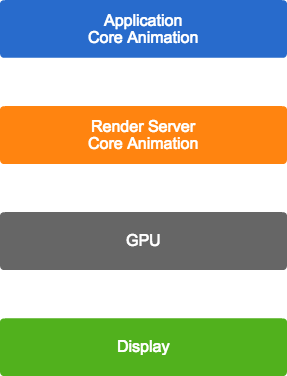

Core Animation WorkFlow
iOS Graphics Architecture
Always target Graphics Display at 60 fps.
16.67 ms
iOS Graphics Architecture

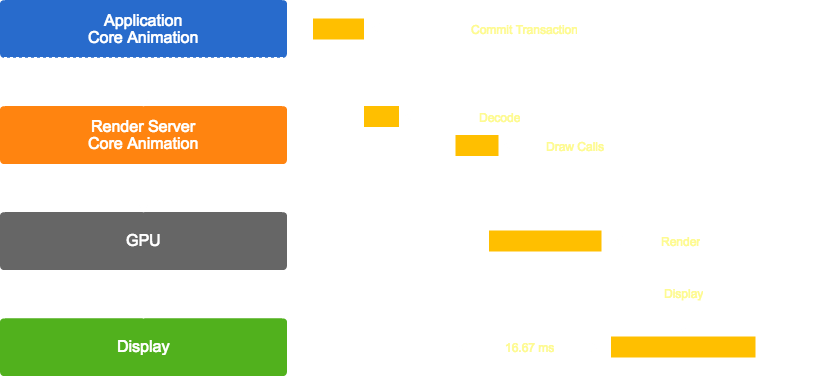

Detailed Workflow
Graphics performance problems research
Graphics performance problems research
Checklist
- What's the frame rate?
- CPU or GPU bound?
- Any unnecessary CPU rendering?
- Too many offscreen passes?
- Any Strange image format or sizes?
- Any expensive views or effects?
- Anything unexpected in hierarchy?
Graphics performance problems research
Checklist
What's the frame rate?
60 fps target
Graphics performance problems research
Checklist
Lower is Better!
Graphics performance problems research
Checklist
Any unnecessary CPU rendering?GPU is desirable but know when CPU makes sense
Graphics performance problems research
Checklist
Too many offscreen passes?
Fewer is better
Graphics performance problems research
Checklist
Any Strange image format or sizes?
Avoid on-the-fly conversions or resizing
Graphics performance problems research
Checklist
Any expensive views or effects?
Understand the cost of what is in use
Graphics performance problems research
Checklist
Anything unexpected in hierarchy?
Know the actual view hierarchy
Great performance motivation
Great performance motivation
-
Keep your user engaged with your app.
- Get great reviews on App Store.
- Save Battery = More time your user using your App.
Tools
Tools
- Instruments
- Core Animation instrument
- OpenGL ES Driver instrument
- Simulator
- Color Debug options
- Xcode
- View debugging
Tools
Instruments
-
Core Animation Instrument
- What's the frame rate?
- Any unnecessary CPU rendering?
- Too many offscreen passes?
- Any Strange image format or sizes?
- Any expensive views or effects?
-
OpenGL ES Driver instrument
- CPU or GPU bound?
Tools
Simulator
-
Color Debug options
- Any unnecessary CPU rendering?
- Too many offscreen passes?
- Any Strange image format or sizes?
Tools
Xcode
-
View debugging
Solving Problems Techniques
Alpha Channel
Pay attention to Blended Layers, and reduce the amount of red in your app.
Solving Problems Techniques
Offscreen Rendering
- custom drawRect: (any, even if you simply fill the background with color)
- CALayer corner radius
- CALayer shadow
- CALayer mask
- any custom drawing using CGContext
- CALayer corner radius
- CALayer shadow
- CALayer mask
- any custom drawing using CGContext
Thank You
twitter: @luigledr
medium: @luigledr
UIKit Peformance and Beyond
By Luiz Oliveira
