The Sunrise Machine
The Sunrise Machine
What's That, Now?
- I dreamed it up in Portland, Ore.
- A machine to automatically film the sunrise for you
How's it Work?
- USB webcam
- USB thumb drive
- Pushbutton, RGB LED
- JavaScript
- Johnny-Five!
How's it Work?
- `config.js`
- `av.js`
- `tweet.js`
- `sunriseMachine.js`
- `Recording.js`
module.exports = {
autoMode : 'sunrise', // Any property from `suncalc` or `false` to disable
lat : 43.34, // Your latitude (This is Vermont)
long : -72.64, // Your longitude (This is Vermont)
postToTwitter : false, // `true` will create posts of GIFs
tweetBody : 'It is a beautiful day!', // Text tweeted with GIFs
captureFrequency : 30000, // in ms (default one image every 30s)
captureCount : 20, // number of stills per montage
calibrateCamera : true, // calibrate camera exposure before shots
calibrateLength : 3000, // in ms (default 3 seconds)
basedir : '/mnt/sda1/captures', // where files get stored
standbyColor : '#0000ff', // LED color when no scheduled recording
scheduledColor : '#00ff00', // LED color when auto-recording is scheduled
recordingColor : '#ff0000', // LED color when recording session active
consumer_key : '', // Twitter
consumer_secret : '', // Twitter
access_token_key : '', // Twitter
access_token_secret: '' // Twitter
};
Config
Default Behavior
- Auto-film the sunrise
- No Tweeting
Sun-Event Calculation
{
autoMode : 'sunrise', // Any property from `suncalc` or `false` to disable
lat : 43.34, // Your latitude (This is Vermont)
long : -72.64, // Your longitude (This is Vermont)
/* ... */
}
Tweeting
{
postToTwitter : false, // `true` will create posts of GIFs
tweetBody : 'It is a beautiful day!', // Text tweeted with GIFs
consumer_key : '', // Twitter
consumer_secret : '', // Twitter
access_token_key : '', // Twitter
access_token_secret: '' // Twitter
/* ... */
}
Making Films
{
captureFrequency : 30000, // in ms (default one image every 30s)
captureCount : 20, // number of stills per montage
calibrateCamera : true, // calibrate camera exposure before shots
calibrateLength : 3000, // in ms (default 3 seconds)
basedir : '/mnt/sda1/captures', // where files get stored
/* ... */
}
It's coming out all white
Making Films: The Nitty-Gritty
- Tessel 2: 64MB RAM
- Max resolution of capture: 320x240
- Following in the intelligent footsteps of @rwaldron and `tessel-av`
- Spawning child processes of `ffmpeg`
Tweeting Films: The Journey
- npm `twitter` module capable of supporting Twitter's Media API, but no precedent
- Bug in `twitter` (now fixed! Thanks @reconbot) considered non-200 HTTP 2xx responses as errors
- Uploading videos to Twitter is 3-step process
- And then...it turns out...
Tweeting Films: The Ugh
- After all that, FINALIZE media/upload API call was returning 400 (Invalid Content)
- Twitter will only accept h.264-encoded video
- OpenWRT build of `ffmpeg` doesn't have an h.264 encoder
- Now what?!
Animated GIFs, that's wut.
- `ffmpeg` can create animated GIFs
- Twitter will take animated GIFs
- But then...
Oh, for goodness' sake
<--- Last few GCs --->
76889 ms: Mark-sweep 10.1 (18.5) -> 9.6 (18.5) MB, 431.5 / 0 ms [allocation failure] [GC in old space requested].
77308 ms: Mark-sweep 9.8 (18.5) -> 9.3 (18.5) MB, 418.4 / 0 ms [allocation failure] [GC in old space requested].
77728 ms: Mark-sweep 9.5 (18.5) -> 9.3 (18.5) MB, 419.8 / 0 ms [last resort gc].
78122 ms: Mark-sweep 9.3 (18.5) -> 8.9 (18.5) MB, 393.8 / 0 ms [last resort gc].
<--- JS stacktrace --->
==== JS stack trace =========================================
Security context: 0x4ac24d59 <JS Object>
1: /* anonymous */(aka /* anonymous */) [vm.js:39] [pc=0x5cbc09dc] (this=0x4ac08099 <undefined>,code=0x3c1598f1 <String[5]: Debug>)
2: ensureDebugIsInitialized(aka ensureDebugIsInitialized) [util.js:194] [pc=0x5cbc07d4] (this=0x4ac08099 <undefined>)
3: inspectPromise(aka inspectPromise) [util.js:200] [pc=0x5cbc0304] (this=0x4ac08099 <undefined>,p=0x3aaa675d <an Object with map 0x4a08333...
FATAL ERROR: CALL_AND_RETRY_LAST Allocation failed - process out of memory
Aborted
This is where it got hairy
- I assumed (wrongly) that `ffmpeg` was killing memory
- Then I assumed (wrongly) that uploading the file all in one chunk was killing memory
- Then I thought maybe some nested Promise was breaking everything...
- So I refactored all of my Twitter API code to be terrible...
Memory Crash
- Comes from logging `response` or `error` objects
- That means I can't log `error`s as they come back from `twitter` directly.
- So I refactored back to Promises.
ffmpeg
makes me feel dum
For some it's so easy
- Argument order matters
- There about fifty hundred things it can do
- It's very powerful
- It's very complicated
USB Cameras: The reckoning
/**
* "Calibrate" a camera for a few seconds by letting it output to /dev/null
*/
module.exports.calibrate = function () {
// ffmpeg -y -input_format yuyv422 -r 15 -i /dev/video0 -vframes 45 -f mp4 /dev/null
var videoArgs = [];
videoArgs.push('-y');
videoArgs.push('-s', '320x240'); // Dimensions, respecting limited T2 memory
videoArgs.push('-input_format', 'yuyv422'); // Native raw video format
videoArgs.push('-r', '15'); // framerate
videoArgs.push('-i', '/dev/video0'); // path to USB camera
videoArgs.push('-vframes', '45'); // total frames to capture
videoArgs.push('-f', 'mp4'); // Output format
return ffmpeg(videoArgs, '/dev/null');
};
Capturing Stills
/**
* Capture a single still image at 320x240 from the attached USB camera
*/
module.exports.captureStill = function (filepath) {
// ffmpeg -y -v fatal -i /dev/video0 -s 320x240 -r 15 -q:v 2 -vframes 1 <filepath>
var captureArgs = [];
captureArgs.push('-s', '320x240'); // Dimensions, respecting limited T2 memory
captureArgs.push('-r', '15'); // path to USB camera
captureArgs.push('-i', '/dev/video0'); // path to USB camera
captureArgs.push('-q:v', '2'); // JPG quality (1-31 where 1 is best)
captureArgs.push('-vframes', '1'); // Total number of frames to capture
return ffmpeg(captureArgs, filepath);
};
Making Movies
/**
* Build an MP4 video from a collection of JPGs indicated by `glob`
*/
module.exports.videoFromStills = function (glob, outfile) {
// ffmpeg -y -v fatal -s 320x240 -c:v h264 -f image2 -pattern_type \
// glob -framerate 6 -i capture*.jpg movie.mp4
var stillArgs = [];
stillArgs.push('-s', '320x240'); // Dimensions, respecting limited T2 memory
stillArgs.push('-f', 'image2'); // FROM this input format...
stillArgs.push('-pattern_type', 'glob'); // Use a glob to identify input
stillArgs.push('-framerate', 6); // Framerate/frames per second
stillArgs.push('-i', glob); // use this glob to find input files
return ffmpeg(stillArgs, outfile);
};
Making GIFs
/**
* Create an animated GIF from an MP4 video.
*/
module.exports.animatedGIFFromVideo = function (videofile, outfile) {
// ffmpeg -i video.mp4 -vf fps=6,scale=320:-1:flags=lanczos,palettegen palette.png
var paletteArgs = [];
paletteArgs.push('-y');
paletteArgs.push('-i', videofile);
paletteArgs.push('-vf');
paletteArgs.push('fps=6,scale=320:-1:flags=lanczos,palettegen');
return ffmpeg(paletteArgs, '/tmp/palette.png').then(paletteFile => {
// ffmpeg -i video.mp4 -i palette.png -lavfi paletteuse output.gif
console.log('made it back with ', paletteFile);
var gifArgs = [];
gifArgs.push('-y');
gifArgs.push('-i', videofile);
gifArgs.push('-i', paletteFile);
gifArgs.push('-lavfi', 'paletteuse');
return ffmpeg(gifArgs, outfile);
});
};

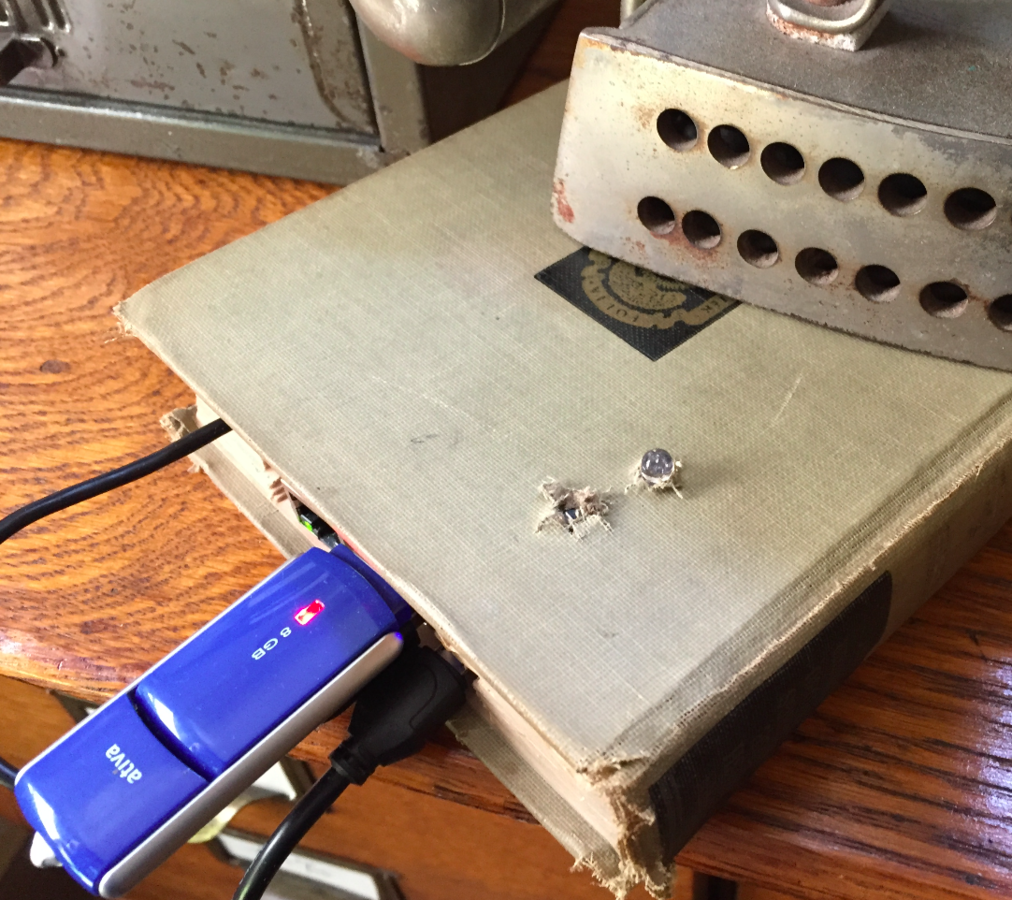

Enclosure
- Finding an old book to sacrifice
- I'm terrible at soldering
- Didn't use long enough wires
- Coiling USB cable from camera atop T2 harshes WiFi reception
A speed prototype!
A speed prototype!
What's next.
- feature-sunrise-machine branch of j5ik
- It doesn't work offline (yet)
- Everything is in GMT
- Power consumption?
- Long-running process stability
