Django

Framework

Python Girona 15/11/2017

Django App&API (Manel Clos) + React client (Francesc Arpí)

  Què és Django?

  • Framework web, codi obert, Python
  • Des de finals del 2005
  • Documentació!
  • Configurable (BD, cache, plantilles...)
  • ORM
  • Suport a "llarg" termini
  • Política canvis, actualitzacions
  • Github: 29,565 estrelles
  • Github: 1,491 contribuidors

Creació webapp molt senzilla

  • Virtualenv
  • Pip
  • Django

Virtualenv - crear entorn

$ virtualenv venv
New python executable in /.../pygrn/venv/bin/python
Installing setuptools, pip, wheel...done.


$ . venv/bin/activate


(venv) $


Pip: instal·lar Django

(venv) $ pip install django
Collecting django
  Downloading Django-1.11.7-py2.py3-none-any.whl (6.9MB)
    100% |████████████████████████████████| 7.0MB 163kB/s
Collecting pytz (from django)
  Downloading pytz-2017.3-py2.py3-none-any.whl (511kB)
    100% |████████████████████████████████| 512kB 1.9MB/s
Installing collected packages: pytz, django
Successfully installed django-1.11.7 pytz-2017.3

Django: crear projecte

(venv) $ django-admin startproject todos_project


(venv) $ cd todos_project/


(venv) $ dir -l
total 8
-rwxr-xr-x  1 manel  staff  811 Nov  6 20:12 manage.py
drwxr-xr-x  6 manel  staff  204 Nov  6 20:12 todos_project

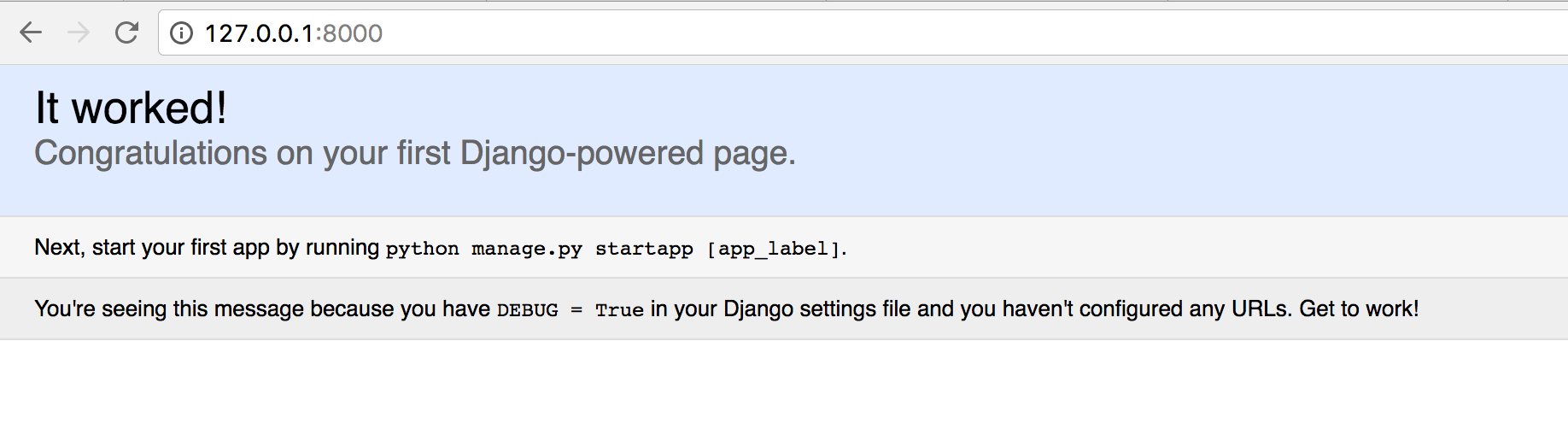

Django: servidor devel

(venv) $ python manage.py runserver
Performing system checks...

System check identified no issues (0 silenced).

You have 13 unapplied migration(s). Your project may not work
properly until you apply the migrations for app(s): admin, auth,
contenttypes, sessions.
Run 'python manage.py migrate' to apply them.

November 06, 2017 - 19:14:10
Django version 1.11.7, using settings 'todos_project.settings'
Starting development server at http://127.0.0.1:8000/
Quit the server with CONTROL-C.

Django

Creació webapp molt senzilla (II)

  • Admin
  • Migracions
  • Superuser

Django: admin

Django: migracions

(venv) $ python manage.py migrate
Operations to perform:
  Apply all migrations: admin, auth, contenttypes, sessions
Running migrations:
  Applying contenttypes.0001_initial... OK
  Applying auth.0001_initial... OK
  Applying admin.0001_initial... OK
  Applying admin.0002_logentry_remove_auto_add... OK
  Applying contenttypes.0002_remove_content_type_name... OK
  Applying auth.0002_alter_permission_name_max_length... OK
  Applying auth.0003_alter_user_email_max_length... OK
  Applying auth.0004_alter_user_username_opts... OK
  Applying auth.0005_alter_user_last_login_null... OK
  Applying auth.0006_require_contenttypes_0002... OK
  Applying auth.0007_alter_validators_add_error_messages... OK
  Applying auth.0008_alter_user_username_max_length... OK
  Applying sessions.0001_initial... OK

Django: superusuari

(venv) $ python manage.py createsuperuser
Username (leave blank to use 'manel'): admin
Email address:
Password:
Password (again):
Superuser created successfully.


(venv) $ python manage.py runserver

Django: admin dashboard

Django: admin users

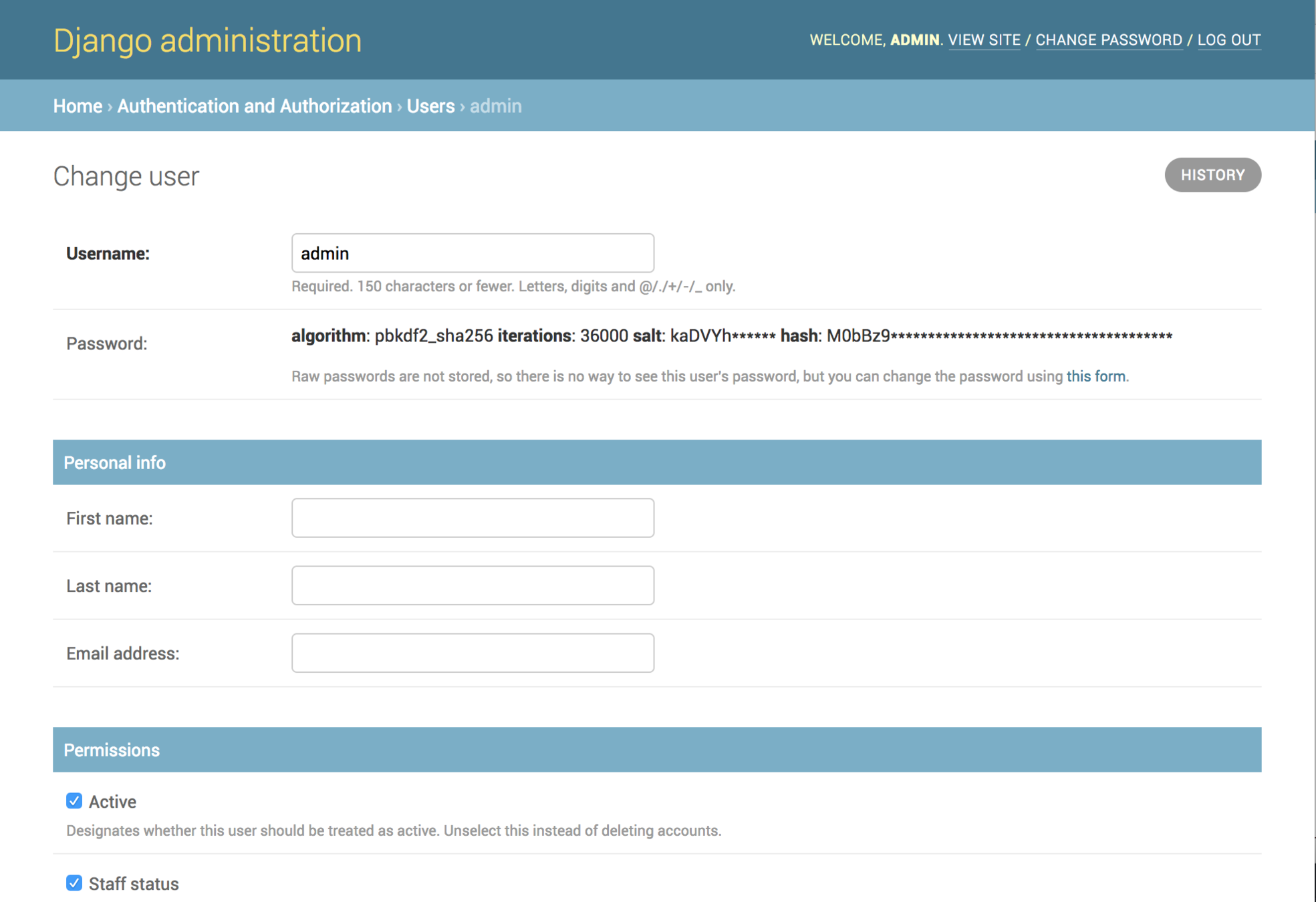

Django: admin - edició

Creació webapp molt senzilla (III)

  • Aplicació todos
  • Vistes
  • Plantilles

Django: crear app

(venv) $ python manage.py startapp todos

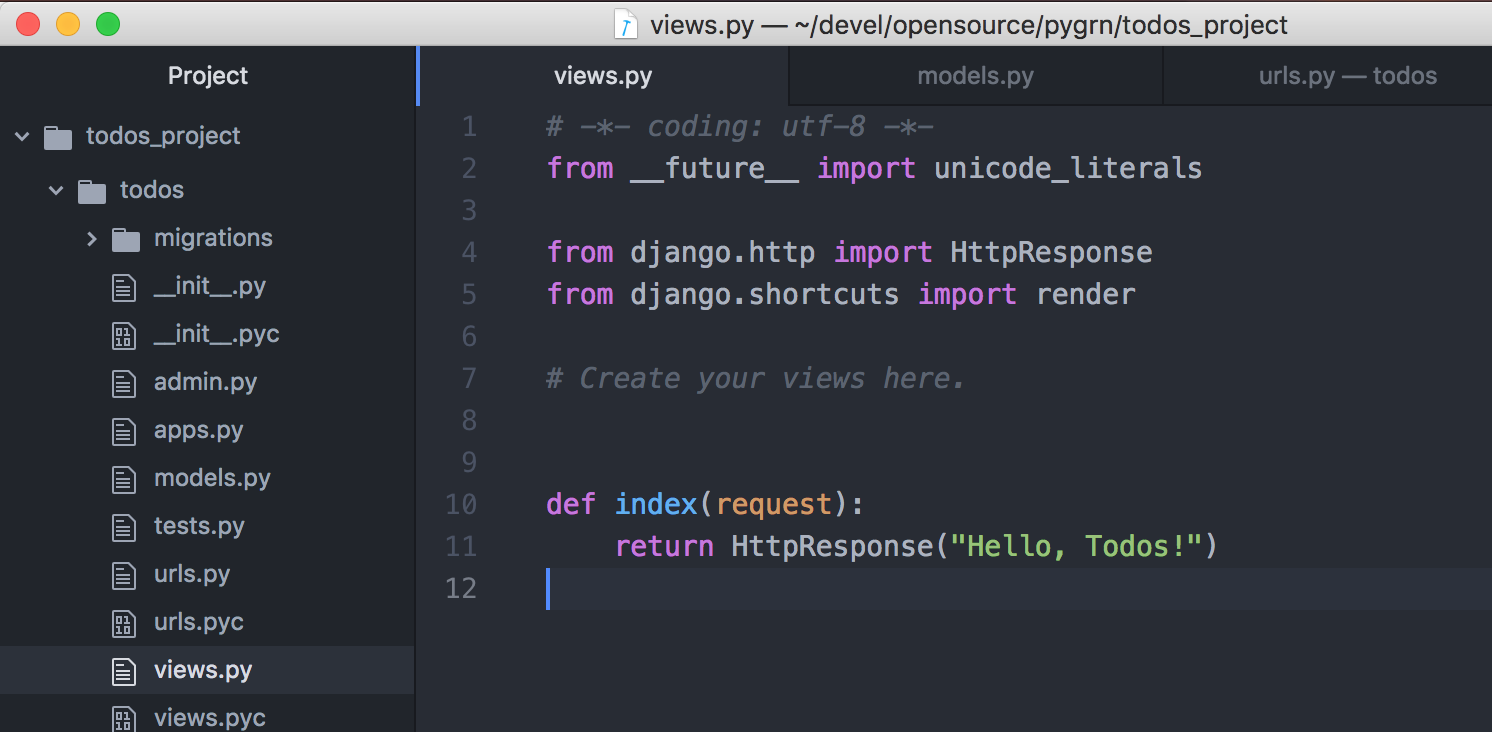

Django: vista senzilla

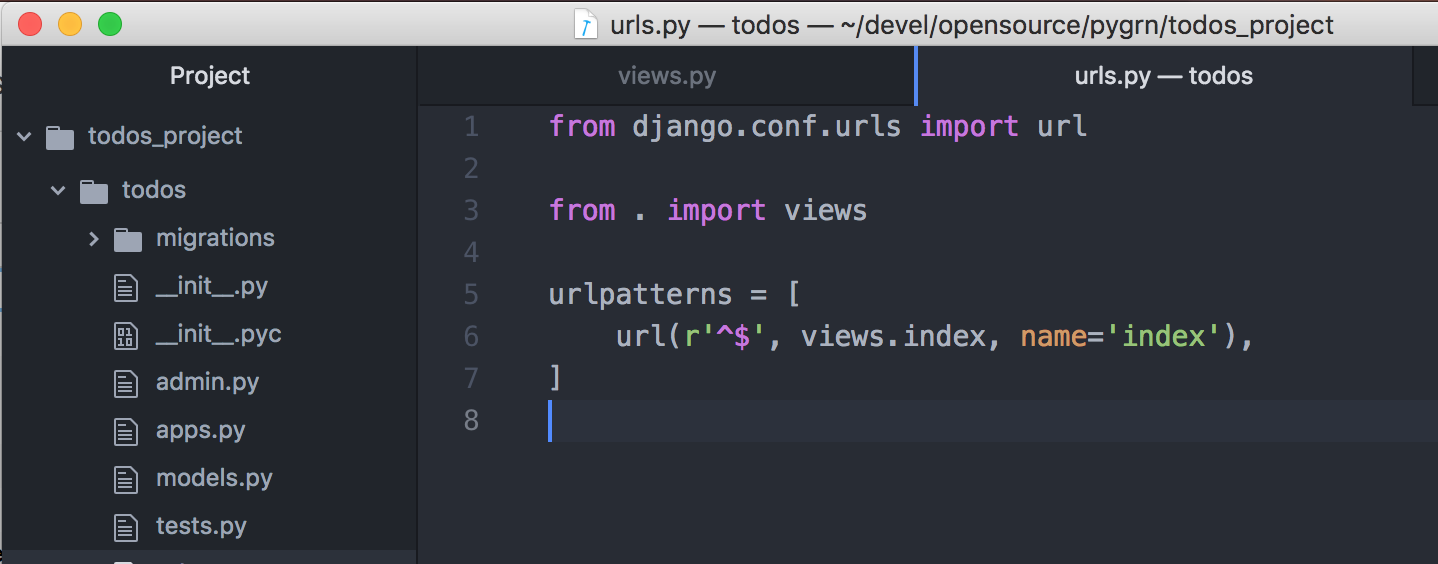

Django: urlpatterns app

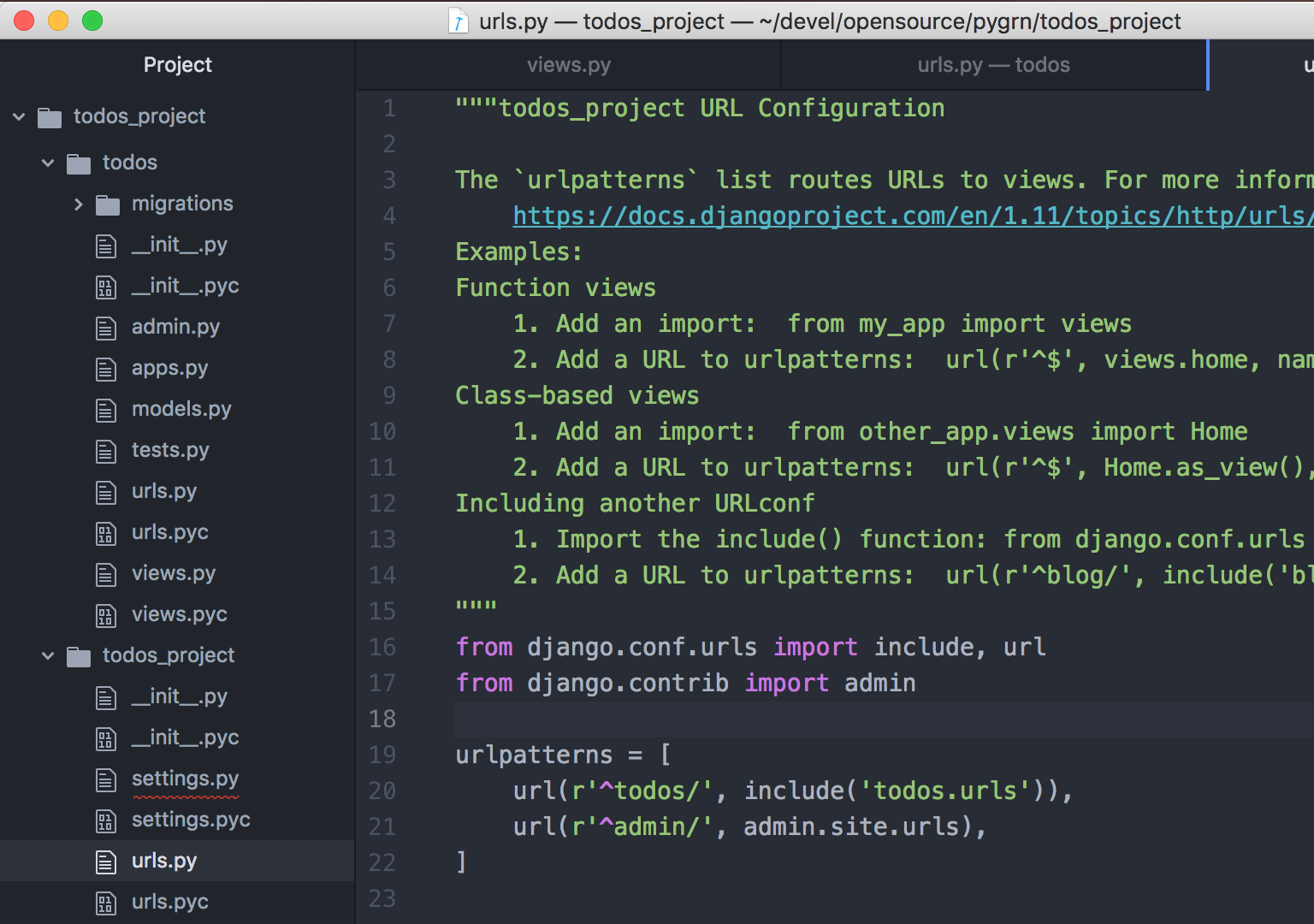

Django: urlpatterns projecte

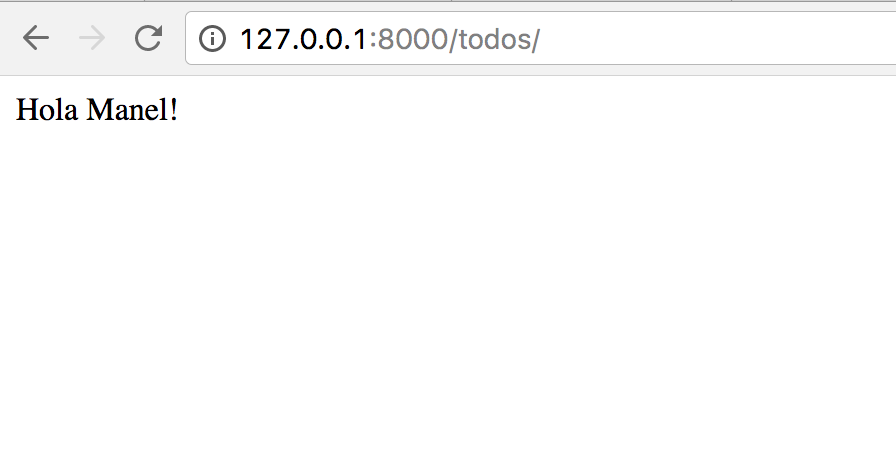

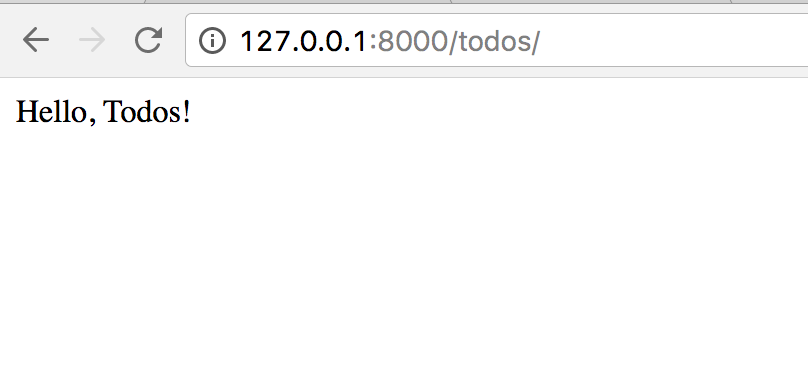

Django: vista al navegador

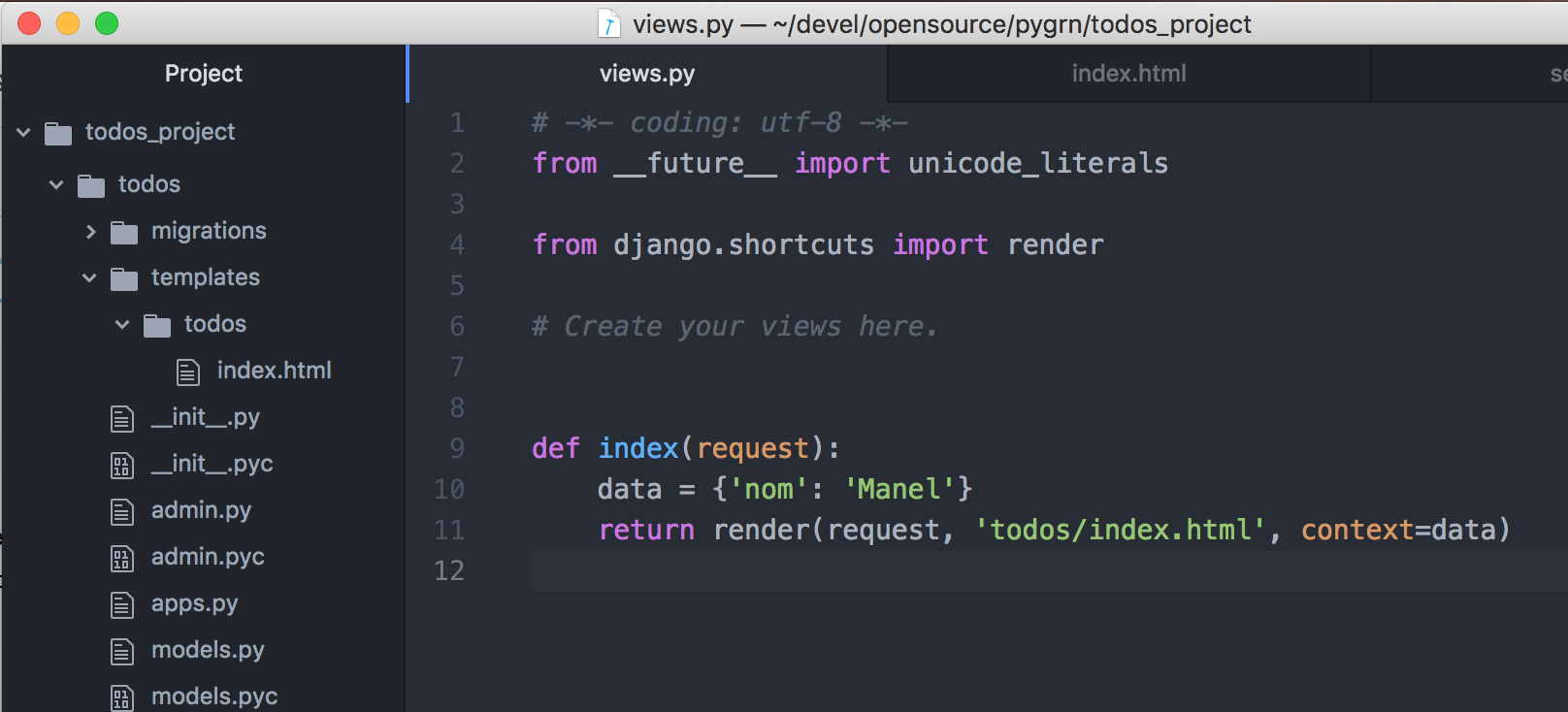

Django: vista amb plantilla

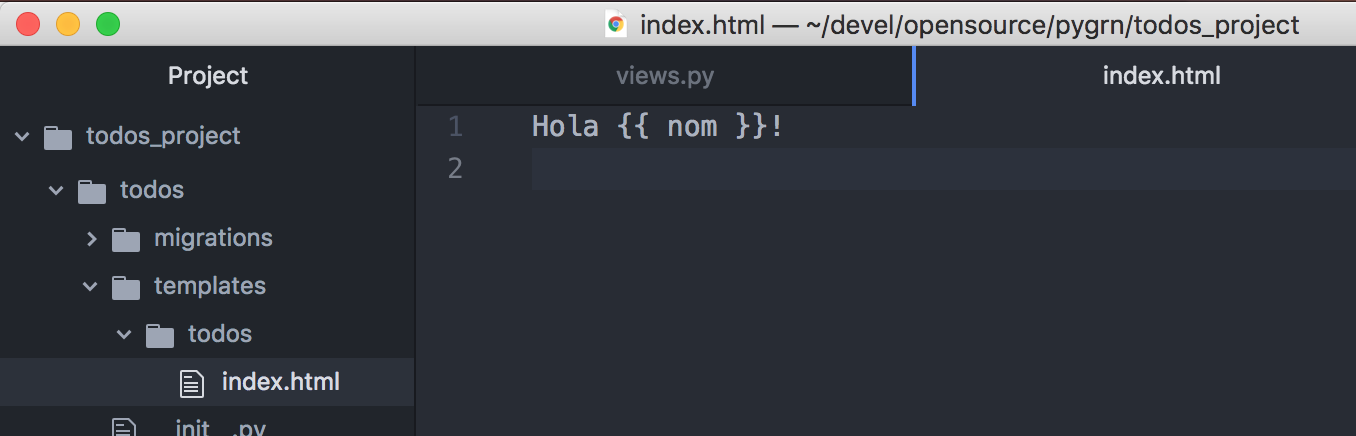

Django: plantilla

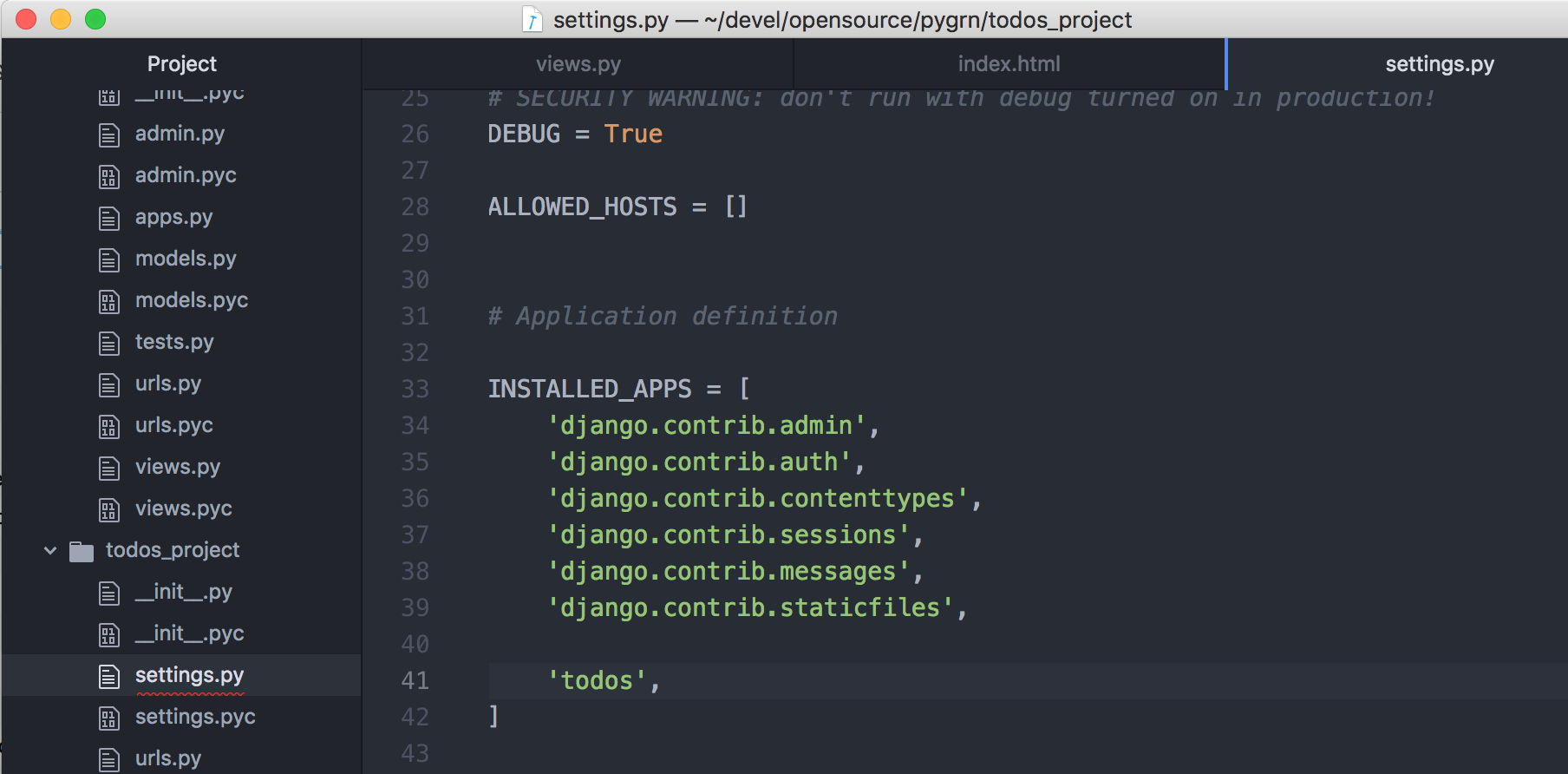

Django: installed apps

Django: resultat web

Creació webapp molt senzilla (IV)

  • Models
  • Models a l'admin
  • Errors
  • Migracions

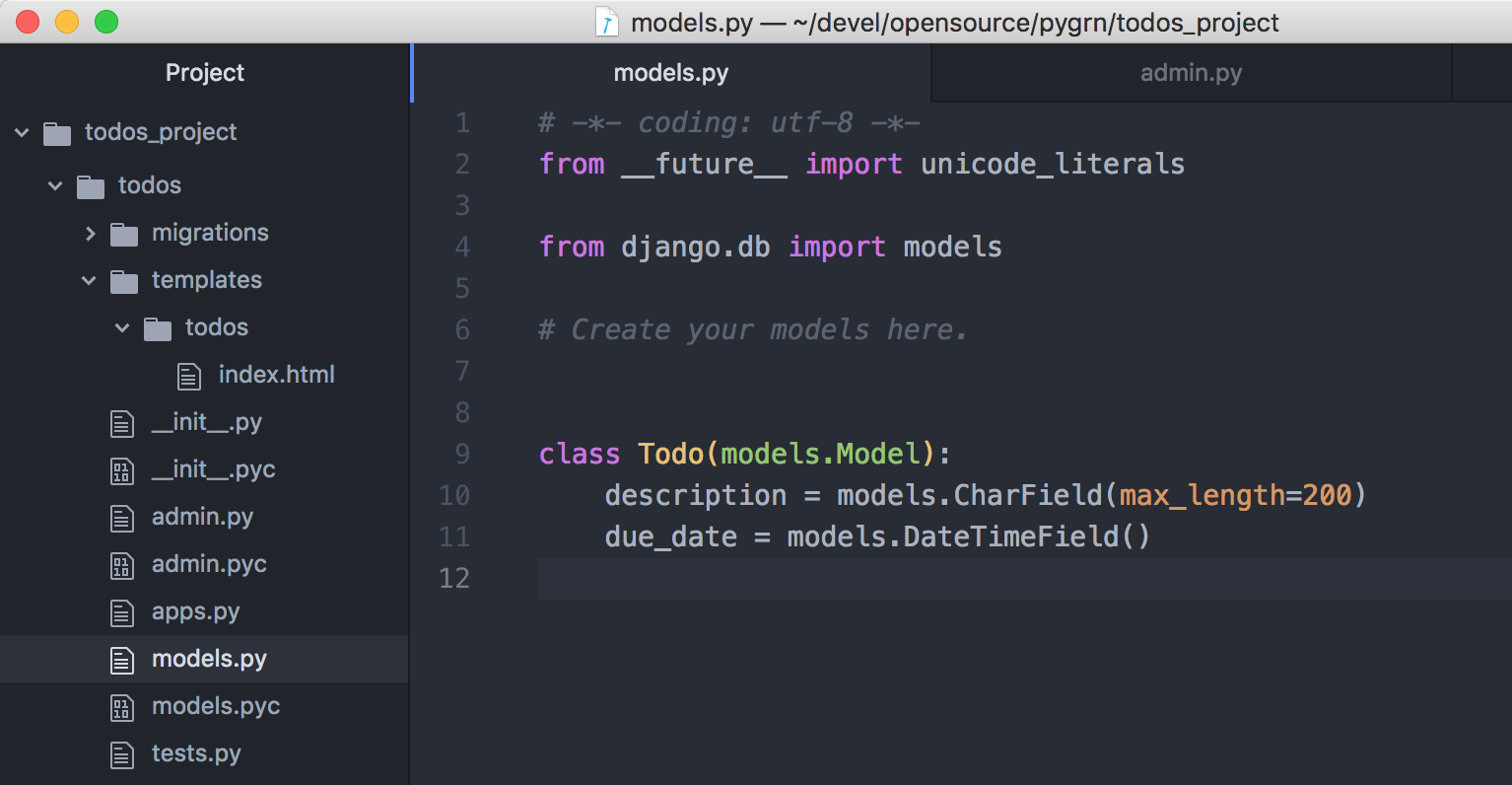

Django: models

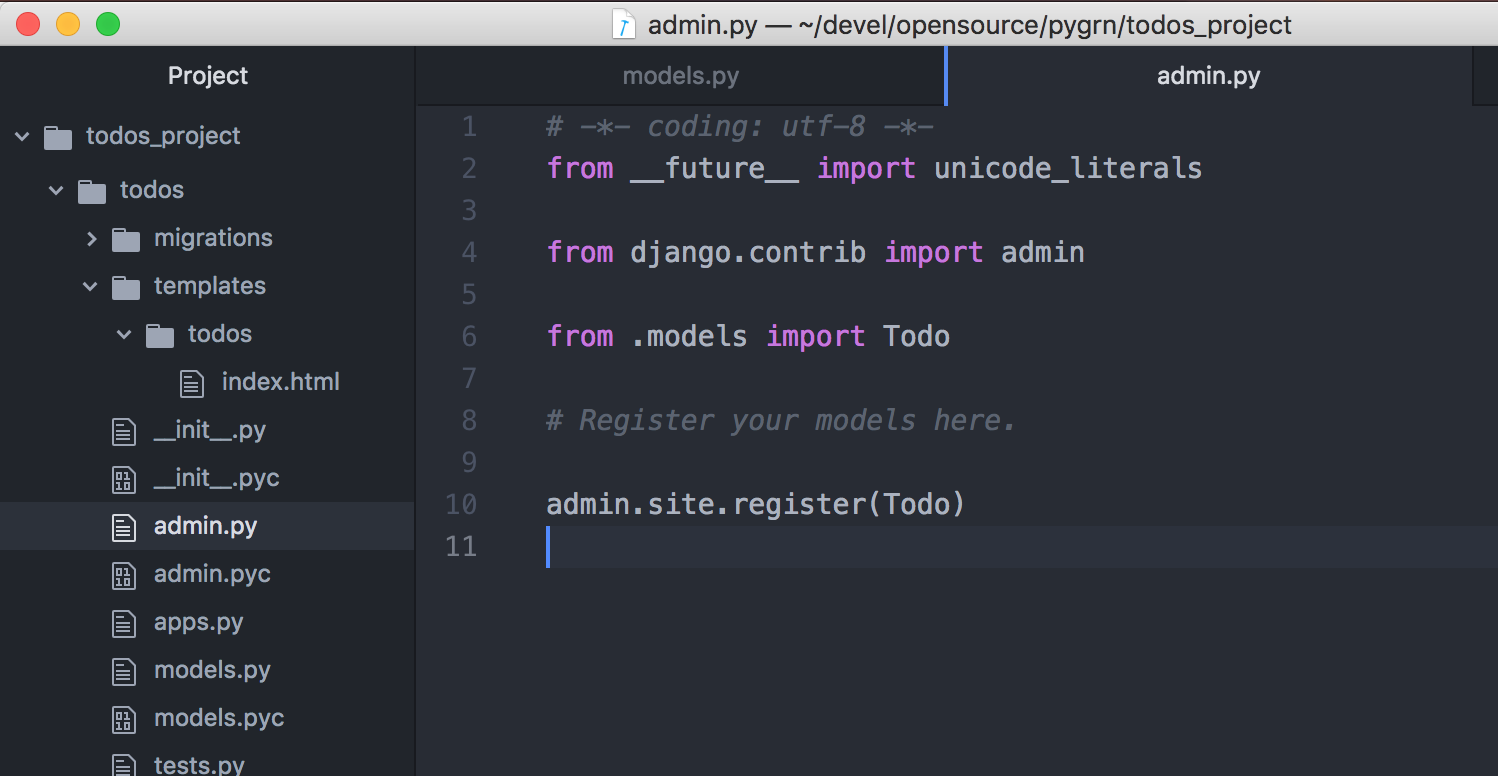

Django: model a l'admin

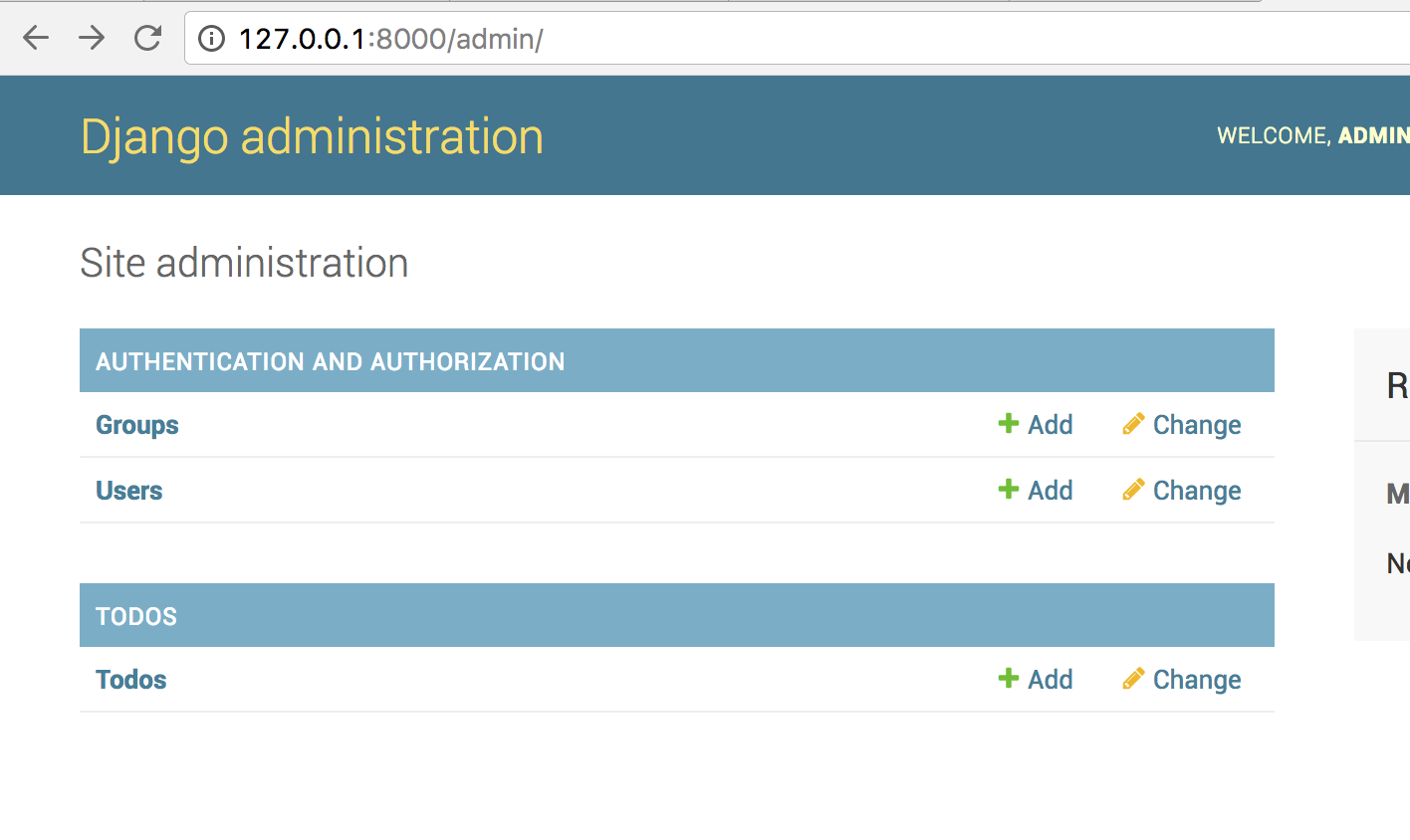

Django: admin dashboard

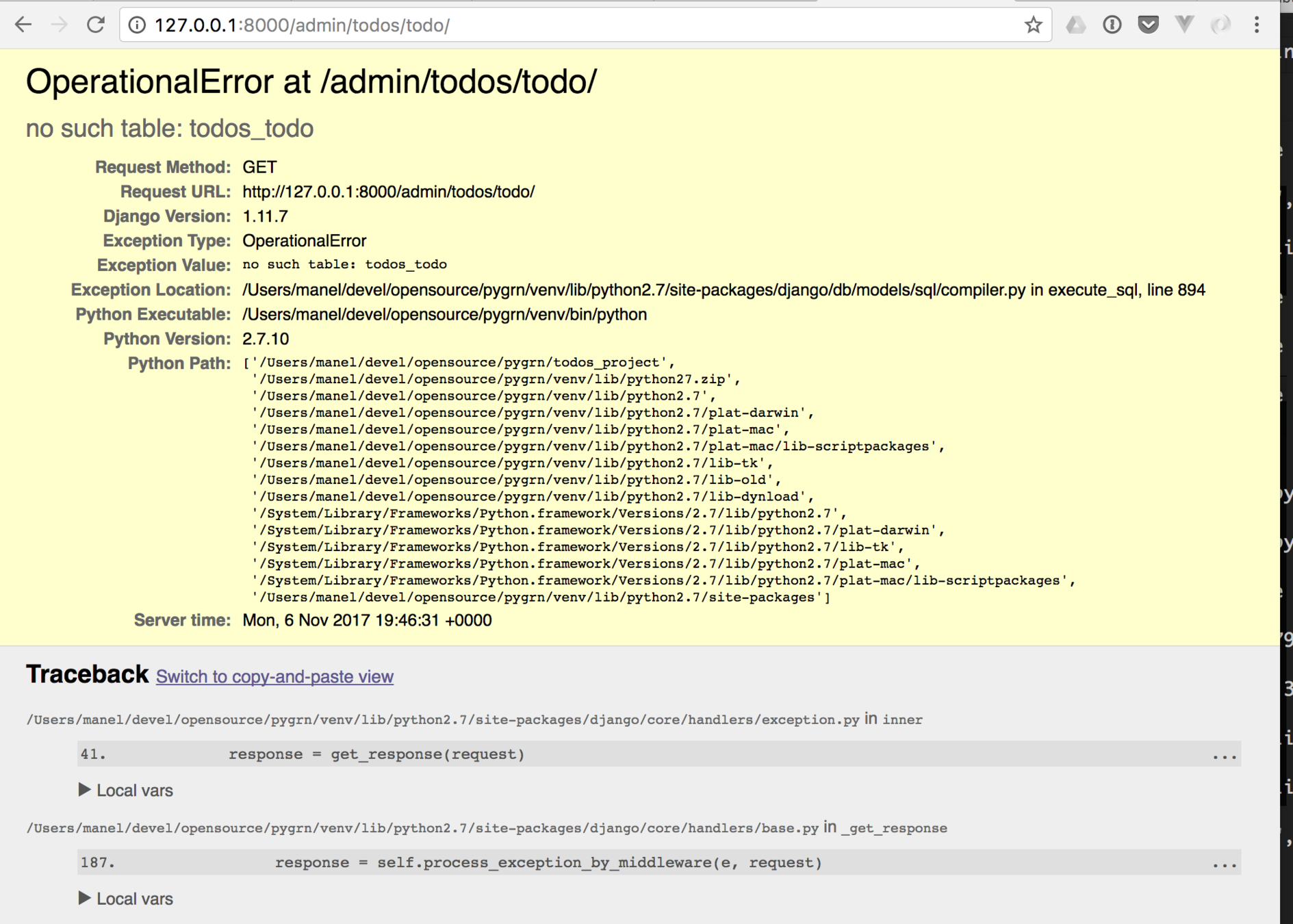

Django: errors en mode debug

Django: crear migracions

(venv) $ python manage.py makemigrations todos
Migrations for 'todos':
  todos/migrations/0001_initial.py
    - Create model Todo



(venv) $ python manage.py migrate
Operations to perform:
  Apply all migrations: admin, auth, contenttypes, sessions, todos
Running migrations:
  Applying todos.0001_initial... OK

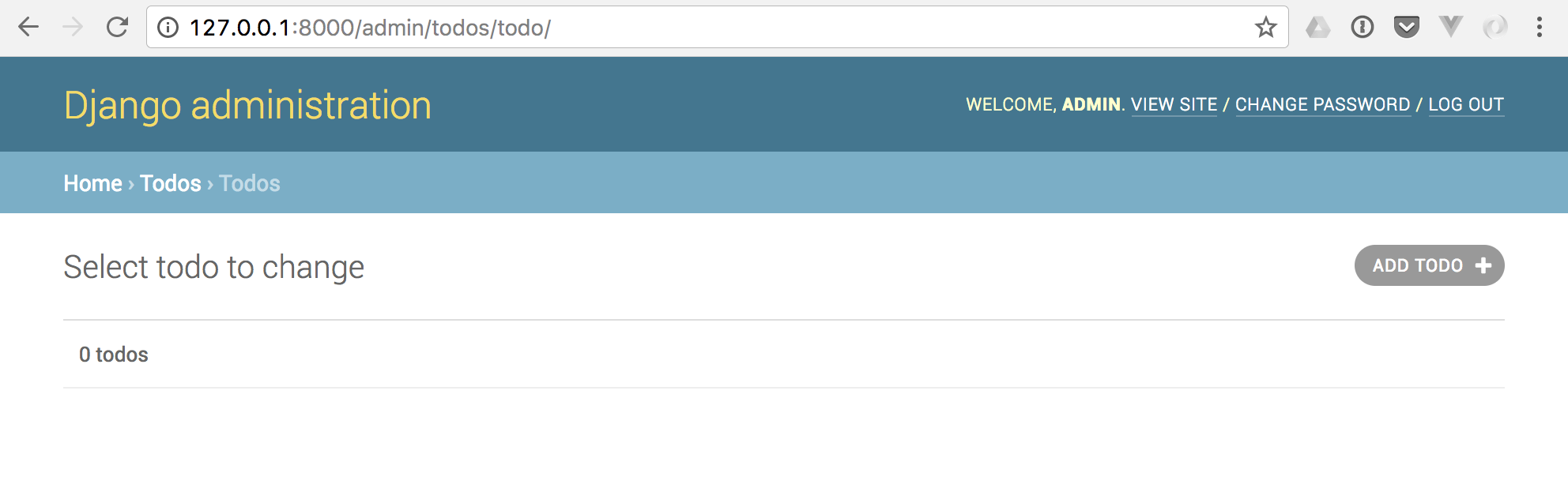

Django: admin - llistat todos

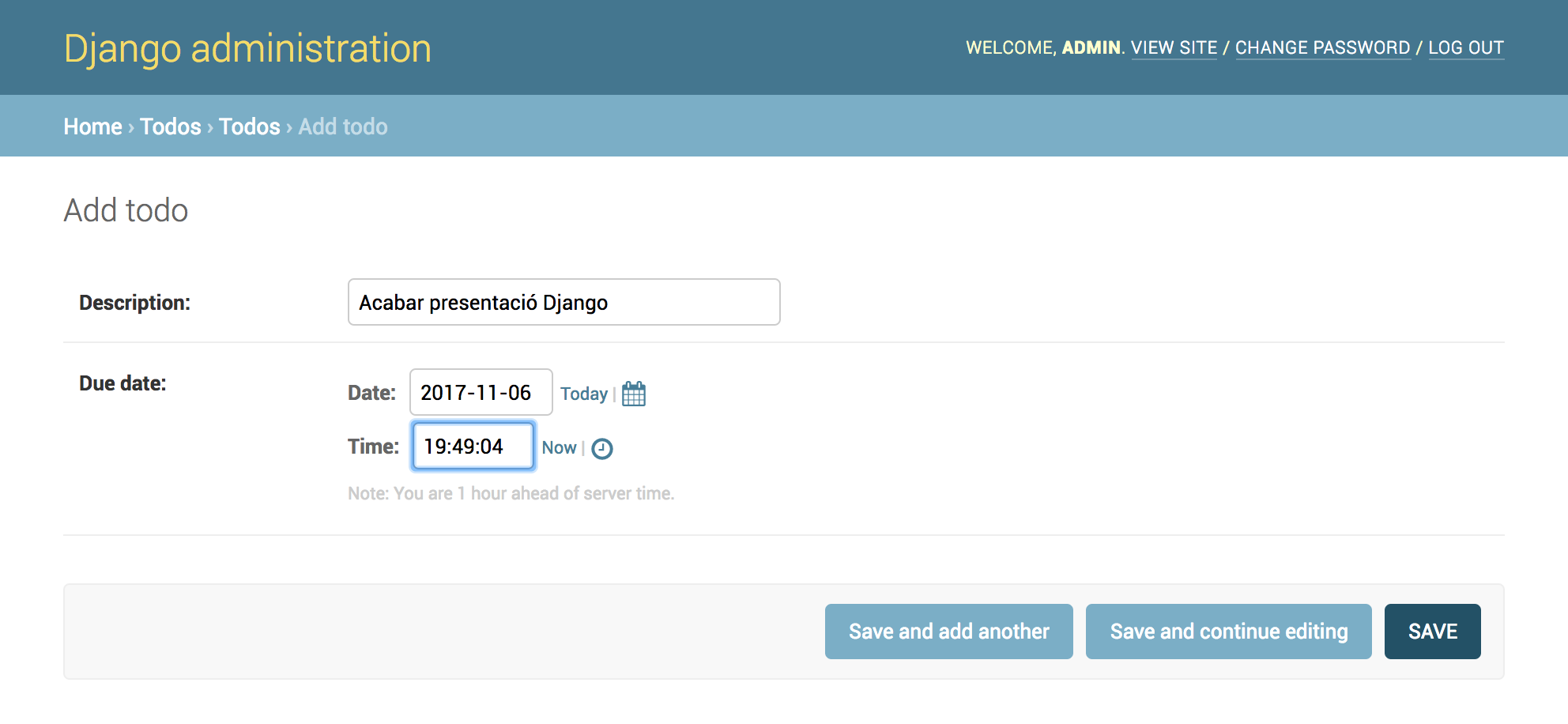

Django: admin - afegir todo

Django: admin - configuració

class QuestionAdmin(admin.ModelAdmin):
    # ...
    list_display = ('question_text', 'pub_date')
    list_filter = ['pub_date']
    search_fields = ['question_text']


 Extensió de la webapp per dotar-la d'una petita API REST

  • Djando REST Framework
  • Serialitzador
  • Vista
  • Router

Django: instal·lar DRF

(venv) $ pip install djangorestframework
Collecting djangorestframework
  Downloading djangorestframework-3.7.3-py2.py3-none-any.whl (1.5MB)
    100% |████████████████████████████████| 1.5MB 679kB/s
Installing collected packages: djangorestframework
Successfully installed djangorestframework-3.7.3

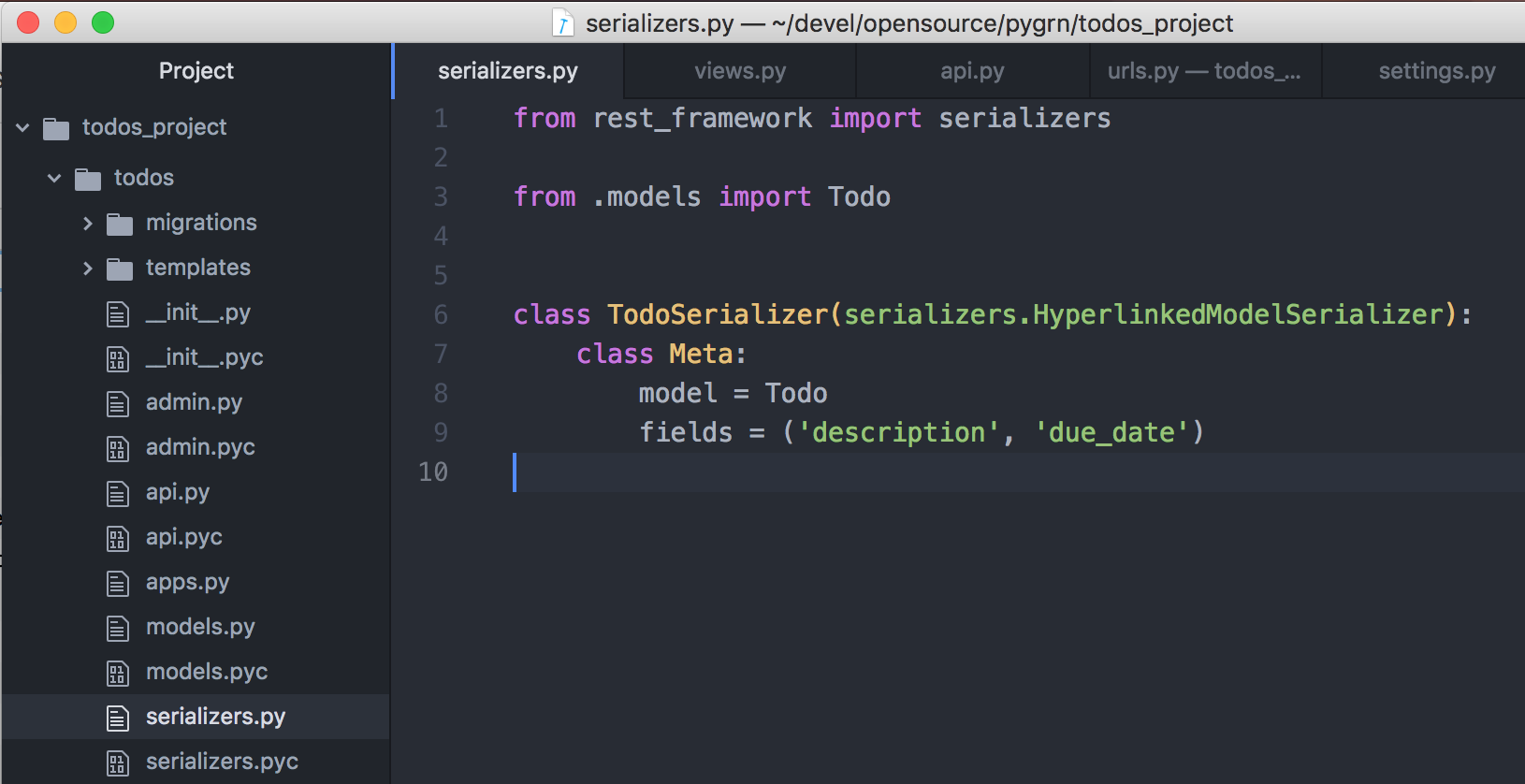

Django: serialitzador

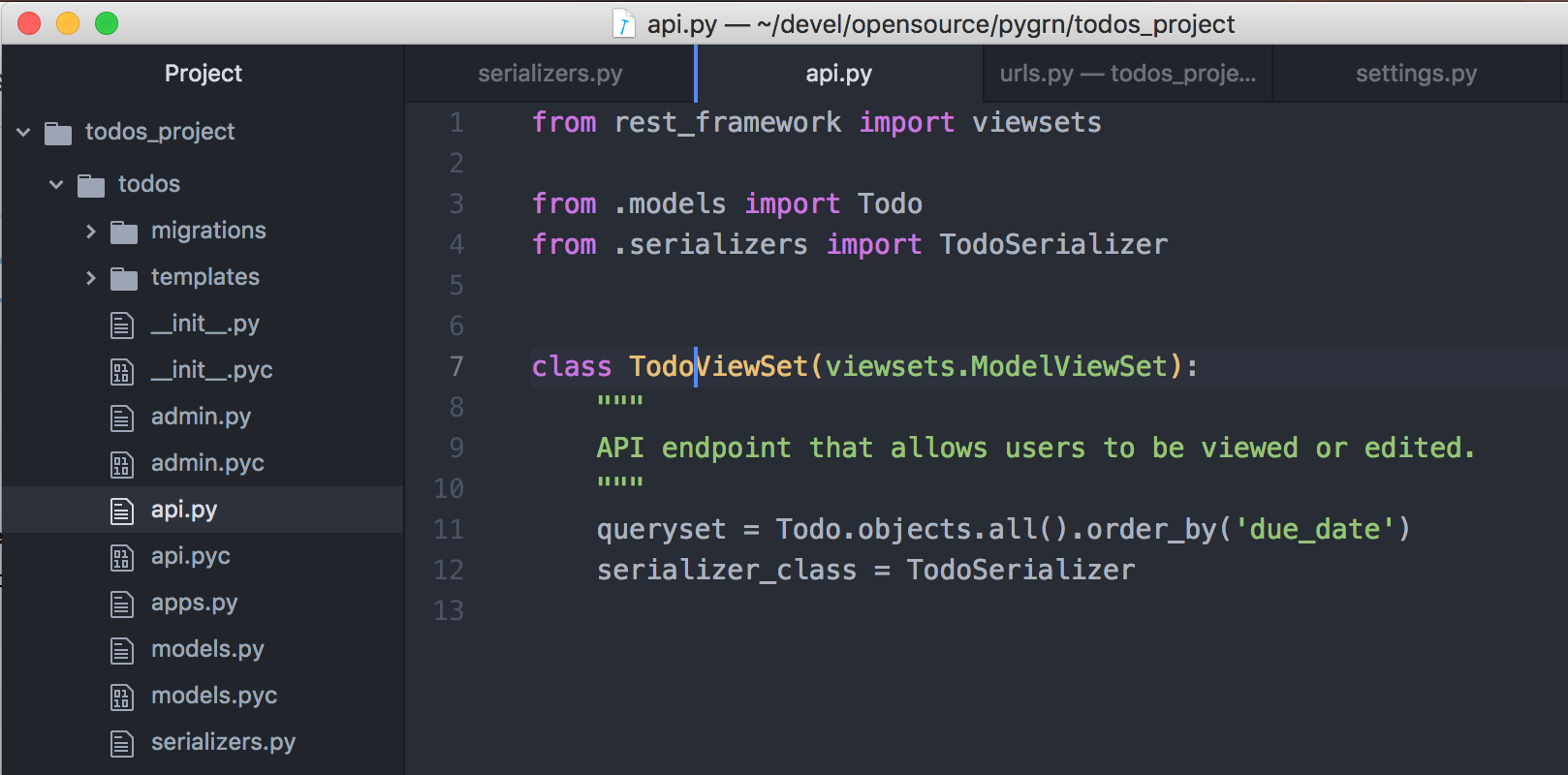

Django: viewset

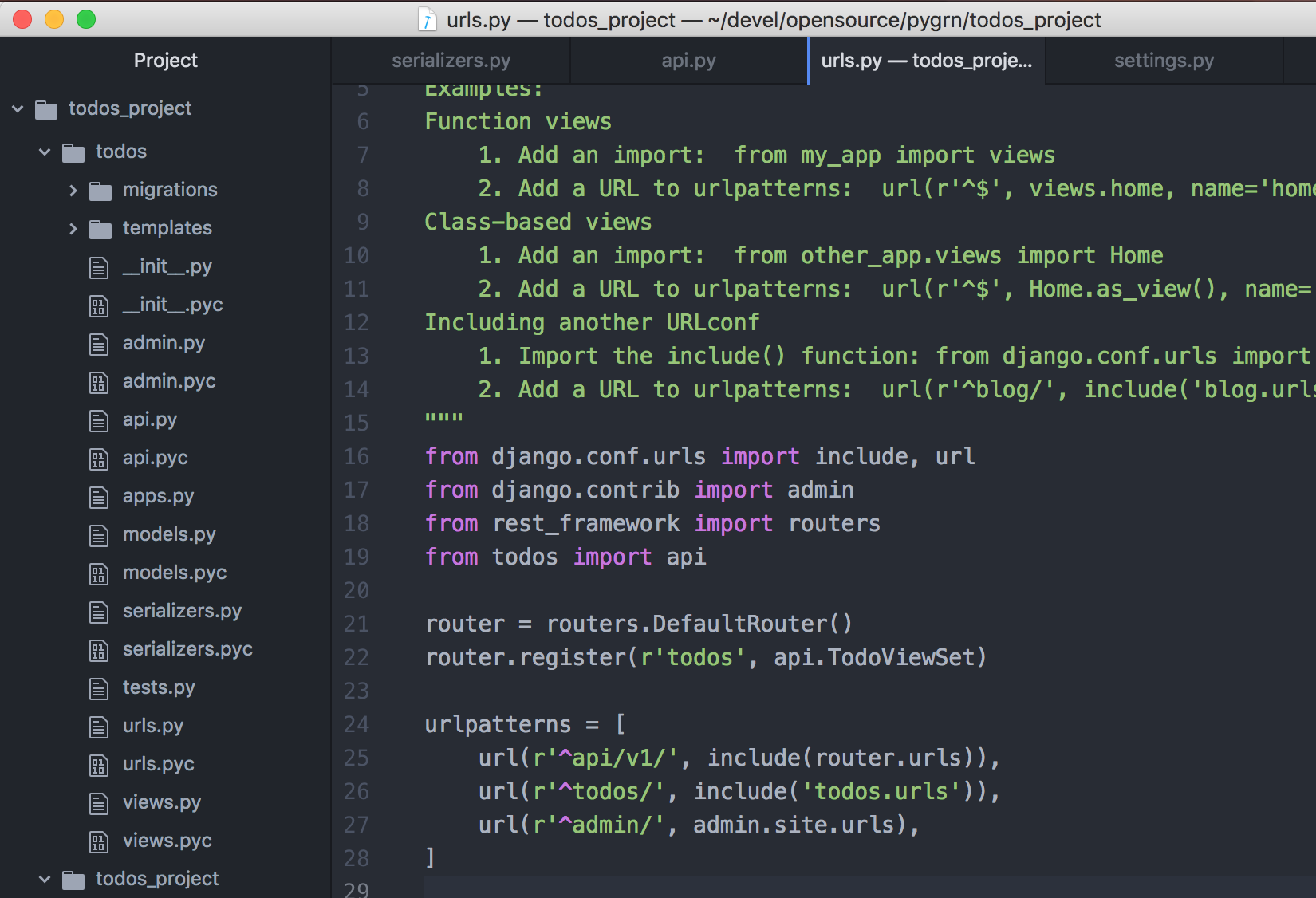

Django: router

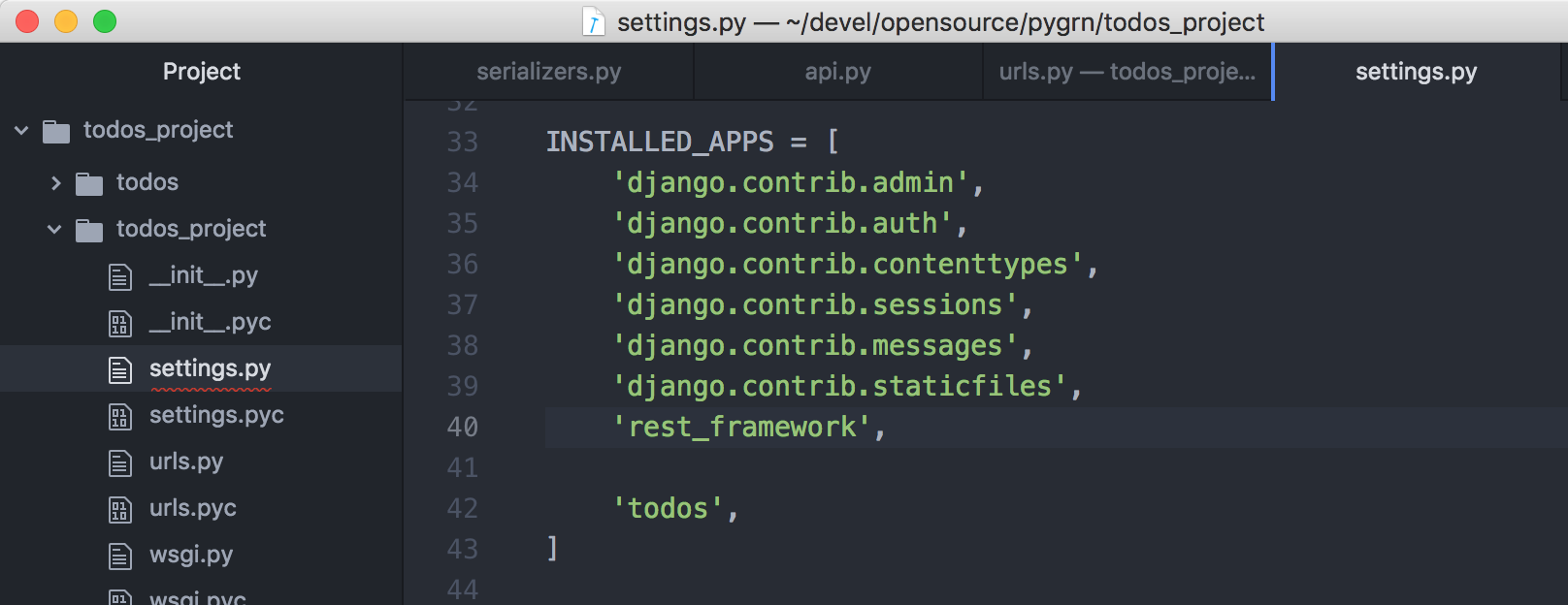

Django: installed apps

 Extensió de la webapp per dotar-la d'una petita API REST (II)

  • API Browser
  • Prova de la API

Django: API browser

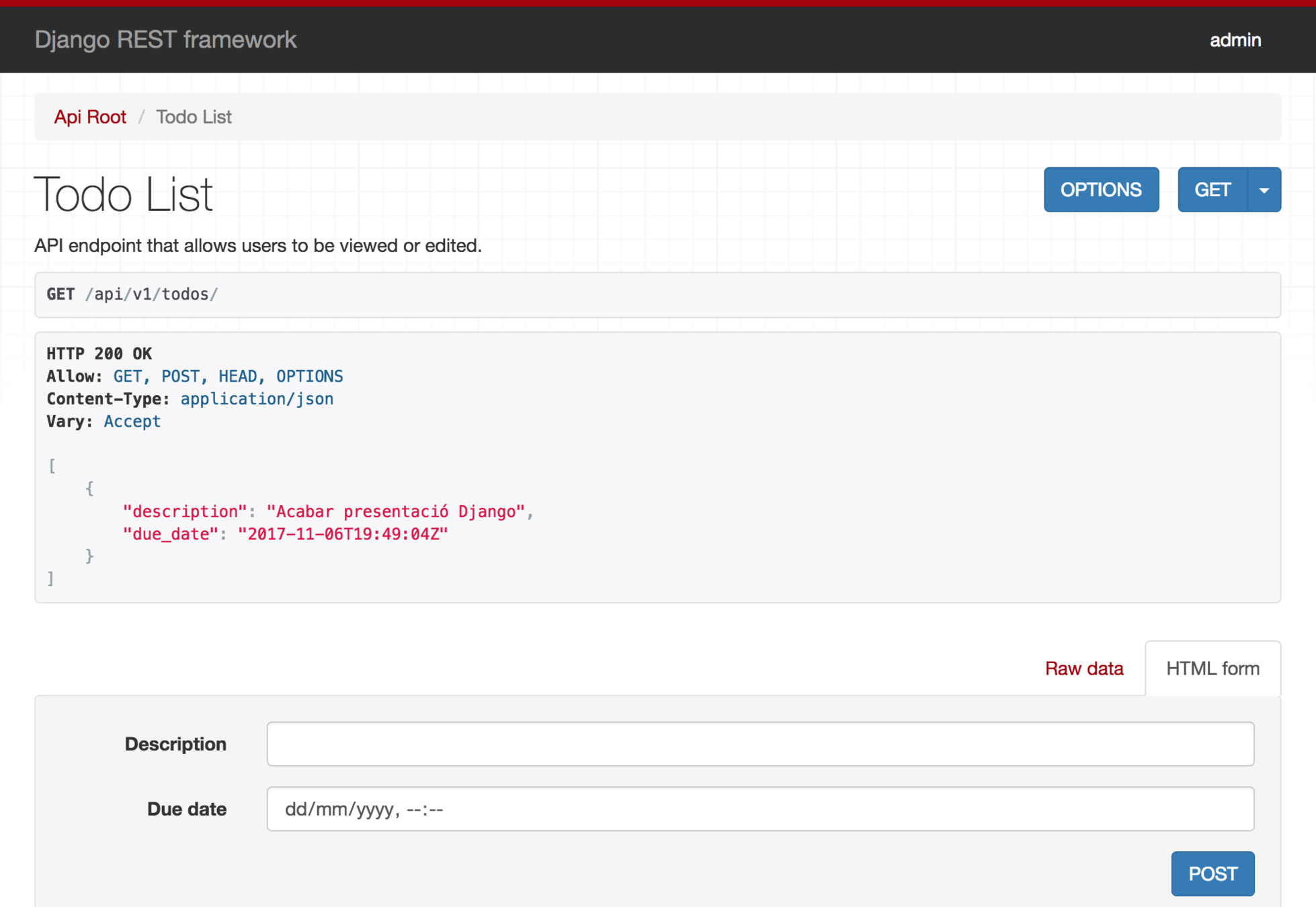

Django: API Todos list

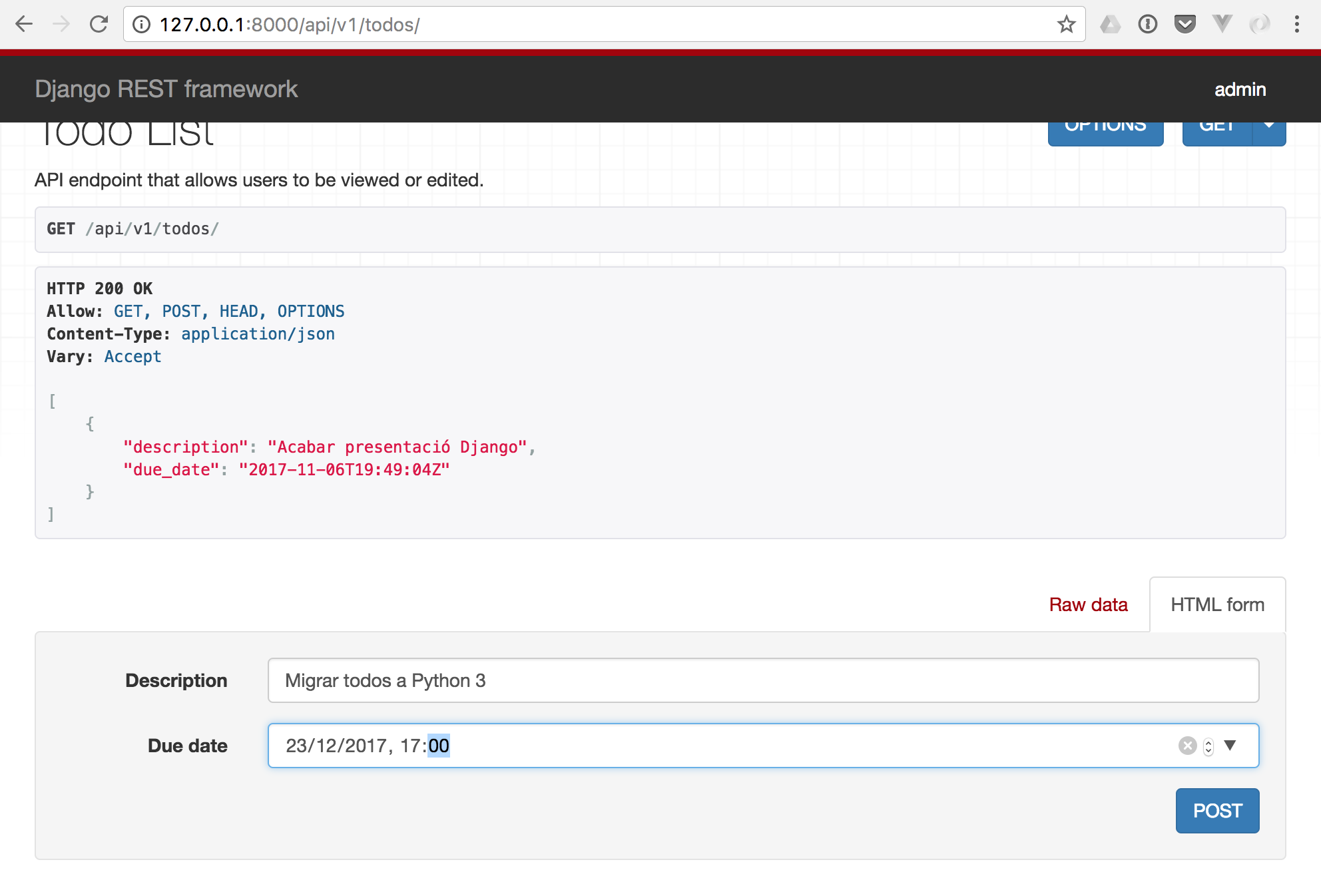

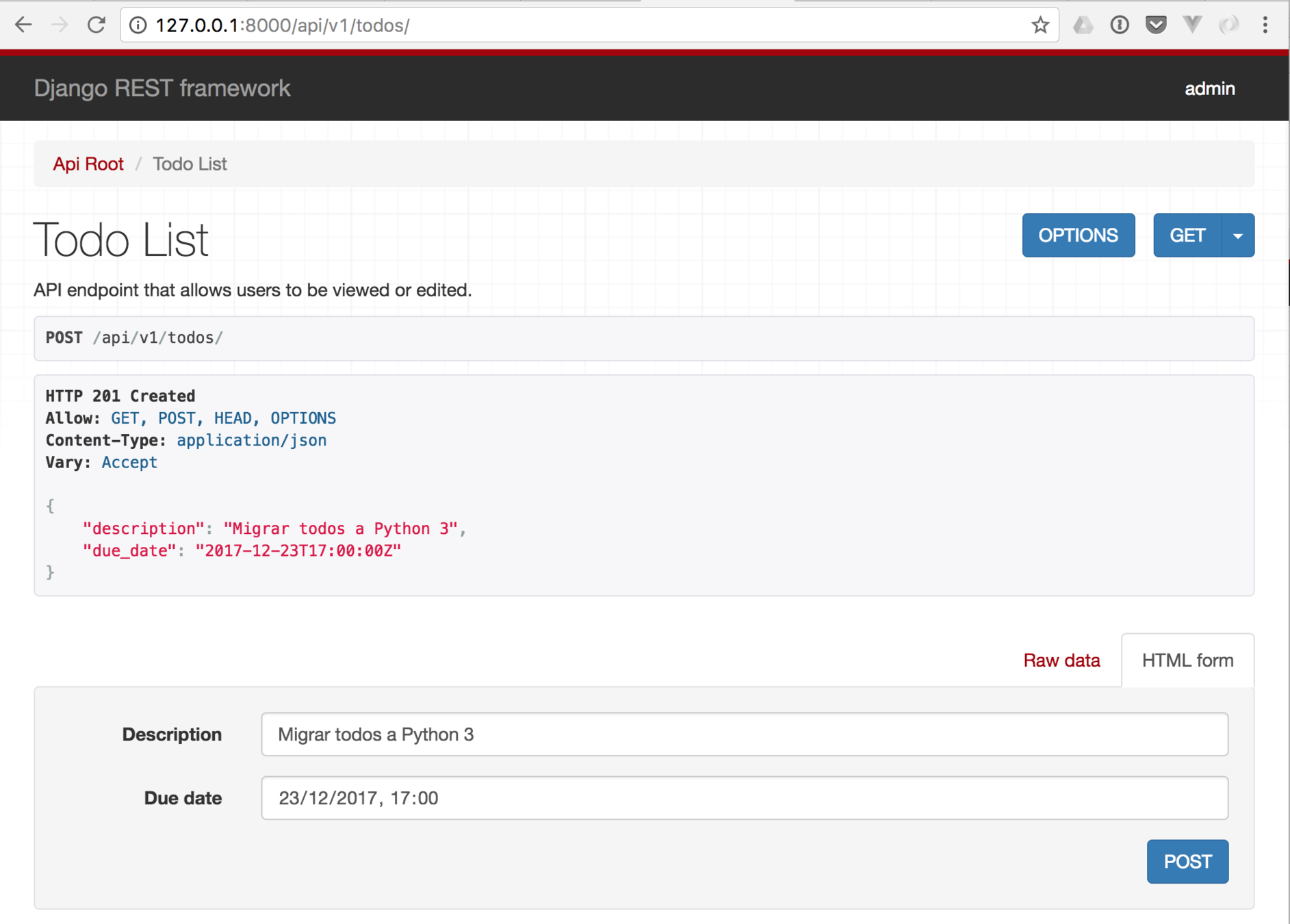

Django: API Todos add

Django: API Todos - created

Django: API Todos - list

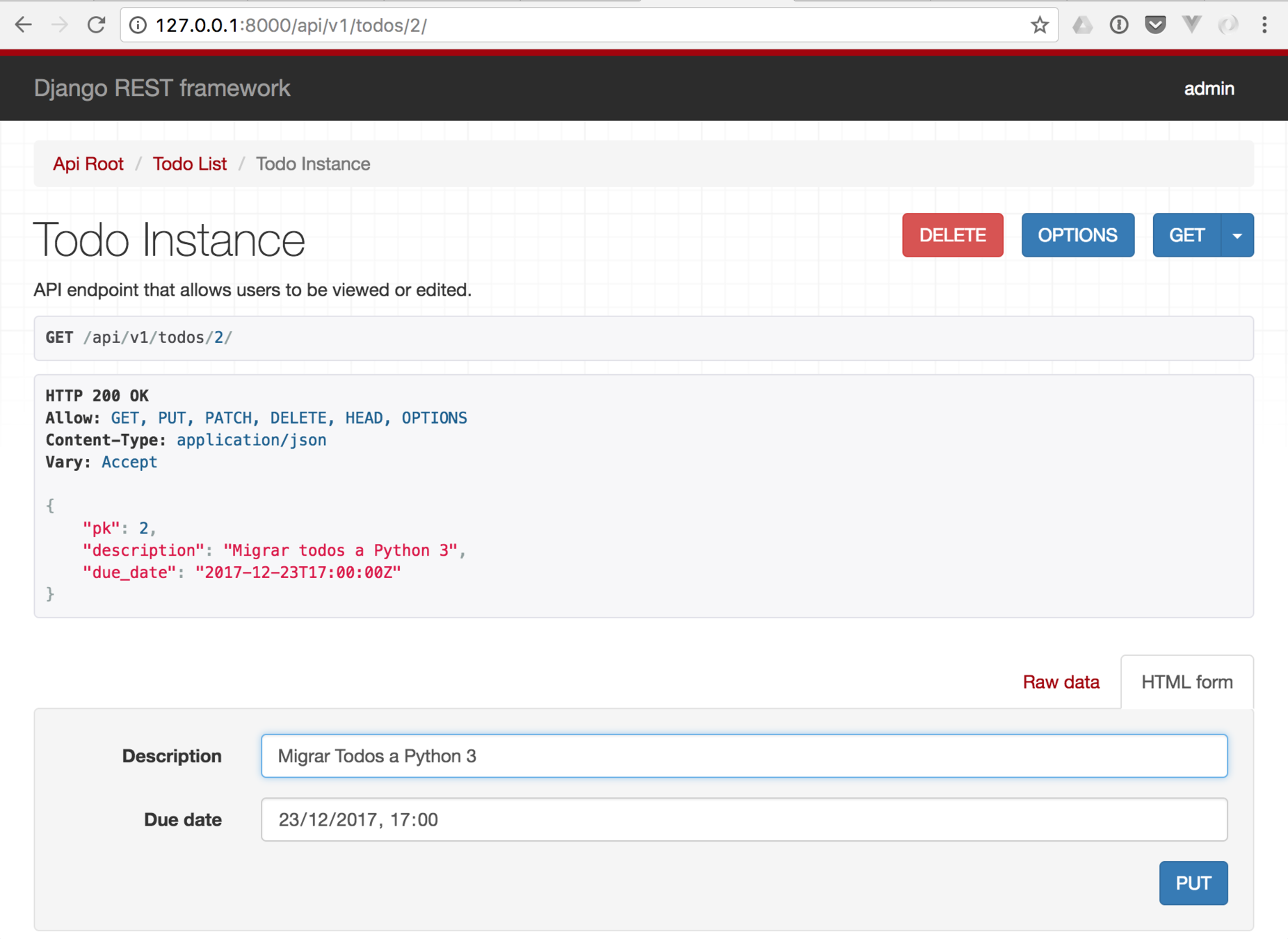

Django: API Todos - detail

Gràcies!

  • Preguntes / Dubtes?
