How a journalist does Django

Michael Corey
@mikejcorey

We're doing a story about pesticides.

There's good data on this one.

What should we do?

IR doing it rong

CSVs
Django
JSON and GeoJSON

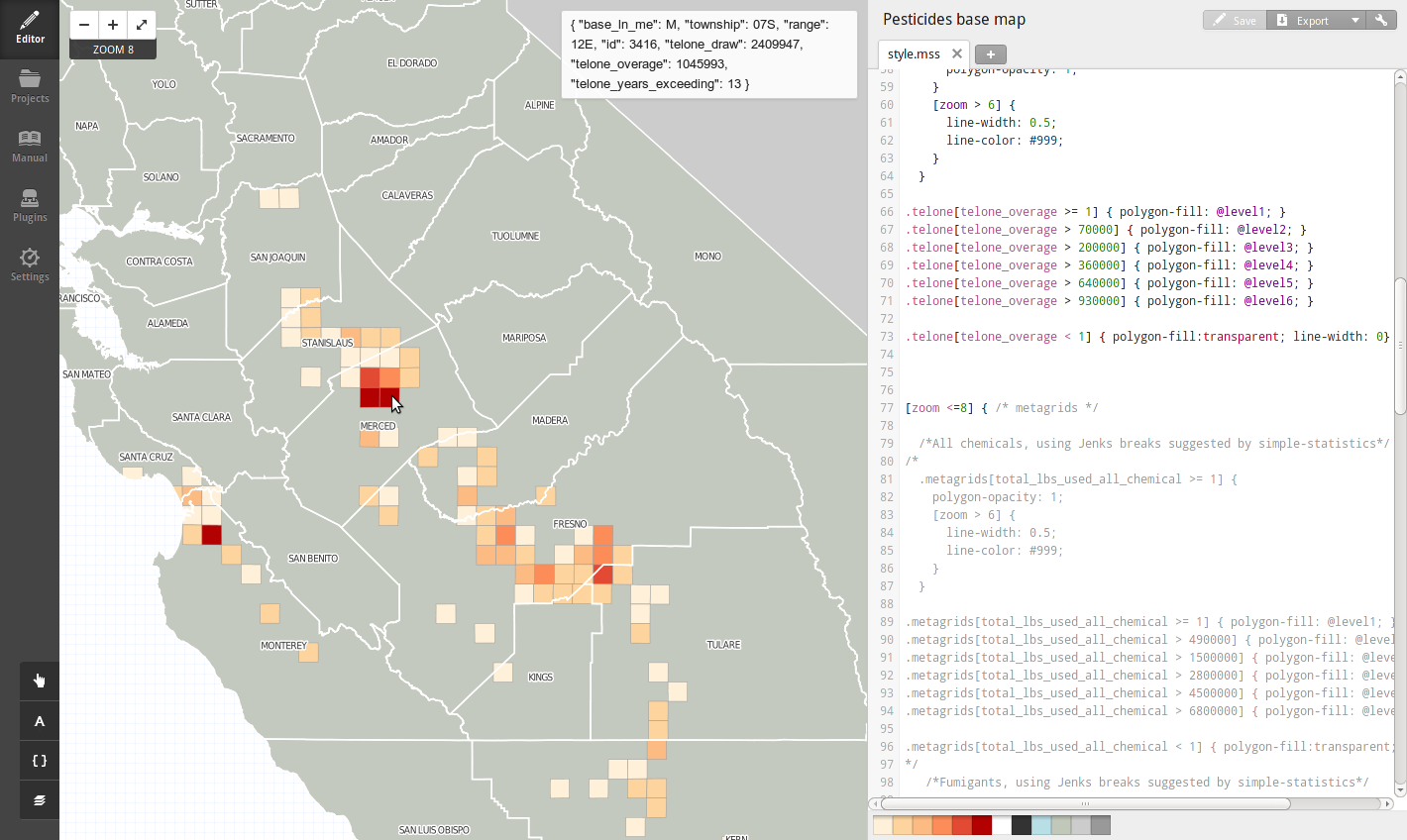

QGIS/TileMill
S3
Cloudfront

What do we have?

Question 1

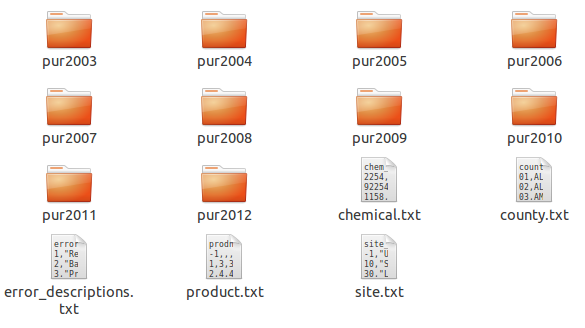

Pile o' CSVs

Each year

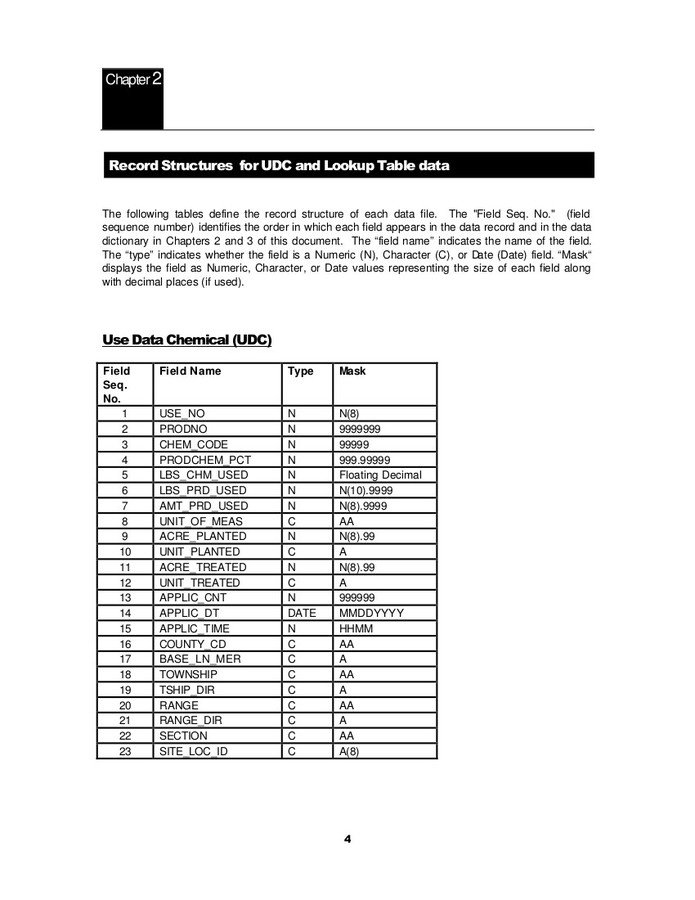

RTFM

What do I want to end up with?

Question 2

Apps we considered

• Searchable database of applications
• Who's the biggest applicator of pesticides?
• What farmers use the most?
• Search by chemical and see where it's applied
• Map of where most chemicals were applied
• Lookup of where I live, what's applied there

What we ended up with

• Map of where most chemicals were applied
• Lookup of where I live, top 5 chemicals applied there

Why Django?

Question 3

What should my models be?

Question 4

Project overview

• apps
  • grid
  • countymap
  • core
  • chemicals
  • oxnard

chemicals models

class Application(models.Model):
    use_no = models.CharField(max_length=25, db_index=True)
    record_id = models.CharField(max_length=5, db_index=True)  # Used to determine agricultural use or not
    ag_use = models.BooleanField(default=False, db_index=True)  # Helper category based on record_id
    chemical = models.ForeignKey(Chemical, null=True)
    product = models.ForeignKey(Product, null=True)
    crop = models.ForeignKey(Crop, null=True)
    lbs_chem_used = models.DecimalField(max_digits=30, decimal_places=20, null=True)
    lbs_prod_used = models.DecimalField(max_digits=30, decimal_places=20, null=True)
    prod_chem_pct = models.FloatField(null=True)
    acres_planted = models.FloatField(null=True)
    acres_treated = models.FloatField(null=True)
    application_date = models.DateField(null=True, blank=True)
    application_year = models.IntegerField(null=True)  # Based on application_date
    record_year = models.IntegerField(null=True)  # What year's file this came in. In some odd cases may differ from above. Use application_year except when data cleaning for this specific issue.
    county = models.ForeignKey(County, null=True)
    base_ln_mr = models.CharField(max_length=25, blank=True)
    township = models.CharField(max_length=25, blank=True)
    tship_dir = models.CharField(max_length=25, blank=True)
    range = models.CharField(max_length=25, blank=True)
    range_dir = models.CharField(max_length=25, blank=True)
    section = models.CharField(max_length=25, blank=True)
    has_errors = models.BooleanField(default=False)  # Helper based on Error table
    fumigant_used = models.BooleanField(default=False)  # Based on chemical, not product

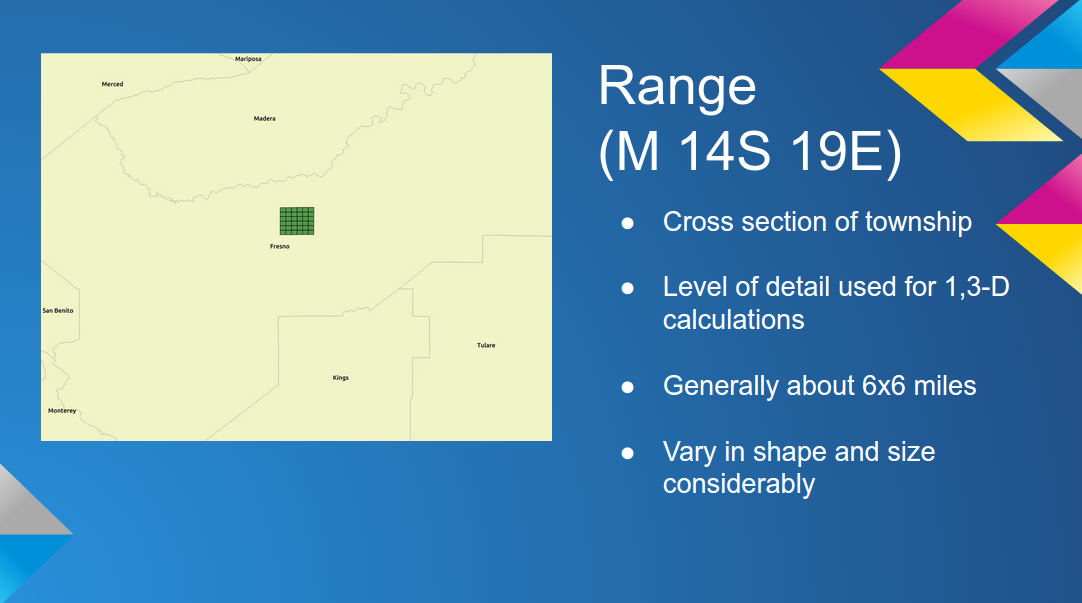

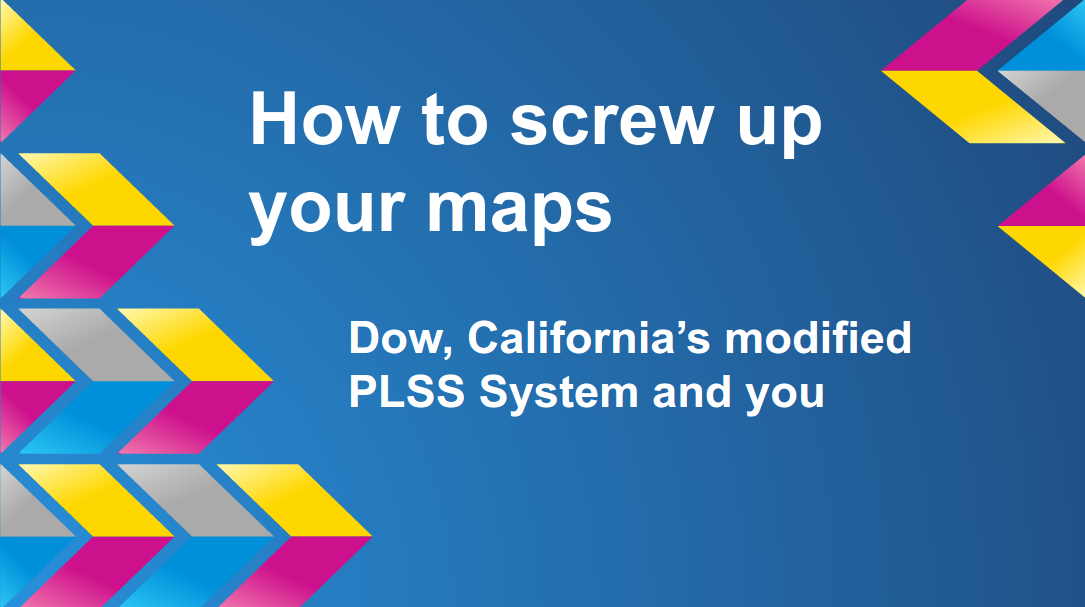

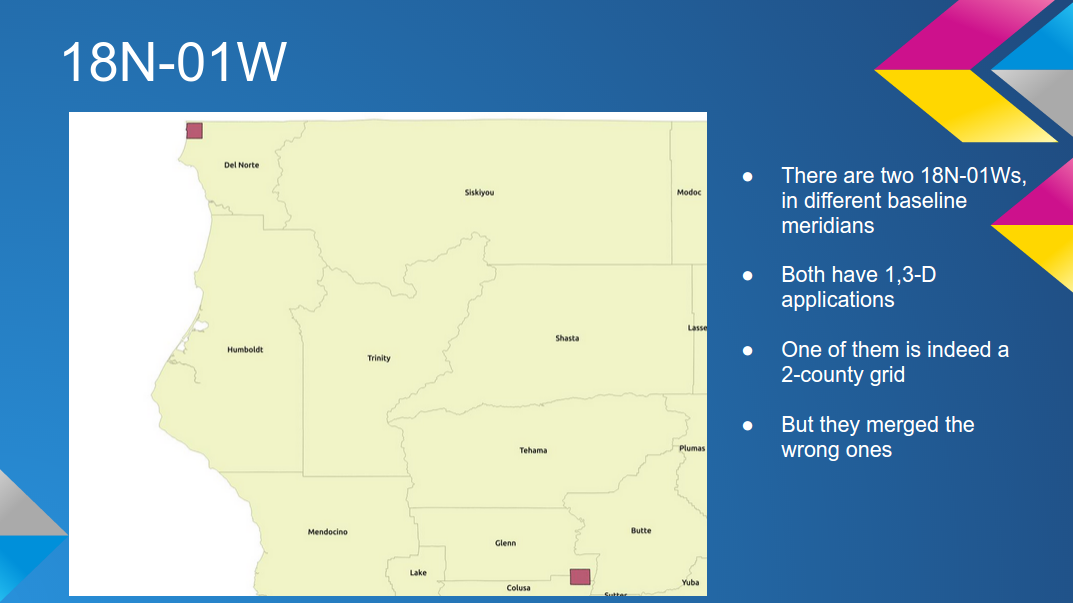

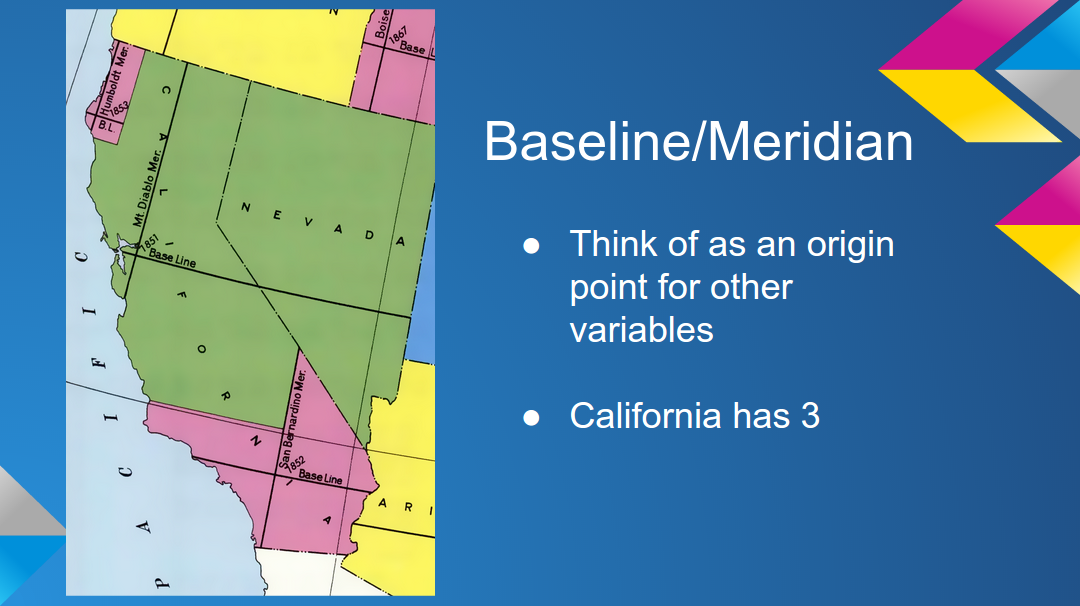

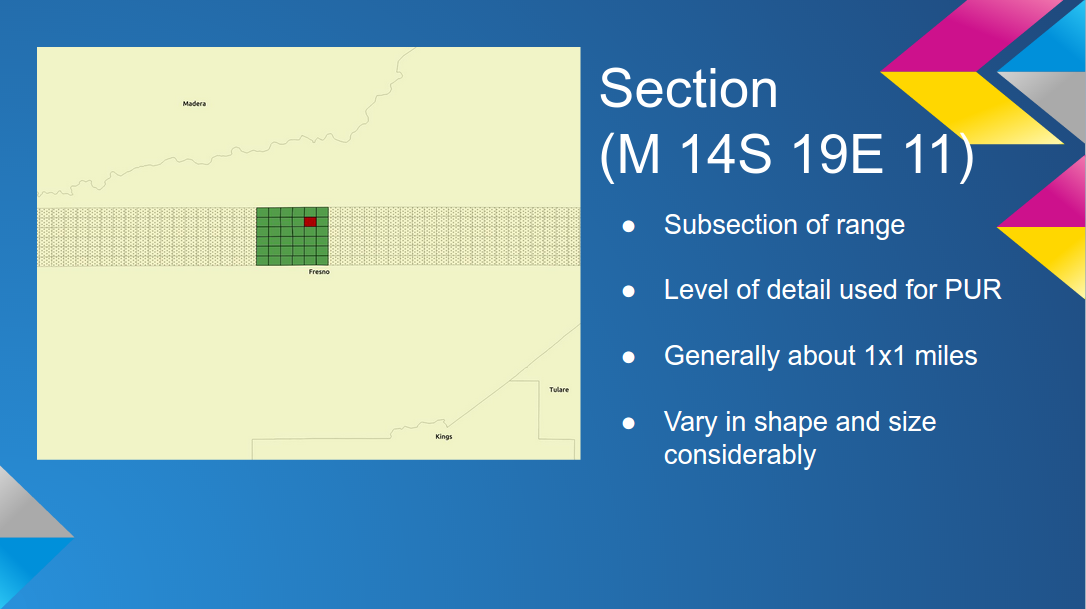

PLSS mapping fields

class Application(models.Model):
    ...

    county = models.ForeignKey(County, null=True)

    base_ln_mr = models.CharField(max_length=25, blank=True)
    township = models.CharField(max_length=25, blank=True)
    tship_dir = models.CharField(max_length=25, blank=True)
    range = models.CharField(max_length=25, blank=True)
    range_dir = models.CharField(max_length=25, blank=True)
    section = models.CharField(max_length=25, blank=True)

    ...

grid models

class CAGrid(models.Model):
    ...
    county_cd = models.CharField(max_length=2)
    range = models.CharField(max_length=3)
    section = models.CharField(max_length=2)
    base_ln_me = models.CharField(max_length=1)
    township = models.CharField(max_length=3)
    geom = models.MultiPolygonField(srid=4326)
    total_application_count = models.IntegerField(default=0)
    objects = models.GeoManager()


class CAMetaGrid(models.Model):
    county_cd = models.CharField(max_length=2, blank=True)
    range = models.CharField(max_length=3)
    base_ln_me = models.CharField(max_length=1)
    township = models.CharField(max_length=3)
    section = models.CharField(max_length=1, null=True, default=None)
    # Section is always none. Defined anyway to make aggregating stats easier
    geom = models.MultiPolygonField(srid=4326)
    ...


class CAMetaGridMerged(models.Model):  # For use with 1,3-D data from Dow
    ...

Foreign keys ...

from django.contrib.gis.db import models

class Year(models.Model):
    ...

class ConcernCategory(models.Model):
    name = models.CharField(max_length=100)
    match_code = models.CharField(max_length=10)
    description = models.TextField(blank=True)
    active = models.BooleanField(default=True)


class Chemical(models.Model):
    code = models.CharField(max_length=25, db_index=True)
    name = models.CharField(max_length=255)
    fumigant = models.BooleanField(default=False)
    chem_of_concern = models.NullBooleanField()
    concern_categories = models.ManyToManyField(ConcernCategory, null=True)


class County(models.Model):
    ...


class ErrorCode(models.Model):
    code = models.CharField(max_length=5, db_index=True)
    description = models.TextField(blank=True)
    dealbreaker = models.BooleanField(default=False)


class Error(models.Model):
    ...

Which applications are important?

What's NOT important?

How am I going to import this efficiently?

Pile o' CSVs

Each year

~3.5 million/year

First draft: All ORM

for row in csv_object:

    try:
        chemical = Chemical.objects.get(code=row['chem_code'].strip())
    except:
        chemical = None

    try:
        product = Product.objects.get(code=row['prodno'].strip())
    except:
        product = None

    crop, crop_created = Crop.objects.get_or_create(
        code=row['site_code'].strip()
    )

    county, county_created = County.objects.get_or_create(
        no=row['county_cd'].strip()
    )

    appdate = datetime.datetime.strptime(row['applic_dt'].strip(), "%m/%d/%Y").date()
    appyear = appdate.year

    application = Application(
        use_no=row['use_no'].strip(),
        record_id=row['record_id'].strip(),
        ag_use=ag_use,
        chemical=chemical,
        product=product,
        crop=crop,
        lbs_chem_used=self.mk_decimal(row['lbs_chm_used']),
        lbs_prod_used=self.mk_decimal(row['lbs_prd_used']),
        prod_chem_pct=self.mk_decimal(row['prodchem_pct']),
        acres_planted=self.mk_decimal(row['acre_planted']),
        acres_treated=self.mk_decimal(row['acre_treated']),
        application_cnt=self.mk_decimal(row['applic_cnt']),
        application_date=appdate,
        application_year=appyear,
        record_year=year,
        county=county,
        base_ln_mr=row['base_ln_mer'].strip(),
        township=row['township'].strip(),
        tship_dir=row['tship_dir'].strip(),
        range=row['range'].strip(),
        range_dir=row['range_dir'].strip(),
        section=row['section'].strip(),
        site_loc_id=row['site_loc_id'].strip(),
        grower_id=growers[row['grower_id'].strip()],
        batch=row['batch_no'].strip(),
        document=row['document_no'].strip(),
        license_id=licenses[row['license_no'].strip()],
    )
    application.save()

Second draft: All ORM, bulk insert

bulk_create_objects, counter = [], 1

for row in csv_object:

    try:
        chemical = Chemical.objects.get(code=row['chem_code'].strip())
    except:
        chemical = None

    try:
        product = Product.objects.get(code=row['prodno'].strip())
    except:
        product = None

    crop, crop_created = Crop.objects.get_or_create(
        code=row['site_code'].strip()
    )

    county, county_created = County.objects.get_or_create(
        no=row['county_cd'].strip()
    )

    appdate = datetime.datetime.strptime(row['applic_dt'].strip(), "%m/%d/%Y").date()
    appyear = appdate.year

    application = Application(
        use_no=row['use_no'].strip(),
        record_id=row['record_id'].strip(),
        ag_use=ag_use,
        chemical=chemical,
        product=product,
        crop=crop,
        ...
    )

    bulk_create_objects.append(application)

    if counter % 10000 == 0:
        Application.objects.bulk_create(bulk_create_objects)
        bulk_create_objects = []
        logger.info('Inserted %s applications' % counter)
    if counter % 50000 == 0:
        self.clear_query_cache()
    counter += 1

Application.objects.bulk_create(bulk_create_objects)
logger.info('Inserted %s applications' % counter)

Third draft: Lookup dicts, foo_id

chem_codes = dict(Chemical.objects.all().values_list('code', 'pk'))
prod_codes = dict(Product.objects.all().values_list('prodno', 'pk'))
crop_codes = dict(Crop.objects.all().values_list('no', 'pk'))

for row in csv_object:

    try:
        chemical = chem_codes[row['chem_code'].strip()]
        # Compare to: chemical = Chemical.objects.get(code=row['chem_code']).pk
    except:
        chemical = None

    application = Application(
        use_no=row['use_no'].strip(),
        record_id=row['record_id'].strip(),
        ag_use=ag_use,
        chemical_id=chemical,
        product_id=product,
        crop_id=crop,
        ...
    )

    bulk_create_objects.append(application)

Things we could have tried

• Raw bulk insert (PostgreSQL COPY, MySQL LOAD DATA INFILE)
• Raw models, translate to production models
• Divide and conquer on EC2

OK, data is loaded.

Now what?

Aggregate stats

Too big to fail

Stats models

Not really accounted for in MVC, but the ORM still loves us and wants us to be happy.

STAT_TYPE_CHOICES = (
    ('lbs_chem', 'Pounds (chemical weight)'),
    ('lbs_fum_chem', 'Pounds of fumigant (chemical weight)'),
    ('lbs_concern_chem', 'Pounds of chemicals of concern (chemical weight)'),
)


class GridStatPack(models.Model):
    grid = models.ForeignKey(CAGrid, null=True)
    metagrid = models.ForeignKey(CAMetaGrid, null=True)
    chemical = models.ForeignKey(Chemical, null=True)
    stat_type = models.CharField(max_length=20, choices=STAT_TYPE_CHOICES)
    relation_id = models.IntegerField(null=True)
    year = models.IntegerField(null=True)
    month = models.IntegerField(null=True)
    lbs = models.DecimalField(max_digits=30, decimal_places=20, null=True)
    application_count = models.IntegerField(null=True)
    related_stats = models.TextField(blank=True)
    concern_stats = models.TextField(blank=True)
    percentile = models.IntegerField(null=True)

Adding up stats

def totals(self, year=None, month=None, day=None, fumigants_only=None, chemicalid=None, chem_of_concern_only=False, meta_totals=False, ignore_county=False):
    kwargs = {}
    if year:
        kwargs['application_year'] = year
    if month:
        kwargs['application_date__month'] = month
    if day:
        kwargs['application_date__day'] = day
    if fumigants_only:
        kwargs['fumigant_used'] = True
    if chemicalid:
        kwargs['chemical_id'] = chemicalid
    if chem_of_concern_only:
        kwargs['chemical__chem_of_concern'] = True

    totals = Application.active_objects.exclude(section__exact='').filter(**kwargs).values(
        'base_ln_mr',
        'township',
        'tship_dir',
        'range',
        'range_dir',
        'county__no'
    ).annotate(
        lbs_chem_used=Sum('lbs_chem_used')
    ).annotate(
        application_count=Count('pk')
    )

    return totals

def matching_stats(self, totallist, blinemer, tship, tshipdir, range_only, rangedir, section, county_cd):

    match = [k for k in totallist if k['base_ln_mr'] == blinemer if k['township'] == tship if k['tship_dir'] == tshipdir if k['range'] == range_only if k['range_dir'] == rangedir if k['section'] == section if k['county__no'] == county_cd]

    return match

def create_stat_pack(self, totals, grid, stat_type, year, month, weight_var, chemical=None, relation_id=None):
    # Find match in totals lookup list
    match = self.matching_stats(totals, grid.base_ln_me, grid.township_only, grid.township_dir, grid.range_only, grid.range_dir, grid.section, grid.county_cd)

    if len(match) == 1:
        sp = GridStatPack(
            grid=grid,
            stat_type=stat_type,
            relation_id=relation_id,
            chemical_id=chemical,
            year=year,
            month=month,
            lbs=match[0][weight_var],
            application_count=match[0]['application_count'],
        )

Methods to retrieve stats

class CAGrid(models.Model):
    ...

    def total_lbs_used_concern_chemical(self):
        try:
            stats = GridStatPack.objects.get(grid=self, stat_type='lbs_concern_chem', year=None, month=None)
            return int(round(stats.lbs))
        except:
            return None

    def top_chemicals(self):
        try:
            return json.loads(self.main_stat_pack().related_stats)
        except:
            return []

Model managers help me sleep

class ActiveApplicationManager(models.Manager):
    def get_queryset(self):
        return super(ActiveApplicationManager, self).get_queryset().filter(
            has_errors=False,
            ag_use=True
        )


class Application(models.Model):
    ...

    objects = models.Manager()
    active_objects = ActiveApplicationManager()



Application.active_objects.filter(stuff='blahblahblah')

Get dynamic to get static

Use Django to build an API

API powers all the things

Get dynamic to get static

Model methods

GeoJSON views

Cache GeoJSON

GeoJSON to S3, elsewhere

GeoJSON views: What I did then

class CAGridGeoJSON(GenericGeoJSON):

    property_fields = [
        'county_cd',
        'base_ln_me',
        'township',
        'range',
        'section'
    ]

    model_methods = [
        'total_lbs_used_fumigants_chemical',
        'total_lbs_used_all_chemical',
        'total_lbs_used_concern_chemical',
        'top_chemicals',
        'top_chemicals_of_concern',
        'county_name'
    ]

    geom_field = 'geom'

    def get_queryset(self):
        queryset = CAGrid.objects.filter(total_application_count__gt=0)
        return queryset

GeoJSON views: What to do now

from djgeojson.views import GeoJSONLayerView


class OKQuakeBinsGeoJSON2015(GeoJSONLayerView):
    geometry_field = 'wgs84_geom'
    properties = [
        'county_cd',
        'base_ln_me',
        'township',
        'range',
        'section',
        'total_lbs_used_fumigants_chemical',
        'total_lbs_used_all_chemical',
        'total_lbs_used_concern_chemical',
        'top_chemicals',
        'top_chemicals_of_concern',  # As long as it's a @property
        'county_name'
    ]

    def get_queryset(self):
        return CAGrid.objects.filter(total_application_count__gt=0)

Or: https://docs.djangoproject.com/en/1.8/ref/contrib/gis/serializers/

Caching views, the dirty hacky way

from django.core.management.base import BaseCommand
from django.test.client import Client


class Command(BaseCommand):
    help = 'Parse super-complex totals into static JSON, upload to S3.'

    def cache_and_deliver(self, content, filename):
        if not os.path.exists(os.path.join(settings.SITE_ROOT, 'assets', 'json')):
            os.makedirs(os.path.join(settings.SITE_ROOT, 'assets', 'json'))

        cached_json = open(os.path.join(settings.SITE_ROOT, 'assets', 'json', filename), 'w')
        cached_json.write(content)
        cached_json.close()

        self.stdout.write('Cached file: %s.\n' % (filename,))

        return cached_json

    def handle(self, *args, **options):
        try:
            c = Client()

            response = c.get('/json/cagridmap.json', {}, follow=True)
            self.cache_and_deliver(response.content, 'cagrids_cached.json')

            response = c.get('/json/cametagridmap.json', {}, follow=True)
            self.cache_and_deliver(response.content, 'cametagrids_cached.json')

Why not ...

• Tastypie/Django REST framework?
• Django bakery

Fun with TileMill!

This isn't just

about graphics

Things we could only say in our story

because of the data

• More than 1 million people affected by overages
• How many times the state exceeded its own guidelines
• Six places exceeded every year
• One place exceeded by over 1 million pounds
• Strawberries account for 8 percent of state pesticide use (but only 1 percent of total farmland)
• Strawberry growers’ use of 1,3-D tripled over 10 years

Use the data

https://github.com/cirlabs/pesticides_data

Contact me

@mikejcorey    mcorey@cironline.org

Get the podcast

revealnews.org/episodes/
