Domain-Driven Design for Microservices Architecture
Vũ Nhật Minh / @dtvd88
Agenda
-
About me
-
Domain-Driven Design
-
DDD approach for Microservices architecture
-
+α
About me
-
Vũ Nhật Minh
-
Oracle/PHP/Python/Scala backend engineer
-
Private:
-
Front-End Tech, UI/UX
-
Creator of Rainbow Stream
-
Writer at KTMT blog & admin at Kipalog.com
-
-
More info
Rainbow Stream
Domain-Driven Design
-
About me
-
Domain-Driven Design
-
DDD approach for Microservices architecture
-
+α
Software development is hard
Writing code is easy part
The hard part come from real-world problems
Real-world problem belongs to a specific domain
Each domain will have domain experts
We need to extract expert's raw knowledge to a blueprint in our mind,
a model
Tool to express and develop the model: The Ubiquitous Language

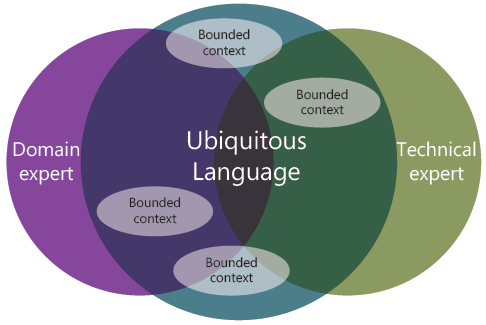

The Ubiquitous Language
Building the ubiquitous language
-
Commit to use the language in everywhere
-
All communication form: speech, writing, diagrams ...
-
In the code later
-
-
Communicate with domain experts and find keywords
-
Developers can think about keyword as classes in OOP
The model
Architecture
and design patterns
Think DDD

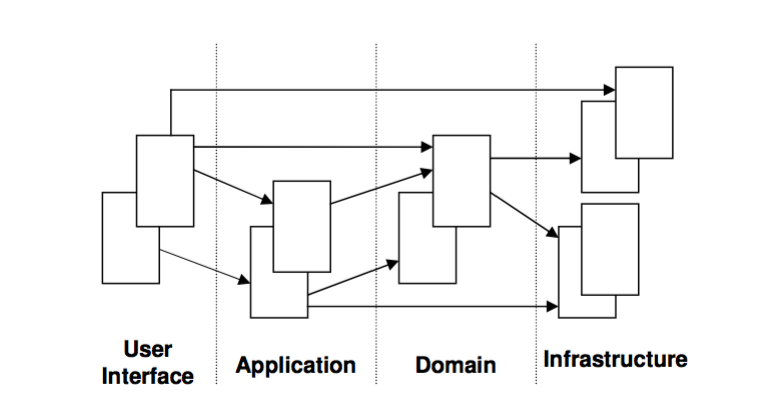

Layered Architecture
DDD Desgin Patterns
- Extract from the ubiquitous language
- Entities
- Value Objects
- Services
- Ownership and boundaries
- Aggregates
- Storage
- Repositories
Entities
Entities = objects which have identity
Attributes does not matter, only identity matter
Find out what is Entities
Entities is mutable
Value Objects
Find out what is not need to be Entities
Call them Value Objects
Value Objects is immutable and having no identity
User |
---|
UserID |
Name |
FacebookURL |
TwitterURL |
GithubURL |
User |
---|
UserID |
Name |
SocialProfile |
Social Profile |
---|
Github |
Entity
Value Object
Identity
// Entities with same id is considered the same.
class User(val userId: Int, val name: String, val profile: SocialProfile) {
def equals(other: User): Boolean = {
userId == other.userId
}
}
// Value Objects with same value is considered the same.
class SocialProfile(val facebookURL: String,
val twitterURL: String,
val githubURL: String) {
def equals(other: SocialProfile): Boolean = {
facebookURL == other.facebookURL &&
twitterURL == other.twitterURL &&
githubURL == other.twitterURL
}
}
Services
Language's nouns can be Entities or Value Objects
Language's verbs/behaviors can be Services
Services declare an operation which is stateless
class Saiyan(val name: String, val age: Int)
// Service provide a method to perform an operation
def fusionDance(left: Saiyan, right: Saiyan): Saiyan = {
new Saiyan(left.name + right.name, math.min(left.age,right.age))
}
- Domain Service
- Infrastructure Service
- Application Service
DDD Desgin Patterns
- Extract from the ubiquitous language
- Entities
- Value Objects
- Services
- Ownership and boundaries
- Aggregates
- Storage
- Repositories

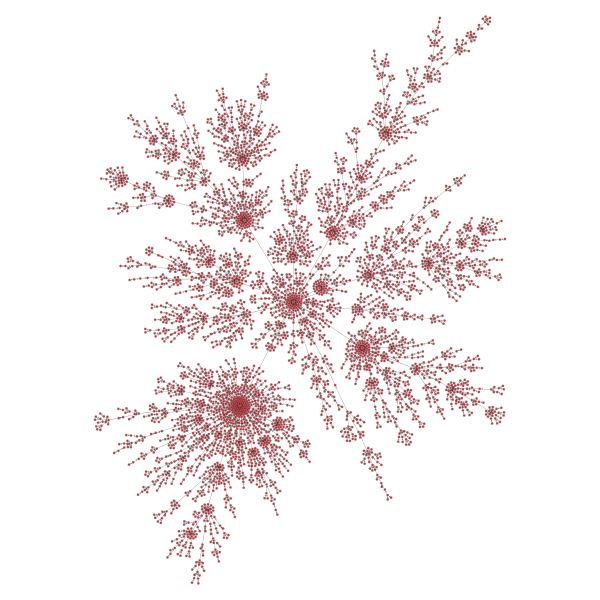

Chaotic Objects associations
Stop
Aggregates
Aggregates
Groups of associated objects regard to transactions
One Aggregate have one root
Root must be Entity
Root have global identity. Internal Entities have local indentity
User |
---|
UserID |
Name |
SocialProfile |
Social Profile |
---|
GIthub |
Contact Info |
---|
PhoneNumber |
EmailAddress |
Root Entity
Aggregate
Repositories
Repository commonly refers to a storage location, often for safety or preservation.
Wikipedia
In DDD, Repository is more like a "facade" to data store (Database, cache ...)
Repository hold references to root Entity of Aggregates.
Repository != DAL (Data Access Layer)
PostRepository |
---|
findPost(cond) |
newPost() |
updatePost() |
... |
Post |
---|
postId |
title |
content |
Post |
---|
postId |
title |
content |
Post |
---|
postId |
title |
content |
Search Query |
---|
Search Cond |
---|
findPost(cond)
posts list
Repository
PostRepository |
---|
findPost(cond) |
newPost() |
updatePost() |
... |
Post |
---|
postId |
title |
content |
Post |
---|
postId |
title |
content |
Post |
---|
postId |
title |
content |
Search Query |
---|
Search Cond |
---|
findPost(cond)
posts list
Entity or Value Object ?
DDD with Microservices
-
About me
-
Domain Driven Design
-
DDD approach for Microservices architecture
-
+α
There is a very, very bad nightmare for every developer
Monolithic is hell
DDD and Microservices are here to help us escape from the hell !

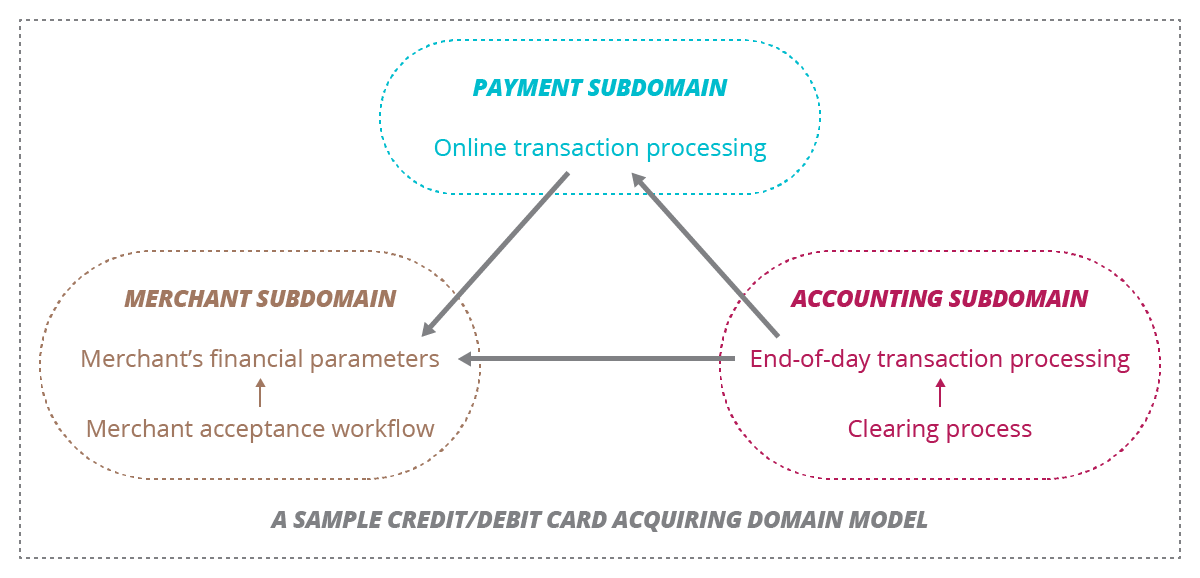

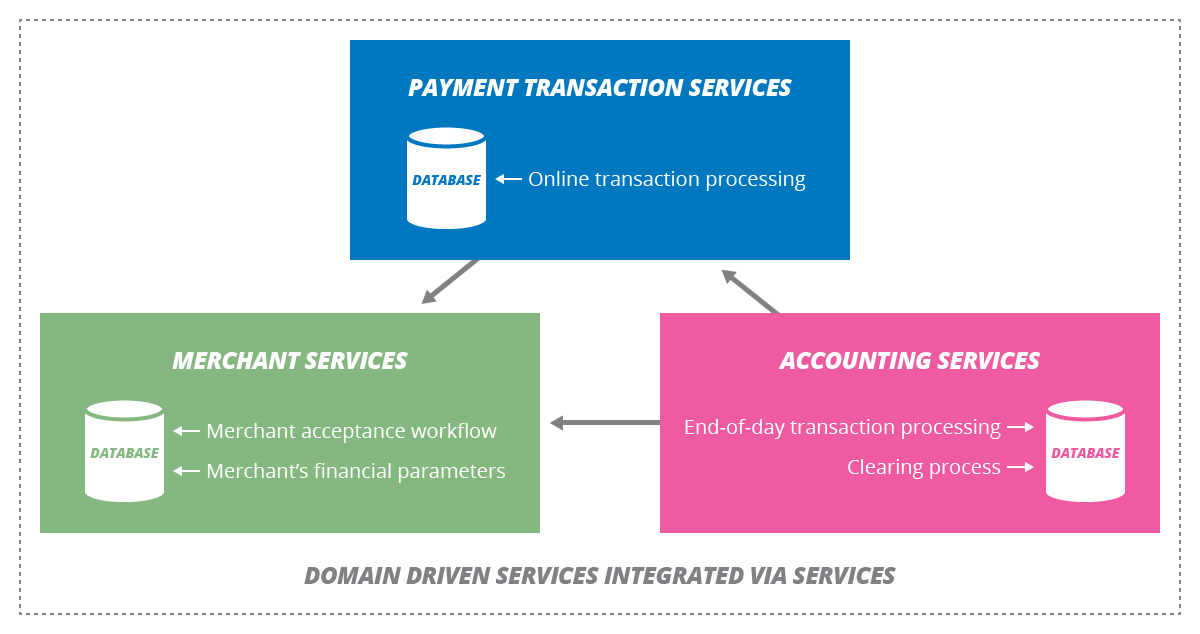

Microservices introduce boundaries
DDD make bounded context
DDD for multiple context
-
There are advanced topics
-
Bounded Context
-
Context Map
-
Shared Kernel
-
Anticorruption Layer
-
Separate Ways
-
Open Host Service
-
-
Read Eric Evan's book and the online sumary version ...
until it make sense :)
Software Engineer life in Japan
-
About me
-
Domain Driven Design
-
DDD approach for Microservices architecture
-
+α
Realize two worlds
Don't fail into traps
Use your time wisely
Invest to yourself
Build awesome things
Thanks for listening
