What we do

Data Visualizations and News Apps

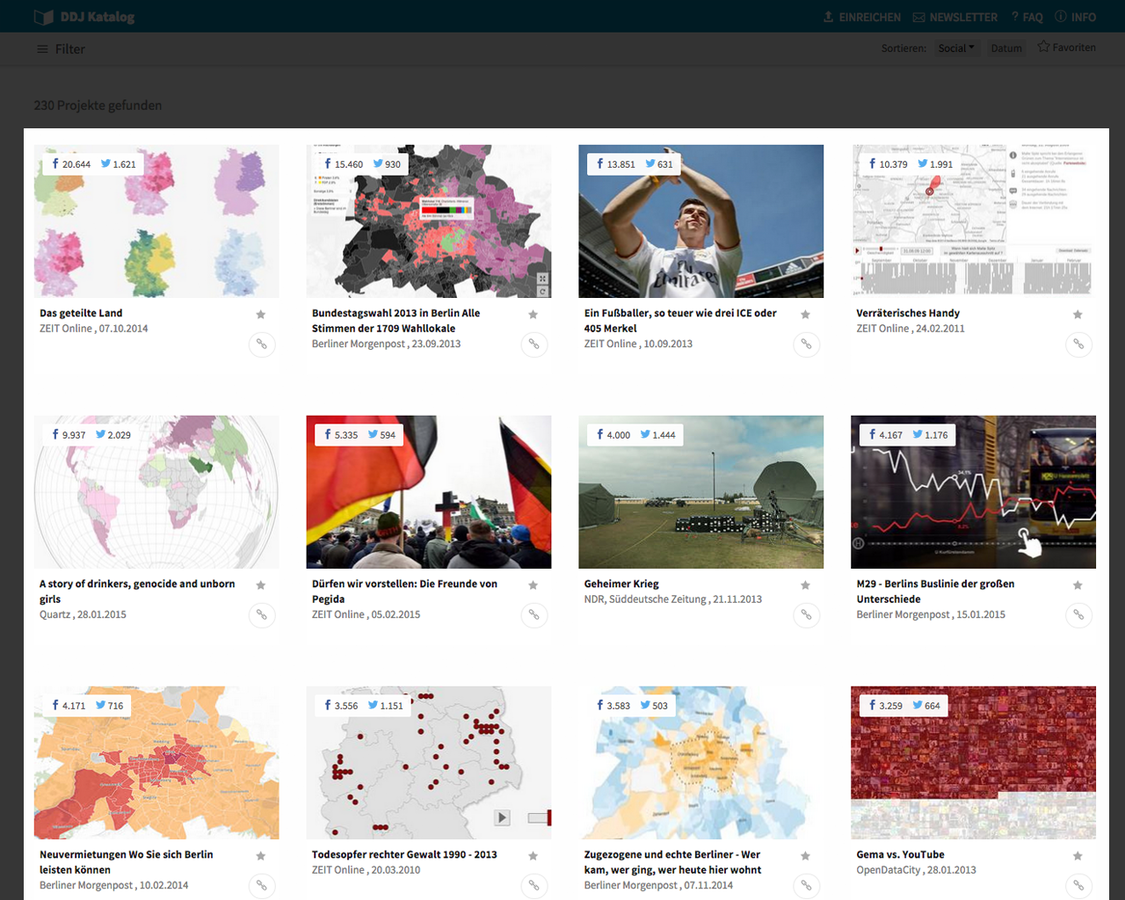

http://katalog.datenjournalismus.net/

Our first React App

What we learned.

Rethink everything.

Components!

reusable and composable

PreviewList Component

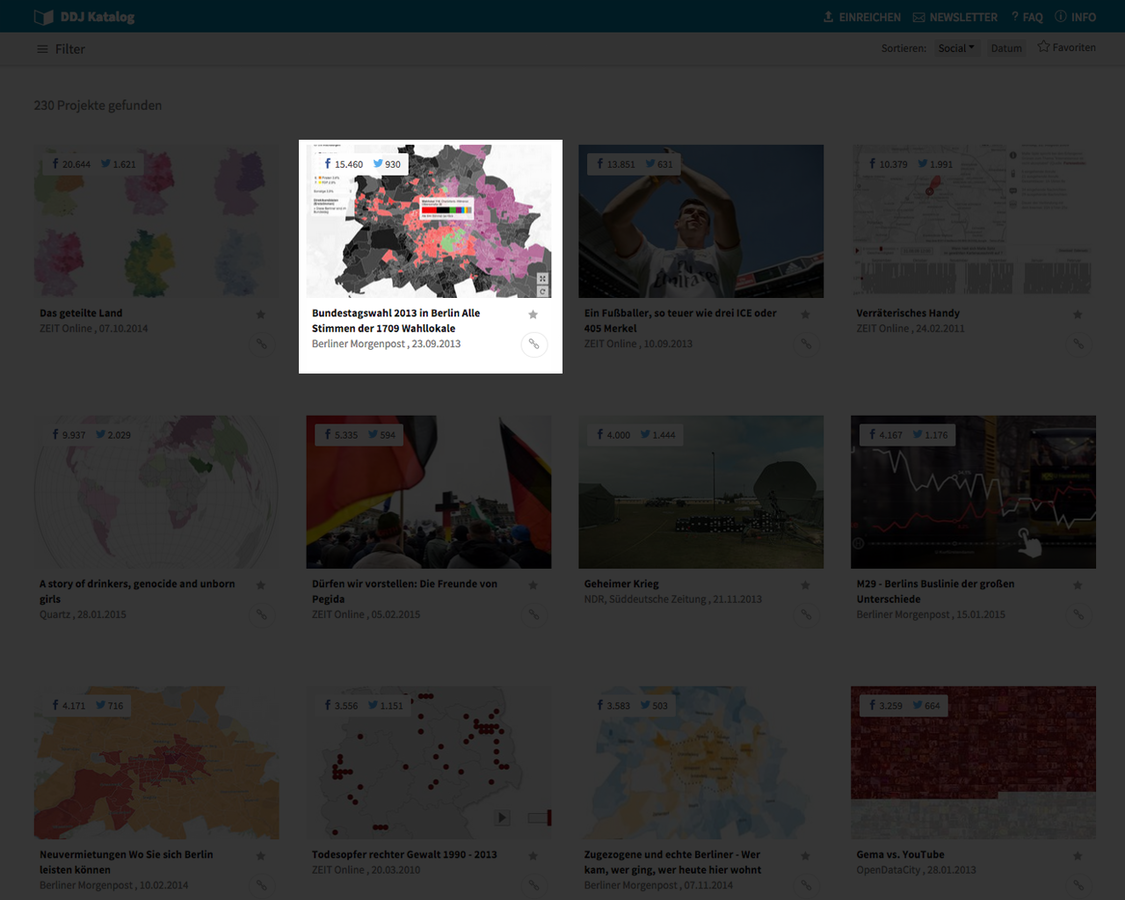

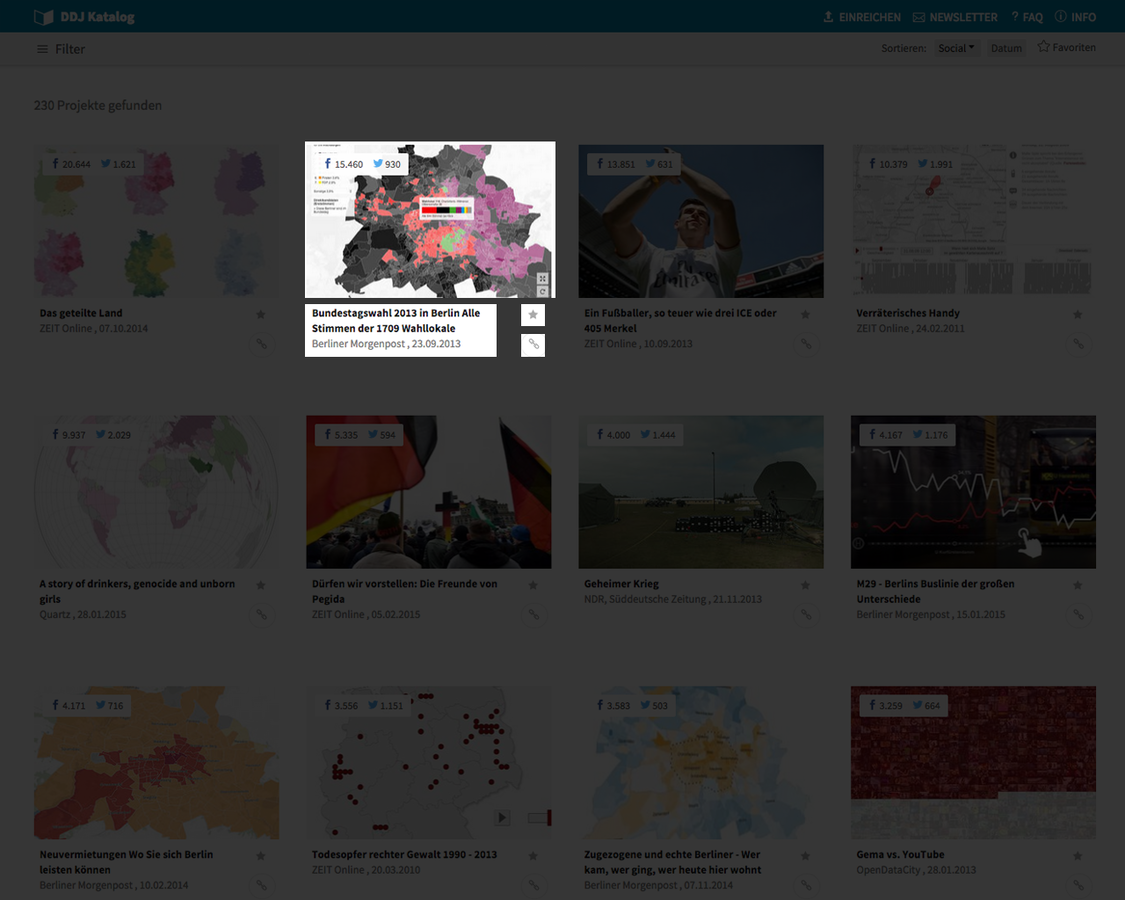

Preview Component

PreviewImage Component

Ratingbutton Component

PreviewLink Component

PreviewTitle Component

JSX FTW

var Preview = React.createClass({

    ...

    toggle(){ ... },

    render() {
        return (
            <div className="preview-card" onclick={this.toggle}>
                <PreviewImage src={this.props.src} />
                <PreviewTitle title={this.props.title} />
                <RatingButton id={this.props.id} />
                <PreviewLink href={this.props.href} />
            </div>
        )
    }

});

Simplified Code of Preview.jsx

It's just JavaScript!

Seperation of concerns?!

 concerns === components*

* If you think in a React way

Two types of components

1. Stateful

2. Stateless

Stateful

Stateless

var Headline = require('./headline.jsx');

var Header = React.createClass({
  getInitialState: function() {
    return { appName : 'React App' };
  },
  render(){
    return(
       <Headline title={this.state.appName} />
    )
  }
  ...

var Headline = React.createClass({
  propTypes: {
    appName : React.PropTypes.string
  },
  render(){
    return(
        <h1>{ this.props.appName }</h1>
    )
  }
  ...

Output: <h1>React App</h1>

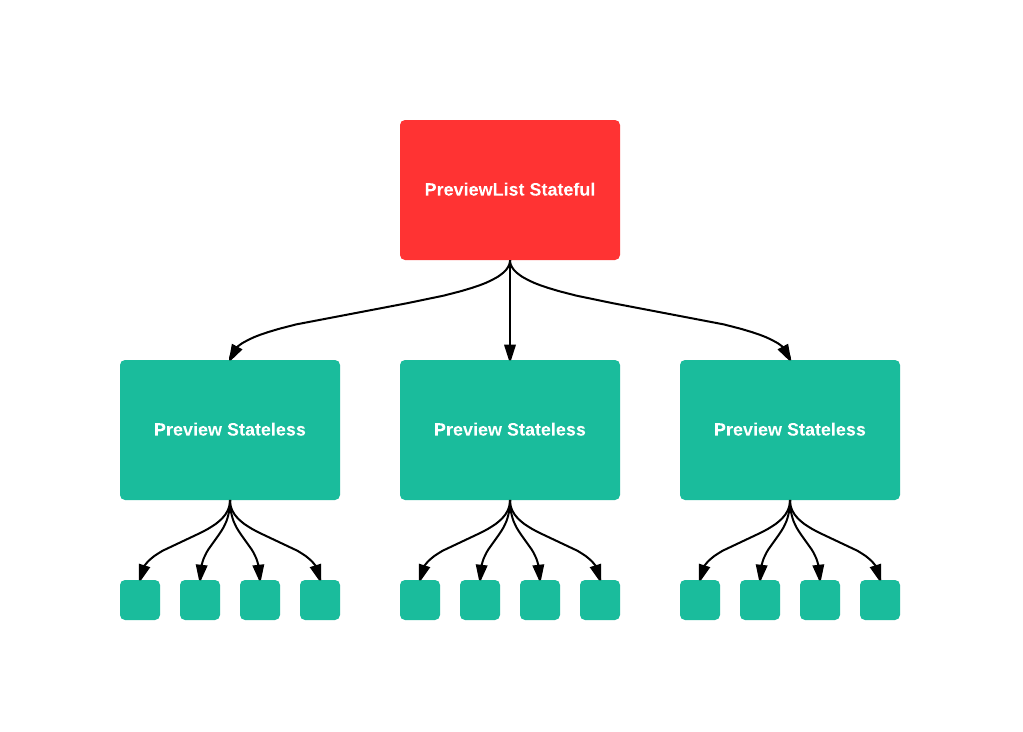

render children

render children

Learnings

1. As few as possible stateful components

2. Handle state in a central place

Communication?

Flux!

(Not part of React)

Reflux

╔═════════╗       ╔════════╗       ╔═════════════════╗
║ Actions ║──────>║ Stores ║──────>║ View Components ║
╚═════════╝       ╚════════╝       ╚═════════════════╝
     ^                                      │
     └──────────────────────────────────────┘

*stolen from the Reflux repo.

*

Actions

...

componentDidMount() {
   ItemActions.loadItems();
}

...

PreviewList.jsx

var ItemActions = Reflux.createActions([
  'loadItems'
]);

itemActions.js

Kind of publisher

Stores

  componentDidMount() {
    this.unsubscribe = ItemStore.listen(this.onStatusChange.bind(this));
    ItemActions.loadItems();
  }
  onStatusChange(state) {
    this.setState(state);
  }

previewList.jsx

var ItemStore = Reflux.createStore({
  init() {
    this.items =  ['Foo', 'Bar', 'Test'];
    this.listenTo(ItemActions.loadItems, this.loadItems);
  },
  loadItems() {
    this.trigger({
      items : this.items
    });
  }
});

itemStore.js

Kind of publisher and subscriber

App

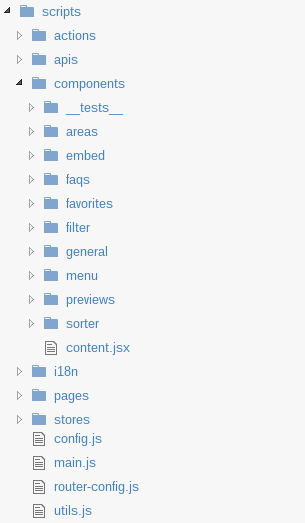

Structure

Dev Environment

Load Modules

var React = require('react');
var LibXY = require('libxy');

Load Files (css, images, json, etc.)

var css = require('css!./style.css');
var data = require('dsv!./data.csv');

Create Chunks

require.ensure(['some-module'], function(require){
    var module = require('some-module');
}

Transform JSX

var Header = React.createClass({
    render() {
        return (
            <header>
                <Navigation />
            </header>
        )
    }
});

Transform ES6

 var items = this.props.items.map(item => <li key={ item }>{ item }</li>)

class ItemList extends React.Component {

  constructor(){
    super();
  }

 ...

Arrow Functions

Class syntax

Let's build a starterkit

https://github.com/wbkd/react-starterkit

What you get

http://wbkd.github.io/react-starterkit/#/

Technology Stack

• Reflux
• React-Router
• Webpack
• Babel
• Gulp
• Stylus

Flux Architecture

Routing

Module Loader

JSX and ES6 Transformer

Building Tool

CSS Preprocessor

Links

Github Acc: https://github.com/wbkd

Starterkit: https://github.com/wbkd/react-starterkit

DDJ Catalogue Repo: https://github.com/wbkd/ddj-catalogue

DDJ Catalogue: http://katalog.datenjournalismus.net
