Web animations & state:

The secrets for a successful relationship

@gilfink @opherv

AngularUP 2018

Every relationship starts somewhere

State

Animation

Hi! I'm @gilfink

👨‍💻  Senior consultant

Microsoft MVP

📚  Author

CEO @

Hi! I'm @OpherV

🖥️  developer

🎸  musician

🖌️  designer

👾  gamer

Creative Developer @

What is animation?

Frames over time

Frames over time

F(   ) =

time

frame

Why use animation?

Because it's fun!

Animation is a tool to convey information

Sense of place

(where am I in the app)

Material Design | Choreography

https://material.io/design/motion/choreography.html#sequencing

Sense of action

(what just happened)

Meaningful Motion with Action-Driven Animation / Tobias Ahlin

http://tobiasahlin.com/blog/meaningful-motion-w-action-driven-animation/

Meaningful Motion with Action-Driven Animation / Tobias Ahlin

http://tobiasahlin.com/blog/meaningful-motion-w-action-driven-animation/

Meaningful Motion with Action-Driven Animation / Tobias Ahlin

http://tobiasahlin.com/blog/meaningful-motion-w-action-driven-animation/

Sense of state

(which behavior am I expecting next)

Material Design | Understanding motion

https://material.io/design/motion/understanding-motion.html#principles

Material Design | Understanding motion

https://material.io/design/motion/understanding-motion.html#principles

Sense of place

(where am I in the app)

Sense of action

(what just happened)

Sense of state

(which behavior am I expecting next)

What is state?

The current snapshot of the app's data

Handling app state is hard!

One component state changes

When State Goes Wrong...

Multiple component state changes

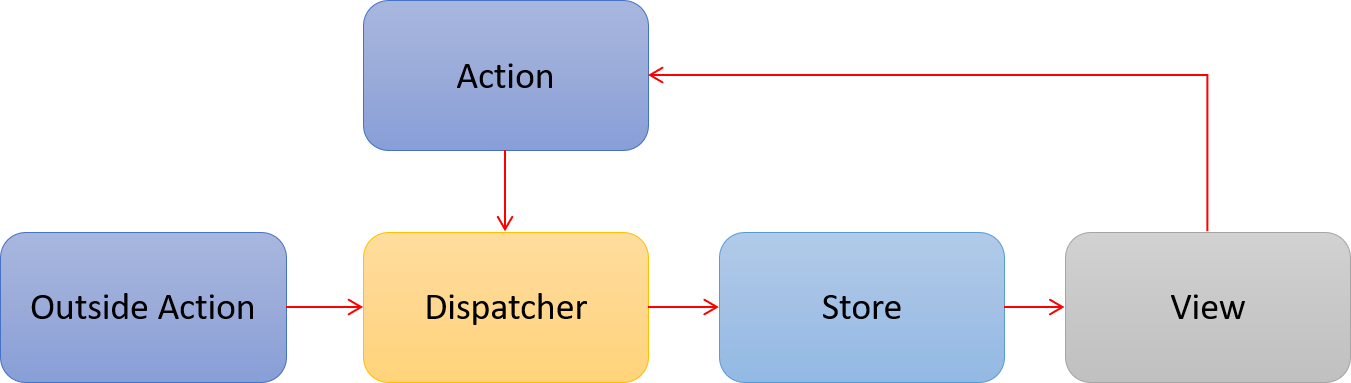

Unidirectional state changes to the rescue

Can we complicate that a little bit?

Redux

Flux

It's all comes down to

F(old state, action) = new state

Animation also  relates to state

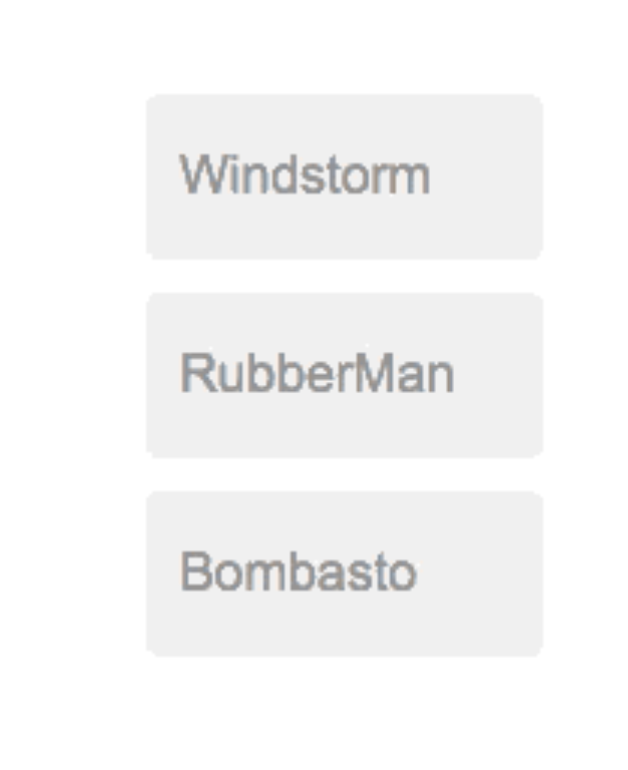

This is a list

animations: [
  trigger('flyInOut', [
    state('in', style({transform: 'translateX(0)'})),
    transition('void => *', [
      style({transform: 'translateX(-100%)'}),
      animate(100)
    ]),
    transition('* => void', [
      animate(100, style({transform: 'translateX(100%)'}))
    ])
  ])
]

Angular list animation
with state changes

https://angular.io/guide/animations

https://angular.io/guide/animations

But animation isn't always so trivial...

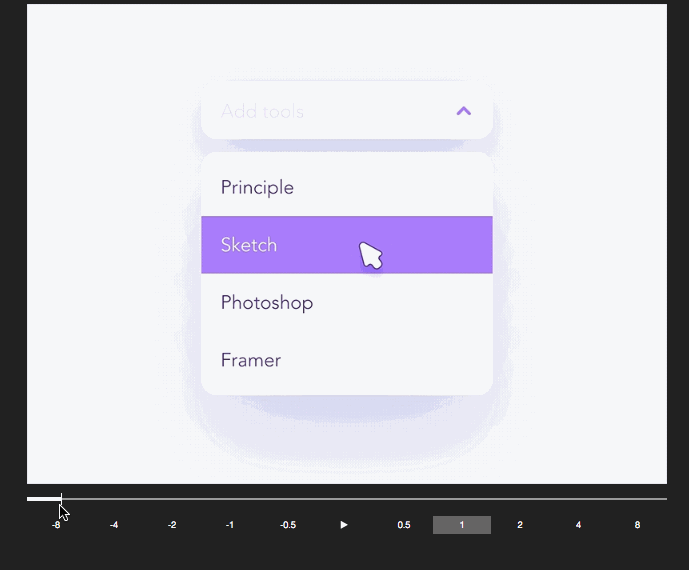

Graphics editor selection dropdown / Shakuro Digital Agency

https://dribbble.com/shots/4371972-Graphics-Editor-Selection-Drop-Down



Graphics editor selection dropdown / Shakuro Digital Agency

https://dribbble.com/shots/4371972-Graphics-Editor-Selection-Drop-Down



User clicks on option:

option gets added to the state

option disappear animation





Squash animation + Rectangle appear animation







Label expand animation





What happens if a user clicks a few options rapidly?

User clicks on option 2

option 1 gets added to the state

option disappear animation starts





????





User clicks on option 1

option 2 gets added to the state

The problem:

F(time) = frame

F(old state, action) = new state

“Temporality temporalizes as a future which makes present in the process of having been” ​

- Martin Heidegger

"Why aren't you here yet"

- My wife

Animation Timelines

Story time

Solution 1:

Skipping

Animation 1

Animation 2

action

Pro: Animation is always updated relative to the state

Solution 1:

Skipping

Con: Jumping between states/animation looks jerky

Solution 2:

Queuing

Animation 1

Animation 2

action

Pro: Animations will always flow fluidly

Solution 2:

Queuing

Con: UI might not reflect the current state;

          Animations play "catch-up" to the state

"Solution 3" :

Additive animation

Animation 1

Animation 2

action


http://ronnqvi.st/multiple-animations

Pro: Seamlessly joins two animations in a natural way

Solution 3:

Additive Animation

Con: Easy for single-element position-animation;

          however most animation systems don't fit into this paradigm

2.5 solutions:

Skipping

Queuing

Additive animation

Which to pick?

It's all about

managing expectations

Angular implementation

Demo

https://bit.ly/2t0ZoP3

Let's wrap it up

The problem:

F(time) = frame

F(old state, action) = new state

Possible solutions:

 Cut and skip animation

Queue animation

Additive animtion

Every relationship starts somewhere

You have to
manage expectations for it to work

Thank you!

@gilfink @OpherV
