The Pixel Pipeline

by Patryk Ziemkowski​ / Apptension

How is single frame rendered?

"What are the intermediate steps that browser takes to render the webpage I've coded? "

– You

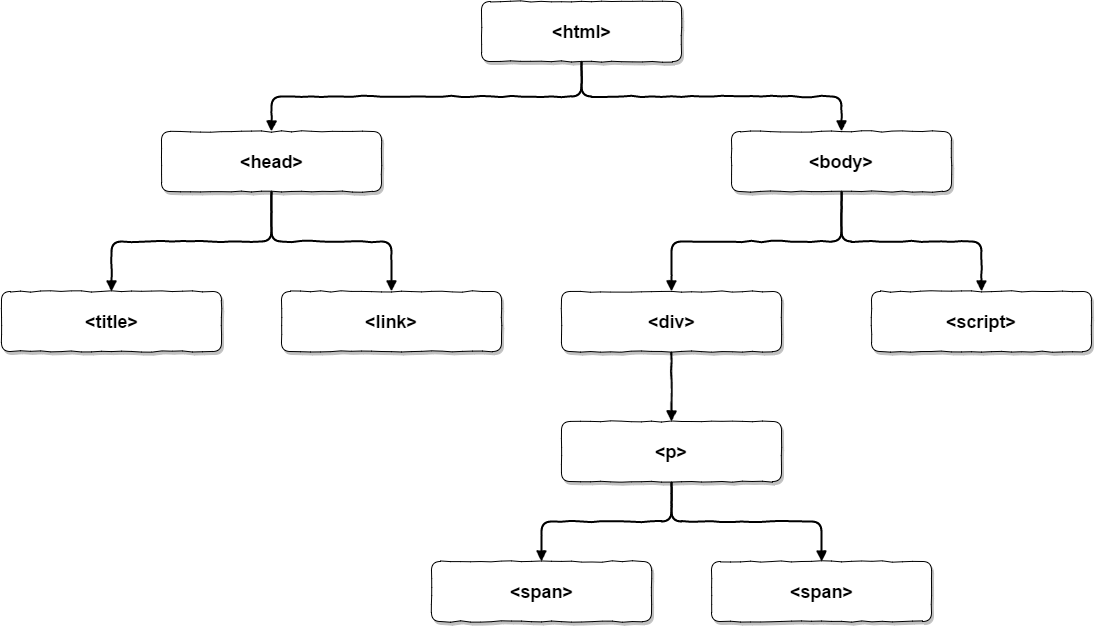

Document Object Model

Parse HTML

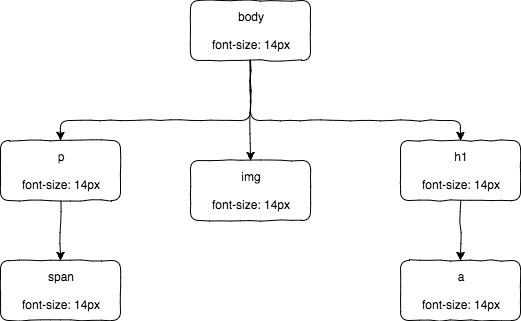

CSS Object Model

Parse Stylesheet

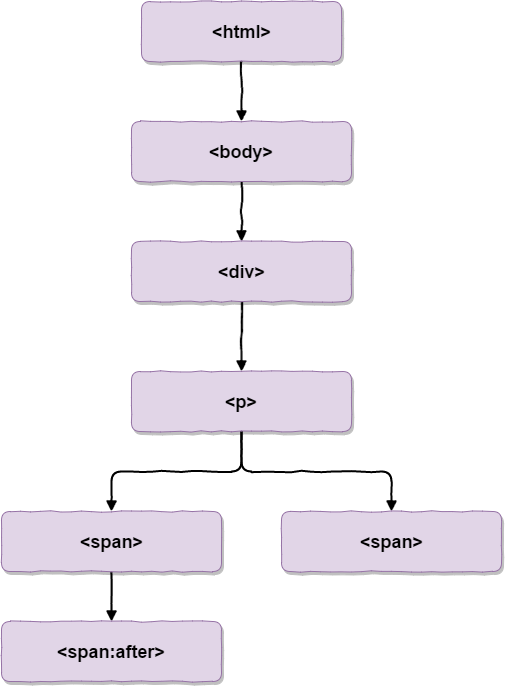

DOM + CSSOM = Render Tree

span.first::after {
    content: '';
}

Recalculate Style

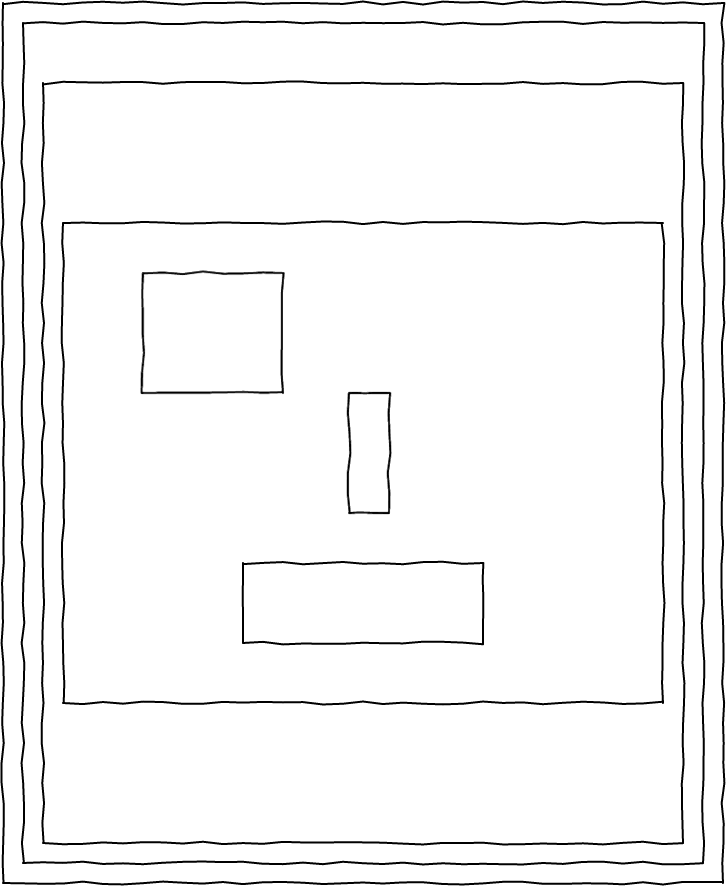

Layout (aka Reflow)

<html> <body>

<div>

<p>

<span>

<span:after>

<span>

Layout

Vector to raster

Paint

1. save
    2. translate
    3. drawRectangle
    4. drawRectangle
    5. drawRectangle
    6. drawText
    7. drawText
    8. save
        9. clipPath
        10. drawRoundedRectangle
    11. restore
    12. drawPath
    13. save
        14. clipRoundedRectangle
        15. drawBitmap
    16. restore
    17. translate
18. restore

Composite

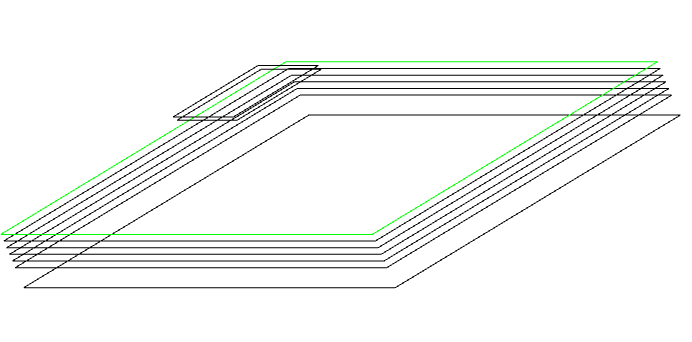

Composite Layers

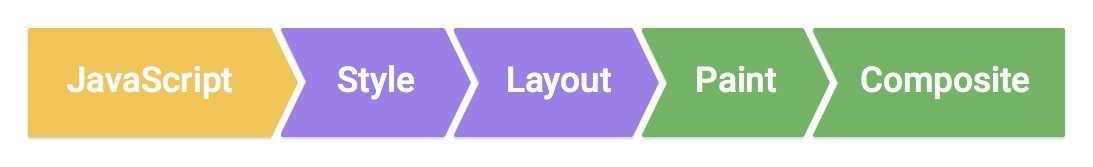

Pipeline flows

Complete

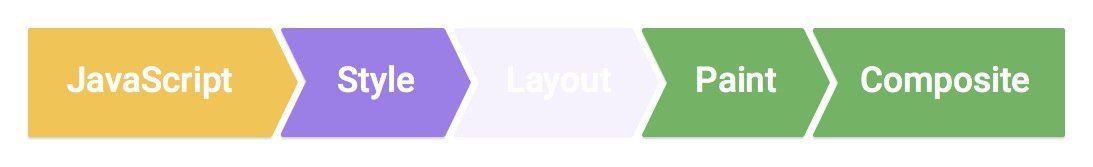

No layout

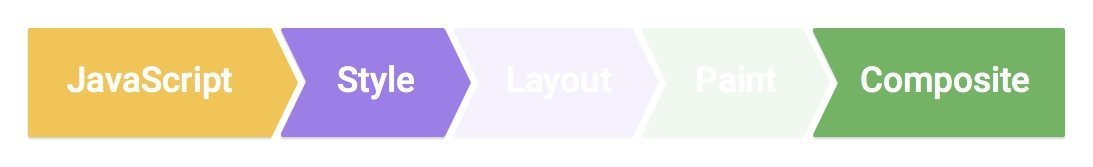

No layout no paint

CSS Triggers

Forced Synchronous Layout

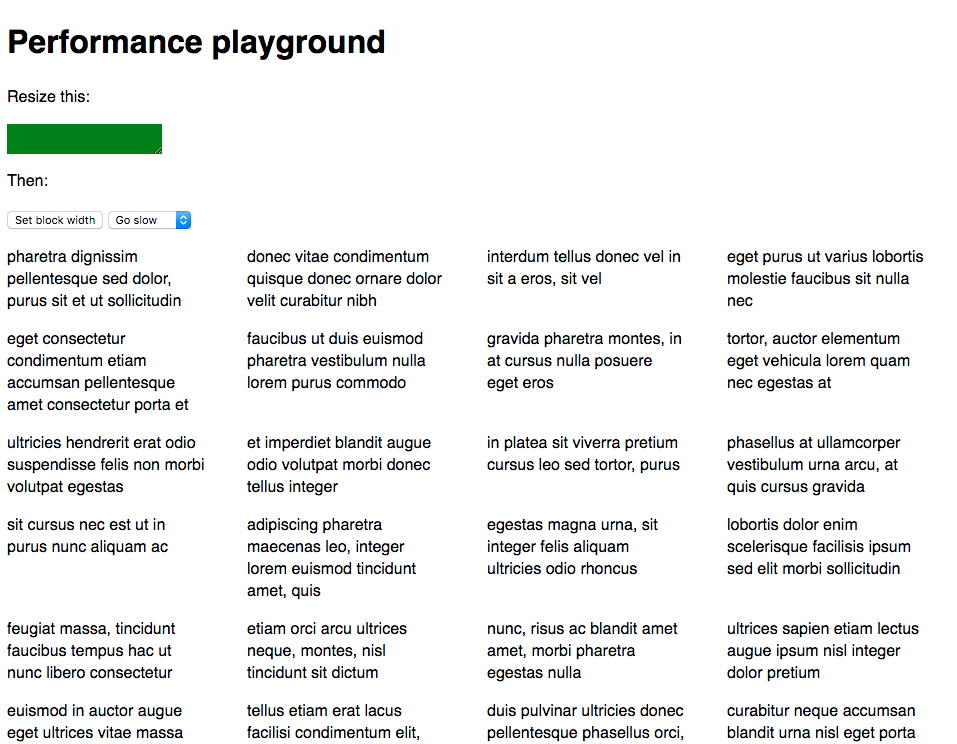

Example page

Layout thrashing

const paragraphs = document.querySelectorAll('p');
const greenBlock = document.querySelectorAll('.block');

for (let p = 0; p < paragraphs.length; p++) {
    const blockWidth = greenBlock.offsetWidth;
    paragraphs[p].style.width = blockWidth + 'px';
}

The fix

const paragraphs = document.querySelectorAll('p');
const greenBlock = document.querySelectorAll('block');

const blockWidth = greenBlock.offsetWidth;

for (let p = 0; p < paragraphs.length; p++) {
    paragraphs[p].style.width = blockWidth + 'px';
}

Q & A
