NativeScript

What is NativeScript?

Open Source framework for building truly native mobile applications.

NO DOM

NO WebViews

Just

PURE AWESOME

Native Views

YES PLEASE!

What is Vue?

A JavaScript MV framework

A bit like Angular 1

but only the good things

Vue is SIMPLE!

Learn it in less than a week

Two main units in Vue

Components

Directives

Pretty much everything is a component

for low-level DOM access

A simple Vue component

// Define a new component called todo-item
Vue.component('todo-item', {
  template: '<li>This is a todo</li>'
})

<ol>
  <!-- Create an instance of the todo-item component -->
  <todo-item></todo-item>
</ol>

A simple Vue directive

// Register a global custom directive called v-focus
Vue.directive('focus', {
  // When the bound element is inserted into the DOM...
  inserted: function (el) {
    // Focus the element
    el.focus()
  }
})

<!-- Use the focus directive on an input element -->
<input v-focus>

Vue is very powerful

Simple when you need it to be

Scales very well with larger applications

First-Party ecosystem

VueRouter

+

Vuex

How does Vue come into play with NativeScript?

Vue 2.x is DOM independent! :)

Virtual DOM is awesome!

NativeScript-Vue

An integration between NativeScript and Vue

In short, it's a custom renderer implementation for Vue

NativeScript

NativeScript-Vue

Vue

The only difference is the template*

Let's build an app!

Step 1: Initialize project

$ tns create hello-nativescript-vue --template tns-template-blank

Installing  tns-template-blank
+ tns-template-blank@3.2.0
added 4 packages in 1.182s
up to date in 0.125s
Project hello-nativescript-vue was successfully created.

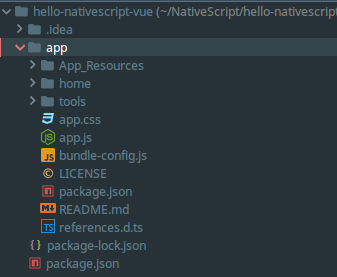

Step 2: Delete files we will not need

and clear out app.js

$ cd hello-nativescript-vue/app
$ rm bundle-config.js home -r
$ echo "" > app.js

Step 3: Let's add nativescript-vue

$ tns plugin add nativescript-vue
$ # or
$ npm install --save nativescript-vue
$ # or
$ yarn add nativescript-vue

Step 4: Let the fun begin

// app.js

const Vue = require('nativescript-vue');


const app = new Vue({
  template: `<page></page>`,
});

app.$start();

Step 5: Run the application

$ tns run android

Yay!

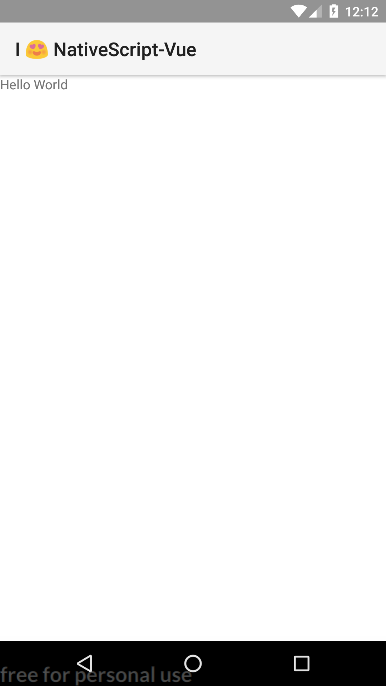

Let's add an action bar and a label

// app.js

const Vue = require('nativescript-vue');


const app = new Vue({
  template: `
    <page>
      <action-bar title="I 😍 NativeScript-Vue"></action-bar>
      <stack-layout>
        <label text="Hello World"></label>
      </stack-layout>
    </page>
  `,
});

app.$start();

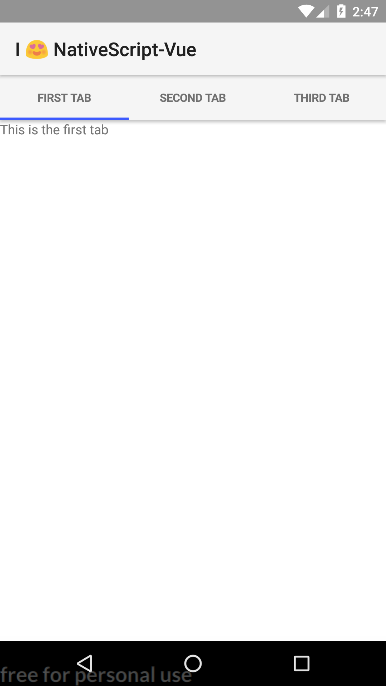

How about some tabs?

Make them dynamic?!

<page>
  <action-bar title="I 😍 NativeScript-Vue"></action-bar>
  <stack-layout>
    <tab-view>
      <!-- Dynamically populated tabs -->
      <tab-view-item v-for="tab in tabs" :title="tab.title">
        <label :text="tab.content"></label>
      </tab-view-item>
    </tab-view>
  </stack-layout>
</page>

const app = new Vue({
  template: `...`,

  data: {
    tabs: [
      { title: 'First Tab', content: 'This is the first tab' },
      { title: 'Second Tab', content: 'This is the second tab' },
      { title: 'Third Tab', content: 'This is the third tab' },
    ]
  }
});

We can add a tab header

<page>
  <action-bar title="I 😍 NativeScript-Vue"></action-bar>
  <stack-layout>
    <tab-view>
      <tab-view-item v-for="tab in tabs" :title="tab.title">
        <stack-layout>
          <stack-layout height="100"
                       :backgroundColor="tab.bgColor">

            <label :text="tab.title" class="tab-title"></label>

          </stack-layout>
          <!-- Will add something cool here -->
        </stack-layout>
      </tab-view-item>
    </tab-view>
  </stack-layout>
</page>

Let's add a List View

...
<stack-layout>
  <stack-layout height="100"
               :backgroundColor="tab.bgColor">

    <label :text="tab.title" class="tab-title"></label>

  </stack-layout>
  <!-- Will add something cool here -->
  <list-view :items="s(tab.listSource)">
    <template scope="contact">
      <stack-layout class="contact-list-item">

        <label :text="contact.name"
                class="contact-name"></label>

        <label :text="contact.phone"
                class="contact-phone"></label>

      </stack-layout>
    </template>
  </list-view>
</stack-layout>
...

After some cleanup

const app = new Vue({
  template: `...`,

  data: {
    tabs: [
      {
        title: 'Recent',
        listSource: 'recentContacts',
        bgColor: '#00aafc'
      },
      { title: 'All', ... },
      { title: 'Favorites', ... },
    ]
    contacts: [
      {
        name: 'John Doe',
        phone: '123 456 789',
        recent: true,
        favorite: true
      },
      // ...
    ],
  },

  // Next slide
  // ...
});

... continued

const app = new Vue({
  // ...
  // Next slide
  computed: {
    recentContacts() {
      return this.contacts.filter(c => c.recent);
    },
    favoriteContacts() {
      return this.contacts.filter(c => c.favorite);
    }
  },

  methods: {
    s(source) {
      return this[source];
    }
  }
});

Let's add a modal

<list-view :items="s(tab.listSource)" @itemTap="openContact">

methods: {
  s(source) {
    return this[source];
  },
  openContact(e) {
    const contact = e.item;

    this.$showModal({
      template: `<!-- On next slide -->`
    })
  }
}

Define the modal template

  <stack-layout width="90%" height="40%"
                style="background-color: #fff;">
    <stack-layout style="height: 150; background-color: #00aafc;">
      <label text="${contact.name}" class="tab-title"
            style="margin-top: 80;"></label>
    </stack-layout>

    <label text="Phone" style="margin: 10; font-size: 12;"></label>
    <label text="${contact.phone}" style="margin-left: 20;"></label>
  </stack-layout>

template: `

`

Let's see what we

made so far.

We want to be able to add new users

const ContactForm = {
  template: `


  `,
}

    <stack-layout width="90%" style="background-color: #fff;">
      <stack-layout style="height: 150; background-color: #00aafc;">
        <label :text="isNew ? 'Add Contact' : 'Edit Contact'" class="tab-title"
                style="margin-top: 80;"></label>
      </stack-layout>

      <label text="Name" style="margin: 10; font-size: 12;"></label>
      <text-field v-model="_contact.name" hint="Contact Name"></text-field>

      <label text="Phone" style="margin: 10; font-size: 12;"></label>
      <text-field v-model="_contact.phone" hint="Contact Phone"></text-field>

      <grid-layout columns="*, *" height="40">
        <button col="0" text="Cancel" @tap="cancel"></button>
        <button col="1" text="Save" @tap="save"></button>
      </grid-layout>
    </stack-layout>

const ContactForm = {
  template: `


  `,
}

Add the rest

const ContactForm = {
  props: {
    contact: {
      default() {
        return { name: '', phone: '', recent: false, favorite: false }
      }
    },
    isNew: Boolean
  },

  template: `...`,

  created() { this._contact = Object.assign({}, this.$props.contact) },

  data() {
    return {
      _contact: {},
    };
  },

  methods: {
    save() {
      this.$modal.close(this._contact);
    },
    cancel() {
      this.$modal.close();
    },
  }
};

Now we just use it

<action-bar title="I 😍 NativeScript-Vue">
  <action-item android.systemIcon="ic_menu_add" @tap="showForm()"></action-item>
</action-bar>

We can edit contacts

It's tedious to write your templates as string literals...

But there are .vue files to make your life easier

Single File Components

<template>
    <!-- Your components template goes here -->
</template>

<script>
    // Your JavaScript goes here
</script>

<style>
    /* Your CSS goes here */
</style>

<style scoped>
    /* Your scoped CSS goes here */
</style>

AwesomeComponent.vue

You can use them in nativescript too!

tns create nativescript-vue-app --template https://github.com/tralves/nativescript-vue-rollup-template

And finally, let me show you NativeScript Sidekick

An extension to the NativeScript CLI

Manage plugins

Debug apps using chrome devtools

Build apps locally and in the Cloud

Let me show you
