Implements of Linker for Process’s hotpath

RoyLuo

Why hotpatch?

Compile entire product image/package costly
- Just modify one line of one function
- Accelerate dev’s debugging
Reboot system to upgrade will suspend traffic
- Apply and valid instantly
Only support memory load ELF currently

Procedure(offline)

Compile .c to .o with functions which need to be patched
Link .o(obj) file by flowd’s executable file
- ELF analyze
- Symbol relocate
- Instruction modify
- Section layout(.text/.data/.bss/.rodata)
- output image
Pack image and patch info to a single package
- Comply with regular patch format(user-defined)

Procedure(online)

Load patch package into box
Parser patch (patch format)
Alloc patch memory area and copy image body
Drop RT-Threads into idle state
Modify two instructions of entrance of patched function
- j target
- nop
Invalid ICACHE and DCACHE
Restore RT-Threads into running state

Compile obj

test.c
xxx-gcc -mlong-calls -Wno-pointer-sign -Wno-error=address ………. –c test.c
test.o

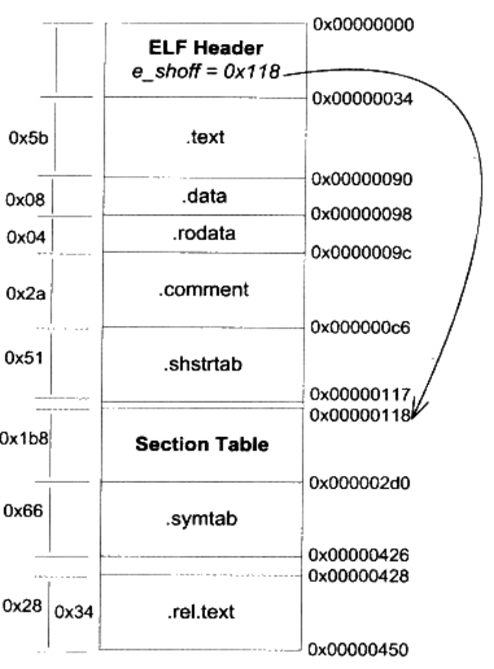

ELF background

Header
Section
Symbol table
String table

ELF Header

readelf -h test_mips.o

#define EI_NIDENT (16)

typedef struct
{
  unsigned char e_ident[EI_NIDENT];     /* Magic number and other info */
  Elf32_Half    e_type;                 /* Object file type */
  Elf32_Half    e_machine;              /* Architecture */
  Elf32_Word    e_version;              /* Object file version */
  Elf32_Addr    e_entry;                /* Entry point virtual address */
  Elf32_Off     e_phoff;                /* Program header table file offset */
  Elf32_Off     e_shoff;                /* Section header table file offset */
  Elf32_Word    e_flags;                /* Processor-specific flags */
  Elf32_Half    e_ehsize;               /* ELF header size in bytes */
  Elf32_Half    e_phentsize;            /* Program header table entry size */
  Elf32_Half    e_phnum;                /* Program header table entry count */
  Elf32_Half    e_shentsize;            /* Section header table entry size */
  Elf32_Half    e_shnum;                /* Section header table entry count */
  Elf32_Half    e_shstrndx;             /* Section header string table index */
} Elf32_Ehdr;

Section Header

readelf -S test_mips.o
readelf -S b.o

typedef struct
{
  Elf32_Word    sh_name;                /* Section name (string tbl index) */
  Elf32_Word    sh_type;                /* Section type */
  Elf32_Word    sh_flags;               /* Section flags */
  Elf32_Addr    sh_addr;                /* Section virtual addr at execution */
  Elf32_Off     sh_offset;              /* Section file offset */
  Elf32_Word    sh_size;                /* Section size in bytes */
  Elf32_Word    sh_link;                /* Link to another section */
  Elf32_Word    sh_info;                /* Additional section information */
  Elf32_Word    sh_addralign;           /* Section alignment */
  Elf32_Word    sh_entsize;             /* Entry size if section holds table */
} Elf32_Shdr;

sh_type

#define SHT_NULL          0               Section header table entry unused
#define SHT_PROGBITS      1               Program data
#define SHT_SYMTAB        2               Symbol table
#define SHT_STRTAB        3               String table
#define SHT_RELA          4               Relocation entries with addends
#define SHT_HASH          5               Symbol hash table
#define SHT_DYNAMIC       6               Dynamic linking information
#define SHT_NOTE          7               Notes
#define SHT_NOBITS        8               Program space with no data (bss)
#define SHT_REL           9               Relocation entries, no addends

sh_flags

#define SHF_WRITE            (1 << 0)        Writable
#define SHF_ALLOC            (1 << 1)        Occupies memory during execution
#define SHF_EXECINSTR        (1 << 2)        Executable
#define SHF_MERGE            (1 << 4)        Might be merged
#define SHF_STRINGS          (1 << 5)        Contains nul-terminated strings
#define SHF_INFO_LINK        (1 << 6)        `sh_info' contains SHT index

.text

xxx-objdump -d test.o

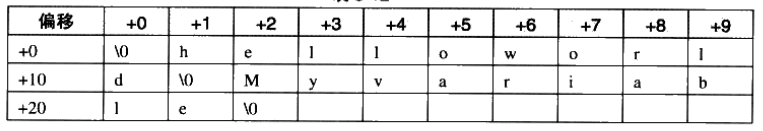

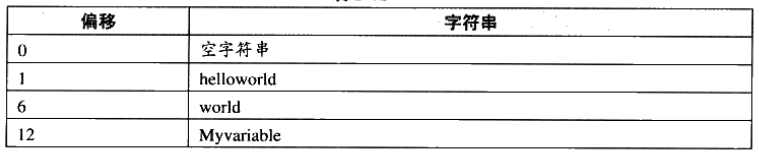

.strtab 字符串表

ELF文件中用到很多字符串，比如段名、变量名。因为字符串的长度往往是不固定的，所以用固定的结构来表示它比较困难。一种常见的做法就是把字符串集中起来存放到一个表，然后使用字符串在表中的偏移来引用。

.symtab 符号表

sh_value:符号的地址
sh_shndx: 符号所在的段在段表中的下标

typedef struct
{
  Elf32_Word    st_name;                /* Symbol name (string tbl index) */
  Elf32_Addr    st_value;               /* Symbol value */
  Elf32_Word    st_size;                /* Symbol size */
  unsigned char st_info;                /* Symbol type and binding */
  unsigned char st_other;               /* Symbol visibility */
  Elf32_Section st_shndx;               /* Section index */
} Elf32_Sym;

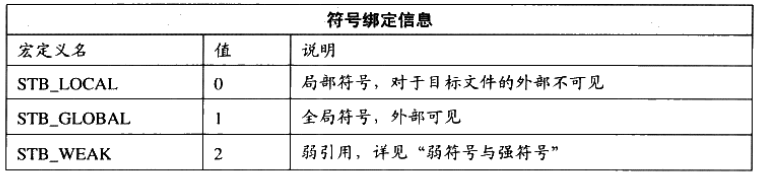

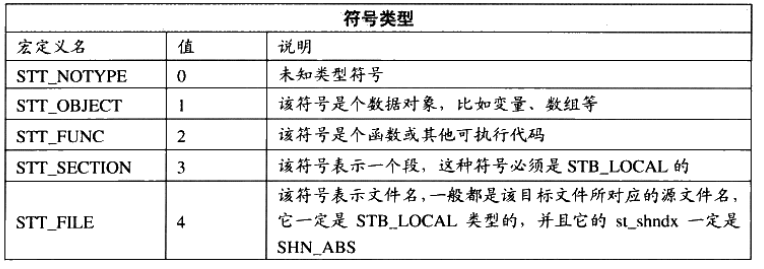

st_info

Text

#define ELF32_ST_BIND(val)              (((unsigned char) (val)) >> 4)
#define ELF32_ST_TYPE(val)              ((val) & 0xf)
#define ELF32_ST_INFO(bind, type)       (((bind) << 4) + ((type) & 0xf))

强/弱符号

函数和初始化了的全局变量为强符号
未初始化的全局变量为弱符号
__attribute__((weak))
强弱针对定义,而不针对声明

强/弱符号的链接选择

不允许多次定义强符号
- “multiple definition of “xxx””
如果一个符号在某个.o中是强符号,在其它.o中是弱符号,那么选择强符号
如果一个符号在所有.o中是弱符号,选择占用空间最大的一个
- int global;
- double global;

case

__attribute__ ((weak)) void foo();

int main()
{
	if (foo)
     foo();
}

COMMON 块

未初始化的全局变量
- 23: 00000004 4 OBJECT GLOBAL DEFAULT COM global_undef
Why not BSS?
obj_allocate_commons
- Find the bss section, if not exist, create one
- Allocate the COMMONS
- Allocate space for BSS

.rel.text 重定位表

readelf -r test_mips.o
readelf -r b.o
r_offset: 重定位入口的偏移,重定位入口所要修正的位置的第一个字节相对于段起始的偏移
r_info: 低8位表示重定位入口的类型，高24位表示重定位入口的符号在符号表中的下标
r_addend: 保存在被修正位置的值

typedef struct
{
  Elf32_Addr    r_offset;               /* Address */
  Elf32_Word    r_info;                 /* Relocation type and symbol index */
  Elf32_Sword   r_addend;               /* Addend */
} Elf32_Rela;

重定位入口的类型

#define R_MIPS_NONE             0              No reloc
#define R_MIPS_16               1              Direct 16 bit
#define R_MIPS_32               2              Direct 32 bit
#define R_MIPS_REL32            3              PC relative 32 bit
#define R_MIPS_26               4              Direct 26 bit shifted
#define R_MIPS_HI16             5              High 16 bit
#define R_MIPS_LO16             6              Low 16 bit
#define R_MIPS_GPREL16          7              GP relative 16 bit
#define R_MIPS_LITERAL          8              16 bit literal entry
#define R_MIPS_GOT16            9              16 bit GOT entry
#define R_MIPS_PC16             10             PC relative 16 bit
#define R_MIPS_CALL16           11             16 bit GOT entry for function
#define R_MIPS_GPREL32          12             GP relative 32 bit

-mlong-calls

xxx-gcc -mlong-calls -Wno-pointer-sign -Wno-error=address ………. –c test.c

R_MIPS_26

00000000 <function_handler>:
   0:   27bdffe8        addiu   sp,sp,-24
   4:   afbf0010        sw      ra,16(sp)
   8:   0c000000        jal     0 <function_handler>
   c:   00a02021        move    a0,a1
  10:   8fbf0010        lw      ra,16(sp)
  14:   00001021        move    v0,zero
  18:   03e00008        jr      ra
  1c:   27bd0018        addiu   sp,sp,24

R_MIPS_HI16/ R_MIPS_LO16

00000000 <function_handler>:
   0:   27bdffe8        addiu      sp,sp,-24
   4:   afbf0010        sw      ra,16(sp)
function_handler(m);
   8:   3c020000        lui      v0,0x0                   0x3c021813
   c:   24420000        addiu      v0,v0,0                  0x2442aa44
   10:   0040f809        jalr      v0
   14:   00a02021        move      a0,a1
   18:   8fbf0010        lw      ra,16(sp)
   1c:   00001021        move      v0,zero
   20:   03e00008        jr      ra
   24:   27bd0018        addiu      sp,sp,24

jal/jalr

Resource

https://github.com/royhunter/hotpatch_linker
程序员的自我修养—链接装载与库
insmod.c
- modutils 2.4.27
- ftp://ftp.kernel.org/pub/linux/utils/kernel/modutils/v2.4/
readelf.c

Variable relocate

	 static_yyy = 0;
2c:   3c020000        lui     v0,0x0                       0x3c025000
30:   ac400004        sw      zero,4(v0)                   0xac400094
	 static_zzz = 0;
34:   3c030000        lui     v1,0x0                       0x3c035000
38:   ac600000        sw      zero,0(v1)                   0xac600090
