Some Design Patterns in some JVM languages

Raúl Vázquez

@rvazquezglez

Agenda

  • Introduction to Design Patterns
  • Patterns
    • Decorator
    • Strategy
    • Command
    • Visitor
    • Observer
    • Builder
  • For each of them
    • Context and application
    • Implementation in Java
    • Alternative in other language

Patterns introduction

What is a Design Pattern?

A design pattern systematically names, motivates, and explains a general design that addresses a recurring design problem in object-oriented systems. It describes the problem, the solution, when to apply the solution, and its consequences. It also gives implementation hints and examples. The solution is a general arrangement of objects and classes that solve the problem. The solution is customized and implemented to solve the problem in a particular context.

What is a Design Pattern?

Templates that describe a design alternatives

Design patterns can be seen as a "play" or plan of action.

How it's implemented depends on the current game.

"Peter Norvig found that 16 of the 23 patterns in Design Patterns were 'invisible or simpler' in Lisp."

- Paul Graham, revenge of the nerds
http://www.paulgraham.com/icad.html

Decorator

Adds behavior to an individual object rather than to an entire class of objects—this allows us to change the behavior of an existing class.

Intent

To attach additional responsibilities to an object dynamically. Decorators provide a flexible alternative to subclassing for extending functionality.

Decorator class diagram

Alternatives

  • The decorator pattern can be replaced with an AOP framework.
  • At language level it can be replaced with function composition
    • Groovy: https://goo.gl/cFPWQ7

Examples

  • Java: https://goo.gl/fMmKhG

Strategy

Defines a family of algorithms, encapsulates each one, and makes them interchangeable. Strategy lets the algorithm vary independently from clients that use it.

Intent

Define an algorithm in abstract terms so it can be implemented in several different ways, and to allow it to be injected into clients so it can be used across several different clients.

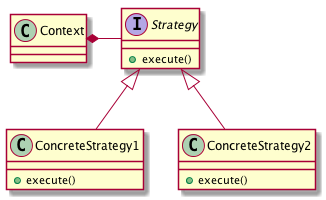

Strategy class diagram

Alternative

  • As with command, strategy interface and its concrete implementations can be replaced with a simple function
    • Scala: https://goo.gl/6eQ4Dp

Examples

  • Java: https://goo.gl/v24Tlt

Command

Command encapsulates an action along with the information needed to perform it.

Intent

To encapsulate a request as an object, thereby  letting you parameterize clients with different requests, queue or log requests, and support undoable operations.

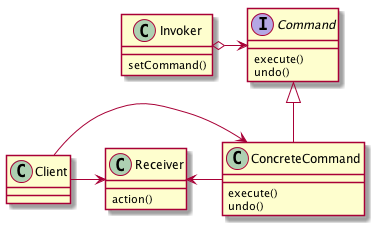

Command class diagram

The Client is responsible for creating a ConcreteCommand and setting its Receiver

The Invoker holds a command and at some point asks the command to carry out a request by calling its execute() method

Command declares an interface for all commands. A command is invoked through its execute() method, which asks a receiver to perform an action

void execute() {

        receiver.action();

}

The Receiver knows how to perform the work needed to carry out the request. Any class can act as a Receiver

The ConcreteCommand defines a binding between an action and a Receiver. The Invoker makes a request by calling execute() and the ConcreteCommand carries it out by calling one or more actions on the Receiver

The execute method invokes the action(s) on the receiver needed to fulfill the request

Alternative

  • The command interface and its concrete implementations can be replaced with a simple function
    • Scala: https://goo.gl/2f3e8c

Examples

  • Java: https://goo.gl/H5upK5

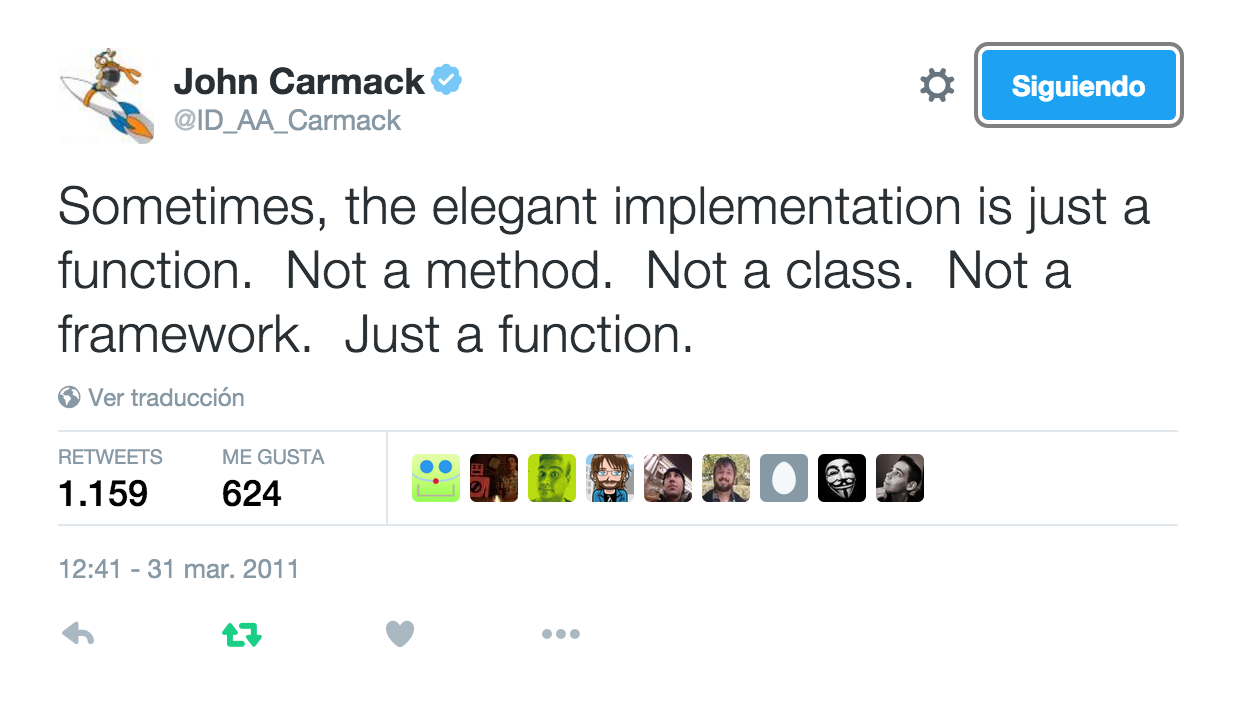

https://twitter.com/ID_AA_Carmack/status/53512300451201024

Visitor

When you want to add capabilities to a composite of objects and encapsulation is not important.

Intent

To encapsulate an action to be performed on a data structure in a way that allows the addition of new operations to the data structure without having to modify it.

Alternative

  • The visitor pattern can be replaced with pattern matching
    • Scala: https://goo.gl/ofjOnU

Examples

  • Java: https://goo.gl/4HBBK8

Observer

Publishers + Subscribers = Observer Pattern

Intent

Define a one-to-many dependency between objects so that when one object changes state, all its dependents are notified and updated automatically.
Encapsulate the core (or common or engine) components in a Subject abstraction, and the variable (or optional or user interface) components in an Observer hierarchy.
The "View" part of Model-View-Controller.

Alternative

  • The Observer Pattern can be replaced with an Event Bus
    • Groovy + VertX: https://goo.gl/4RCE8F

Examples

  • Java: https://goo.gl/44Hd1k

Builder

Encapsulates the construction of a product and allow it to be constructed in steps

Intent

Separate the construction of a complex object from its representation so that the same construction process can create different representations.

Solution to Telescoping Constructor anti-pattern

Create an immutable object using a friendly syntax

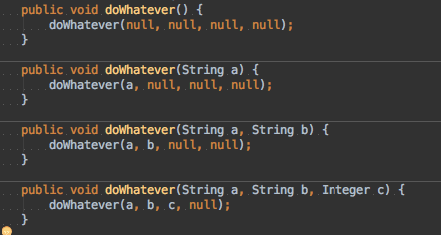

Telescopic constructor anti pattern

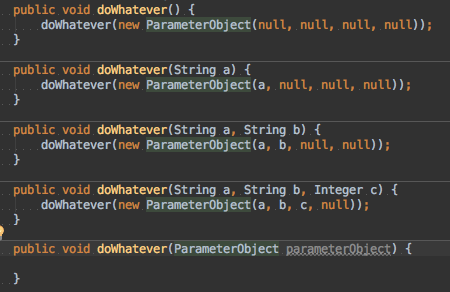

Refactor in conjunction with parameter object

Alternatives

  • Any language that supports constructor with named parameters also addresses the telescoping constructor anti-pattern
    • Scala: https://goo.gl/XzytYK
  • Instead of using inmutable objects you can use a Clojure map, inmutable by default
    • Clojure: https://goo.gl/sGj0dP

Examples

  • Java: https://goo.gl/iEayu0

Sources

  • Design Patterns: Elements of Reusable Object-Oriented Software
    by John Vlissides, Ralph Johnson, Richard Helm, Erich Gamma
    https://www.safaribooksonline.com/library/view/design-patterns-elements/0201633612/


  • Functional Programming Patterns in Scala and Clojure
    by Michael Bevilacqua-Linn
    https://www.safaribooksonline.com/library/view/functional-programming-patterns/9781941222416/


  • Are patterns missing language features?
    http://c2.com/cgi/wiki?AreDesignPatternsMissingLanguageFeatures


  • Deprecating the observer pattern
    by Ingo Maier & Martin Odersky

    http://infoscience.epfl.ch/record/176887/files/DeprecatingObservers2012.pdf
  • https://twitter.com/wdonet/status/678809939268141056
