In the beginning...

© vngrp.deviantart.com

Getting colder...

© www.universetoday.com

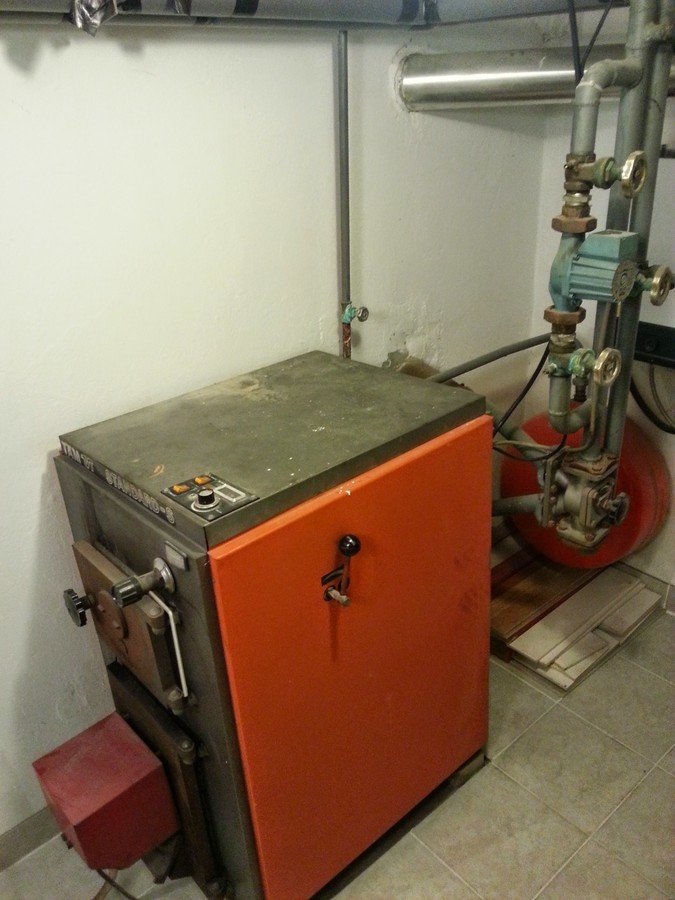

1st Home Heating Project

© LupusUVA1Phototherapy.com

And a "few" years later...

© Nest Labs

• Convenience
• Savings
• Learning
• Conversation
  material

• Automatic regulation
• Remote control
• Mild
  temperatures

• Improved
  efficiency

• Reduced
  overheating

• Electronics
• Coding
• Integration
• Project Management

All things are created twice; first mentally; then physically. The key to creativity is to begin with the end in mind, with a vision and a blue print of the desired result.

— Stephen Covey

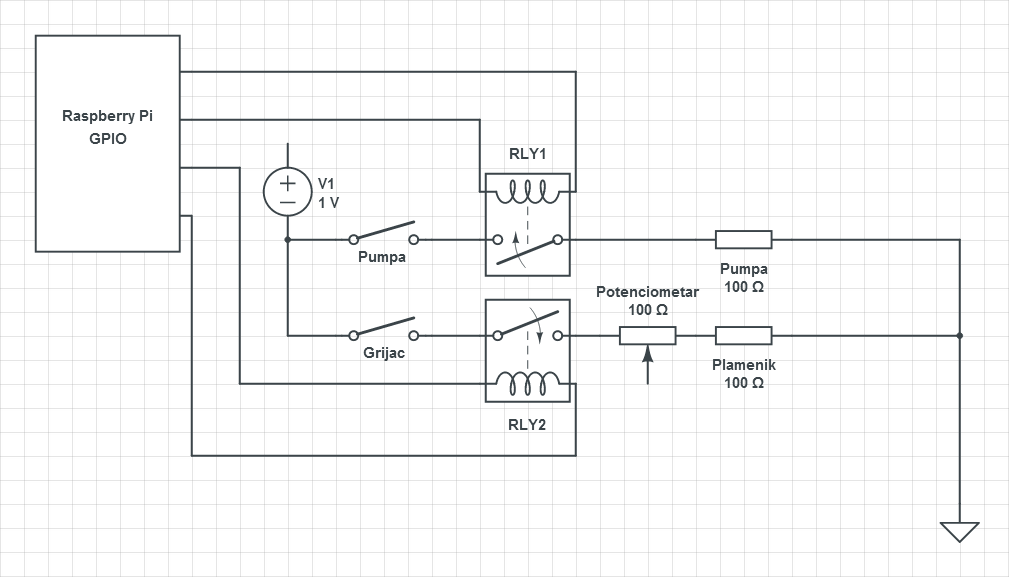

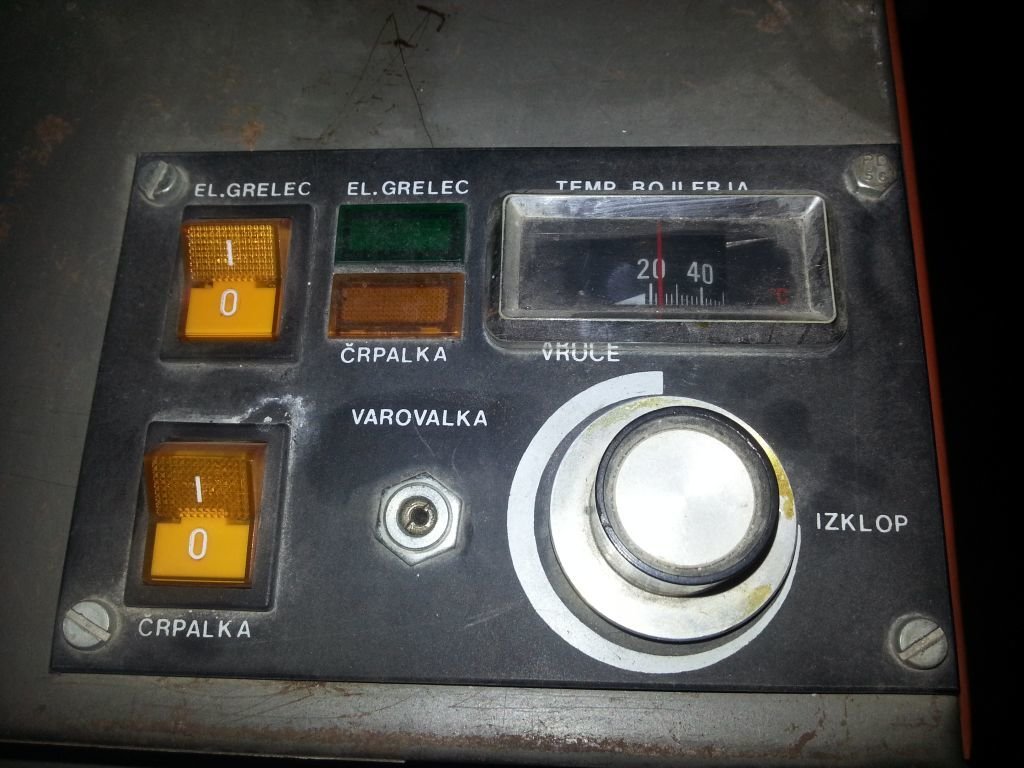

The scheme

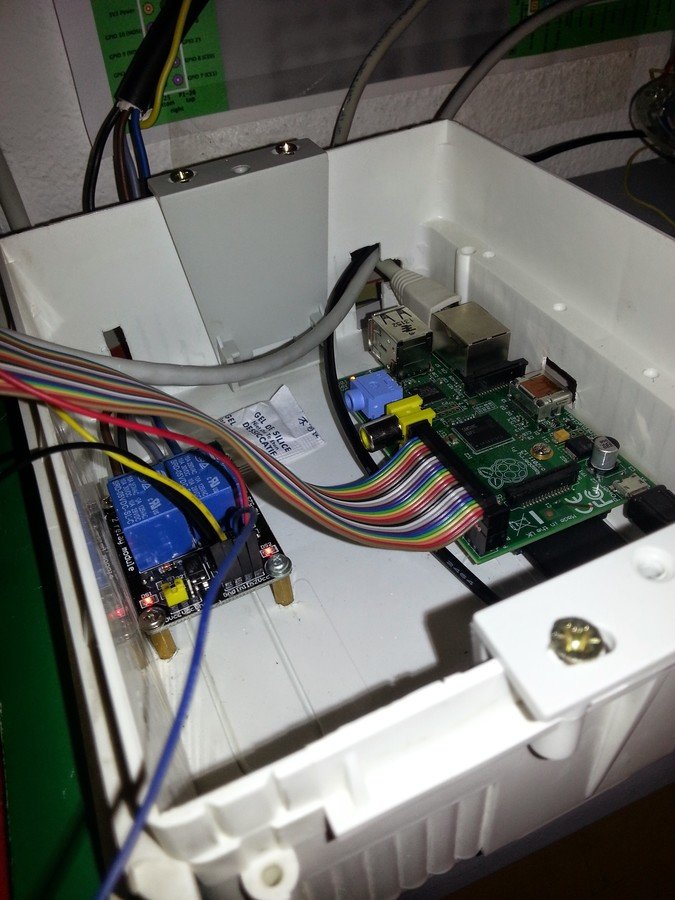

Proof of concept

#!/bin/bash

# turn heater on
echo 11 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio11/direction
echo 1 > /sys/class/gpio/gpio11/value

# turn pump on
echo 12 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio12/direction
echo 1 > /sys/class/gpio/gpio12/value

What else do I want?

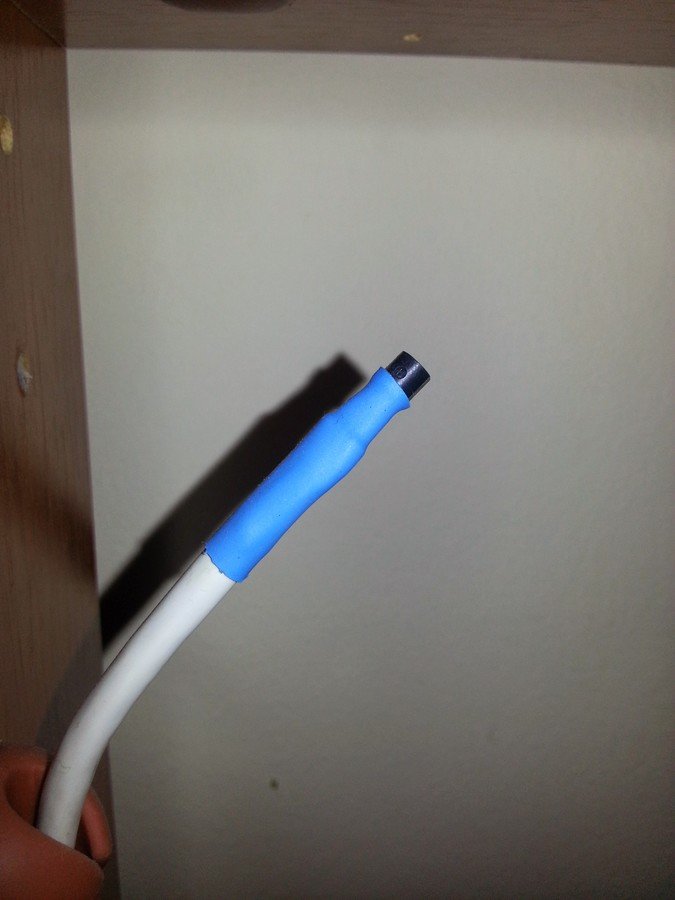

• Room temp. feedback

• Automation

What else do I want?

• Room temp. feedback
• Program logic
• Run as a service
• Web app

• Automation
• Profiles/presets
• Always-on
• More convenient UI

Software Requirements:

• Communicate with GPIO
• Access 1-wire/OWFS
• Access to Round Robin Database
• Provide web access

Architecture decision:

• Python
• Java
• JavaScript

• too novice for it
• too much overhead
• bingo! :-)

Requirements:

• Communicate with GPIO
• Access 1-wire/OWFS
• Access to Round Robin Database
• Provide web access

Node.js:

• pi-gpio (3rd pary module)
• child_process.exec
• child_process.exec

• express (3rd pary module)

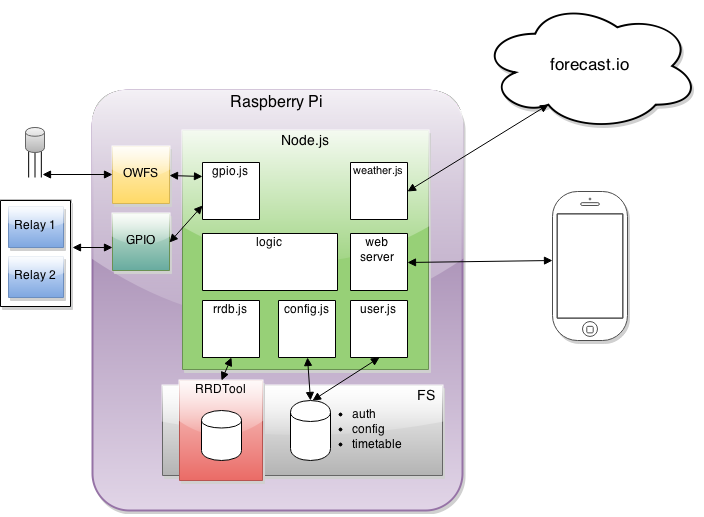

System parts

• Backend
• Frontend

The code!

• dependencies
• deployment
• installation
• configuration

// imports

var app = express();

app.use(express.static(config.public_dir));

// <some context initialization here>

// routes
app.get('/get_state', function(req, res) {
  console.log('/get_state');

  res.json(getState());
});

// <more routes>

app.get('/', function(req, res) {
  res.render('index.html');
});

// Express route for any other unrecognised incoming requests
app.get('*', function(req, res) {
  res.status(404).send('Unrecognised API call');
});

// <some error handling here>

app.listen(3000);
console.log('App Server running at port 3000');

app/app.js (web app & routes setup)

function getState() {
  var state = {
    "temp_preset": last_temp_preset,
    "temp_living": last_temp_living,
    "temp_osijek": last_temp_osijek,
    "overrideSwitch": config.overrideSwitch,
    "heatingSwitch": config.heatingSwitch,
    "holidaySwitch": config.holidaySwitch,
    "updated": new Date().getTime()
  };

  return state;
}

var tempRegulateInterval;
var tempCollectInterval;

function initTimers() {
  console.log('initTimers()');

  tempRegulateInterval = setInterval(function() {
    collectAndRegulateTemp();
  }, config.regulate_interval); // 30 s

  tempCollectInterval = setInterval(function() {
    collectAndRecordCurrTemps();
  }, config.collect_record_interval); // 2 min
}

app/app.js (start periodic updates)

function collectAndRegulateTemp() {
  var ts = Math.round(new Date().getTime() / 1000);

  gpio_tools.getTempLiving(last_temp_living, function(value) {
    last_temp_living = value;

    if (!config.overrideSwitch) {
      last_temp_preset = config.getTimeTableTemp();
    }

    // regulate on/off
    gpio_tools.regulateHeating(
      config.shouldStartHeating(undefined, last_temp_preset, last_temp_living, last_temp_osijek)
    );
  });

  gpio_tools.getHeaterState(function(state) {
    rrdb_tools.insertState(ts, state ? 1 : 0);
  });
}

app/app.js (periodically: read temp. & regulate heating)

var getTempLiving = function(last_temp_living, cb) {
  var readStr = "cat /sys/bus/w1/devices/" + tempLivingSensorId + "/w1_slave";

  var tempLiving;
  execute(readStr, function(out, err) {
    if (err) {
      console.error(err);
      tempLiving = last_temp_living;
    } else {
      var lines = out.replace(/\r\n/g, "\n").split("\n");

      if (lines == null || lines.length != 3) {
        console.error('  ERROR: Wrong sensor readout format.');
        tempLiving = last_temp_living;
      } else {
        // 46 01 4b 46 5f ff 0a 10 f5 : crc=f5 YES
        // 46 01 4b 46 5f ff 0a 10 f5 t=20375

        var crc_OK = lines[0].substring(lines[0].length - 3) == "YES";

        // logging and error handling removed for brevity

        var temp = lines[1].substring(lines[1].indexOf('t=') + 2);

        tempLiving = parseFloat(temp / 1000).toFixed(1);
      }
    }

    cb(tempLiving);
  });
};

app/gpio-tools.js (read the temperature)

function collectAndRegulateTemp() {
  var ts = Math.round(new Date().getTime() / 1000);

  gpio_tools.getTempLiving(last_temp_living, function(value) {
    last_temp_living = value;

    if (!config.overrideSwitch) {
      last_temp_preset = config.getTimeTableTemp();
    }

    // regulate on/off
    gpio_tools.regulateHeating(
      config.shouldStartHeating(undefined, last_temp_preset, last_temp_living, last_temp_osijek)
    );
  });

  gpio_tools.getHeaterState(function(state) {
    rrdb_tools.insertState(ts, state ? 1 : 0);
  });
}

app/app.js (periodically: read temp. & regulate heating)

var shouldStartHeating = function(millis, temp_preset, temp_living, temp_osijek) {
  var should = false;

  if (temp_preset > temp_living) {
    should = true;
  } else {
    // ???
  }

  return should;
};

app/config-tools.js (should I stay or should I go burn?)

// we're above preset temp, but next preset could require heating --> check it
var target = getNextTimeTable(now);

if (target.temp > temp_living && target.temp > temp_preset) {
  // see how much we should heat for
  var tempDiffToReach = parseFloat((target.temp - temp_living).toFixed(2));

  var delta = parseFloat((target.temp - temp_osijek).toFixed(2));

  var Cph = 3 - (0.1 * delta);
  if (Cph < 0.5) {
    Cph = 0.5;
  }

  // see how long to reach that temp
  var timeToReachTempDiff = parseFloat((tempDiffToReach / Cph).toFixed(2));

  var hourMillis = 60 * 60 * 1000;
  var timeToReachTempDiffMillis = Math.round(timeToReachTempDiff * hourMillis);

  var target_hour = target.from[0];
  var target_minute = target.from[1];
  // if target is tomorrow, add 1 day
  var target_date = new Date(now.getFullYear(), now.getMonth(), target_hour < now.getHours() ?
    now.getDate() + 1 : now.getDate(), target_hour, target_minute, 0, 0);
  var shouldStartAt = target_date.getTime() - timeToReachTempDiffMillis;

  if (shouldStartAt < now.getTime()) {
    should = true;
  }
}

app/config-tools.js (the "smart" part in smart heating)

function collectAndRegulateTemp() {
  var ts = Math.round(new Date().getTime() / 1000);

  gpio_tools.getTempLiving(last_temp_living, function(value) {
    last_temp_living = value;

    if (!config.overrideSwitch) {
      last_temp_preset = config.getTimeTableTemp();
    }

    // regulate on/off
    gpio_tools.regulateHeating(
      config.shouldStartHeating(undefined, last_temp_preset, last_temp_living, last_temp_osijek)
    );
  });

  gpio_tools.getHeaterState(function(state) {
    rrdb_tools.insertState(ts, state ? 1 : 0);
  });
}

app/app.js (periodically: read temp. & regulate heating)

var regulateHeating = function(turnOn) {
  if (!config.heatingSwitch) {
    getHeaterState(function(heaterState) {
      if (heaterState) {
        setHeaterState(0);
      }
    });

    return;
  }
  getHeaterState(function(heaterState) {
    if (turnOn) {
      if (!heaterState) {
        clearTimeout(pumpOffTimeout);

        setPumpState(1);

        setTimeout(function() {
          setHeaterState(1);
        }, 3000); // 3s
      } else {
        getPumpState(function(pumpState) {
          if (!pumpState) {
            setPumpState(1);
          }
        });
      }
    } else {
      if (heaterState) {
        setHeaterState(0);

        pumpOffTimeout = setTimeout(function() {
          setPumpState(0);
        }, config.delay_pump_off);
      }
    }
  });
};

app/gpio-tools.js

var getHeaterState = function(cb) {
  gpio.read(gpioPinHeater, function(err, value) {
    if (err) throw err;
    if (typeof(cb) == "function") {
      cb(value);
    }
  });
};

var setHeaterState = function(value, cb) {
  gpio.write(gpioPinHeater, value, function(err) {
    if (err) throw err;

    if (typeof(cb) == "function") {
      cb();
    }
  });
};

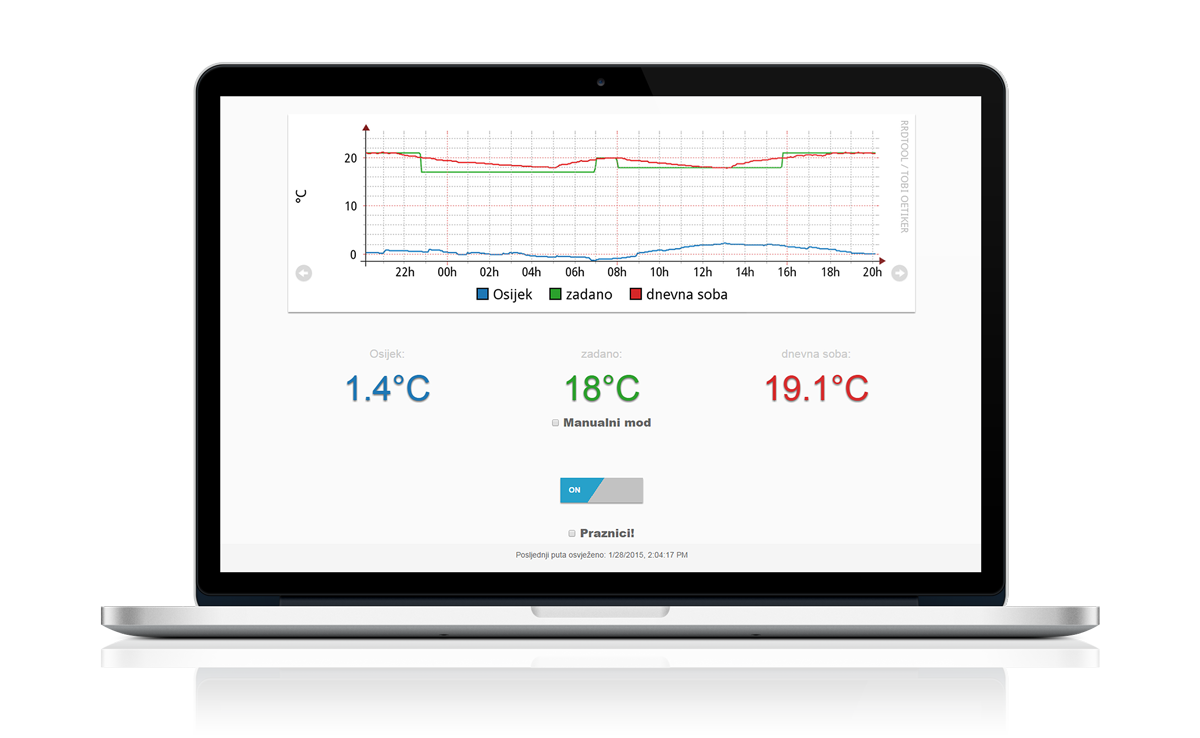

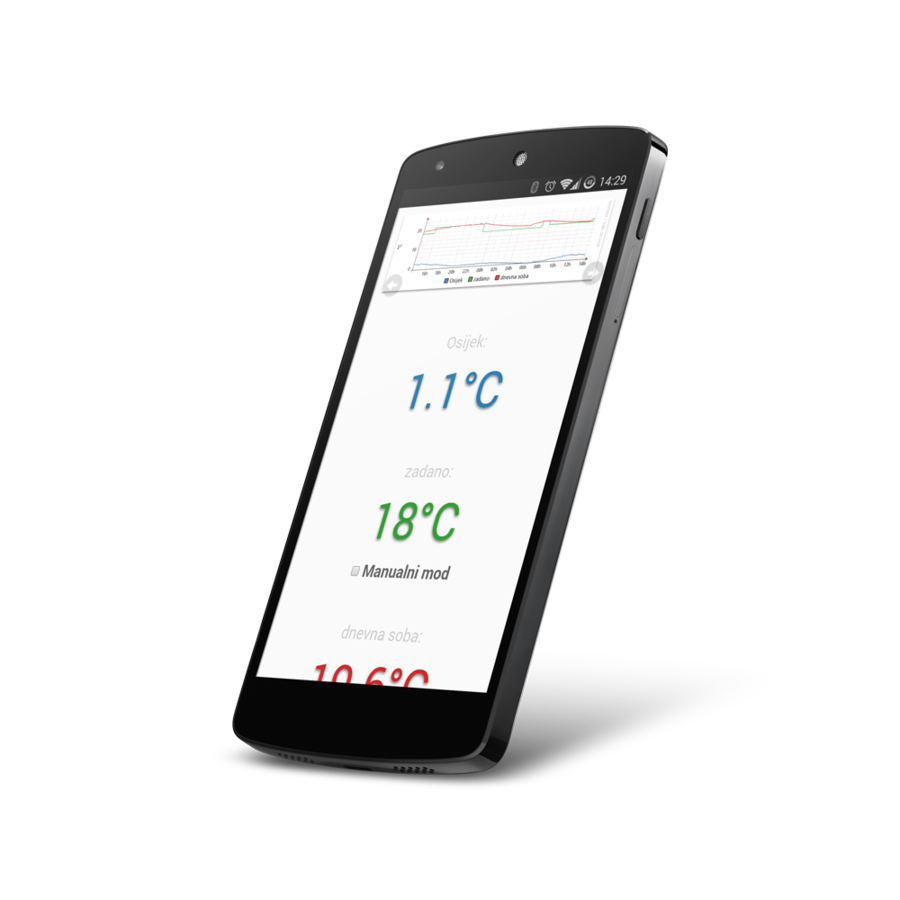

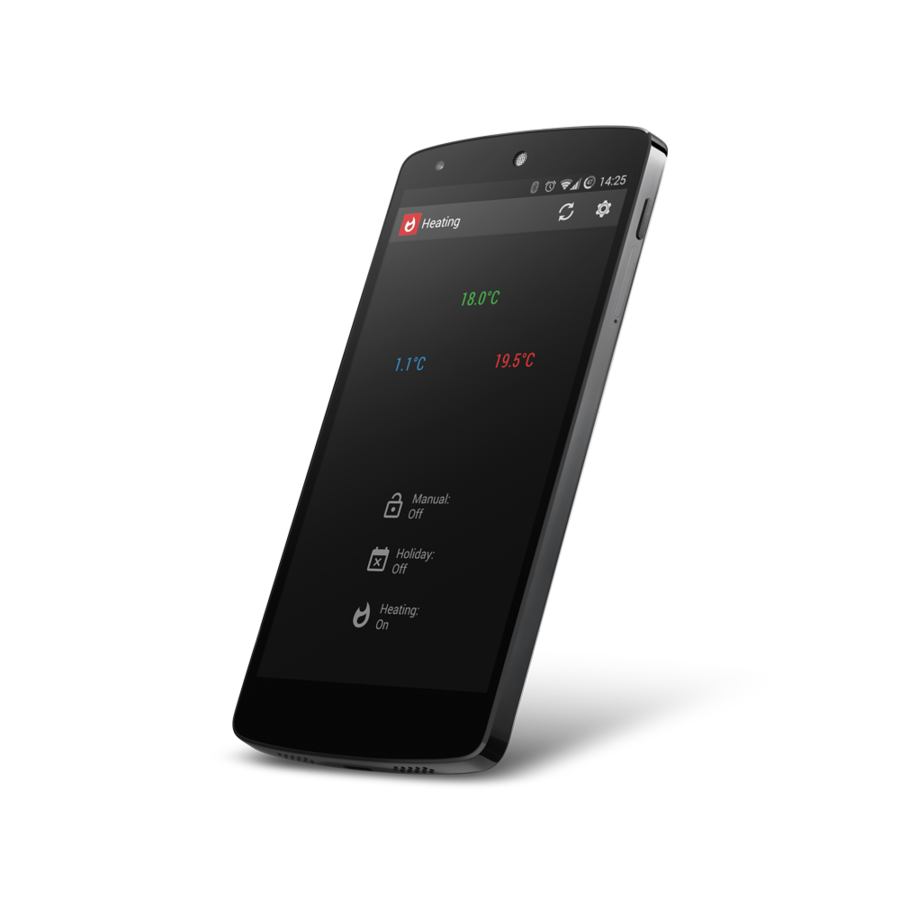

Simple User Interface

Browser: accessible from everywhere

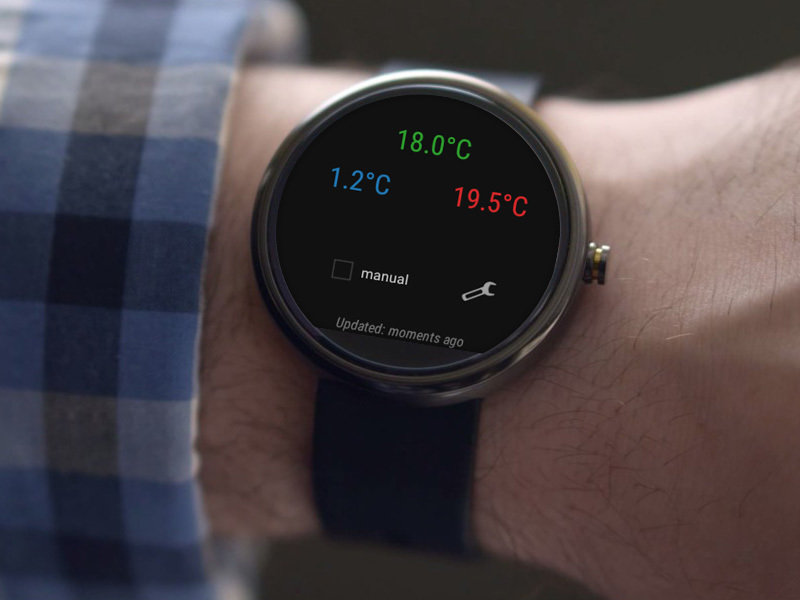

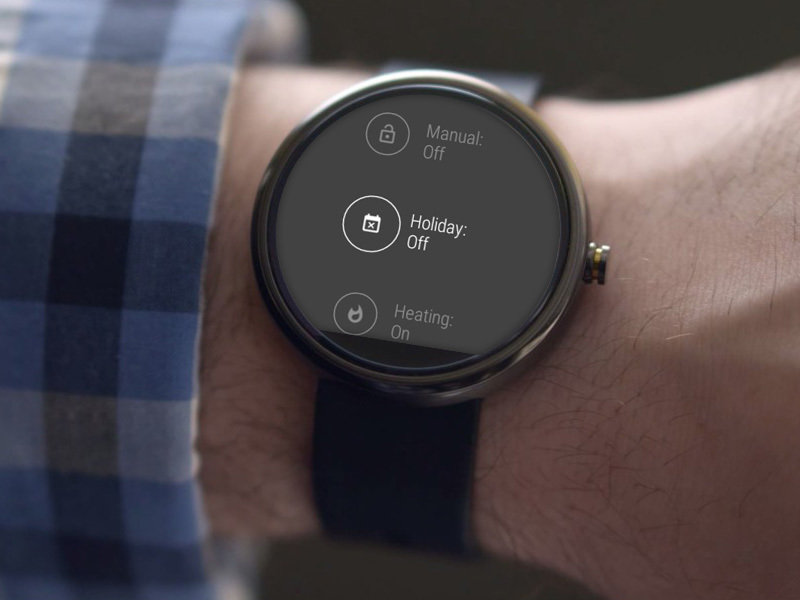

Native Android App

Convenience

Savings

Learning

• Improved
  efficiency

• Reduced
  overheating

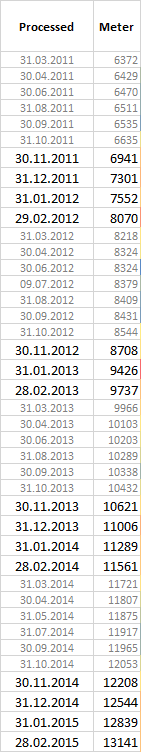

Gas consumption readings for last 4 years.
