CHAPTER 4
cookbooks are the packages with recipes and supporting files
have 1:1 mapping with the applications
let you create modular code
recipes
files
templates
attributes
spec
test
README
metadata
chef is a utility which comes with code generator
chef generate can let you create cookbooks, templates, attributes etc.
root@int01:/workspace/chap5# chef generate
Usage: chef generate GENERATOR [options]
Available generators:
app Generate an application repo
cookbook Generate a single cookbook
recipe Generate a new recipe
attribute Generate an attributes file
template Generate a file template
file Generate a cookbook file
lwrp Generate a lightweight resource/provider
repo Generate a Chef code repository
policyfile Generate a Policyfile for use with the install/push commands
generator Copy ChefDK's generator cookbook so you can customize it
build-cookbook Generate a build cookbook for use with Delivery
You have been asked to deploy a java application server with tomcat. You have been tasked to create automation code with chef to set it up.
Problem Statement
Solution:
One repo per App
COOKBOOK
APP
One repo per cookbook
.
`-- sysfoo
|-- README.md
|-- cookbooks
| `-- sysfoo
| |-- Berksfile
| |-- chefignore
| |-- metadata.rb
| |-- recipes
| | `-- default.rb
| `-- spec
| |-- spec_helper.rb
| `-- unit
| `-- recipes
| `-- default_spec.rb
`-- test
`-- recipes
`-- default_test.rb.
`-- mycookbook
|-- Berksfile
|-- README.md
|-- chefignore
|-- metadata.rb
|-- recipes
| `-- default.rb
|-- spec
| |-- spec_helper.rb
| `-- unit
| `-- recipes
| `-- default_spec.rb
`-- test
`-- recipes
`-- default_test.rbchef generate app sysfoo.
`-- sysfoo
|-- README.md
|-- cookbooks
| `-- sysfoo
| |-- Berksfile
| |-- chefignore
| |-- metadata.rb
| |-- recipes
| | `-- default.rb
| `-- spec
| |-- spec_helper.rb
| `-- unit
| `-- recipes
| `-- default_spec.rb
`-- test
`-- recipes
`-- default_test.rb cd sysfoo
chef generate cookbook cookbooks/java
chef generate cookbook cookbooks/tomcat
root@ws:/workspace/sysfoo# tree
.
|-- README.md
|-- cookbooks
| |-- java
| | |-- Berksfile
| | |-- README.md
| | |-- chefignore
| | |-- metadata.rb
| | |-- recipes
| | | `-- default.rb
| | |-- spec
| | | |-- spec_helper.rb
| | | `-- unit
| | | `-- recipes
| | | `-- default_spec.rb
| | `-- test
| | `-- recipes
| | `-- default_test.rb
| |-- sysfoo
| | |-- Berksfile
| | |-- chefignore
| | |-- metadata.rb
| | |-- recipes
| | | `-- default.rb
| | `-- spec
| | |-- spec_helper.rb
| | `-- unit
| | `-- recipes
| | `-- default_spec.rb
| `-- tomcat
| |-- Berksfile
| |-- README.md
| |-- chefignore
| |-- metadata.rb
| |-- recipes
| | `-- default.rb
| |-- spec
| | |-- spec_helper.rb
| | `-- unit
| | `-- recipes
| | `-- default_spec.rb
| `-- test
| `-- recipes
| `-- default_test.rb
`-- test
`-- recipes
`-- default_test.rb
22 directories, 24 files cookbooks
tomcat
recipes
default.rb
????
????
cookbooks
tomcat
recipes
default.rb
install.rb
config.rb
service.rb
deploy.rb
ssl.rb
package 'java-1.7.0-openjdk' do
action :install
endfile: cookbooks/java/recipes/install.rb
now that we have written the recipe, we need a local environment to test this

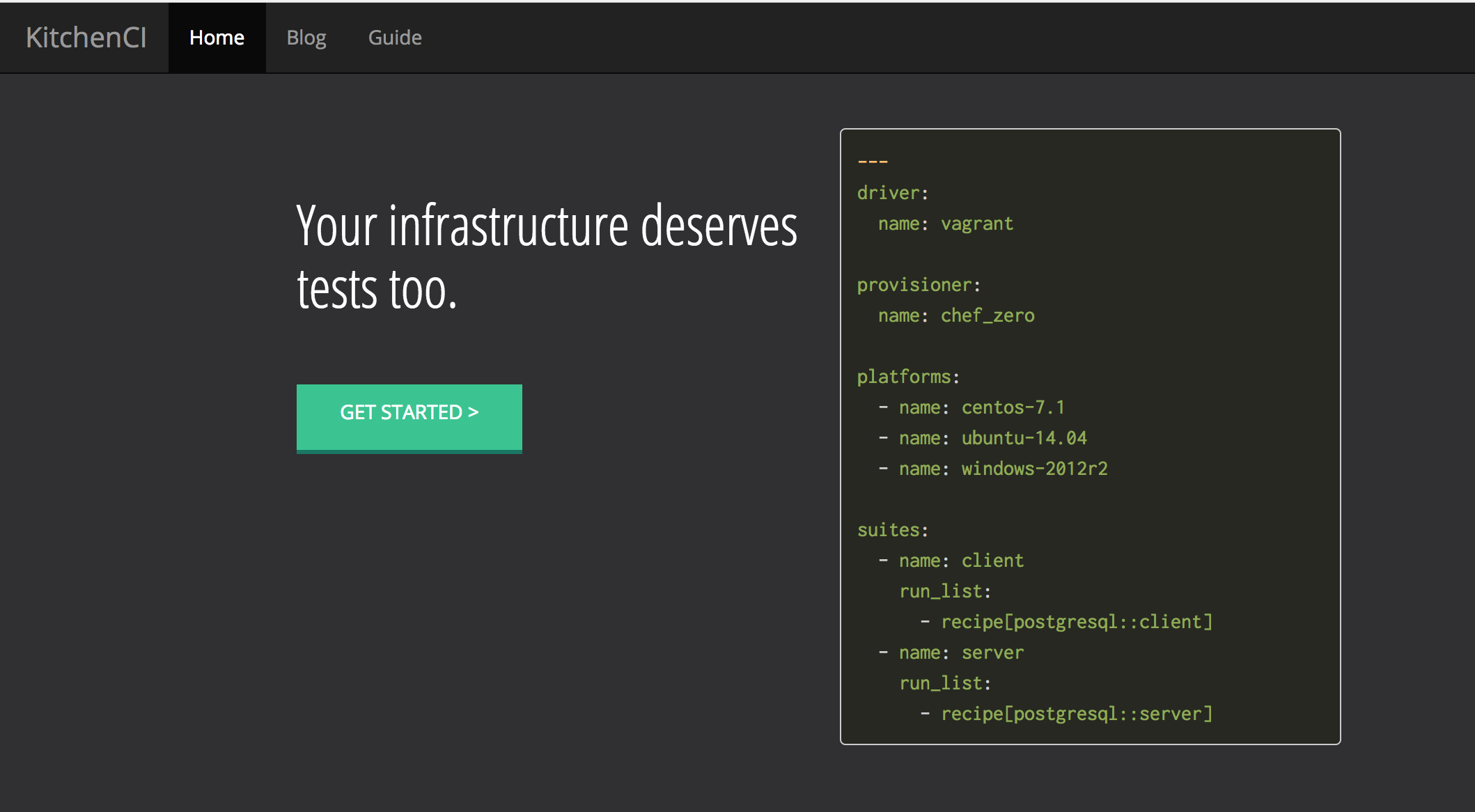

kitchen.ci
---
driver:
name: docker
provisioner:
name: chef_zero
# You may wish to disable always updating cookbooks in CI or other testing environments.
# For example:
# always_update_cookbooks: <%= !ENV['CI'] %>
always_update_cookbooks: true
verifier:
name: inspec
platforms:
- name: centos-6.8
driver_config:
image: codespaces/chef-node-centos-6
forward:
- 8080:8080
suites:
- name: default
run_list:
- recipe[sysfoo::default]
verifier:
inspec_tests:
- test/recipes
attributes:
Edit the ".kitchen.yml" file in "/sysfoo/kitchen.yml"
root@ws:/workspace/chapter4/sysfoo# kitchen
Commands:
kitchen console # Kitchen Console!
kitchen converge [INSTANCE|REGEXP|all] # Change instance state to converge. Use a provisioner to configure one or more instances
kitchen create [INSTANCE|REGEXP|all] # Change instance state to create. Start one or more instances
kitchen destroy [INSTANCE|REGEXP|all] # Change instance state to destroy. Delete all information for one or more instances
kitchen diagnose [INSTANCE|REGEXP|all] # Show computed diagnostic configuration
kitchen driver # Driver subcommands
kitchen driver create [NAME] # Create a new Kitchen Driver gem project
kitchen driver discover # Discover Test Kitchen drivers published on RubyGems
kitchen driver help [COMMAND] # Describe subcommands or one specific subcommand
kitchen exec INSTANCE|REGEXP -c REMOTE_COMMAND # Execute command on one or more instance
kitchen help [COMMAND] # Describe available commands or one specific command
kitchen init # Adds some configuration to your cookbook so Kitchen can rock
kitchen list [INSTANCE|REGEXP|all] # Lists one or more instances
kitchen login INSTANCE|REGEXP # Log in to one instance
kitchen package INSTANCE|REGEXP # package an instance
kitchen setup [INSTANCE|REGEXP|all] # Change instance state to setup. Prepare to run automated tests. Install busser and related gems on o...
kitchen test [INSTANCE|REGEXP|all] # Test (destroy, create, converge, setup, verify and destroy) one or more instances
kitchen verify [INSTANCE|REGEXP|all] # Change instance state to verify. Run automated tests on one or more instances
kitchen version # Print Kitchen's version information
create
converge
verify
destroy
test
cd /workspace/sysfoo
kitchen list
kitchen createThis will create a kitchen environment, basically an instance of centos-6.8
Verify using kitchen list command
kitchen list
Instance Driver Provisioner Verifier Transport Last Action
default-centos-68 Docker ChefZero Inspec Ssh Createdkitchen converge
kitchen listThis will change the instance state to converge and install chef and apply recipe defined in ".kitchen.yml" run_list
kitchen login
[kitchen@1ab95d811596 ~]$
[kitchen@1ab95d811596 ~]$ which java
/usr/bin/java
[kitchen@1ab95d811596 ~]$ java -version
java version "1.7.0_131"
OpenJDK Runtime Environment (rhel-2.6.9.0.el6_8-x86_64 u131-b00)
OpenJDK 64-Bit Server VM (build 24.131-b00, mixed mode)
[kitchen@1ab95d811596 ~]$ logout
Connection to localhost closed.This will change the instance state to converge and install chef client and apply recipe defined in ".kitchen.yml" run_list
To verify, login and check the installation of java in an instance
knife cookbook upload openjdk
Uploading openjdk [0.1.0]
Uploaded 1 cookbook. node
list of recipes
defines list of items to apply
items can be either recipes or roles
for now, we are going to stick to recipes
cookbooks
tomcat
recipes
default.rb
abc.rb
xyz.rb
tomcat::abc
tomcat::xyz
subdir
pqr.rb
tomcat::subdir::pqr
suites:
- name: default
run_list:
- recipe[java::install]
verifier:
inspec_tests:
- test/recipes
attributes:
-----> Starting Kitchen (v1.13.2)
-----> Destroying <default-centos-68>...
sudo: unable to resolve host ws.codespaces.io
UID PID PPID C STIME TTY TIME CMD
root 6267 6248 0 05:25 ? 00:00:00 /usr/sbi
n/sshd -D -o UseDNS=no -o UsePAM=no -o PasswordAuthentication=yes -o UsePrivilegeSeparation=no -o PidFile=/tmp/sshd.pid
91 8185 6267 2 05:32 ? 00:00:08 /usr/lib
/jvm/jre/bin/java -classpath :/usr/share/tomcat/bin/bootstrap.jar:/usr/share/tomcat/bin/tomcat-juli.jar:/usr/share/java/commons-daemon.jar -Dcatalina.base=
/usr/share/tomcat -Dcatalina.home=/usr/share/tomcat -Djava.endorsed.dirs= -Djava.io.tmpdir=/var/cache/tomcat/temp -Djava.util.logging.config.file=/usr/shar
e/tomcat/conf/logging.properties -Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager org.apache.catalina.startup.Bootstrap start
sudo: unable to resolve host ws.codespaces.io
c94a66ffa1fe0149555f2db01c821d42a221fbe6e0cf412c023a91ec782fef76
sudo: unable to resolve host ws.codespaces.io
c94a66ffa1fe0149555f2db01c821d42a221fbe6e0cf412c023a91ec782fef76
Finished destroying <default-centos-68> (0m1.80s).
-----> Kitchen is finished. (0m3.05s)
root@ws:/workspace/myapp# kitchen converge
-----> Starting Kitchen (v1.13.2)
-----> Creating <default-centos-68>...
sudo: unable to resolve host ws.codespaces.io
Sending build context to Docker daemon 163.3 kB
Step 1/16 : FROM centos:centos6
---> 30365b2e827c
Step 2/16 : ENV container docker
---> Using cache
---> 567877f93777
Step 3/16 : RUN yum clean all
---> Using cache
---> 26c27f345c79
Step 4/16 : RUN yum install -y sudo openssh-server openssh-clients which curl
---> Using cache
---> b5b2a5a704d1
Step 5/16 : RUN ssh-keygen -t rsa -f /etc/ssh/ssh_host_rsa_key -N ''
---> Using cache
---> 7310df2e1294
Step 6/16 : RUN ssh-keygen -t dsa -f /etc/ssh/ssh_host_dsa_key -N ''
---> Using cache phases
tomcat::service
tomcat::config
tomcat::install
create a tomcat::service recipe to start and enable tomcat service
create a tomcat::install recipe to install tomcat along with example apps. Packages to install are
tomcat::install
tomcat::service
suites:
- name: default
run_list:
- recipe[java::install]
- recipe[tomcat::install]
- recipe[tomcat::service]
verifier:
inspec_tests:
- test/recipes
attributes:root@ws:/workspace/myapp# kitchen converge
-----> Starting Kitchen (v1.13.2)
-----> Converging <default-centos-68>...
Preparing files for transfer
Preparing dna.json
Preparing cookbooks from project directory
Removing non-cookbook files before transfer
Preparing validation.pem
Preparing client.rb
-----> Chef Omnibus installation detected (install only if missing)
Transferring files to <default-centos-68>
Starting Chef Client, version 13.0.118
resolving cookbooks for run list: ["java::default", "tomcat::install", "tomcat::service"]
Synchronizing Cookbooks:
- tomcat (0.1.0)
- java (0.1.0)
Installing Cookbook Gems:
Compiling Cookbooks...
Converging 4 resources
Recipe: java::default
* yum_package[epel-release] action install
- install version 6-8 of package epel-release
* yum_package[java-1.7.0-openjdk] action install
- install version 1.7.0.131-2.6.9.0.el6_8 of package java-1.7.0-openjdk
Recipe: tomcat::install
* yum_package[tomcat, tomcat-webapps] action install
- install version 7.0.75-1.el6 of package tomcat-webapps
- install version 7.0.75-1.el6 of package tomcat
Recipe: tomcat::service
* service[tomcat] action start
- start service service[tomcat]
* service[tomcat] action enable
- enable service service[tomcat]
Running handlers:
Running handlers complete
Chef Client finished, 5/5 resources updated in 01 minutes 41 seconds
Finished converging <default-centos-68> (1m44.02s).
-----> Kitchen is finished. (1m45.26s)kitchen login
service tomcat status
exithttp://IPADDR:8080
#
# Cookbook Name:: tomcat
# Recipe:: default
#
# Copyright (c) 2017 The Authors, All Rights Reserved.
include_recipe 'java::install'
include_recipe 'tomcat::install'
include_recipe 'tomcat::service'
tomcat::default
suites:
- name: default
run_list:
- recipe[tomcat]Add Entry in ./sysfoo/.kitchen.yml file
kitchen converge
......
.......
Chef::Exceptions::CookbookNotFound
----------------------------------
Cookbook java not found. If you're loading java from another cookbook, make sure you configure the dependency in your metadata
Cookbook Trace:
---------------
/tmp/kitchen/cache/cookbooks/tomcat/recipes/default.rb:7:in `from_file'
Relevant File Content:
----------------------
/tmp/kitchen/cache/cookbooks/tomcat/recipes/default.rb:
1: #
2: # Cookbook Name:: tomcat
3: # Recipe:: default
4: #
5: # Copyright (c) 2017 The Authors, All Rights Reserved.
6:
7>> include_recipe 'java'
8: # we can also call the above recipe as
9: # include_recipe 'java::default'
10:
11: include_recipe 'tomcat::install'
12: include_recipe 'tomcat::service'
13:
System Info:
------------
chef_version=13.0.118
platform=centos
platform_version=6.9
ruby=ruby 2.4.1p111 (2017-03-22 revision 58053) [x86_64-linux]
program_name=chef-client worker: ppid=1020;start=12:14:19;
executable=/opt/chef/bin/chef-client
Running handlers:
[2017-04-25T12:14:21+00:00] ERROR: Running exception handlers
[2017-04-25T12:14:21+00:00] ERROR: Running exception handlers
Running handlers complete
[2017-04-25T12:14:21+00:00] ERROR: Exception handlers complete
[2017-04-25T12:14:21+00:00] ERROR: Exception handlers complete
Chef Client failed. 0 resources updated in 01 seconds
[2017-04-25T12:14:21+00:00] FATAL: Stacktrace dumped to /tmp/kitchen/cache/chef-stacktrace.out
[2017-04-25T12:14:21+00:00] FATAL: Stacktrace dumped to /tmp/kitchen/cache/chef-stacktrace.out
[2017-04-25T12:14:21+00:00] FATAL: Please provide the contents of the stacktrace.out file if you file a bug report
[2017-04-25T12:14:21+00:00] FATAL: Please provide the contents of the stacktrace.out file if you file a bug report
[2017-04-25T12:14:21+00:00] ERROR: Cookbook java not found. If you're loading java from another cookbook, make sure you configure the dependenc
y in your metadata
[2017-04-25T12:14:21+00:00] ERROR: Cookbook java not found. If you're loading java from another cookbook, make sure you configure the dependenc
y in your metadata
[2017-04-25T12:14:21+00:00] FATAL: Chef::Exceptions::ChildConvergeError: Chef run process exited unsuccessfully (exit code 1)
[2017-04-25T12:14:21+00:00] FATAL: Chef::Exceptions::ChildConvergeError: Chef run process exited unsuccessfully (exit code 1)
>>>>>> ------Exception-------
>>>>>> Class: Kitchen::ActionFailed
>>>>>> Message: 1 actions failed.
>>>>>> Converge failed on instance <default-centos-68>. Please see .kitchen/logs/default-centos-68.log for more details
>>>>>> ----------------------
>>>>>> Please see .kitchen/logs/kitchen.log for more details
>>>>>> Also try running `kitchen diagnose --all` for configuration
depends
name 'tomcat'
maintainer 'The Authors'
maintainer_email 'you@example.com'
license 'all_rights'
description 'Installs/Configures tomcat'
long_description 'Installs/Configures tomcat'
version '0.1.0'
depends 'java'We will need to manage configurations eg. tomcat.conf
since chef is a centralized configuration management system, we will keep the files centrally in cookbooks, which will then be copied to all managed nodes
Generate tomcat.conf using chef generate file in tomcat cookbook directory.
add tomcat::config recipe to copy these files to the relevant locations on destination hosts
cookbooks
tomcat
recipes
default.rb
install.rb
service.rb
config.rb
files
tomcat.conf
destination path in nodes: /etc/tomcat/tomcat.conf
file: cookbooks/tomcat/files/default/tomcat.conf
Use chef generate file to create tomcat.conf file
chef generate file cookbooks/tomcat tomcat.confTOMCAT_CFG_LOADED="1"
JAVA_HOME="/usr/lib/jvm/jre"
JAVA_OPTS="-Xms64m -Xmx128m -XX:MaxPermSize=128M -Djava.security.egd=file:/dev/./urandom"
CATALINA_BASE="/usr/share/tomcat"
CATALINA_HOME="/usr/share/tomcat"
JASPER_HOME="/usr/share/tomcat"
CATALINA_TMPDIR="/var/cache/tomcat/temp"
TOMCAT_USER="tomcat"
SECURITY_MANAGER="false"
SHUTDOWN_WAIT="30"
SHUTDOWN_VERBOSE="false"
CATALINA_PID="/var/run/tomcat.pid"cookbook_file '/etc/tomcat/tomcat.conf' do
source 'tomcat.conf'
owner 'tomcat'
group 'tomcat'
mode 0644
action :create
endfile: cookbooks/tomcat/recipes/config.rb
Use chef generate recipe to create config.rb
chef generate recipe cookbooks/tomcat configcookbook_file '/etc/tomcat/tomcat.conf' do
source 'tomcat.conf'
owner 'tomcat'
group 'tomcat'
mode 0644
action :create
end
cookbook_file '/etc/tomcat/tomcat-users.xml' do
source 'tomcat-users.xml'
owner 'tomcat'
group 'tomcat'
mode 0644
action :create
end
file: cookbooks/tomcat/recipes/config.rb
conf
service
refresh
notifies :action, 'resource[name]', :timer
notifies :restart, 'service[tomcat]', :delayed
cookbook_file '/etc/tomcat/tomcat.conf' do
source 'tomcat.conf'
owner 'tomcat'
group 'tomcat'
mode 0644
action :create
notifies :restart, 'service[tomcat]', :delayed
endUpdate file: cookbooks/tomcat/recipes/config.rb
Note: Add config.rb recipe to default.rb
cookbook_file '/etc/tomcat/tomcat.conf' do
source 'tomcat.conf'
owner 'tomcat'
group 'tomcat'
mode 0644
action :create
notifies :restart, 'service[tomcat]', :delayed
end
cookbook_file '/etc/tomcat/tomcat-users.xml' do
source 'tomcat-users.xml'
owner 'tomcat'
group 'tomcat'
mode 0644
action :create
notifies :restart, 'service[tomcat]', :delayed
end
file: cookbooks/tomcat/recipes/config.rb
#
# Cookbook Name:: tomcat
# Recipe:: default
#
# Copyright (c) 2017 The Authors, All Rights Reserved.
include_recipe 'java::install'
include_recipe 'tomcat::install'
include_recipe 'tomcat::config'
include_recipe 'tomcat::service'
tomcat::default
kitchen convergekitchen loginBy School of Devops
CCI 04 - Creating Modular Code
