Specialist in machining for the Medtech Sector
More than 65 years in precision machining
1/11
Medtech
40%
Sales 2021
2.68M€
(22% growth from 2020)
Employees
25
Export
(Germany, France, Portugal, Belgium, Netherlands)
25%
Founded
1955
2/11
Specialized in Medical Parts
For us, the medical technology sector is key.
We have manufactured high-end components and assemblies for:
Diagnostics
Clinical, Molecular & Radiodiagnostics
Surgical instruments
Packaging (MedTech)
Handling (MedTech)
Orthopedics
Laser
Biomedical
Pharmaceutical
Wellness
Research
Specialized in Medical Parts
We work to build long – term service for our clients, suppliers and employees
3/11
Specialized in Medical Parts
4/11
Additional processes
5/11
CLEANING
We work with critical sectors such as the pharmaceutical and electronics industries, where strict standards of cleanliness and contamination control are essential. To meet these requirements, we have implemented a robust process for cleaning machined parts:

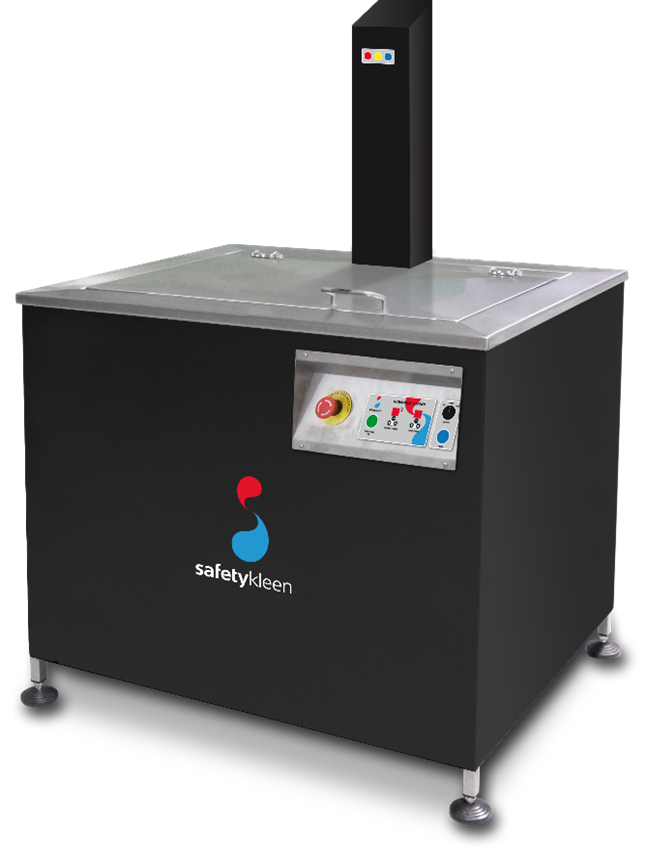

- We have an ultrasonic cleaning machine that allows us to effectively remove contaminants and dirt, improving the quality of the parts and meeting the cleanliness standards set by our customers, especially in critical sectors such as the semiconductor industry.
- If necessary, we can also implement double bagging to minimize the introduction of particles and contaminants during the handling and transportation of products or materials within a cleanroom environment. By using double bagging, we create an additional physical barrier that reduces the possibility of external particles and contaminants coming into contact with the product or material.
Features
QUALITY
SYSTEM:
ADDITIONALS PROCESSES:
Machining under UHV specifications (10^-9 - 10^-12mbar), heat treatment (tempering, induction hardening, nitro carburising, foundations...), surface treatments (blueing, zinc, nickel...), painting, grinding, gummed, etc.
DIMENSIONS
Ø 5 to Ø 750 mm lathe
and 1000 x 500 x 500 mm
in machining centre
(3, 4 & 5 axis)
QUANTITY
Small and medium series from 5 to 500 units, and prototypes included
MATERIALS
Aluminum, carbon steel, stainless steel, engineering plastics, special alloys, non-ferrous metals (brass, bronze, copper)…
6/11
Technology
CNC LATHES
Dimensions
CNC MACHINING CENTRES
Dimensions
Ø 300 mm x 510 mm
Ø 850mm x 2.000 mm long.
Ø 285mm x 500 mm long.
Ø 360mm x 500 mm long.
Ø 250mm x 500 mm long.
1080 x 710 x 710 mm
1080 x 710 x 710 mm
765 x 510 x 510 mm
500 x 400 x 400 mm
1020 x 610 x 610 mm
1020 x 610 x 610 mm
1050 x 560 x 450 mm
1080 x 460 x 450 mm
700 x 350 x 350 mm
DECKEL MAHO DMU 100 MONOBLOCK (5 axis) with HEINDENHAIN 530
DECKEL MAHO DMU 100T (5 axis) with CNC HEINDENHAIN TNC 530
HAAS UMC -750 (5 axis) with CNC HAAS
DECKEL MAHO DMU 50T (3+2 axis) with CNC HEINDENHAIN TNC 530
BRIDGEPORT – HARGINGE (3 axis) CONQUEST v1000 with CNC HEIDENHAIN TNC 620
BRIDGEPORT – HARGINGE (4 axis) CONQUEST v1000 with CNC HEIDENHAIN TNC 620
OKUMA MX-55VA (3 axis) with CNC OKUMA OSP U10M
OKUMA MX-45VAE (4 axis) with CNC OKUMA OSP 700 M-G
UNIVERSAL MILLING MACHINEX LAGUN – Model FTV-4SP
DOOSAN LYNX2100 LMS with FANUC iHMI
HARRISON 180 XS with CNC FANUC
DECKEL NEF 520 SEMICONTROL with CNC HEINDENHAIN
OKUMA LB 15 II M (monitorizes tools) with CNC OSP 700L
OKUMA LB 15 with CNC OSP 5000L
AUXILIARY MACHINERY
Model
8SPARK 06.05.05 with control and head RENISHAW
ETALON, DERBY 454
ZOLLER SMILE 1.0
Haimer Power Clamp mini
SK 300
Three-dimensional multi-axis machine CNC
3-axis manual 3-axis machine
Tool measuring and adjusting machine
Shrink fit machine Power Clamp Basic
Ultrasonic cleaning machine
7/11
8/11
Technology
Main clients
9/11
TOTAL PLANNING, in order to continue expanding in the medical technology sector, is part of the BCN MEDICARE INDUSTRIAL HUB. In it, you will find the 'know how' of the Catalan industry at the service of the Healthcare sector. We intend to cover the life cycle of products and services related to the medical sector: from engineering to design, manufacturing, sheet metal, precision machining, precision machining, milling, electronic components, plastic injections, assembly and marketing.
10/11
THANK YOU
Mobile: +34 678 976 779
Juan José Sánchez
Phone: +34 93 278 09 90
