Let's play with HTTP/2!

Daniela Matos de Carvalho

NodeConf Barcelona 2017

sericaia

who-am-i

sericaia

What are we facing globally?

Why http 1.1 is not enough?

How much time does it take to send a request from New York to London?

Different access









(https://www.webworldwide.io/ for details)

Different access

Different bandwidth

Different latency

Latency and Bandwidth

(image source: High Performance Browser Networking - Ilya Gregorik)

Goal

 low latency







high throughput

HTTP/2 to the rescue!

HTTP

The Hypertext Transfer Protocol

HTTP

1991

1st proposal by Tim Berners-Lee

request and response between client and server

1 TCP connection per request

standard



HTTP

0.9         1.0         1.1         2

HTTP 1.1

keep-alive connections



HTTP Pipelining (HTTP 1.1)

(image source: High Performance Browser Networking - Ilya Gregorik)

HTTP Pipelining (HTTP 1.1)

head-of-line blocking

Solution/workaround we use today

multiple TCP connections

Domain sharding

{sh1, sh2, sh3, sh4, sh5, sh6}.yld.io

Concatenation

myscript.js

anotherscript.js

stylesheet.css

bundle.js

Spriting

.default {
  background-image: url('image.png');
  background-repeat: no-repeat;
  width: 40px;
  height: 60px;
  background-position: 0 0;
}

GOAL

Decrease latency

(again!)

Introducing HTTP/2

Introducing HTTP/2

Introducing HTTP/2

published in 2015

based on SPDY

extends HTTP 1.x

Introducing HTTP/2

(image source: High Performance Browser Networking - Ilya Gregorik)

new Binary framing layer

Introducing HTTP/2

(image source: High Performance Browser Networking - Ilya Gregorik)

HTTP/2 features

1. Stream prioritization

2. Server push

3. Header compression

4. Flow control

HTTP/2 features

1. Stream prioritization

1
12
1
4

HTTP/2 features

1. Stream prioritization

1
12
1
4

dependencies and weights

index.html

styles.css

script-one.js

script-two.js

HTTP/2 features

2. Server push

(image source: High Performance Browser Networking - Ilya Gregorik)

HTTP/2 features

2. Server push

(image source: High Performance Browser Networking - Ilya Gregorik)

PUSH_PROMISE

RST_STREAM

...

HTTP/2 features

3. Header

Compression

(HPACK)

(image source: High Performance Browser Networking - Ilya Gregorik)

HTTP/2 features

4. Flow Control

SETTINGS







WINDOW_UPDATE

DATA

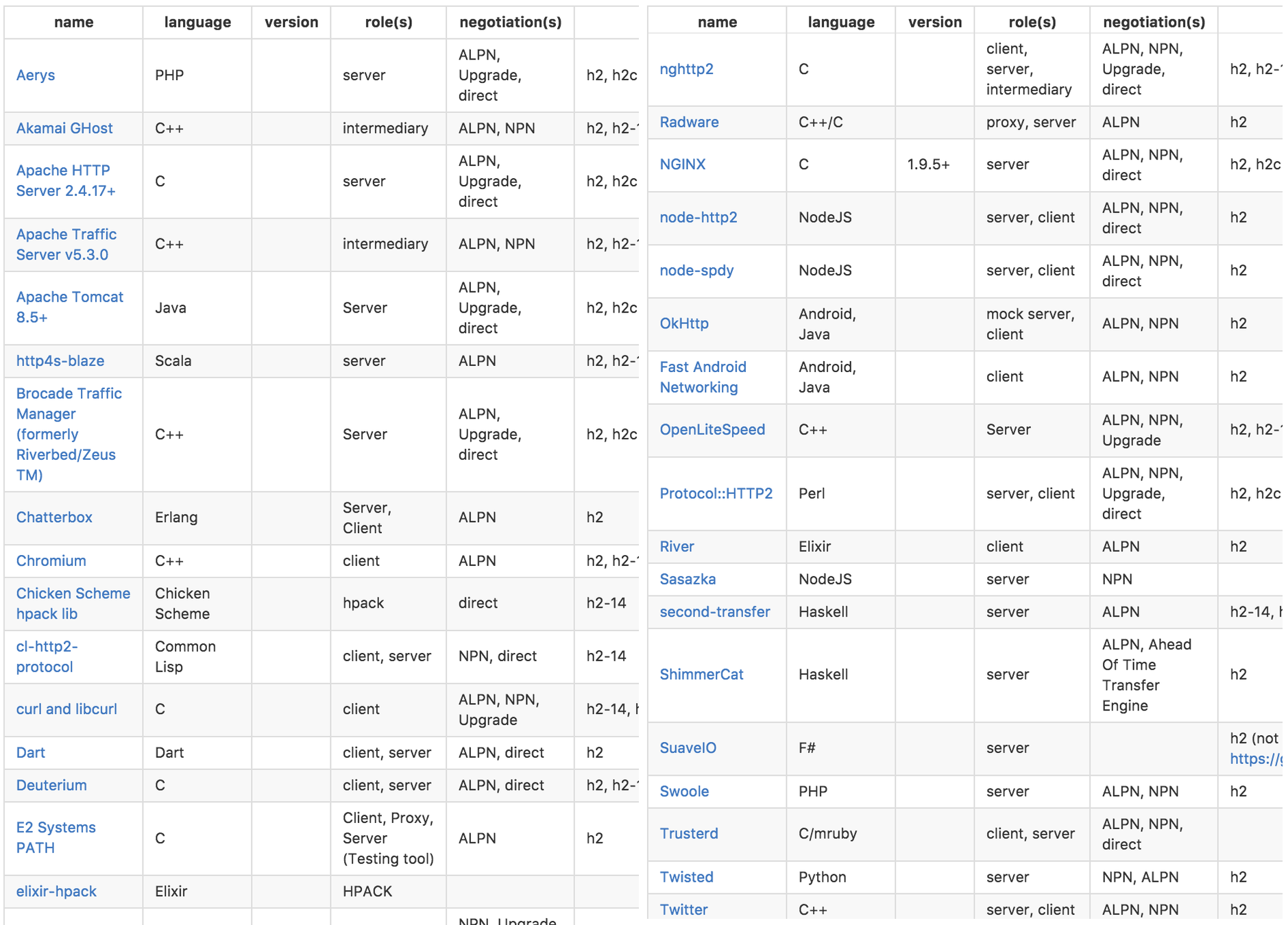

HTTP/2 Implementations

https://github.com/http2/http2-spec/wiki/Implementations

[Node.js] HTTP/2 Implementations

https://github.com/http2/http2-spec/wiki/Implementations

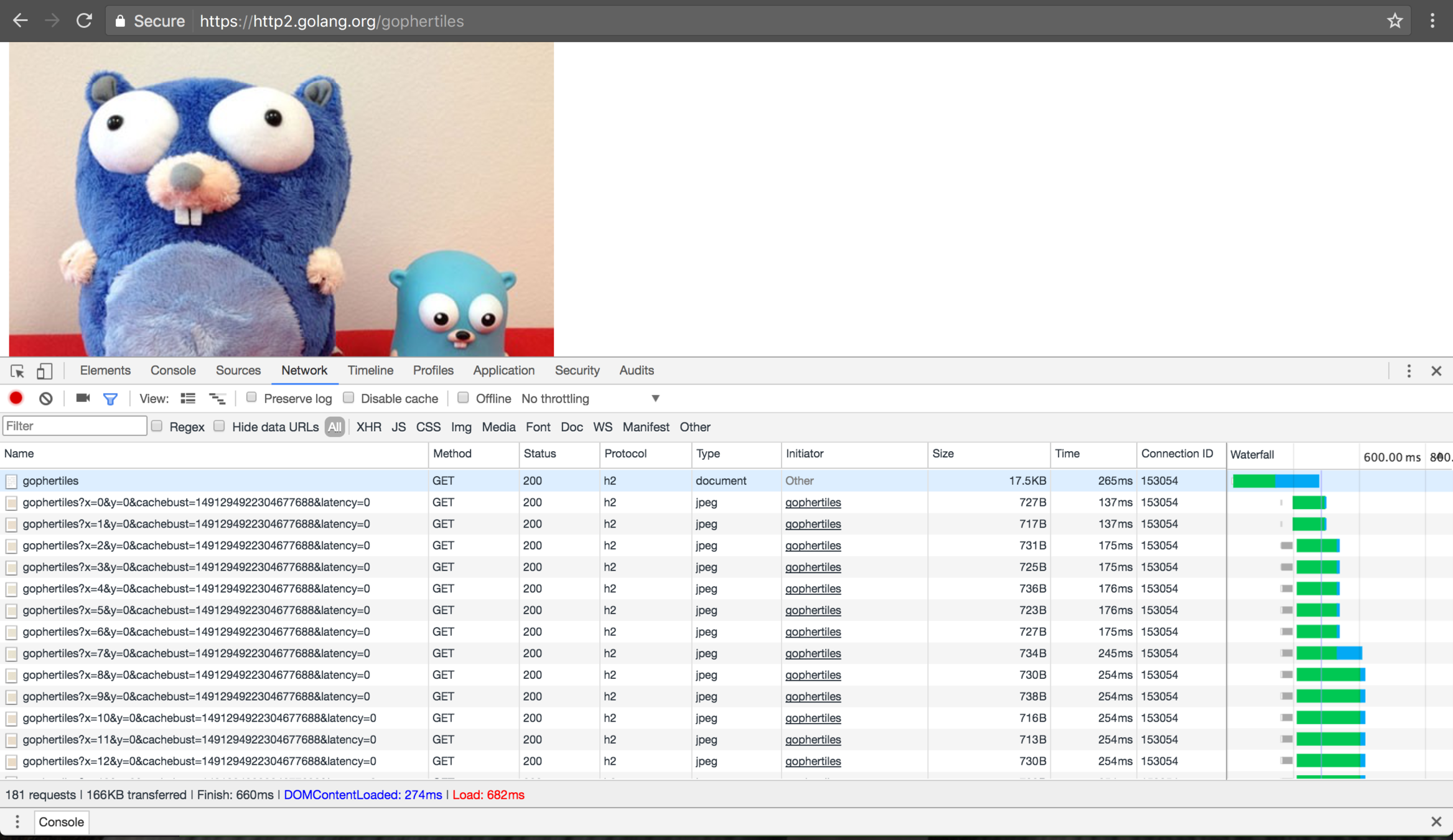

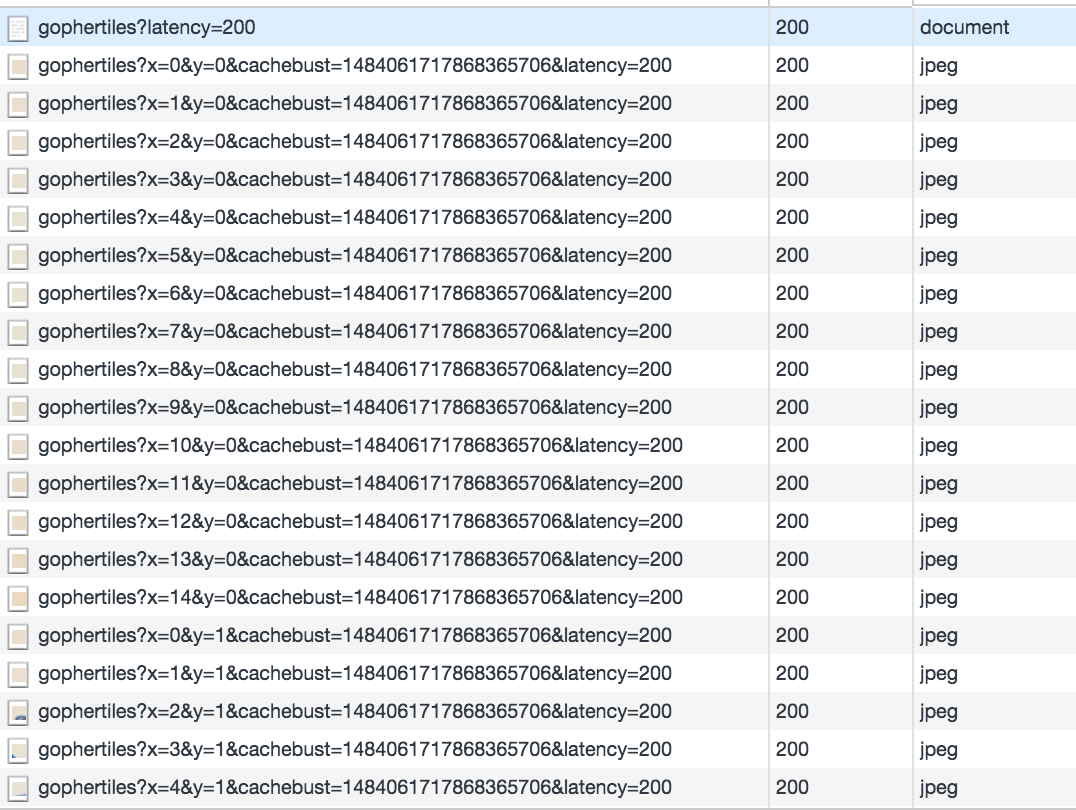

How can I understand if a server talks HTTP/2?

(Dev Tools > Network tab)

The easy way...

(Dev Tools > Network tab)

The easy way...

Browser lets you inspect some http/2 information

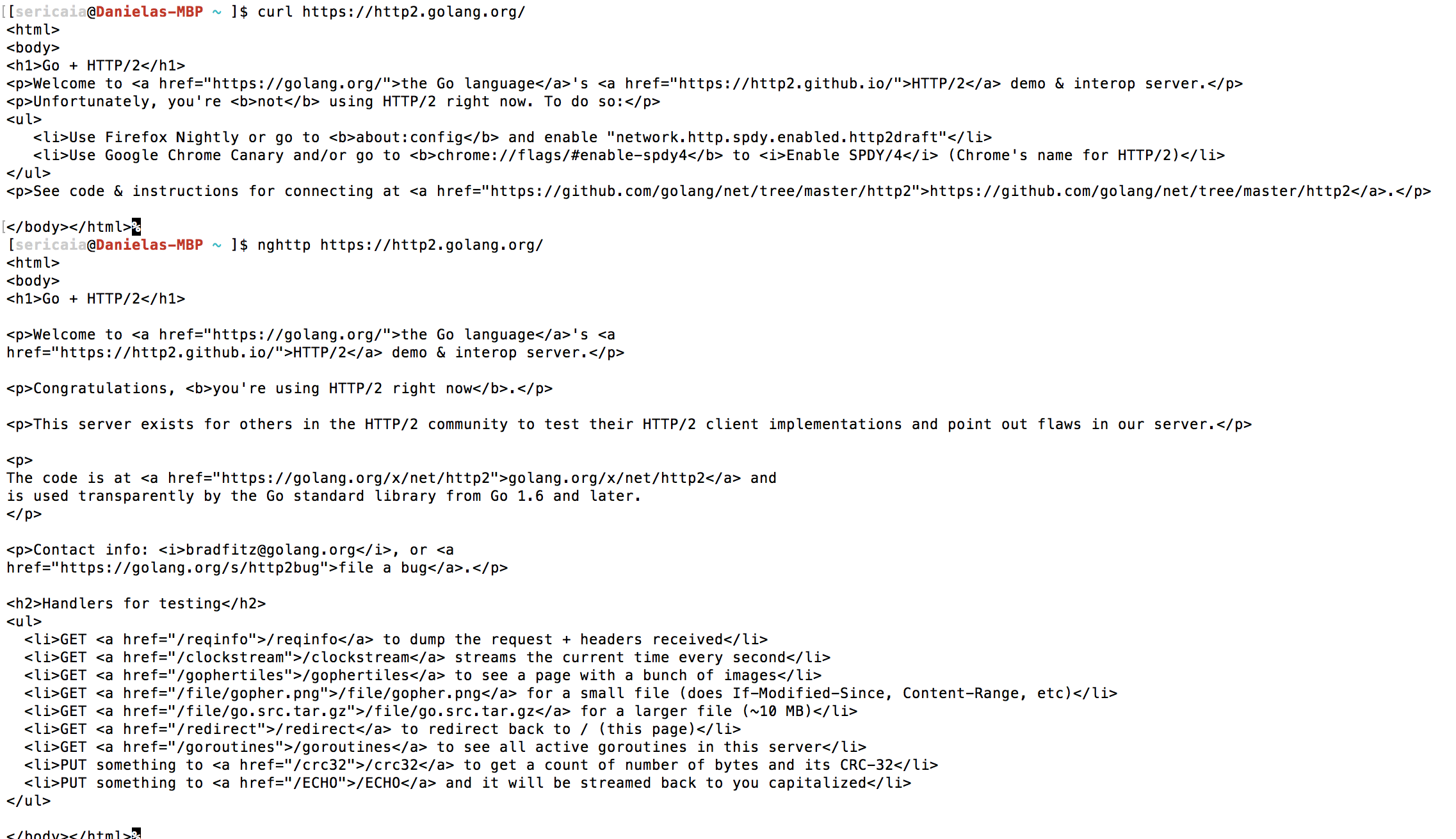

Using command line: cURL & HTTP/2

Text

https://github.com/nghttp2/nghttp2

Using an App: Meet Wireshark

Let's inspect!

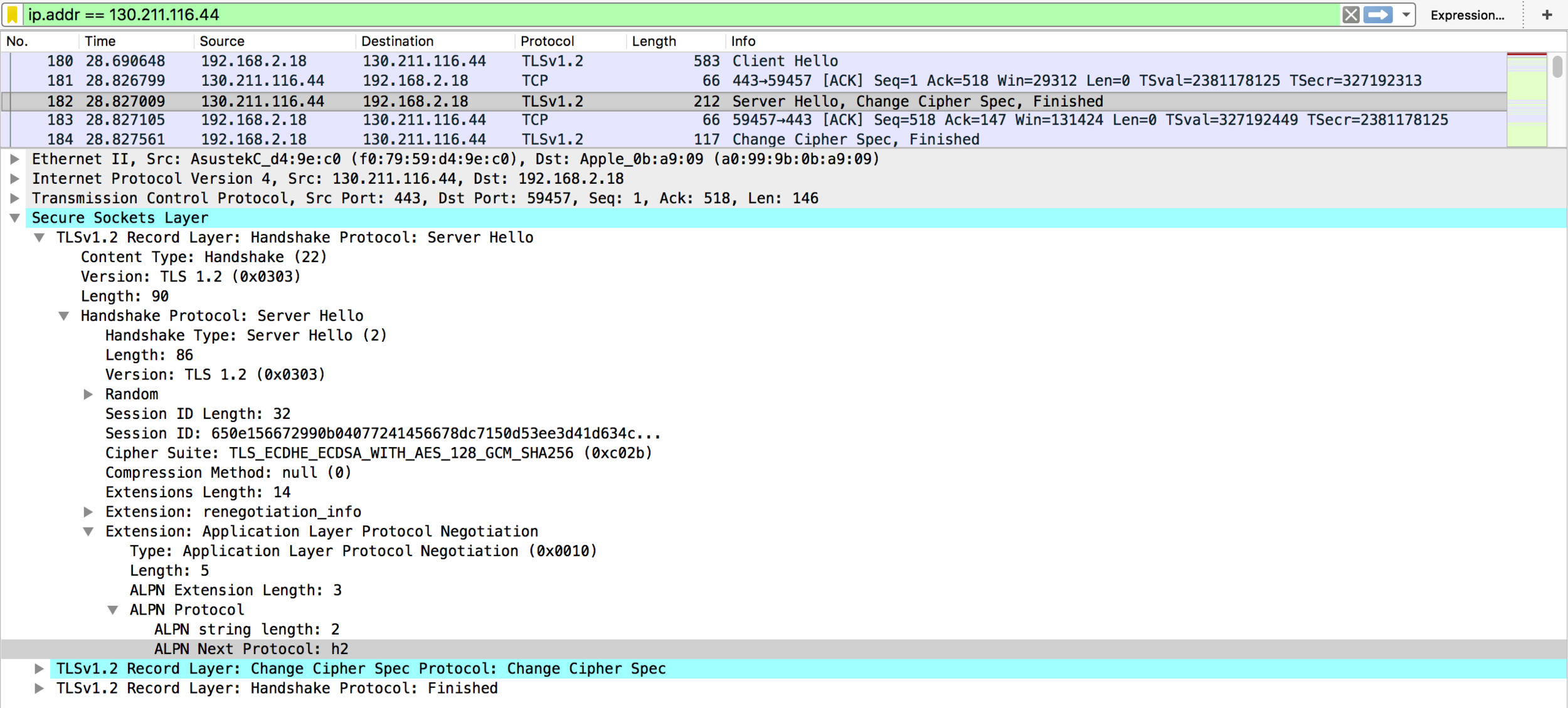

TCP handshake!

HTTP/2 frames

HTTP/2 frames

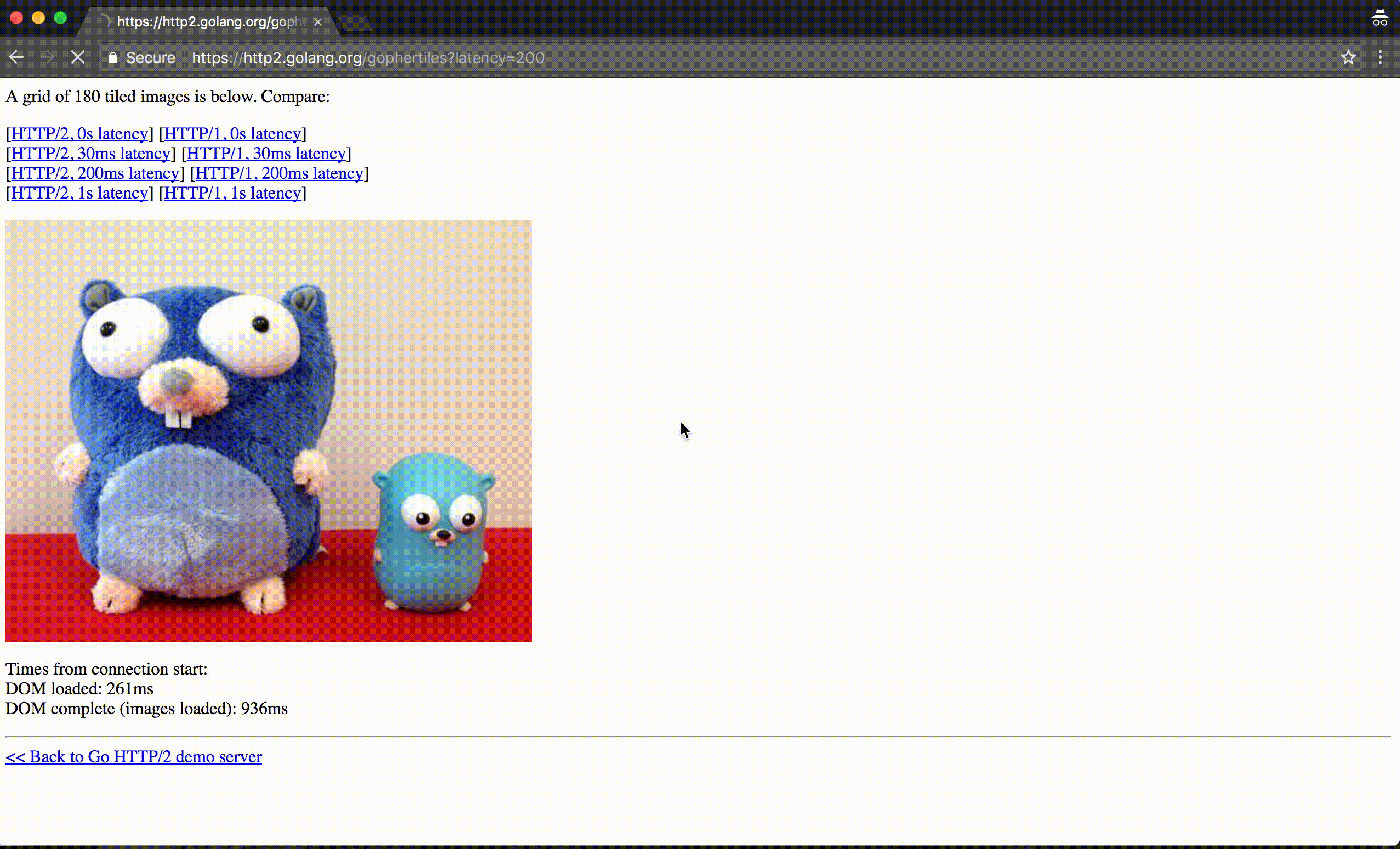

GET https://http2.golang.org/gophertiles?latency=200

HTTP/2 frames

https://http2.golang.org/gophertiles?latency=200

Analysing a stream

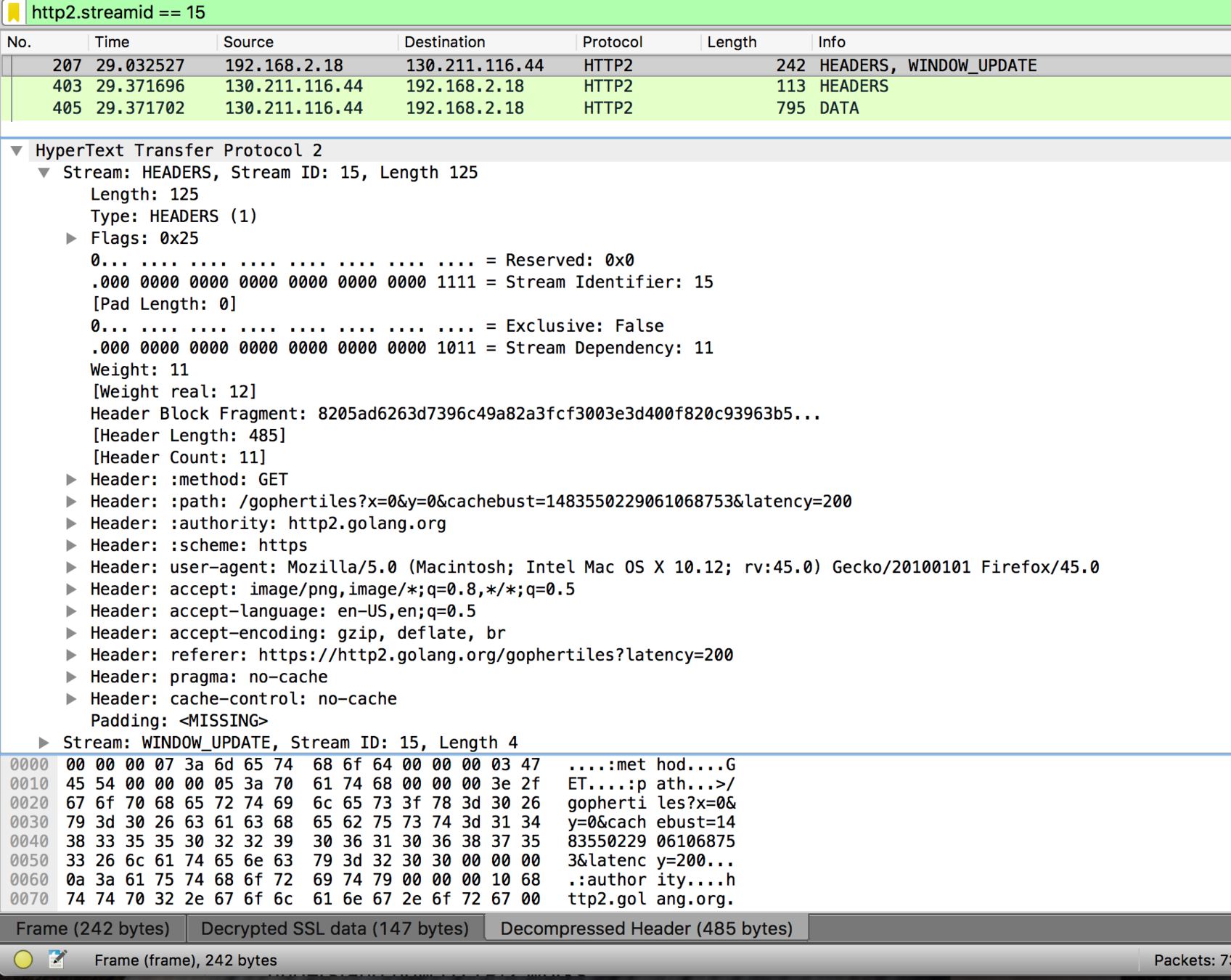

Analysing a stream: HEADERS, WINDOW_UPDATE

Analysing a stream: HEADERS

Analysing a stream: DATA (finnally!)

DATA frame with the contents (image)

Wireshark helps to understand HTTP/2

How to use it with Node.js?


    const spdy = require('spdy'),
      fs = require('fs');

    const options = {
      cert: fs.readFileSync('keys/server.crt'),
      ca: fs.readFileSync('keys/server.csr'),
      key: fs.readFileSync('keys/server.key')
    };

    const server = spdy.createServer(options, (request, response) => {
      response.writeHead(200, {
        'content-type': 'text/html'
      });

      response.end(request.isSpdy ? 'SPDY is on :)' : 'SPDY is off :(');
    });

Simple HTTP/2 Server


  const styles = fs.readFileSync('assets/style.css');

  // ...

  // index route handler
      response.push('/style.css', {
        response: {
          'Content-Type': 'text/css'
        }
      }, function(err, stream){
        if (err) {
          return;
        }
        stream.end(styles);
      });

  // ...

HTTP/2 Server: PUSH_STREAM example

HTTP/2 Server

Several implementations

- nodejs/http2 is also getting famous









[Investigation]

HTTP/2 Server Push + Service Workers

check out blog.yld.io for details

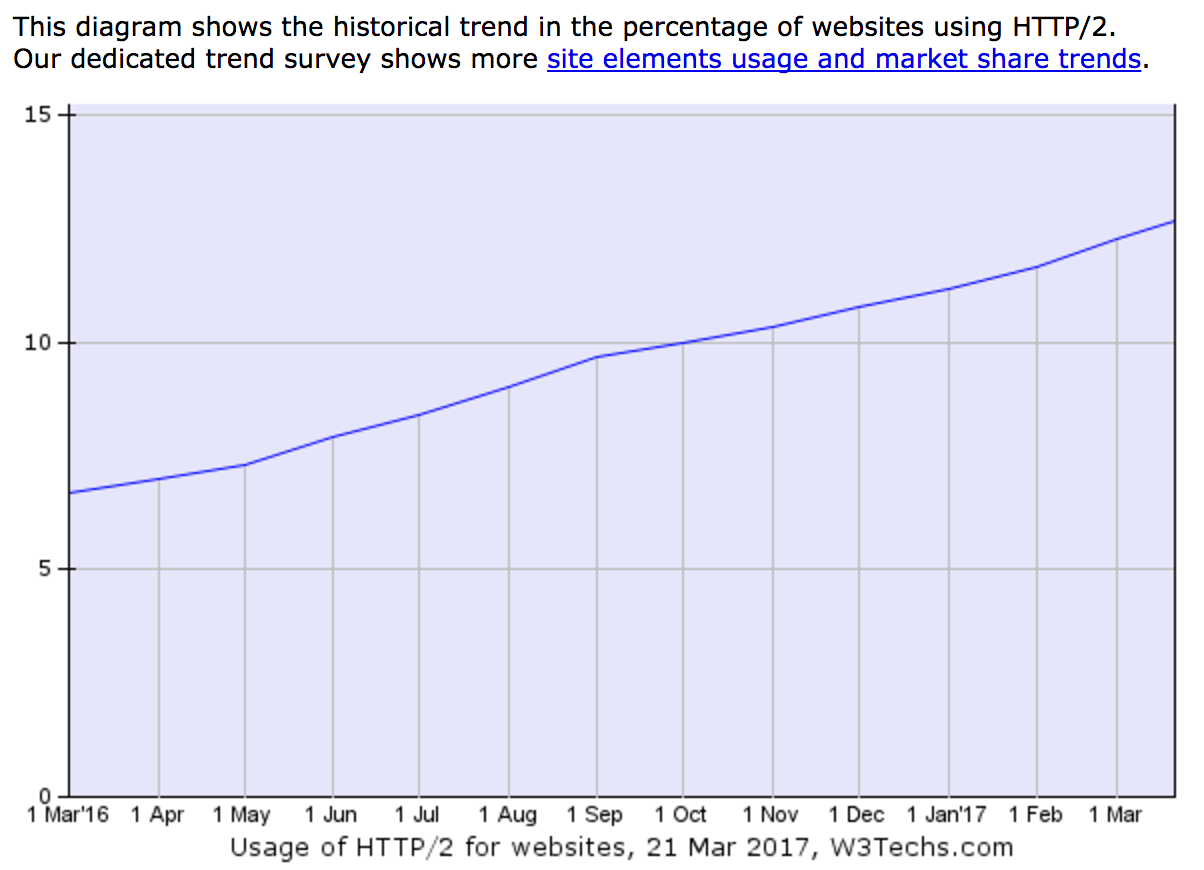

HTTP/2 usage

(source: https://w3techs.com/technologies/details/ce-http2/all/all)

12.7% of the trafic is served using HTTP/2

How to start?

Incremental migrations!

However,

some performance tricks are no longer needed...

Concatenation

Spriting

No longer needed...

Resource Inlining

One connection!

No longer needed...

Domain Sharding

Conclusions

  • HTTP/2 is here to stay
  • Strongly depends on browser and server implementations
  • Complex but interesting protocol
  • Wireshark may help to debug
  • Node.js has different implementations
  • Expected to be globaly used soon
  • HTTP 1.x is going to still need to be supported for some years

Still interested in protocols?



QUIC

(https://www.chromium.org/quic)

IPFS

(https://ipfs.io/)



Still interested in protocols?


check out our blog.yld.io !


https://blog.yld.io/2017/01/10/http-2-a-look-into-the-future-of-the-web


https://blog.yld.io/2017/02/08/alternatives-to-http


https://blog.yld.io/2017/03/01/optimize-with-http-2-server-push-and-service-workers
