Fusion Energy

Nuclear Engineering

Dr Jonathan Shimwell

This work was funded by the RCUK Energy Programme
[Grant number EP/P012450/1]

Image by Volker Steger


  • Why and when
  • Reasons for selecting the DT reaction
  • Methods of achieving nuclear fusion
  • Lawson criteria
  • Fusion technology

Fusion energy has excellent credentials

  • Safe (no run away chain reactions)

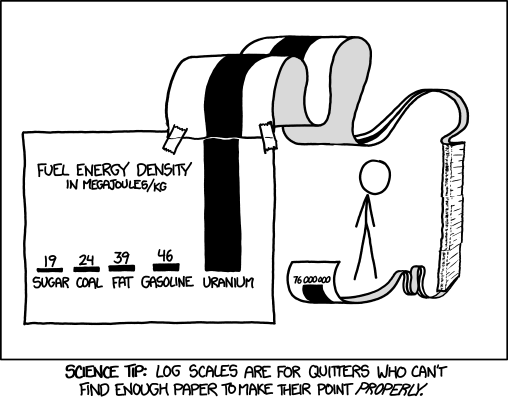

  • High energy density (337GJ/g)
  • Clean (reaction waste product is helium)
  • Low Carbon (no CO2 emitted during operation)
  • Produces no long lived radioactivity (Only activated materials)

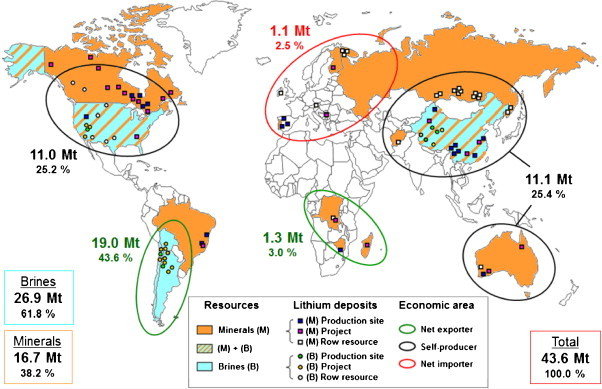

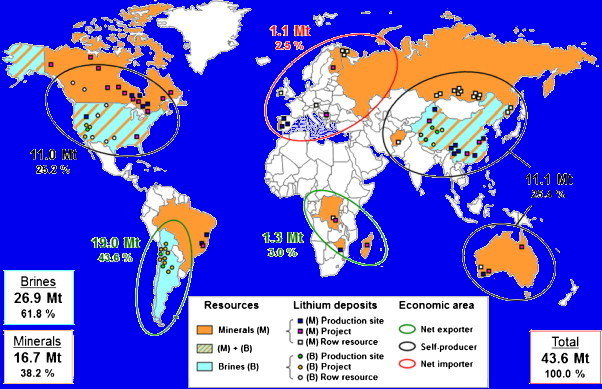

  • An abundant and distributed fuel source (Lithium and Deuterium)

When will fusion be achieved?

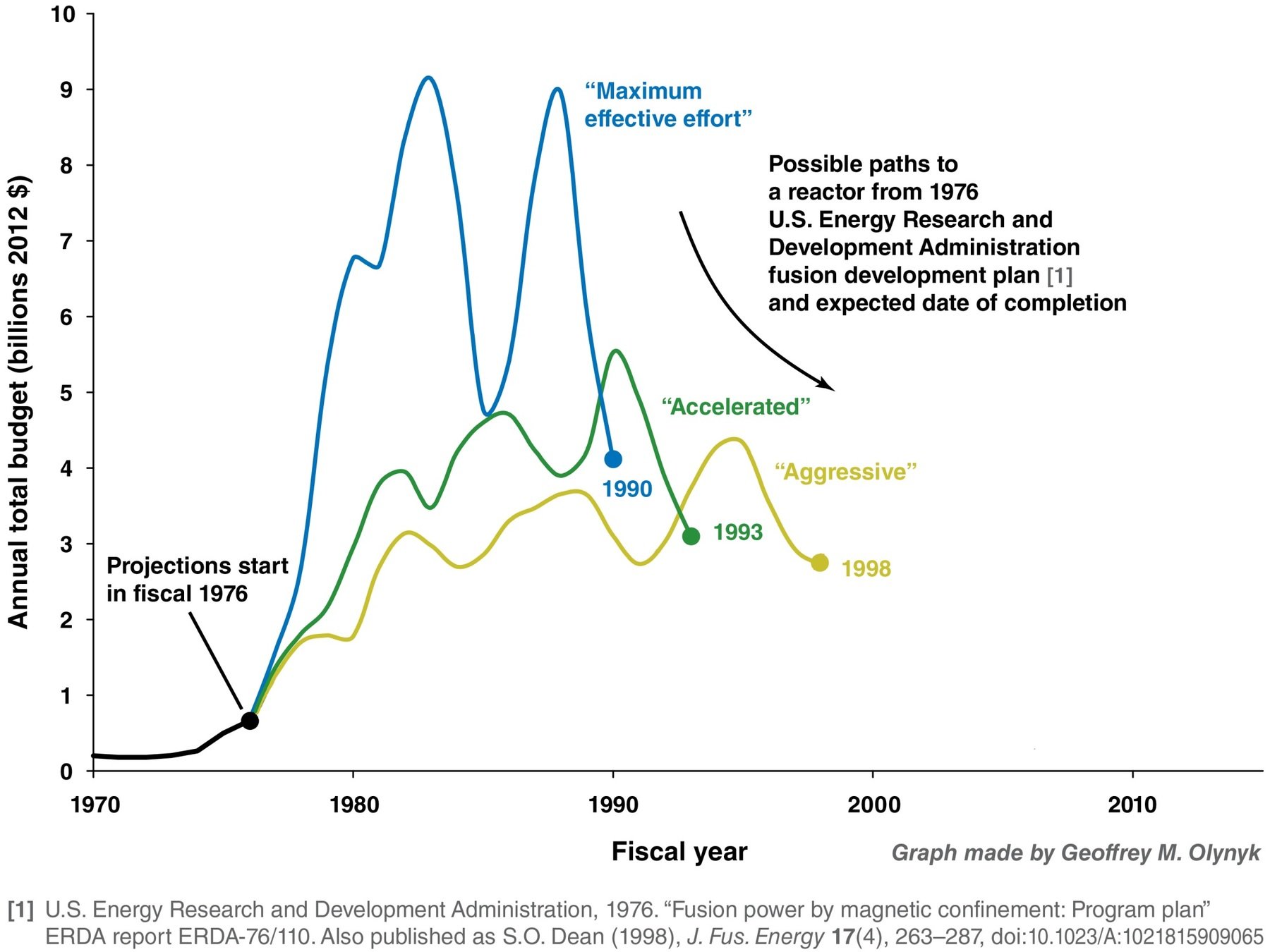

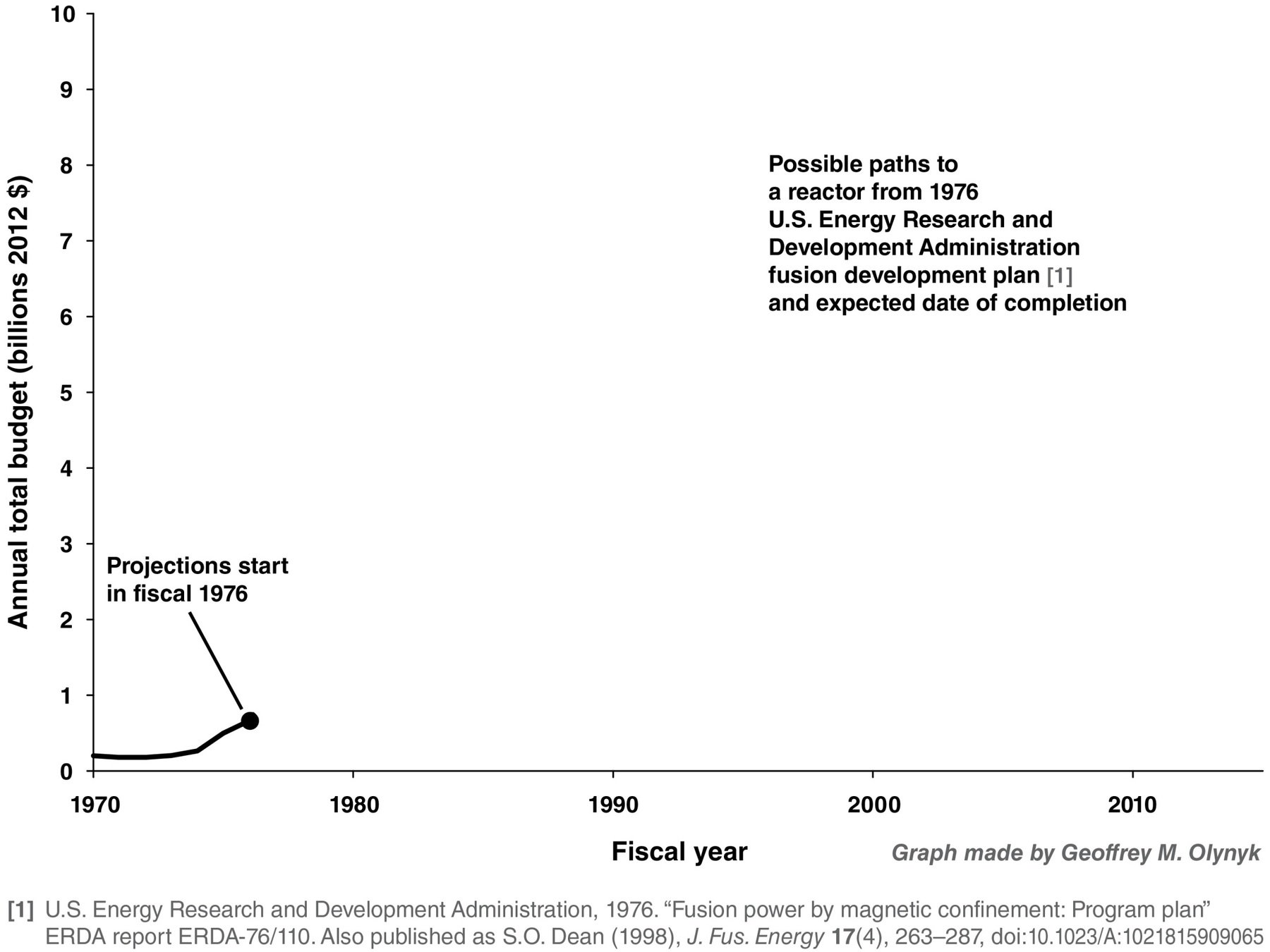

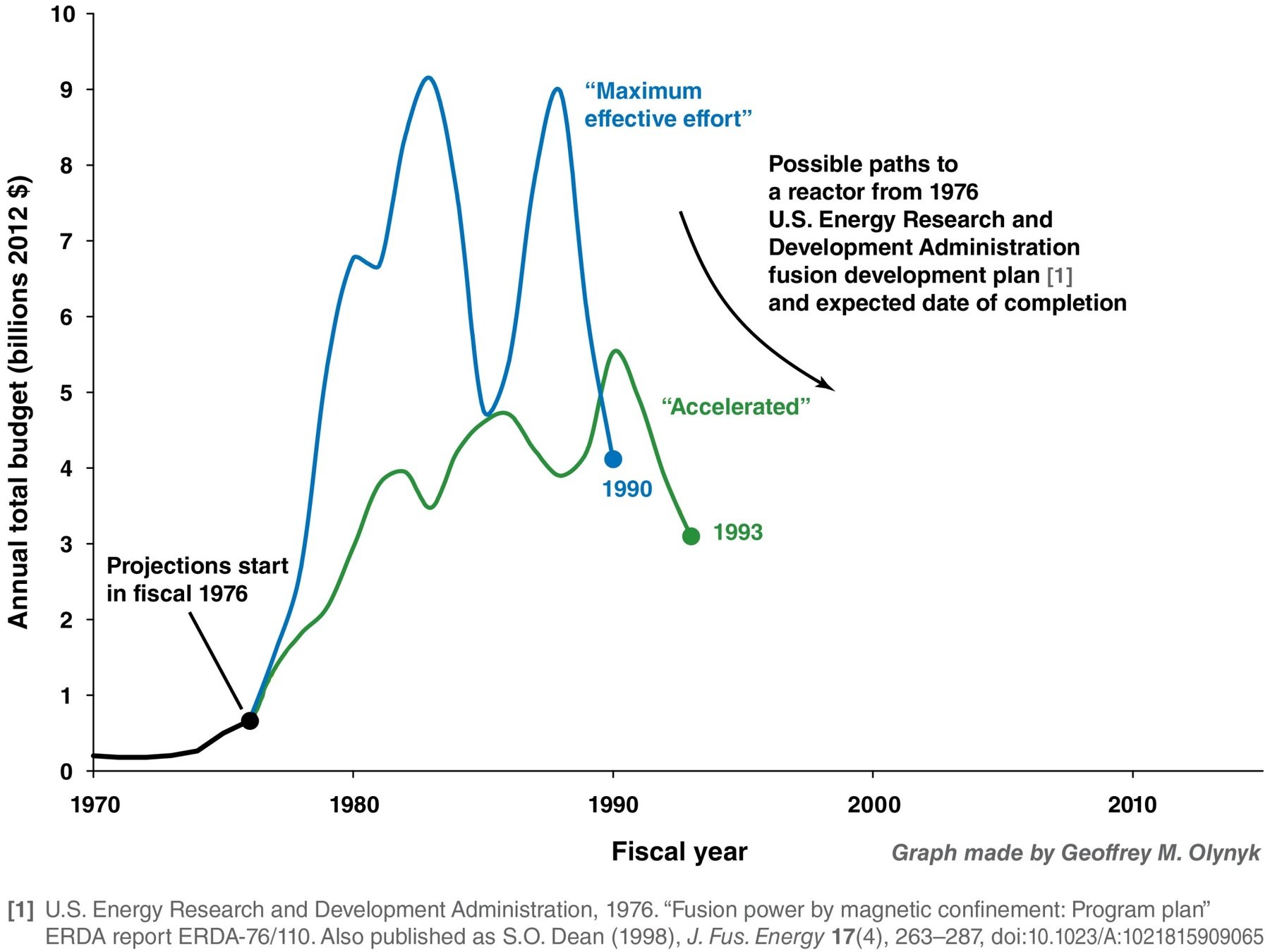

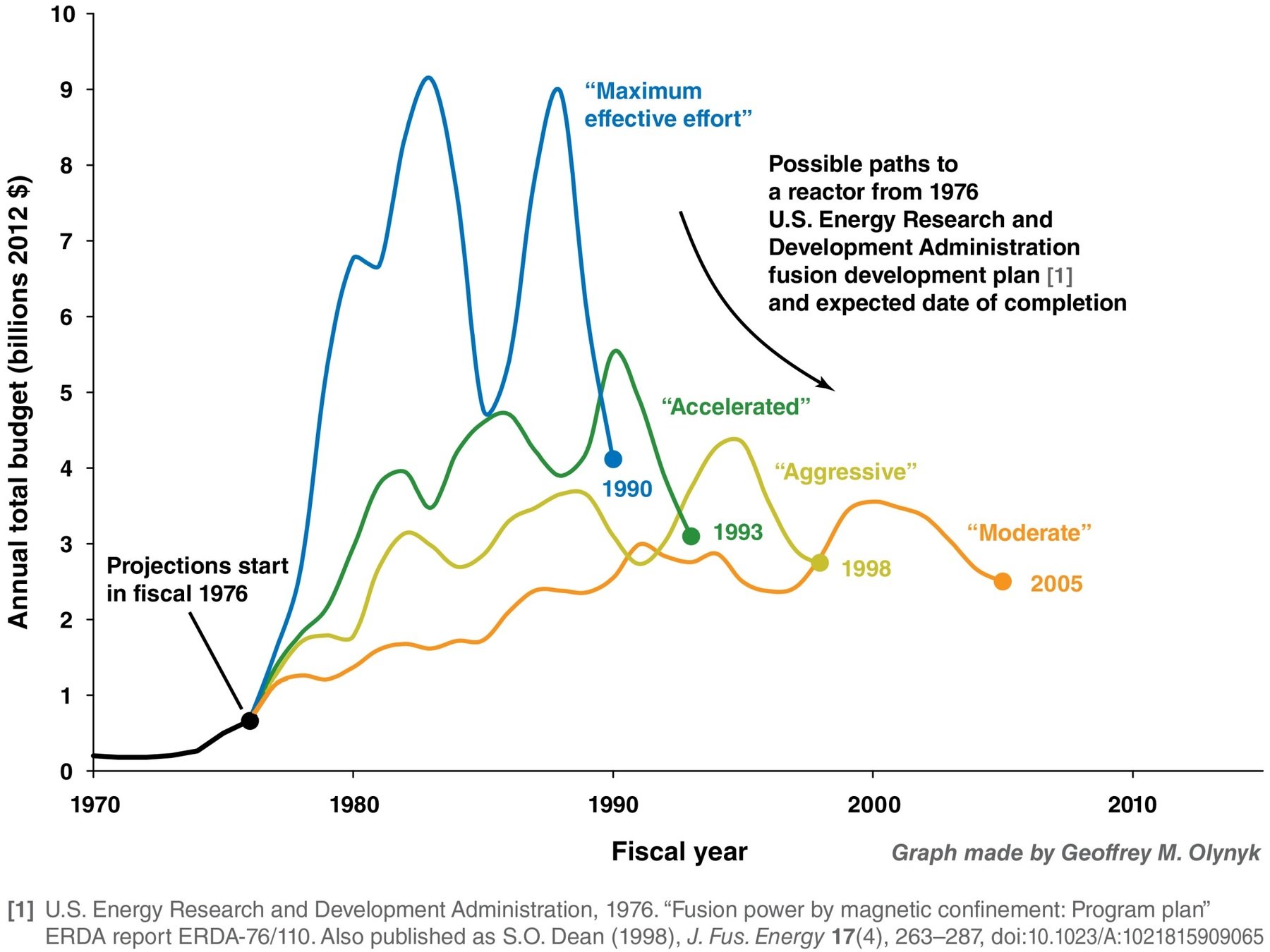

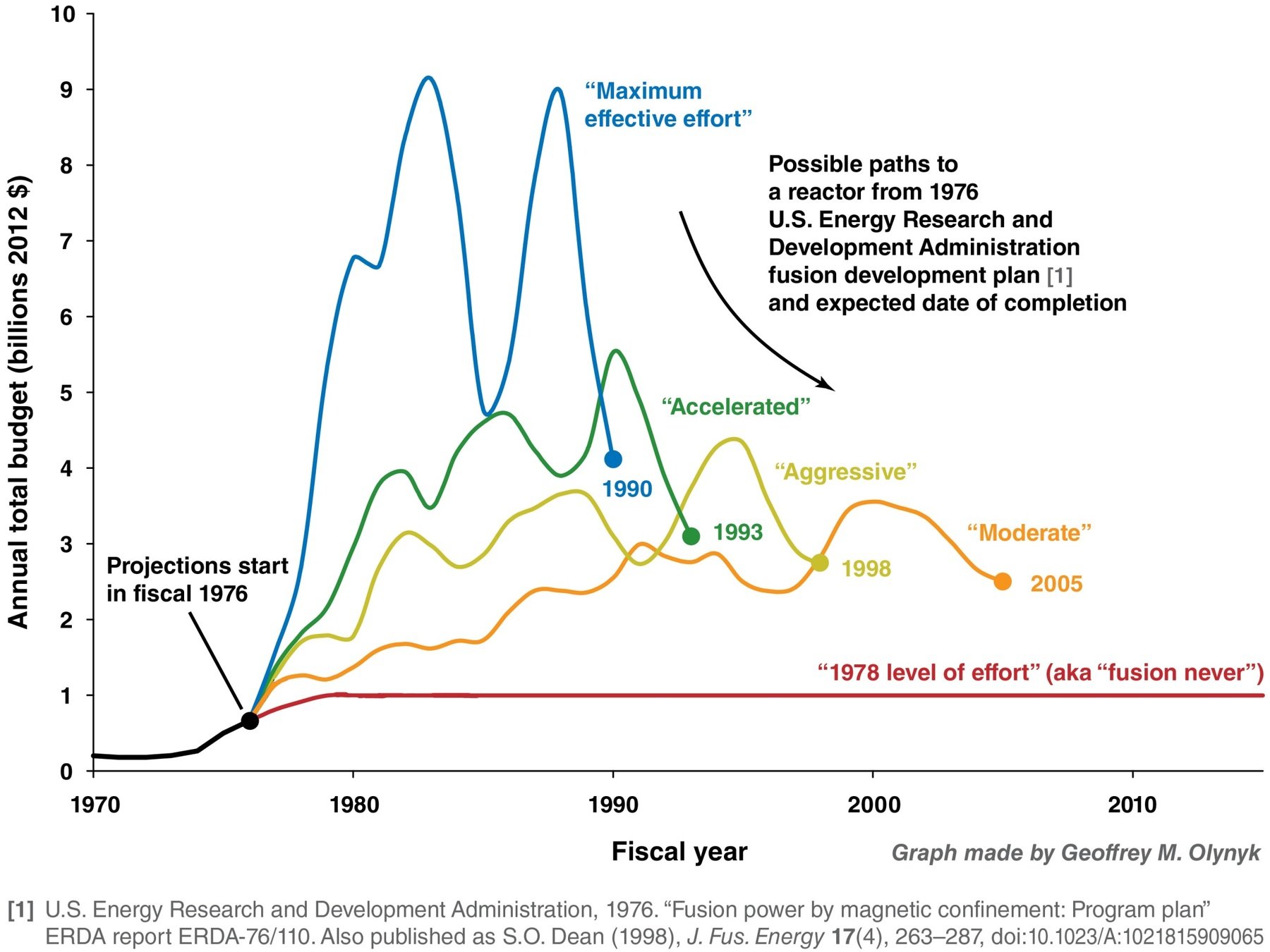

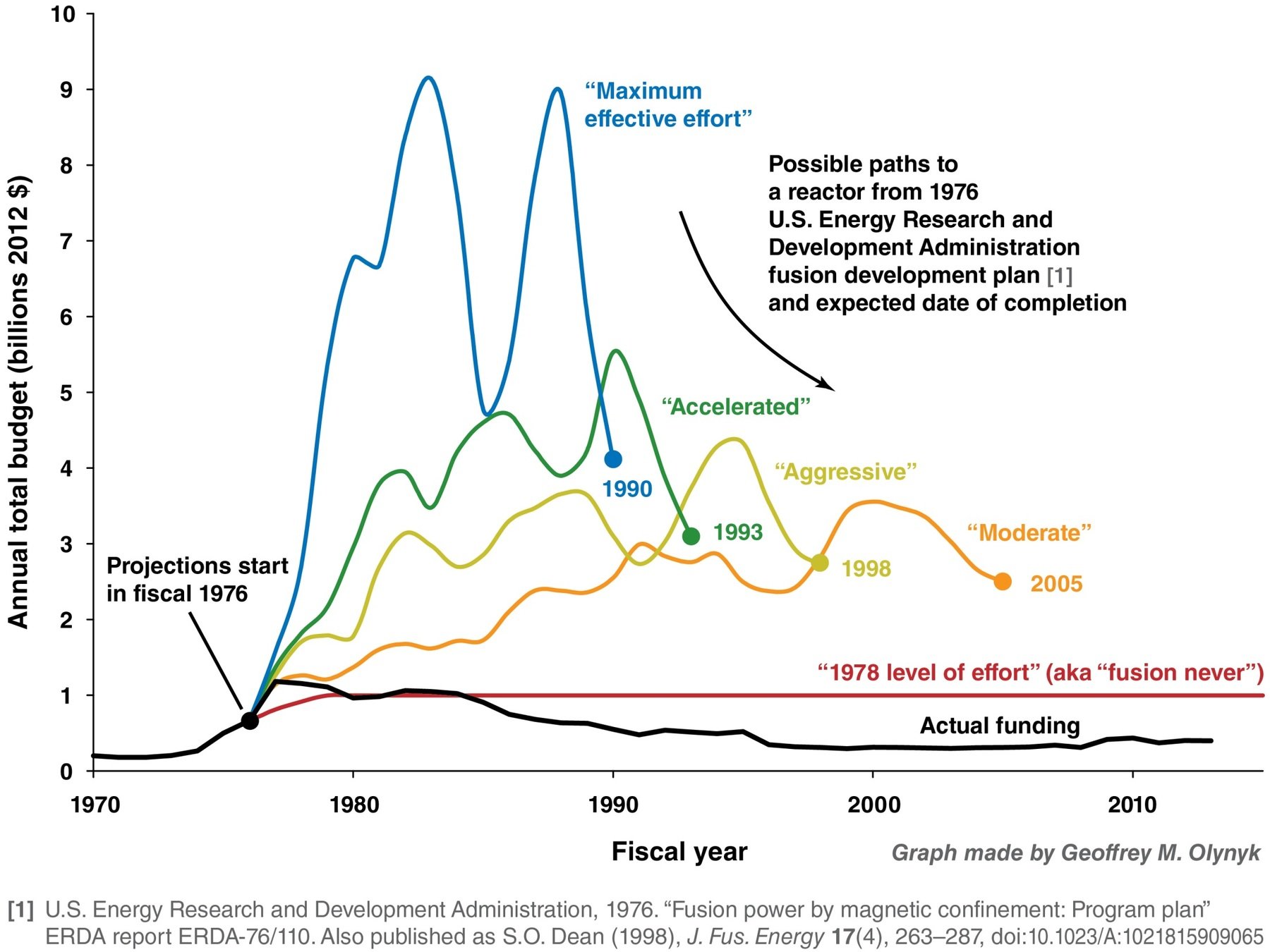

  • Funding
  • The demand for a new energy source
  • Political will
  • Scientific and engineering capacity
  • Unknown unknowns

"Fusion will be ready when society needs it"

Lev Artsimovich, Father of the Tokamak

by Jonathan Shimwell

Fusion Energy, Physics 303 course

The need for a new energy source

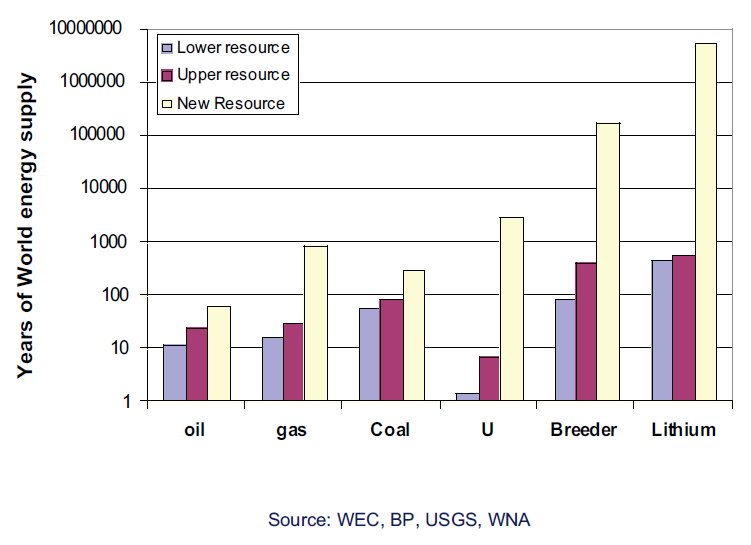

Data source WEC, BP, USGS and WNA data from presentation by  Steven Cowley

Unknown unknowns

What is fusion

  • A fusion reaction is the joining of two smaller atoms to form heavier ones.
  • A large amount of energy is released during this process .


Deuterium (D)

Tritium (T)

Helium 4


1/5 of the energy



4/5 of the energy

Helium 5


Energy emitted from nuclear reactions

  • Calculation of fusion energy  from binding energy

          H3 + H2 = He4 + n

          Binding energy before = 3 x 2.83 + 2 x 1.11

          Binding energy after = 4 x 7.07
          Difference in binding energy is 17.57 MeV

  • Calculation of fission energy from mass difference

      U235 + n= Ba145 + Kr87 + 4n

      Mass before = 235.04393u + 1.00866u

      Mass after = 144.92752u + 86.91335u + 4 x 1.00866u

      Mass difference = 0.17708u = 164.95MeV

proton mass = 1.672623E-27 kg

neutron mass = 1.674929E-27 kg

1 atomic mass unit = 1.660540E-27 kg

Maximum energy emitted from fission and fusion per gram

17.6 MeV emitted per DT fusion

Assuming every D reacts with a T.
1 gram of material.

~200MeV emitted per U235 fission

Assuming 100% U235 enrichment .
Assuming ever U235 fissions.
Ignoring decay heat.
1 gram of material.


number\ of\ moles =\frac{mass}{molar \ mass}
0.2 =\frac{1}{5}
number \ of \ atoms =
0.0042 =\frac{1}{235}
0.0042 \times 6.02 \times 10^{23} = 2.56\times 10^{21}
0.2 \times 6.02 \times 10^{23} = 1.204\times 10^{23}
1g\ gram\ of\ DT\ fuel\ 1.1\times 10^{24}\ J
1g\ gram\ of\ U^{235}fuel\ 0.5\times 10^{24}\ J
number\ of\ moles \times
Avogadro's\ constant

Typical fusion reactions

H2 + H2 = H3 + H1                  Q=4MeV

H2 + H2 = He3 + n                   Q=3.3MeV

H2 + He3 = He4 + H1              Q=18.3MeV

N14 + H1 = O15                       Q=7.35MeV

H2 + H1 = He3                         Q=5.49MeV

C12 + H1 = N13                        Q=12.86MeV

He3 + He3 = He4 + 2 H1         Q=1.95MeV

C13 + H1 = N14                        Q=7.55MeV

H1 + H1 = H2                            Q=0.42MeV

N15 + H1 = C12 + He4             Q=4.96MeV

H2 + H3 = He4 +n                   Q=17.6MeV

Fusion cross section

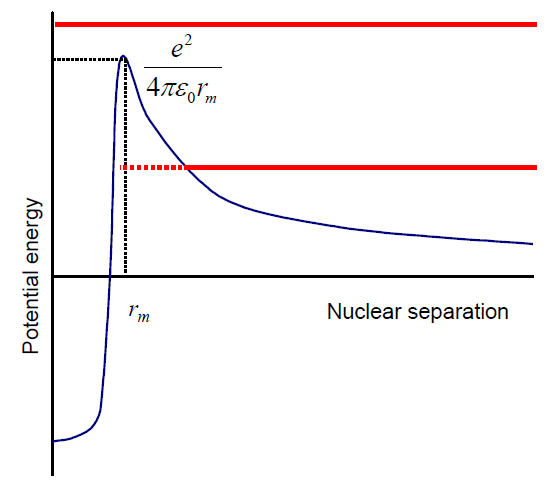

  • The DT reaction has a higher probability of occurring
  • The DT reaction has a lower threshold temperature
  • The DT reaction releases large amounts of energy 17.6MeV

plot of energy distribution of neutron for different DD, DT and 150Kev, 20Kev

Main methods of achieving fusion







Gravitation confinement

  • The repulsive coulomb force is overcome by gravitational forces and tunneling


  • Extremely large masses are required as gravity is a relatively weak force.

The CNO cycle

The Proton-Proton reaction

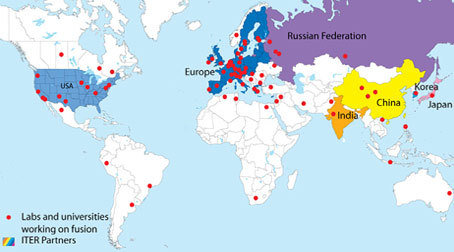

Fusion research around the world

Fusion research around the world

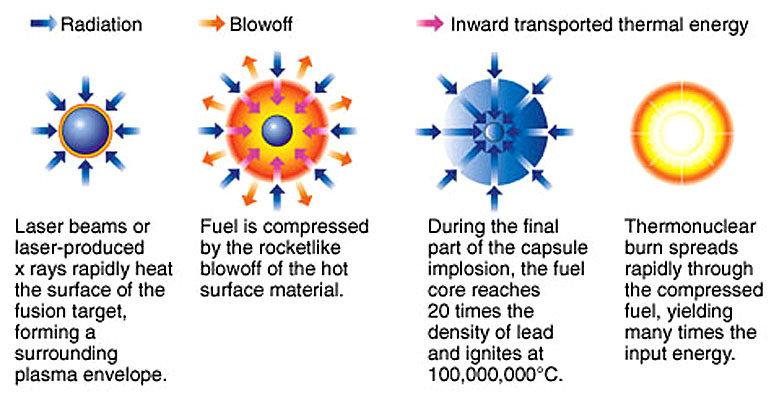

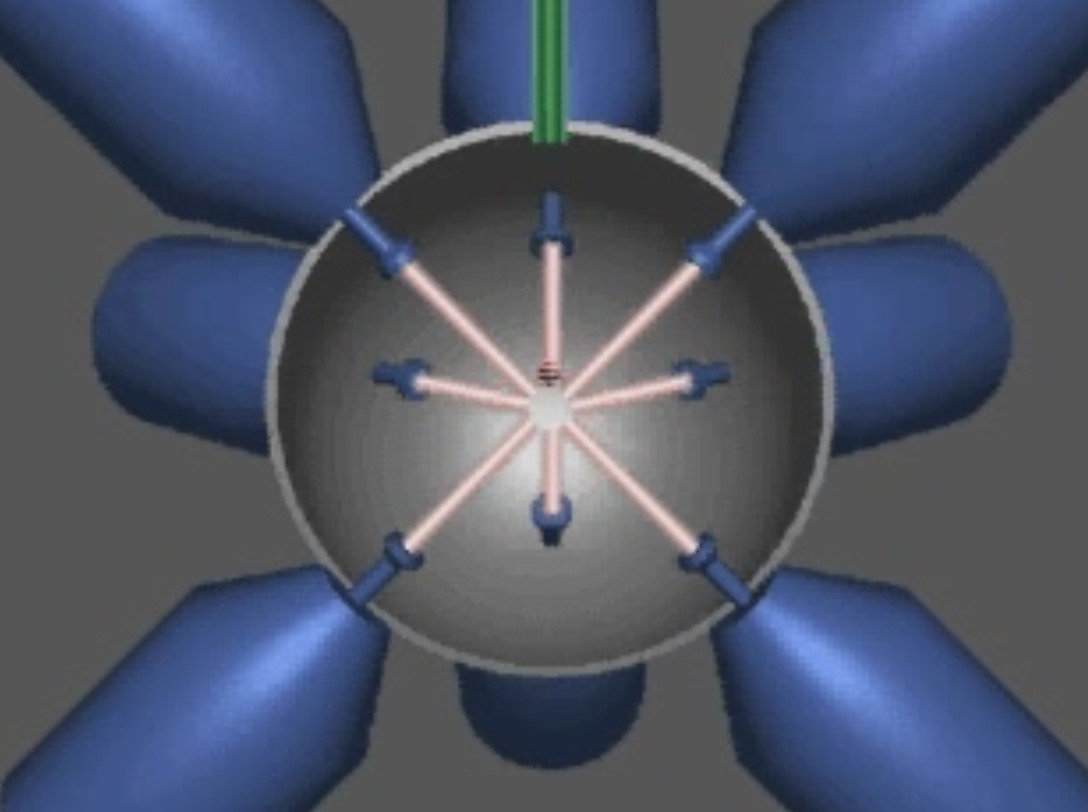

Inertial Confinement

Inertial Confinement

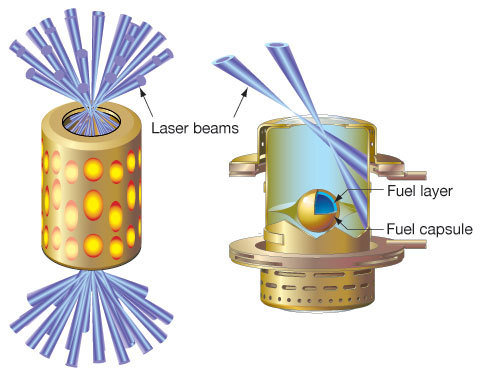

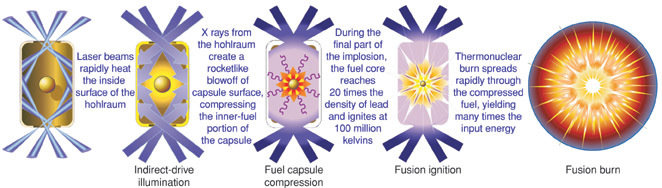

Indirect drive

Direct drive

Inertial Confinement

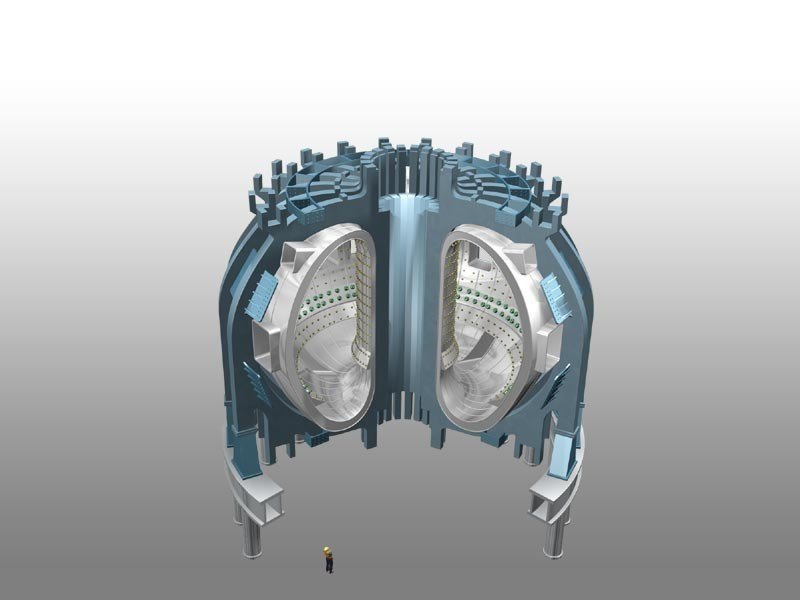

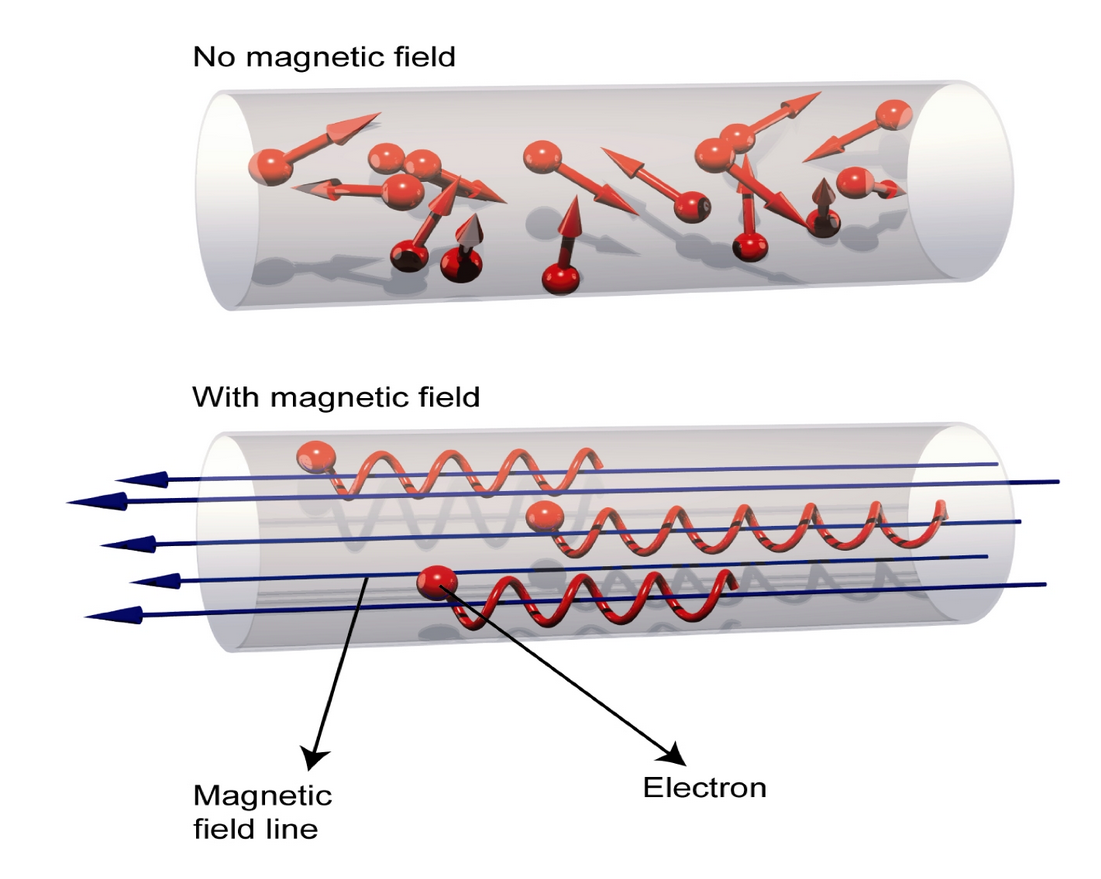

Magnetic Confinement

Magnetic Confinement

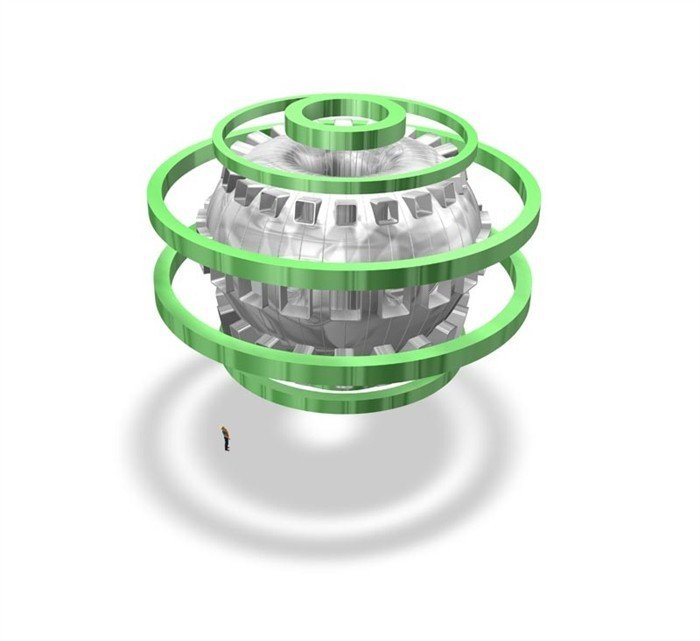

Poloidal and toroidal magnets

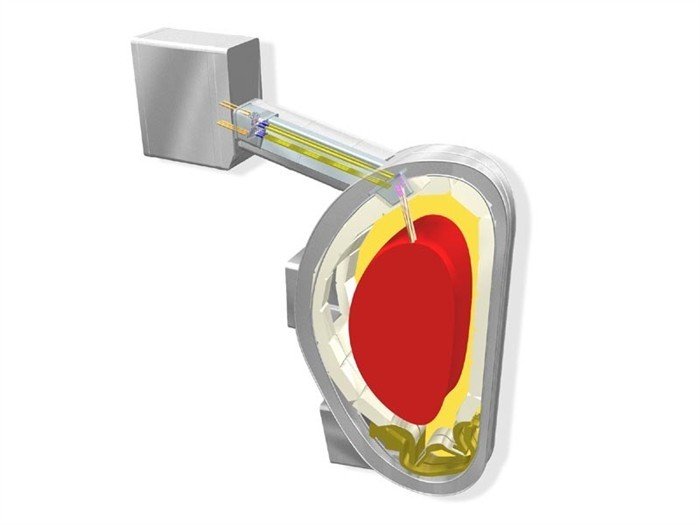

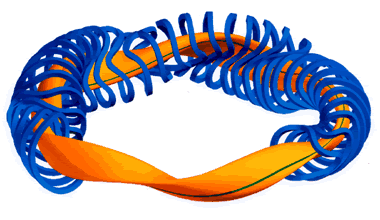

Magnetic Confinement

Magnetic Confinement

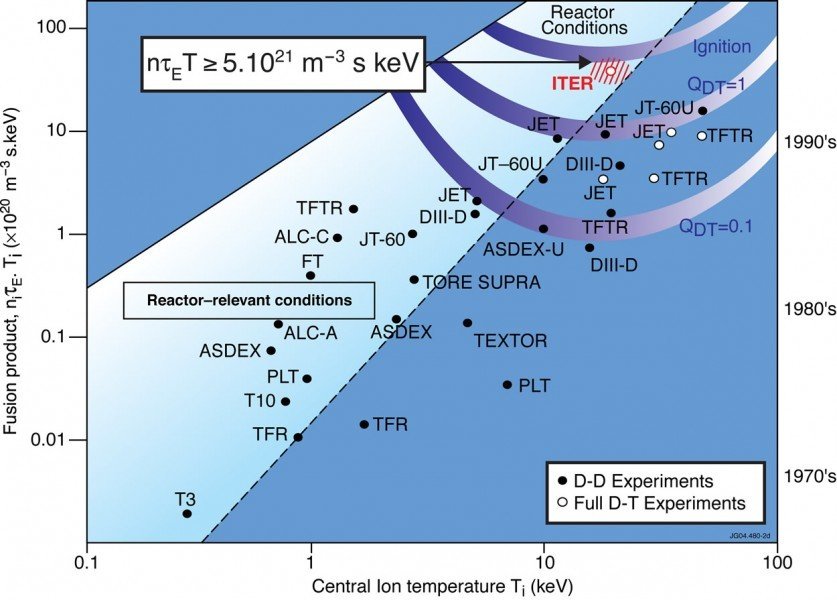

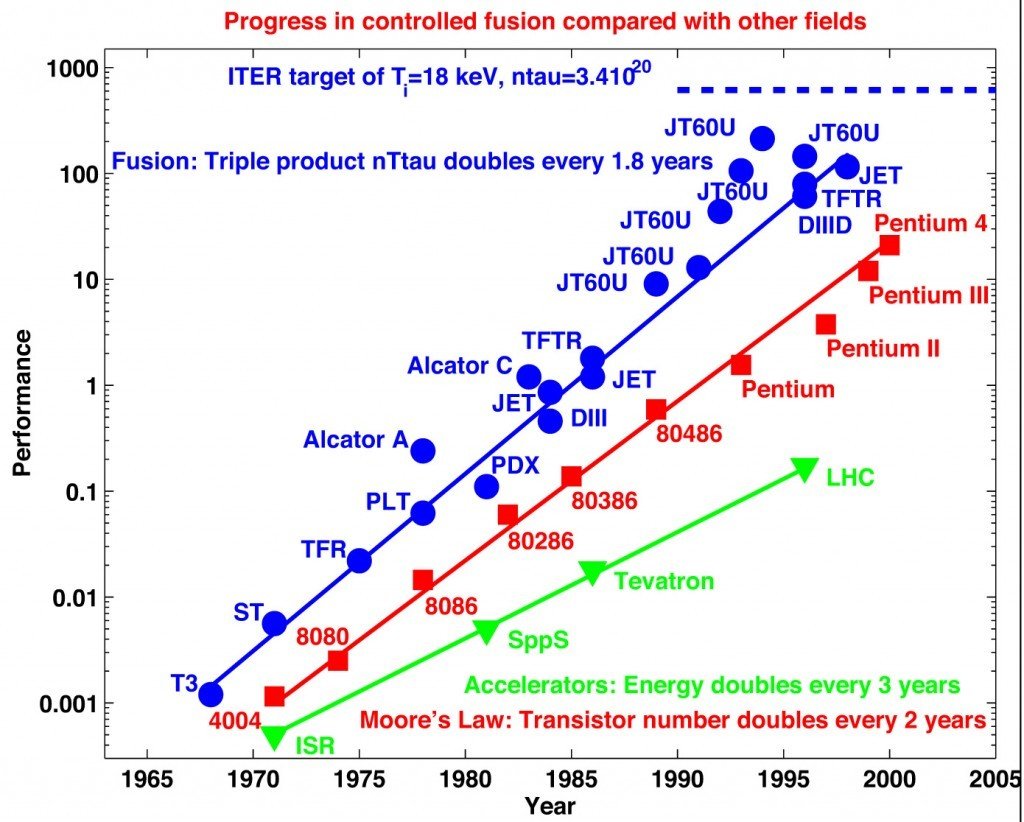

Magnetic Confinement Roadmap

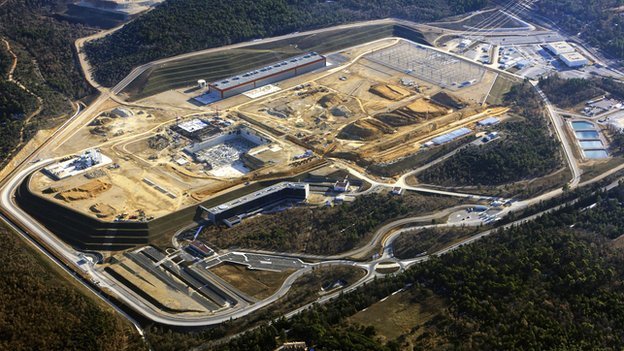

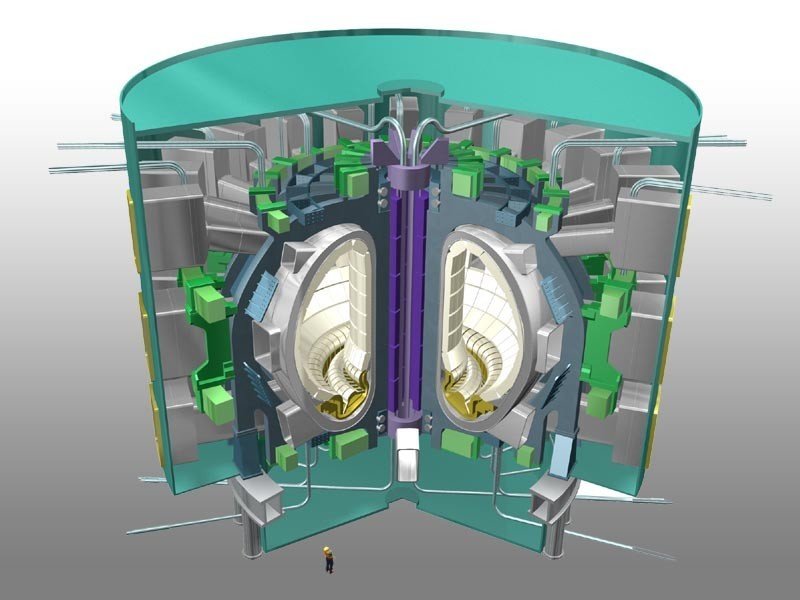

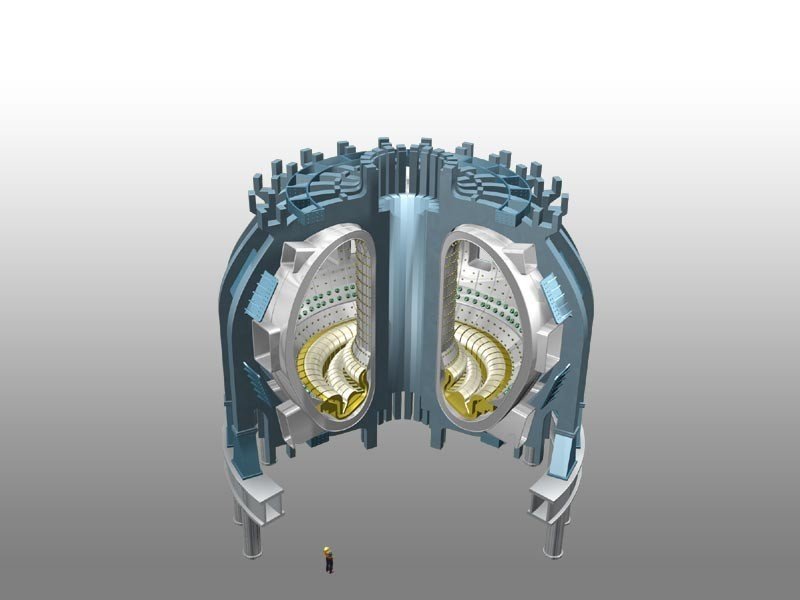

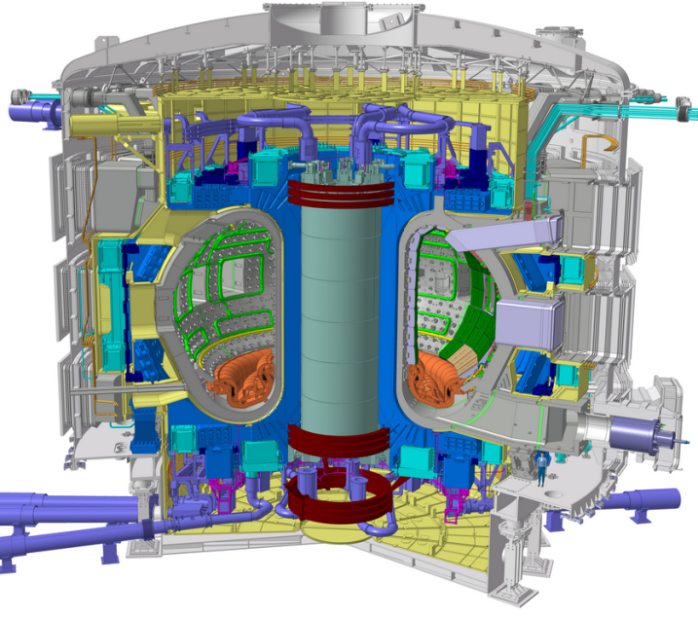

ITER reactor

800m3 plasma volume

500MW thermal

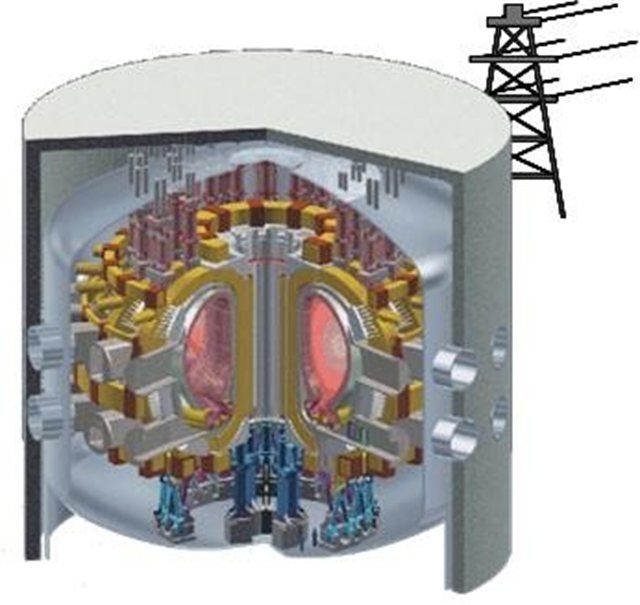

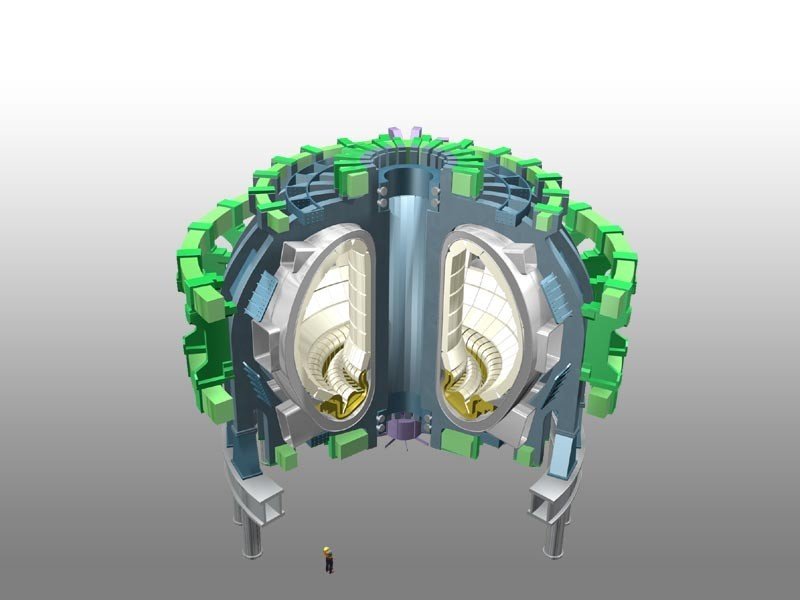

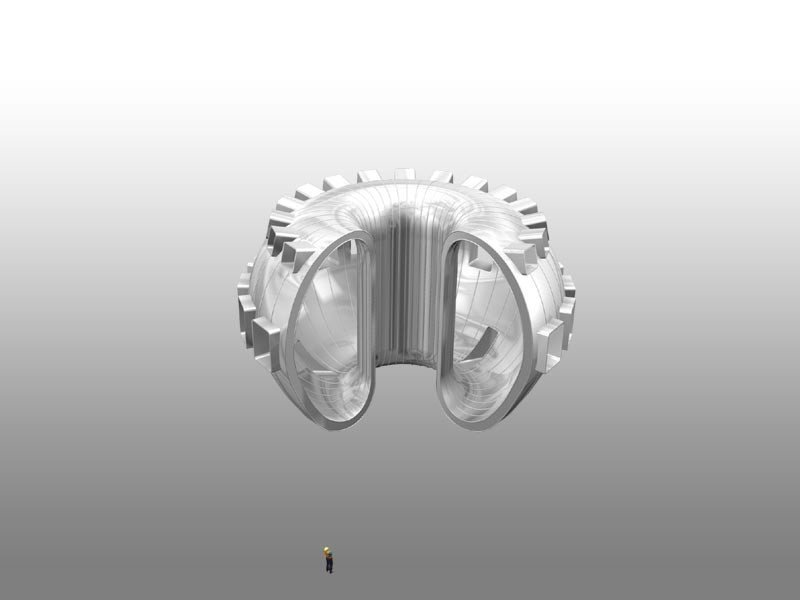

DEMO reactor

1000-3500m3 plasma volume

4000MW thermal

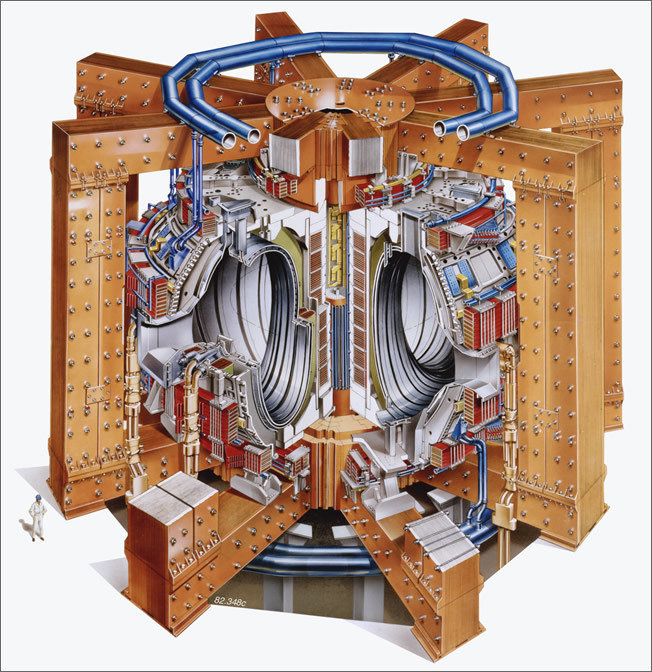

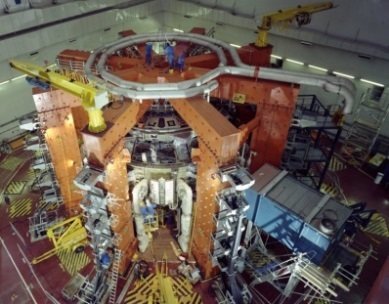

JET reactor

80m3 plasma volume

16MW thermal

Tore Supra

25m3 plasma volume

0MW thermal


The point where a fusion reaction becomes self-sustaining instead of requiring a constant input of energy. In the case of DT fusion the plasma is heated by the energetic alpha particle that is emitted during fusion reactions. This is also known as self heated plasma


Lawson criteria

The lawson criteria defines the general requirements (temperature, density and confinement time) of a reactor to reach a self sustaining reaction (ignition).

n_e\tau \geq
Q<\sigma v>

Confinement time

Boltzmann constant

Temperature of electrons

Number density of electrons

Energy released per fission

Cross section of reaction

Average velocity of ions

Derivation of Lawson Criterion for DT fusion

\tau = \frac{w}{P_{loss}}
w = \int_{}^{}( \frac{3}{2}k_Bn_eT_e+\frac{3}{2}k_Bn_DT_D +\frac{3}{2}k_Bn_tT_t)dV
n_e = n_{ions} = n_D + n_t
w =\frac{3}{2}k_BT_e(n_e+0.5n_e+0.5n_e)V
P_{loss} = \frac{3k_BT_en_eV}{\tau}
R = n_Dn_t<\sigma_fv>V
RQ = n_Dn_t<\sigma_fv>VQ
RQ \geq P_{loss}
\frac{1}{4}n_e^2<\sigma_fv>QV \geq \frac{3k_BT_en_eV}{\tau}
n_e\tau \geq \frac{12k_BT_e}{Q<\sigma_fv>}
V = volume
v = velocity
R = reaction \ rate
w = stored \ energy \ in \ plasma
P_{loss} = rate \ of \ energy \ loss
k_B = Boltzmann \ constant
\sigma_f = fusion \ cross \ section
\tau = confinement \ time
T = temperature \ of \ tritium (T_t), \ deuterium (T_D), \ electrons \ (T_e), \ ions \ (T_i)
n = number \ density \ of \ tritium (n_t), \ deuterium \ (n_D), \ electrons \ (n_e)
Q = energy \ released \ by \ reaction
RQ = \frac{1}{4}n_e^2<\sigma_fv>QV

Fusion Technology

Breeder blankets

  • To generate sufficient tritium fuel to sustain the reactor.
  • To convert kinetic energy of the neutrons to thermal energy.
  • To shield the exterior components from neutrons.

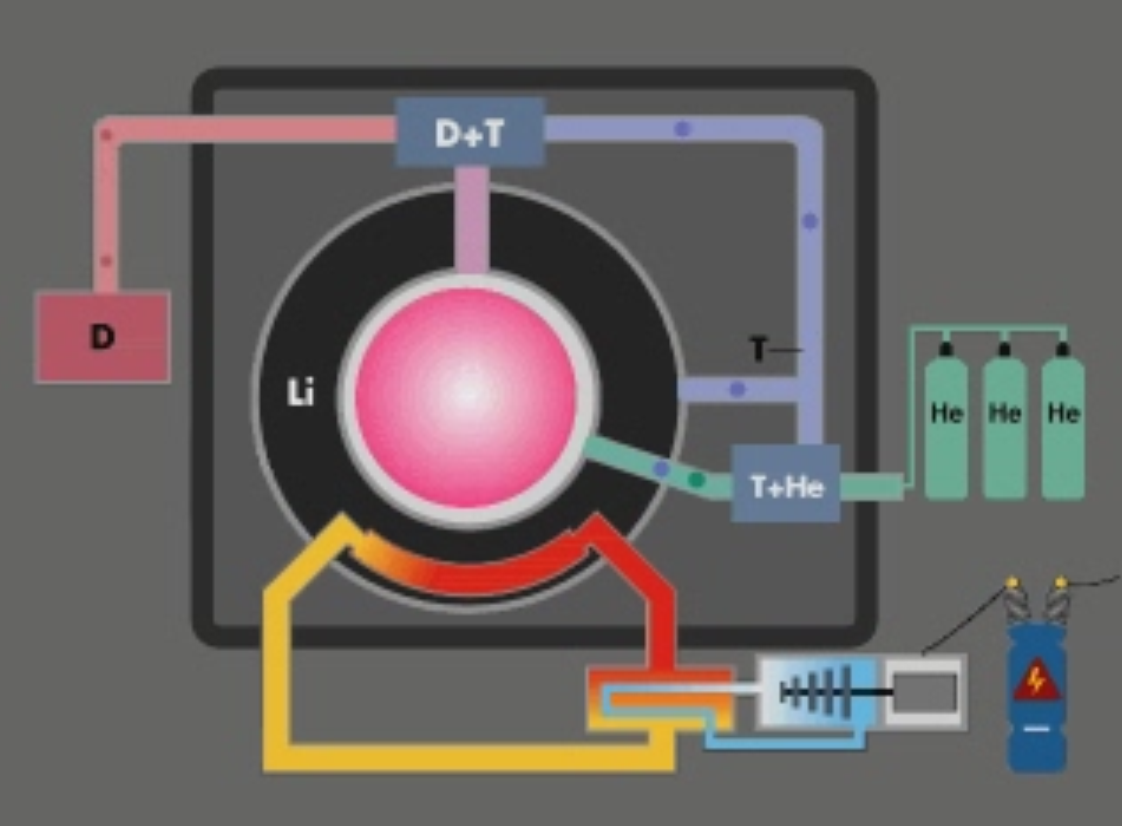

Fuel Cycle

Fuel Cycle

Fuel Cycle

Fuel Cycle

Key reactions in breeder blankets


Which isotope is depleted?
Why at the front?
What is the best isotope for the front?

Li^6 + n = He^4 + H^3
Li^7 + n = He^4 + H^3 + n
Be^9 + n = 2He^4 + 2n
1\times 10^{21}
per second

Neutron moderation

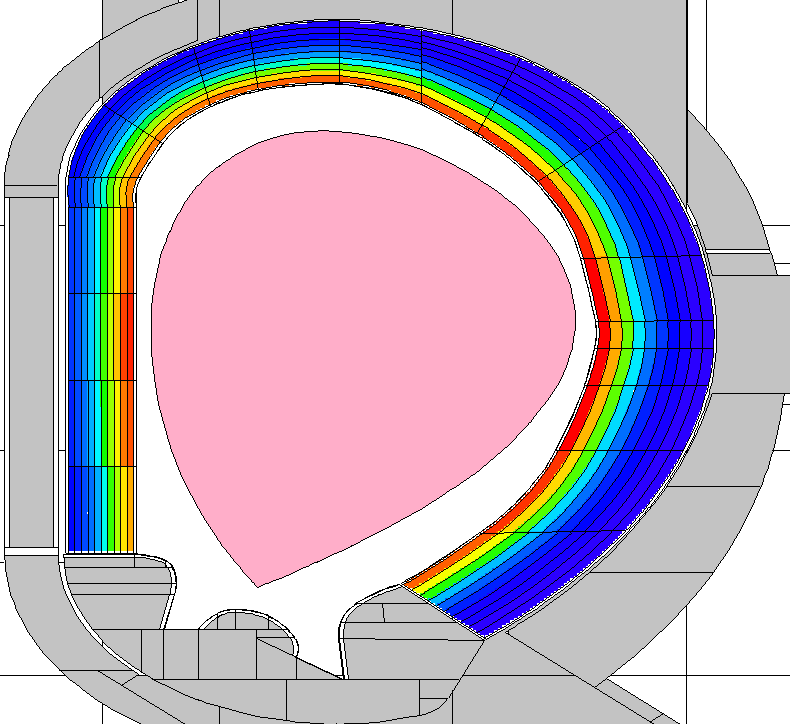

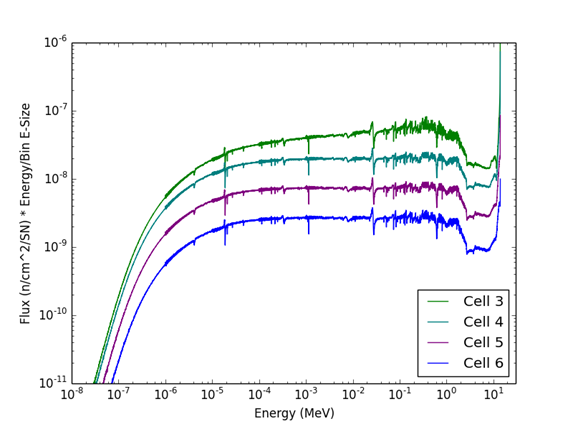

  • Neutron spectra at different depths in the blanket.
  • Neutrons are moderated by the material and lose energy.
  • Neutrons are also captured and produced by some reactions.

Fuel Cycle

Neutron spectra at different depths in the blanket.

Neutrons are moderated by the material and lose energy.

Neutrons are also captured by some reactions.

Selecting suitable materials

Fuel Cycle - tritium breeding

Fuel Cycle - neutron multiplication

Neutron interaction

Material 1

Material 2

Neutron birth





























n = neutron

g = gamma

t = tritium

p = proton

d = deuterium

He = helium

Common neutron induced reactions

Neutron number

Proton number



Number of atoms

Shut down

  • New isotopes build up during irradiation
  • Radioactive isotopes decay and will eventually reach a point where decay rate is equal to activation rate.
  • Decay is more noticeable once the plasma is shutdown.
  • The activity is related to the irradiation time and the nuclide half life.
  • The decay process emits gamma rays leading to dose.
  • The dose is dependent on the activity, the energy of the gamma and biological response.

Radioactivity - activation

Radioactivity - fission products

Atomic number

Percentage of fission products

Radioactivity - fission products

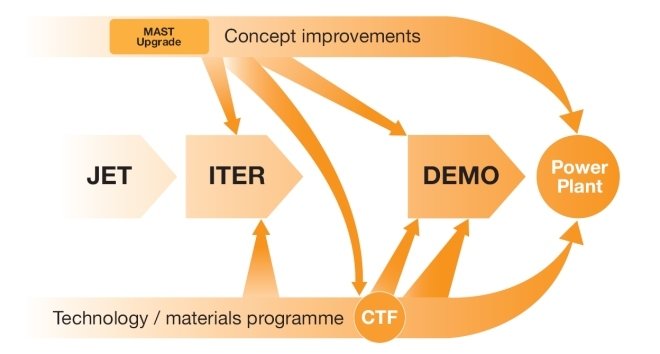

EU Roadmap for fusion energy

  • 3 main reactors (JET, ITER, DEMO) demonstrating large steps in understanding and performance.

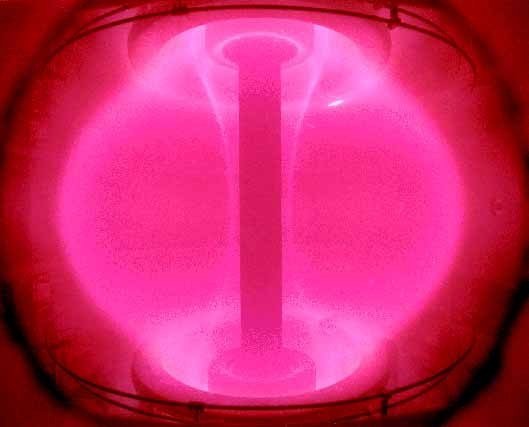

Image source www.ccfe.ac.uk/mast_upgrade.aspx

  • Many smaller reactors testing, validating and experimenting on different plasma physics regimes, component designs, materials and feeding into the design of larger ground breaking reactors

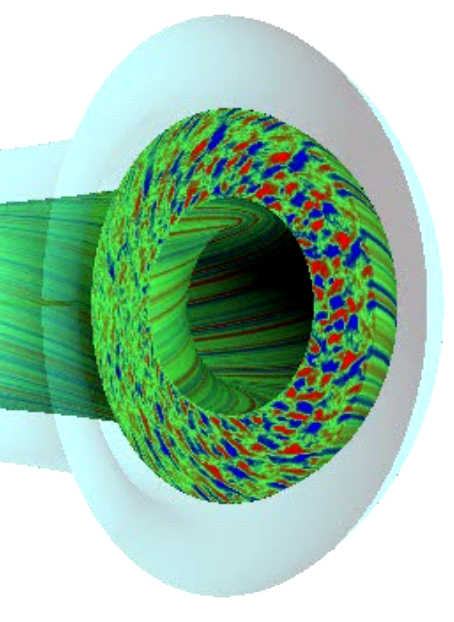

Lots of interesting physics to learn

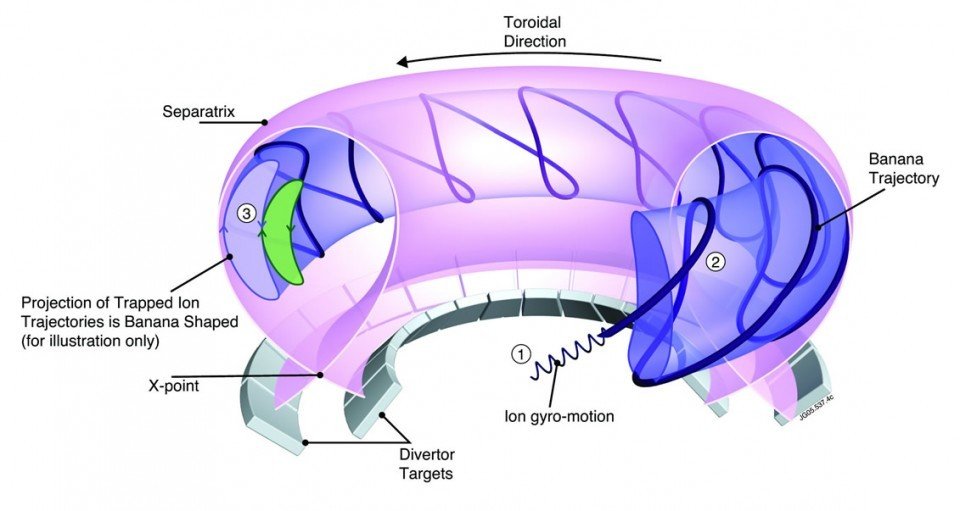

Banana orbits

run away electrons


3D printing components

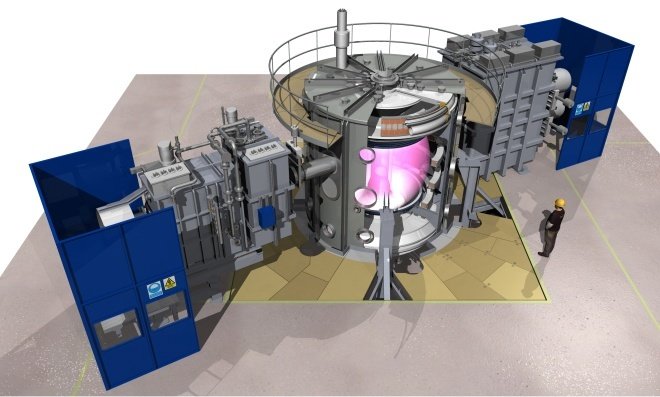

Neutral particle accelerators

Robotic maintainance

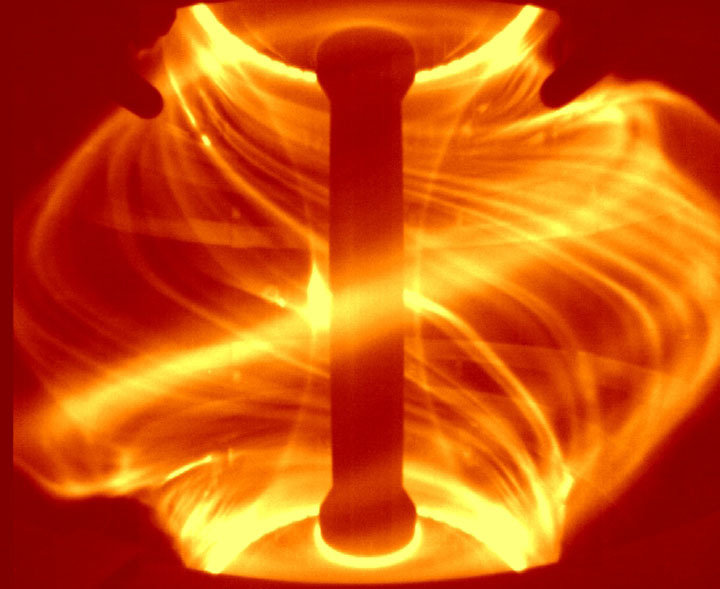

Plasma instabilities such as sausage, kink, balloon and elms

Further opportunists

Masters Degrees



Fusion Energy Msc
The University of York

European Masters of Science in Nuclear Fusion and Engineering Physics
Organised by the European Commission

The physics and technology of nuclear reactors, MSc
University of Birmingham

Nuclear Energy, MPhil
University of Cambridge

Fusion Doctorial Training Network, PhD Organised by several universities and research organisations.


Doctoral Programme in nuclear fusion science and engineering
Organised by 18 European Universities

Nuclear First Doctorial Training Centre University of Manchester and University of Sheffield.

PhD open days hosted by UKAEA and CCFE with repreentatives from  UK universities

Summer placements, graduate recruitment at Fusion 4 Energy in Barcelona

Fusenet the European fusion education network with funding oppertunities

Fusion Energy

By Jonathan Shimwell

Fusion Energy

Blackpool and The Fylde College 2019
