Android Application Architecture with RxJava

by Predko Silvestr

GDG Ternopil

Content

• Reactive programming

• Why I need Rx?

• RxJava and RxAndroid

• RxLifecycle

• Retrofit 2.0, Realm

• Design app architecture

What about streams?

Reactive Programming

Reactive programming built on strems

For Example:

b = 4;
c = 6;

a = b + c; // a = 10
b = 10; // a = 16
c = 7; // a = 17

Imperative

Reactive

b = 4;
c = 6;

a = b + c; // a = 10
b = 10; // a = 10
c = 7; // a = 10

vs

Why I need Rx?

• For executing code in background

• For code simplicity

• For error handling

• For scalable app architecture

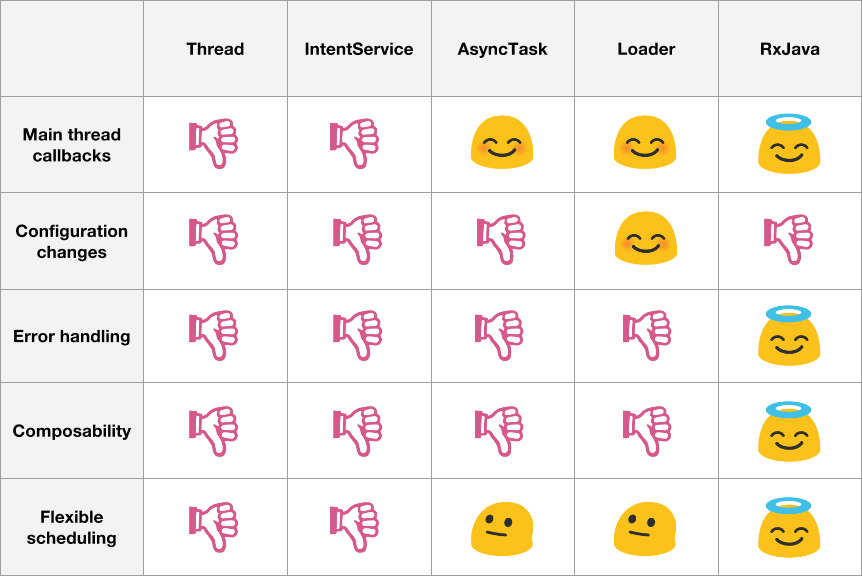

Android Async Tools

RxJava and RxAndroid

The Basics

Hello World!

Observable<String> myObservable = Observable.create(
    new Observable.OnSubscribe<String>() {
        @Override
        public void call(Subscriber<? super String> sub) {
            sub.onNext("Hello world!");
            sub.onCompleted();
        }
    }
);

myObservable.subscribe(mySubscriber);

Subscriber<String> mySubscriber = new Subscriber<String>() {
    @Override
    public void onNext(String s) { System.out.println(s); }

    @Override
    public void onCompleted() { }

    @Override
    public void onError(Throwable e) { }
};

            it's the same as sub.onComplete, but also throw exception.

sub.onError(Throwable e)

Text

Creating Observables

Observable.create(onSubscribe);
// accept OnSubscribe object
// the most complex creation of Observable

Observable.empty(); //emits nothing and then completes
Observable.never(); //that emits nothing at all
Observable.error(new Throwable("error")); //emits nothing and then signals an error

Empty, Never, Error

Just

Observable.just("Hello", "World", "!").subscribe(new Subscriber<String>() {
            @Override
            public void onCompleted() {
                System.out.println("Completed");
            }

            @Override
            public void onError(Throwable e) {

            }

            @Override
            public void onNext(String s) {
                System.out.println("Next: " + s);
            }
        });

Interval

Observable.interval(500, TimeUnit.MILLISECONDS)
                .toBlocking()
                .subscribe(new Action1<Long>() {
            @Override
            public void call(Long aLong) {
                System.out.println("Iteration");
            }
        });

create an Observable that emits a sequence of integers spaced by a particular time interval

From

List<String> arr = Arrays.asList("Hello", "World");
// create Observable from:
Observable.from(arr); // from Iterable
Observable.from(new String[]{"Hello", "World"}); // from Array
Observable.fromCallable(() -> "Hello"); // from Callable

convert some other object or data structure into an Observable

Text

Subscribing

with Subscriber

with Action1

Real Example with Operators

public static Observable<String> getObservable(String[] arr) {
        return Observable.create((Observable.OnSubscribe<String>) subscriber -> {
            for (String s : arr) {
                subscriber.onNext(s);
            }
            subscriber.onCompleted();
        });
    }

create observable

Transformation

• map

getObservable(new String[]{"Hello", "GDG", "Ternopil", "!"})
                .map(new Func1<String, String>() {
                    @Override
                    public String call(String s) {
                        return "{" + s + "}";
                    }
                })
                .subscribe(System.out::println);

• flatmap

getObservable(new String[]{"Hello", "GDG", "Ternopil", "!"})
                .flatMap(new Func1<String, Observable<Integer>>() {
                    @Override
                    public Observable<Integer> call(String s) {
                        return Observable.just(s.hashCode());
                    }
                })
                .subscribe(System.out::println);

• scan

getObservable(new String[]{"Hello", "GDG", "Ternopil", "!"})
                .scan(new Func2<String, String, String>() {
                    @Override
                    public String call(String s, String s2) {

                        return s + " " + s2;
                    }
                }).subscribe(System.out::println);

Filtering

output

examples

Combining

public static Observable<String> getObservable2(String name) {
        return Observable.create((Observable.OnSubscribe<String>) subscriber -> {
            subscriber.onNext(name);
            subscriber.onCompleted();
        });
    }

getObservable(new String[]{"Hello", "GDG", "Ternopil", "!"})
                // save executing sequence
                .concatWith(getObservable2("Observable2"))
                // gets the first emitted element
                .mergeWith(getObservable2("Observable2"))
                .subscribe(System.out::println);

How to execute it in Background?

Observable.create(subscriber -> {
      for (int i = 0; i < 500; i++) {
        try {
          Thread.sleep(500);
          subscriber.onNext("Hello");
        } catch (InterruptedException e) {
          subscriber.onError(e);
        }
      }
      subscriber.onCompleted();
    })

Problems

Observable.create(subscriber -> {
      ...
    })
        .subscribeOn(Schedulers.io())
        .observeOn(AndroidSchedulers.mainThread())

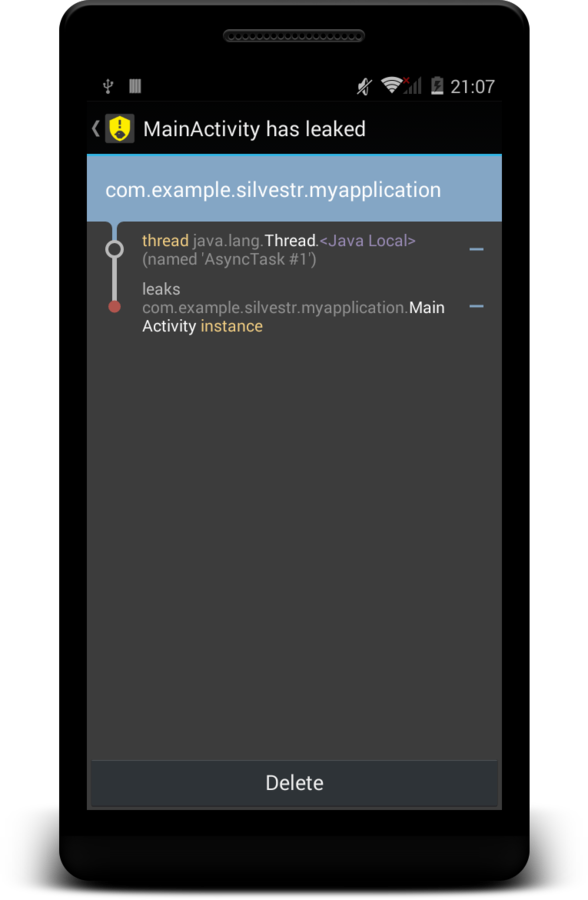

Memory Leaks

RxLifecycle

Written by

Create PublishSubject

public class MainActivity extends Activity {
  PublishSubject<ActivityEvent> subject = PublishSubject.create();
}

Retrofit 2.0 and Realm

RxJava is Everywhere

@GET("/user/{id}/photo")
Observable<Photo> getUserPhoto(@Path("id") int id);

Retrofit Example:

Realm Example:

Realm realm = Realm.getDefaultInstance();
RealmResults<Person> persons = realm.where(Person.class).findAll();
Person person = persons.first();

Observable<Realm> realmObservable = realm.asObservable();
Observable<RealmResults<Person>> resultsObservable = persons.asObservable();
Observable<Person> objectObservable = person.asObservable();

Design app architecture with RxJava

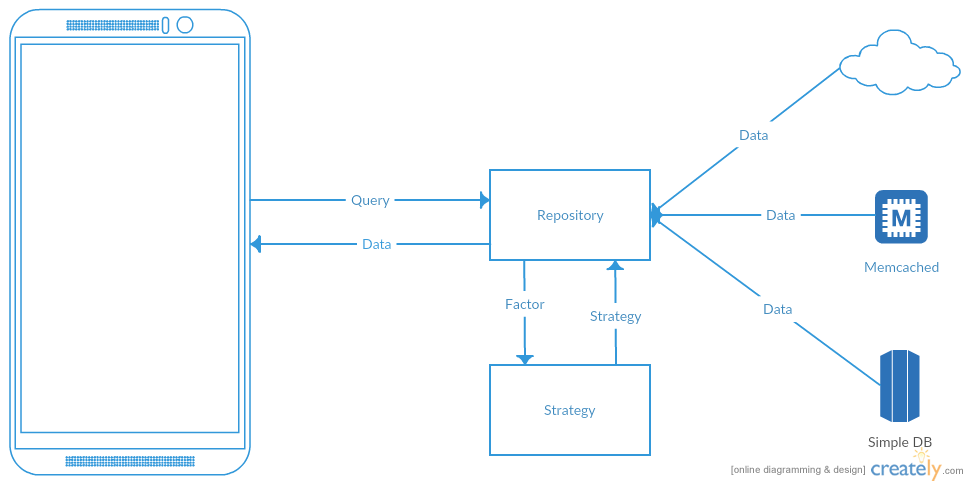

Repository Pattern

Observable Caching

Observable observable = Observable.create(subscriber -> {

    })
        .subscribeOn(Schedulers.io())
        .observeOn(AndroidSchedulers.mainThread())
        .compose(bindToLifecycle())
        .cache();

You need save instance of observable

• Loader
• Singleton
• Fragment

with:

With Loader

1.

Implement own loader realization

With Loader

2.

In Activity or Fragment

Rx World

RxPermission

RxNetty

RxStore

RxLoader

RxPalette

RxBlur

or

Write your own library

Questions & Answers

contact me:

Facebook - silvestr.predko

Twitter - @Silvestr1994

Google+ - SilvestrPredko
