Microservices in Node.js

using

Event Sourcing and CQRS

Stefan Kutko, VP Engineering

Electronifie

About Me

Polyglot Developer

8 years developing financial trading systems

Eager adopter of new technology

My Startup Story

The opportunity to build a Trading System written entirely in Node.js

How it all began

"Build it however you like"

"But it has to be..."

• Performant
• Resilient
• Maintainable

(no problem)

Fast Forward: The Result

• Meteor.js Frontend (on OpenFin.co)
• Node.js Distributed Microservices Backend
• Event Sourced
• Command-Query-Responsibility-Segregated

Demo

Today's Talk

• Microservices architecture
• Event Sourcing in Node.js
• CQRS in Node.js
• Final Thoughts

What are Microservices?

Express

WebApp

MongoDB

Users

Accounts

Orders

Trades

Treasuries

Bonds

Instead of this...

REST API

Multiple Processes,
Small Logical Services

Express

WebApp

AccountSvc

MarketSvc

RefDataSvc

Users

Accounts

Orders

Trades

Bonds

Treasuries

DB

DB

DB

REST API

Microservices Communication

?

We can use HTTP + REST but...

More Services == More Infrastructure + Config

Also...

How do other services get notified of changes?

Node's Event Emitter...

http://nodejs.org/api/events.html

// worker.js

var events = require("events");
var util = require('util');

function Worker () {
    events.EventEmitter.call(this);
}

util.inherits(Worker, events.EventEmitter);

Worker.prototype.doStuff = function() {
    // ...
    this.emit('done');
};

module.exports.Worker = Worker;

// service.js

var Worker = require('./worker');

var worker = new Worker();

worker.on('done', function () {
  console.log('work done');
});

worker.doStuff();

Works great intra-process, but what about inter-process?

npm install servicebus

servicebus make it easy to

Send/Listen

Pub/Sub

Worker Queues

With Durable or Transient messaging!

servicebus: Send/Listen

// process1.js

var bus = require('servicebus').bus({
    url: process.env.RABBITMQ_URL
});

bus.send('order.create', {
    userId: 1,
    bondId: 000000000,
    side: 'buy',
    qty: 1000,
    limit: 99.95
}, { ack: true });

// process2.js

var bus = require('servicebus');
var orderManager = require('./orderManager');

bus.listen('order.create', function(msg) {

    console.log(msg);

    orderManager.create(msg.data, function (err) {
        if(err)
            msg.handle.reject();
        else
            msg.handle.ack();
    });

});

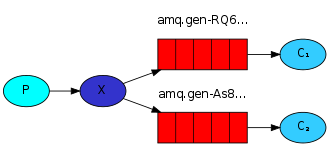

servicebus: Pub/Sub

// processManager.js

var bus = require('servicebus').bus({
    url: process.env.RABBITMQ_URL
});

bus.publish('broadcast', {
    command: 'heartbeat'
});

bus.listen('process.manager', function(msg) {
    console.log(
        msg.data.id +
        " is status: " +
        msg.data.status
    );
});

// process1.js
var bus = require('servicebus').bus({
    url: process.env.RABBITMQ_URL
});

bus.subscribe('broadcast', function(msg) {
    if(msg.data.command == 'heartbeat') {
        bus.send('process.manager', {
            id: 'process1',
            status: 'online'
        });
    }
});

// process2.js
var bus = require('servicebus').bus({
    url: process.env.RABBITMQ_URL
});

bus.subscribe('broadcast', function(msg) {
    if(msg.data.command == 'heartbeat') {
        bus.send('process.manager', {
            id: 'process2',
            status: 'online'
        });
    }
});

Microservice Building Blocks

MicroSvc

DB

Command in

Persistence

Event in

Command out

Event out

Query API

A Strategy for Microservice Persistence:

Event Sourcing

(in node.js)

Best explained when compared to  a CRUD architecture

(Create, Read, Update, Delete)

or

REST

Why Event Sourcing?

In a trading system,

there is a market,

where orders match,

to create trades

The Domain:

CRUD: trader1 places an order to

buy $500m of Verizon ‘21s at $99.95

{
    userId: "trader1",
    bondId: "92343VBC7",
    side: "buy",
    quantity: 500000,
    limit: 99.95
}

HTTP POST /orders

Express

MongoDB

order.save()

{
    _id: 1,
    userId: "trader1",
    bondId: "92343VBC7",
    side: "buy",
    quantity: 500000,
    limit: 99.95,
    status: "open",
    filled: 0,
    remaining: 500000
}

1 Database Save

Get back 3 additional
server-side managed fields

Let's make a CRUD trade:

trader2 sell $200m Verizon ‘21s at $99.95

Update Order 1

{
    _id: 1,
    userId: "trader1",
    bondId: "92343VBC7",
    side: "buy",
    quantity: 500000,
    limit: 99.95,
    status: "open",
    filled: 200000,
    remaining: 300000
}

{
    _id: 2,
    userId: "trader2",
    bondId: "92343VBC7",
    side: "sell",
    quantity: 200000,
    limit: 99.95,
    status: "completed",
    filled: 200000,
    remaining: 0
}

Insert Order 2

{
    _id: 1,
    buyOrderId: 1,
    sellOrderId: 2,
    quantity: 200000,
    price: 99.95
}

Insert Trade 1

= 1 Find + 3 Write Operations to DB

Find "buy" orders for "92343VBC7"...

Found: _id=1

So, now the database looks like:

_id, user,    cusip,       side,  qty,    limit, filled, remaining, status
1,   trader1, "92343VBC7", buy,   500000, 99.95, 200000, 300000,    "open"
2,   trader2, "92343VBC7", sell,  200000, 99.95, 200000, 0,         "completed"

Orders

Trades

_id, cusip,       buyOrderId, sellOrderId, qty,     price
1,   "92343VBC7", 1,          2,           200000,  99.95

CRUD/REST just maintains current state of objects

_id, cusip,       user,    side,  qty,    limit, filled, remaining, status
1,   "92343VBC7", trader1, buy,   500000, 99.98, 200000, 300000,    "open"
2,   "92343VBC7", trader2, sell,  200000, 99.95, 200000, 0,         "completed"

Orders

Trades

_id, cusip,       buyOrderId, sellOrderId, qty,    price
1,   "92343VBC7", 1,          2,           200000, 99.95

Trader1 modifies buy order limit to $99.96

then to $99.97....

then to $99.98....

What if updates are significant?

_id, user,     side,  qty,    limit, ..., createdAt,             updatedAt
1,   trader1,  buy,   500000, 99.98, ..., "2014-11-14 11:34:11", "2014-11-14 12:11:05"
2,   trader2,  sell,  200000, 99.95, ..., "2014-11-14 11:39:11", "2014-11-14 11:39:11"

Orders

Trader1 modifies buy order limit to $99.96

then to $99.97....

then to $99.98....

(i.e. want to monitor trader behavior...)

We know when order is created...
and when last updated to current state...
but miss interim modification to $99.97...
and original limit price.

Solution 1: createdAt, updatedAt

Solution 2: Audit Table

_id, user,     side,  qty,    limit, ..., createdAt,             updatedAt
1,   trader1,  buy,   500000, 99.98, ..., "2014-11-14 11:34:11", "2014-11-14 12:11:05"
2,   trader2,  sell,  200000, 99.95, ..., "2014-11-14 11:39:11", "2014-11-14 11:39:11"

Orders

Trader1 modifies buy order limit to $99.96

then to $99.97....

then to $99.98....

Have full history of changes...

But what changed? Have to infer from prev record...

Also o(n) updates + o(n) writes on EVERY transaction.

_id, version, user,     side, qty,    limit, ..., createdAt,             updatedAt
1,   1,       trader1,  buy,  500000, 99.95, ..., "2014-11-14 11:34:11", "2014-11-14 11:34:11"
1,   2,       trader1,  buy,  500000, 99.96, ..., "2014-11-14 11:34:11", "2014-11-14 11:37:08"
1,   3,       trader1,  buy,  500000, 99.97, ..., "2014-11-14 11:34:11", "2014-11-14 11:54:32"
1,   4,       trader1,  buy,  500000, 99.98, ..., "2014-11-14 11:34:11", "2014-11-14 12:11:05"

OrderHistory

Meet Event Sourcing

Maintain an immutable Event Log

that represents a single-source of truth...

PERFECT audit history,

O(1) db APPEND operation on EVERY transaction,

Current state of system held in memory only.

_id, event,          createdAt,              payload,
1,   "createOrder",  "2014-11-14 11:34:11", { _id: 1, cusip: "92343VBC7", user: trader1, side: "buy", qty: 500000, limit: 99.95, ... }
2,   "replaceOrder", "2014-11-14 11:37:08", { _id: 1, limit: 99.96 }
3,   "replaceOrder", "2014-11-14 11:54:32", { _id: 1, limit: 99.97, updatedBy: algo1 }
4,   "replaceOrder", "2014-11-14 12:11:05", { _id: 1, limit: 99.98 }

MarketEvents

Q: What happens if we crash?

marketId,    version, name,           createdAt,             payload,
"92343VBC7", 1,       "createOrder",  "2014-11-14 11:34:11", { _id: 1, user: trader1,  side: "buy", qty: 500000, limit: 99.95, ... }
"92343VBC7", 2,       "replaceOrder", "2014-11-14 11:37:08", { _id: 1, limit: 99.96 }
"92343VBC7", 3,       "replaceOrder", "2014-11-14 11:54:32", { _id: 1, limit: 99.97, updatedBy: algo1 }
"92343VBC7", 4,       "replaceOrder", "2014-11-14 12:11:05", { _id: 1, limit: 99.98 }

MarketEvents

A: Replay events on startup to rebuild current system state.

Market.prototype.init = function(marketId) {
    var self = this;
    Events.find({ marketId: marketId }, {orderBy: {version: 1}}).forEach(function(err, event) {
        self[event.name].apply(self, event.payload);
    });
}

Market.prototype.createOrder = function(payload, cb) {
    ...
    if(cb) cb();
};

Market.prototype.replaceOrder = function(payload, cb) {
    ...
    if(cb) cb();
};

Market.js

Q: What if I have a ton of events?

marketId,    version, name,           createdAt,             payload,
"92343VBC7", 1,       "createOrder",  "2014-11-14 11:34:11", { _id: 1, user: trader1,  side: "buy", qty: 500000, limit: 99.95, ... }
"92343VBC7", 2,       "replaceOrder", "2014-11-14 11:37:08", { _id: 1, limit: 99.96 }
"92343VBC7", 3,       "replaceOrder", "2014-11-14 11:54:32", { _id: 1, limit: 99.97, updatedBy: algo1 }
"92343VBC7", 4,       "replaceOrder", "2014-11-14 12:11:05", { _id: 1, limit: 99.98 }

MarketEvents

A: Snapshot the system state every n-events to create a checkpoint.

{
    marketId: "92343VBC7",
    version: 4,
    data: {
        orders: [
            { _id: 1, side: "buy", limit: 99.98, ...}
        ]
    }
}

MarketSnapshots

Q: What if I need to delete an event?

marketId,    version, name,           createdAt,             payload,
"92343VBC7", 1,       "createOrder",  "2014-11-14 11:34:11", { _id: 1, user: trader1,  side: "buy", qty: 500000, limit: 99.95, ... }
"92343VBC7", 2,       "replaceOrder", "2014-11-14 11:37:08", { _id: 1, limit: 99.96 }
"92343VBC7", 3,       "replaceOrder", "2014-11-14 11:54:32", { _id: 1, limit: 99.97, updatedBy: algo1 }
"92343VBC7", 4,       "replaceOrder", "2014-11-14 12:11:05", { _id: 1, limit: 99.98 }
"92343VBC7", 5,       "replaceOrder", "2014-11-14 12:11:18", { _id: 1, limit: 99.97 }

Market Events

A: You don't, instead perform a "reverse" operation.

Q: How do I get the state of a system after an event?

Market.prototype.replaceOrder = function(payload, cb) {

    // find the order from list of orders
    var order = _.find(this.orders, function(o) { o._id === payload._id });

    // existential check on replacable fields
    if(payload.limit) order.limit = payload.limit;
    if(payload.quantity) order.quantity = payload.quantity;

    // notify that order has been changed
    this.notify('orderReplaced', order);

    if(cb) cb();
};

Market.js

A: Emit a message representing changes

Event Sourcing in Node.js

• npm install sourced
• npm install sourced-repo-mongo

Thanks @mateodelnorte!

Start with sourced.Entity

var Order = require('./order');
var Entity = require('sourced').Entity;
var util = require('util');

function Market () {
  this.id = null;
  this.orders = [];
  this.trades = [];
  Entity.call(this);
}
util.inherits(Market, Entity);

Market.prototype.initialize = function(id, cb) {
    this.id = id;
    if(cb) cb();
};

Market.prototype.createOrder = function(o, cb) {
    // tell sourced to automatically digest the event and params
    this.digest('createOrder', o);

    this.orders.push(new Order(o));

    if(cb) cb();
};

module.exports = Market;

Managing Entities

var Promise = require('bluebird');
var sourcedRepoMongo = require('sourced-repo-mongo');
var MongoRepository  = sourcedRepoMongo.Repository;
var Market = require('./market');
var util = require('util');

function MarketRepository () {
  this.cache = {};
  MongoRepository.call(this, Market);
}

util.inherits(MarketRepository, MongoRepository);

MarketRepository.prototype.get = function (id, cb) {
  var self = this;
  var promise = new Promise(function (resolve, reject) {
    var market = self.cache[id];
    if(!market) {
      // rebuild from event snapshots and store
      MarketRepository.super_.prototype.get.call(self, id, function (err, market) {
        self.cache[id] = market;
        resolve(market);
      });
    } else {
      resolve(market);
    }
  });

  promise.done(function (market) {
    cb(null, market);
  });
};

module.exports = MarketRepository;

How Does sourced do it?

// from sourced-repo-mongo.js

Repository.prototype.get = function get (id, cb) {
  var self = this;
  log('getting %s for id %s', this.entityType.name, id);
  this.initialized.done(function () {
    self.snapshots
      .find({ id: id })
      .sort({ version: -1 })
      .limit(-1)
      .toArray(function (err, docs) {
        if (err) return cb(err);
        var snapshot = docs[0];
        var criteria = (snapshot) ? { id: id, version: { $gt: snapshot.version } } : { id: id };
        self.events.find(criteria)
          .sort({ version: 1 })
          .toArray(function (err, events) {
            if (err) return cb(err);
            if (snapshot) delete snapshot._id;
            return self.deserialize(id, snapshot, events, cb);
          });
    });
  });
};

Wiring it all up

var bus = require('servicebus');
var MarketRepository = require('./marketRepository.js');

var repo = new MarketRepository( );

bus.listen('market.*.command', function(msg) {
    switch(msg.command) {
        case "createOrder":
            // fetch from repo - pull from cache or rebuild from db
            repo.get(msg.data.id, function(err, market) {
                if(err) return msg.reject(err);

                // apply event
                market.createOrder(msg.data, function(err) {
                    if(err) return msg.reject(err);

                    // write the event to the database
                    repo.commit(function(err) {
                        if(err) return msg.reject(err);
                        msg.ack();
                    });
                });
            });
            break;
        default:
            msg.reject("Command not recognized");
    }
});

Notifications and Consistency

// In MarketRepository.js

var bus = require('servicebus');

market.on('order.created', function (order) {
    bus.publish('market.order.created', order);
});

// In Market.js

Market.prototype.createOrder = function(o, cb) {
    // ...

    // !!! Don't do this!
    // We haven't committed the event so we can't emit yet
    this.emit('order.created', order);

    // Instead, use enqueue provided by sourced, which waits to emit until AFTER commit
    // also suppress events during replay
    this.enqueue('order.created', order);

    if(cb) cb();
};

Back to the CRUD Example...

{
    userId: "trader1",
    bondId: "92343VBC7",
    side: "buy",
    quantity: 500000,
    limit: 99.95
}

HTTP POST /orders

Express

MongoDB

order.save()

{
    _id: 1,
    userId: "trader1",
    bondId: "92343VBC7",
    side: "buy",
    quantity: 500000,
    limit: 99.95,
    status: "open",
    filled: 0,
    remaining: 500000
}

1 Database Save

How are state changes handled when not initiated by a user request?

AJAX is so 2011...

Let's use Websocket Events

(or at least emulate them)

SockJS

MarketSvc

{
    _id: 1,
    userId: "trader1",
    cusip: "92343VBC7",
    side: "buy",
    quantity: 500000,
    limit: 99.98,
    status: "open",
    filled: 200000,
    remaining: 300000
}

order.updated

(via WebSockets)

order.updated

(via AMQP)

A Strategy for Microservice Orchestration:

CQRS

Command-Query-Responsiblity-Segregation

(in node.js)

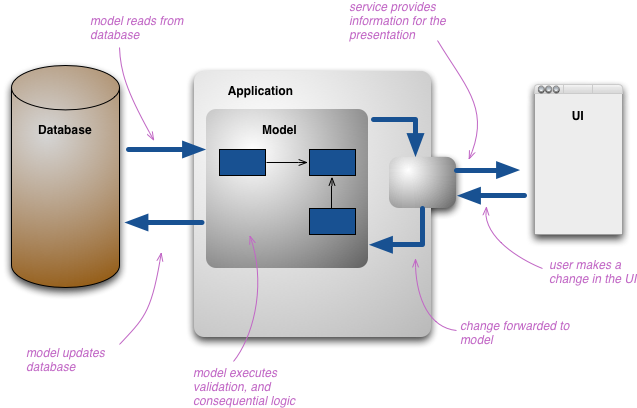

A Single Model

From Martin Fowler, CQRS

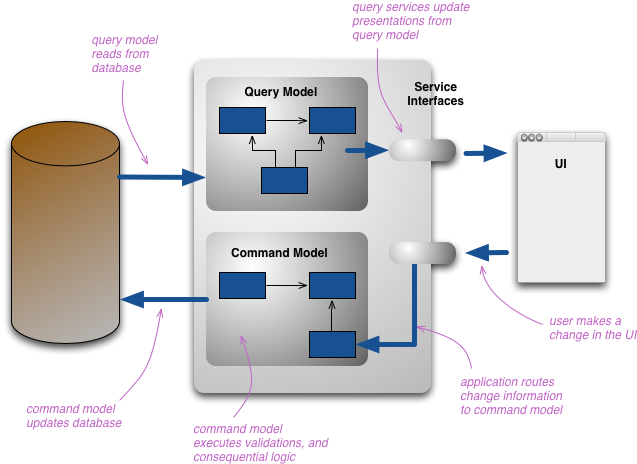

Commands and Queries Segregated

From Martin Fowler, CQRS

Why?

Data persisted in services isn't necessarily

complete for end-users

{
    _id: 1,
    userId: "trader1",
    cusip: "92343VBC7",
    side: "buy",
    quantity: 500000,
    limit: 99.95,
    status: "open",
    filled: 0,
    remaining: 500000
}

{
  _id: 1,
  user: {
    userId: "trader1",
    username: "John Smith",
    firm: "Acme Capital"
  },
  bond: {
    cusip: "92343VBC7",
    name: "VZ 3.45 03/15/21",
  },
  trades: [
    { ... }
  ],
  side: "buy",
  quantity: 500000,
  limit: 99.95,
  status: "open",
  filled: 0,
  remaining: 500000
}

Order - Service View

Order - UI View

Different Views for Different Folks

{
    _id: 1,
    userId: "trader1",
    cusip: "92343VBC7",
    side: "buy",
    quantity: 500000,
    limit: 99.95,
    status: "open",
    filled: 0,
    remaining: 500000
}

End User

{
  _id: 1,
  userId: "trader1",
  cusip: "92343VBC7",
  side: "buy",
  quantity: 500000,
  limit: 99.95,
  status: "open",
  filled: 0,
  remaining: 500000,
  creditCapacityUsed: 750000,
  marketMakerId: "A93"
}

Internal Admin

{
  _id: 1,
  userId: "trader1",
  cusip: "92343VBC7",
  side: "buy",
  quantity: 500000,
  limit: 99.95,
  status: "open",
  filled: 0,
  remaining: 500000,
  marketSnapshot: {
    bids: [ ... ]
    offers: [ ... ]
  }
}

Reporting

Introducing a Denormalizer Microservice

Webapp

MongoDB

event.save()

Market

createOrder

event.publish('order.created')

Denormalizer

MongoDB

Read-only

orderUpdated

cmd.send('createOrder')

Code is Straightforward

bus.subscribe('order.updated', function (event, cb) {
    var order = event.data.order;

    var query = {
      $set: {
        'bond': order.bond,
        'clientOrderId': order.clientOrderId,
        'createdAt': order.createdAt || Date.now(),
        'limitType': order.limitType,
        'qty': order.qty,
        'qtyFilled': order.qtyFilled,
        'qtyRemaining': order.qtyRemaining,
        'type': order.type,
        'updatedAt': Date.now()
      }
    }

    Order.update({ _id: order._id }, query, { upsert: true }, function (err, result) {
      if( err ) log.error(err);
      return cb(err);
    });
});

It's really helpful when you need to build aggregated or consolidated views from different domains

Market

Denormalizer

MongoDB

Treasury

Accounts

Client ViewModel

Events

But you're duplicating data!?

(Chill, relax, it's ok)

CQRS What you get

• Isolated Services
• Scalability - At the cost of eventual consistency
• UI can be completely decoupled from core logic

Let's Demo Again

Launch Demo

Final Thoughts

(Things I learned)

• Keep services simple
• Don't use Event Sourcing everywhere
• CQRS makes the UI very decoupled
  and easy to maintain

Refactor frequent and refactor often!

We're Hiring!

http://electronifie.com/about#jobs

http://github.com/electronifie

Referenced Packages

https://github.com/package/servicebus

https://www.npmjs.org/package/sourced

https://www.npmjs.org/package/sourced-repo-mongo

http://martinfowler.com/bliki/CQRS.html

careers@electronifie.com
