introduction

TO

Cartodb

and  Ebola
Steve Bennett

Sign up:  cartodb.com

tinyurl.com/ecarto

Housekeeping


Work in teams  - share what you learn


Slides:  tinyurl.com/ecarto

Sign up: cartodb.com

Objectives

By the end of today, you will be able to:
  1. Turn data with latitudes & longitudes...
    • that you provide as a spreadsheet
    • or get from somewhere else
    • or make from addresses
  2. into   dots ...
    • that you can click on for more info
    • that are colour coded
    • or icon-coded
  3. ...on a map...
    • that you choose from a lovely selection
  4. which you can share with the world.

Introduction


Data visualisation
(CartoDB)


Basemap
(Tilemill)

CartoDB - Example 1


Example 2


Example 3


VicRoads Projects

And more


Not enough? cartodb.com/gallery

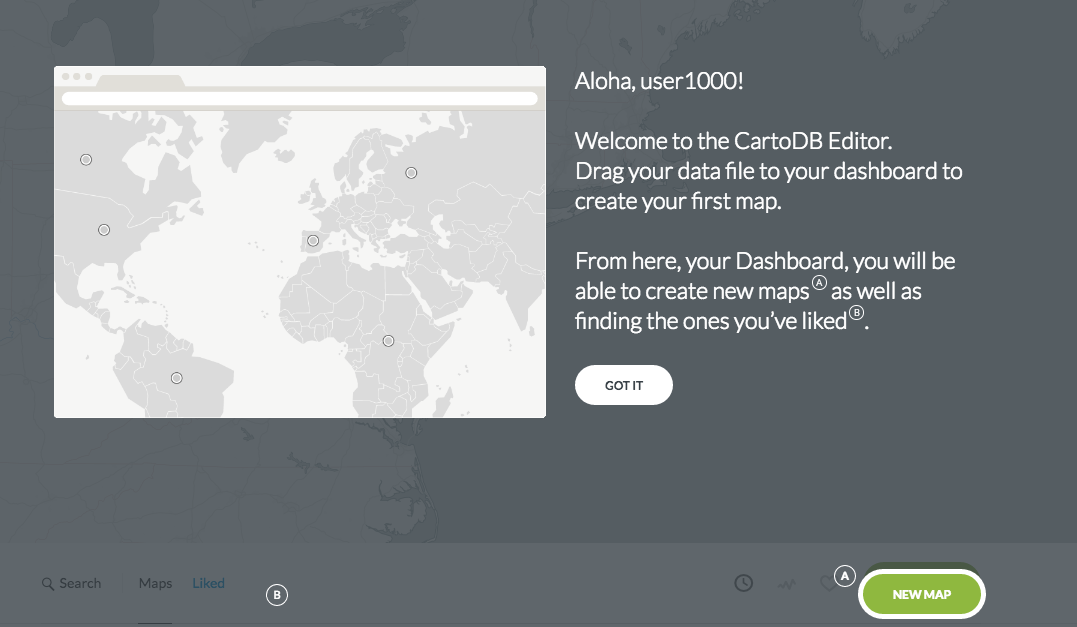

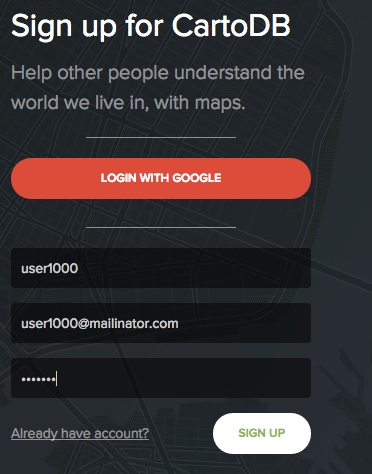

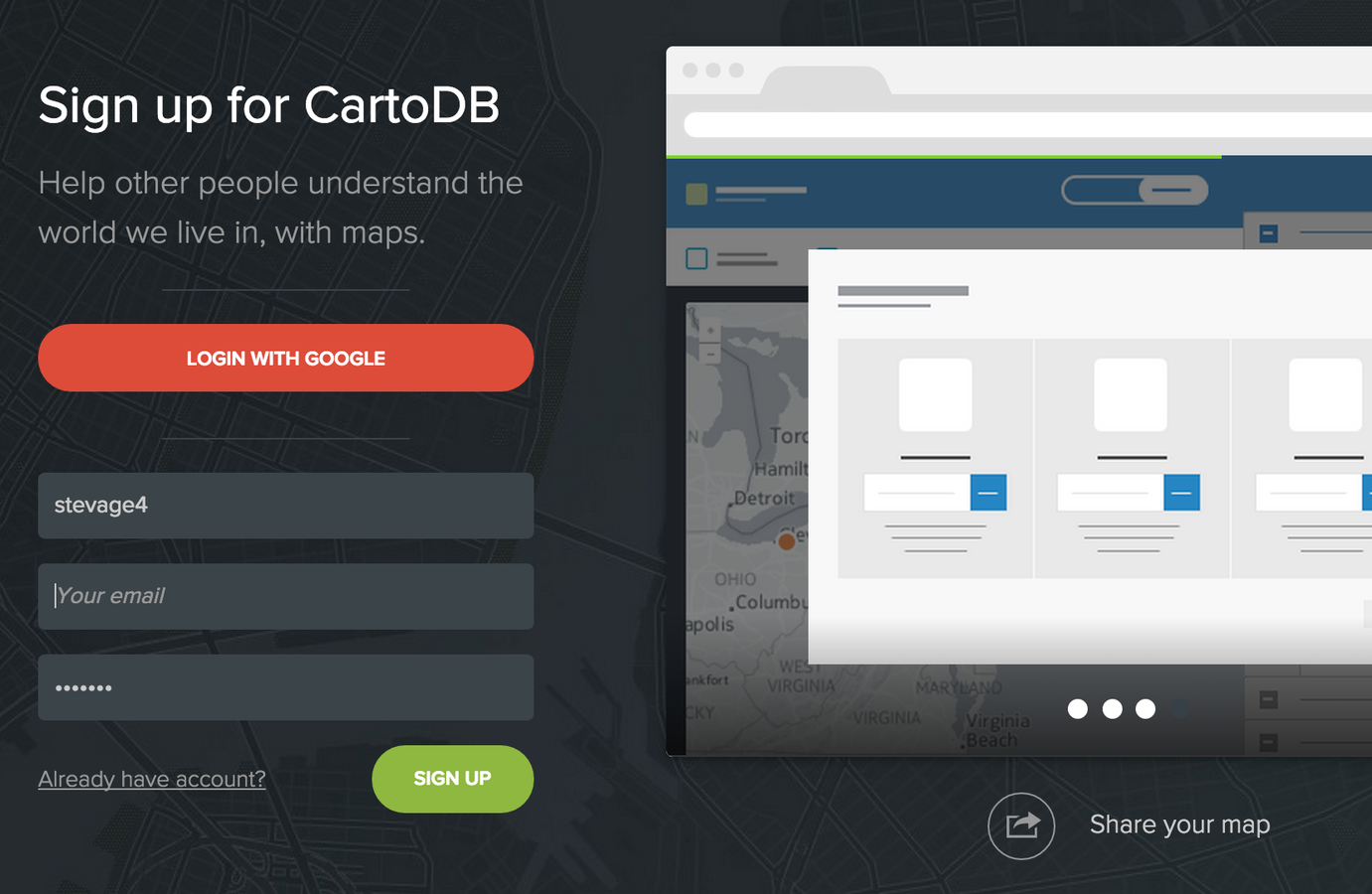

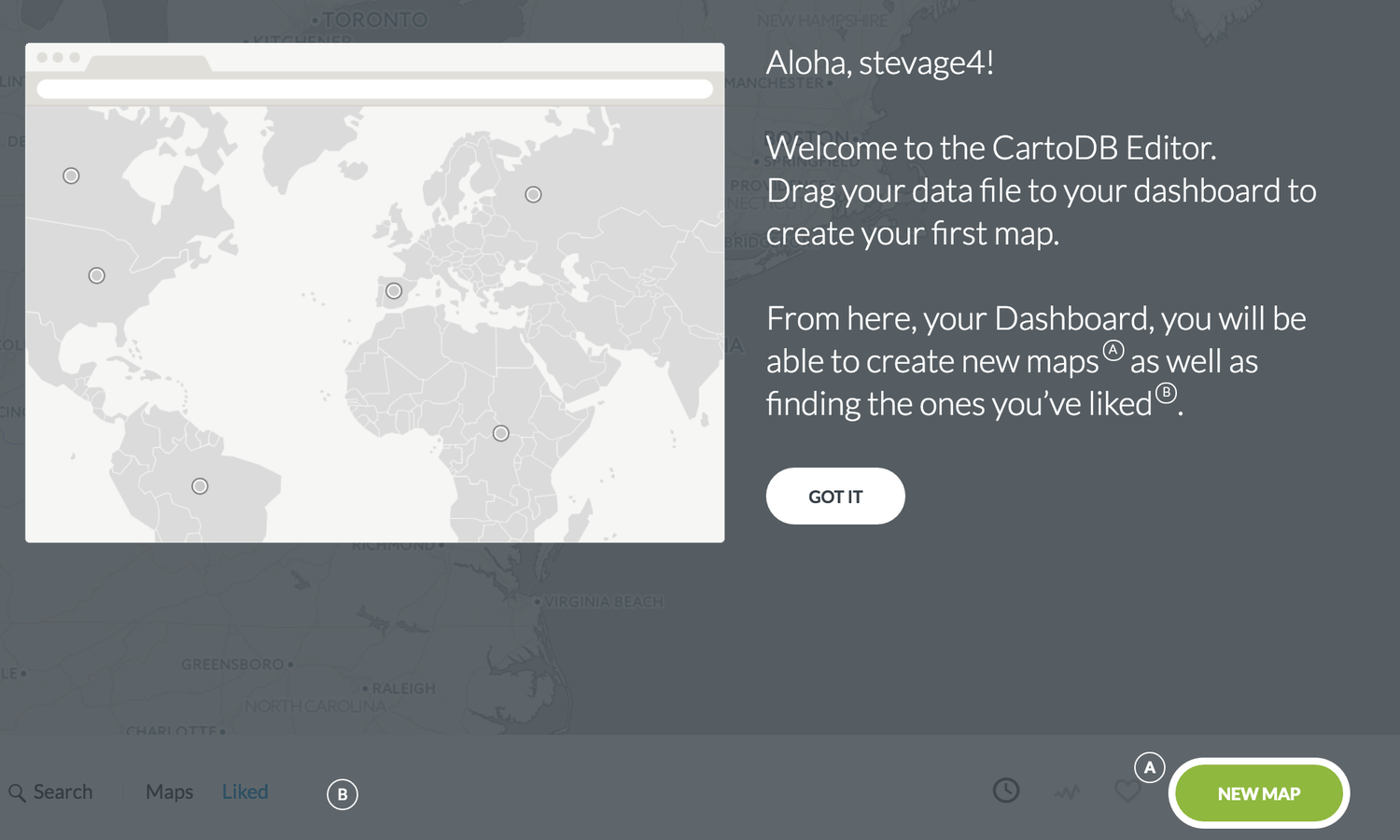

Get an account


cartodb.com

All data is public
All maps are public


Wait here

Ebola historic outbreaks

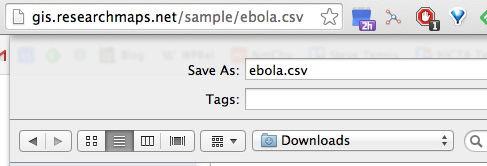

Get the dataset

(in another tab)

http://gis.researchmaps.net/sample/ebola.csv




Drag & drop here

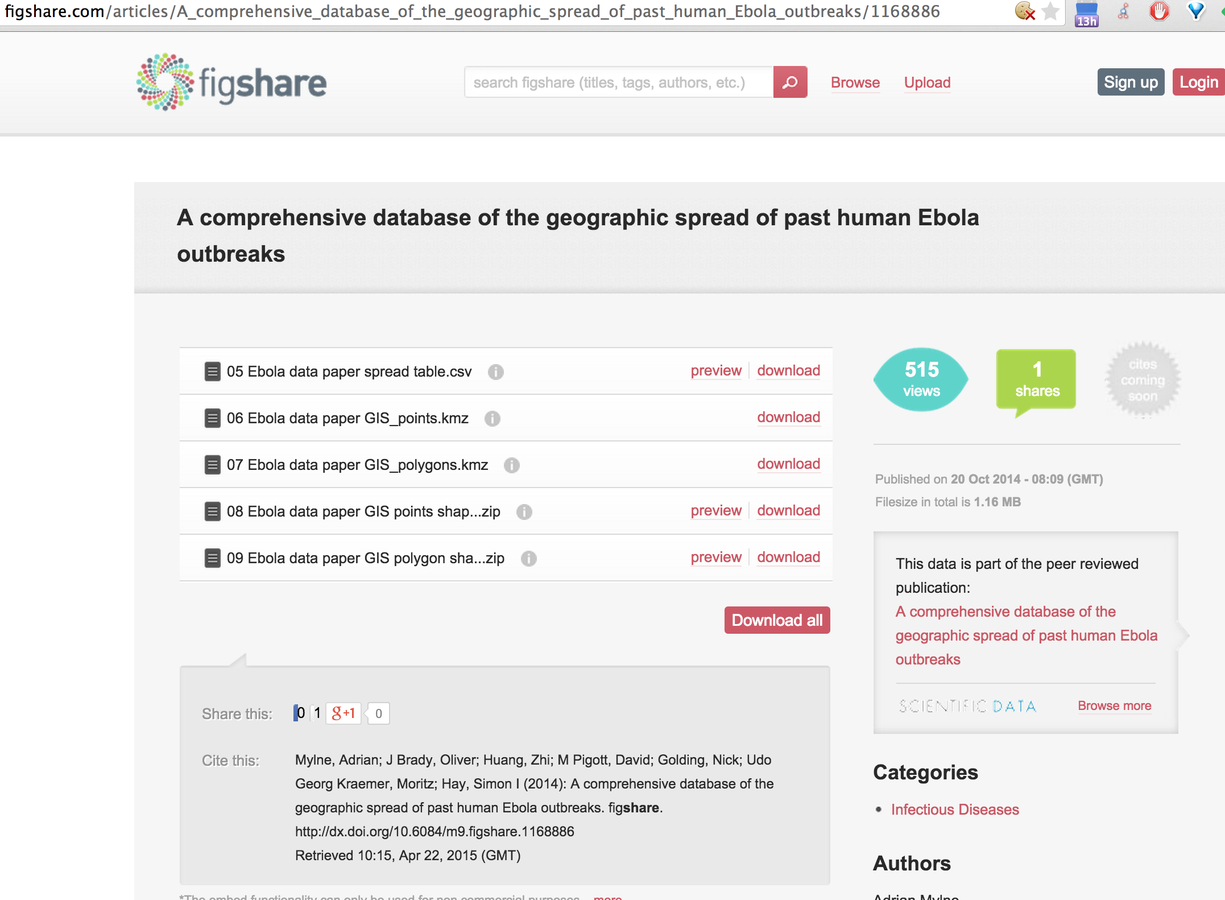

About ebola.csv


http://www.nature.com/articles/sdata201442

lat & long     (for geocoding)
name              (string - good for labels)
ob_death     (numeric - good for choropleths)
case_type    (fixed vocab - good for categories)


UNIQ_ID: A unique identification number for each occurrence at which index, secondary or
imported cases of EVD have occurred at unique geographic locations (n=117).
NAME: Text description of the point or polygon that defines the location of the occurrence.
COUNTRY: The country where the majority of cases occurred in each outbreak.
VIRUS: The Ebola virus species of each outbreak.
CASE_TYPE: The type of transmission represented by the Ebola occurrence. Can be either ‘index’, ‘secondary’ or ‘import’.
DATA_TYPE: Whether the occurrence represents a point or larger polygon location.
LOC_NTS: Additional notes describing the site location of the occurrence.
SPR_ORDER: The order of spread between occurrences over the course of the outbreak, as determined by the date of onset of the first case in a given occurrence. Index cases are represented with the value ‘1’. Two or more occurrences share the same spread order if it is unknown which of the two areas Ebola virus transmission spread to first.

SOURCE_1: The unique identification number of the occurrence where the first EVD patient came from.

SOURCE_2: The unique identification number of the occurrence where the first EVD patient came from. An occurrence may have more than one source if infected patients came from more than one source but it is unknown which triggered secondary transmission.

STR_DAY: Day of first reported case in the occurrence.
STR_MNTH: Month of first reported case in the occurrence.
STR_YEAR: Year of first reported case in the occurrence.
END_DAY: Day of last reported case in the occurrence.
END_MNTH: Month of last reported case in the occurrence.
END_YEAR: Year of last reported case in the occurrence.
REP_CASE: The total number of cases (suspected or confirmed) reported over the course of the outbreak, but only within the occurrence.
REP_DEATH: The total number of deaths (suspected or confirmed) reported over the course of the outbreak, but only within the occurrence.
OB_ID: A unique identification number for each outbreak (n=22).
OB_STR_DAY: Day of first reported case of the outbreak.
OB_STR_MNTH: Month of first reported case of the outbreak.
OB_STR_YEAR: Year of first reported case of the outbreak.
OB_END_DAY: Day of last reported case of the outbreak.
OB_END_MNTH: Month of last reported case of the outbreak.
OB_END_YEAR: Year of last reported case of the outbreak.
OB_CASE: The total number of cases (suspected or confirmed) reported over the course of the outbreak in all areas.
OB_DEATH: The total number of deaths (suspected or confirmed) reported over the course of the outbreak in all areas.

Tables: How do I...?(EXERCISE)


  1. Change ob_end_mnth column type to "string" (and back)
  2. Edit a cell
  3. Add a row
  4. Delete a row
  5. Sort by a column
  6. Add a column
When finished, help someone else.

basemap (EXERCISE)

Pick a basemap. Any basemap.

What the buttons do


New layer
Select this layer
Custom SQL (advanced queries)
Wizards (visualisation type)
Info windows (when you click)
Custom CSS (advanced styling)
Legends (HTML required)
Filters
Add row

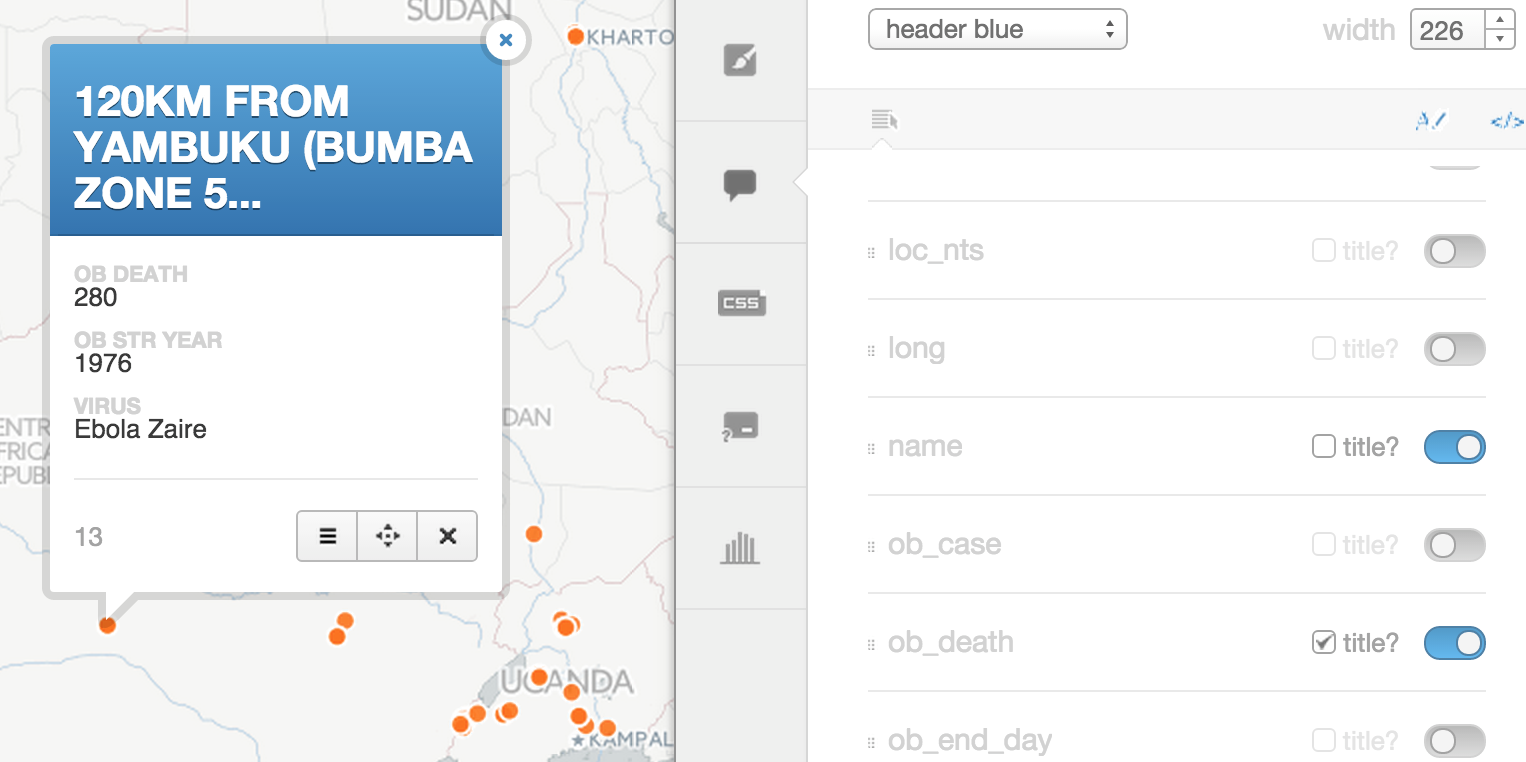

Info windows

...are easy


EXERCISE: make an appropriate info window

Visualisations for small data

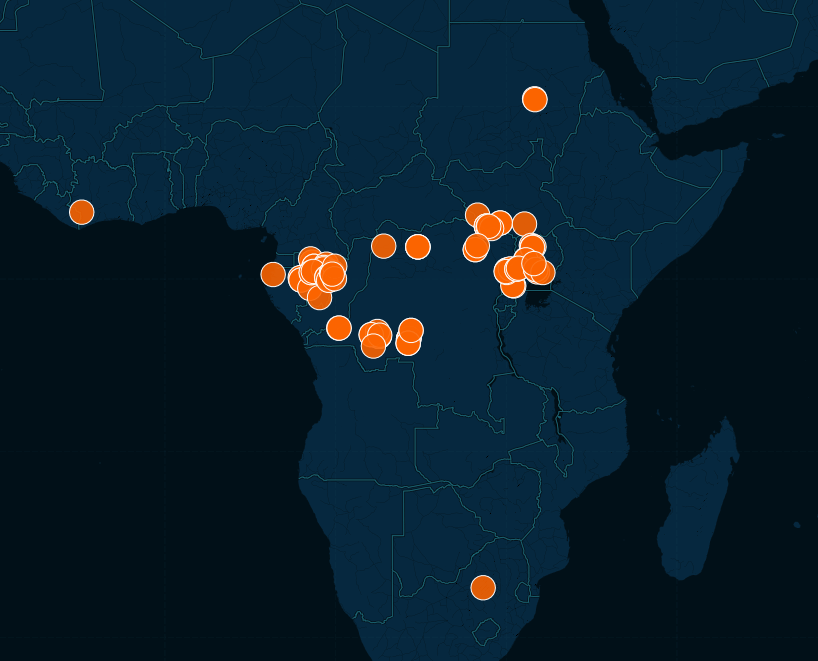

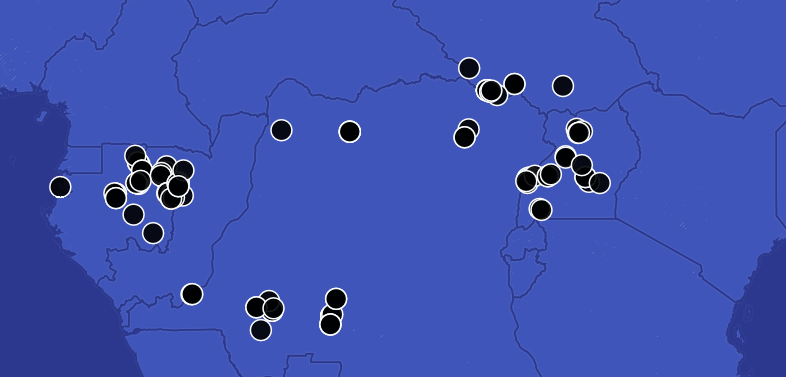

"Simple" visualisation

Make this.

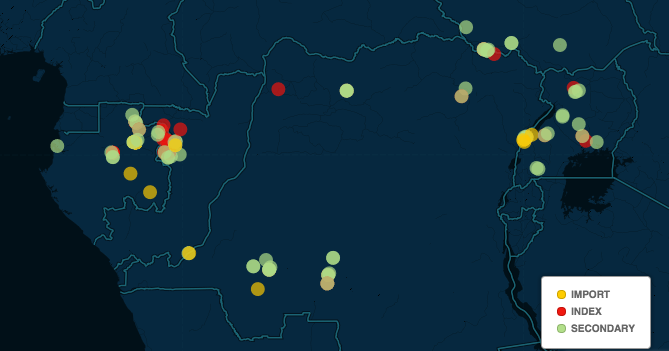

Category visualisation

Make this. (case_type → color)

Hint:

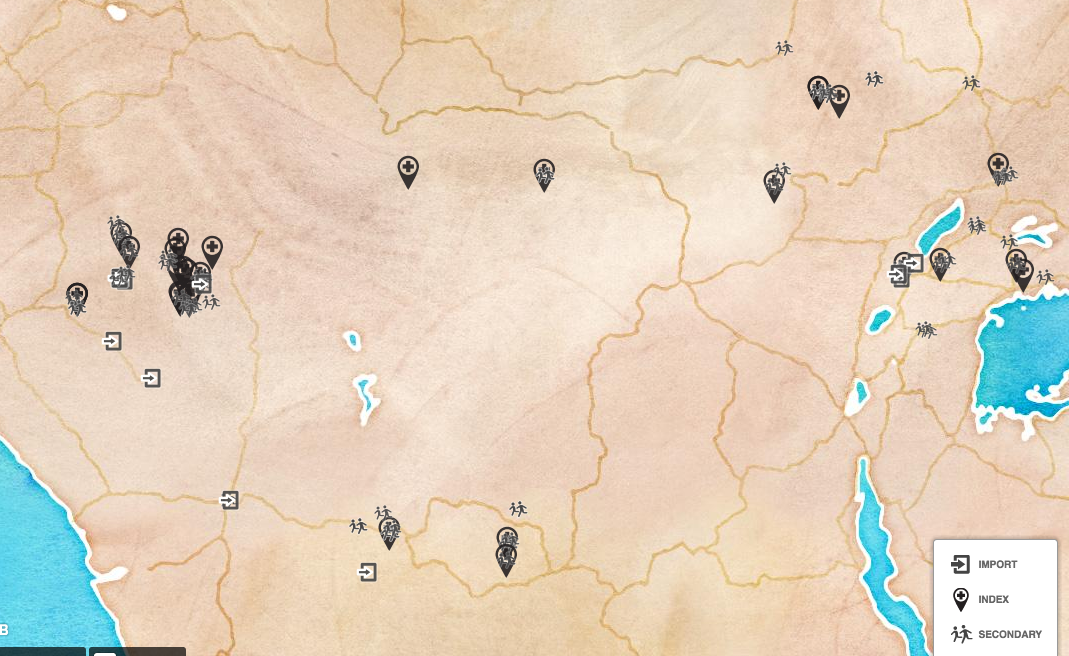

Markers

Make this

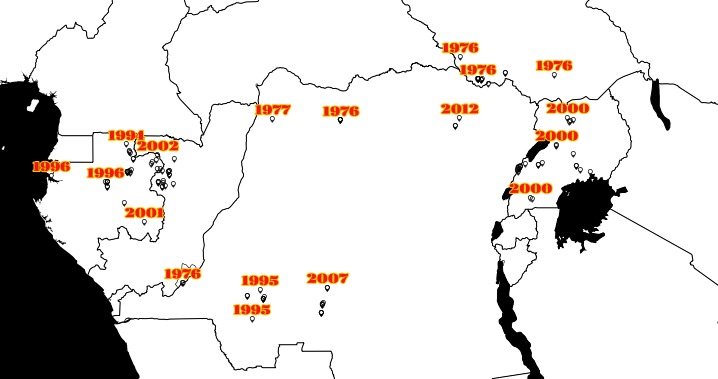

Labels


Can you make this?

Hint: Only some visualisation types support labels.

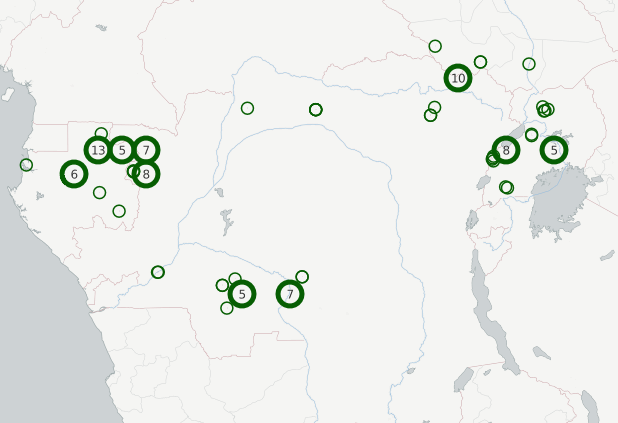

Fill & Stroke


Can you create these rings?

Stroke/Fill/LABEL

Challenge: make the ugliest visualisation

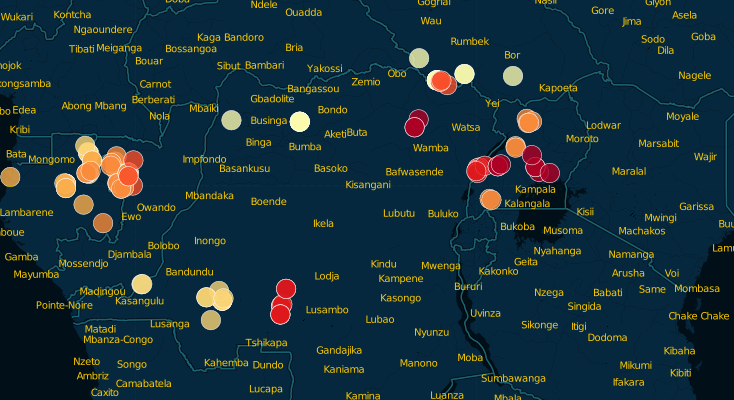

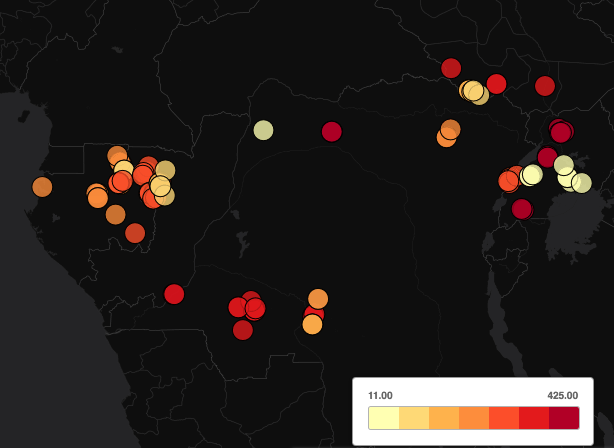

Choropleth (number as colour)


Number of cases as colour

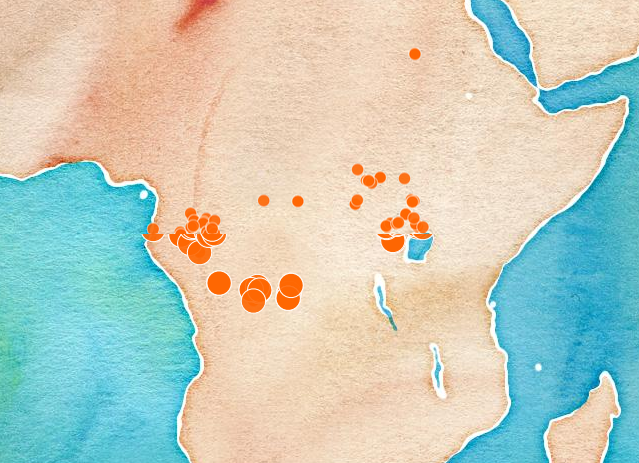

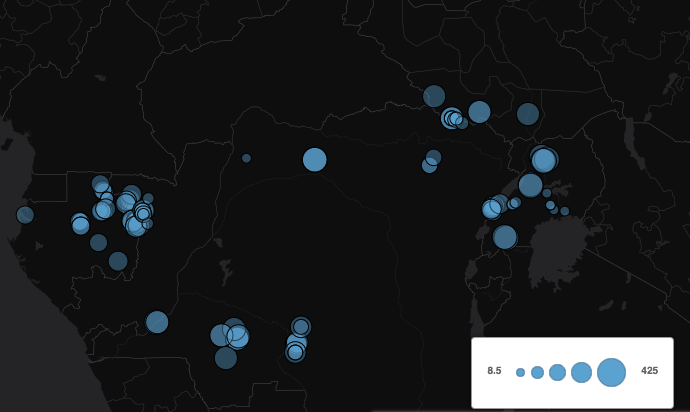

Bubbles

Value as bubble size

Ob_case as size

Add another layer


With each visualisation, you can:

Share
Re-order layers
Combine styles
Present the same data differently


One visualisation has 1+ datasets.

One dataset has 1 map view, 0+ visualisations

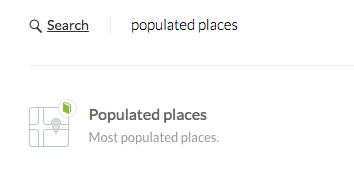

More sample data! (exercise)

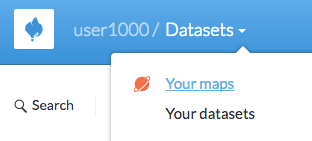

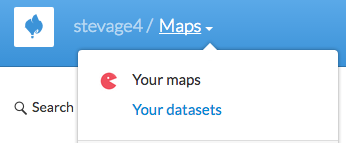

1. Leave your map, then:

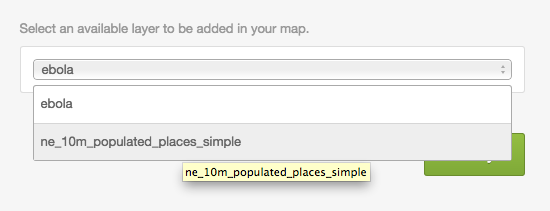

Add your new layer


Go back to your map:
Add it:

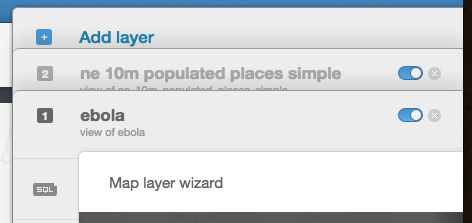

Working with layers


Exercise:
1. Turn each layer on/off
2. Change the order of layers
3. Change the style of the new layer

Two layers at once


Challenge. You know the drill. :)

Visualisation


1 visualisation =  1+  layers


1 layer: 1 map

1, 2 = switch layers





visualisations for bigger data

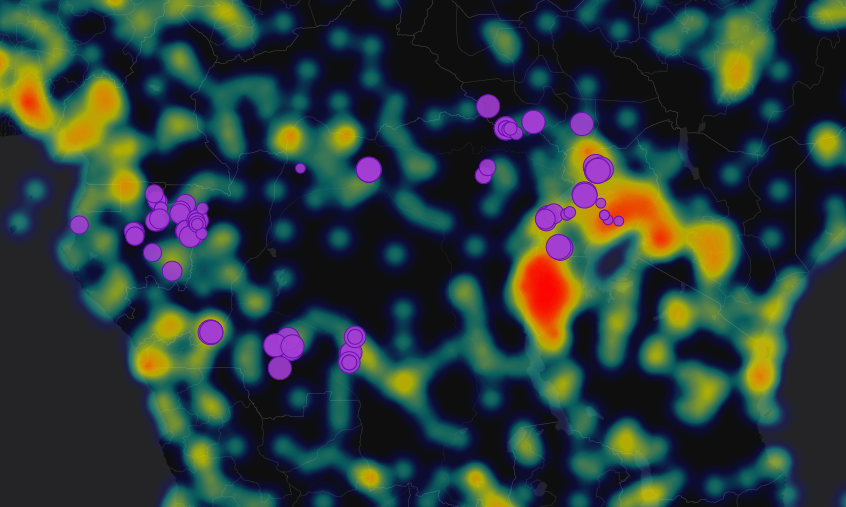

Heat map

Density


Category or  Choropleth?


"Index", "Secondary", "Imported" → Category

1.2, 5.3, 2.4 → Choropleth

Cluster, Intensity or Density?

Experiment!

Buckets


1,2,3,4,5,6,7,8,9,10

3 buckets

1,2,3         4,5,6,7     8,9,10


(sort of)

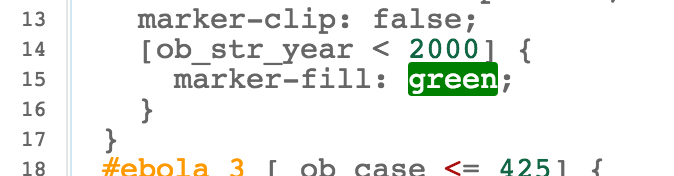

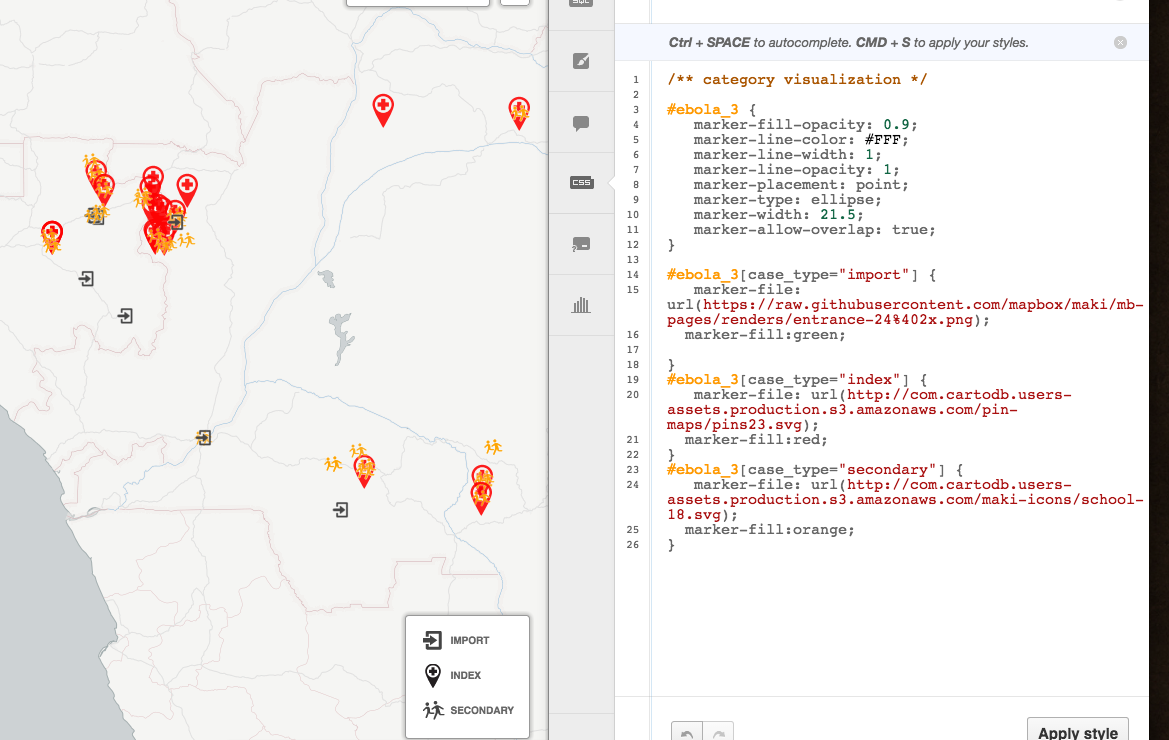

Custom styling

When the wizard doesn't cut it
https://www.mapbox.com/carto/api/2.3.0/

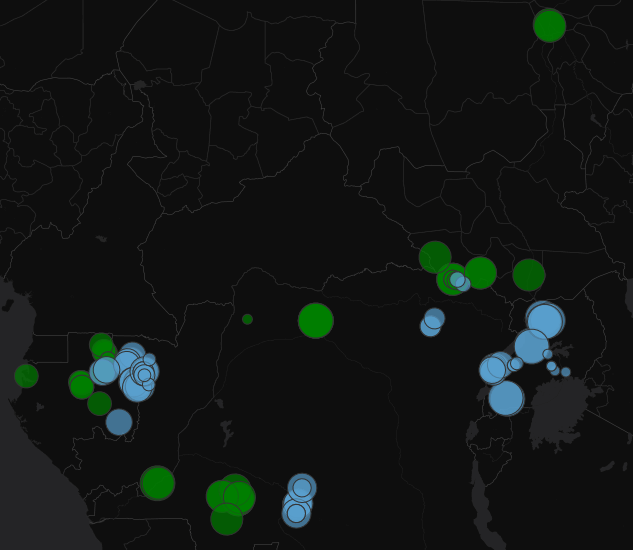

Combine vis types


Geocoding


Creating lat/longs

Where before there were none

Make a new table


Add some addresses or place names

Georeferencing

Works better with context: Victoria, Australia


addresses cost $$$

Instead, provide your own lat/lon:

Or: Match admin regions (polygons) *

Match admin regions



a free way with GOogle sheets

1. Follow all instructions here:
https://github.com/mapbox/geo-googledocs

2. Geocode stuff in Google Sheets
3. Import

Adding data

Add feature. Click. Done. Click. Edit data. Save and close.


Or...

Add row

Then lat/long


More data!

CartoDB supports:


AURIN,  data.gov.au, CartoDB "common data", Google...

Advanced

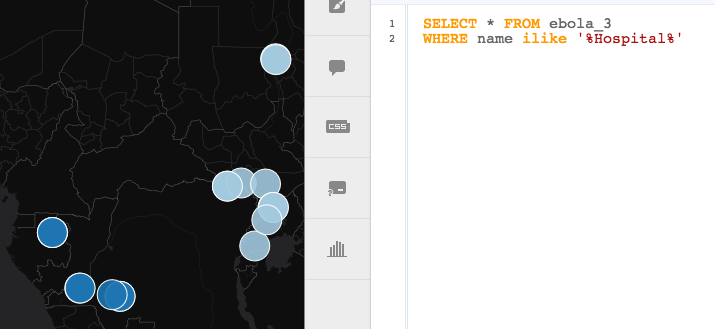

Basic SQL

Filter, group, aggregate, calculate
SELECT * FROM ebola
WHERE name ILIKE '%Hospital%'

Not basic SQL


Any basemap


Sharing

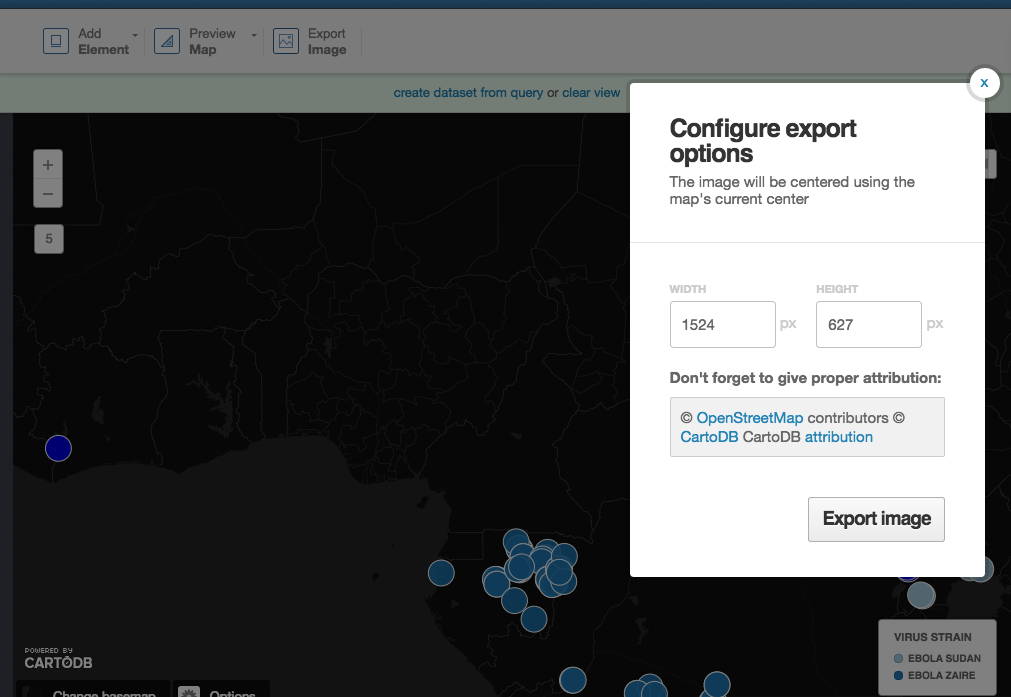

Export image

More help?

CartoDB documentation
gis.stackexchange.com
steve.bennett@unimelb.edu.au

Drop-in sessions


Feedback please!
