Space leaks exploration in Haskell

- Rupanshu, Sumith, Suresh

Leaky space

Mr. X and Ms. Y

advanced language features - lazy evaluation or closures more complex memory layout
harder to predict what memory looks like
potentially leading to space leaks.
Haskell is vulnerable to space leaks and we make this our topic of study.

Lazy evaluation

alive or dead example!

A space leak can occur when the memory contains an expression—where the expression grows regularly but where the evaluated value would not grow. Forcing evaluation usually solves such leaks; this makes evaluation of some variables strict instead of lazy.

f x y = y


f ⊥ b = b

f ⊥ b = ⊥

Lazy Evaluator

Postpone evaluation until it is inevitable.

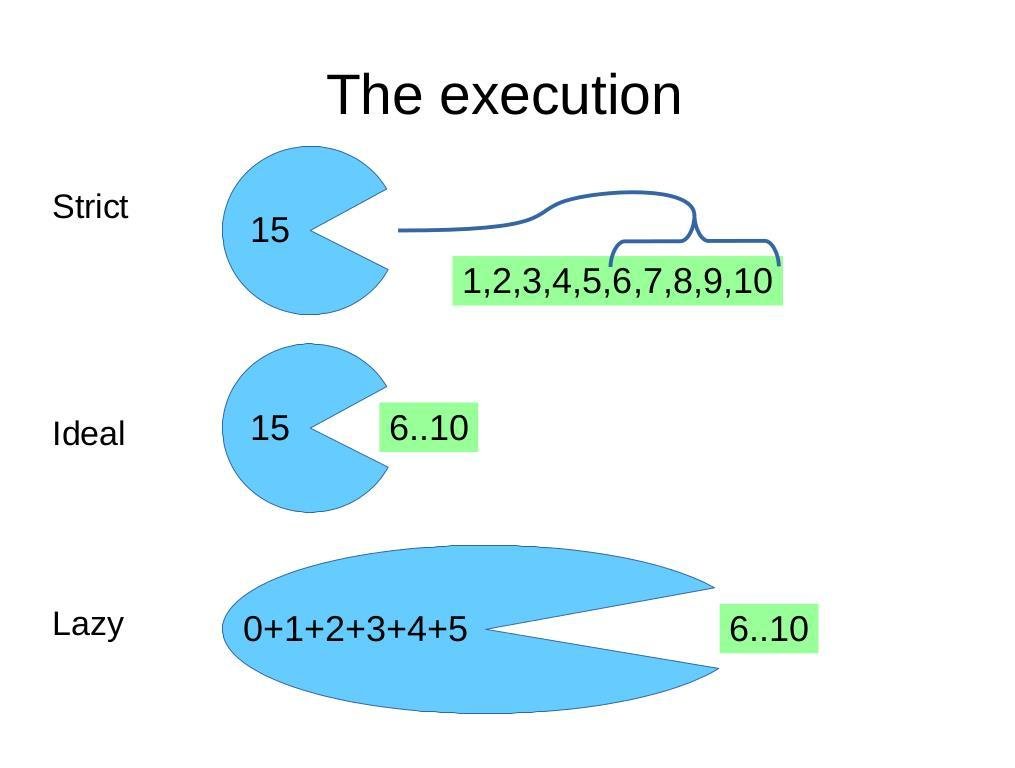

Lazy evaluation in a nutshell

strictness

based

liveness

based

Space Leaks

built up

unevaluated

expressions

keeping not

needed

references alive

  • takes two args of any type
  • evaluates first
  • returns the second
  • superficial dependency
seq :: a -> b -> b
seq ⊥ b = ⊥
seq a b = b
seq2 x y = if (x == 0) then y else y

Declares a function to be strict in an argument.

f !x y = x + y
  • strict in first argument
  • not strict in second argument
  • x evaluated to WHNF
  • syntactic sugar for seq

Bang Patterns

Profiling

  1. Compile program with -prof and -rtsopts
  2. Run program with -p (general profiling)
  3. And -hx  (x -> heap options)
  4. Use hp2ps to generate graphs from profile

Heap Options

  • -hc  : Cost Center
  • -hy  : Type of data
  • -hd  : Closure description
  • -hm : module containing code

RTS options

  • -K  : set stack size(8M)
  • -M  : set heap size
  • -i  : sampling rate

Examples

Strictness based

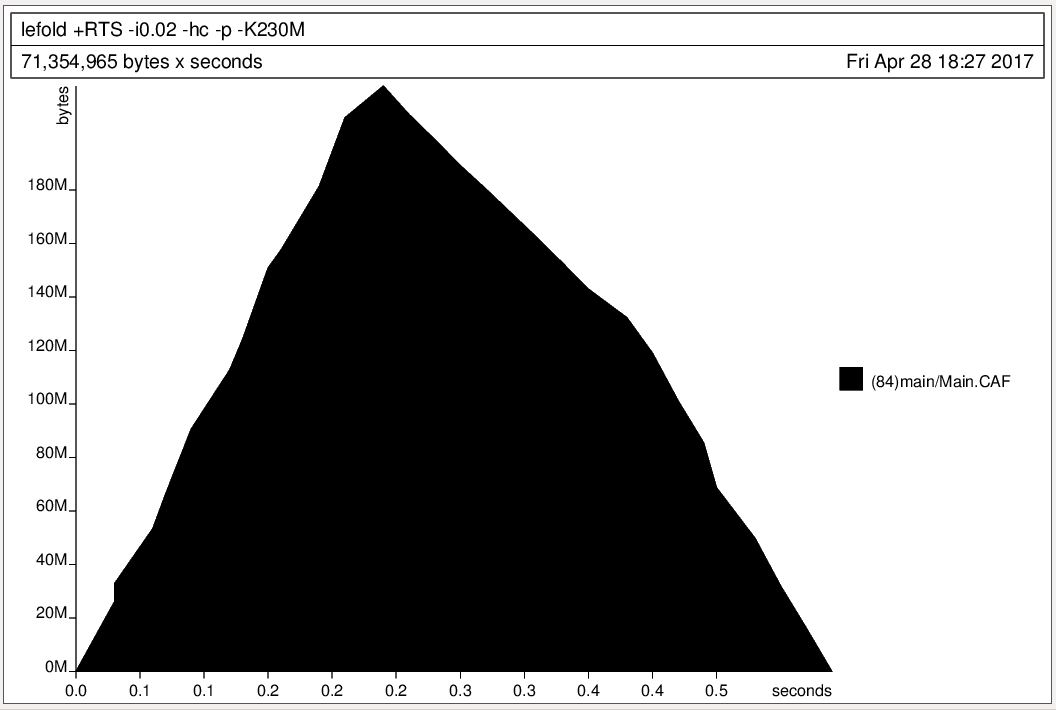

foldl vs foldl'

foldl f z []     = z
foldl f z (x:xs) = foldl f (f z x) xs
foldl (+) 0 [1..10]
= foldl (+) 0 (1:[2..10])
= foldl (+) (0 + 1) [2..10]
= foldl (+) ((((((((((0 + 1) + 2) + 3) + 4) + 5) + 6) + 7) + 8) + 9) + 10) []
= ((((((((((0 + 1) + 2) + 3) + 4) + 5) + 6) + 7) + 8) + 9) + 10)
= (45 + 10)
= 55

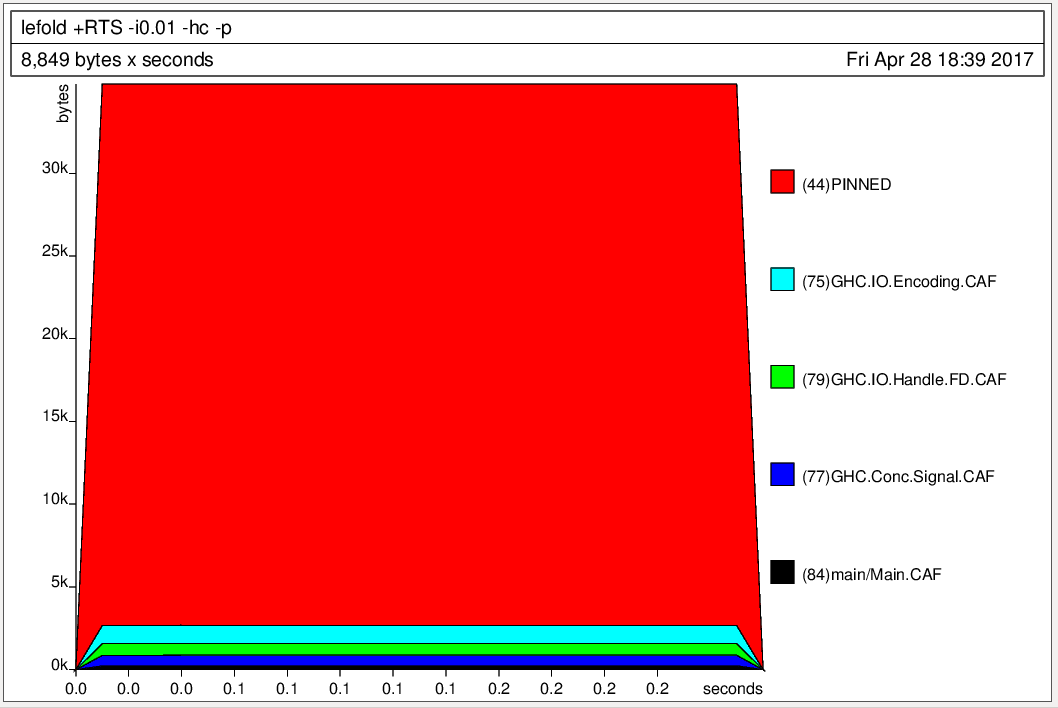

foldl vs foldl'

foldl' f z []     = z
foldl' f z (x:xs) = let z' = z `f` x
                     in seq z' $ foldl' f z' xs
foldl' (+) 0 [1..10]
= foldl' (+) 0 (1:[2..10])
= foldl' (+) (0 + 1) [2..10]
= foldl' (+) 1 (2:[3..10])
= foldl' (+) (1 + 2) [3..10]
...
= foldl' (+) (45 + 10) []
= foldl' (+) 55 []
= 55

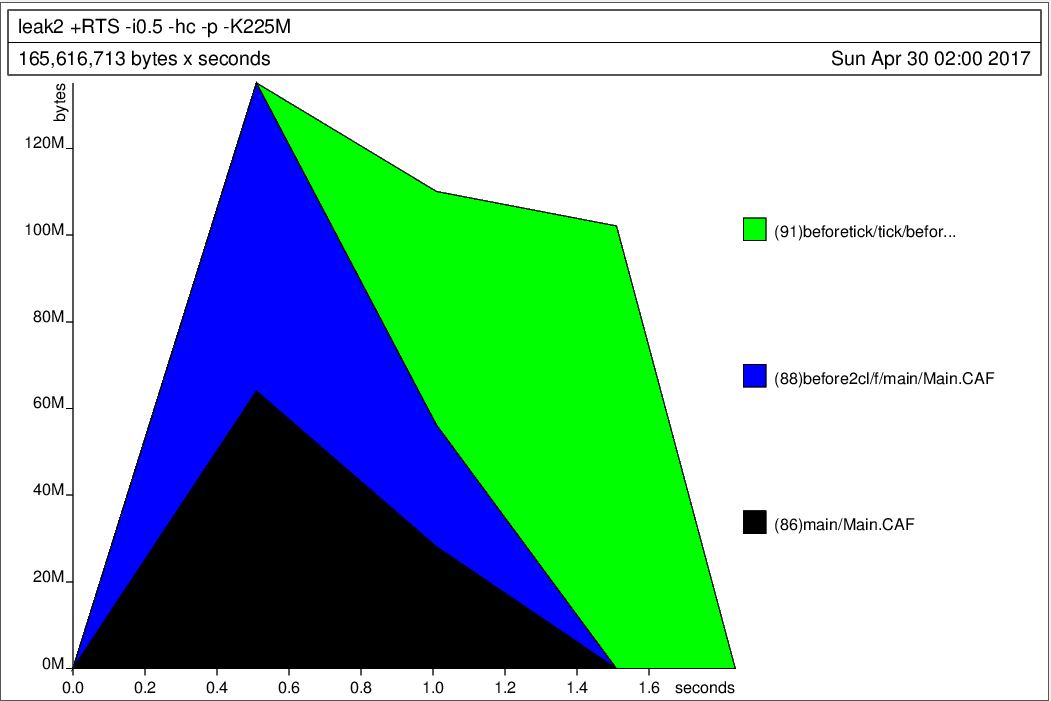

tick

main = print (f ([1..40000000]})
                (0 :: Int, 1 :: Int))

f [] c =  c
f (x:xs) c = f xs (tick x c)

tick x (c0, c1) = if (even x)
                    then (c0, c1 + 1)
	            else (c0 + 1, c1)
f [1,2,3,4] (0,1)
= f [2,3,4] (tick 1 (0,1))
= f [3,4] (tick 2 (tick 1 (0,1)))
= f [4] (tick 3 (tick 2 (tick 1 (0,1))))
= f [] (tick 4 (tick 3 (tick 2 (tick 1 (0,1)))))
...
= (tick 4 (tick 3 (tick 2 (tick 1 (0,1)))))
= (tick 4 (tick 3 (tick 2 ((0 + 1),1))))
= (tick 4 (tick 3 ((0 + 1),(1 + 1))))
= (tick 4 (((0 + 1) + 1),(1 + 1)))
= (((0 + 1) + 1),((1 + 1) + 1))
= ((1 + 1),(2 + 1))
= (2,3)

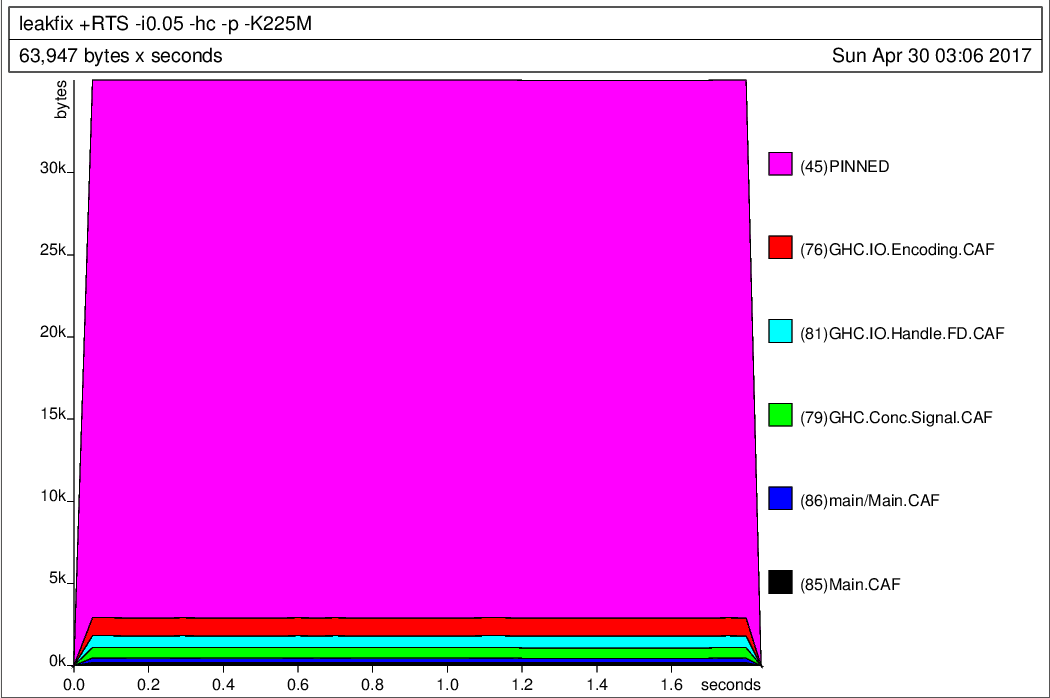

tick

main = print (f ([1..40000000]})
                (0 :: Int, 1 :: Int))

f [] !c =  c
f (x:xs) !c = f xs (tick x c)

tick x (!c0, !c1) = if (even x)
                    then (c0, c1 + 1)
	            else (c0 + 1, c1)
f [1,2,3,4] (0,1)
= f [2,3,4] (tick 1 (0,1))
= f [2,3,4] (0+1, 1)
= f [2,3,4] (1, 1)
= f [3,4] (1, 1+1)
= f [3,4] (1, 2)
= f [4] (1+1, 2)
= f [4] (2, 2)
= f [] (2, 2+1)
= f [] (2, 3)
= (2, 3)

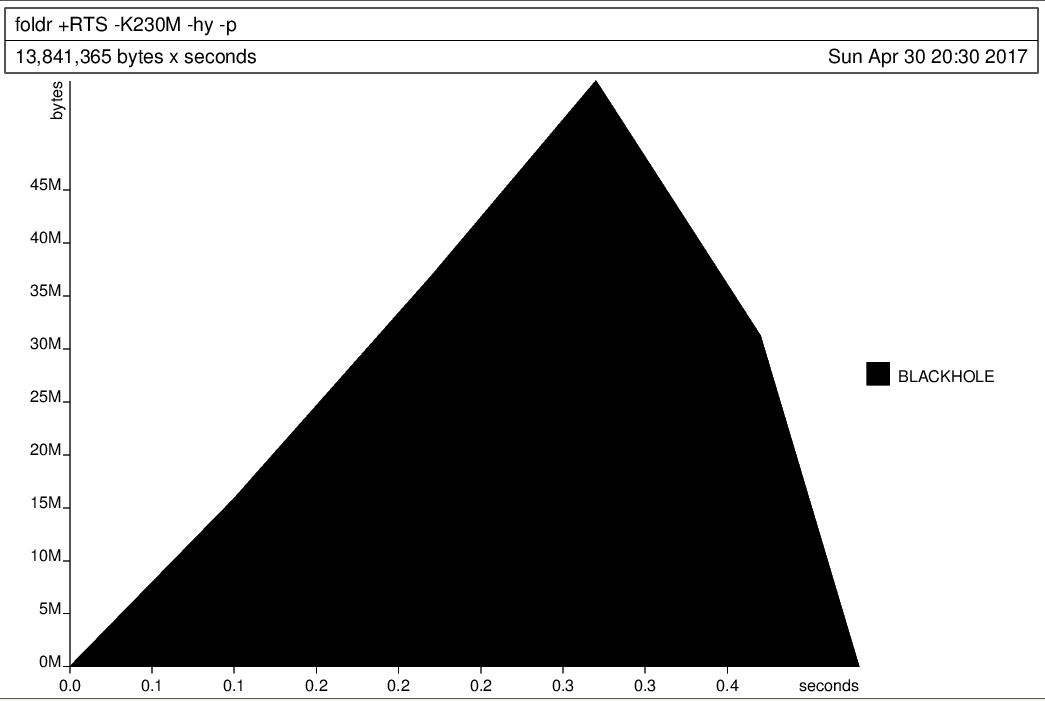

foldr

foldr :: (a -> b -> b) -> b -> [a] -> b
foldr f z []     = z
foldr f z (x:xs) = f x (foldr f z xs)
foldr (+) 0 [1..4]
= 1 + (foldr (+) 0 [2..4])
= 1 + (2 + (foldr (+) 0 [3..4]))
= 1 + (2 + (3 + (foldr (+) 0 [4])))
= 1 + (2 + (3 + (0 + 4)))
...
= 10

Examples

Liveness based - with fixes

surprise!

surprise :: String -> String
surprise s = let b = break (== '\n') s
                in (fst b) + "\nsurprise\n" + (snd b)

break :: (a -> Bool) -> [a] -> ([a], [a])
break f [] = ([], [])
break f x:xs =  | x == xs     = ([], xs)
  | otherwise   = let b = break f xs in (x:(fst b), (snd b))
surprise "P not \nequal to NP"
= (fst b1) + "\nsurprise\n" + (snd b1)
  where b1 = break (!= '\n') "P not \nequal to NP"
= 'P' + ((fst b1) + "\nsurprise\n" + (snd b1))
  where b1 = ('P':(fst b2), snd b2)
        b2 = break (!= '\n') " not \nequal to NP"
= 'P' + ' ' + ((fst b3) + "\nsurprise\n" + (snd b1))
  where b1 = ('P':(fst b2), snd b2)
        b2 = (' ':(fst b3), snd b3)
        b3 = break (!= '\n') "not \nequal to NP"
E (fst b) (snd b)
where b = (E1, E2)
E E1 E2
= 'P' + ' ' + ((fst b3) + "\nsurprise\n" + (snd b3))
  where b3 = break (!= '\n') "not \nequal to NP"

garbage

collection

surprise!

  • Current GHC version have incorporated Wadler's ideas in the garbage collector
  • Bug no longer reproducible
break ls = let (xs, ys) = (SYNCHLIST ls)
           in (PAR before '\n' ls, PAR after '\n' ls)

Hughes' solution:

  • careless use can lead to deadly issues
  • time complexity not necessarily linear

A hack

to detect space leaks

The Method

  • Compile the program for profiling
  • Run the executable with limiting the stack space
  • Find the stack size for which the program just runs
  • Reduce the stack space by small amount, run with -xc
  • Identify the source of the leak, attempt to fix
  • If fixed, should run with small stack space
*** Exception (reporting due to +RTS -xc):
                (THUNK_STATIC), stack trace:
  Main.h,
  called from Main.g,
  called from Main.f,
  called from Main.main,
  called from Main.CAF
Stack space overflow: current size 33568 bytes.
main = do print (f [1..1000000])

f [] = 0
f x = 1 + g x

g [] = 0
g x = h (tail x)

h [] = 1
h x = foldl (+) 0 x

Flaws with this hack

  • Adjacent duplicates are ignored
  • Not all functions for imported libraries
  • High stack space doesn't mean space leak
  • Last function may not be the culprit!

Future work?

  • Theoretical work - formalize and then answer interesting questions
  • Tool for detecting and fixing space leaks
  • Stack space hack++
  • Tool for memory analysis - like Chrome heap profiler

Hope you enjoyed!

"Beware of little expenses.

A small leak will sink a great ship."


- Benjamin Franklin

Special thanks to:

  • Prof. Amitabha Sanyal
  • Dr. Edward Z Yang
  • Dr. Neil Mitchell
  • Prof. Colin Runciman
