Teambition 数据层重构经验分享

ReactiveDB powered by RxJS & lovefield

自我介绍

  • 2年前端经验

  • Teambition 高级前端工程师

  • TypeScript RxJS

龙逸楠

知乎: https://www.zhihu.com/people/Broooooklyn

github:  https://github.com/Brooooooklyn

微信: lynweklm

Contact

  • Teambition 的业务特点



  • 各种数据层设计的对比与分析



  • 介绍 ReactiveDB

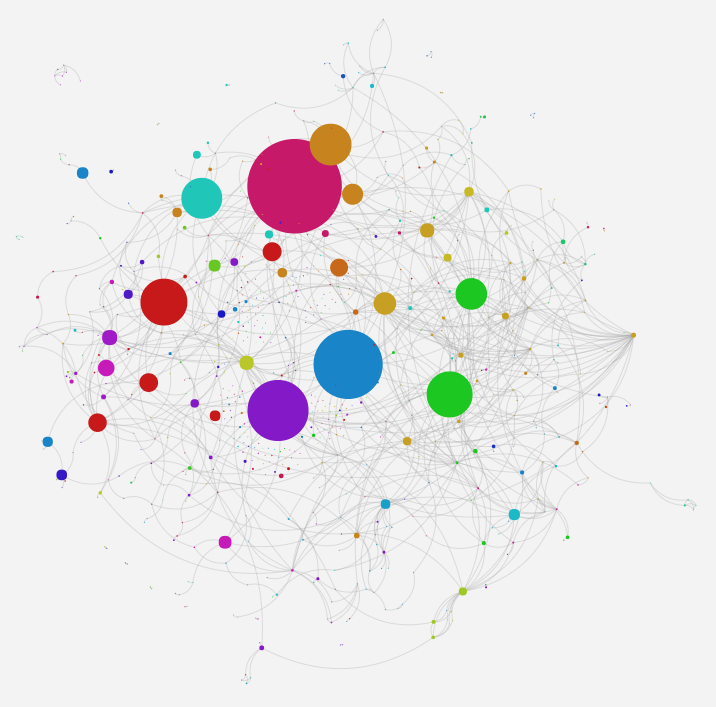

数据的种类多,数据间的关联性强

60+ Schemas40+ 关联

  1. Tasklist 类型的数据

  2. Stage 类型的数据

  3. Member 类型的数据

  4. Subtask 类型的数据

  5. ObjectLink 类型的数据

  6. Like 类型的数据

  7. Activity 类型的数据

  8. Tag 类型的数据

{
  "_id": "58b42f74428e764903e86395",
  "_creatorId": "54cb6200d1b4c6af47abe570",
  "_projectId": "58b42ef1c655de4203cad186",
  "_tasklistId": "58b42ef1428e764903e8636e",
  "_stageId": "58b42ef1428e764903e8636f",
  "involveMembers": [
    "54cb6200d1b4c6af47abe570",
    "556466f750e9c0503d58a37b"
  ],
  "dueDate": "2017-02-01T10:00:00.000Z",
  "note": "我逾期啦",
  "content": "在 Demo 中逾期的任务",
  "project": {
    "_id": "58b42ef1c655de4203cad186",
    "name": "ReactiveDB Demo"
  },
  "creator": {
    "_id": "54cb6200d1b4c6af47abe570",
    "name": "龙逸楠",
    "avatarUrl": "https://striker.teambition.net/thumbnail/110f238c339c7dacefbc792723a067fbf188/w/200/h/200"
  },
  "tagIds": [ "58b42ef1428e724303e2636f" ],
  "stage": {
    "_id": "58b42ef1428e764903e8636f",
    "name": "待处理"
  },
  "executor": {
    "_id": "556466f750e9c0503d58a37b",
    "name": "太狼",
    "avatarUrl": "https://striker.teambition.net/thumbnail/110q6f384916ce773e9352b8bf190b5dadca/w/200/h/200"
  }
}

实时性要求高

几乎所有数据都需要通过 WebSocket 更新

针对这种业务场景,我们是如何设计数据层的?

Teambition 技术演进史

  • 2013~2015 Backbone
  • 2016
    1. Redux + Normalizr + Reselect
    2. K-V based Cache + RxJS
    3. Lovefield + RxJS (ReactiveDB) + redux-observable + redux
  • 2017 ...

Backbone

  • Event Driven

  • 同一份数据多个实例,相互关联

  • 通过 Collection/Model 切分业务逻辑,Controller 需要自行组合数据

Backbone + jQuery

class TaskModel extends Model {
    listen() {
        this.socket.on('change', patch => {
            this.set(patch)
        })
    }
}
class TaskView {
    listenTo() {
        this.taskModel.on('change', taskModel => {
            this.renderTask(taskModel)
        })

        this.subtaskCollection.on('new remove change:_taskId', () => {
            this.taskModel.set({
                subtasksCount: this.subtaskCollection.length
            })
        })

        this.stageModel.on('change: name', stageModel => {
            this.renderStage(stageModel)
        })

        this.tasklistModel.on('change', tasklistModel => {
            this.renderTasklist(tasklistModel)
        })

        this.projectModel.on('change', projectModel => {
            this.renderProject(projectModel)
        })
    }
}

TaskCardView

TaskDetailView

TaskModel

diff,emit change

Others Models

emit more changes

???

Model

View

Redux + Normalizr + Reselect + React

Redux Store

Backend

Normalizr

Http & Websocket

Connected Container

Reselect

Component

// redux middleware
const epic = action$ => action$
    .ofType(`${someAction}`)
    .switchMap(action => {
        const { param }  = action.payload
        return Ajax$.get(param)
          .map(response => otherAction(normalize(response, someSchema)))
          .catch(err => Observable.of(errorAction(err)))
          .takeUntil(`${componentUnmount}`)
    })


// reselect
const selector = createSelector(
    state => state.someModule.entities,
    state => state.someOtherModule.entities.something,
    (dataYouCareAbout, relatedData) =>
        // filter and reselect
)


// container
const mapStateToProps = state => ({
    selector1: selector1(state),
    selector2: selector2(state),
    selector3: selector3(state),
    // ...
})

connect(mapStateToProps)(component)

复杂的数据场景处理起来异常费力

// reselect

/**
 * 存储未开始的任务
 * 定义:
 * & 未被完成
 * & 未被归档
 * & _projectId 字段匹配
 * &
 * (
 * | 没有截止日期
 *   | 有开始时间 & 开始时间在今天以后
 *   | 没有开始时间
 * | 有截止日期 & 截止日期在今天以后
 *   | 有开始时间 & 开始时间在今天以后
 *   | 没有开始时间
 * )
 */
const taskFilter = taskData => {
    return data._projectId === projectId &&
        !data.isArchived &&
        !data.isDone &&
        (
          !data.dueDate &&
          (
            !data.startDate ||
            (
              data.startDate &&
              new Date(data.startDate).valueOf() > now
            )
          ) ||
          (
            data.dueDate &&
            new Date(data.dueDate).valueOf() < now &&
            (
              (
                data.startDate &&
                new Date(data.startDate).valueOf() > now
              ) ||
              !data.startDate
            )
          )
        )
}

优点:

  • 中心化数据存储
  • 单向数据流
  • Normalized Data Shape
  • 可以在 selector 里面做细粒度的过滤 ,不需要在 component 里写 SCU 就能获得相对好的性能

缺点:

  • 无法自动处理数据之间的关联关系
  • 需要为 Container 写大量selector来过滤状态的变化
  • 开发人员疲于编写大量代码用于满足产品上需要的排序、分页等需求

Redux + Normalizr + Reselect + React

K-V based Cache + RxJS

class Database {
    cache = new Map()

    save(data, primaryKey = '_id') {
        // normalize
    }

    update(primaryKey, patch) {
        // ...
    }

    get(primaryKey) {
        // reselect
        return Observable.create(observer => {
            observer.next(this.cache.get(primaryKey))
        })
           /**
            * updateStream$ = socket.getUpdate(primaryKey)
            *    .merge(http.getUpdate(primaryKey))
            **/
            .combineLatest(updateStream$)
            .map(([data, patch]) => { ...data, patch })
            .takeUtil(deleteStream$)
    }
}
class TaskSchema {
    @primaryKey _id: string
    _exectorId: string
    _tasklistId: string
    _stageId: string
    _projectId: string
    content: string
    note: string
    @assosiate('_exectorId') exector: ExectorSchema
    @assosiate('_projectId') project: ProjectSchema
    @assosiate('_tasklistId') tasklist: TasklistSchema
    ...
}

class ProjectSchema {
    @primaryKey _id: string
    _id: string
    _organizationId: string | null
    name: string
    avatarUrl: string
    @assosiate('_organizationId') organization: OrganizationSchema
    @assosiateMany('_projectId') tasklists: TasklistSchema[]
    ....
}

View

Model

优点:

  • 中心化数据存储
  • 单向数据流(从整个应用角度来看)
  • Normalized Data Shape
  • 自动处理数据间的关联关系

缺点:

  • 无法做细粒度的 diff 以及过滤
  • 数据层内的数据流是网状的,出问题了很难追踪
  • 开发人员疲于编写大量代码用于满足产品上需要的数据查询条件、排序、分页等需求

K-V based Cache + RxJS

我们理想中的解决方案是什么样子的?

1. 中心化的数据管理:

  • 统一维护所有客户端接受到的数据
  • 保存 Normalized Data , 拥有同一个 Id 的数据只存一份



2. 查询逻辑降噪

  • 以声明式的形态定义查询需要的字段及其关联属性
  • 直接处理简单的排序、过滤、分页需求,一定程度上解放生产力

3. Observing & Cancelling

  • 允许订阅所查询数据的变化,在不需要时自动取消订阅

Backend Database

API Service

Nested Data

????

Observed Nested Data

Nomalized Data

Components

Frontend

Nomalized Data

Other Client

我们期望的架构

View

Model

Lovefield

  • Relational
  • 支持 Observe
  • Query 支持 Predicate、limit、skip、OrderBy
  • Index-able Data store
  • Transaction
  • IndexedDB/LocalStorage 等持久化策略

Basic

More

// Define Schema and Connect
const schemaBuilder = lf.schema.create('teambition', 1)

schemaBuilder.createTable('Task')
    .addColumn('_id', lf.Type.STRING)
    .addColumn('content', lf.Type.STRING)
    .addColumn('created', lf.Type.STRING)
    .addColumn('dueDate', lf.Type.STRING)
    .addColumn('priority', lf.Type.INTEGER)
    // ...
    .addPrimaryKey(['_id'])
    .addNullable(['content', 'created', 'dueDate', 'priority'])

schemaBuilder.createTable('Member')
    .addColumn('_id', lf.Type.STRING)
    .addColumn('name', lf.Type.STRING)
    .addColumn('avatarUrl', lf.Type.STRING)
    // ...
    .addPrimaryKey(['_id'])
    .addNullable([/** ... */])

//...

// Schema is defined, now connect to the database instance.
schemaBuilder
    .connect({ /** storeType: lf.DataStoreType.INDEXED_DB */ })
    .then(db => {
      // Schema is not mutable once the connection to DB has established.
    })
const taskTable = db.getSchema().table('Task')
const memberTable = db.getSchema().table('Member')
const query = db.select(
    taskTable._id, taskTable.content, memberTable._id,
    memberTable.name, memberTable.avatarUrl
)
    // join
    .from(taskTable, memberTable)
    // oh no....
    .where(lf.op.and(
        taskTable.created.lt(moment().startOf('day').valueOf()),
        taskTable._executorId.eq(member._id)
    ))
    .orderBy(taskTable.priority, lf.Order.DESC)
    .orderBy(taskTable.dueDate, lf.Order.DESC)
    // 第二页,每页20条数据
    // Sad story,因为查询的结果是笛卡尔积,这里不能这么查询
    .limit(20)
    .skip(20)

// Select Data
query.exec().then(data => // 笛卡尔积,Graph it)

// Observe
db.observe(query, diff => // effect)

//Unobserve
db.unobserve(query, callback)
const Tasks = [Task1, Task2, Task3 ...]
const Subtasks = [Subtask1, Subtask2, Subtask3 ...]
const Projects = [Project1, Project2]

const result = [
    {
        Task: Task1,
        Subtask: Subtask1,
        Project: Project1
    },
    {
        Task: Task1,
        Subtask: Subtask2,
        Project: Project1
    },
    {
        Task: Task2,
        Subtask: Subtask3,
        Project: Project1
    },
    {
        Task: Task2,
        Subtask: Subtask4,
        Project: Project1
    }
    // ....
]

缺点

  • Low level API,数据的定义与查询等操作的代码较为冗长
  • 无法自动处理客户端出现的数据类型不一致 (ISO string & Date)
  • 不支持传统 RDBMS 的 SubQuery
  • 需要手动处理数据的订阅与取消

ReactiveDB

  • 基于 Lovefield,继承其所有强大的功能
  • 使用 RxJS ,天然契合 Observe
  • 直观的定义数据类型及其关联属性并且自动处理 Join 后的数据
  • 扩展 Lovefield 的数据类型,自动对后端接口的类型做transform
  • 声明式的查询逻辑
// 定义 Schema
ReactiveDB.defineSchema('Task', {
  _creatorId: {
    type: RDBType.STRING
  },
  _executorId: {
    type: RDBType.STRING
  },
  _id: {
    type: RDBType.STRING,
    primaryKey: true
  },
  _projectId: {
    type: RDBType.STRING
  },
  _stageId: {
    type: RDBType.STRING
  },
  _tasklistId: {
    type: RDBType.STRING
  },
  accomplished: {
    type: RDBType.DATE_TIME
  },
  content: {
    type: RDBType.STRING
  },
  created: {
    type: RDBType.DATE_TIME
  },
  customfields: {
    type: RDBType.OBJECT
  },
  dueDate: {
    type: RDBType.DATE_TIME
  },
  executor: {
    type: Relationship.oneToOne,
    virtual: {
      name: 'Member',
      where: memberTable => ({
        _executorId: memberTable._id
      })
    }
  },
  involveMembers: {
    type: RDBType.LITERAL_ARRAY
  },
  isArchived: {
    type: RDBType.BOOLEAN
  },
  isDone: {
    type: RDBType.BOOLEAN
  },
  note: {
    type: RDBType.STRING
  },
  pos: {
    type: RDBType.NUMBER
  },
  priority: {
    type: RDBType.NUMBER
  },
  project: {
    type: Relationship.oneToOne,
    virtual: {
      name: 'Project',
      where: projectTable => ({
        _projectId: projectTable._id
      })
    }
  },
  stage: {
    type: Relationship.oneToOne,
    virtual: {
      name: 'Stage',
      where: stageTable => ({
        _stageId: stageTable._id
      })
    }
  },
  startDate: {
    type: RDBType.DATE_TIME
  },
  subtaskCount: {
    type: RDBType.NUMBER
  },
  subtaskIds: {
    type: RDBType.LITERAL_ARRAY
  },
  subtasks: {
    type: Relationship.oneToMany,
    virtual: {
      name: 'Subtask',
      where: subtaskTable => ({
        _id: subtaskTable._taskId
      })
    }
  },
  tagIds: {
    type: RDBType.LITERAL_ARRAY
  },
  tasklist: {
    type: Relationship.oneToOne,
    virtual: {
      name: 'Tasklist',
      where: tasklistTable => ({
        _tasklistId: tasklistTable._id
      })
    }
  }
})
// 查询数据
const QueryToken = ReactiveDB.get('Task', {
  where: {
    created: {
      $gt: moment().startOf('day').valueOf()
    }
  },
  fields: [
    '_id',
    'content',
    {
      member: ['_id', 'name', 'avatarUrl']
    }
  ],
  // yes it works
  skip: 20,
  limit: 20,
  orderBy: [
    { fieldName: 'priority', orderBy: 'DESC' },
    { fieldName: 'dueDate', orderBy: 'DESC' }
  ]
})

QueryToken

  • concat : 处理列表
  • combine : 关联多个 Query
  • values : 对 Query 做直接查询求值
  • changes : 产生一个 Observable,订阅所有满足 Query 约束数据的变化

Components

Datahub

ReactiveDB

Get

Backend

Http Response

Cache Validate

Http Request

Post Update Patch Delete

WebSocket

https://github.com/ReactiveDB/core

https://github.com/teambition/teambition-sdk

ReactiveDB Slide

By yinan

ReactiveDB Slide

  • 275
