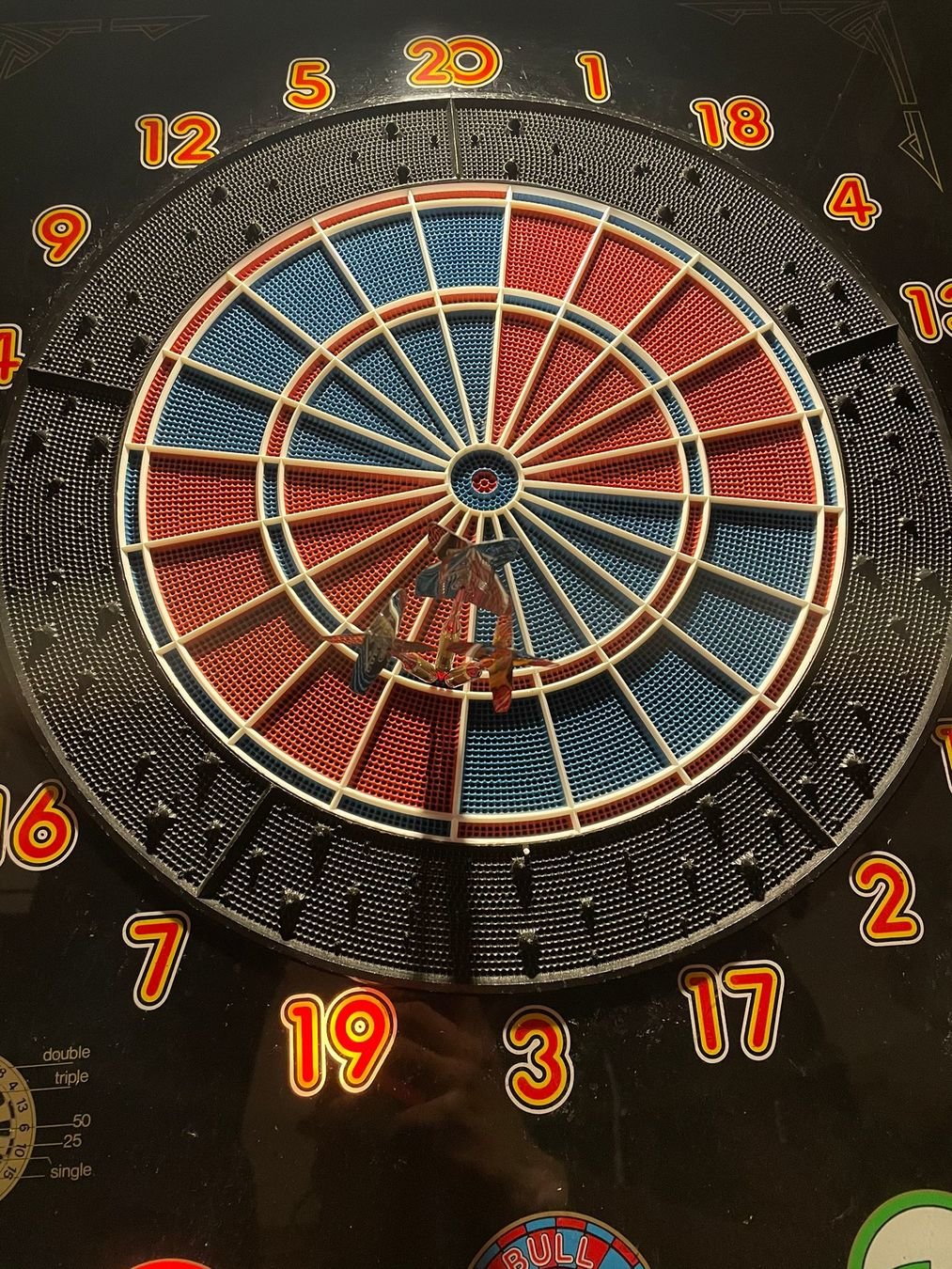

How are darts detected? 🧐

Let's find it out!

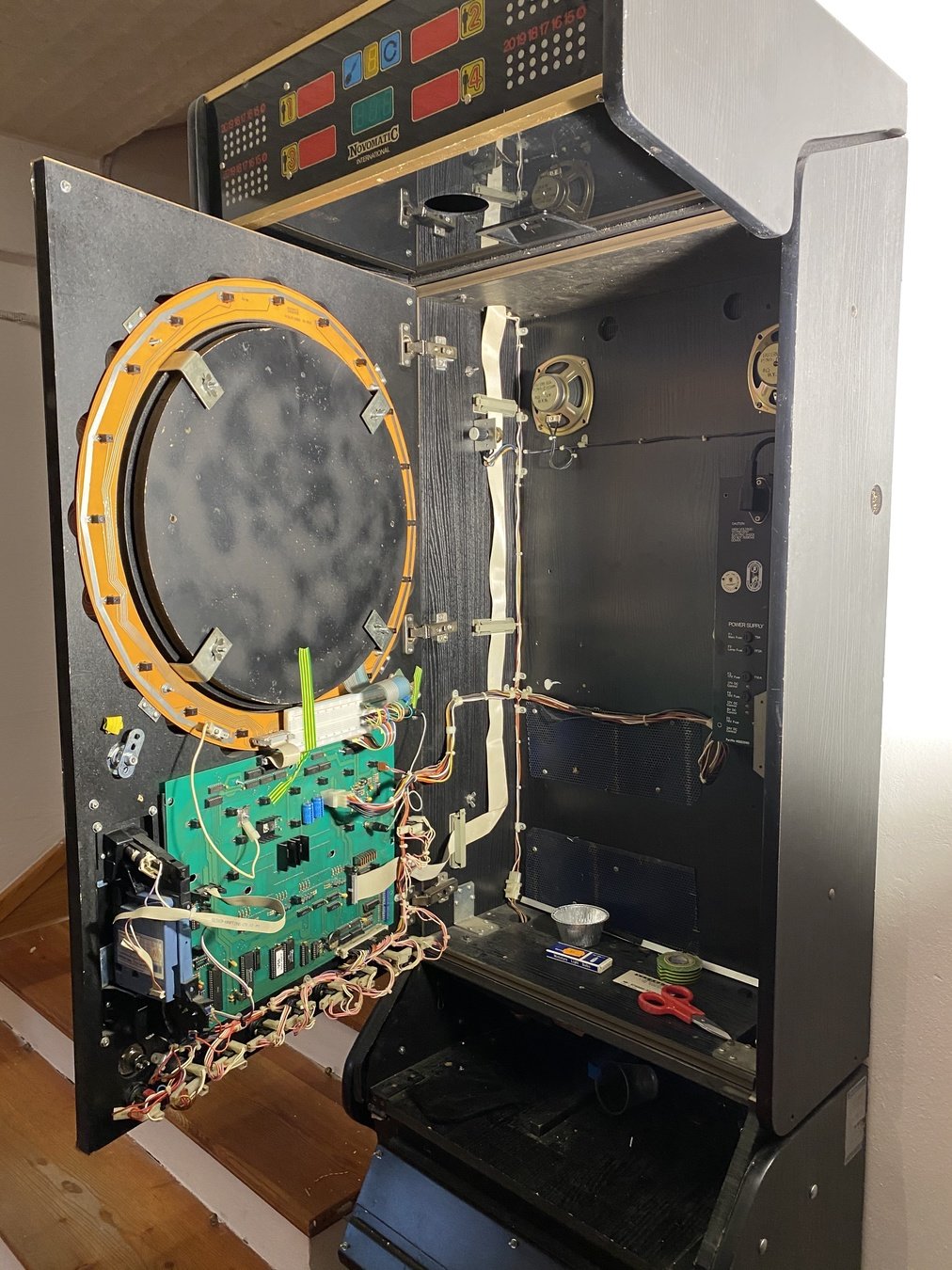

Structural

Functional

dart collector

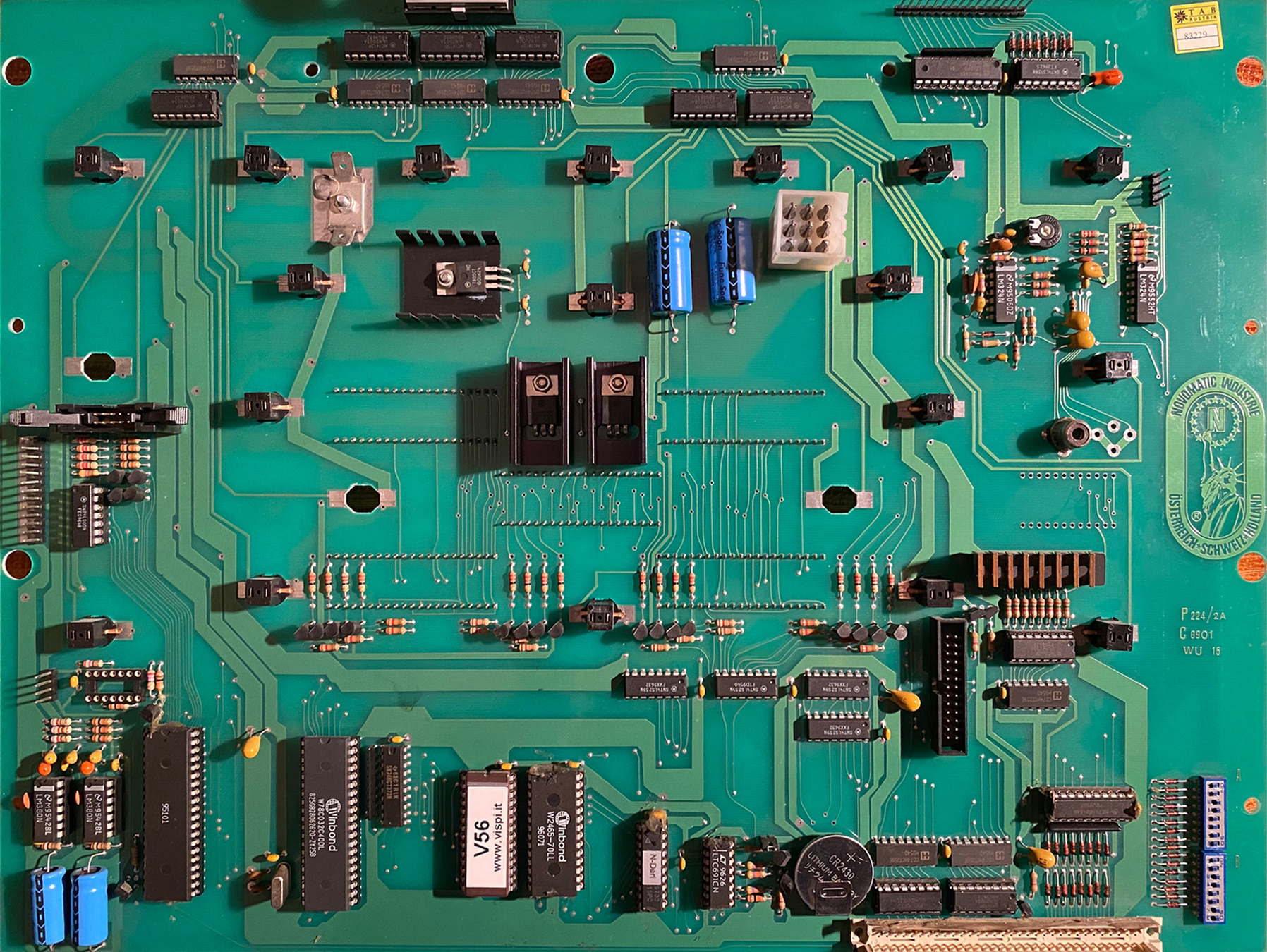

main board

hacker's bridge

(more later)

16bits panel-board connector

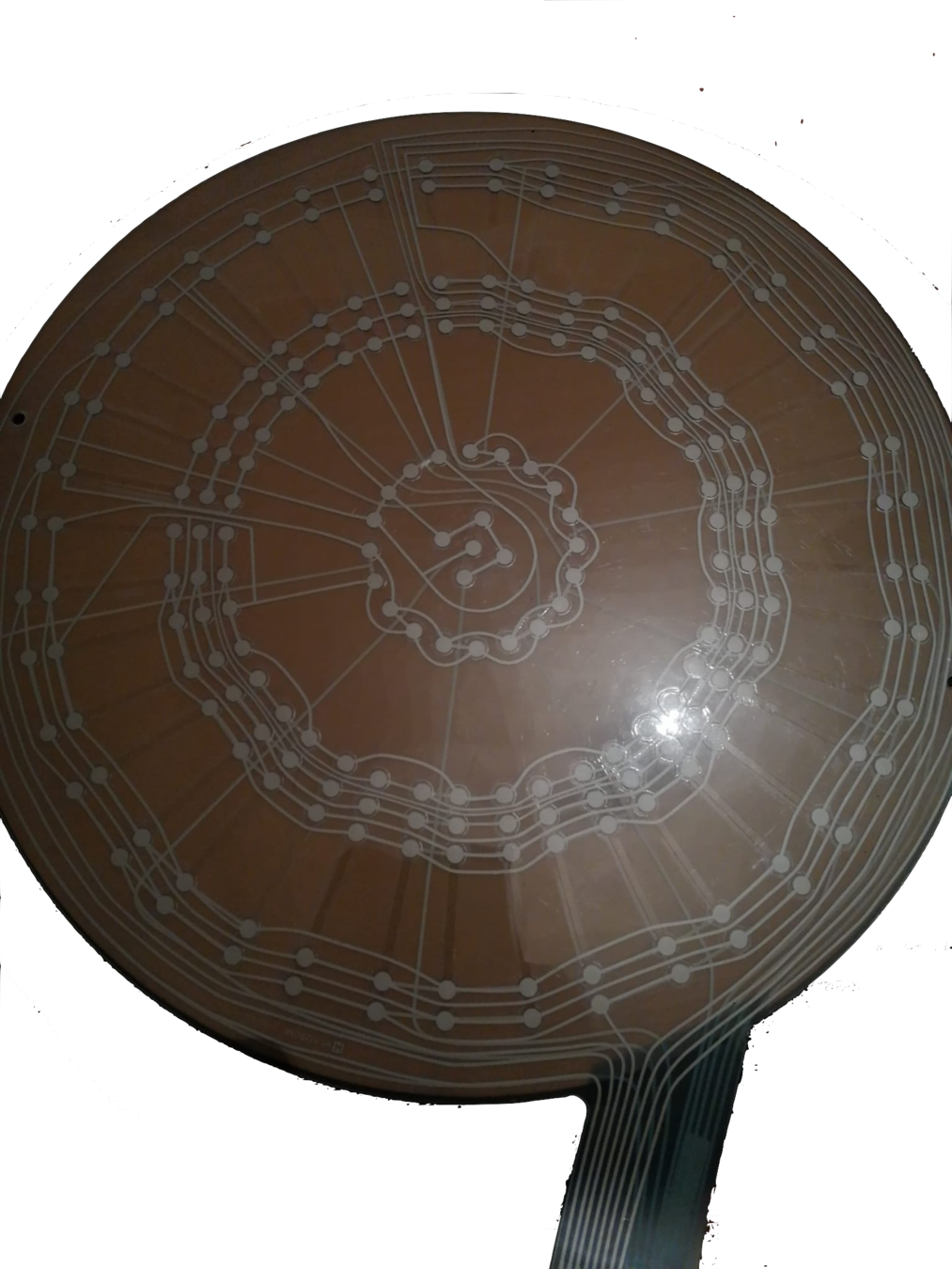

The Dart Matrix

Notice the layering!

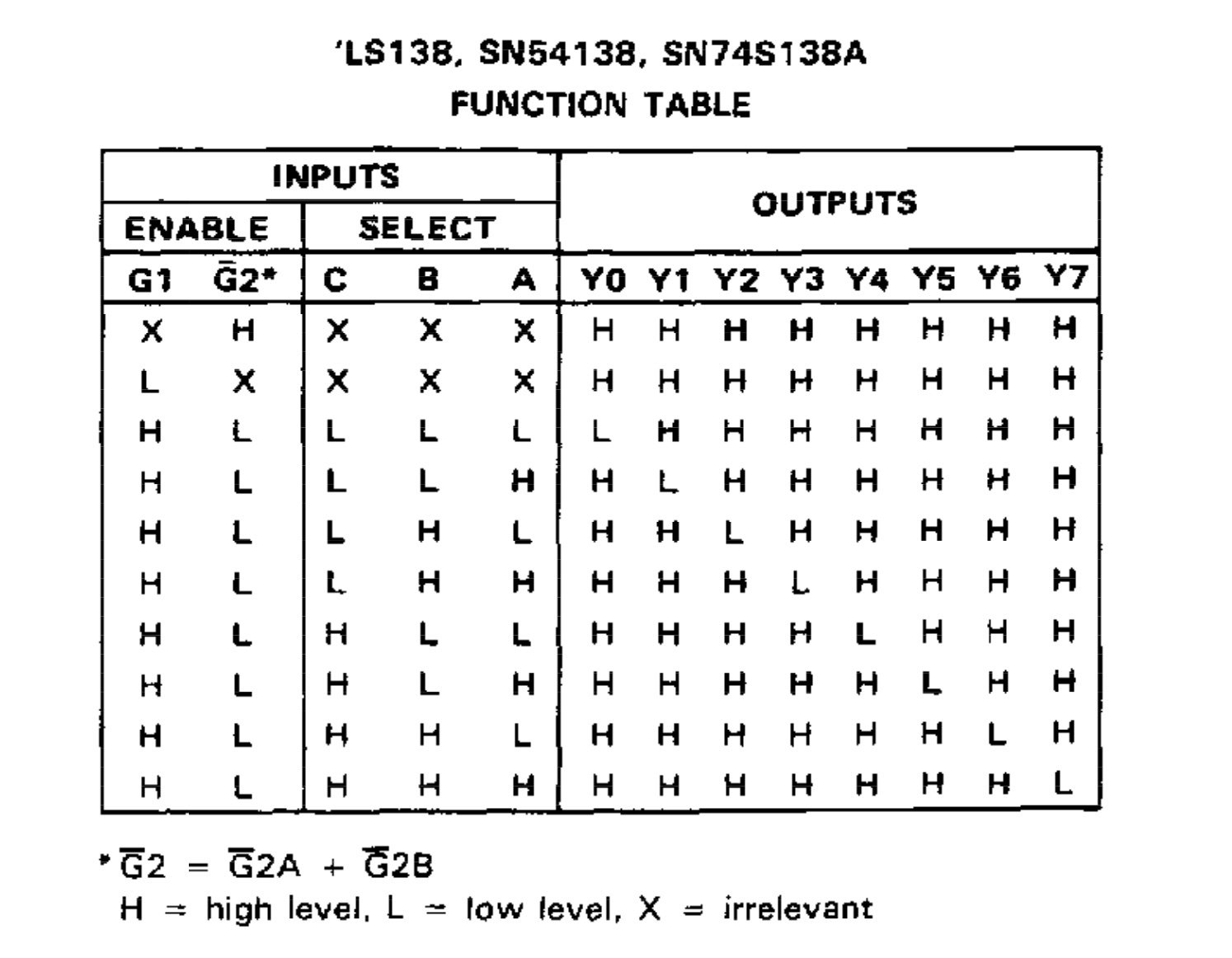

What goes on here? Who drives the sensor?

Title Text

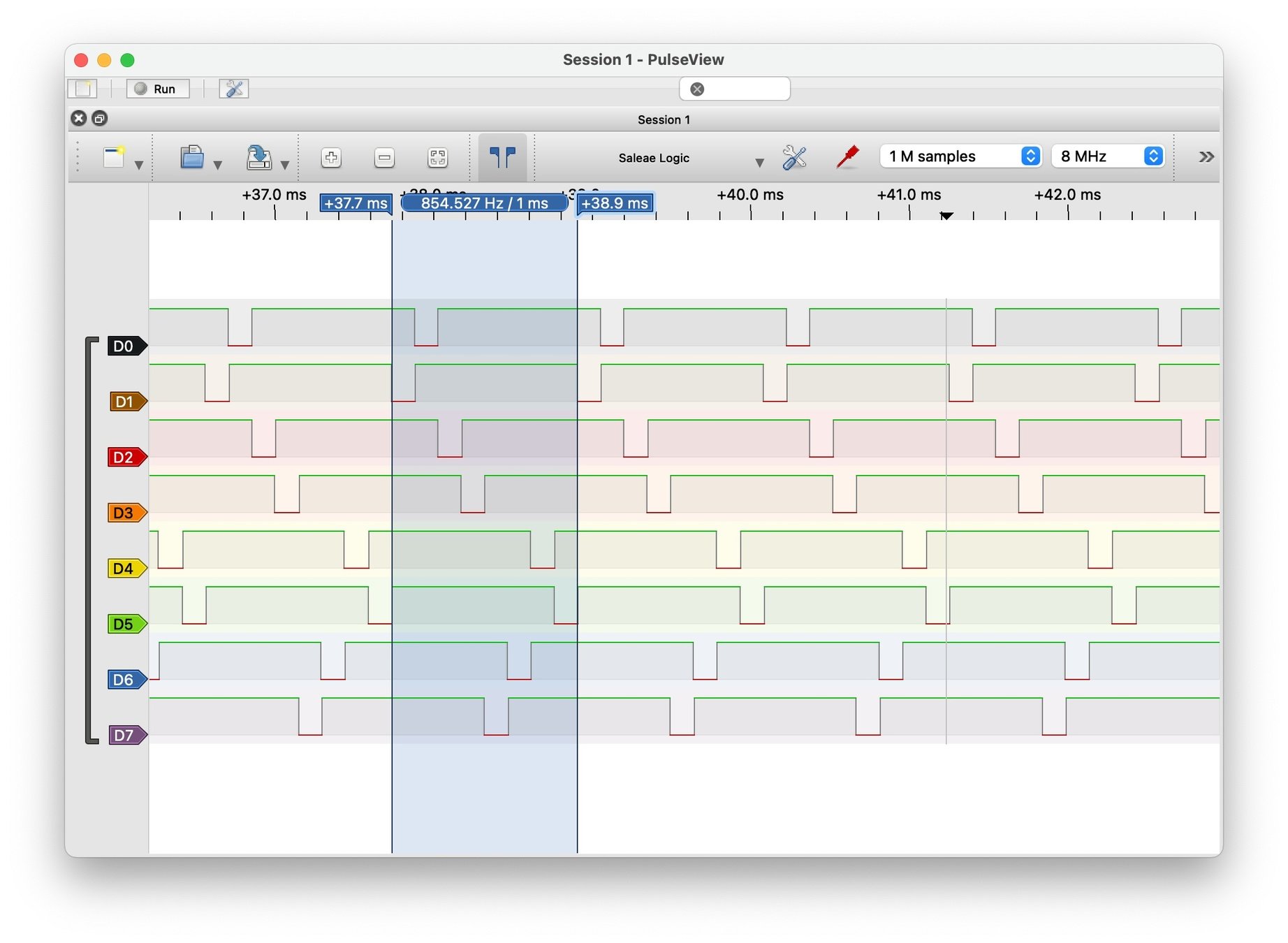

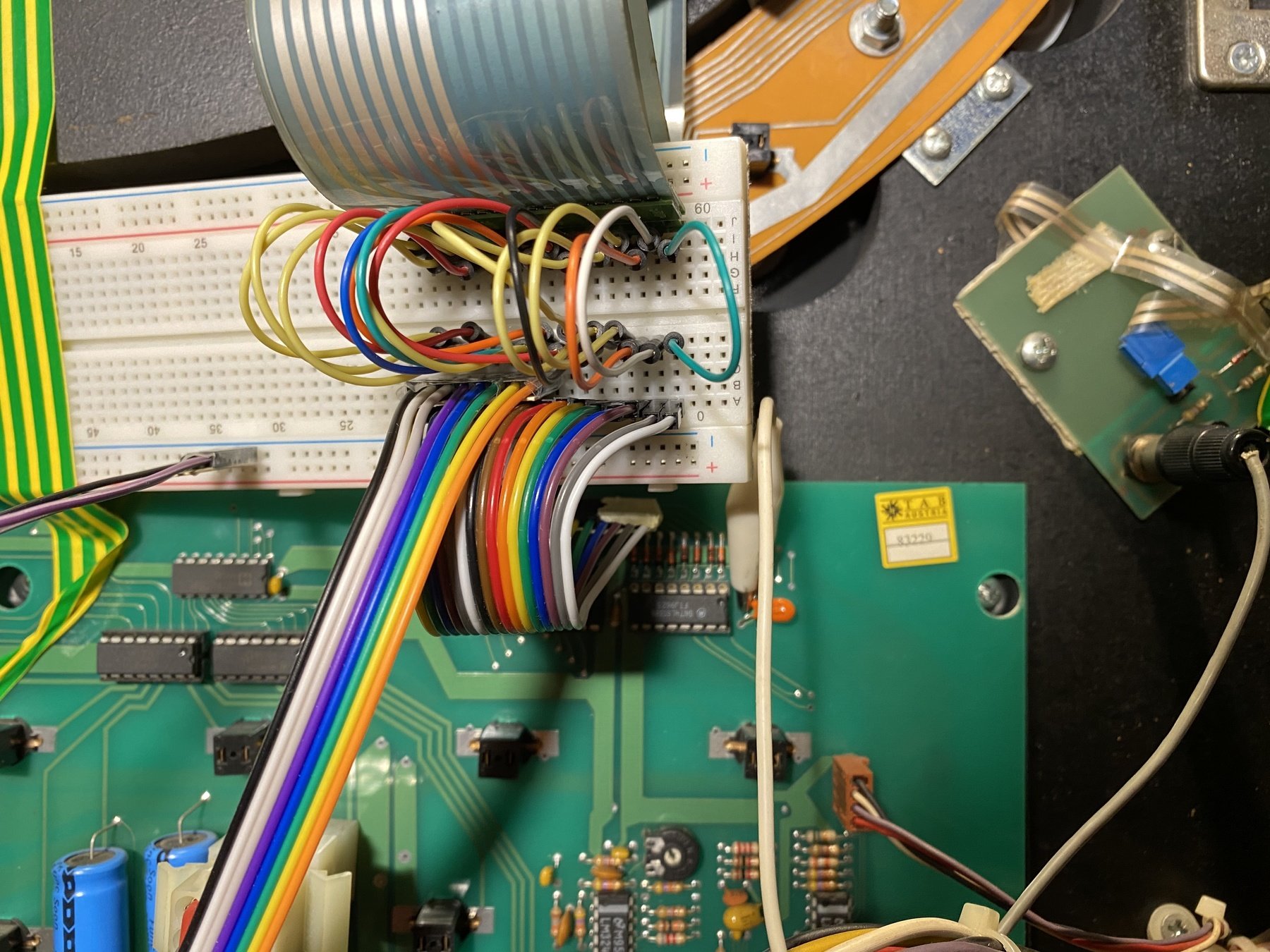

Hacker's Bridge in Action

probe

hit!

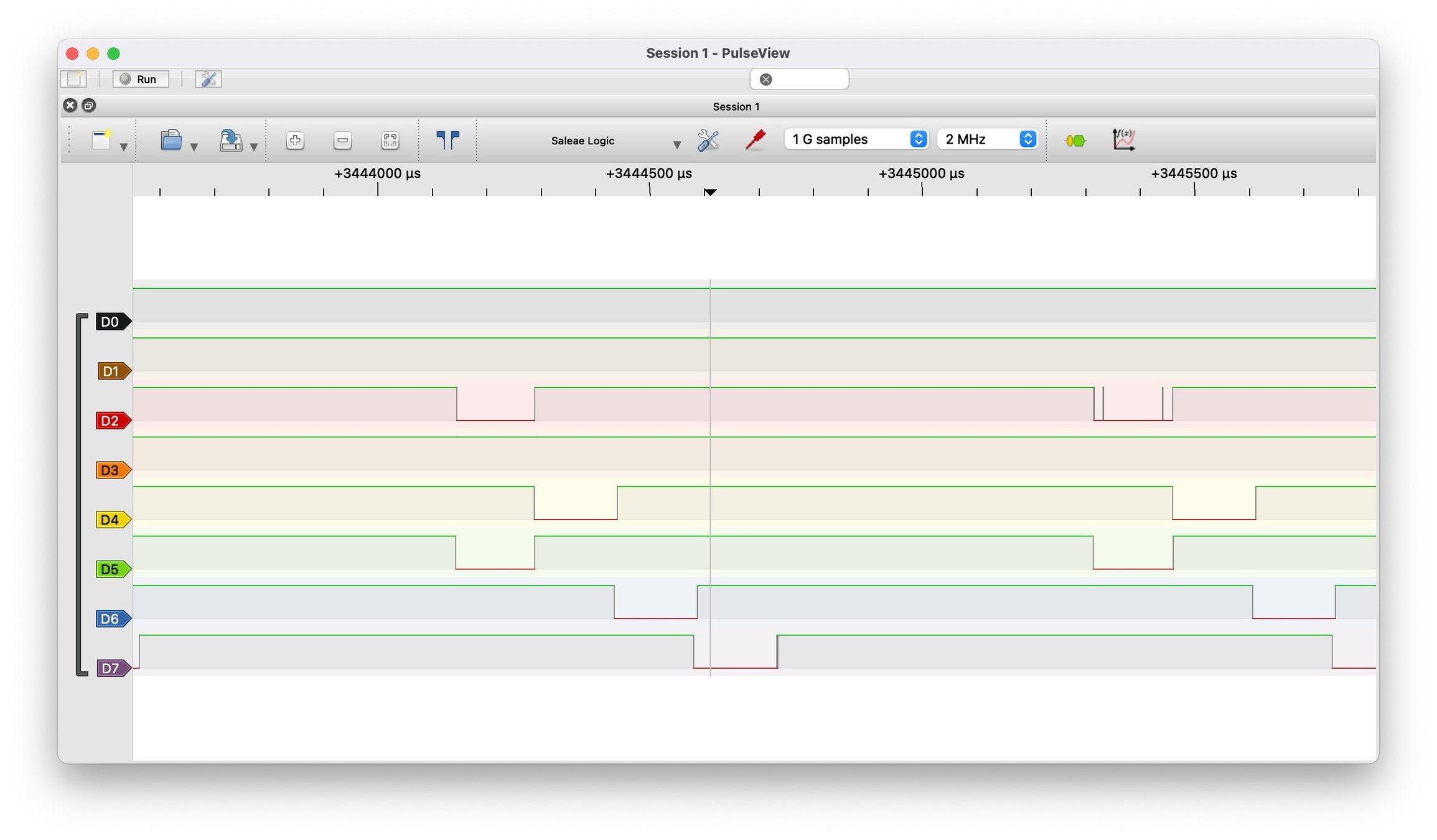

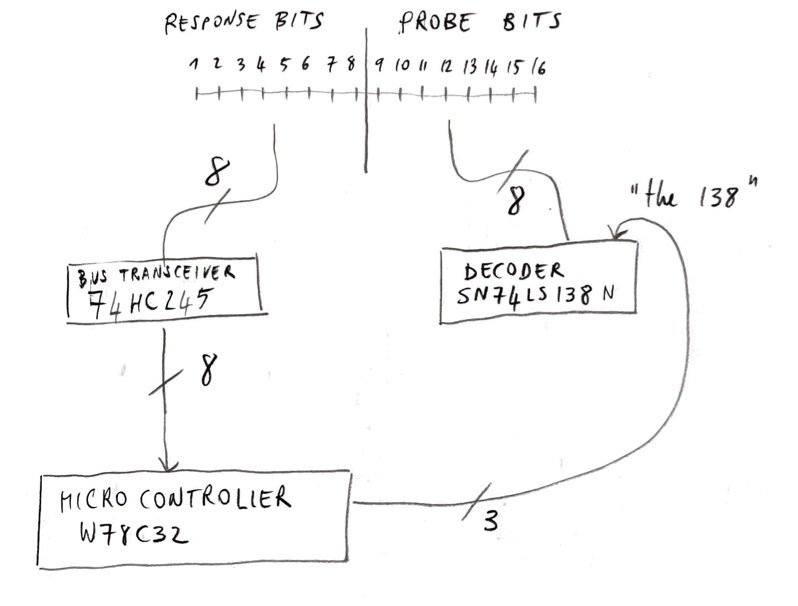

4 channels on the probe, 4 on the response

Rows

Cols

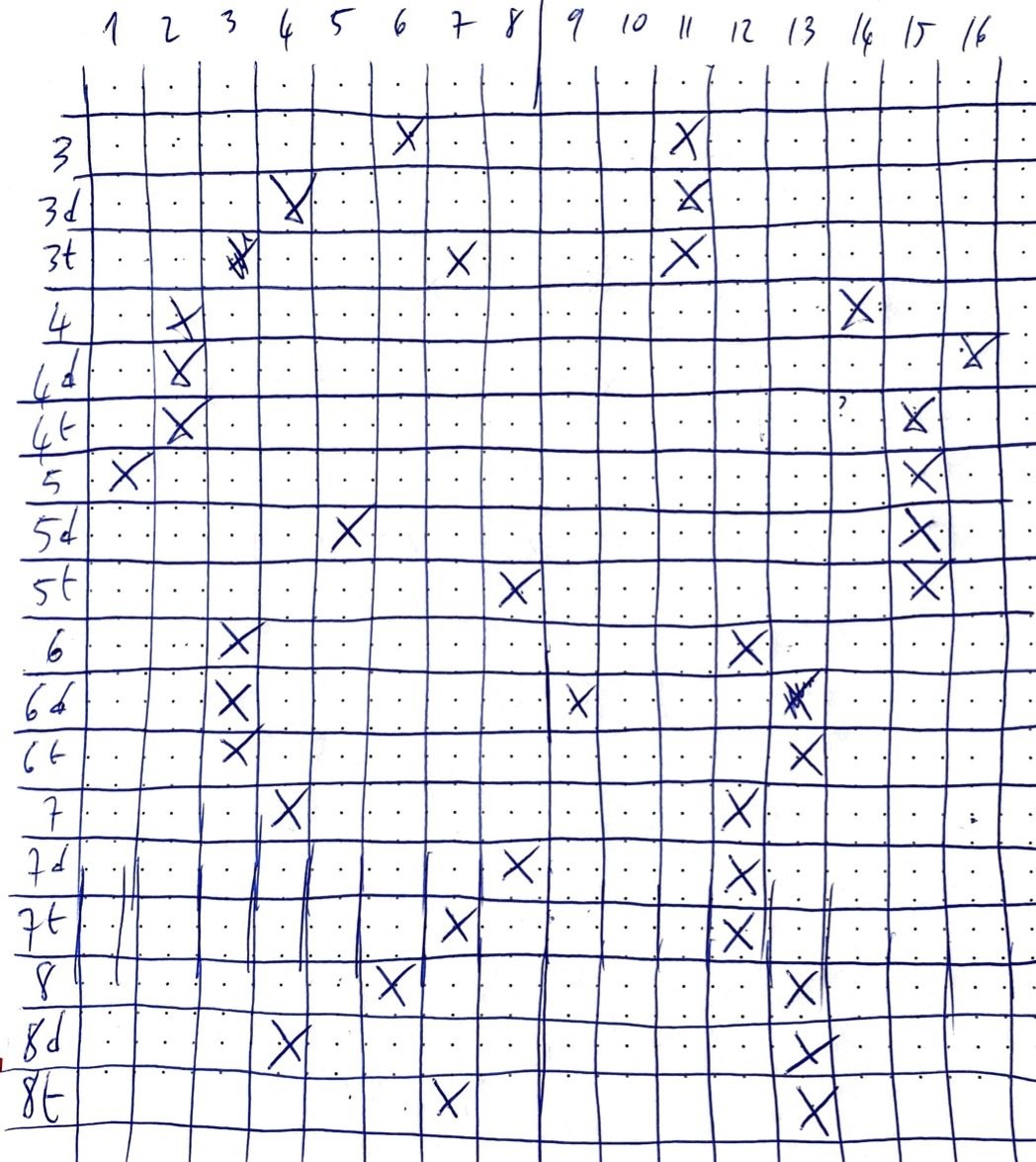

Dart Hit! Closes a row with a column

0

0

1

1

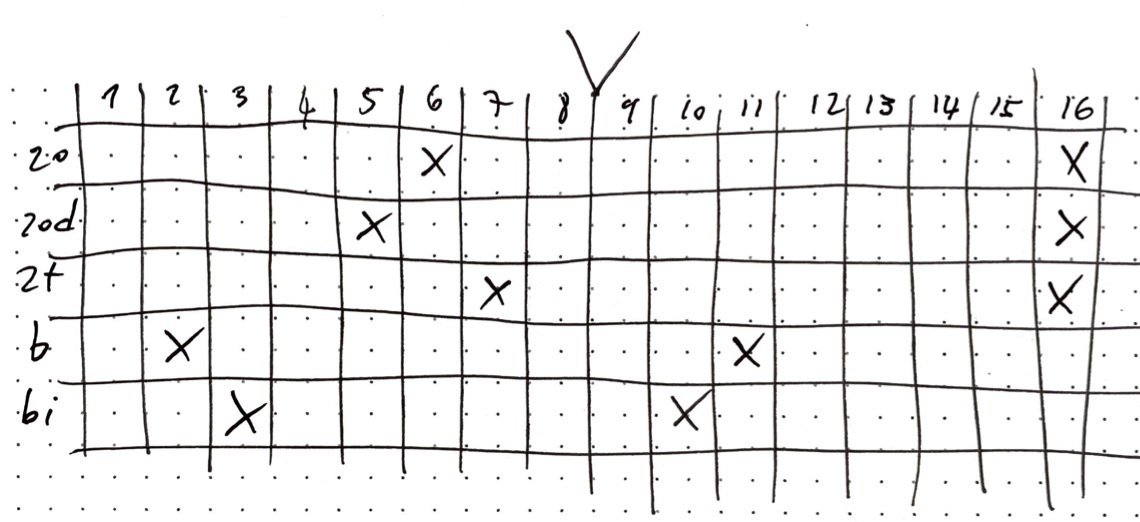

Bullseye IS special 😜
