Behavior-Driven Development
in 5 minutes
TL;DR
-
articulate "what to build"
-
collaborate across product/dev/QA
-
write specifications in Gherkin
- have specifications/tests/documentations
BDD vs. TDD
TDD is a developer's practice
"How to build?"
BDD is a collaborative practice
"What to build?"

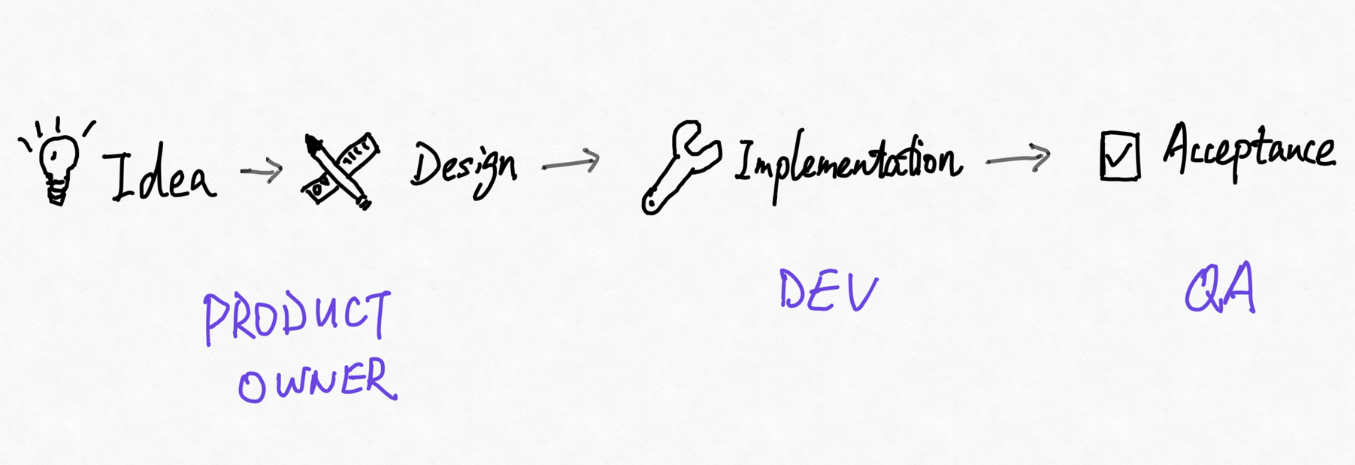

Articulate "what to build"
A tree swing story: https://www.zentao.pm/blog/tree-swing-project-management-tire-analogy-426.mhtml

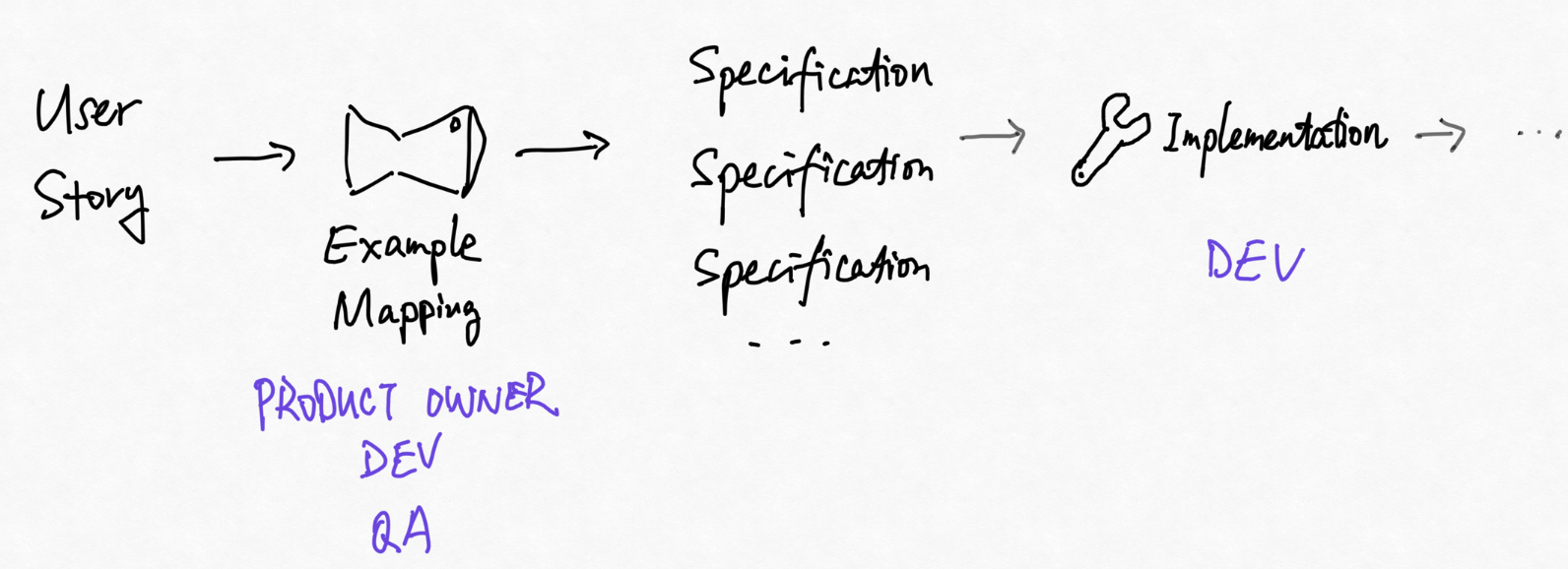

Collaborate across teams
User story: task creation
As a clinician,
I would like to create task for a patient and assign to clinicians,
so that remaining operations for that patient can be tracked.
User Story
Specifications: task creation
Feature: Task Creation
Clinician can create task for a patient, and assign to multiple clinicians.
Background: Clinic is staffed
Given Care group "AKIRA-CC"
And Clinician Claire is in care group "AKIRA-CC"
And Clinician Carol is in care group "AKIRA-CC"
Scenario: Task creation with single assignment
Given Patient Peter is in care group "AKIRA-CC"
When Claire creates a task for Peter
And Claire assigns task to Claire
Then Task should be open
And Task is assigned to Claire
task_creation.feature
Step definitions: task creation
Given('Clinician {word} is in care group {string}') do |clinician_name, care_group|
care_group = @care_groups[care_group]
@clinicians[clinician_name.downcase] ||= FactoryBot.create(:medical_doctor, care_group: care_group)
end
When('{word} creates a task for {word}') do |clinician_name, patient_name|
clinician = @clinicians[clinician_name.downcase]
patient = @patients[patient_name.downcase]
@task = FactoryBot.create(:task,
patient: patient,
author: clinician.user
)
end
Then('Task should be {word}') do |expected_status|
expect(@task.refresh.status).to eq(expected_status.downcase)
end
task_steps.rb
Cucumber step definitions: https://cucumber.io/docs/cucumber/step-definitions/
Cucumber output (console)
Cucumber reporting: https://cucumber.io/docs/cucumber/reporting/
Cucumber output (HTML)
BDD example:
task acknowledgement
See reference at end

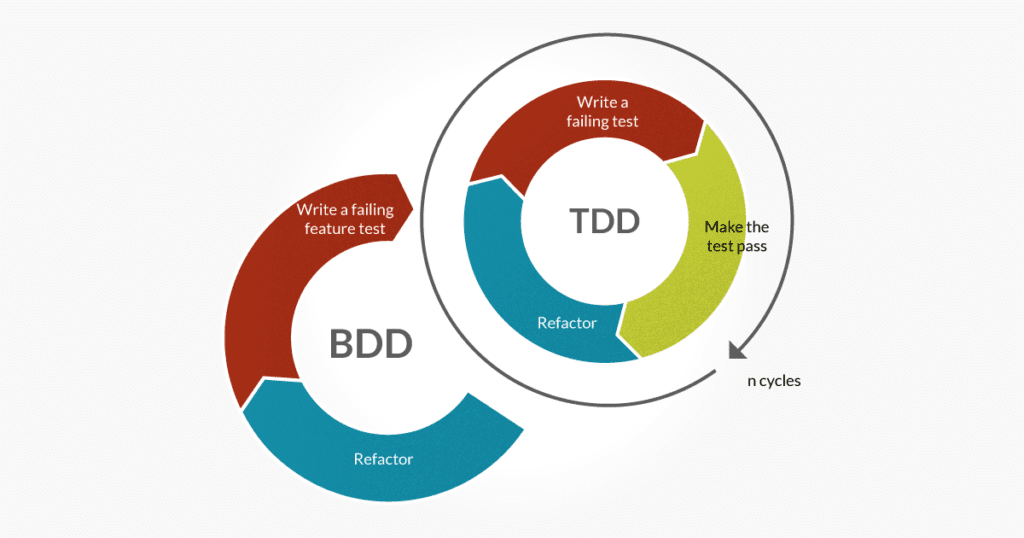

BDD & TDD
Key takeaways (again)
-
articulate "what to build"
-
collaborate across product/dev/QA
-
write specifications in Gherkin
-
have
- executable specifications
- automated tests
- living documentations
References
Thank you!
