FHIR in 15 Minutes
Agenda
-
What is FHIR?
-
Why is it useful?
-
How we use FHIR?
TELUS EMR Integration
TELUS EMR Integration

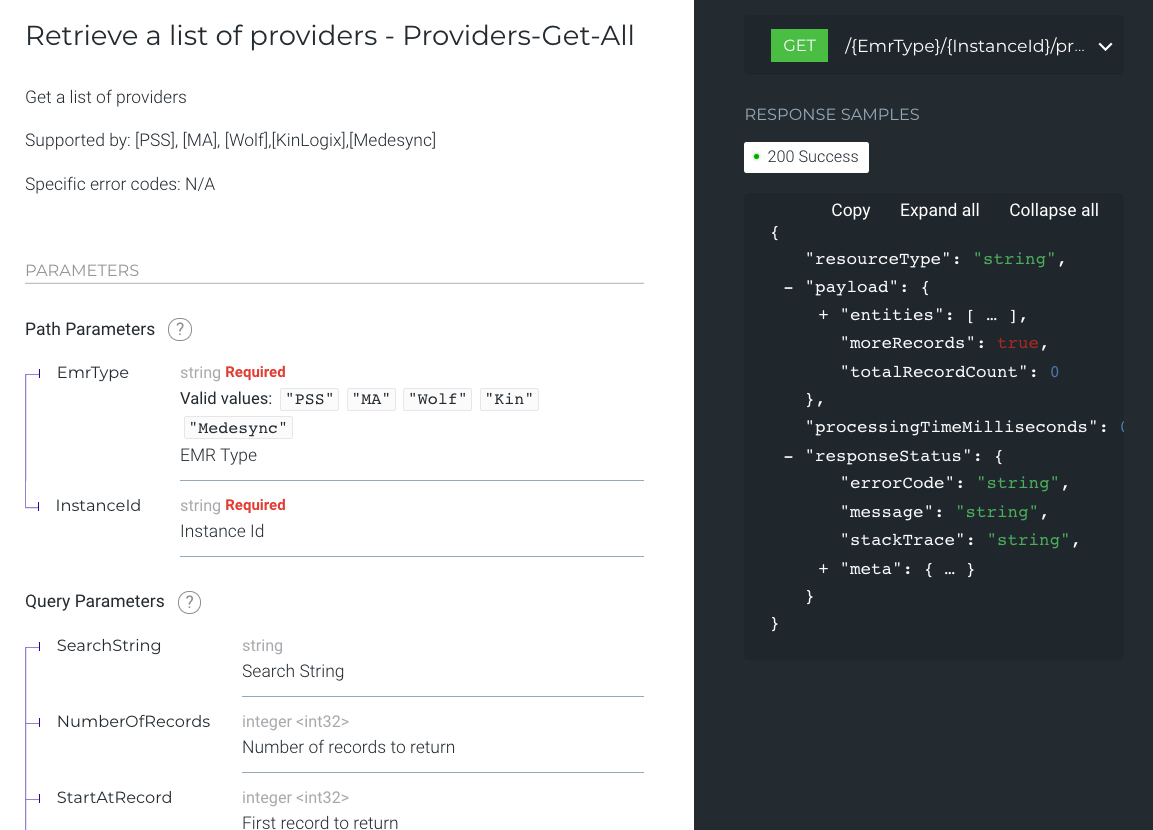

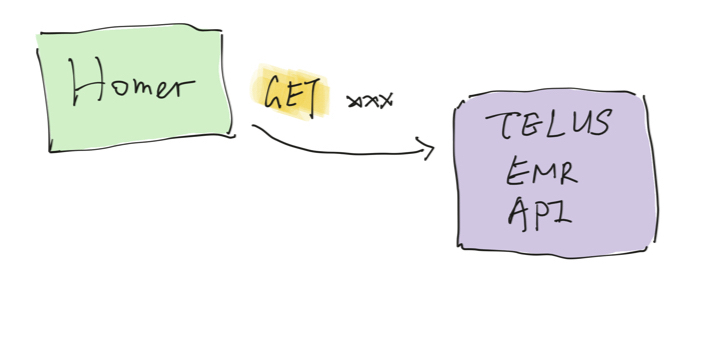

TELUS EMR API
Another vendor?

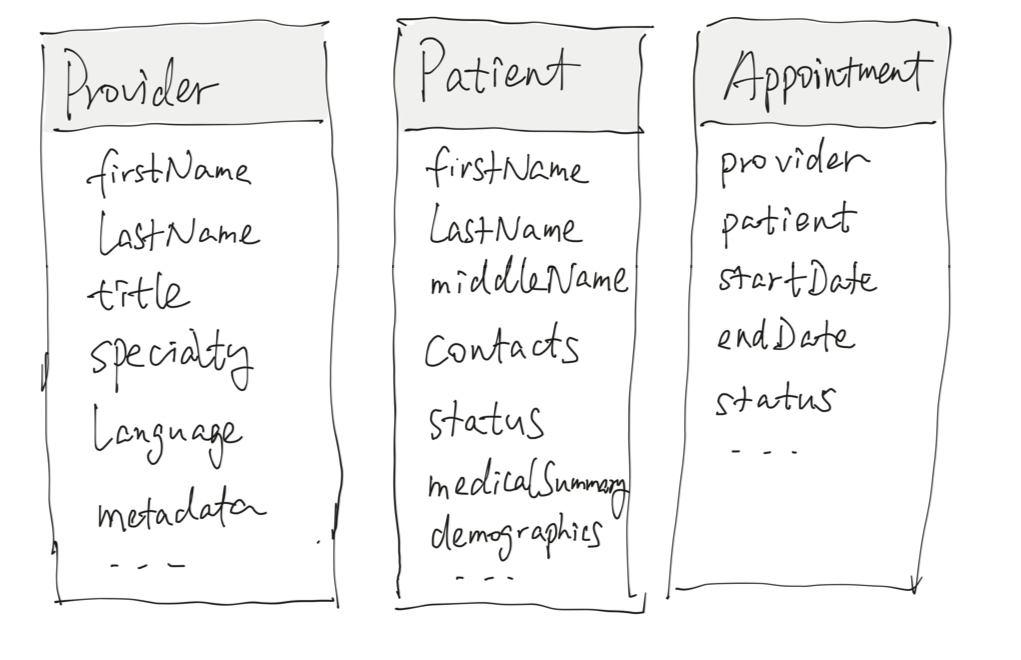

- New data models
- New APIs
- New conventions
OntarioMD HRM
*HRM (Health Report Manager)

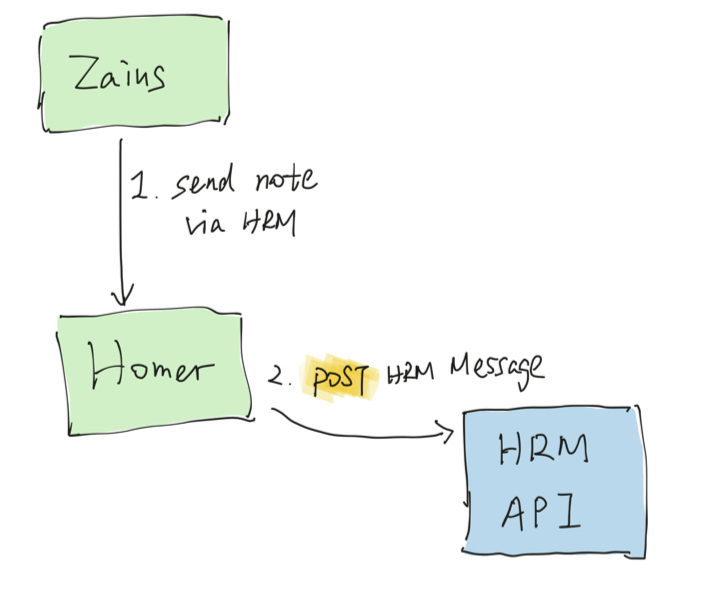

HRM Message

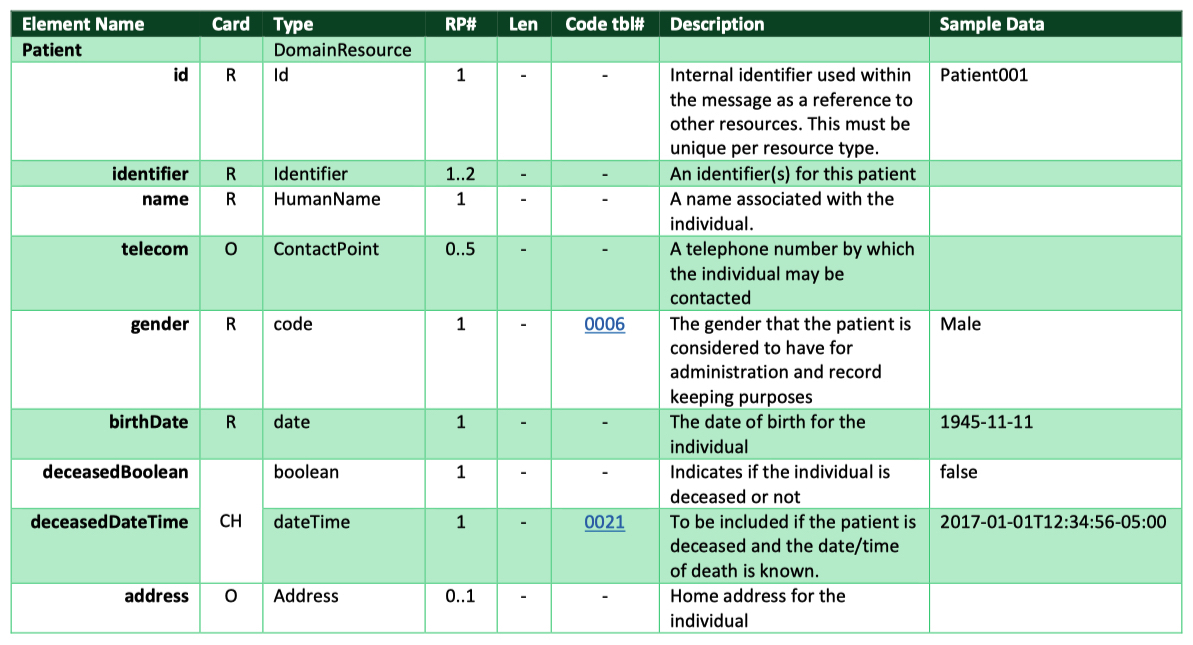

HRM Patient

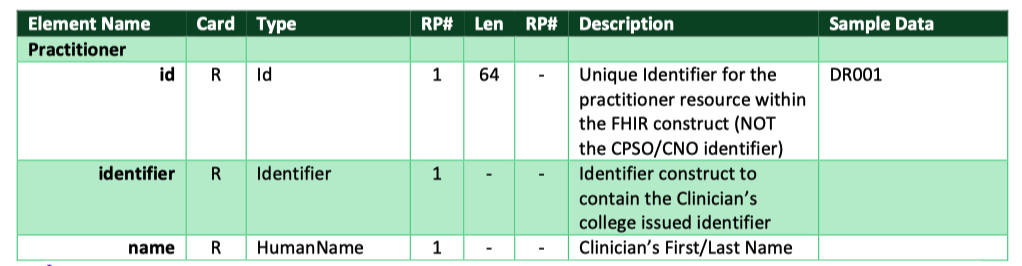

HRM Practitioner
HRM's data models are based on
Enter FHIR
-
Fast
-
Health
-
Interoperability
-
Resources
A standard by organization HL7 (Health Level-7)
If you are wondering

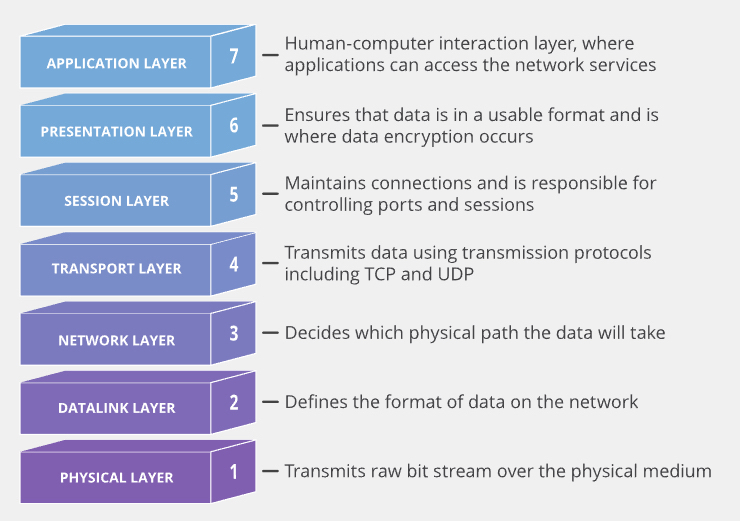

The name "Health Level-7" is a reference to the seventh layer of the ISO OSI Reference model also known as the application layer.

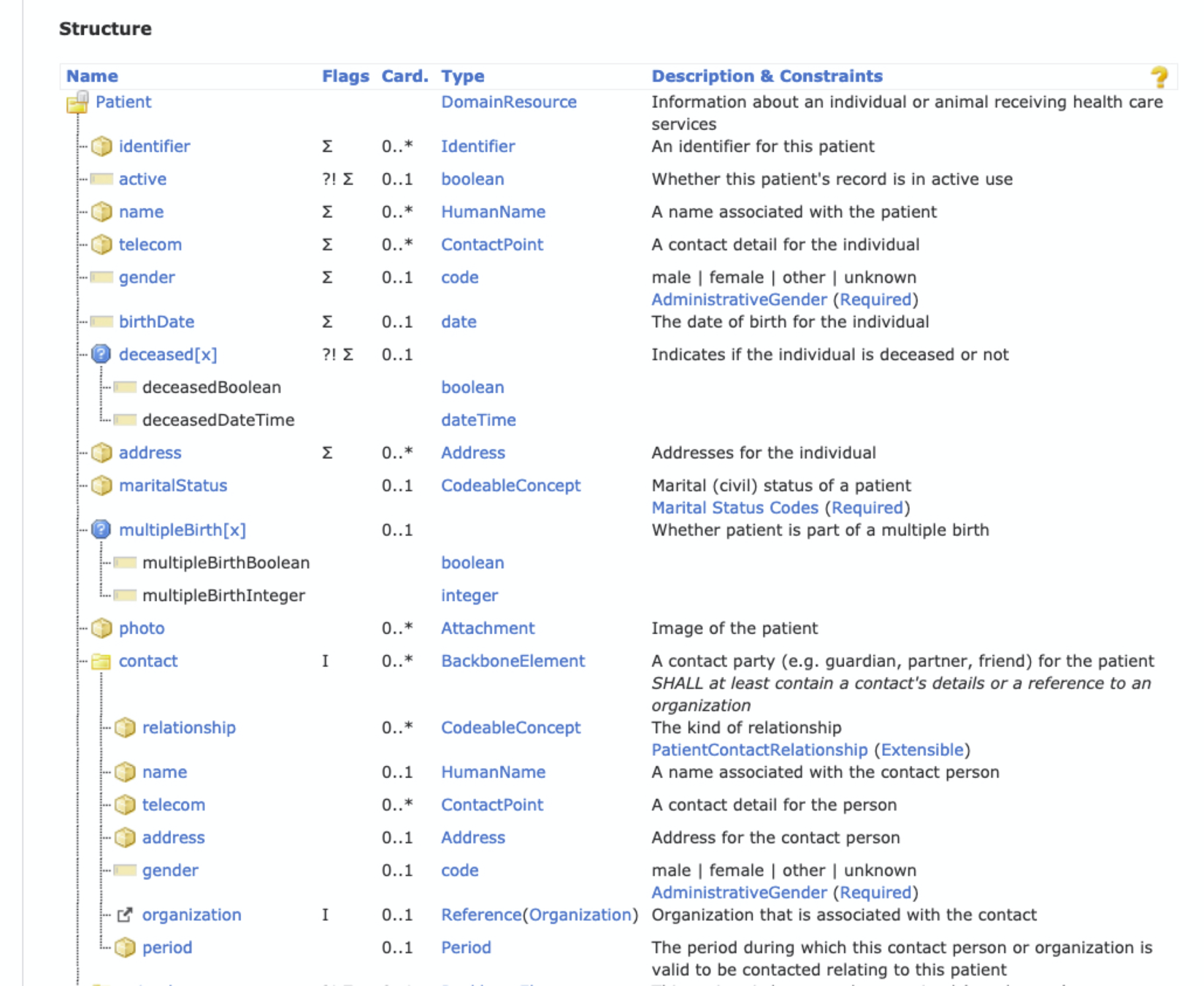

FHIR Patient

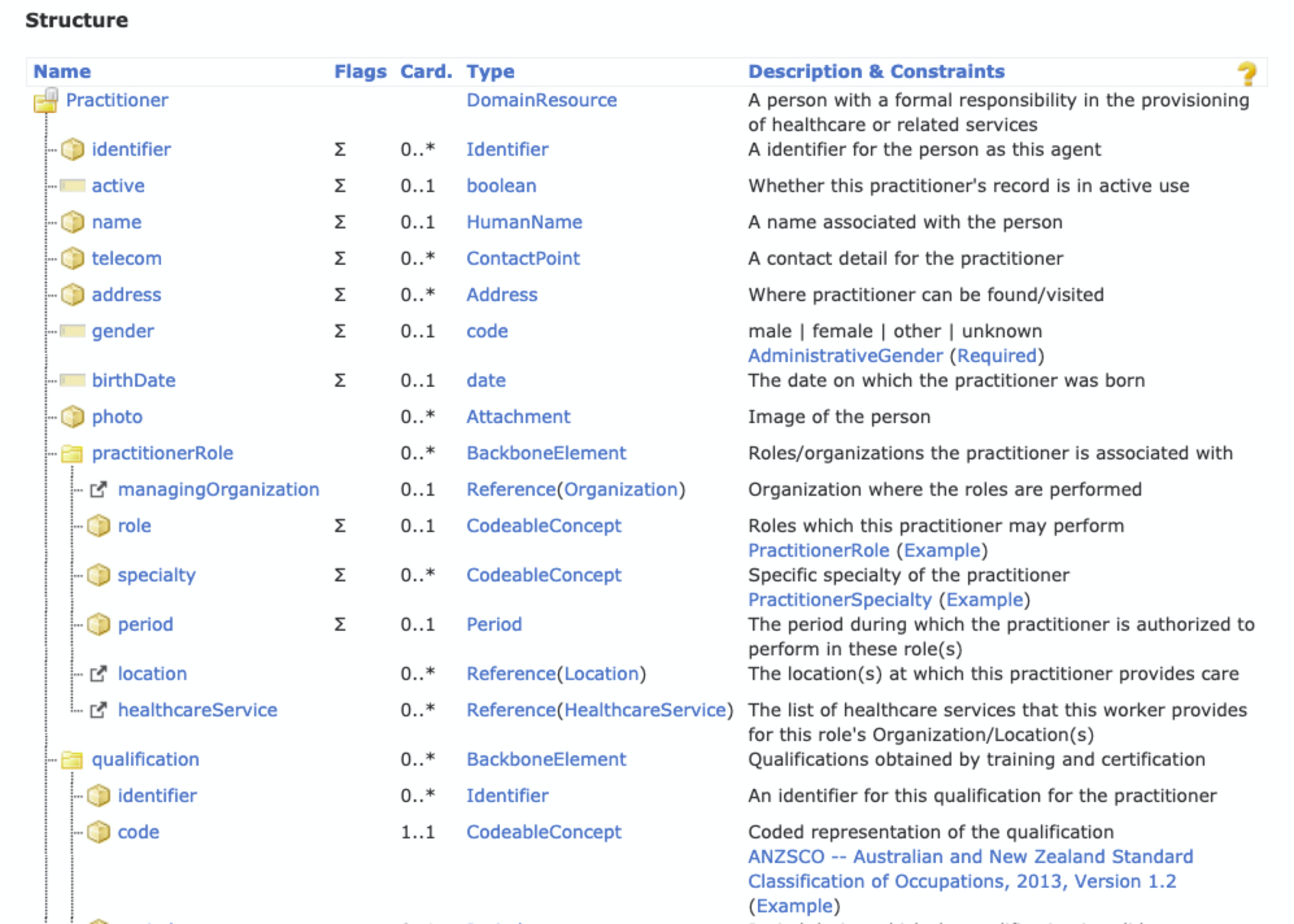

FHIR Practitioner

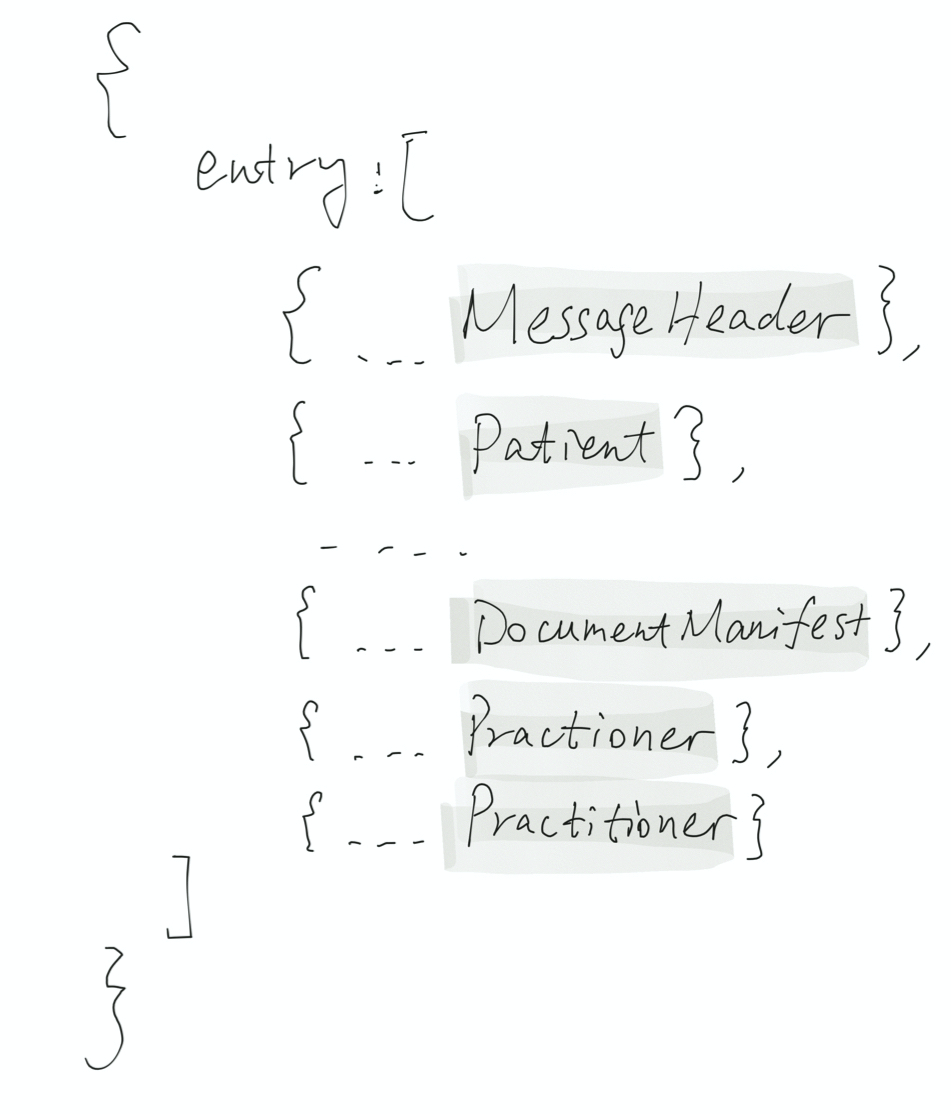

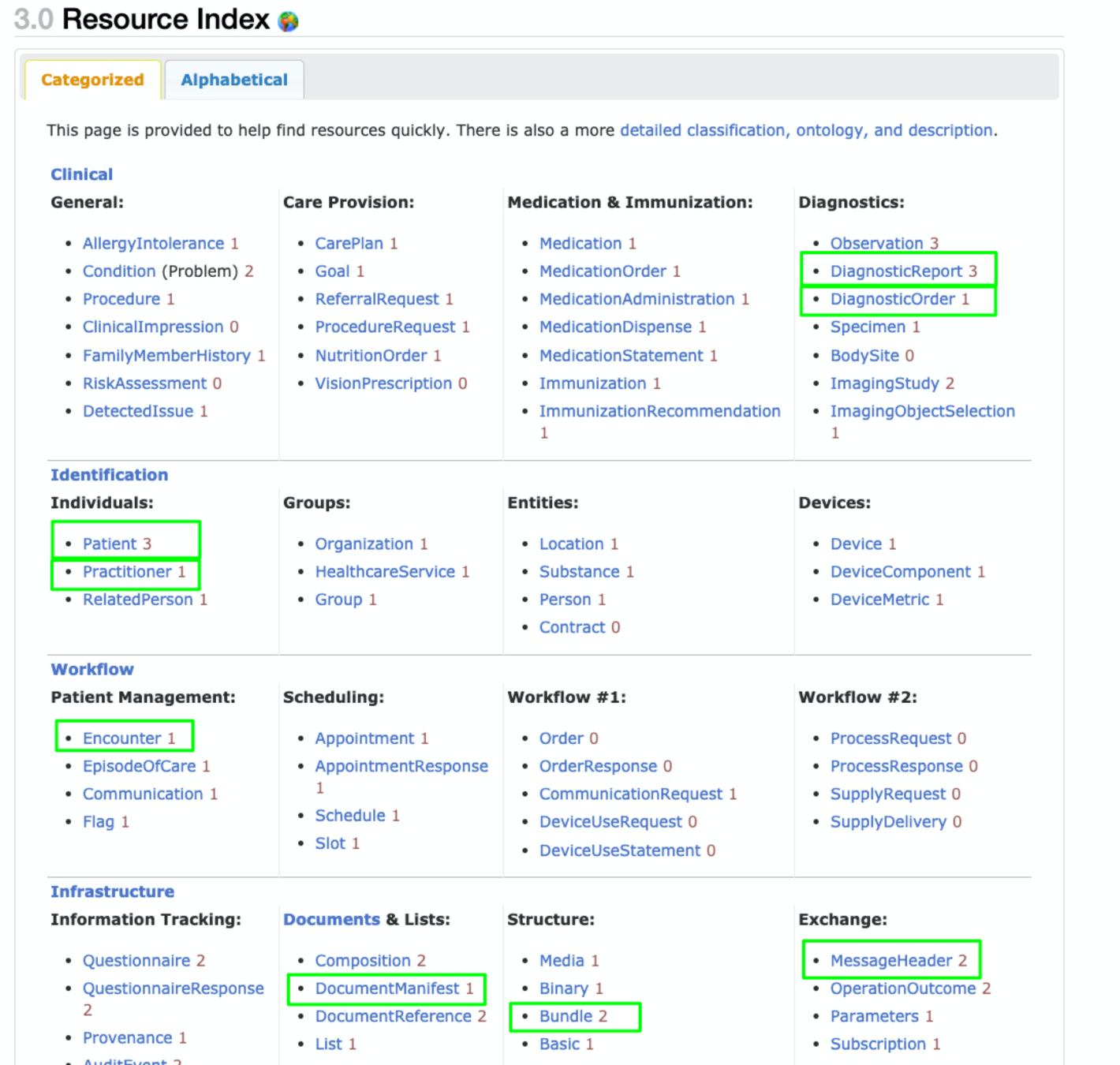

FHIR Resources in HRM

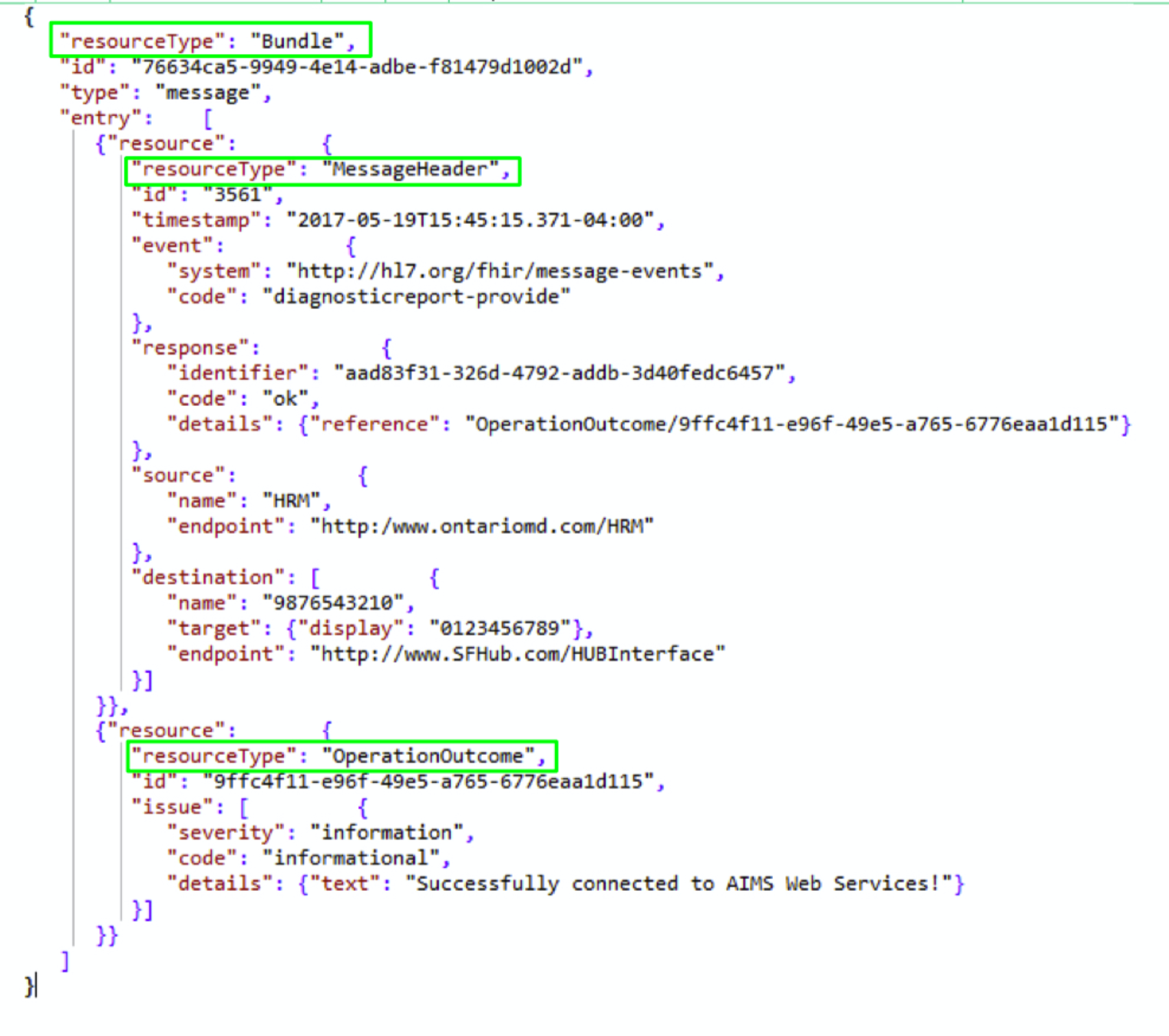

HRM response is FHIR
Implementation (Ruby)
require 'fhir_dstu2_models'
practitioner = FHIR::DSTU2::Practitioner.new(
id: "4f22d5b7-dcd6-4a16-ac5d-b7a52dbe1c09",
identifier: [
{
type: {
coding: [
{
system: "http://hl7.org/fhir/v2/0203",
code: "MD"
}
]
},
system: "http://ehealthontario.ca/API/FHIR/NamingSystem/ca-on-license-physician",
value: "12345"
}
],
name: {
family: [
"Health"
],
given: [
"Akira"
]
}
)
Revisit FHIR
-
Fast
-
Health
-
Interoperability
-
Resources
FHIR is...
-
Data Model
FHIR's 80/20 rule
focus on the 20% of requirements that satisfy 80% of the interoperability needs

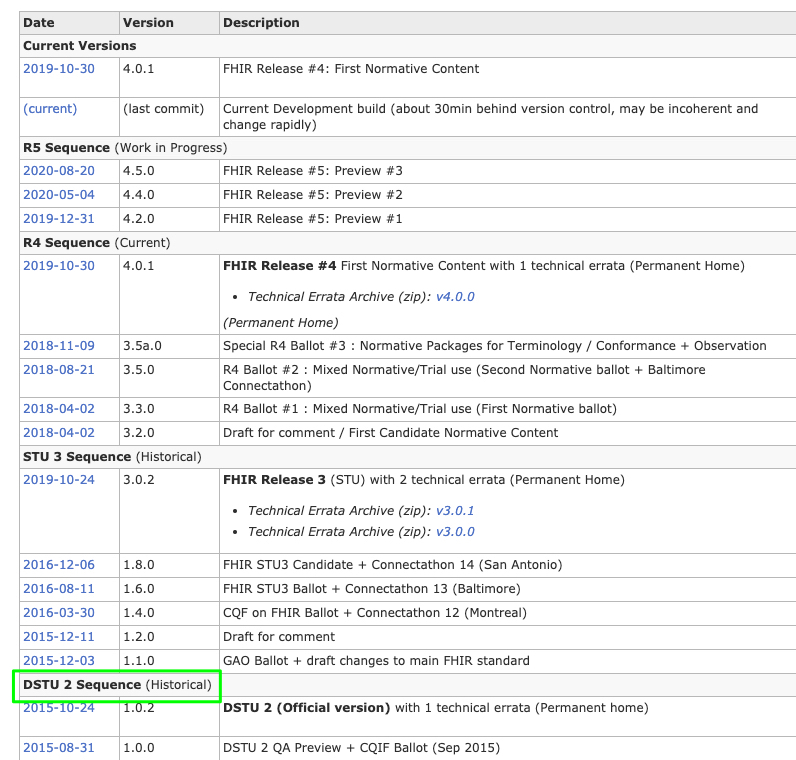

FHIR versions
FHIR is extensible

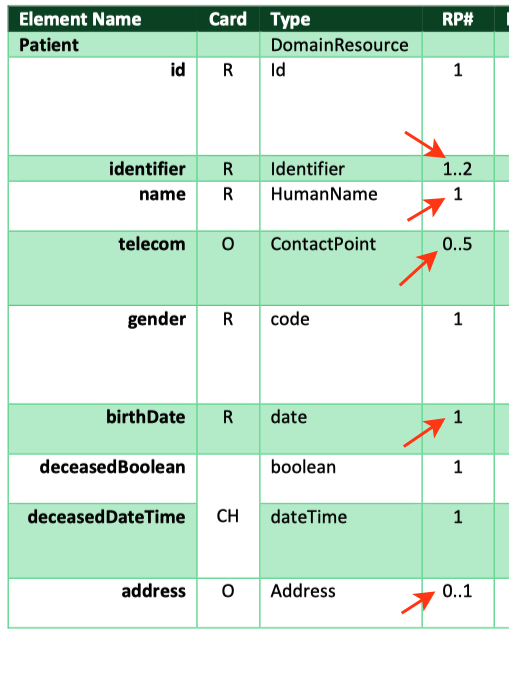

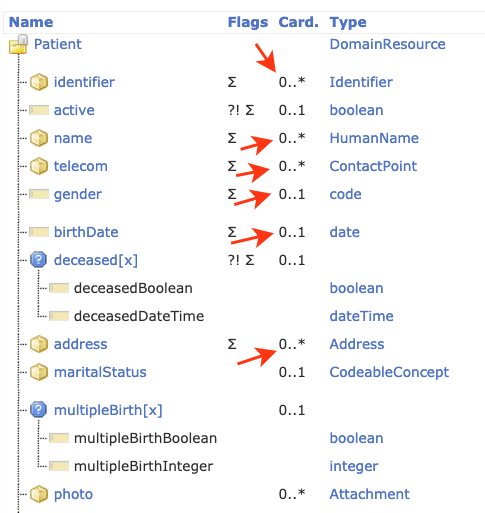

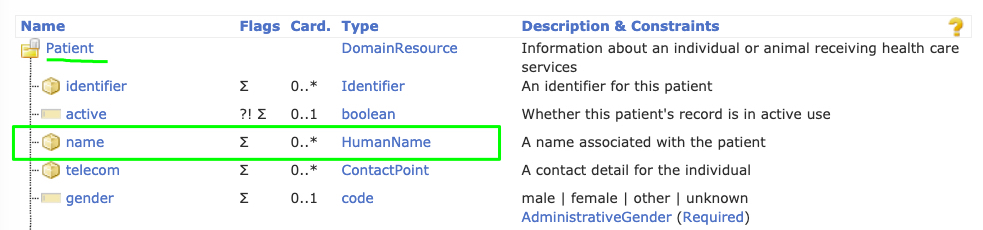

Cardinality
FHIR is extensible

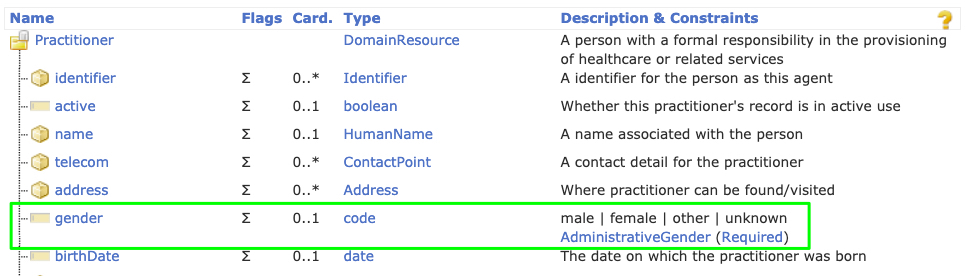

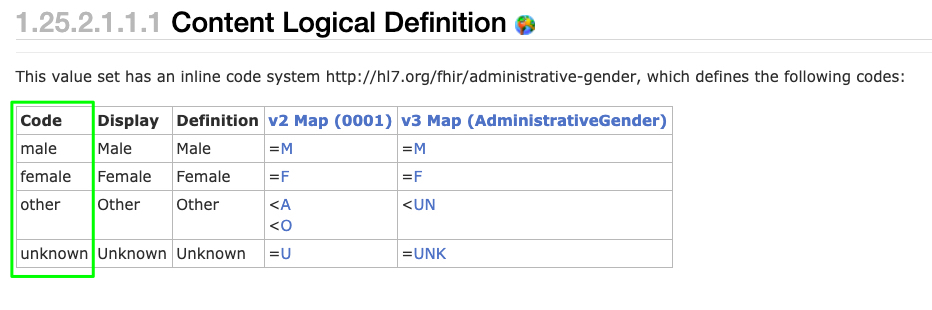

Limiting allowed values
require 'fhir_dstu2_models'
practitioner = FHIR::DSTU2::Practitioner.new(
id: "4f22d5b7-dcd6-4a16-ac5d-b7a52dbe1c09",
identifier: [
{
type: {
coding: [
{
system: "http://hl7.org/fhir/v2/0203",
code: "MD"
}
]
},
system: "http://ehealthontario.ca/API/FHIR/NamingSystem/ca-on-license-physician",
value: "12345"
}
],
name: {
family: [
"Health"
],
given: [
"Akira"
]
}
)
FHIR is extensible

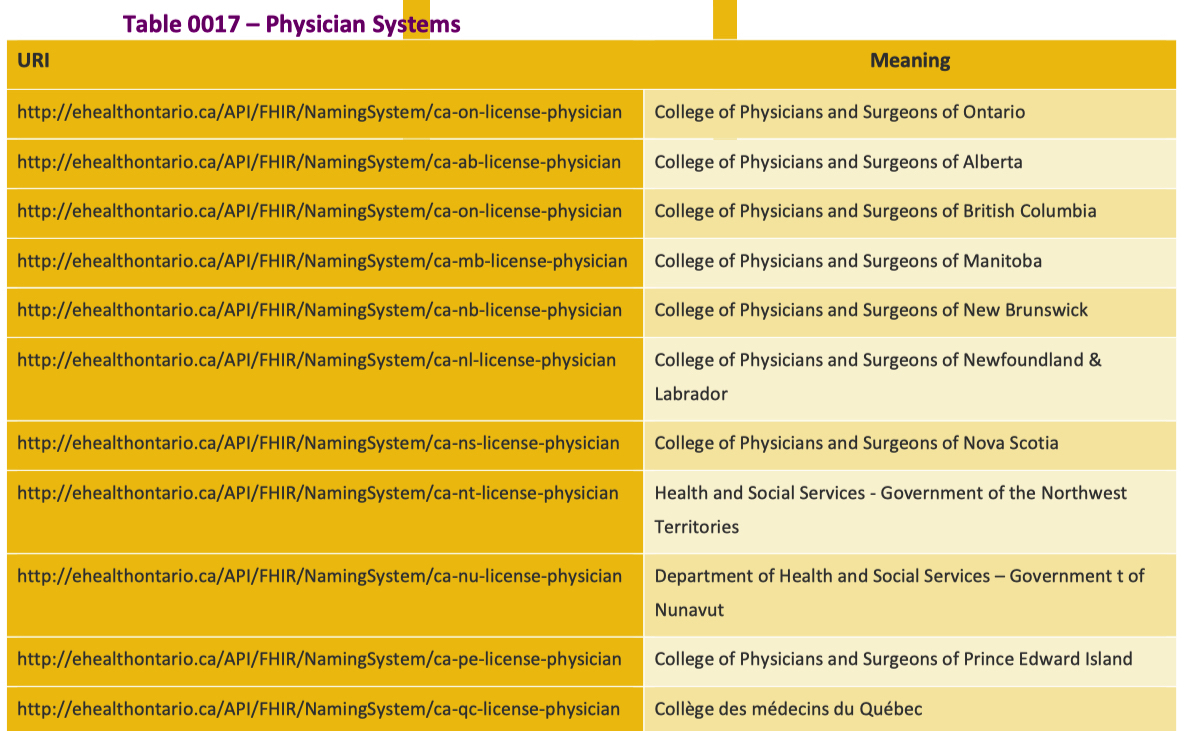

Limiting allowed values (cont.)
FHIR is...
-
Data Model
-
RESTful API
OntarioMD HRM

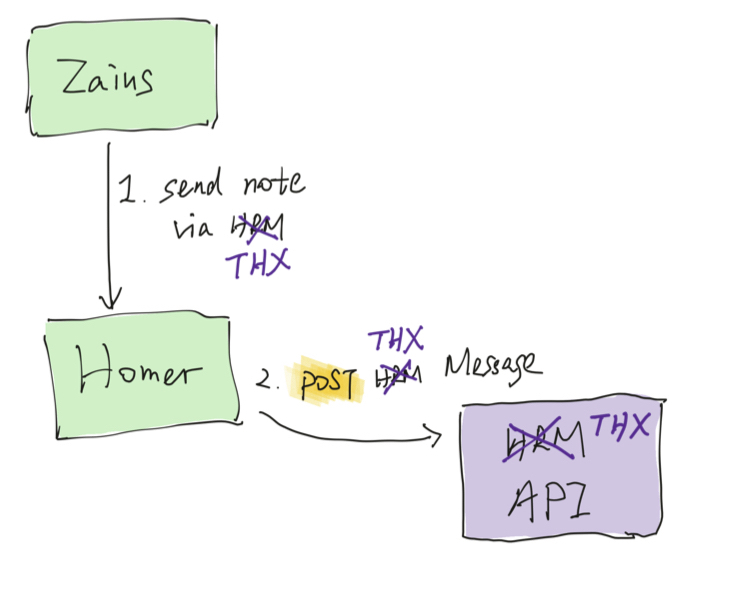

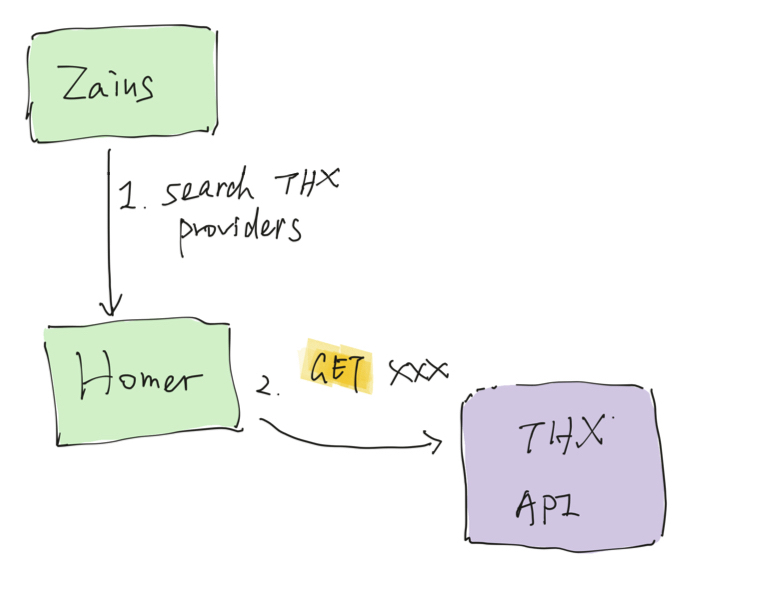

TELUS Health eXchange (THX)
TELUS Provider Registry (TPR)
Search with FHIR
GET http://fhir.test/Practitioner?[query_params]

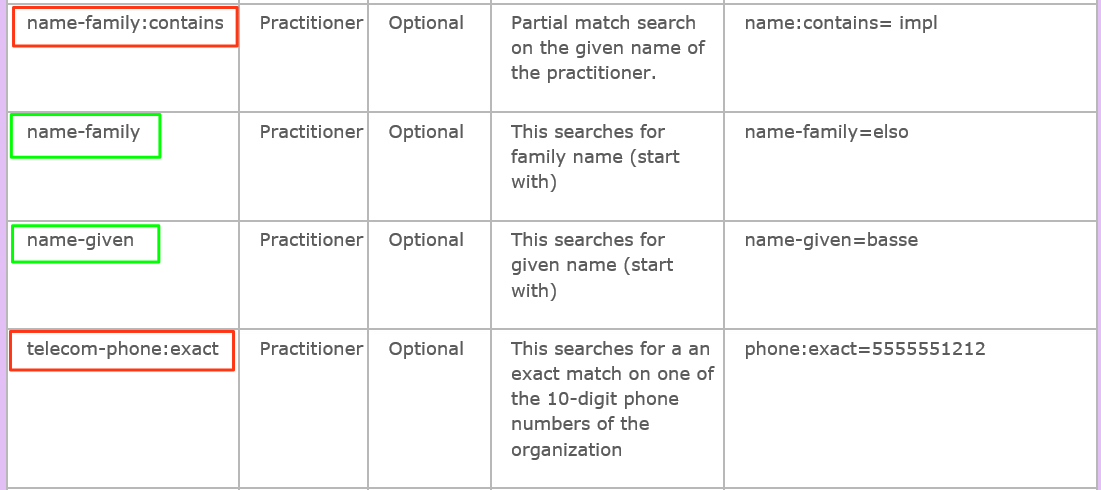

Search with FHIR (cont.)
-
Modifier: Appointment?date=ge2018-01-01&date=le2018-02-15
-
Chaining: Observation?patient.birthdate=ge2001-01-01
-
Reverse-chaining: Patient?_has:Encounter:patient:date=[today]
-
Compartment: Patient/1234/?_type=Observation
-
Include: Practitioner?_include=Practitioner:organization&name-given=John
-
Rev-include: Patient?_revinclude=Observation:patient
FHIR is...
-
Data Model
-
RESTful API
-
Open source tools
-
FHIR servers
-
Community
FHIR is everywhere
-
Corporate (THX)
-
Region (OMD HRM)
-
Nation (FHIR US Core)
-
Worldwide (Apple Heath, WHO)
Revisiting Agenda
-
What is FHIR?
-
Why is it useful?
-
How we use FHIR?
Reference
Thank you!
FHIR is extensible

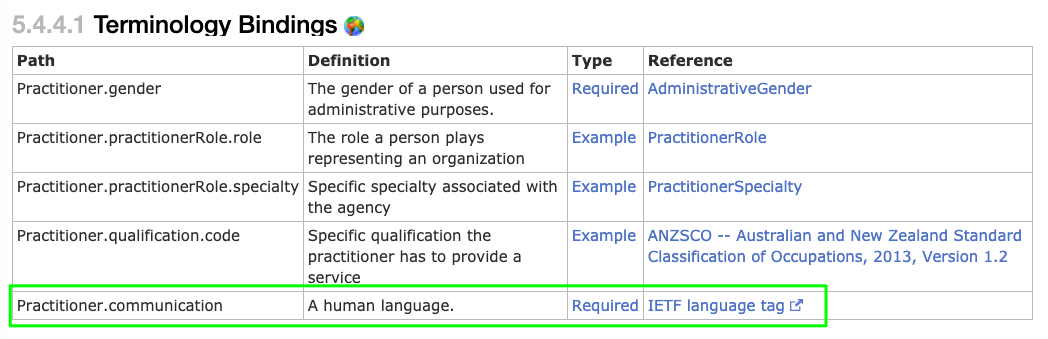

Bindings
FHIR is extensible
Bindings (cont.)
