Information Visualization Using 3D Interactive Animation

Robertson, George, Card, Stuart and Mackinlay, Jock. Information Visualization Using 3-D Interactive Animation. Communications of the ACM, 36, Number 4, April 1993, pp 57-71.

  • Presenting the Information Visualizer - a UI paradigm beyond the desktop metaphor
  • Goals: Support increasing demand to retrieve, store, manipulate, and understand large amounts of data

Overview: Tim Thornton

Background

Information Access vs. Document Retrieval

  • Access to information often thought of as library automation - measured with  Recall and  Precision
  • Note - almost always part of a larger process of information use (sense-making, decision making, response tasks)
    • In each of these:
      • Information is used to produce more information or act directly
      • new information usually at higher level of organization

Background

Information Access vs. Document Retrieval

  • Suggestive!
    • The user does not need information retrieval itself, but the amplification of information-based work processes
    • Extend the measurements of Recall and Precision with reduction of the time cost of info. access and increase in the amount of information the user can handle at a time

Goals and Strategies

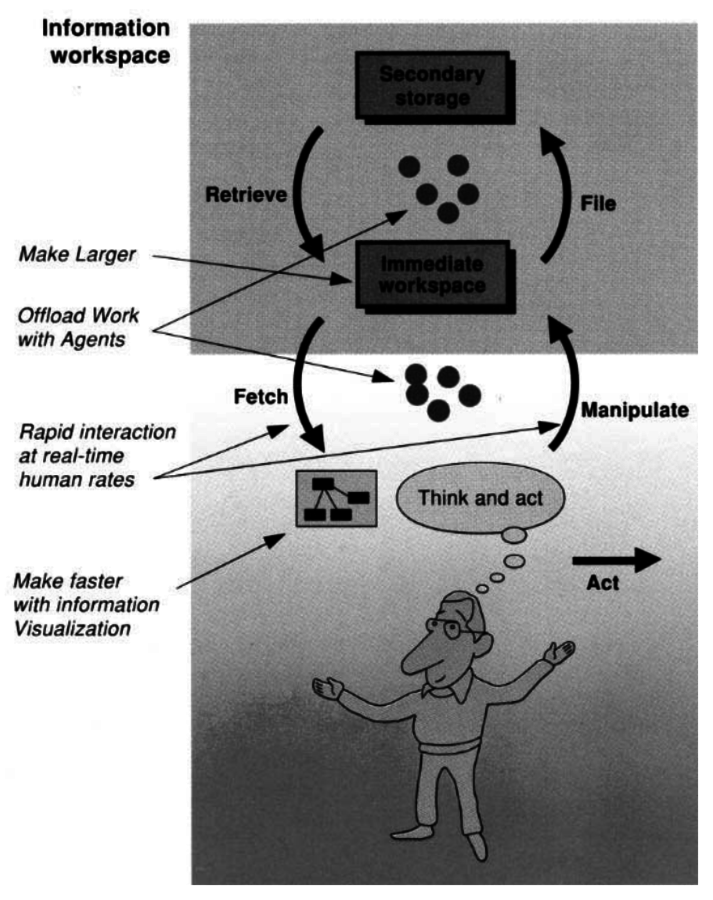

Information Workspaces

  • UI for managing the cost structure of information-based work -  workspaces
  • Integrates information access from secondary storage with information access from immediate storage for information use
  • Goals:
    1. Large Workspace
    2. Agents
    3. Real-time Interaction
    4. Visual Abstractions

Goals and Strategies

Information Workspaces

System Goal Techniques
1. Large workspace to reduce access cost More screen space → Rooms
Denser screen space → Animation, 3D
2. Offload work to agents Search → Search agents
Organizing → Clustering agents
Interacting → Interactive Objects
3. Maximize real-time interaction rates Rapid interaction → Cognitive Coprocessor Scheduler
4. Visual abstraction to speed pattern detection Hierarchical → Cone Tree
Linear → Perspective Wall
Continuous → Data Sculpture
Spatial → Office Floor Plan

Problems

Problems

  1. Multiple Agent problem
    • Cognitive Coprocessor
  2. Animation Problem
    • Cognitive Coprocessor
  3. Interaction Problem
    • ​Interactive Objects
  4. Viewpoint Movement Problem
    • ​POI Log Flier
  5. Object Movement Problem
    • ​OOI Log Manipulator
  6. Small Screen Problem
    • 3D/Rooms and 3D visualizations

Cognitive Coprocessor

Scheduler and Animation Loop - Manages three sorts of time constants:

  1. Perceptual processing (0.1 second)
  2. Immediate response (1 second)
  3. Unit task (5-30 seconds)

Information Visualizer

  • Extension of Rooms (3D, movement)
    • Multiple movement solutions: walking metaphor, POI log scale, OOI log scale, doors, overview
  • Everything in the scene is interactive (Interactive Objects)
    • Extendable gestures on each objects
    • Many types - text, date entry, checkmarks, buttons, sliders, doors, thermometers
  • Search agents
    • Built on indexing and search subsystem
    • Clustering agents available
  • 3D Visual Abstractions:
    • Cone Trees, Perspective Wall, Spatial, Continuous, Unstructured
    • Animation for object constancy

Information Visualizer

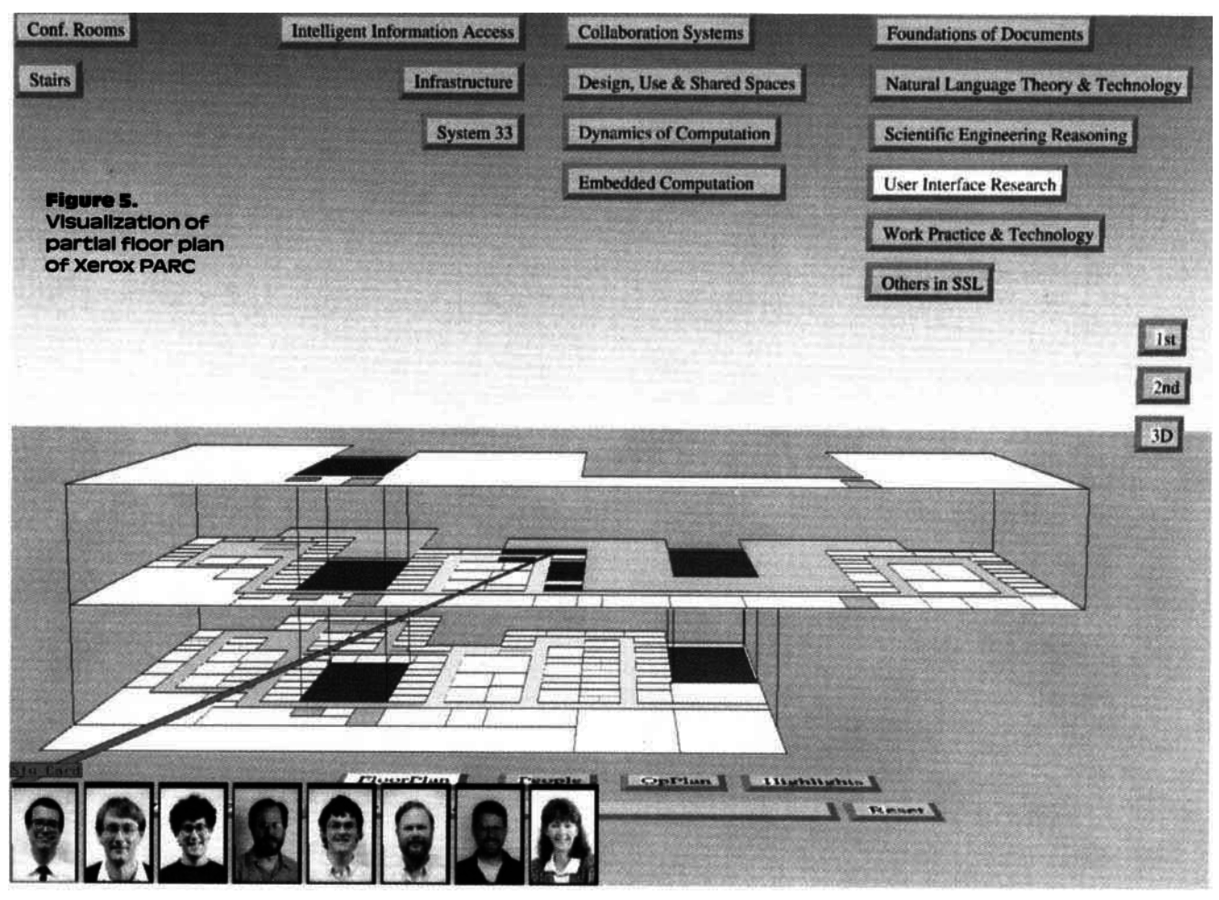

Spatial: Office space visualization

Information Visualizer

Views

Conclusion and Discussion

  • UI Paradigm for information retrieval designed to amplify info-based work
  • Focusing on the cost structure of information workspace
  • Led to Cognitive Coprocessor architecture, 3D/Rooms, information visualization

Discussion

  1. What about new information created beyond simple clustering?
  2. Cost of training to manipulate and navigate 3D environments?
  3. Dashboard vs Iterative Process in this UI?
