The Perspective Wall
Mackinlay, Jock D., Robertson, George G., & Card, Stuart K. (1991). The perspective wall: Detail and context smoothly. In CHI ‘91, ACM Conference on Human Factors in Computing Systems. New York: ACM, 173–179.
Mackinlay, Jock D., Robertson, George G., & Card, Stuart K
Overview: Tim Thornton
Motivation
- Information often involves "spanning" properties that give linear structure to data
- Generally two strategies for visualizing large linear data
- Space Strategy - Pack information into one view
- Time Strategy - Use view transitions to spread information into multiple views
- Single-view strategies: Lose focus property in order to fit all the data
- Many-view strategies: Lose context property by enlarging only part of the data at a time
- Often want both strategies: Focus + Context
The Idea
- Goal: Focus+Context view of linear data
- Idea based on Resnikoff - human eye has focused view of detail and general view of context
- Result of information processing principles such as selective omission and aggregation
- The Perspective Wall: Folds Space-Strategy wide visual into 3D Focus+Context visual
The Visualization

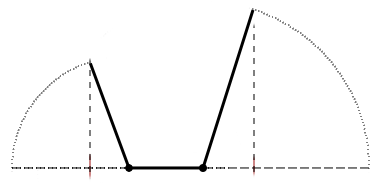

- Distorts a 2D wide layout into a 3D layout by folding inward
- Combines the information presented by the single-view and many-view visuals into one
- Detail panel in center with two perspective panels on either side
- Vertical dimension can be used for representing layered data (ie. type of file)
Properties

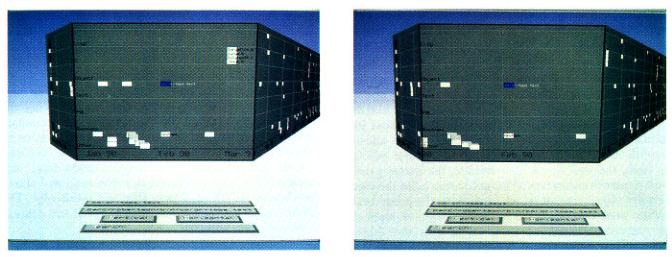

- Detail pane can be moved throughout the visual with smooth transitions that maintain context
- Information in the perspective panes that are close to the detail pane will be larger than information farther away
- Easy to allow user to adjust ratio of detail and context (relative size of the detail pane)
Use of Space

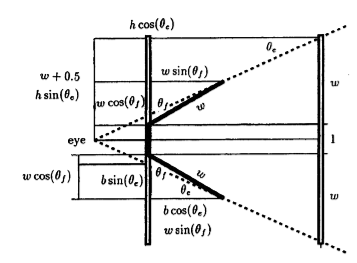

- Compare to both detail and overview views
- Claim: 3x larger information in detail pane than in 2D overview
- Claim: 3x as much information visible than a flat wall with details of the same size

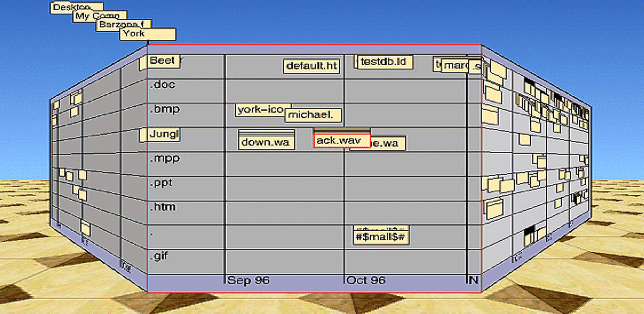

Comparing the Perspective Wall with the Detail View (front) and the Overview (back)
Applications

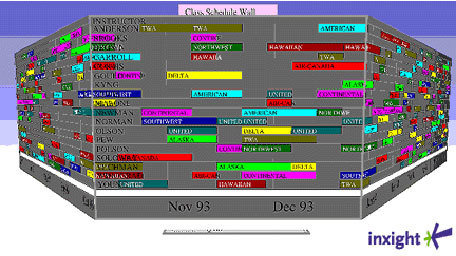

Inxight VizControls
http://users.dcc.uchile.cl/~rbaeza/cursos/visual/ix/
Conclusion and Discussion
- Focus+Context visualization of linearly structured data
- Combination of 3x more detail than overview, and 3x more information than detail view
- Allows smooth transitions when navigating
Discussion Points
- Any other applications other than files?
- Is the distortion a significant problem, as it could be in fisheye strategies?
- Thoughts as to why it is not commonly used today?
