Building a UI Framework For a LAAAArge scale application
Created by Kianosh Pourian / @kianoshp
About me
User interface Developer
Part time designers and User experience consultant
Pretend to be an UI architect
Clients: Staples, Isobar/Molecular, MIT, VMWare, Novartis, Harvard Business School, Confer (Startup), American Student Assistance, Altisource Labs
What is an UI Framework
- JavaScript
- Not re-inventing the wheel
- Using a MVW framework
- HTML
- CSS
- Direct translation of design
- Using tools like Sass or LESS
- Building a style guide
- Other Tools
- Grunt
- Yeoman
- Bower
Current problem to tackle
- Multiple products that have been developed and deployed as silo products
- Creating a suite of products that can contain any number of the products from the suite
- Unified look and feel
Original Tech stack
- No unified framework
- Technologies used:
- ExtJS
- Backbone/Marionette
- Progress
- No clear design either
Current Tech stack
- AngularJS
Goals
- Unified design
- Re-usable components
- Contribution of code/widgets/services
- Coding standards
- Consumption of code/widgets/services
UI Architect
=
Benevolent Dictator
UI Architect
=
Benevolent Dictator
Edicts (unpopular ones)
- No Bootstrap or Foundation CSS
- No Third party plugins
- Majority of components are made in house
- example
- another example
Method to the madness
- Be able to implement the design
- Be able to create widgets/components/services that can satisfy multitude of products and their requirements
- Be able to update widgets/components (whether they are custom made or 3rd party) to meet the future needs
AngularJS development

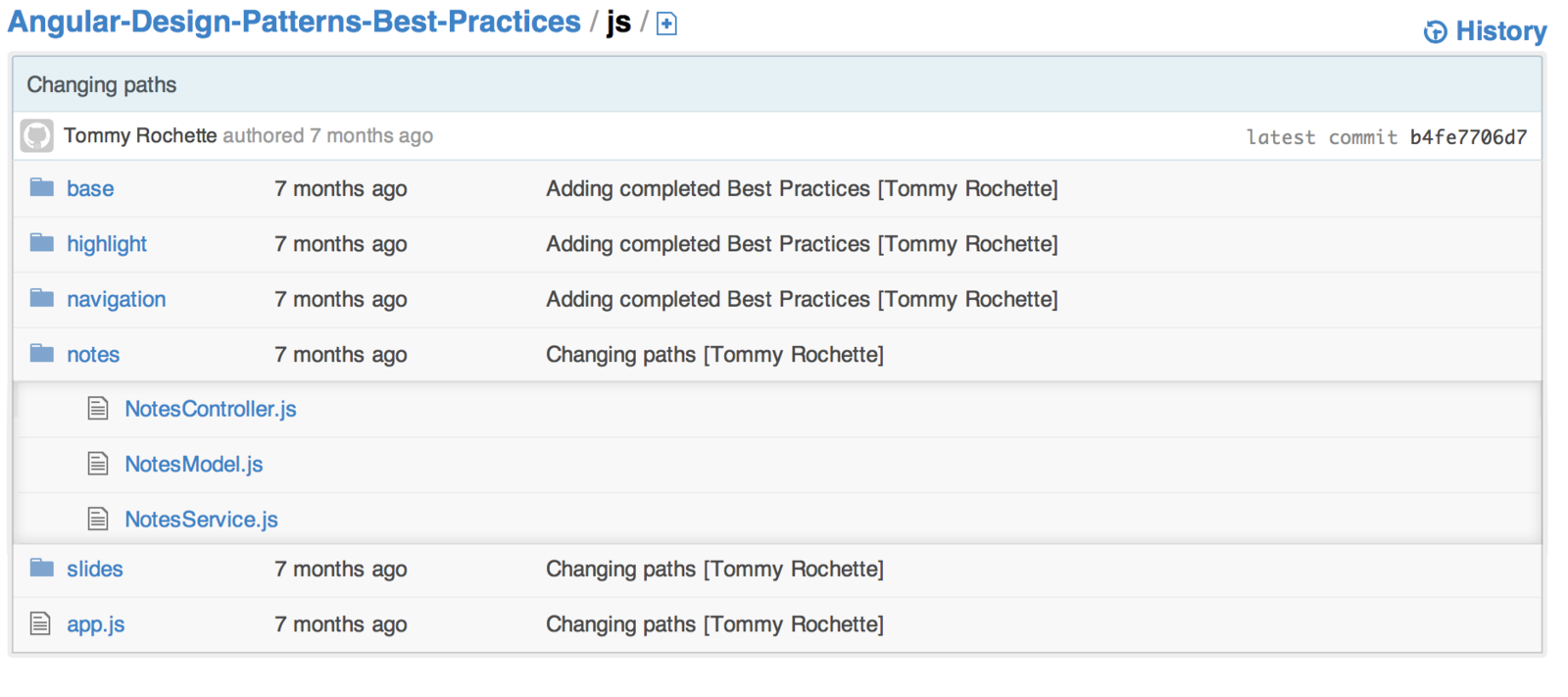

File organization
- Keep file organized
- Not very many good examples for large scale applications
- Most tutorials skim over best practices
Piles on the floor
The sock drawer
Modularity
AngularJS Implementation
- How to take full advantage of AngularJS's features
- When to use:
- Directives
- Services
- Controllers
- Routes/Config/Constant
App/Module
- All widgets/components/services are contained within a module
- A module can be a service for example to implement infinite scrolling or a facade for REST calls
- Or it can be a self containing widget like data grid or date picker
- The Turducken pattern - a module is injectable into any other module
Implementation rules
- Directives:
- Majority of HTML will be contained in Directives
- If any DOM manipulation is needed, it is to be done here
- Service:
- Abstraction is key
- Take advantage of all the tools: factory, service, and provider
Other implementation rules
- Templates:
- All templates are in a JS file & accessible through a global variable
var JST = JST || {};
_.extend(JST, {
'rfng-accordion': '<div class="fondation-accordion-group" ng-transclude></div>'
});
//implementation
angular.module('rfng.common.accordion')
.directive('rfngAccordion', [function () {
return {
restrict: 'AC'
, controller: 'RfngAccordionController'
, transclude: true
, replace: false
, template: JST['rfng-accordion']
};
}]);
More implementation rules
- Filters:
- Another level of abstraction
- Usage: formatting, filtering, and sorting
- Don't forget about 'config', 'constant', and 'run'.
Coding convention
- Unified naming convention
- Ability to package each widget in order for proper consumption
- Take full advantage of Yeoman for scaffolding and Bower for package management
More best practices
And miles to go before I sleep
- Scope management
- Logging
- Unit Testing
- Package management
Questions?
