Why interactive plots?
Static images (printing tradition)
Animations
Interactive visualizations
- learning
- knowledge
- insight
- data exploring

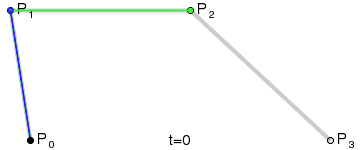

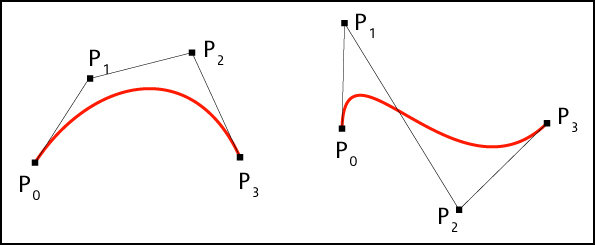

Example: Bezier curves
What is a GUI?

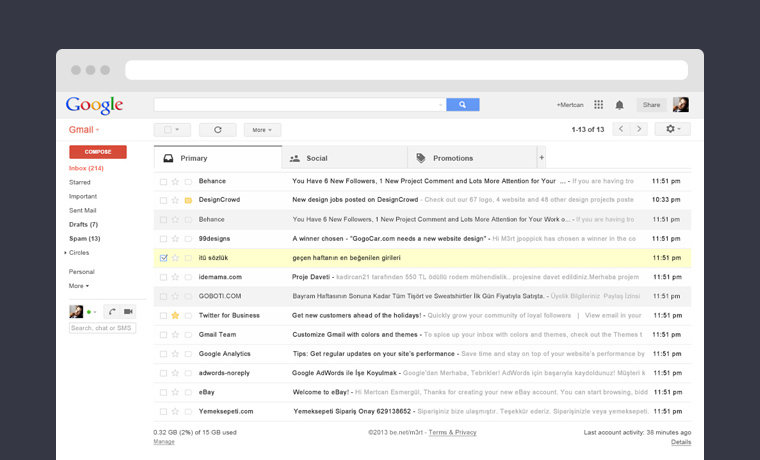

Interactive visualization =
GUI + dynamically changing visualization

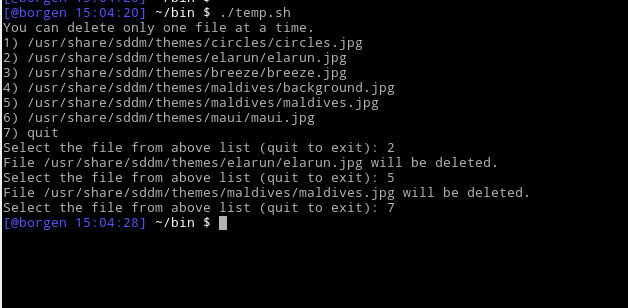

Not a GUI: example of text based user interface
History of GUIs
Origin of today's GUI:

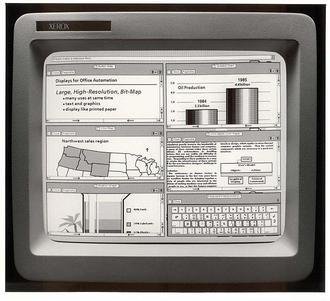

XEROX Alto 1973
Popularized by Apple:

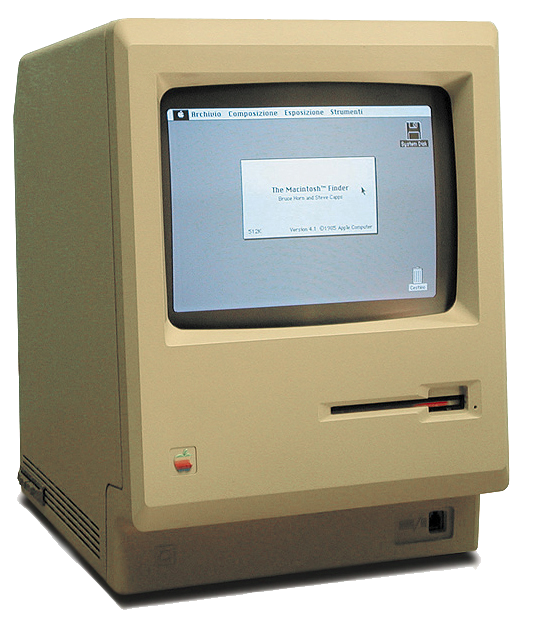

Macintosh 128k 1984
today
Microsoft Windows,
X-windows,
"button" mobile phones,

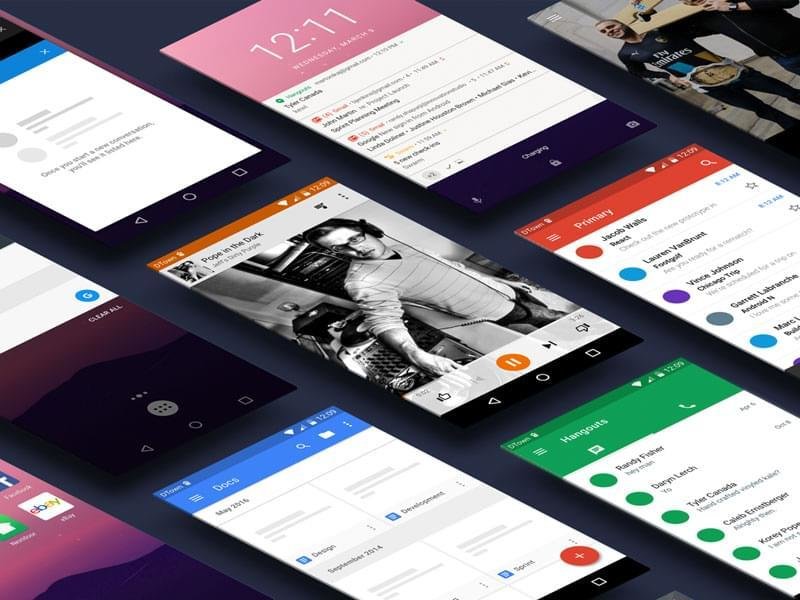

Iphone (touch devices)
Create GUI in MATLAB

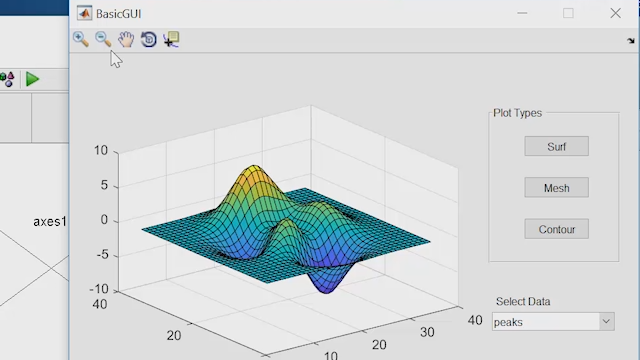

GUIDE: GUI for building GUIs
How does the interface know what to do?
Callback functions
What happens when you press a button?
Main
event loop
Enter program
Event triggered
Registered callback
evaluated
Examples of events:
- onMouseOver
- onMouseDown
- onMouseClick
- onKeyDown
- ...
Exercise: GUI in MATLAB
Login to Canvas and start working with
MMG640: Interactive visualizations
By Klas Modin
