V7 memory optimization
techniques
by Marko Mikuličić, Cesanta Software, for LD2015 Pisa
Implicit data structures
O(1) compacting collector
What is V7
- Embedded JavaScript engine written in C
- Compliant to ISO C90 and ISO C++98
- Targets embedded systems
- Or C/C++ programs that need scripting engine
- Conforms to ECMA 5.1 standard
- Easy to embed: only two files, v7.c and v7.h
- Easy to use embedding API
- Open Source, under GPLv2/commercial license
- GitHub repo: https://github.com/cesanta/v7/
Who are we
- Irish Startup founded by ex-Googlers in 2013
- Makers of the Mongoose embedded web server, over 1M downloads since 2004
- Goal: make it easy for everyone to make connected devices
Why JavaScript ?
Why JavaScript ?
- Why not Lua, Python, LISP, brainfeck, ...
- Well, why scripting ?
Why JavaScript
- It's for everyone, and their dog
- Popular, Widely available
- Maturing but not stagnating
Goals: V7 vs other JS VMs
- Portable
- Small runtime overhead
- Small code footprint
- Reasonably fast
- Simple
Overview
Interpreter
VM
StdLib
GC
Parser
Compiler
Heap
User C code
Memory savings
AST
AST
AST
Implicit data structures
Implicit data structures are data structures with negligible space overhead; auxiliary information is mostly represented by permuting the elements cleverly
Object model
typedef val_t double; /* IEEE 745 NaN packing */
struct v7_property {
struct v7_property *next; /* Linkage in struct v7_object::properties */
unsigned int attributes;
val_t name; /* Property name (a string) */
val_t value; /* Property value */
};
struct v7_object {
struct v7_property *properties;
struct v7_object *prototype;
uint8_t attributes;
};
#include <v7.h>
int main() {
struct v7 *v7 = v7_create();
v7_val_t res;
v7_exec(v7, "function random() { return 42; }", NULL);
v7_exec(v7, "function msg() { return 'foo'; }", NULL);
v7_exec(v7, "random()", &res);
printf("random number (really): %lg\n", v7_to_number(res));
v7_exec(v7, "msg()", &res);
printf("msg: %s\n", v7_to_cstring(res));
v7_destroy(v7);
return 0;
}
Object model
struct Value {
union {
int boolean;
double number;
String *str;
Object *object;
/* more */
} u;
char type; /* type tag */
/* padding */
};

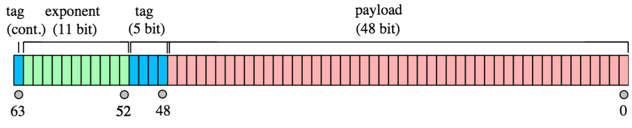

NaN packing

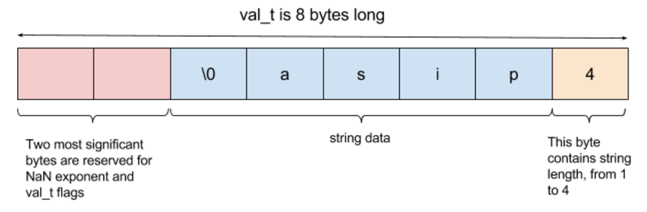

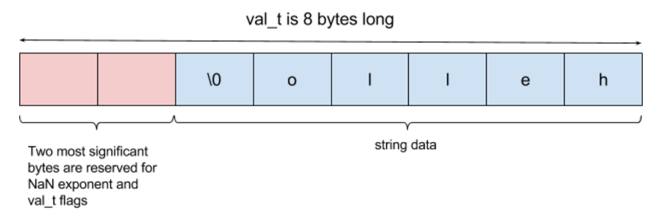

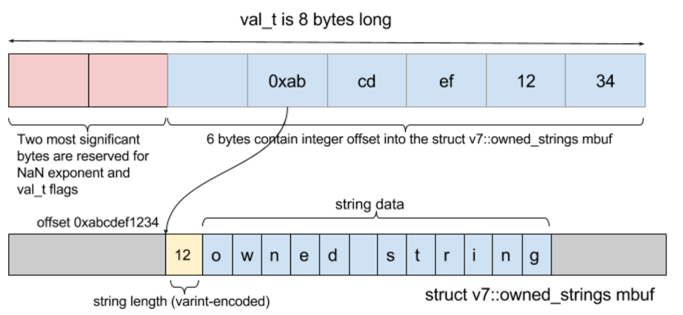

V7 Strings
V7 Strings
V7 Strings

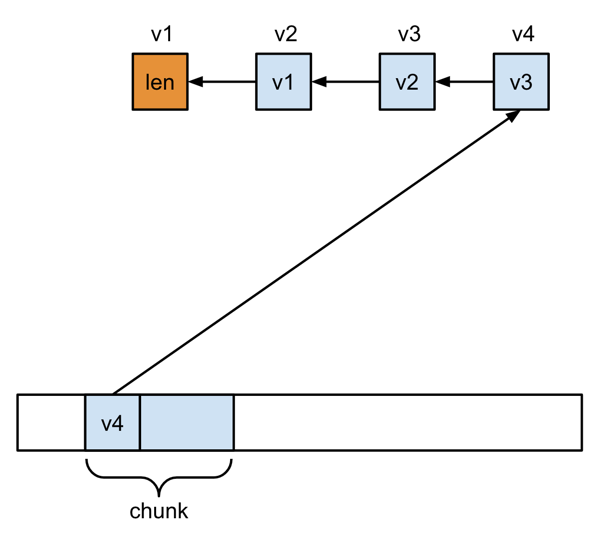

Compacting GC
Challenges:
- Updating values anywhere
- Taking O(1) extra space

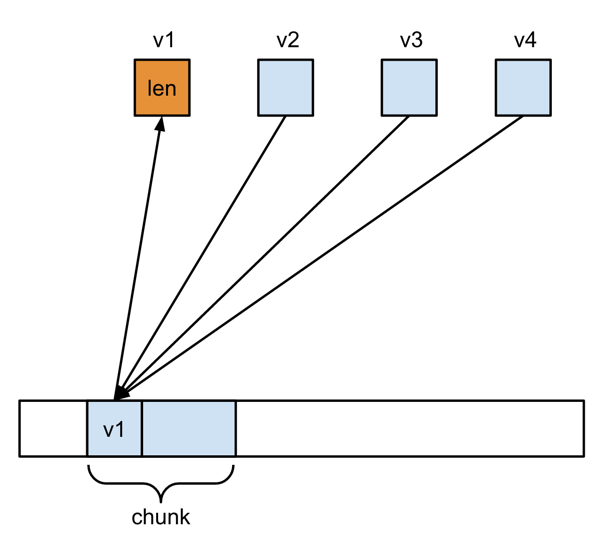

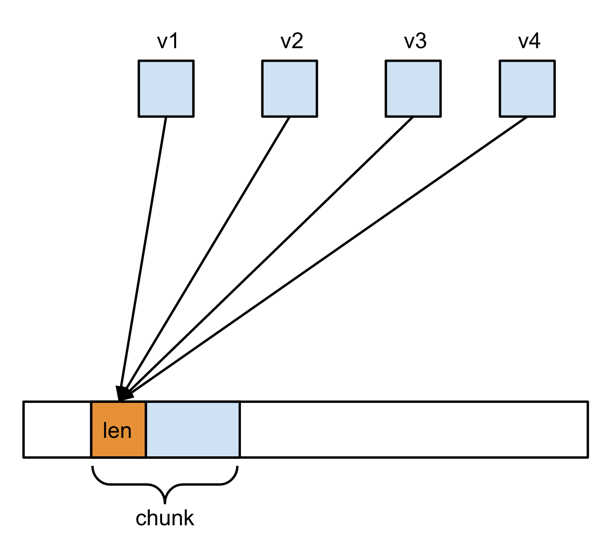

Compacting GC
Compacting GC
Compacting GC
Compacting GC
Questions ?
