Plugin development for elasticsearch

Hendrik Saly

Simply explained

by geek & poke

• Why plugins

• Getting started with a simple plugin

• How they fit into Elasticsearch architecture

• Examples walkthrough

  • Development

  • Testing

  • Distribution

• Limitations

• Not covered

Why plugins

• If there is no configuration option for your need

• If you need unexposed (but public) API

• To enforce specific behaviour

• If scripting is simply not enough

• Site plugin vs JVM Plugin

Here

Plugin == JVM Plugin

• For example:

  • Creating a new REST endpoint

  • Custom mapping

  • Custom analyzer

  • Transport layer manipulation

  • HTTP layer manipulation

Getting started with a simple plugin

• Plugins are written in Java (1.7+)

• They live within a node (or transport client)

• They can access all internals

•      They can make a node stop working (or even worse)

public class MyPlugin extends AbstractPlugin {

    private final Settings settings;

    public MyPlugin(Settings settings) {
      this.settings = settings;
    }

    @Override
    public String name() {
        return "MyPlugin";
    }

    @Override
    public String description() {
    	return "This is the description for my plugin";
    }
}

• Extend AbstractPlugin class

• ... but it does not anything useful yet

public class MyPlugin extends AbstractPlugin {

    ...

    //Define own modules
    @Override
    public Collection<Class<? extends Module>> modules() {
    	return ImmutableList.of(MyModule.class);
    }

    //Define own services
    @Override
    public Collection<Class<? extends LifecycleComponent>> services() {
    	return ImmutableList.of(MyService.class);
    }
}

• So lets define our own modules

• or services which do something meaningful

public class MyPlugin extends AbstractPlugin {

    ...
    //Define own modules
    @Override
    public void processModule(Module module) {
    	if ((module instanceof RestModule)) {
    	   ((RestModule)module).addRestAction(MyRestAction.class);
        }

        if ((module instanceof ???)) {
    	   ((???)module).doModuleSpecificStuffHere();
        }
    }
}

• or do something with core modules

• to accomplish your needs

plugin=org.company.es.plugins.MyPlugin

• Add es-plugin.properties to src/main/resources

• Jar it, then zip it with all dependencies included

• Maven can do that for you

Main artefact

Your code

Dependecies

How they fit into Elasticsearch architecture

• Elasticsearch is build upon Google guice 2.0

  • pronounced "juice"

  • Dependency injection

  • Inversion of control

• Guice code is copied in ES codebase (slightly modified for lower memory footprint)

• So elasticsearch is build upon guice modules

• ... and services because of

  • Modules start up, but they don't shut down

  • Modules should be tested

  • Modules can be overridden

• Services have a lifecycle

• Interesting core modules (for plugins)

  • ActionModule

  • AnalysisModule

  • HttpServerModule

  • RestModule

  • ScriptModule

  • TransportModule

• Interesting core services (for plugins)

  • ClusterService

  • TransportService

  • NettyTransport

  • IndicesService

Read more

https://www.found.no/foundation/elasticsearch-internals/

Examples walkthrough

https://github.com/salyh/elasticsearch-plugin-examples

• Audit Plugin

  • Capture index changes

  • Write them into elasticsearch

  • (Make them visible through kibana)

• Transport SSL/TLS Plugin

  • Implement and enforce SSL/TLS encryption for transport protocol

Development

by geek & poke

• Audit Plugin

  • AuditService registers listener on ShardIndexingService

  • Write changes into elasticsearch via BulkProcessor

public class AuditService extends AbstractLifecycleComponent<AuditService>{
   ...
   @Inject
   public AuditService(Settings settings,
                       IndicesService indicesService,
                       Client client,
                       ClusterService clusterService,
                       TransportFlushAction tfa) {
      super(settings);
      this.indicesService = indicesService;
      this.clusterService = clusterService;
      ...
   }



   @Override
   protected void doStart() throws ElasticsearchException {
      ...
      this.indicesService.indicesLifecycle().addListener(auditIndicesLsListener);
}

• Define a new service called AuditService

• Register a indices lifecycle listener

Dependency Injection by guice

IndicesLifecycle.Listener auditIndicesLsListener =
    new IndicesLifecycle.Listener() {

   @Override
   public void afterIndexShardStarted(final IndexShard indexShard) {

      if (indexShard.routingEntry().primary()
           && !indexShard.indexService().index().name().equals(auditIndexName)) {

            AuditIndexOpListener auditListener =
               new AuditIndexOpListener(indexShard);
            indexShard.indexingService().addListener(auditListener);
      }
}

• If a shard starts, register an IndexingOperationListener

class AuditIndexOpListener extends IndexingOperationListener {

   private final IndexShard indexShard;

   public AuditIndexOpListener(IndexShard indexShard) {
      this.indexShard = indexShard;
   }

   @Override
   public void postIndex(Index index) {
      String nodeName = indexShard.nodeName();
      String indexName = indexShard.indexService().index().name();

      Change change = new Change(nodeName, indexName, ...);

      //store it in elasticsearch (or anywhere else)
      IndexRequest ir = new IndexRequest().source(change.sourceAsMap());
      addToBulkIndex(ir);
   }
}

• Let the IndexingOperationListener store the change in elasticsearch (or anywhere else)

public class AuditModule extends AbstractModule {

	@Override
	protected void configure() {
            //nothing to bind here
	}

	@Override
	public void processModule(Module module) {
	    if ((module instanceof ActionModule)) {
	      ((ActionModule)module).registerAction(FlushAction.INSTANCE,
                                                    TransportFlushAction.class);
	    }

            if ((module instanceof RestModule)) {
	      ((RestModule)module).addRestAction(AuditRestAction.class);
	    }
	}
}

• Define the AuditModule (not covered today)

• API for flushing outstanding bulk requests

public class AuditPlugin extends AbstractPlugin {

   ...
   public String name() {
      return "AuditPlugin";
   }

   public String description() {
      return "This is the description for the AuditPlugin";
   }

   @Override
   public Collection<Class<? extends Module>> modules() {
      return ImmutableList.of(AuditModule.class);
   }

   @Override
   public Collection<Class<? extends LifecycleComponent>> services() {
      return ImmutableList.of(AuditService.class);
   }
}

• Last but not least define the AuditPlugin itself

plugin=de.saly.es.example.audit.plugin.AuditPlugin

• Add es-plugin.properties

• Transport SSL Plugin

  • Elasticsearch uses Netty for tcp communication

  • Extend NettyTransport and inject SslHandler into pipeline

  • Replace original Netty transport in TransportModule

  • Expose some SSL/TLS related informations through a new REST API

public class SSLNettyTransport extends NettyTransport {

   @Override
   public ChannelPipelineFactory configureServerChannelPipelineFactory(String name,
                                                                           Settings settings) {
        return new SSLServerChannelPipelineFactory(this, name, settings, this.settings);
   }

   protected class SSLServerChannelPipelineFactory extends SecureServerChannelPipelineFactory {

        public SSLServerChannelPipelineFactory(NettyTransport nettyTransport, String name,
                                               Settings sslsettings, Settings essettings) {
           super(nettyTransport, name, sslsettings);
        }

        @Override
        public ChannelPipeline getPipeline() throws Exception {
           ChannelPipeline pipeline = super.getPipeline();
           SSLEngine engine = ...
           SslHandler sslHandler = new SslHandler(engine);
           pipeline.addFirst("ssl_server", sslHandler);
           return pipeline;
        }
    }
}

• Extend NettyTransport and do some netty pipeline magic

public class TSslPlugin extends AbstractPlugin {

   ...
   public void onModule(TransportModule transportModule) {
      transportModule.setTransport(SSLNettyTransport.class, name());
   }

   public void onModule(RestModule restModule) {
      restModule.addRestAction(TSslRestAction.class);
   }
}

• Replace transport in TransportModule

• Register a custom rest action for ssl infos

public class TSslRestAction extends BaseRestHandler{

   @Inject
   public TSslRestAction(Settings settings, Client client,
                         RestController controller) {
      super(settings, controller, client);
      controller.registerHandler(Method.GET, "/_tssl/state", this);
      controller.registerHandler(Method.POST, "/_tssl/state", this);
   }

   @Override
   protected void handleRequest(RestRequest request, RestChannel channel,
			Client client) throws Exception {
      XContentBuilder builder = JsonXContent.contentBuilder();
      builder.startObject();
      builder.field("enabled_protocols", SecurityUtil.ENABLED_SSL_PROTOCOLS);
      builder.field("enabled_chipers", SecurityUtil.ENABLED_SSL_CIPHERS);
      builder.endObject();
      channel.sendResponse(new BytesRestResponse(RestStatus.OK, builder));
   }
}

• Register a handler for an endpoint

• Send a JSON response

plugin=de.saly.es.example.tssl.plugin.TSslPlugin
version=${project.version}

• Add es-plugin.properties

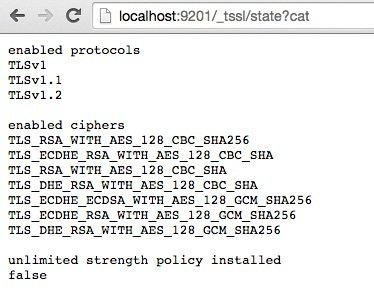

• Call the new REST endpoint

Testing

• Unittests

  • Randomized testing by extending ElasticsearchIntegrationTest

  • https://github.com/tlrx/elasticsearch-test

  • Extend MultiJvmUnitTest

  • Start nodes directly in the test method

• Test in real elasticsearch node/cluster

  • DevOps magic does help here

Always test with multiple nodes (cluster scenario)

• If you want use the randomized testing suite, include test dependencies in pom

<dependency>
  <groupId>org.apache.lucene</groupId>
  <artifactId>lucene-test-framework</artifactId>
  <scope>test</scope>
</dependency>

<dependency>
  <groupId>org.elasticsearch</groupId>
  <artifactId>elasticsearch</artifactId>
  <type>test-jar</type>
  <scope>test</scope>
</dependency>

Distribution

• Use Maven for building plugins

  • because ES is using Maven

• Plugins are best published in maven central

• Or distributed as .zip file

# Install from maven central
bin/plugin --install de.saly/elasticsearch-sample-plugin-tssl/1.1

# Install from a .zip file
bin/plugin --url file:///Users/.../elasticsearch-sample-plugin-tssl-1.1.zip \
           --install elasticsearch-sample-plugin-tssl

• src/main/assemblies/plugin.xml

<?xml version="1.0"?>
<assembly>
	<id>plugin</id>
	<formats>
		<format>zip</format>
	</formats>
	<includeBaseDirectory>false</includeBaseDirectory>
	<dependencySets>
		<dependencySet>
			<outputDirectory>/</outputDirectory>
			<useProjectArtifact>true</useProjectArtifact>
			<useTransitiveFiltering>true</useTransitiveFiltering>
			<excludes>
				<exclude>org.elasticsearch:elasticsearch</exclude>
			</excludes>
		</dependencySet>
	</dependencySets>
</assembly>

• Use maven-assembly-plugin

<plugin>
   <artifactId>maven-assembly-plugin</artifactId>
      <configuration>
      <appendAssemblyId>false</appendAssemblyId>
         <outputDirectory>${project.build.directory}/releases/</outputDirectory>
            <descriptors>
               <descriptor>${basedir}/src/main/assemblies/plugin.xml</descriptor>
            </descriptors>
      </configuration>
      <executions>
         <execution>
            <phase>package</phase>
               <goals>
                 <goal>single</goal>
               </goals>
         </execution>
      </executions>
</plugin>

!!

• Plugin related configuration options in elasticsearch.yml

# Load this plugin from the classpath
# (does only makes sense if plugins.load_classpath_plugins is false)
# Order is respected
plugin.types: org.company.MyPlugin,com.guhgle.FantasticPlugin

# If a plugin listed here is not installed for current node, the node will not start.
plugin.mandatory: mapper-attachments,lang-groovy

# If its true (which is the default) load all plugins which are in the classpath
# No order guarantee
plugins.load_classpath_plugins: true

Limitations

• No trust model (yet)

  • ​Plugins are allowed to do anything

  • With ES 2.0 maybe Java SecurityManager will be utilised

• No isolation

  • Same classloader for ES and all plugins

  • Plugins can interfere with others

• Shade your dependencies

• Install plugins on as few nodes as possible

• Consider using dedicated plugin nodes

Not covered

today

• Creating a custom transport request/response

• Manipulating the HTTP layer

• Plugin scopes

• (Rest)ActionFilter

• Custom analyzers

• Custom mapping types

• Site plugins

• ... maybe there will be a Part II of this talk

@hendrikdev22

by geek & poke

System.exit(0);
