Model-Based Testing: Tools & Methodologies
Aniello Barletta - Florence - April 15-17, 2016
Agenda
0. About me
1. Common Testing Approaches & MBT
2. LTS Base Theory (Hints)
3. The fMBT Framework
4. fMBT Usage Example: Android UI with Demo
5. Conclusions, References & Acknowledgement
0 - About me
Profile:
QA Automation Engineer @ Buongiorno (DOCOMO Digital)
Work Activities:
Active QA Infrastructure Maintenance
New Features Planning, Design & Develop
Test Suites & External Libraries Development
ISTQB Certified Software Tester - Foundation Level
1 - Comon Testing Approaches & Model-Based Testing
Classic Testing Processes Overview
Online / Offline MBT Approach & steps Mapping
Model-Based Testing Process Benefits
Making Tests Executable: Principles of Test Adaptation
Definition of Testing
Software testing consists of the dynamic verification of the behavior of a program on a finite set of test cases, suitably selected from the usually infinite executions domain, against the expected behavior. (IEEE Definition)
Dynamic: Execute the program with specific input values to find failures in its behavior.
Finite: Choose a smallish number of tests so that we can run the tests in the available time.
Selected: How to select the tests that are most likely to expose failures in the system.
Expected: We must decide whether the observed behavior of the system was a failure or not. This is called the oracle problem.

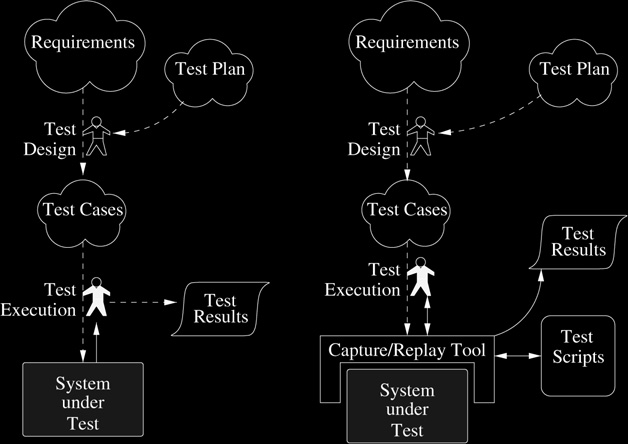

Classic Testing Processes Overview - 1

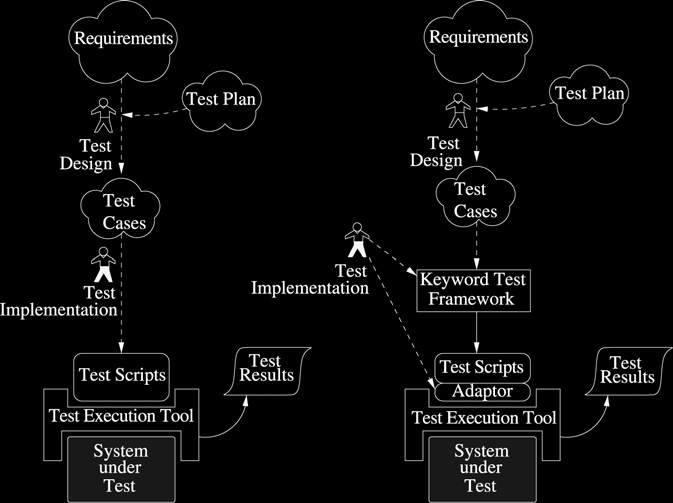

Classic Testing Processes Overview - 2
Model-Based Testing Process
The model-based testing process can be divided into the following five main steps:
1. Model the SUT and/or its environment.
2. Generate abstract tests from the model.
3. Concretize the abstract tests to make them executable.
4. Execute the tests on the SUT and assign verdicts.
5. Analyze the test results.

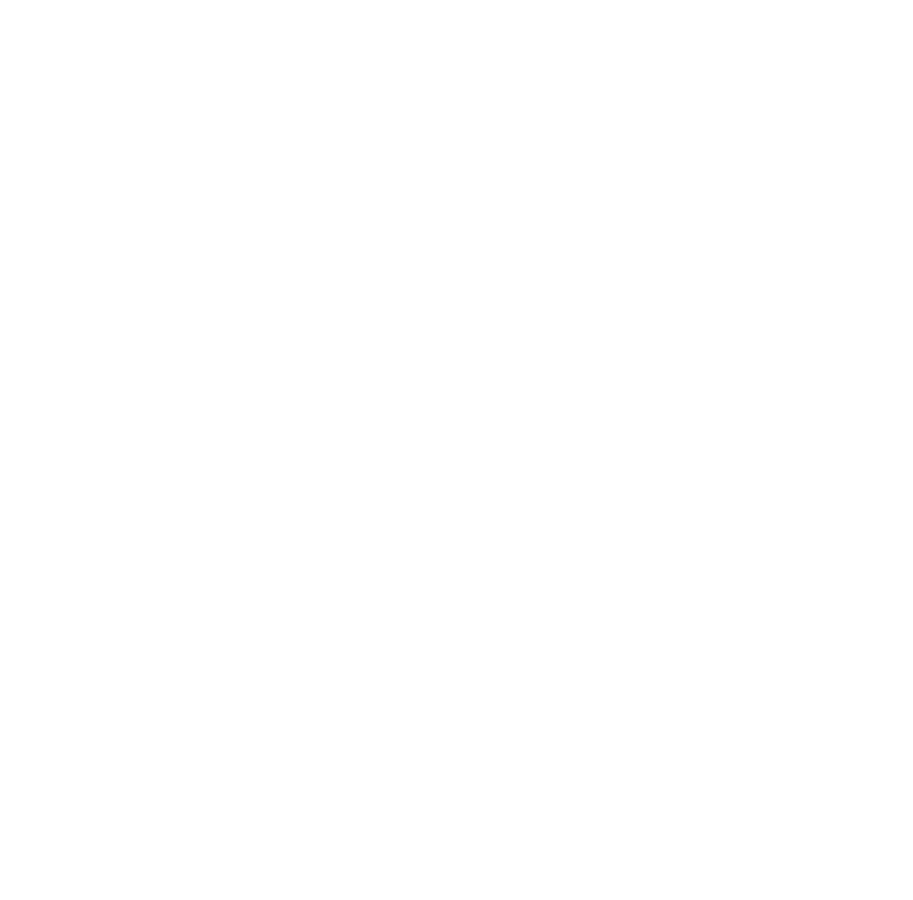

Model-Based Testing Domain

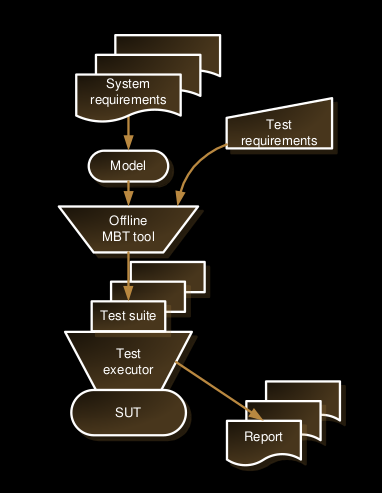

Offline MBT
Automate test case generation
Offline MBT means generating a finite set of tests and execute those later
This allows automatic test execution in third party test execution platform
Makes possible to create the Tool Chain
Modeler -> Test Generator -> Test Executor
Online MBT
Test case generation and
execution in motion
Next step is design after the output receiving
Testing nondeterministic systems
Infinite test suite running

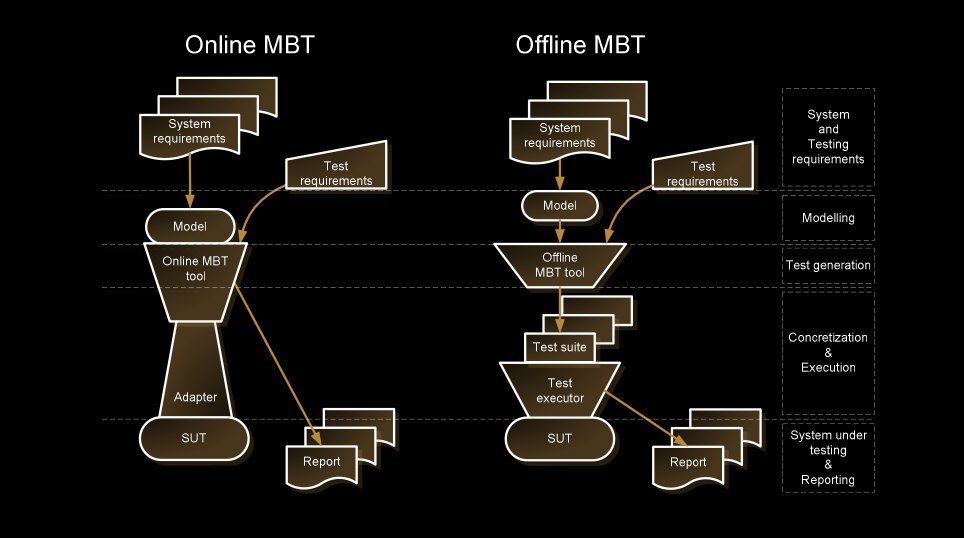

Online / Offline Steps Mapping
MBT Benefits
- Easier test suite maintenance
- Automated test design
Save effort
- Better test quality
no human faults
Computer can find more combinations for complex
systems than human brain
- Online MBT provides also
Testing nondeterministic systems
Infinite test suite
MBT Limitations
A fundamental limitation of model-based testing is that it cannot guarantee to
find all the differences between the model and the implementation, not even if we generate an infinite stream of tests and run them on 1000 machines for
thousands of hours. This is a limitation of all kinds of testing.
A more practical limitation on adopting model-based testing is that it requires somewhat different skills from manual test design. The model designers must be able to abstract and design models, in addition to being expert in the application area
Pain Factors
Outdated Requirements: If some model-based testers start working from those outdated requirements, they will build the wrong model and find lots of “errors” in the SUT
Inappropriate use of model-based testing: The risk here is that it takes some experience to know which aspects of the SUT should be modeled and which should be tested manually
Time to analyze failed tests: When one of the generated tests fails, we must decide whether the failure is caused by the SUT, the adaptor code, or an error in the model.
Useless metrics: It is easy to generate huge numbers of tests, so the number-of-tests metric is not useful. It becomes necessary to move toward other measurements of test progress, such as SUT code coverage, requirements coverage, and model coverage metrics

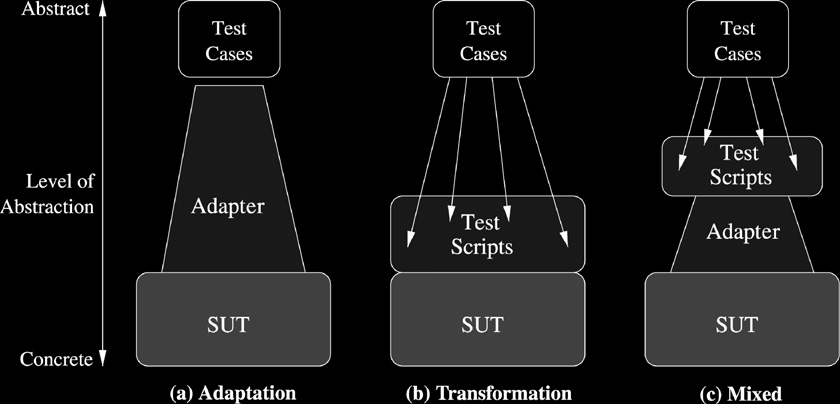

Principles of Test Adaptation
Principles of Test Adaptation
The adaptation approach is to manually write some adapter code
that bridges the gap. This is essentially a wrapper around the SUT that
provides a more abstract view of the SUT to match the abstraction level
of the model.
The transformation approach is to transform the abstract tests into
concrete test scripts.
Principles of Test Adaptation
The mixed approach is a combination of the other two approaches.
It is sometimes useful to add some adapter code around the SUT to raise its abstraction level part of the way toward the model and make testing easier, and then transform the abstract tests into a more concrete form that matches the adapter interface.
Some benefits of this mixed approach are that the transformation can be easier, since the levels of abstraction are closer, and the adapter can be less model-specific, which may allow it to be reused for several different models or different testing scenarios.
2 - LTS Base Theory (Hints)
Labelled Transition Systems Definition
Internal / External Actions
Preface
fMBT is an online MBT tool, which use the labelled transaction system theory
The transition systems are an abstract relational model based on primitive notions of state and transition and, for the modelling scope, you must be able to learn about the capabilities of such systems to perform actions belonging to a predetermined set Act
Now, let's define more formally a Labelled Transaction System
LTS Definition
An LTS is a 4-tuple (Q, q0 , Act ∪ {τ }, R) where:
• Q is a countable, not-empty set of states;
• q0 is the initial state;
• Act is a countable, not empty set of visible actions; τ is an action that does not belong in Act, used to represent internal actions of the structure.
• R ⊆ Q × (Act ∪ {τ }) × Q is the transition relation such that an element (s, α, r) ∈ R if there is the possibility of moving from the state s to the state r through the action α
A LTS can be represented by a tree whose root is the Initial state q0 ( the initial states are represented by a small circle inside) , the transition relations are represented by arcs between nodes ( arcs labeled with the shares belonging to Act ∪ { τ } ) , the nodes represent the states finally belonging to Q .
LTS Definition
• Act is used to denote the set of visible actions: a,b,c ... will denote the elements of this set; the actions constitute a visible interaction with the external environment through system ports .So, if we denote the set of doors in the system considered with the symbol Λ, we represent the set of all visible actions visible as Act = {α : α ∈ Λ}
• Act∗ is the set of all finite sequences of elements of Act: s1 , s2 , ... represents the elements of this set, called traces or sequences and ε represent the empty trace.
In an LTS, a path (or computation) π is a sequence (q0 , α0 , q1 ) (q1 , α1 , q2 ) (q2 , α2 , q3 ) ... where every 3-tuple (qi , αi , qi+1 ) ∈ R.

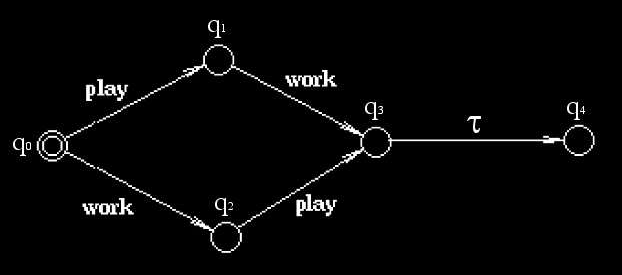

LTS Example
From the starting node q0, we've two distinct arcs (transactions (q0 , play, q1 ) and (q0 , work, q2 ) ) that reach two different states q1 & q2. From them, we can reach q3 which has only one outgoing arc (transaction (q3 , τ, q4 ) ), with which you reach the end node q4
3 - The fMBT Framework
The Value of the MTB approach
Introduction to the fMBT Project
fMBT Architecture
fMBT Model
fMBT Test generation and execution & AAL/Python
Coverages, Heuristics and End Conditions
The value of the Approach
- An MBT framework generates tests for you.
Anything that can be tested with automated test cases, can be tested using model-based testing, too.
- fMBT also allow inspecting the state of the SUT using preconditions analysis
This enables, for instance, generating tests that look which buttons are on the display, choose a test step that clicks one of them, and then look again what could be the next test step.
The value of the Approach
The other way around, model-based testing is not beneficial, if:
- the system under test is stateless
- there are no different combinations (such as parameter values or environment configurations) that should be tested.
For a stateless systems it's enough to test every input only once. The order in which test steps are executed and inputs sent does not matter.
There is no reason to use model-based testing tools for generating many test step sequences in this case.
fMBT
The fMBT (free Model-Based Testing) tool automatically generates and executes tests.
fMBT is targeted for a wide audience, including application, system and service developers, integrators and quality assurance teams. The system under test can be anything from device drivers to operating systems, to mobile devices and distributed services.
This Project Provides: A set of tools for fully automatic test generation and execution, and a collection of utilities and libraries that support high level of test automation.
This includes Python libraries for multiplatform GUI testing, a tool for editing, debugging, running and recording GUI test scripts, and a tool for editing and visually analyzing test models and generated tests.
fMBT Internal Architecture
What they do?
Model Component
Specifies which actions (test steps) are enabled.
Heuristic Component
Makes decision which action should be executed next.
Test Engine Component
Test generation & execution mainloop. Most important connections for the test engine are the heuristic and the adapter components.
1. Check that tags in the current state are ok (Tagged states are verified when entered by executing adapter blocks of all tags in the state).
2. Loop until meeting an end condition:
2.1. Observe outputs from the adapter as long as there are new observations. Update model, check tags and end conditions after each observation.
2.2 Ask heuristics to suggest an input action and the adapter to execute it. If the adapter reported an unknown action or an illegal action, the test fail. If it reported an allowed action, update model state, check tags and end conditions.
Adapter Component
Adapters are responsible for translation between actions in test models and what actually happens in systems under test (SUT) and test environments.
Adapters have two responsibilities in the fMBT tool:
1. Read an input action suggested by the test engine, try to execute it, and finally report the result back to the engine in the form of any (input or output) action, or a special "unknown response" action.
2. Make observations on SUT and the test environment, and report the results to the test engine in the form of output actions (precondition analysis).
Local & Remote Adapter
Local adapters are adapters which implement the fMBT adapter API, and are instantiated inside the process that also generates the test, that is fMBT.
Remote adapters are adapters that implement the adapter protocol. They are running on a separate process, but may or may not run on the same host. There is always at least one local adapter in a test run. The name and the parameters of the adapter are specified in a test configuration file.
fMBT Test Configuration File
Configuration file tells fMBT:
- how to load model and adapter,
- which test generation heuristics will be used,
- how to measure coverage,
- when to end test generation and execution, and
- what to do on different verdicts.
More details on the example configuration, complete reference on the fMBT Configuration section

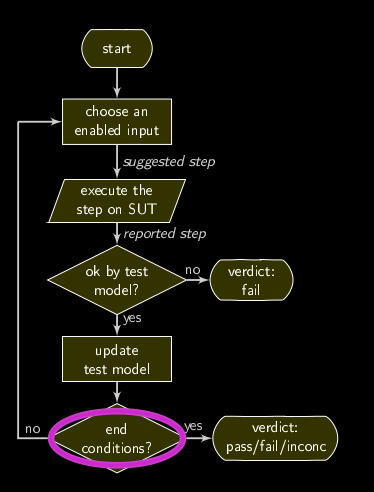

Test generation & execution
Load test conguration, most importantly model, adapter and end conditions.
Test generation & execution
Load test conguration, most importantly model, adapter and end conditions.
Loop:
- choose one of possible test steps
- try executing it in an adapter
- validate executed test step reported by the adapter
- execute the test step in the test model
until any of the end conditions is met
AAL/Python
input " name " {
guard { code: return true if the test step can be executed }
adapter { code: interact with the system under test }
body { code: update variables after successful execution }
}
fMBT transforms AAL/Python into a labelled transition system (LTS) before deciding which test step it should choose to be executed next.
The LTS that would correspond to complete AAL/Python model is often infinite or too big to be generated completely. Therefore fMBT generates LTSes only up to the depth that is necessary for making the decision.
"The current state of the AAL" means values of all variables that are initialized in the initial_state block of the AAL definition file.

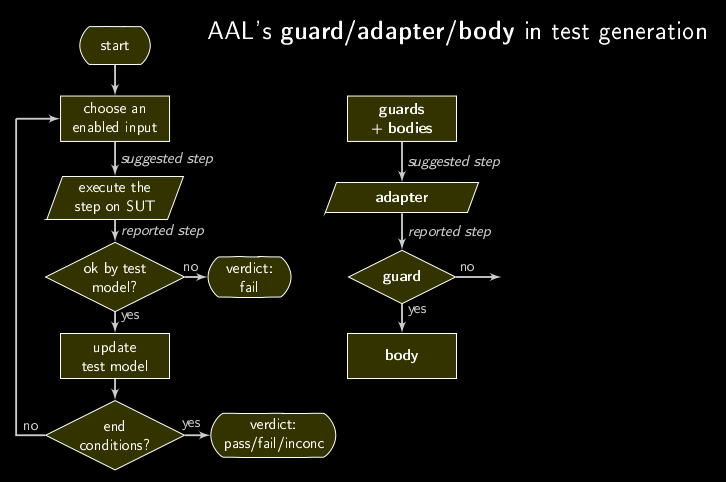

AAL/Python in Test Generation
4 - fMBT Usage Example: Android UI (With Demo)
Description
regressiontest.conf
Prerequisites
Generating tests
Running a test
Live Demo
Description

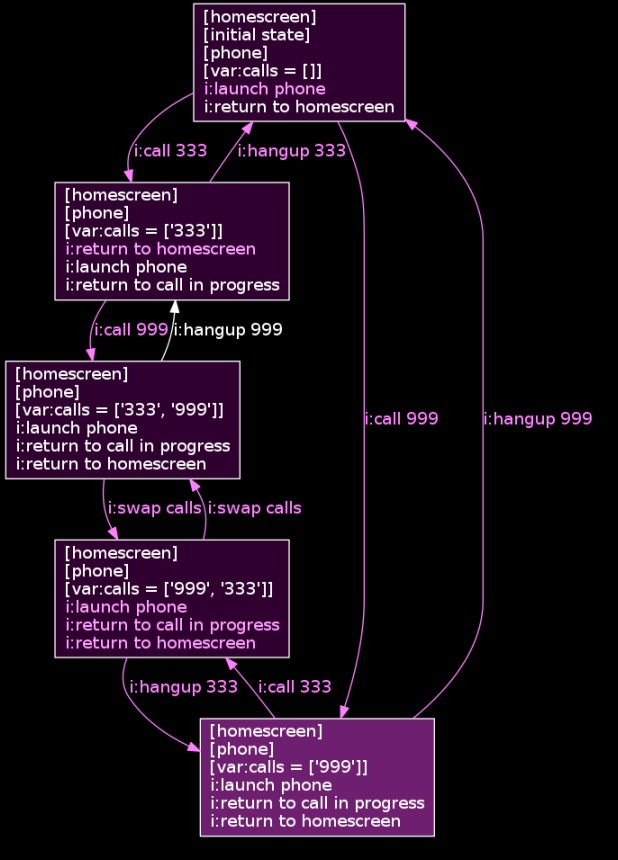

Phone.aal enables testing
-
activating and backgrounding the phone application.
-
calling, two simultaneous calls at max.
-
putting calls on hold, switching between two calls.
-
hanging up calls in any order.
regressiontest.conf
model = aal_remote(<command>)
uses a child process that executes <command> as a model. Communicates with the child using fMBT AAL protocol
adapter = aal
the adapter is implemented by the same AAL instance that is configured as a model.
heuristic = lookahead(6)
lookahead will simulate execution of all possible paths of length 6
coverage = perm(2)
measures the percentage of coverage of all permutations of 2 actions in the test model.
Prerequisites
In order to use fMBT for Android testing, you will need three things:
fMBT (of course), obtained from the GitHub Page
Android SDK, obtained from the Android Developer Website
Android Emulator (Nexus S - Android 4.4.2 with SD Card emulation enabled)
If you use an Android device, you will need to enable USB debugging in Settings.
Your Android environment is ready when you can login to the device or emulator with adb shell.
Generating tests
In the example, fMBT generates tests from test steps defined in phone.aal according to test configuration in regressiontest.conf
The configuration aims to cover all possible input pairs (perm(2)). You can change this, for instance, to cover five unique input sequences from launching the phone application to returning to the homescreen, replace coverage = ... line in regressiontest.conf with
coverage = uinputs(from 'i:launch.*' to 'i:return.*')
pass = coverage(5)
Tip: d.enableVisualLog(...) in phone.aal starts logging whatever happens in the Device instance. The log is written to devicelog.html.
Running the test
Run the test in fmbt-androidtest example:
-
Start Nexus-S emulator in Android SDK.
- Make sure adb shell connects to it.
- Make sure Nexus-S is in the homescreen and there are no calls in progress.
- Execute fmbt regressiontest.conf in the fmbt-androidtest directory.
Once the test run is over, open devicelog.html with your browser to see the details in each executed test step and verified states.
Live Demo
5 - Conclusions
In the future we expect to see model-based testing expanding from focusing mostly on functional testing into other kinds of testing, such as security testing, performance testing, load testing, robustness testing and GUI testing.
Three major trends in the software industry seem to be conspiring to make the increased adoption of model-based testing inevitable:
- The increasing level of complexity in modern software
- The increasing demand for software that is less buggy, more secure, and more
robust.
- The increasing use of models in software development.
4.1 References
Books & Papers:
Mark Utting - Practical Model-Based Testing - A tools Approach
Model-Based Testing of Reactive Systems - Advanced Lectures
Jonathan Jacky - Model-Based Software Testing and Analysis with C#
Mark Timmer - Model Based Testing (Formal methods & Tools)
External References:
4.2 Acknowledgement
Antti Kervinen, for the support and the presentation review. Thank you!!
Simone Piunno, Stefano Guandalini & the whole B! QA Staff for the support
My Dad, for conveying to me his passion for technology
My beloved girlfriend, for the patience and the coffee
