Message Passing Interface (MPI)

Hagiu Bogdan

Spac Valentin

What is MPI ?

A standardized and portable message-passing system designed by a group of researchers from academia and industry to function on a wide variety of parallel computers.

There are several well-tested and efficient implementations of MPI, including some that are free or in the public domain (implemented for Fortran, C, C++ and Java)

MPI - General Information

• Function start with MPI_* to differ from application;
• MPIhas defined is own data types to abstract machine dependent implementations;
• Two types of communication: point-to-point and collective communication

MPI - Geting started

• First step is to include the MPI header file
• MPI enviroment must be initialized with: MPI_INIT(init* argc, char*** argv);
• MPI_Finalize() used to clean up the MPI environment;

Point to point communication

• MPI_Send(
      void* data,
      int count,
      MPI_Datatype datatype,
      int destination,
      int tag,
      MPI_Comm communicator)

• Blocking send, that is the processor doesn't do anything unil the message is sent

Point to point communication

• MPI_Recv(
      void* data,
      int count,
      MPI_Datatype datatype,
      int source,
      int tag,
      MPI_Comm communicator,
      MPI_Status* status)

• Source, tag, communicator has to be correct for the message to be recived

• We can use wildcards in place of source and tag: MPI_ANY_SOURCE and MPI_ANY_TAG

Point to point communication

• For a receive operation, communication ends when the message is copied to the local variables

• For a send operation, communication is completed when the message is transferred to MPI for sending. (so that the buffer can be recycled)

Point to point communication

• A program can send a blocking send and the receiver may use non-blocking receive or vice versa

• Very similar function calls int MPI_Isend(void *buf, int count, MPI_Datatype dtype, int dest, int tag, MPI_Comm comm, MPI_Request *request);

Point to point communication

• We can send different data types at the same time – eg. Integers, floats, characters, doubles... using MPI_Pack. This function gives you an intermediate buffer which you will send.

• int MPI_Pack(void *inbuf, int incount, MPI_Datatype datatype, void *outbuf, int outsize, int *position, MPI_Comm comm)

• MPI_Send(buffer, count, MPI_PACKED, dest, tag, MPI_COMM_WORLD)

Collective Communication

• Works like point to point except you send to all other processors;

• MPI_Barrier(comm), blocks until each processor calls this. Synchronizes everyone.

• Broadcast operation MPI_Bcast copies the data value in one processor to others.

Types of Collective Communication

Collective Communication

• Many more functions to lift hard work from you.
• MPI_Allreduce, MPI_Gatherv, MPI_Scan, MPI_Reduce_Scatter ...
•  Check out the API documentation

Communicators

• Communicators group processors
• Basic communicator MPI_COMM_WORLD defined for all processors

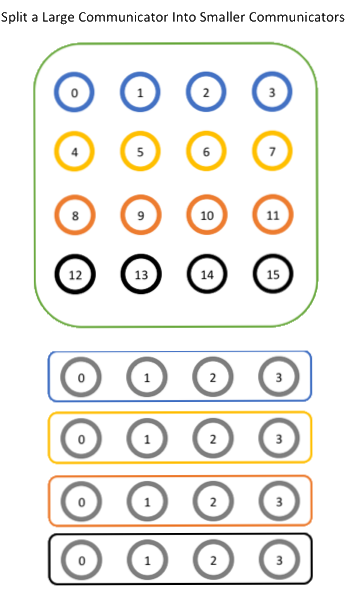

• You can create your own communicators to group processors. Thus you can send messages to only a subset of all processors

The end

\[^_^]/
